51385 - NMR 71(MIDDLE EAST)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-47 - MUD GUARD AND INSULATOR
▶
6-47 — MUD GUARD AND INSULATOR
(#51440) — 64 parça
◀

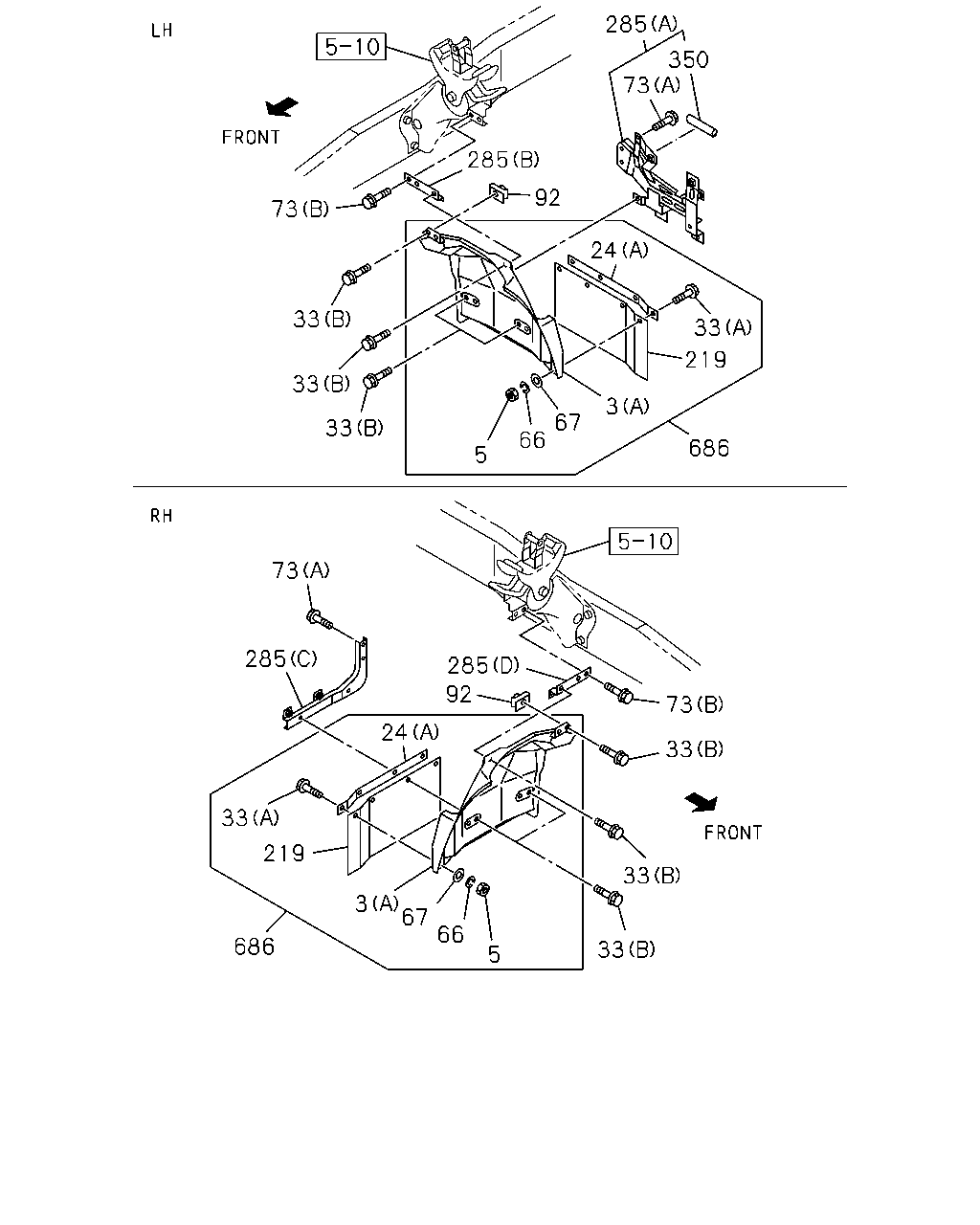

[647A] MUD GUARD FRONT (26 parça)

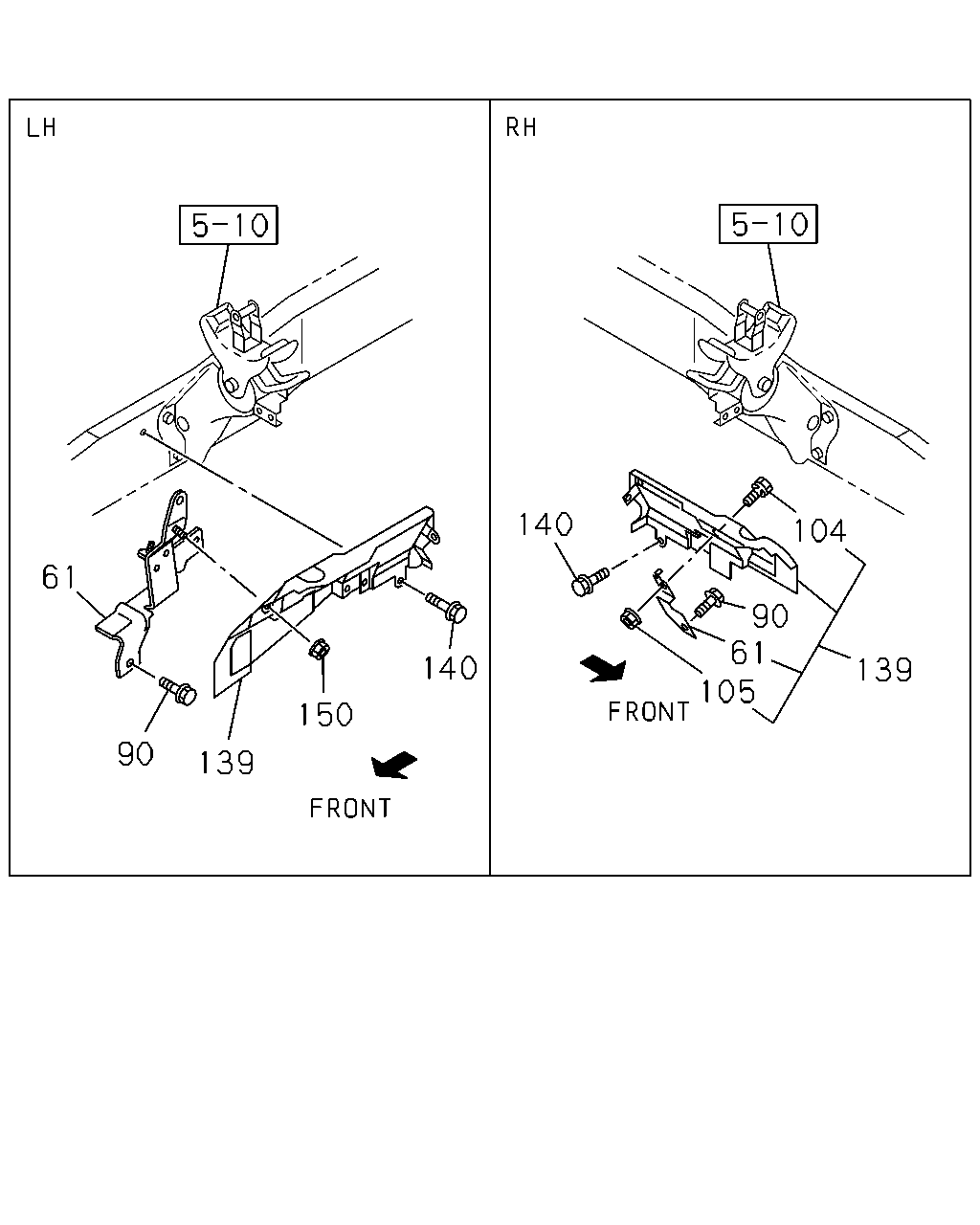

[647A] SIDE PANEL (12 parça)

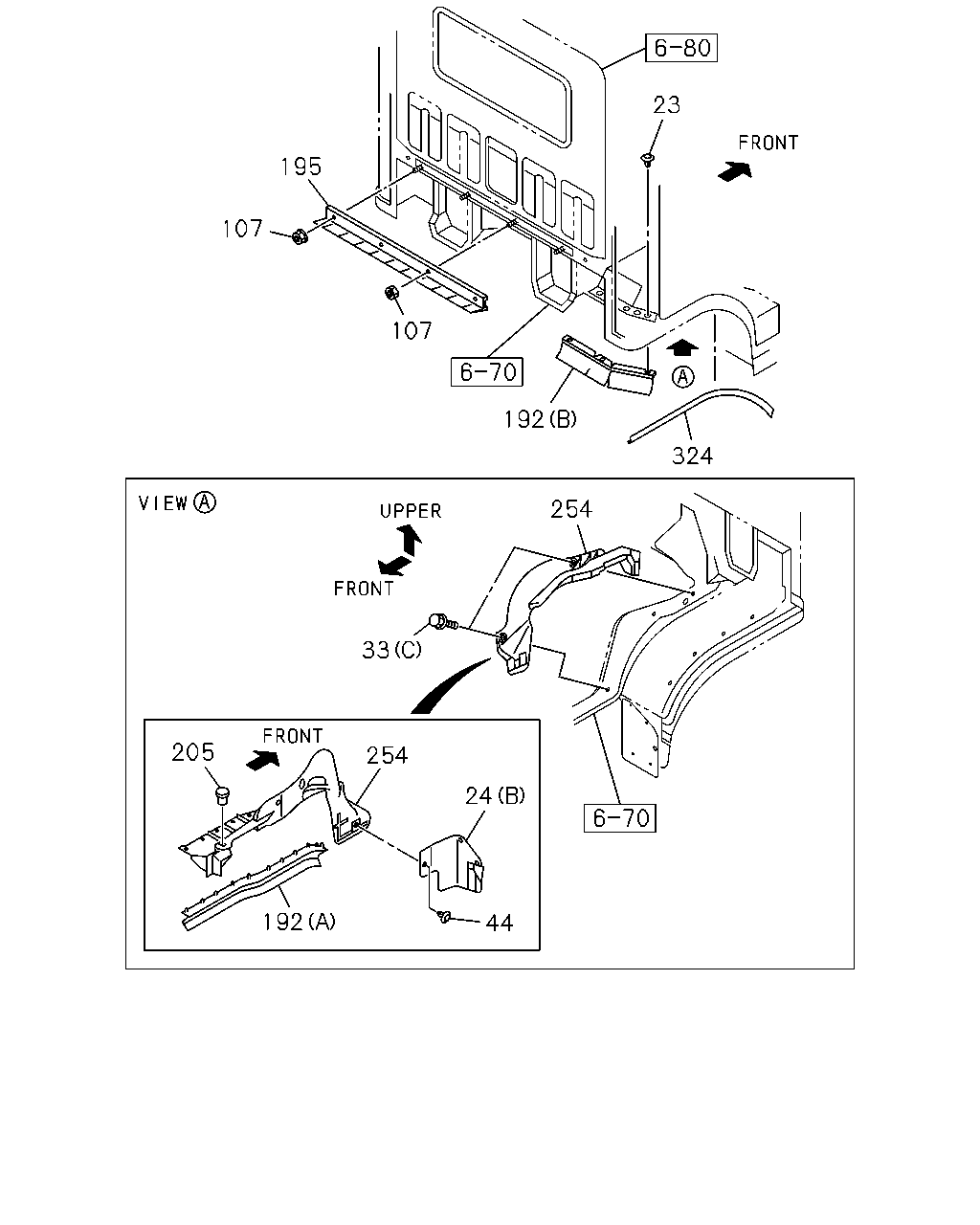

[647A] MUD COVER AND HEAT PROTECTOR (21 parça)

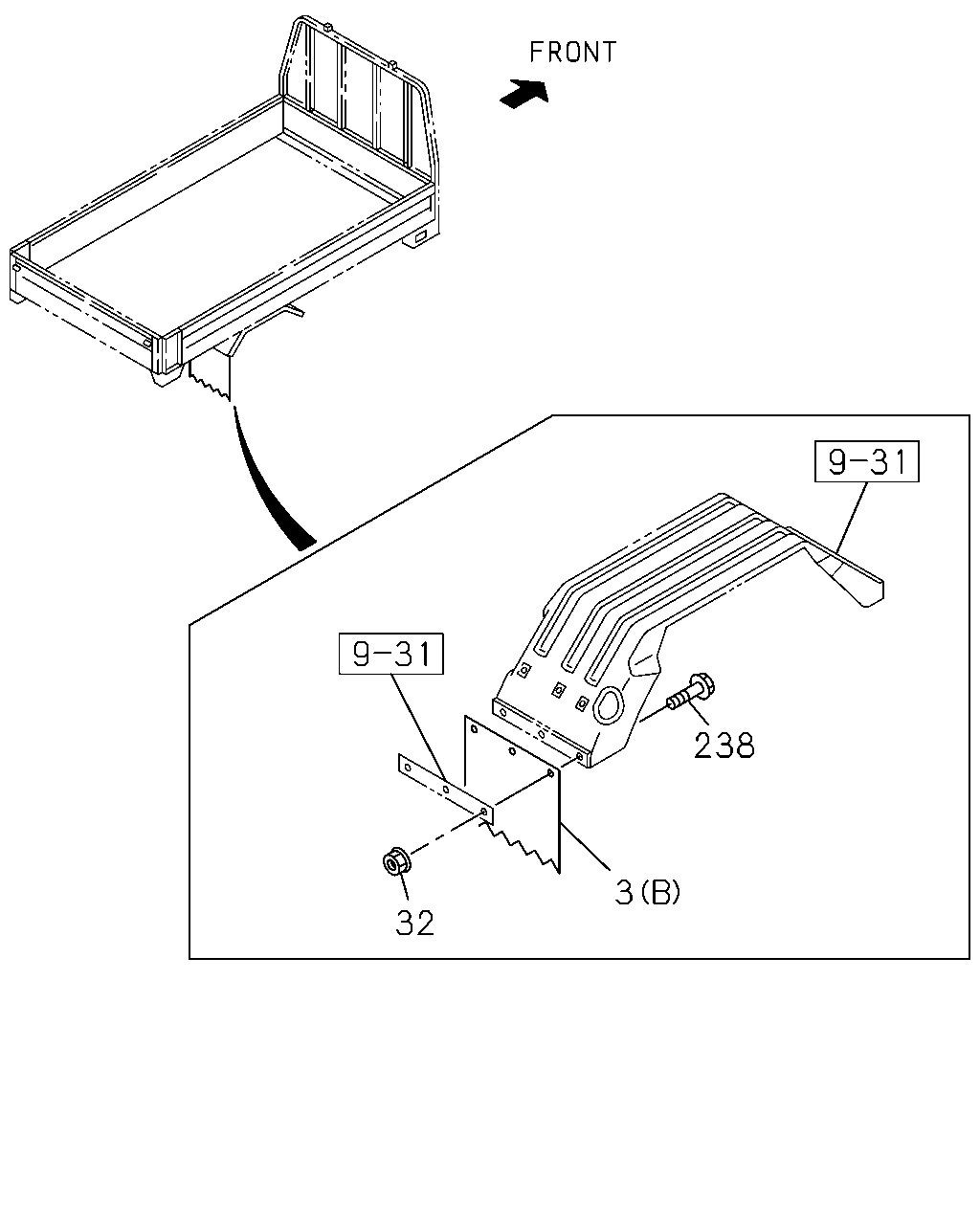

[647A] MUD GUARD REAR (5 parça)
▶
285
350
73
285
92
73
24
33
33
219
33
3
67
33
66
686
5
73
285
285
92
73
24
33
33
219
33
3
67
66
686
33
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
08.153 GUARD; MUD,RR
RR BODY FLAT BED<RS6> 08.214 (B) H=440 B=430
8-97214-177-1
02
1
0810-
3
08.153 GUARD; MUD,RR
(A)
8-98004-030-4
01
1
0810-
3
08.153 GUARD; MUD,RR
(A)
8-98055-620-2
01
1
0810-
5
08.155 NUT; FLAP RUBBER
03.330 M6
0-91110-506-0
08
1
0810-1209
5
08.155 NUT; FLAP RUBBER
M6
8-98227-380-0
08
1
1210-
24
08.155 PLATE; MUD COVER
(A)
8-98004-031-1
02
1
0810-
24
08.155 PLATE; MUD COVER
(B)
8-98069-060-0
02
1
0810-0910
24
08.155 PLATE; MUD COVER
(B)
8-98154-261-0
02
1
0911-
33
08.155 BOLT; MUD COVER
00.386 (A) M6X20 FLANGE
0-28050-620-0
08
1
0810-1209
33
08.155 BOLT; MUD COVER
(A) M6X16 FLANGE
8-98227-381-0
08
1
1210-
33
08.155 BOLT; MUD COVER
(B) M8X25 W/LK&PL WASHER
1-09030-093-0
08
1
0810-
33
08.155 BOLT; MUD COVER
(C) M6X16 FLANGE
8-98061-108-0
04
1
0810-
66
08.155 WASHER; LK
ID=6.1
0-91510-606-0
08
1
0810-1209
67
08.155 WASHER; PL
00.413 ID=6.4
0-91610-606-0
08
1
0810-1209
73
08.155 BOLT; MUD COVER BRKT
06.216 (B) M8X25 FLANGE
0-28650-825-0
04
1
0810-
73
08.155 BOLT; MUD COVER BRKT
00.029 (A) M10X25 FLANGE
0-28651-025-0
04
1
0810-
92
08.155 NUT; MUD COVER
M8 SPIRE NUT
8-98039-860-2
02
1
0810-
219
08.155 FLAP; MUD GUARD
8-98010-741-1
02
1
0810-
285
08.155 BRACKET; MUD COVER
(B)
8-98038-865-1
01
1
0810-
285
08.155 BRACKET; MUD COVER
(D)
8-98059-689-0
01
1
0810-
285
08.155 BRACKET; MUD COVER
(A)
8-98082-272-0
01
1
0810-
285
08.155 BRACKET; MUD COVER
(C)
8-98001-316-1
01
1
0810-0810
285
08.155 BRACKET; MUD COVER
(C)
8-98131-079-0
01
1
0810-
350
08.155 PROTECTOR; EDGE,MUD COVER
03.008 L=80
5-22439-006-0
01
1
0810-
686
08.155 FLAP ASM; MUD
8-98001-302-6
01
1
0810-
686
08.155 FLAP ASM; MUD
8-98055-455-4
01
1
0810-
140
104
61
90
61
105
140
139
150
90
139
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
61
08.155 BRACKET; COVER
8-98106-611-0
01
1
0810-
61
08.155 BRACKET; COVER
8-98122-541-2
01
1
0810-
90
08.153 BOLT; COVER
06.216 M8X25 FLANGE
0-28650-825-0
01
1
0810-
90
08.153 BOLT; COVER
03.403 M8X30 FLANGE
0-28650-830-0
01
1
0810-
104
08.214 BOLT; BRKT
08.155 M8X25 W/LK&PL WASHER
1-09030-093-0
01
1
0810-
105
08.155 NUT; BRKT
01.062 M8 FLANGE
0-91180-108-0
01
1
0810-
139
08.153 PANEL; SIDE
8-98106-388-1
01
1
0810-1105
139
08.153 PANEL; SIDE
8-98173-018-0
01
1
1106-
139
08.153 PANEL; SIDE
8-98117-884-0
01
1
0810-1105
139
08.153 PANEL; SIDE
8-98171-049-0
01
1
1106-
140
08.155 BOLT; SIDE PANEL
M8X35 W/LK&PL WASHER
1-09030-094-0
02
1
0810-
150
08.155 NUT; SIDE PANEL
01.840 M8 W/DISHED WASHER
8-97329-625-0
01
1
0810-
23
195
107
107
192
324
254
33
205
254
24
192
44
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
23
08.154 FASTENER; MUD COVER
16.320 OD=8.3
8-97997-832-0
06
1
0810-
24
08.155 PLATE; MUD COVER
(A)
8-98004-031-1
02
1
0810-
24
08.155 PLATE; MUD COVER
(B)
8-98069-060-0
02
1
0810-0910
24
08.155 PLATE; MUD COVER
(B)
8-98154-261-0
02
1
0911-
33
08.155 BOLT; MUD COVER
00.386 (A) M6X20 FLANGE
0-28050-620-0
08
1
0810-1209
33
08.155 BOLT; MUD COVER
(A) M6X16 FLANGE
8-98227-381-0
08
1
1210-
33
08.155 BOLT; MUD COVER
(B) M8X25 W/LK&PL WASHER
1-09030-093-0
08
1
0810-
33
08.155 BOLT; MUD COVER
(C) M6X16 FLANGE
8-98061-108-0
04
1
0810-
44
08.154 CLIP; ANCHOR
08.155 OD=16 L=11
1-76378-155-0
06
1
0810-
107
08.214 NUT; HEAT PROTECTOR
RR BODY FLAT BED<RS6> EXC. DUMP CHASSIS(V4D) 03.417 M6 FLANGE
8-94279-514-0
04
1
0810-
107
08.214 NUT; HEAT PROTECTOR
DUMP CHASSIS(V4D) 03.417 M6 FLANGE
8-94279-514-0
04
1
0810-
192
08.153 SEAL; MUD COVER
(A)
8-98022-755-1
01
1
0810-
192
08.153 SEAL; MUD COVER
(A)
8-98022-756-1
01
1
0810-
192
08.153 SEAL; MUD COVER
(B)
8-98022-785-2
02
1
0810-1106
192
08.153 SEAL; MUD COVER
(B)
8-98192-388-0
02
1
1107-
195
03.602 PROTECTOR; HEAT
RR BODY FLAT BED<RS6> EXC. DUMP CHASSIS(V4D)
8-98077-647-0
01
1
0810-
195
03.602 PROTECTOR; HEAT
DUMP CHASSIS(V4D)
8-98077-647-0
01
1
0810-
205
08.155 FASTENER; MUD COVER
12.934 D=5.8 SCREW & GROMMET NYLON
8-94242-150-0
02
1
0810-
254
08.153 COVER; MUD,VALANCE
8-98115-263-0
01
1
0810-
254
08.153 COVER; MUD,VALANCE
8-98115-264-0
01
1
0810-
324
08.155 PROTECTOR; FRT FENDER
8-98022-786-2
02
1
0810-
238
3
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
08.153 GUARD; MUD,RR
RR BODY FLAT BED<RS6> 08.214 (B) H=440 B=430
8-97214-177-1
02
1
0810-
3
08.153 GUARD; MUD,RR
(A)
8-98004-030-4
01
1
0810-
3
08.153 GUARD; MUD,RR
(A)
8-98055-620-2
01
1
0810-
32
08.155 NUT; MUD GUARD
RR BODY FLAT BED<RS6> 08.212 M6 FLANGE
8-97065-431-0
06
1
0810-
238
08.153 SCREW; MUD GUARD
RR BODY FLAT BED<RS6> 17.208 M6X16 FLANGE
8-98098-459-0
06
1
0810-
