◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51385 - NMR 71(MIDDLE EAST) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-03 - RADIATOR GRILLE ▶
6-03 — RADIATOR GRILLE (#51430) — 38 parça

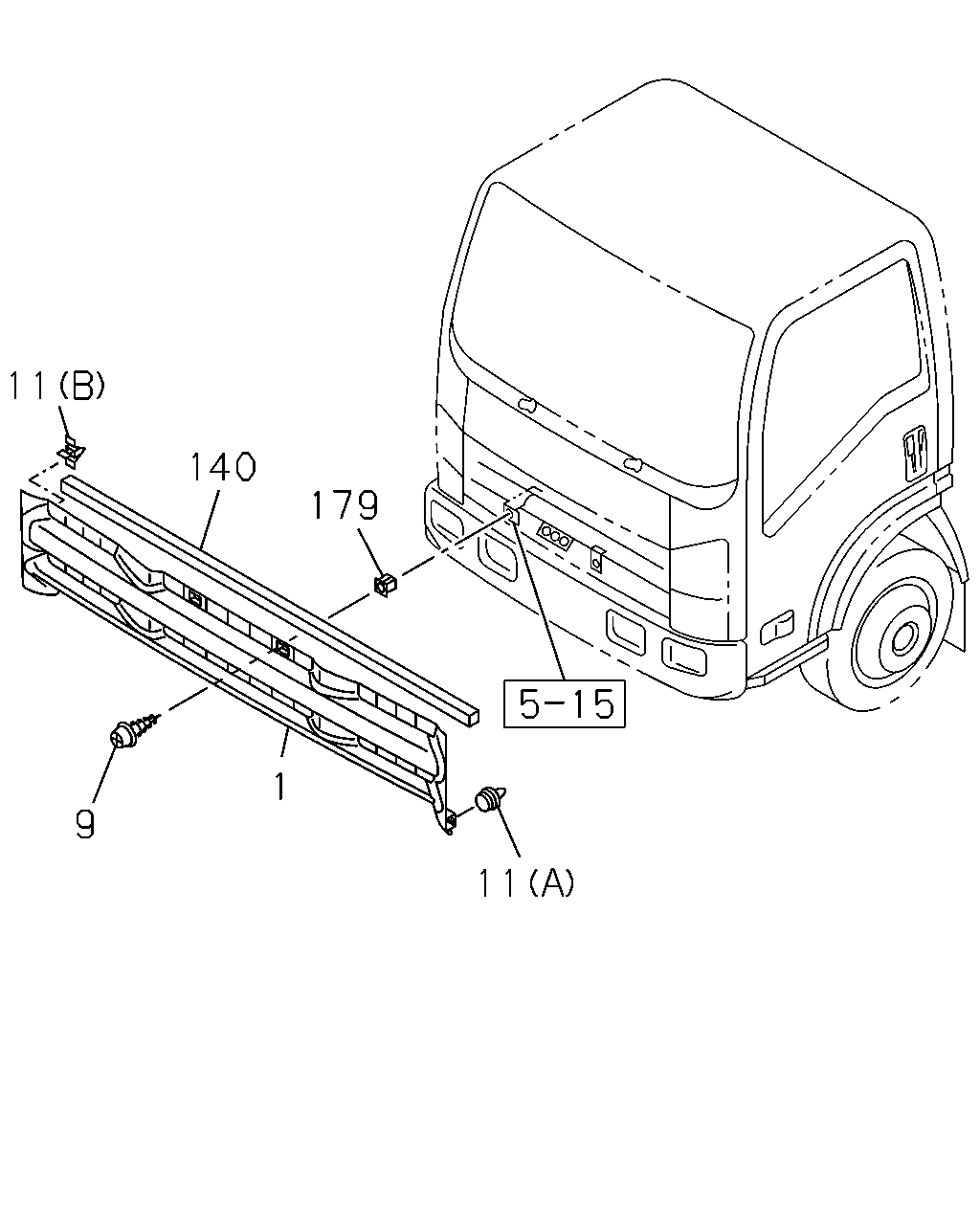

çizim 98534
11 140 179 1 11 9
BalonParca AdiParca NoAdetTipApplied Date
1 01.266 GRILLE; RAD
BODY COLOR ARC WHITE(729) WHITE 		8-97407-291-3 01 1 0810-1001
1 01.266 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97407-291-3 01 1 1002-
1 01.266 GRILLE; RAD
BODY COLOR QUICK SILVER MET(998) LIGHT GRAY 		8-97407-290-3 01 1 0810-1001
1 01.266 GRILLE; RAD
BODY COLOR QUICK SILVER MET(998) EXC. RADIATOR GRILLE NON PAINT<7LB> LIGHT GRAY 		8-97407-290-3 01 1 1002-
1 01.266 GRILLE; RAD
BODY COLOR TRANS BLUE(999) BLUE 		8-97407-289-3 01 1 0810-1001
1 01.266 GRILLE; RAD
BODY COLOR TRANS BLUE(999) EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97407-289-3 01 1 1002-
1 01.266 GRILLE; RAD
BODY COLOR MARINE BLUE(890) BLUE 		8-97412-264-3 01 1 0811-1001
1 01.266 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97412-264-3 01 1 1002-
1 01.266 GRILLE; RAD
BODY COLOR EBONY BLACK(508) BLACK 		8-97417-567-3 01 1 0904-1001
1 01.266 GRILLE; RAD
BODY COLOR EBONY BLACK(508) EXC. RADIATOR GRILLE NON PAINT<7LB> BLACK 		8-97417-567-3 01 1 1002-
1 01.266 GRILLE; RAD
BODY COLOR AL GRAY(517) GRAY 		8-97412-257-3 01 1 0904-1001
1 01.266 GRILLE; RAD
BODY COLOR AL GRAY(517) EXC. RADIATOR GRILLE NON PAINT<7LB> GRAY 		8-97412-257-3 01 1 1002-
1 01.266 GRILLE; RAD
BODY COLOR POLAR WHITE(534) WHITE 		8-97412-266-3 01 1 0904-1001
1 01.266 GRILLE; RAD
BODY COLOR POLAR WHITE(534) EXC. RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97412-266-3 01 1 1002-
1 01.266 GRILLE; RAD
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97412-258-3 01 1 0904-1001
1 01.266 GRILLE; RAD
BODY COLOR PURPLISH BLUE(668) EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97412-258-3 01 1 1002-
1 01.266 GRILLE; RAD
BODY COLOR GERANIUM RED(681) RED 		8-97409-645-3 01 1 0904-1001
1 01.266 GRILLE; RAD
BODY COLOR GERANIUM RED(681) EXC. RADIATOR GRILLE NON PAINT<7LB> RED 		8-97409-645-3 01 1 1002-
1 01.266 GRILLE; RAD
BODY COLOR DARK BLUE(695) BLUE 		8-97412-259-3 01 1 0904-1001
1 01.266 GRILLE; RAD
BODY COLOR DARK BLUE(695) EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97412-259-3 01 1 1002-
1 01.266 GRILLE; RAD
BODY COLOR CARDINAL RED(736) RED 		8-97412-260-3 01 1 0904-1001
1 01.266 GRILLE; RAD
BODY COLOR CARDINAL RED(736) EXC. RADIATOR GRILLE NON PAINT<7LB> RED 		8-97412-260-3 01 1 1002-
1 01.266 GRILLE; RAD
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97412-261-3 01 1 0904-1001
1 01.266 GRILLE; RAD
BODY COLOR WOODLAND GREEN(807) EXC. RADIATOR GRILLE NON PAINT<7LB> DARK GREEN 		8-97412-261-3 01 1 1002-
1 01.266 GRILLE; RAD
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97412-262-3 01 1 0904-1001
1 01.266 GRILLE; RAD
BODY COLOR WHEATLAND YELLOW(812) EXC. RADIATOR GRILLE NON PAINT<7LB> YELLOW 		8-97412-262-3 01 1 1002-
1 01.266 GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97412-263-3 01 1 0904-1001
1 01.266 GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) EXC. RADIATOR GRILLE NON PAINT<7LB> BEIGE 		8-97412-263-3 01 1 1002-
1 01.266 GRILLE; RAD
BODY COLOR HIGHWAY ORANGE(944) DARK YELLOW 		8-97412-265-3 01 1 0904-1001
1 01.266 GRILLE; RAD
BODY COLOR HIGHWAY ORANGE(944) EXC. RADIATOR GRILLE NON PAINT<7LB> DARK YELLOW 		8-97412-265-3 01 1 1002-
1 01.266 GRILLE; RAD
BODY COLOR SUNBELT GREEN(989) GREEN 		8-97412-267-3 01 1 0904-1001
1 01.266 GRILLE; RAD
BODY COLOR SUNBELT GREEN(989) EXC. RADIATOR GRILLE NON PAINT<7LB> GREEN 		8-97412-267-3 01 1 1002-
1 01.266 GRILLE; RAD
RADIATOR GRILLE NON PAINT<7LB> 		8-98025-465-3 01 1 1002-
9 01.269 SCREW; RAD GRILLE
M5X16 TAPPING W/PL WASHER 		0-74165-516-0 01 1 0810-
11 01.269 CLIP; RAD GRILLE
(A) 		8-97581-651-2 02 1 0810-
11 01.269 CLIP; RAD GRILLE
(B) 		8-98025-698-0 05 1 0810-
140 01.266 SEAL; RAD GRILLE 8-98054-279-0 01 1 0810-
179 01.269 RETAINER; GRILLE,RAD
02.726 D=7X7 L=7.5 		8-94291-927-0 01 1 0810-
