6-20 — SIDE PANEL AND STEP (#5143) — 178 parça

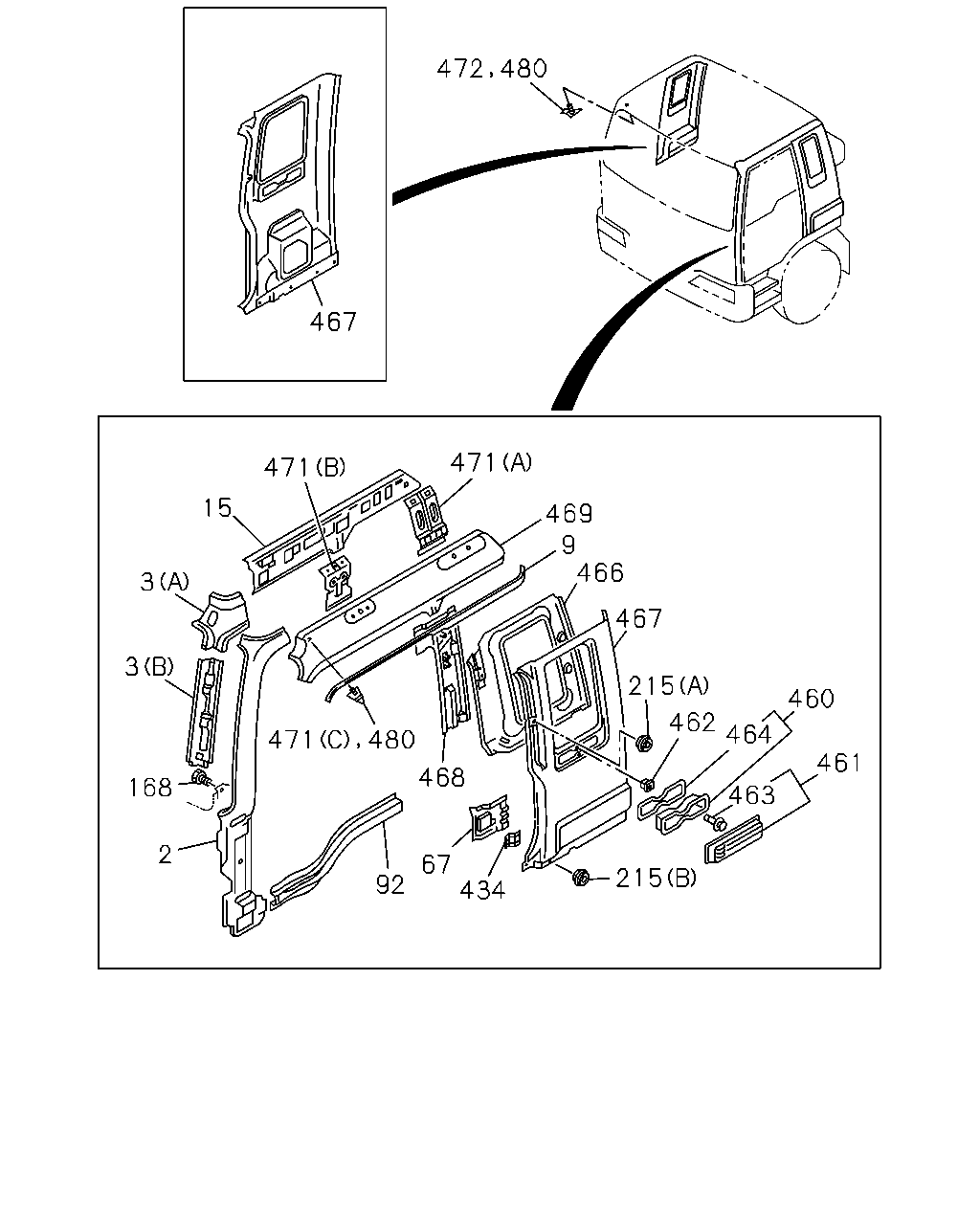

çizim 41229
467 471 471 15 469 9 466 3 467 3 215 460 462 464 461 468 168 463 2 67 434 215 92 472 480 471 480
BalonParca AdiParca NoAdetTipApplied Date
2 PILLAR; FRT 1-61281-156-4 01 1 9606-
2 PILLAR; FRT 1-61281-155-4 01 1 9606-
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-170-5 01 1 9606-
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-344-5 01 1 9606-
3 PANEL; CLOSING,FRT PILLAR
(A) 		1-61281-169-5 01 1 9606-
3 PANEL; CLOSING,FRT PILLAR
(B) 		1-61281-343-5 01 1 9606-
9 MOLDING; DRIP,CAB SIDE 1-61281-281-4 01 1 9606-9905
9 MOLDING; DRIP,CAB SIDE
EXC. HIGH ROOF<S2F> 		1-61281-281-4 01 1 9906-
9 MOLDING; DRIP,CAB SIDE 1-61281-280-4 01 1 9606-9905
9 MOLDING; DRIP,CAB SIDE
EXC. HIGH ROOF<S2F> 		1-61281-280-4 01 1 9906-
9 MOLDING; DRIP,CAB SIDE
HIGH ROOF<S2F> 		1-61270-792-2 01 1 9906-
9 MOLDING; DRIP,CAB SIDE
HIGH ROOF<S2F> 		1-61270-791-2 01 1 9906-
15 PANEL; CANT RAIL SIDE 1-61281-178-8 01 1 9606-
15 PANEL; CANT RAIL SIDE 1-61281-177-8 01 1 9606-
67 PANEL; INNER,RR PILLAR LWR 1-61281-195-5 01 1 9606-
67 PANEL; INNER,RR PILLAR LWR 1-61281-194-5 01 1 9606-
92 PANEL; SIDE SILL,CAB 1-61281-212-6 01 1 9606-9905
92 PANEL; SIDE SILL,CAB 1-61281-211-7 01 1 9606-9905
92 PANEL; SIDE SILL,CAB 1-61281-212-7 01 1 9906-
92 PANEL; SIDE SILL,CAB 1-61281-211-8 01 1 9906-
168 BOLT; BODY SIDE PANEL
M6X12 W/LK&PL WASHER 		0-50140-612-0 04 1 9606-9702
168 BOLT; BODY SIDE PANEL
M6X10 FLANGE 		0-28080-610-0 04 1 9703-
215 GROMMET; RR PILLAR
(A) OD=23.5 		1-09983-155-0 02 1 9606-9709
215 GROMMET; RR PILLAR
(A) OD=23.5 		1-09983-101-0 02 1 9710-
215 GROMMET; RR PILLAR
(B) OD=28.5 		8-94279-711-0 02 1 9606-
434 PATCH; ASSIST GRIP 1-61270-763-1 02 1 9606-9905
434 PATCH; ASSIST GRIP 1-61270-763-1 01 1 9906-
434 PATCH; ASSIST GRIP 1-61270-763-1 01 1 9906-
460 VENTILATOR; BODY SIDE 1-76378-292-3 02 1 9606-
461 ORNAMENT; VENTILATOR 1-76378-303-6 01 1 9606-
461 ORNAMENT; VENTILATOR 1-76378-302-6 01 1 9606-
462 GROMMET; VENTILATOR
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 08 1 9606-
463 PIN; ORNAMENT
D4.2X13 		1-09983-161-0 08 1 9606-
464 SEAL; VENTILATOR 1-76378-299-0 02 1 9606-
466 PANEL; INNER,BACK CORNER 1-61281-416-1 01 1 9606-
466 PANEL; INNER,BACK CORNER 1-61281-415-1 01 1 9606-
467 PANEL; OUTER,BACK CORNER 1-61281-204-2 01 1 9606-9905
467 PANEL; OUTER,BACK CORNER
V TYPE ENG<91L> BAGGAGE BOX CAB RR SIDE<TBM> 		1-61281-204-2 01 1 9906-
467 PANEL; OUTER,BACK CORNER
EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-61281-204-2 01 1 9906-
467 PANEL; OUTER,BACK CORNER 1-61281-203-2 01 1 9606-9905
467 PANEL; OUTER,BACK CORNER
L TYPE ENG<90L> BAGGAGE BOX CAB RR SIDE<TBM> 		1-61281-203-2 01 1 9906-
467 PANEL; OUTER,BACK CORNER
EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-61281-203-2 01 1 9906-
467 PANEL; OUTER,BACK CORNER
L TYPE ENG<90L> BAGGAGE BOX CAB RR SIDE<TBM> 		1-61270-773-1 01 1 9906-
467 PANEL; OUTER,BACK CORNER
V TYPE ENG<91L> BAGGAGE BOX CAB RR SIDE<TBM> 		1-61270-772-1 01 1 9906-
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-418-2 01 1 9606-
468 REINFORCEMENT; SEAT BELT ANCHOR 1-61281-417-2 01 1 9606-
469 ROOF; SIDE 1-61281-199-6 01 1 9606-
469 ROOF; SIDE 1-61281-198-6 01 1 9606-
471 PATCH; AIR DEFLECTOR
(A) 		1-61281-202-3 02 1 9606-9905
471 PATCH; AIR DEFLECTOR
(A) 		1-61281-202-3 01 1 9906-
471 PATCH; AIR DEFLECTOR
(A) 		1-61281-202-3 01 1 9906-
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-201-3 01 1 9606-
471 PATCH; AIR DEFLECTOR
(C) 		1-61281-233-3 01 1 9606-9905
471 PATCH; AIR DEFLECTOR
V TYPE ENG<91L> BAGGAGE BOX CAB RR SIDE<TBM> (C) 		1-61281-233-4 01 1 9906-
471 PATCH; AIR DEFLECTOR
EXC. BAGGAGE BOX CAB RR SIDE<TBM> (C) 		1-61281-233-4 01 1 9906-
471 PATCH; AIR DEFLECTOR
(B) 		1-61281-200-3 01 1 9606-
472 PATCH; STAY,ROOF 1-61281-232-3 01 1 9606-9905
472 PATCH; STAY,ROOF
L TYPE ENG<90L> BAGGAGE BOX CAB RR SIDE<TBM> 		1-61281-232-3 01 1 9906-9907
472 PATCH; STAY,ROOF
EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-61281-232-3 01 1 9906-9907
472 PATCH; STAY,ROOF
L TYPE ENG<90L> BAGGAGE BOX CAB RR SIDE<TBM> 		1-61270-943-1 01 1 9908-
472 PATCH; STAY,ROOF
EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-61270-943-1 01 1 9908-
480 REINFORCEMENT ASM; STAY ROOF
L TYPE ENG<90L> BAGGAGE BOX CAB RR SIDE<TBM> 		1-61281-233-4 01 1 9906-
480 REINFORCEMENT ASM; STAY ROOF
V TYPE ENG<91L> BAGGAGE BOX CAB RR SIDE<TBM> 		1-61281-232-3 01 1 9906-9907
480 REINFORCEMENT ASM; STAY ROOF
V TYPE ENG<91L> BAGGAGE BOX CAB RR SIDE<TBM> 		1-61270-943-1 01 1 9908-

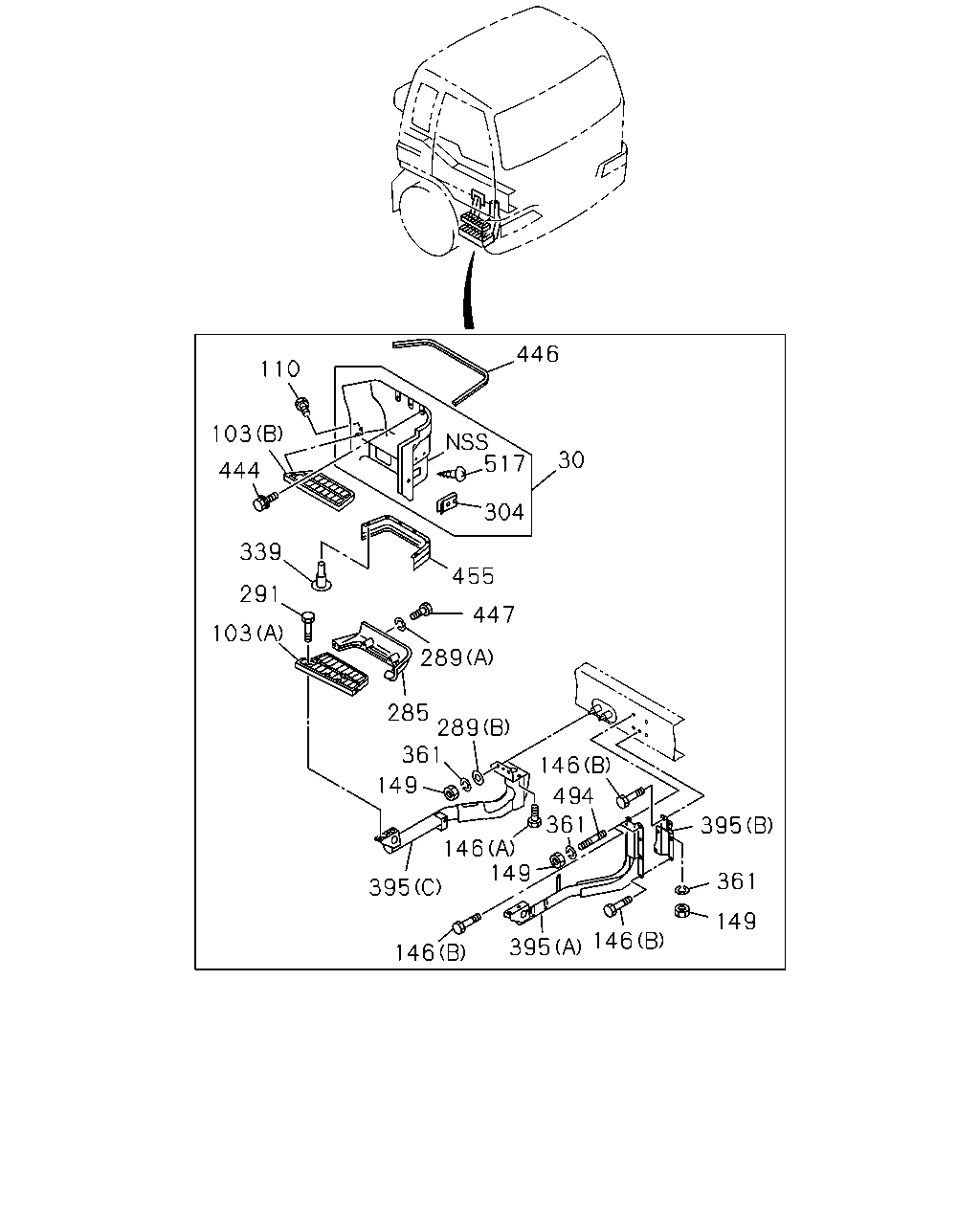

çizim 41649
446 110 103 517 30 444 304 339 455 291 447 103 289 285 289 361 146 149 494 361 395 146 149 361 395 149 146 395 146
BalonParca AdiParca NoAdetTipApplied Date
30 CLOSING; SIDE STEP 1-71907-465-0 01 1 9606-
30 CLOSING; SIDE STEP 1-71907-464-0 01 1 9606-
103 PLATE; STEP
(A) 		1-53414-090-2 01 1 9606-9608
103 PLATE; STEP
(A) 		1-53414-181-0 01 1 9609-
103 PLATE; STEP
(B) 		1-71907-249-1 01 1 9606-
103 PLATE; STEP
(A) 		1-53414-089-2 01 1 9606-9608
103 PLATE; STEP
(A) 		1-53414-180-0 01 1 9609-
103 PLATE; STEP
(B) 		1-71907-174-1 01 1 9606-
110 BOLT; 1ST STEP PLATE
M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 9606-
146 BOLT; STEP BRKT
(B) M10X30 FLANGE 		0-28081-030-0 07 1 9606-9606
146 BOLT; STEP BRKT
(B) M10X35 FLANGE 		0-28681-035-0 07 1 9607-9612
146 BOLT; STEP BRKT
(B) M10X35 FLANGE 		0-28681-035-0 09 1 9701-9905
146 BOLT; STEP BRKT
(A) M10X35 FLANGE 		0-28681-035-0 04 1 9906-
146 BOLT; STEP BRKT
(A) M10X35 FLANGE 		0-28081-035-0 02 1 9606-9606
146 BOLT; STEP BRKT
(A) M10X40 FLANGE 		0-28681-040-0 02 1 9607-9905
146 BOLT; STEP BRKT
(B) M10X30 FLANGE 		0-28681-030-0 05 1 9906-
149 NUT; STEP BRKT
M12 FLANGE 		0-91150-212-0 04 1 9606-
149 NUT; STEP BRKT
M10 		9-09110-510-0 05 1 9606-9606
149 NUT; STEP BRKT
M10 FLANGE 		0-91150-210-0 05 1 9607-9612
149 NUT; STEP BRKT
M10 FLANGE 		0-91150-210-0 03 1 9701-9905
149 NUT; STEP BRKT
M10 FLANGE 		0-91150-210-0 05 1 9906-
285 PLATE; STEP,1ST STEP 1-53414-101-2 01 1 9606-9606
285 PLATE; STEP,1ST STEP 1-53414-183-0 01 1 9607-9905
285 PLATE; STEP,1ST STEP
EXC. CAB UP +110MM<TGG> 		1-53414-183-0 01 1 9906-
285 PLATE; STEP,1ST STEP 1-53414-100-2 01 1 9606-9905
285 PLATE; STEP,1ST STEP
EXC. CAB UP +110MM<TGG> 		1-53414-100-2 01 1 9906-
285 PLATE; STEP,1ST STEP
CAB UP +110MM<TGG> 		1-53414-182-0 01 1 9906-
285 PLATE; STEP,1ST STEP
CAB UP +110MM<TGG> 		1-53414-047-2 01 1 9906-
289 WASHER; PL,STEP
(A) ID=6.4 OD=18 		9-09160-706-0 08 1 9606-
289 WASHER; PL,STEP
(B) ID=15 		9-09651-069-0 02 1 9606-
289 WASHER; PL,STEP
(B) ID=10.5 OD=18 		9-09160-510-0 02 1 9606-9612
291 BOLT; STEP PLATE
M8X30 FLANGE 		0-28080-830-0 08 1 9606-9606
291 BOLT; STEP PLATE
M8X35 FLANGE 		0-28680-835-0 08 1 9607-9905
291 BOLT; STEP PLATE
M8X30 FLANGE 		0-28680-830-0 08 1 9906-
304 NUT; SPIRE
M6 		1-09984-182-0 04 1 9606-
339 FASTENER; SIDE
ID=6X6 OD=8 		1-09987-194-0 12 1 9606-
361 WASHER; LK,STEP BOARD
ID=10.2 		9-09150-510-0 05 1 9606-9606
361 WASHER; LK,STEP BOARD
ID=10.2 		9-09150-510-0 03 1 9607-9612
395 BRACKET; SIDE STEP
(B) 		1-53414-097-2 01 1 9606-9907
395 BRACKET; SIDE STEP
6WA1 TC-C(55L),6WA1 TC-S(56L),10PE1N(61L) (B) 		1-53414-097-2 01 1 9908-
395 BRACKET; SIDE STEP
(C) 		1-53414-098-2 01 1 9606-9907
395 BRACKET; SIDE STEP
6WA1 TC-C(55L),6WA1 TC-S(56L),10PE1N(61L) (C) 		1-53414-098-2 01 1 9908-
395 BRACKET; SIDE STEP
(A) 		1-53414-144-0 01 1 9606-9711
395 BRACKET; SIDE STEP
(A) 		1-53414-166-0 01 1 9712-9905
395 BRACKET; SIDE STEP
EXC. CAB UP +110MM<TGG> (A) 		1-53414-166-0 01 1 9906-
395 BRACKET; SIDE STEP
CAB UP +110MM<TGG> (A) 		1-53414-220-0 01 1 9906-
395 BRACKET; SIDE STEP
6WG1 TC-C(72L) (B) 		1-53414-227-0 01 1 9908-
395 BRACKET; SIDE STEP
6WG1 TC-C(72L) (C) 		1-53414-228-0 01 1 9908-
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 9606-
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 9606-
447 BOLT; PANEL
M6X16 FLANGE 		0-28080-616-0 08 1 9606-
455 PROTECTOR; STEP 1-71907-179-1 01 1 9606-9707
455 PROTECTOR; STEP
EXC. CAB UP +50MM<W60> 		1-71907-179-1 01 1 9708-9905
455 PROTECTOR; STEP
EXC. CAB UP +110MM<TGG> 		1-71907-179-1 01 1 9906-
455 PROTECTOR; STEP 1-71907-178-1 01 1 9606-9707
455 PROTECTOR; STEP
EXC. CAB UP +50MM<W60> 		1-71907-178-1 01 1 9708-9905
455 PROTECTOR; STEP
EXC. CAB UP +110MM<TGG> 		1-71907-178-1 01 1 9906-
455 PROTECTOR; STEP
CAB UP +50MM<W60> 		1-71907-187-1 01 1 9708-9905
455 PROTECTOR; STEP
CAB UP +110MM<TGG> 		1-71907-187-1 01 1 9906-
455 PROTECTOR; STEP
CAB UP +50MM<W60> 		1-71907-186-1 01 1 9708-9905
455 PROTECTOR; STEP
CAB UP +110MM<TGG> 		1-71907-186-1 01 1 9906-
494 STUD; BRKT
M12X35,M14X45 L=100 		1-09029-075-0 02 1 9606-
494 STUD; BRKT
M10X41 L=55 		8-94107-726-0 02 1 9606-9612
494 STUD; BRKT
M10X41 L=55 		8-94107-726-0 02 1 9906-
517 SCREW; TAP
M5X10 TAPPING W/PL WASHER 		0-74100-510-0 04 1 9606-
çizim 42235
30 446 110 103 517 304 444 455 291 339 447 103 289 285 149 289 494 404 430
BalonParca AdiParca NoAdetTipApplied Date
30 CLOSING; SIDE STEP 1-71907-465-0 01 1 9606-
30 CLOSING; SIDE STEP 1-71907-464-0 01 1 9606-
103 PLATE; STEP
(A) 		1-53414-090-2 01 1 9606-9608
103 PLATE; STEP
(A) 		1-53414-181-0 01 1 9609-
103 PLATE; STEP
(B) 		1-71907-249-1 01 1 9606-
103 PLATE; STEP
(A) 		1-53414-089-2 01 1 9606-9608
103 PLATE; STEP
(A) 		1-53414-180-0 01 1 9609-
103 PLATE; STEP
(B) 		1-71907-174-1 01 1 9606-
110 BOLT; 1ST STEP PLATE
M8X20 W/LK&PL WASHER 		8-94279-216-0 08 1 9606-
149 NUT; STEP BRKT
M12 FLANGE 		0-91150-212-0 04 1 9606-
149 NUT; STEP BRKT
M10 		9-09110-510-0 05 1 9606-9606
149 NUT; STEP BRKT
M10 FLANGE 		0-91150-210-0 05 1 9607-9612
149 NUT; STEP BRKT
M10 FLANGE 		0-91150-210-0 03 1 9701-9905
149 NUT; STEP BRKT
M10 FLANGE 		0-91150-210-0 05 1 9906-
285 PLATE; STEP,1ST STEP 1-53414-101-2 01 1 9606-9606
285 PLATE; STEP,1ST STEP 1-53414-183-0 01 1 9607-9905
285 PLATE; STEP,1ST STEP
EXC. CAB UP +110MM<TGG> 		1-53414-183-0 01 1 9906-
285 PLATE; STEP,1ST STEP 1-53414-100-2 01 1 9606-9905
285 PLATE; STEP,1ST STEP
EXC. CAB UP +110MM<TGG> 		1-53414-100-2 01 1 9906-
285 PLATE; STEP,1ST STEP
CAB UP +110MM<TGG> 		1-53414-182-0 01 1 9906-
285 PLATE; STEP,1ST STEP
CAB UP +110MM<TGG> 		1-53414-047-2 01 1 9906-
289 WASHER; PL,STEP
(A) ID=6.4 OD=18 		9-09160-706-0 08 1 9606-
289 WASHER; PL,STEP
(B) ID=15 		9-09651-069-0 02 1 9606-
289 WASHER; PL,STEP
(B) ID=10.5 OD=18 		9-09160-510-0 02 1 9606-9612
291 BOLT; STEP PLATE
M8X30 FLANGE 		0-28080-830-0 08 1 9606-9606
291 BOLT; STEP PLATE
M8X35 FLANGE 		0-28680-835-0 08 1 9607-9905
291 BOLT; STEP PLATE
M8X30 FLANGE 		0-28680-830-0 08 1 9906-
304 NUT; SPIRE
M6 		1-09984-182-0 04 1 9606-
339 FASTENER; SIDE
ID=6X6 OD=8 		1-09987-194-0 12 1 9606-
404 BRACKET 1-53414-149-3 01 1 9606-
430 NUT; PANEL
M8 		9-09110-508-0 04 1 9606-9606
430 NUT; PANEL
M8 FLANGE 		0-91150-108-0 04 1 9607-
444 BOLT; CLOSING
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 9606-
446 FINISHER; STEP
ID=18 L=80 		1-71996-051-0 02 1 9606-
447 BOLT; PANEL
M6X16 FLANGE 		0-28080-616-0 08 1 9606-
455 PROTECTOR; STEP 1-71907-179-1 01 1 9606-9707
455 PROTECTOR; STEP
EXC. CAB UP +50MM<W60> 		1-71907-179-1 01 1 9708-9905
455 PROTECTOR; STEP
EXC. CAB UP +110MM<TGG> 		1-71907-179-1 01 1 9906-
455 PROTECTOR; STEP 1-71907-178-1 01 1 9606-9707
455 PROTECTOR; STEP
EXC. CAB UP +50MM<W60> 		1-71907-178-1 01 1 9708-9905
455 PROTECTOR; STEP
EXC. CAB UP +110MM<TGG> 		1-71907-178-1 01 1 9906-
455 PROTECTOR; STEP
CAB UP +50MM<W60> 		1-71907-187-1 01 1 9708-9905
455 PROTECTOR; STEP
CAB UP +110MM<TGG> 		1-71907-187-1 01 1 9906-
455 PROTECTOR; STEP
CAB UP +50MM<W60> 		1-71907-186-1 01 1 9708-9905
455 PROTECTOR; STEP
CAB UP +110MM<TGG> 		1-71907-186-1 01 1 9906-
494 STUD; BRKT
M12X35,M14X45 L=100 		1-09029-075-0 02 1 9606-
494 STUD; BRKT
M10X41 L=55 		8-94107-726-0 02 1 9606-9612
494 STUD; BRKT
M10X41 L=55 		8-94107-726-0 02 1 9906-
517 SCREW; TAP
M5X10 TAPPING W/PL WASHER 		0-74100-510-0 04 1 9606-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
