◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51385 - NMR 71(MIDDLE EAST) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-01 - FRONT BUMPER ▶
6-01 — FRONT BUMPER (#51429) — 26 parça

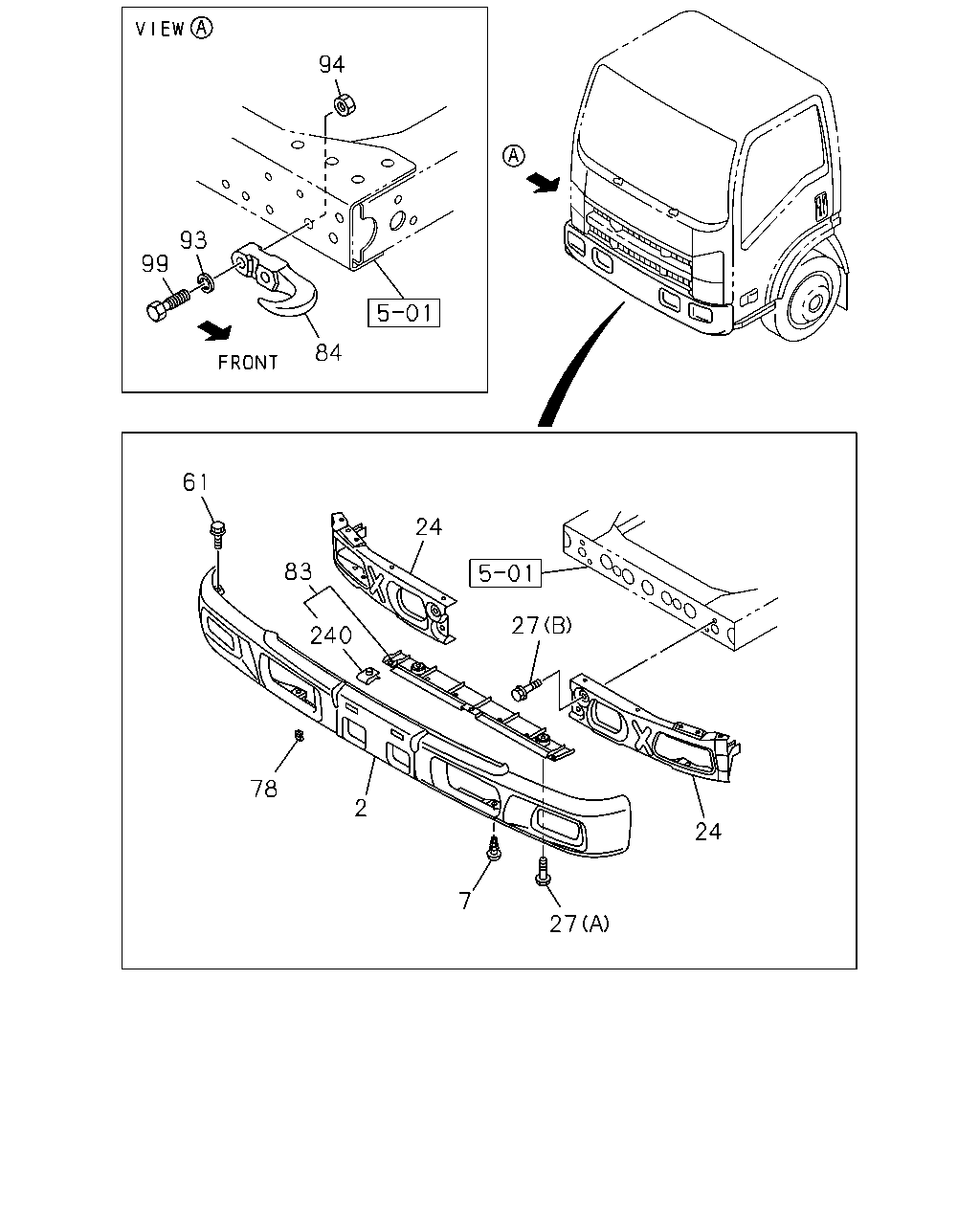

çizim 14817
94 93 99 84 61 24 83 27 240 78 2 24 7 27
BalonParca AdiParca NoAdetTipApplied Date
2 07.831 BUMPER; FRT,CENTER
FOG LAMP<T96> FRONT BUMPER PAINTED<VB5> PRIMER 		8-98055-077-2 01 1 0810-
2 07.831 BUMPER; FRT,CENTER
FOG LAMP<T96> FRT BUMPER DARK GRAY<EQ9> DARK GRAY 		8-97406-813-4 01 1 0810-
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9>,FRONT BUMPER PAINTED<VB5> WHITE 		8-97406-814-4 01 1 0810-
2 07.831 BUMPER; FRT,CENTER
BODY COLOR TRANS BLUE(999) FOG LAMP<T96> EXC. FRT BUMPER DARK GRAY<EQ9>,FRONT BUMPER PAINTED<VB5> BLUE 		8-97406-815-4 01 1 0810-
2 07.831 BUMPER; FRT,CENTER
FRONT BUMPER PAINTED<VB5> EXC. FOG LAMP<T96> PRIMER 		8-98055-078-2 01 1 0810-
2 07.831 BUMPER; FRT,CENTER
FRT BUMPER DARK GRAY<EQ9> EXC. FOG LAMP<T96> DARK GRAY 		8-97406-819-4 01 1 0810-
2 07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) EXC. FRT BUMPER DARK GRAY<EQ9>,FOG LAMP<T96>,FRONT BUMPER PAINTED<VB5> WHITE 		8-97406-820-4 01 1 0810-
2 07.831 BUMPER; FRT,CENTER
BODY COLOR TRANS BLUE(999) EXC. FRT BUMPER DARK GRAY<EQ9>,FOG LAMP<T96>,FRONT BUMPER PAINTED<VB5> BLUE 		8-97406-821-4 01 1 0810-
7 07.833 SCREW; FRT BUMPER
M6X20 TAPPING 		8-98082-975-0 03 1 0810-
24 07.869 BAR; FRT BUMPER 8-98025-211-4 01 1 0810-1211
24 07.869 BAR; FRT BUMPER 8-98025-211-4 01 1 1212-
24 07.869 BAR; FRT BUMPER 8-98025-212-4 01 1 0810-1211
24 07.869 BAR; FRT BUMPER 8-98025-212-4 01 1 1212-
27 07.833 BOLT; BUMPER TO BACK BAR
16.679 (A) M8X20 W/PL WASHER 		8-98031-841-0 02 1 0810-
27 07.833 BOLT; BUMPER TO BACK BAR
(B) M10X30 W/TORQUES 		8-98092-250-0 04 1 0810-
61 07.832 BOLT; BACK BAR
08.143 M6X16 W/LK&PL WASHER 		0-52010-616-0 10 1 0810-
78 07.874 NUT; SPIRE
M6 		8-98029-416-0 02 1 0810-
83 07.833 GUIDE; AIR,FRT BUMPER 8-98045-450-0 01 1 0810-
84 07.068 HOOK 8-97387-665-0 01 1 0810-
93 07.068 WASHER; LK,HOOK
06.174 ID=14.2 		0-91510-814-0 02 1 0810-
94 07.068 NUT; HOOK
07.833 M14 		0-91110-514-0 01 1 0810-
99 07.039 BOLT; HOOK
M14X50 		0-10856-450-0 02 1 0810-1001
99 07.039 BOLT; HOOK
M14X55 		0-10956-455-0 02 1 1002-1103
99 07.039 BOLT; HOOK
M14X55 		8-97301-262-0 02 1 1104-
240 07.833 NUT; AIR GUIDE,FRT BUMPER
FOG LAMP<T96> 16.550 		1-71996-035-1 03 1 0810-0810
240 07.833 NUT; AIR GUIDE,FRT BUMPER
16.550 		1-71996-035-1 03 1 0811-
