5-15 — CAB MOUNTING; CAB SIDE (#51426) — 107 parça

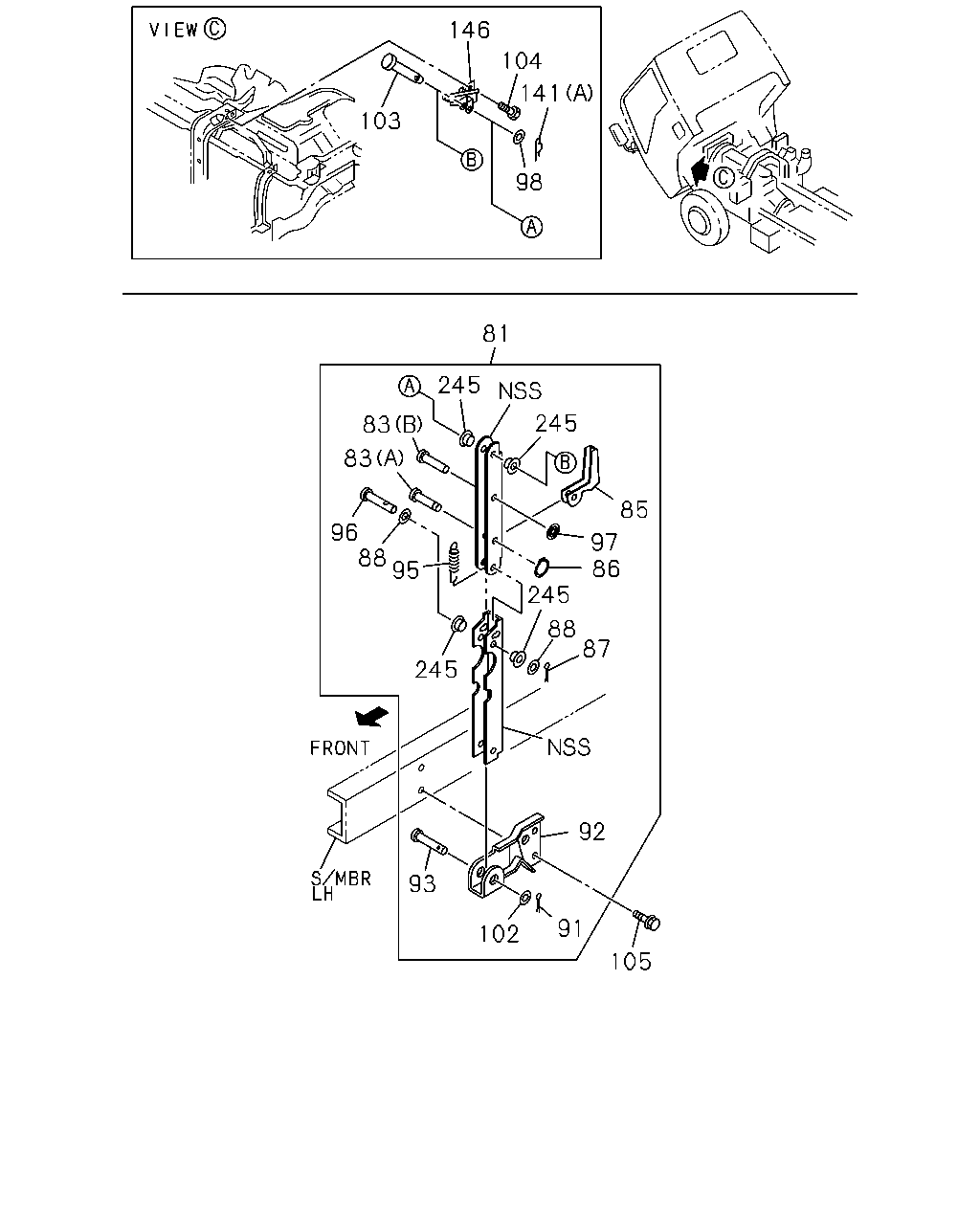

146 104 141 103 98 81 245 245 83 83 85 96 88 95 97 86 245 88 87 245 92 93 91 102 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
81	09.003 STAY ASM; CAB TILT	8-98123-311-0	01	1	0810-0901
81	09.003 STAY ASM; CAB TILT	8-98141-229-2	01	1	0902-0909
81	09.003 STAY ASM; CAB TILT MANUAL TILT CAB<RWZ>	8-98141-229-2	01	1	0910-
83	09.003 PIN; JOINT,CAB STAY (B)	8-97231-416-0	01	1	0810-0909
83	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> (B)	8-97231-416-0	01	1	0910-
83	09.003 PIN; JOINT,CAB STAY (A)	8-98122-493-0	01	1	0810-0909
83	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> (A)	8-98122-493-0	01	1	0910-
85	09.003 LEVER; LOCK,CAB STAY	8-97231-421-1	01	1	0810-0909
85	09.003 LEVER; LOCK,CAB STAY MANUAL TILT CAB<RWZ>	8-97231-421-1	01	1	0910-
86	09.003 RING; SNAP,LOCK LEVER,CAB STAY 16.585 ID=6	0-91805-506-0	01	1	0810-0909
86	09.003 RING; SNAP,LOCK LEVER,CAB STAY MANUAL TILT CAB<RWZ> 16.585 ID=6	0-91805-506-0	01	1	0910-
87	09.003 PIN; SPLIT,CAB STAY PIN 06.897 OD=2.8 L=20	0-81123-020-0	01	1	0810-0909
87	09.003 PIN; SPLIT,CAB STAY PIN MANUAL TILT CAB<RWZ> 06.897 OD=2.8 L=20	0-81123-020-0	01	1	0910-
88	09.003 WASHER; PL,CAB STAY PIN 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	02	1	0810-0909
88	09.003 WASHER; PL,CAB STAY PIN MANUAL TILT CAB<RWZ> 04.046 ID=10.5 OD=22 T=1.6	0-91610-610-0	02	1	0910-
91	09.003 PIN; SPLIT,CAB STAY 06.255 OD=3.7 L=20	0-81124-020-0	01	1	0810-0909
91	09.003 PIN; SPLIT,CAB STAY MANUAL TILT CAB<RWZ> 06.255 OD=3.7 L=20	0-81124-020-0	01	1	0910-
92	09.003 BRACKET; CAB STAY TO FRAME	8-98049-333-1	01	1	0810-0909
92	09.003 BRACKET; CAB STAY TO FRAME MANUAL TILT CAB<RWZ>	8-98049-333-1	01	1	0910-
93	09.003 PIN; CAB STAY	8-98122-498-0	01	1	0810-0909
93	09.003 PIN; CAB STAY MANUAL TILT CAB<RWZ>	8-98122-498-0	01	1	0910-
95	09.003 SPRING; RETURN,CAB STAY	8-94160-167-2	01	1	0810-0909
95	09.003 SPRING; RETURN,CAB STAY MANUAL TILT CAB<RWZ>	8-94160-167-2	01	1	0910-
96	09.003 PIN; JOINT	8-98123-513-0	01	1	0810-0909
96	09.003 PIN; JOINT MANUAL TILT CAB<RWZ>	8-98123-513-0	01	1	0910-
97	09.011 NUT; CAB STAY PIN	8-97231-415-0	01	1	0810-0909
97	09.011 NUT; CAB STAY PIN MANUAL TILT CAB<RWZ>	8-97231-415-0	01	1	0910-
98	09.003 WASHER; CAB STAY 09.008 ID=10.5 T=2.0	1-09985-183-0	01	1	0810-0909
98	09.003 WASHER; CAB STAY MANUAL TILT CAB<RWZ> 09.008 ID=10.5 T=2.0	1-09985-183-0	01	1	0910-
102	09.003 WASHER; PL,CAB STAY 02.812 ID=12.5 OD=26	0-91610-612-0	01	1	0810-0909
102	09.003 WASHER; PL,CAB STAY MANUAL TILT CAB<RWZ> 02.812 ID=12.5 OD=26	0-91610-612-0	01	1	0910-
103	09.003 PIN; JOINT,CAB STAY OD=10 L=48	1-09744-107-0	01	1	0810-0909
103	09.003 PIN; JOINT,CAB STAY MANUAL TILT CAB<RWZ> OD=10 L=48	1-09744-107-0	01	1	0910-
104	09.003 BOLT; CAB STAY BRKT 02.277 M8X20 FLANGE	0-28660-820-0	03	1	0810-0909
104	09.003 BOLT; CAB STAY BRKT MANUAL TILT CAB<RWZ> 02.277 M8X20 FLANGE	0-28660-820-0	03	1	0910-
105	09.003 BOLT; CAB STAY 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0810-0909
105	09.003 BOLT; CAB STAY MANUAL TILT CAB<RWZ> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0910-
141	09.005 PIN; SNAP,CAB LOCK ROD (A) L=32.6	1-09987-142-0	01	1	0810-0909
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (A) L=32.6	1-09987-142-0	01	1	0910-
141	09.005 PIN; SNAP,CAB LOCK ROD (B) L=25.3	8-98039-045-1	01	1	0810-0909
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (B) L=25.3	8-98039-045-1	01	1	0910-
141	09.005 PIN; SNAP,CAB LOCK ROD (C) L=34	8-98039-426-1	03	1	0810-0909
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (C) L=34	8-98039-426-1	03	1	0910-
146	09.003 BRACKET ASM; CAB STAY UPR	8-98001-523-1	01	1	0810-0909
146	09.003 BRACKET ASM; CAB STAY UPR MANUAL TILT CAB<RWZ>	8-98001-523-1	01	1	0910-
245	09.003 BUSHING; CAB STAY	1-62500-587-0	04	1	0810-0909
245	09.003 BUSHING; CAB STAY MANUAL TILT CAB<RWZ>	1-62500-587-0	04	1	0910-

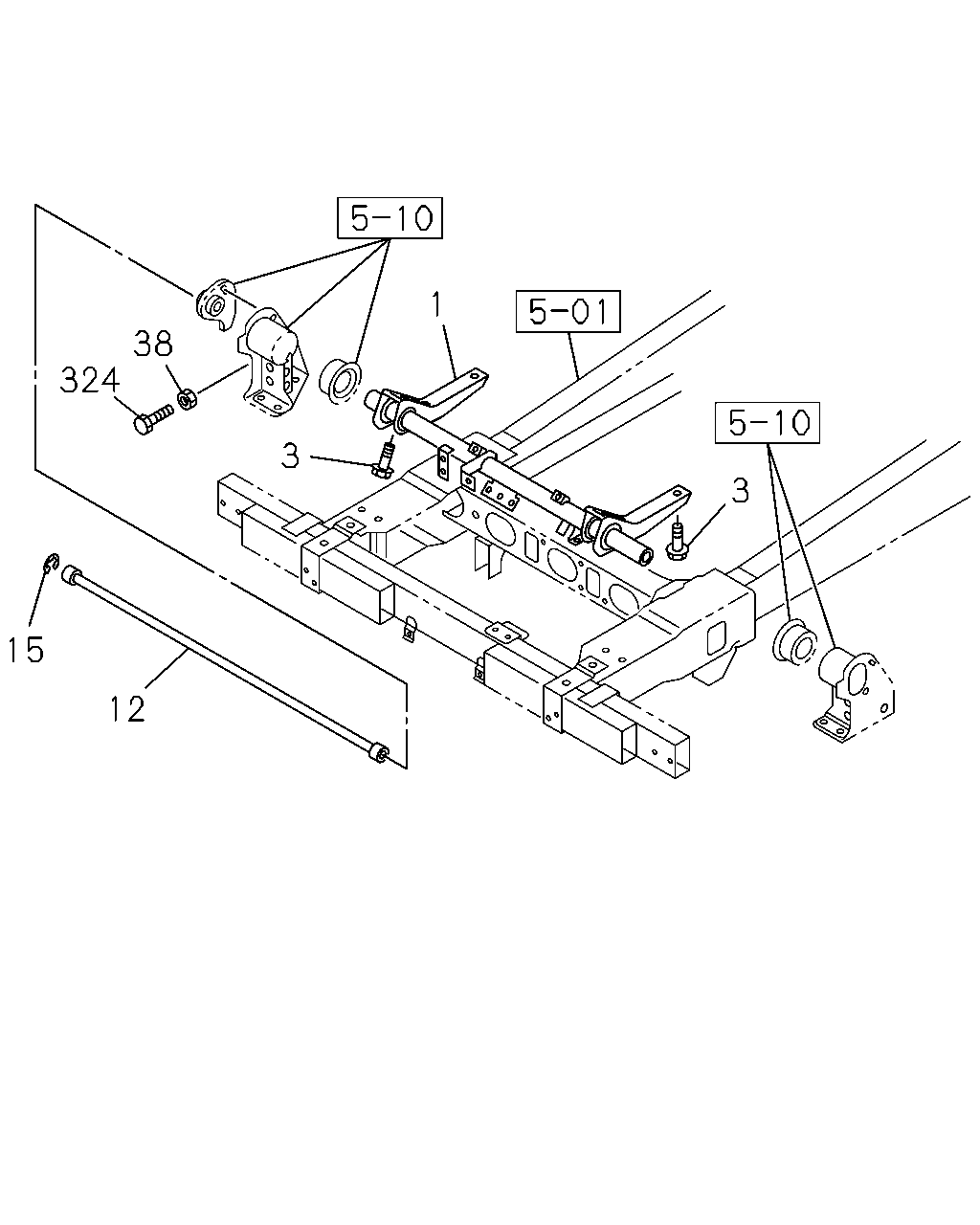

1 38 324 3 3 15 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	09.003 LEVER; TORSION BAR	8-98107-193-3	01	1	0810-0909
1	09.003 LEVER; TORSION BAR MANUAL TILT CAB<RWZ>	8-98107-193-3	01	1	0910-
3	09.003 BOLT; LEVER M12X37 W/LK&PL WASHER	8-97359-033-0	06	1	0810-0909
3	09.003 BOLT; LEVER MANUAL TILT CAB<RWZ> M12X37 W/LK&PL WASHER	8-97359-033-0	06	1	0910-
3	09.003 BOLT; LEVER EXC. MANUAL TILT CAB<RWZ> M12X37 W/LK&PL WASHER	8-97359-033-0	04	1	0910-
12	09.003 BAR; TORSION,UPR	8-98021-033-0	01	1	0810-0909
12	09.003 BAR; TORSION,UPR MANUAL TILT CAB<RWZ>	8-98021-033-0	01	1	0910-
15	09.003 RING; SNAP,TORSION BAR	8-97359-034-0	01	1	0810-0909
15	09.003 RING; SNAP,TORSION BAR MANUAL TILT CAB<RWZ>	8-97359-034-0	01	1	0910-
38	09.005 NUT; LK M14	8-98039-988-0	01	1	0810-0909
38	09.005 NUT; LK MANUAL TILT CAB<RWZ> M14	8-98039-988-0	01	1	0910-
324	09.003 BOLT; ADJUST M14X55	8-98004-319-1	01	1	0810-0909
324	09.003 BOLT; ADJUST MANUAL TILT CAB<RWZ> M14X55	8-98004-319-1	01	1	0910-

145 144

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	144	09.009 BRACKET ASM; CAB RR MTG EXC. MANUAL TILT CAB<RWZ>	8-97853-066-4	02	1	0910-
	145	09.008 BOLT; CAB RR MTG BRKT EXC. MANUAL TILT CAB<RWZ> 06.514 M8X24.5 W/LK&PL WASHER	8-98051-939-0	12	1	0910-

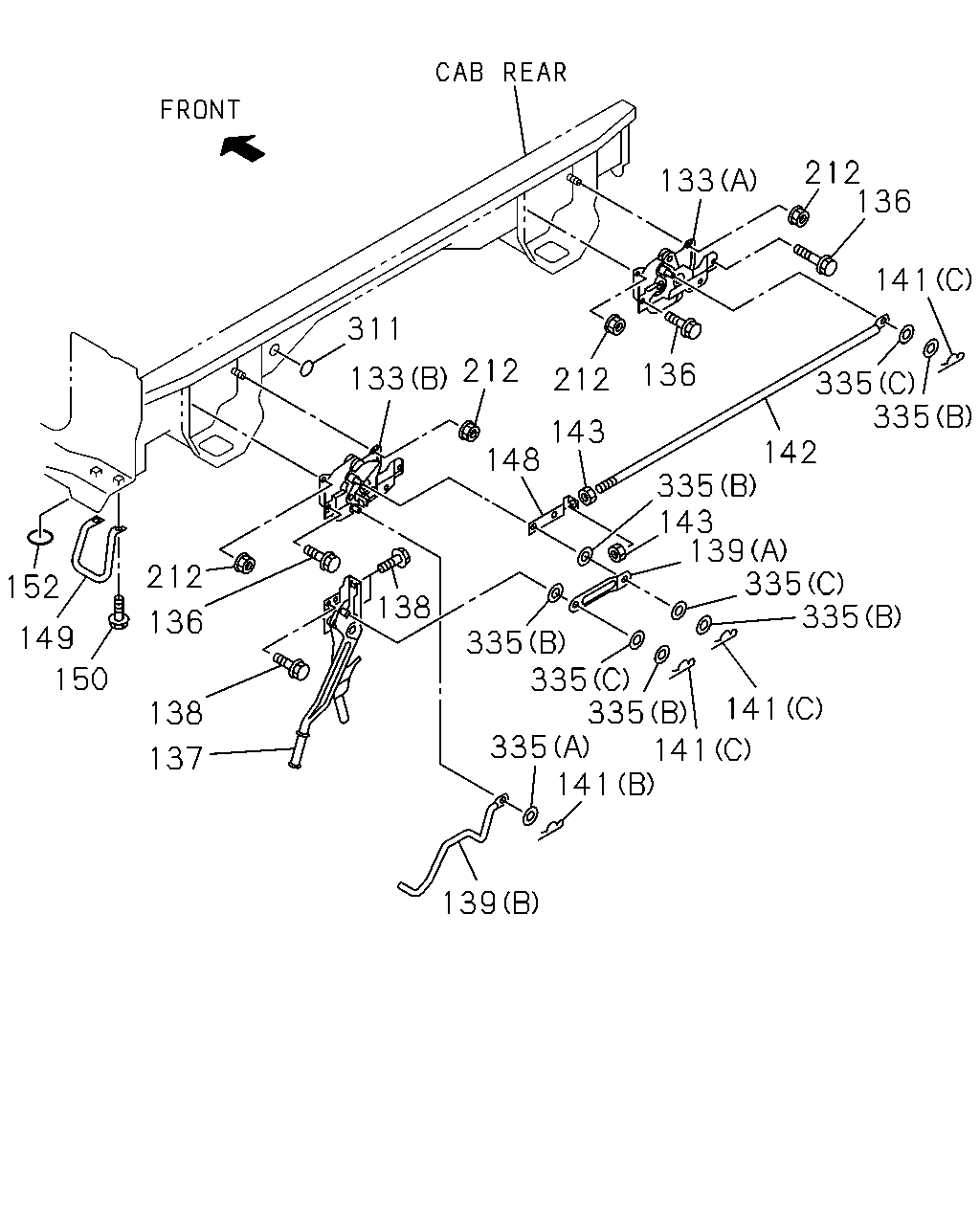

212 136 133 141 311 212 136 133 212 335 335 143 148 142 335 143 139 335 335 212 152 138 136 149 335 335 335 335 141 141 150 141 138 137 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
133	09.005 LOCK ASM; CAB (B)	8-97410-270-2	01	1	0810-0909
133	09.005 LOCK ASM; CAB MANUAL TILT CAB<RWZ> (B)	8-97410-270-2	01	1	0910-
133	09.005 LOCK ASM; CAB (A)	8-97584-486-4	01	1	0810-0909
133	09.005 LOCK ASM; CAB MANUAL TILT CAB<RWZ> (A)	8-97584-486-4	01	1	0910-1105
133	09.005 LOCK ASM; CAB MANUAL TILT CAB<RWZ> (A)	8-98182-353-0	01	1	1106-
136	09.005 BOLT; CAB LK 01.531 M8X20 FLANGE	0-28650-820-0	04	1	0810-0909
136	09.005 BOLT; CAB LK MANUAL TILT CAB<RWZ> 01.531 M8X20 FLANGE	0-28650-820-0	04	1	0910-
137	09.005 CONTROL UNIT; CAB LOCK	8-97411-004-3	01	1	0810-0909
137	09.005 CONTROL UNIT; CAB LOCK MANUAL TILT CAB<RWZ>	8-97411-004-3	01	1	0910-
138	09.005 BOLT; CAB LOCK CONT UNIT 01.531 M8X20 FLANGE	0-28650-820-0	03	1	0810-0909
138	09.005 BOLT; CAB LOCK CONT UNIT MANUAL TILT CAB<RWZ> 01.531 M8X20 FLANGE	0-28650-820-0	03	1	0910-
139	09.005 ROD; CAB LOCK,LEVER TO HOOK (B)	8-97588-009-1	01	1	0810-0810
139	09.005 ROD; CAB LOCK,LEVER TO HOOK (B)	8-98128-201-0	01	1	0811-0909
139	09.005 ROD; CAB LOCK,LEVER TO HOOK MANUAL TILT CAB<RWZ> (B)	8-98128-201-0	01	1	0910-
139	09.005 ROD; CAB LOCK,LEVER TO HOOK (A)	8-97584-483-2	01	1	0810-0909
139	09.005 ROD; CAB LOCK,LEVER TO HOOK MANUAL TILT CAB<RWZ> (A)	8-97584-483-2	01	1	0910-
141	09.005 PIN; SNAP,CAB LOCK ROD (A) L=32.6	1-09987-142-0	01	1	0810-0909
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (A) L=32.6	1-09987-142-0	01	1	0910-
141	09.005 PIN; SNAP,CAB LOCK ROD (B) L=25.3	8-98039-045-1	01	1	0810-0909
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (B) L=25.3	8-98039-045-1	01	1	0910-
141	09.005 PIN; SNAP,CAB LOCK ROD (C) L=34	8-98039-426-1	03	1	0810-0909
141	09.005 PIN; SNAP,CAB LOCK ROD MANUAL TILT CAB<RWZ> (C) L=34	8-98039-426-1	03	1	0910-
142	09.005 ROD; HOOK TO HOOK	8-97410-272-0	01	1	0810-0909
142	09.005 ROD; HOOK TO HOOK MANUAL TILT CAB<RWZ>	8-97410-272-0	01	1	0910-
143	09.005 NUT; JAW JOINT,HOOK TO HOOK 00.833 M10	0-91110-510-0	02	1	0810-0909
143	09.005 NUT; JAW JOINT,HOOK TO HOOK MANUAL TILT CAB<RWZ> 00.833 M10	0-91110-510-0	02	1	0910-
148	09.005 JOINT; JAW,HOOK TO HOOK	8-97410-736-0	01	1	0810-0909
148	09.005 JOINT; JAW,HOOK TO HOOK MANUAL TILT CAB<RWZ>	8-97410-736-0	01	1	0910-
149	16.450 HANDLE; TILT	8-98067-938-0	01	1	0810-0909
149	16.450 HANDLE; TILT MANUAL TILT CAB<RWZ>	8-98067-938-0	01	1	0910-
150	16.450 BOLT; TILT HANDLE 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0810-0909
150	16.450 BOLT; TILT HANDLE MANUAL TILT CAB<RWZ> 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0910-1103
150	16.450 BOLT; TILT HANDLE MANUAL TILT CAB<RWZ> 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1104-
152	09.003 GROMMET; DUMMY HOLE,CAB TILT LOC EXC. MANUAL TILT CAB<RWZ> 16.165 OD=25 BLACK	1-76798-019-0	02	1	0910-
212	09.005 NUT; BRKT,CAB LOCK 01.062 M8 FLANGE	0-91180-108-0	04	1	0810-0909
212	09.005 NUT; BRKT,CAB LOCK MANUAL TILT CAB<RWZ> 01.062 M8 FLANGE	0-91180-108-0	04	1	0910-
311	09.005 SEAL; CAB LOCK 16.545 OD=32 BLACK	8-98031-126-0	01	1	0810-1211
311	09.005 SEAL; CAB LOCK MANUAL TILT CAB<RWZ> 16.545 OD=32 BLACK	8-98031-126-0	01	1	1212-
335	09.005 WASHER; CAB LOCK ROD (A) ID=8.8 OD=12.5	8-98060-837-0	01	1	0810-0810
335	09.005 WASHER; CAB LOCK ROD 00.854 (A) ID=8.4 OD=14	5-09550-002-0	01	1	0811-0909
335	09.005 WASHER; CAB LOCK ROD MANUAL TILT CAB<RWZ> 00.854 (A) ID=8.4 OD=14	5-09550-002-0	01	1	0910-
335	09.005 WASHER; CAB LOCK ROD 04.439 (B) ID=12.5 OD=22	0-91610-512-0	05	1	0810-0909
335	09.005 WASHER; CAB LOCK ROD MANUAL TILT CAB<RWZ> 04.439 (B) ID=12.5 OD=22	0-91610-512-0	05	1	0910-
335	09.005 WASHER; CAB LOCK ROD (C) ID=13 OD=22	8-98060-839-0	03	1	0810-0909
335	09.005 WASHER; CAB LOCK ROD MANUAL TILT CAB<RWZ> (C) ID=13 OD=22	8-98060-839-0	03	1	0910-
