Isuzu WW
▶
TRUCKS
▶
NMR
▶
51385 - NMR 71(MIDDLE EAST)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-80 - ROAD WHEEL
▶
4-80 — ROAD WHEEL
(#51423) — 22 parça
◀

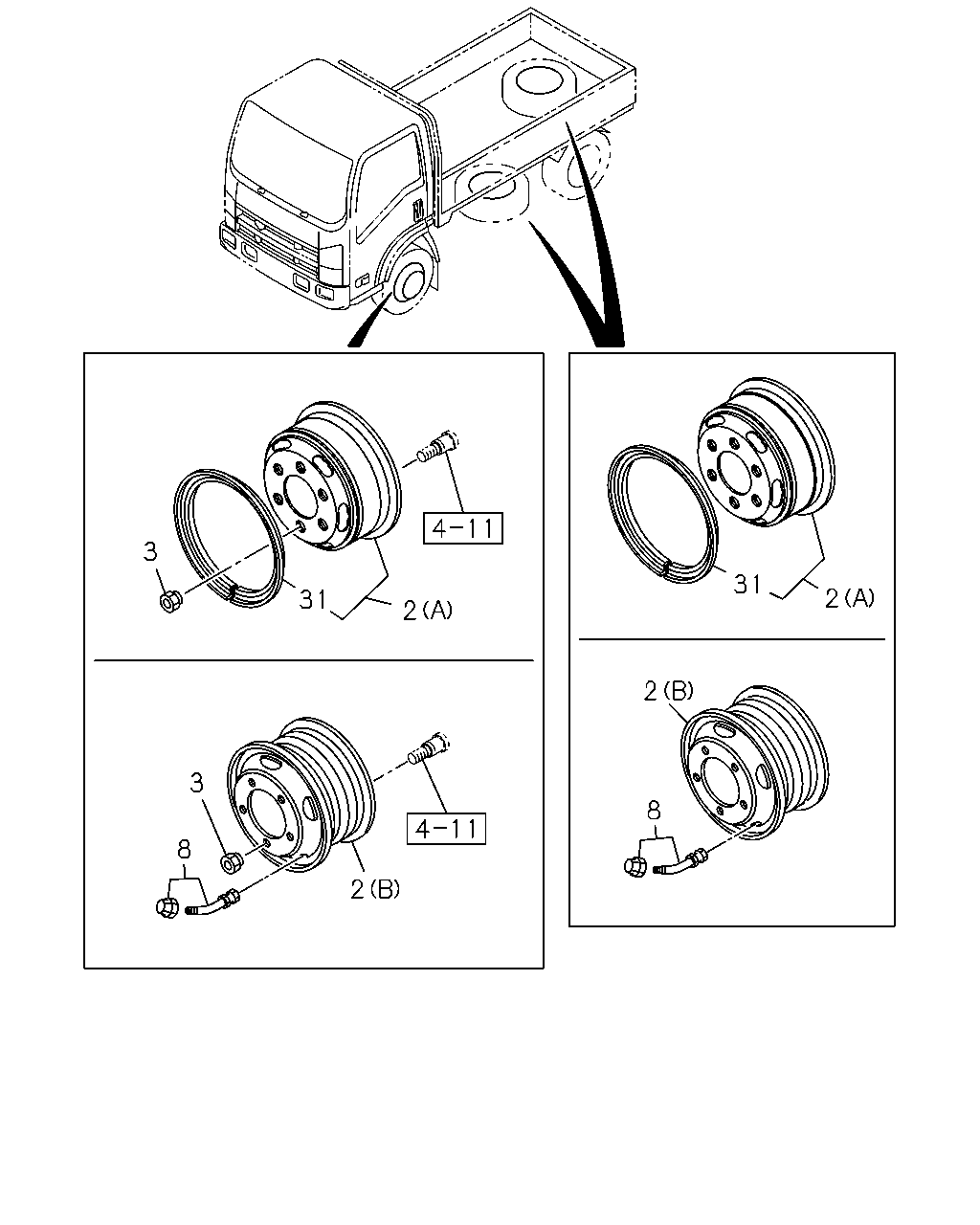

[480A] FRONT AND SPARE (10 parça)

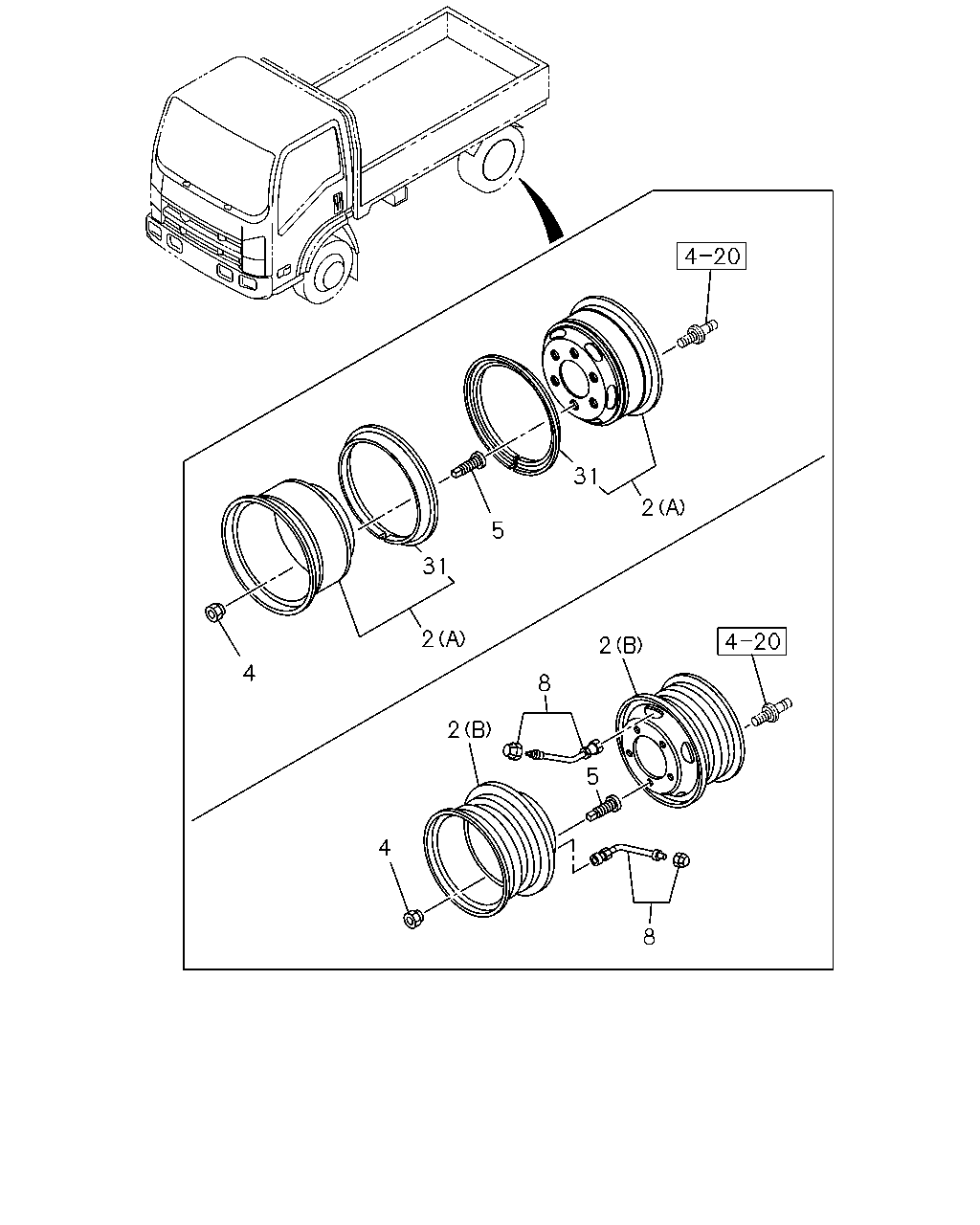

[480A] REAR (12 parça)
▶
3
31
2
2
3
8
31
2
2
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
05.803 WHEEL; DISC
FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE
8-94378-330-1
01
1
0810-
2
05.803 WHEEL; DISC
FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE
8-94378-330-1
06
1
0810-
2
05.803 WHEEL; DISC
FRT&RR 195/85R16 RIB 16X5.5J-116.5 SILVER(CUC) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER
8-97233-664-0
01
1
0810-
2
05.803 WHEEL; DISC
FRT&RR 195/85R16 RIB 16X5.5J-116.5 SILVER(CUC) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER
8-97233-664-0
06
1
0810-
3
05.813 NUT; WHEEL,FRT AXLE
M18 RH THREAD
8-98007-907-0
05
1
0810-
3
05.813 NUT; WHEEL,FRT AXLE
M18 LH THREAD
8-98007-908-0
05
1
0810-
8
05.875 VALVE; TIRE
FRT&RR 195/85R16 RIB 16X5.5J-116.5 SILVER(CUC) SPARE
8-98221-106-0
01
1
1207-
8
05.875 VALVE; TIRE
FRT&RR 195/85R16 RIB 16X5.5J-116.5 SILVER(CUC) FRONT,REAR
8-98221-106-0
06
1
1207-
31
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) SPARE 16X5.50F STAMP, BLACK
8-94135-601-0
01
1
0810-
31
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) FRONT,REAR 16X5.50F STAMP, BLACK
8-94135-601-0
06
1
0810-
4
31
31
2
2
4
8
8
5
2
5
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
05.803 WHEEL; DISC
FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) (A) SPARE 5.5FX16 OFFSET=115 BLACK 5-HOLE
8-94378-330-1
01
1
0810-
2
05.803 WHEEL; DISC
FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) (A) FRONT,REAR 5.5FX16 OFFSET=115 BLACK 5-HOLE
8-94378-330-1
06
1
0810-
2
05.803 WHEEL; DISC
FRT&RR 195/85R16 RIB 16X5.5J-116.5 SILVER(CUC) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER
8-97233-664-0
01
1
0810-
2
05.803 WHEEL; DISC
FRT&RR 195/85R16 RIB 16X5.5J-116.5 SILVER(CUC) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER
8-97233-664-0
06
1
0810-
4
05.813 NUT; WHEEL,RR AXLE
M27 RH THREAD
8-98007-824-0
05
1
0810-
4
05.813 NUT; WHEEL,RR AXLE
M27 LH THREAD
8-98007-825-0
05
1
0810-
5
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 RH THREAD
8-98007-810-0
05
1
0810-
5
05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 LH THREAD
8-98007-811-0
05
1
0810-
8
05.875 VALVE; TIRE
FRT&RR 195/85R16 RIB 16X5.5J-116.5 SILVER(CUC) SPARE
8-98221-106-0
01
1
1207-
8
05.875 VALVE; TIRE
FRT&RR 195/85R16 RIB 16X5.5J-116.5 SILVER(CUC) FRONT,REAR
8-98221-106-0
06
1
1207-
31
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) SPARE 16X5.50F STAMP, BLACK
8-94135-601-0
01
1
0810-
31
05.839 RING; SIDE,DISC WHEEL
FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) FRONT,REAR 16X5.50F STAMP, BLACK
8-94135-601-0
06
1
0810-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
