4-65B — REAR LEAF SPRING (#51422) — 24 parça

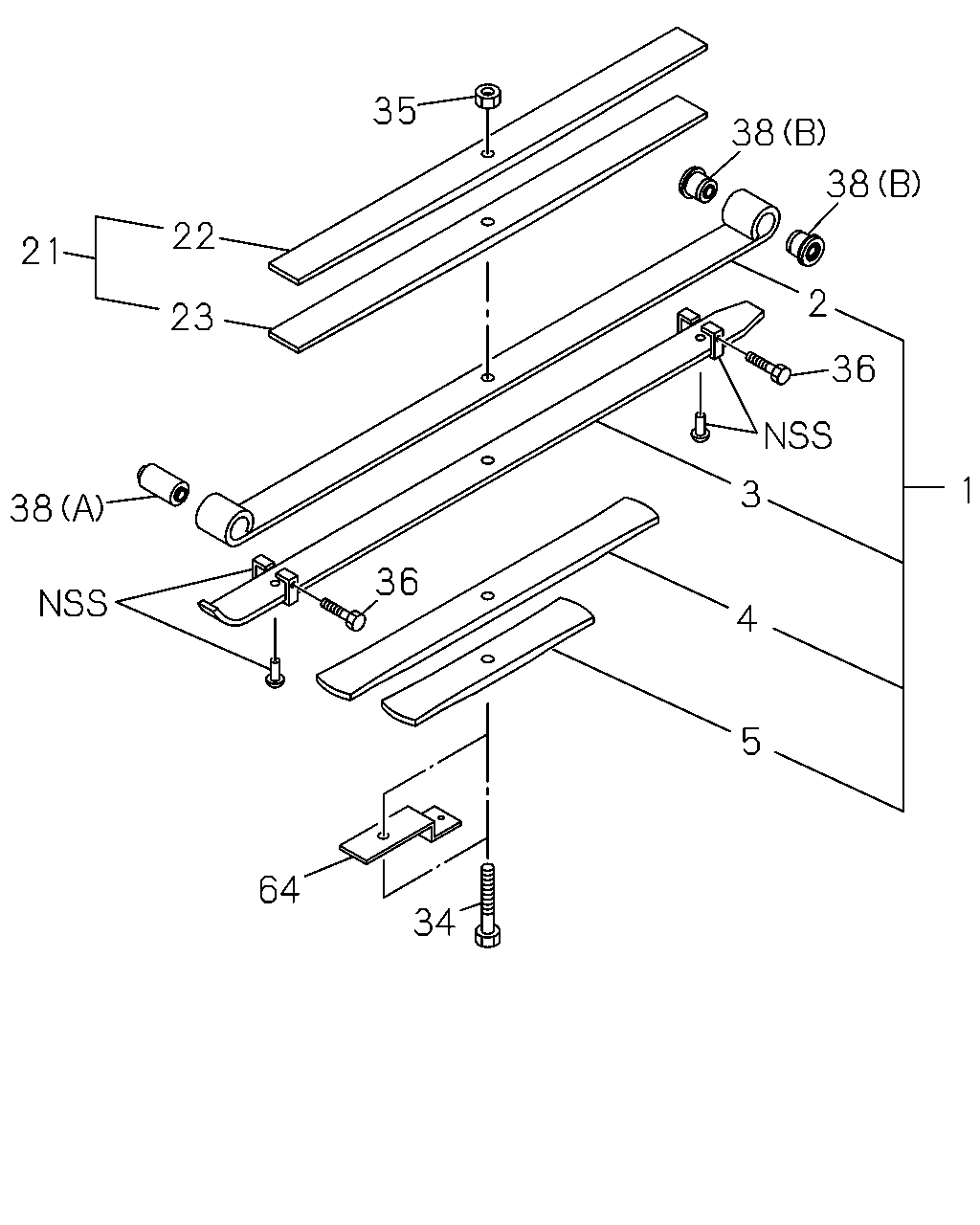

çizim 14947
5 4 3 1 2 36 38 38 35 22 23 21 38 36 34 64
BalonParca AdiParca NoAdetTipApplied Date
1 07.503 SPRING ASM; LEAF,RR MAIN
ASM PART: A = 8-98001-652-0, 98001652 		8-98022-650-0 01 1 -
1 07.503 SPRING ASM; LEAF,RR MAIN
ASM PART: B = 8-98100-522-0, 98100522 		8-98117-524-0 01 1 -
2 07.505 SPRING; LEAF,NO 1,RR MAIN
ASM PART: A = 8-98001-652-0, 98001652 		8-98022-651-0 01 1 -
2 07.505 SPRING; LEAF,NO 1,RR MAIN
ASM PART: B = 8-98100-522-0, 98100522 		8-98117-526-0 01 1 -
3 07.505 SPRING; LEAF,NO 2,RR MAIN
ASM PART: A = 8-98001-652-0, 98001652 		8-98022-652-0 01 1 -
3 07.505 SPRING; LEAF,NO 2,RR MAIN
ASM PART: B = 8-98100-522-0, 98100522 		8-98117-527-0 01 1 -
4 07.505 SPRING; LEAF,NO 3,RR MAIN
ASM PART: A = 8-98001-652-0, 98001652 		8-98022-653-0 01 1 -
4 07.505 SPRING; LEAF,NO 3,RR MAIN
ASM PART: B = 8-98100-522-0, 98100522 		8-98117-528-0 01 1 -
5 07.505 SPRING; LEAF,NO 4,RR MAIN
ASM PART: A = 8-98001-652-0, 98001652 		8-98022-654-0 01 1 -
5 07.505 SPRING; LEAF,NO 4,RR MAIN
ASM PART: B = 8-98100-522-0, 98100522 		8-98117-529-0 01 1 -
21 07.503 SPRING ASM; LEAF,RR SUB
ASM PART: A = 8-98001-652-0, 98001652 		8-98022-655-0 01 1 -
21 07.503 SPRING ASM; LEAF,RR SUB
ASM PART: B = 8-98100-522-0, 98100522 		8-98117-525-0 01 1 -
22 07.505 SPRING; LEAF,NO 1,RR SUB
ASM PART: A = 8-98001-652-0, 98001652 		8-98022-656-0 01 1 -
22 07.505 SPRING; LEAF,NO 1,RR SUB
ASM PART: B = 8-98100-522-0, 98100522 		8-98117-530-0 01 1 -
23 07.505 SPRING; LEAF,NO 2,RR SUB
ASM PART: A = 8-98001-652-0, 98001652 		8-98022-657-0 01 1 -
23 07.505 SPRING; LEAF,NO 2,RR SUB
ASM PART: B = 8-98100-522-0, 98100522 		8-98117-531-0 01 1 -
34 07.506 BOLT; CENTER,LEAF SPR,RR MAIN
L=105 ASM PART: A = 8-98001-652-0, 98001652 		8-98040-307-0 01 1 -
34 07.506 BOLT; CENTER,LEAF SPR,RR MAIN
L=95 ASM PART: B = 8-98100-522-0, 98100522 		8-98040-313-0 01 1 -
35 07.506 NUT; CENTER BOLT,LEAF SPR,RR
04.634, M12 ASM PART: A = 8-98001-652-0, 98001652, B = 8-98100-522-0, 98100522 		9-99110-512-0 01 1 -
36 07.506 BOLT; CLIP,LEAF SPR,RR
M8X89 ASM PART: A = 8-98001-652-0, 98001652, B = 8-98100-522-0, 98100522 		8-98040-332-0 02 1 -
38 07.505 BUSHING; LEAF SPR,RR
(A), BEST VALUE PARTS ASM PART: A = 8-98001-652-0, 98001652, B = 8-98100-522-0, 98100522 		5-87610-163-0 01 1 -
38 07.505 BUSHING; LEAF SPR,RR
07.524, (B) ASM PART: A = 8-98001-652-0, 98001652, B = 8-98100-522-0, 98100522 		8-94118-588-1 02 1 -
38 07.505 BUSHING; LEAF SPR,RR
(A), OD=42 L=81 ASM PART: A = 8-98001-652-0, 98001652, B = 8-98100-522-0, 98100522 		8-97074-826-0 01 1 -
64 07.513 SUPPORT; RR SPR
ASM PART: A = 8-98001-652-0, 98001652 		8-97044-353-2 01 1 -
