◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51385 - NMR 71(MIDDLE EAST) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-55B - FRONT LEAF SPRING ▶
4-55B — FRONT LEAF SPRING (#51418) — 17 parça

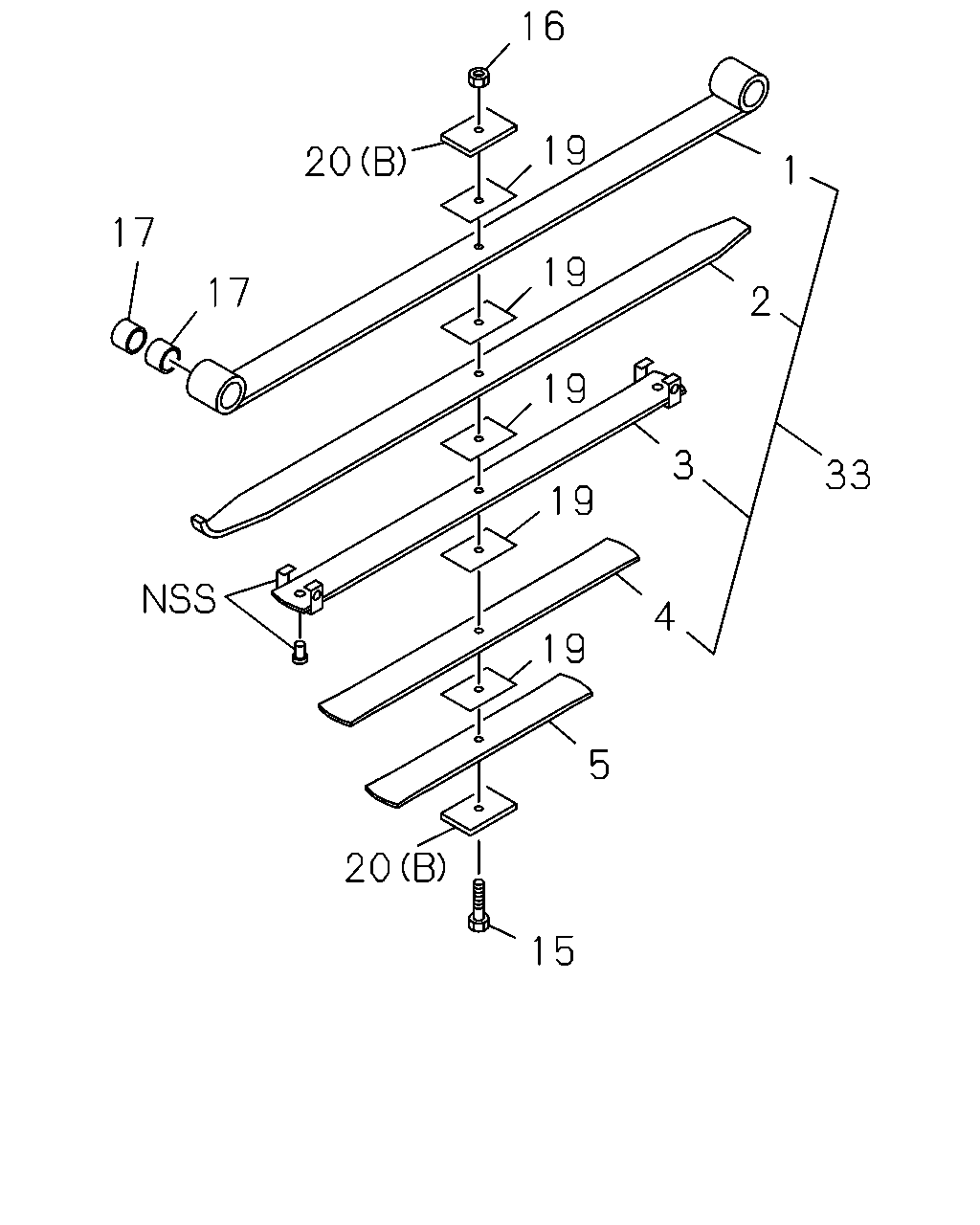

çizim 14946
16 19 20 1 17 19 17 2 19 3 33 19 4 19 5 20 15
BalonParca AdiParca NoAdetTipApplied Date
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: A = 8-98079-897-0, 98079897 		8-98094-372-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: B = 8-98079-898-0, 98079898 		8-98094-378-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: A = 8-98079-897-0, 98079897 		8-98094-373-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: B = 8-98079-898-0, 98079898 		8-98094-379-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: A = 8-98079-897-0, 98079897 		8-98094-374-0 01 1 -
3 07.415 SPRING; LEAF,NO 3,FRT
ASM PART: B = 8-98079-898-0, 98079898 		8-98094-380-0 01 1 -
4 07.415 SPRING; LEAF,NO 4,FRT
ASM PART: A = 8-98079-897-0, 98079897 		8-98094-375-0 01 1 -
4 07.415 SPRING; LEAF,NO 4,FRT
ASM PART: B = 8-98079-898-0, 98079898 		8-98094-381-0 01 1 -
5 07.415 SPRING; LEAF,NO 5,FRT
ASM PART: A = 8-98079-897-0, 98079897 		8-98094-376-0 01 1 -
5 07.415 SPRING; LEAF,NO 5,FRT
ASM PART: B = 8-98079-898-0, 98079898 		8-98094-382-0 01 1 -
15 07.428 BOLT; CENTER,LEAF SPR,FRT
L=80 ASM PART: A = 8-98079-897-0, 98079897, B = 8-98079-898-0, 98079898 		8-98041-353-0 01 1 -
16 07.506 NUT; CENTER BOLT,LEAF SPR,FRT
M10 ASM PART: A = 8-98079-897-0, 98079897, B = 8-98079-898-0, 98079898 		1-09400-055-0 01 1 -
17 07.413 BUSHING; LEAF SPR,FRT
OD=43.25 ASM PART: A = 8-98079-897-0, 98079897, B = 8-98079-898-0, 98079898 		8-98040-327-0 04 1 -
19 07.425 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-98079-897-0, 98079897, B = 8-98079-898-0, 98079898 		8-94478-008-1 05 1 -
20 07.425 SEAT; LEAF SPR,FRT
(B) ASM PART: A = 8-98079-897-0, 98079897, B = 8-98079-898-0, 98079898 		8-98040-316-0 02 1 -
33 07.415 SPRING ASM; LEAF,FRT MAIN
ASM PART: A = 8-98079-897-0, 98079897 		8-98094-371-0 01 1 -
33 07.415 SPRING ASM; LEAF,FRT MAIN
ASM PART: B = 8-98079-898-0, 98079898 		8-98094-377-0 01 1 -
