◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51385 - NMR 71(MIDDLE EAST) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-55A - FRONT LEAF SPRING ▶
4-55A — FRONT LEAF SPRING (#51417) — 11 parça

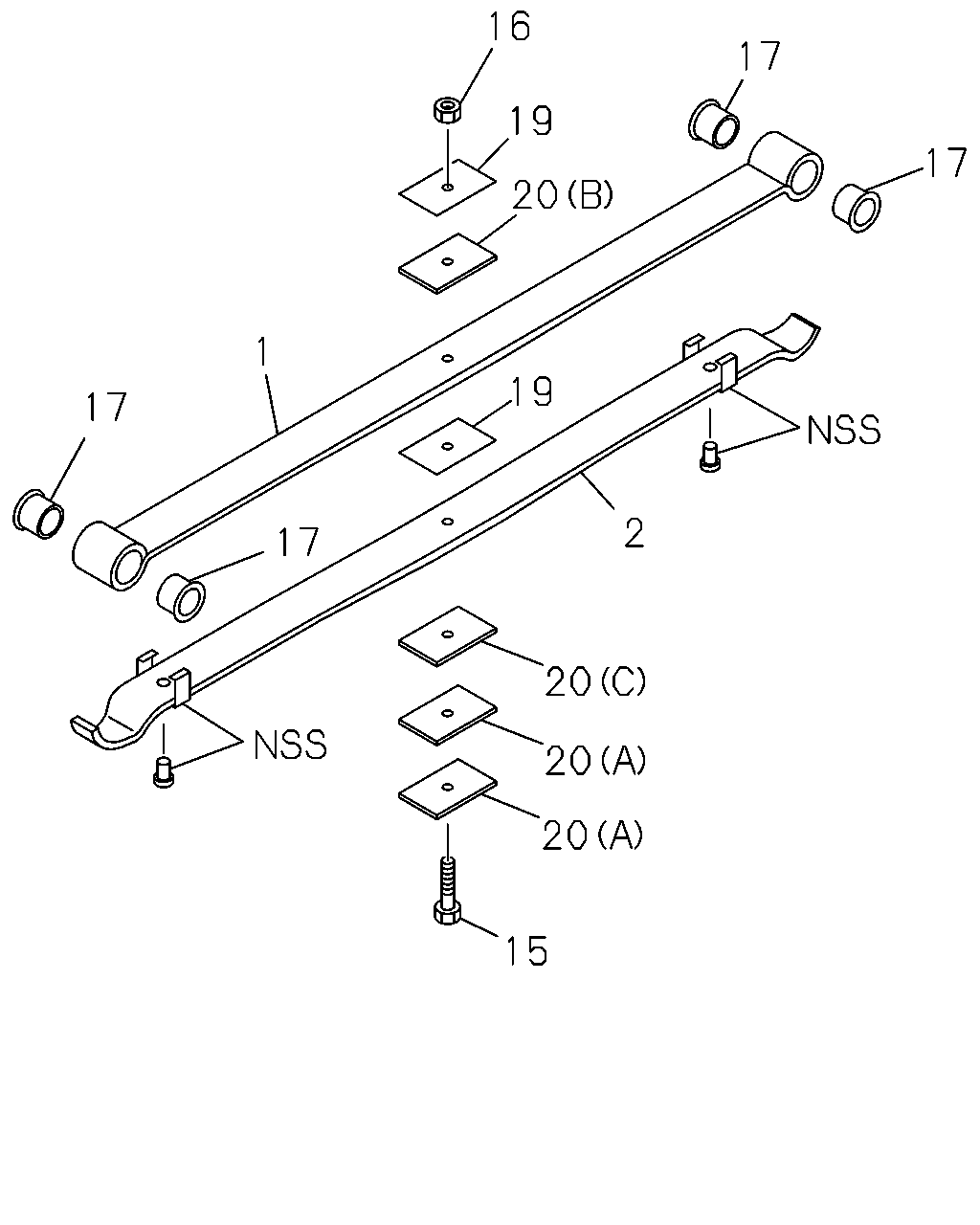

çizim 14798
16 17 19 17 20 1 19 17 2 17 20 20 20 15
BalonParca AdiParca NoAdetTipApplied Date
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: A = 8-98001-530-0, 98001530 		8-98022-514-0 01 1 -
1 07.415 SPRING; LEAF,NO 1,FRT
ASM PART: B = 8-98001-531-0, 98001531 		8-98022-517-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: A = 8-98001-530-0, 98001530 		8-98022-515-0 01 1 -
2 07.415 SPRING; LEAF,NO 2,FRT
ASM PART: B = 8-98001-531-0, 98001531 		8-98022-518-0 01 1 -
15 07.428 BOLT; CENTER,LEAF SPR,FRT
L=80 ASM PART: A = 8-98001-530-0, 98001530, B = 8-98001-531-0, 98001531 		8-98041-353-0 01 1 -
16 07.506 NUT; CENTER BOLT,LEAF SPR,FRT
M10 ASM PART: A = 8-98001-530-0, 98001530, B = 8-98001-531-0, 98001531 		1-09400-055-0 01 1 -
17 07.413 BUSHING; LEAF SPR,FRT
OD=43.25 ASM PART: A = 8-98001-530-0, 98001530, B = 8-98001-531-0, 98001531 		8-98040-327-0 04 1 -
19 07.425 SPACER; LEAF SPRING,FRT
T=1 ASM PART: A = 8-98001-530-0, 98001530, B = 8-98001-531-0, 98001531 		8-94478-008-1 02 1 -
20 07.425 SEAT; LEAF SPR,FRT
(B) ASM PART: A = 8-98001-530-0, 98001530, B = 8-98001-531-0, 98001531 		8-98040-316-0 01 1 -
20 07.425 SEAT; LEAF SPR,FRT
(C) ASM PART: A = 8-98001-530-0, 98001530, B = 8-98001-531-0, 98001531 		8-98041-455-0 01 1 -
20 07.425 SEAT; LEAF SPR,FRT
(A) ASM PART: A = 8-98001-530-0, 98001530, B = 8-98001-531-0, 98001531 		8-98042-626-0 02 1 -
