6-05 — FRONT PANEL (#5141) — 320 parça

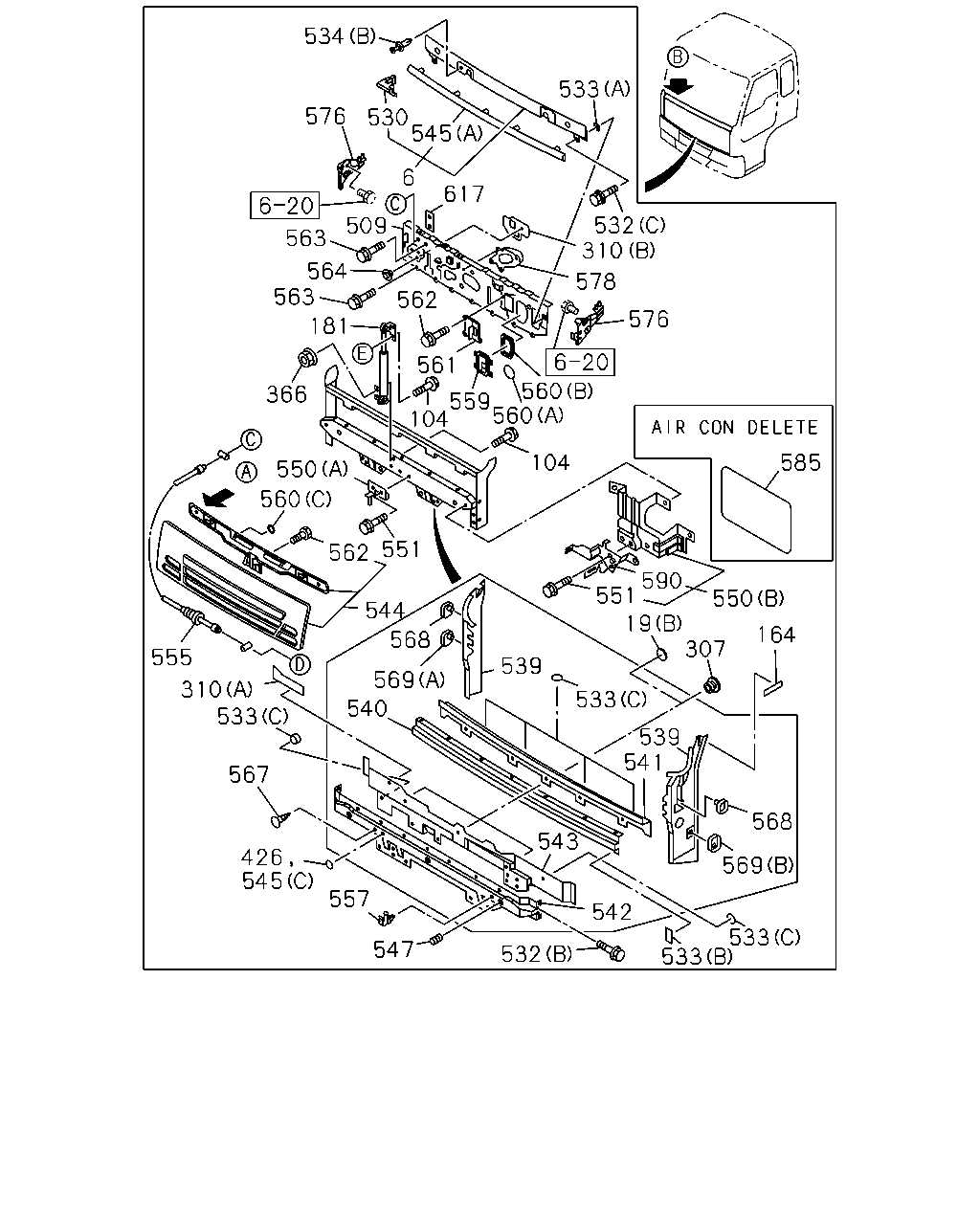

534 533 576 530 545 6 509 617 562 532 310 563 564 563 578 576 181 561 560 559 104 560 366 585 104 550 560 551 590 562 551 550 544 19 307 164 568 555 539 569 310 533 533 540 539 541 567 568 543 426 545 569 542 557 533 533 547 532

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	PANEL; FRONT	1-65472-255-2	01	1	9606-9807
6	PANEL; FRONT	1-65472-549-4	01	1	9808-
19	SEAL; FRT SIDE PANEL (C)	1-71907-411-0	01	1	9606-
19	SEAL; FRT SIDE PANEL (A)	1-71907-159-4	01	1	9606-9705
19	SEAL; FRT SIDE PANEL BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) (A)	1-71907-159-4	01	1	9706-9709
19	SEAL; FRT SIDE PANEL BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71907-159-5	01	1	9710-
19	SEAL; FRT SIDE PANEL (C)	1-71907-410-0	01	1	9606-
19	SEAL; FRT SIDE PANEL (B) OD=45 BLACK	1-76798-017-0	03	1	9704-
19	SEAL; FRT SIDE PANEL BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) (A)	1-71907-160-4	01	1	9606-9709
19	SEAL; FRT SIDE PANEL BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71907-160-5	01	1	9710-
19	SEAL; FRT SIDE PANEL BODY COLOR MARINE BLUE(890) (A)	1-71907-165-4	01	1	9606-9709
19	SEAL; FRT SIDE PANEL BODY COLOR MARINE BLUE(890) EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71907-165-4	01	1	9710-9905
19	SEAL; FRT SIDE PANEL BODY COLOR ARC WHITE(729) BUMPER W/HEADLAMPS<SLB> (A)	1-71907-165-4	01	1	9710-9905
19	SEAL; FRT SIDE PANEL BODY COLOR MARINE BLUE(890) (A)	1-71907-165-5	01	1	9906-
19	SEAL; FRT SIDE PANEL BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) BUMPER W/HEADLAMPS<SLB> (A)	1-71907-165-5	01	1	9906-
19	SEAL; FRT SIDE PANEL BODY COLOR MARINE BLUE(890) (A)	1-71907-164-4	01	1	9706-9709
19	SEAL; FRT SIDE PANEL BODY COLOR MARINE BLUE(890) EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71907-164-4	01	1	9710-9905
19	SEAL; FRT SIDE PANEL BODY COLOR ARC WHITE(729) BUMPER W/HEADLAMPS<SLB> (A)	1-71907-164-4	01	1	9710-9905
19	SEAL; FRT SIDE PANEL BODY COLOR MARINE BLUE(890) (A)	1-71907-164-5	01	1	9906-
19	SEAL; FRT SIDE PANEL BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) BUMPER W/HEADLAMPS<SLB> (A)	1-71907-164-5	01	1	9906-
104	BOLT; SUPPORT BAR M6X20 W/LK&PL WASHER	8-94279-203-0	02	1	9606-
104	BOLT; SUPPORT BAR M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	9606-9709
164	SEAL; FRT PILLAR	1-71907-414-0	02	1	9606-
181	SUPPORT ASM; DOOR CHECK,FRT	1-71107-118-0	01	1	9606-9609
181	SUPPORT ASM; DOOR CHECK,FRT	1-71107-261-0	01	1	9610-
307	GROMMET; FRT PANEL OD=44	8-94279-727-0	03	1	9606-9703
310	SILENCER; FRT PANEL (A)	1-72377-007-1	01	1	9606-
310	SILENCER; FRT PANEL (B)	1-72377-008-1	01	1	9606-
366	NUT; SUPPORT M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	9710-
426	GASKET OD=25 BLACK	1-76798-019-0	01	1	9606-9804
426	GASKET OD=25 BLACK	1-76798-019-0	01	1	9805-0102
426	GASKET EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK	1-76798-019-0	01	1	9805-0102
426	GASKET OD=25 BLACK	1-76798-019-0	03	1	0103-
426	GASKET EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK	1-76798-019-0	01	1	0103-
509	PANEL; DASH HEATER VENTILATION AIR CONDITIONING DELETE(TFA)	1-62270-492-1	01	1	9606-
509	PANEL; DASH EXC. HEATER VENTILATION AIR CONDITIONING DELETE(TFA)	1-62270-478-5	01	1	9606-
530	STOPPER; FRT PANEL,SIDE	1-71907-487-0	01	1	9606-
530	STOPPER; FRT PANEL,SIDE	1-71907-482-1	01	1	9606-
532	BOLT; FRT PANEL (C) M8X20	1-79198-002-0	02	1	9606-
532	BOLT; FRT PANEL (A) M6X12 W/LK&PL WASHER	8-94279-200-0	02	1	9606-9905
532	BOLT; FRT PANEL CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (A) M6X12 W/LK&PL WASHER	8-94279-200-0	02	1	9906-
532	BOLT; FRT PANEL (B) M8X29.5 W/LK+PL WASHER	8-94279-209-0	08	1	9606-
533	SEAL; FRT PANEL (B) 20X65	1-76778-046-2	02	1	9606-
533	SEAL; FRT PANEL (C)	5-76777-035-0	12	1	9606-9709
533	SEAL; FRT PANEL (C) OD=36 BLACK	1-76798-018-0	12	1	9710-9806
533	SEAL; FRT PANEL (C) OD=36 T=0.05 BLACK	5-76777-035-0	12	1	9807-
533	SEAL; FRT PANEL (A) 25X25	8-94272-533-0	02	1	9606-
534	FASTENER (B) ID=5.4 OD=6.8	1-09989-019-0	08	1	9606-9803
534	FASTENER (B) ID=5.4 OD=6.8	1-09989-020-1	08	1	9804-0001
534	FASTENER (B) ID=5.4 OD=6.8	1-09989-021-0	08	1	0002-
534	FASTENER (A) D6X12.5	8-94146-425-0	02	1	9606-
539	CLOSING; PILLAR	1-61480-674-6	01	1	9606-
539	CLOSING; PILLAR	1-61480-673-6	01	1	9606-
540	PANEL; FRONT,OUTER	1-61470-688-2	01	1	9606-
541	PANEL; FRONT,INNER	1-61470-690-0	01	1	9606-
542	RAIL; FRT MOUNTING	1-61470-705-4	01	1	9606-
543	CLOSING; FRT MTG RAIL	1-61470-680-4	01	1	9606-
544	LID; FRT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71107-108-6	01	1	9710-9905
544	LID; FRT CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>	1-71107-249-1	01	1	9906-
544	LID; FRT DELUXE CAB<W14>	1-71107-249-1	01	1	9906-
544	LID; FRT EXC. BUMPER W/HEADLAMPS<SLB>	1-71107-107-6	01	1	9606-9905
544	LID; FRT CAB FRT PANEL CARGO FACE VAR 1<NBH>	1-71107-237-2	01	1	9906-
544	LID; FRT DELUXE CAB<W14>	1-71107-237-2	01	1	9906-
544	LID; FRT CAB FRT PANEL CARGO FACE VAR 1<NBH>	1-71107-345-0	01	1	9906-
544	LID; FRT EXC. DELUXE CAB<W14>	1-71107-345-0	01	1	9906-
544	LID; FRT CAB FRT PANEL CARGO FACE VAR 2<NBJ>	1-71107-218-3	01	1	9906-
544	LID; FRT DELUXE CAB<W14>	1-71107-218-3	01	1	9906-
544	LID; FRT CAB FRT PANEL CARGO FACE VAR 2<NBJ>	1-71107-281-0	01	1	9906-
544	LID; FRT EXC. DELUXE CAB<W14>	1-71107-281-0	01	1	9906-
544	LID; FRT CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>	1-71107-346-0	01	1	9906-
544	LID; FRT EXC. DELUXE CAB<W14>	1-71107-346-0	01	1	9906-
544	LID; FRT CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>	1-71107-217-2	01	1	9906-
544	LID; FRT DELUXE CAB<W14>	1-71107-217-2	01	1	9906-
544	LID; FRT CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>	1-71107-293-0	01	1	9906-
544	LID; FRT EXC. DELUXE CAB<W14>	1-71107-293-0	01	1	9906-
545	SEAL; FRT LID (A) L=2038	1-71907-481-1	01	1	9606-
545	SEAL; FRT LID (B)	1-71907-154-4	01	1	9606-9905
545	SEAL; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (B)	1-71907-154-4	01	1	9906-
545	SEAL; FRT LID (B)	1-71907-153-3	01	1	9606-9905
545	SEAL; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (B)	1-71907-153-3	01	1	9906-
545	SEAL; FRT LID CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) L=502	1-71907-470-0	01	1	9906-
545	SEAL; FRT LID CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) L=502	1-71907-471-0	01	1	9906-
545	SEAL; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (B)	1-71907-472-0	02	1	9906-
545	SEAL; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (D) L=63	1-71998-963-2	01	1	9906-
545	SEAL; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (C) OD=25 BLACK	1-76798-019-0	01	1	9906-
547	RUBBER; CUSHION OD=22 L=39	1-71907-419-0	02	1	9606-
547	RUBBER; CUSHION OD=22 L=29	8-94324-556-2	02	1	9606-
550	LOCK ASM; FRT LID (A)	1-79317-002-1	01	1	9606-9905
550	LOCK ASM; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (A)	1-79317-002-2	01	1	9906-
550	LOCK ASM; FRT LID (B)	1-79318-010-1	01	1	9606-9905
550	LOCK ASM; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (B)	1-79318-010-1	01	1	9906-
550	LOCK ASM; FRT LID (B)	1-79318-009-3	01	1	9606-9905
550	LOCK ASM; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (B)	1-79318-009-3	01	1	9906-
550	LOCK ASM; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A)	1-79317-006-1	01	1	9906-
550	LOCK ASM; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B)	1-79317-008-0	01	1	9906-
550	LOCK ASM; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B)	1-79317-007-1	01	1	9906-
551	BOLT; LOCK M8X20.5 W/LK&PL WASHER	8-94279-207-0	06	1	9606-
551	BOLT; LOCK CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	9906-
551	BOLT; LOCK CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	9906-
555	CABLE; FRT LID L=2442	1-79347-003-2	01	1	9606-9905
555	CABLE; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> L=2442	1-79347-003-4	01	1	9906-
555	CABLE; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> L=2682	1-79347-005-2	01	1	9906-
557	CLIP; CABLE ID=4.8	8-94128-483-0	02	1	9606-9905
557	CLIP; CABLE CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> ID=4.8	8-94128-483-0	02	1	9906-
557	CLIP; CABLE CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> ID=4.8	8-94128-483-0	01	1	9906-
559	COVER; EVAPOLATOR	1-71996-162-0	01	1	9606-9608
559	COVER; EVAPOLATOR	1-71996-194-0	01	1	9609-
560	SEAL; COVER (B)	1-71998-827-1	01	1	9606-
560	SEAL; COVER (A) OD=36 BLACK	1-76798-018-0	01	1	9606-9806
560	SEAL; COVER (A) OD=36 T=0.05 BLACK	5-76777-035-0	01	1	9807-9905
560	SEAL; COVER (C) OD=20 T=0.05 BLACK	5-76777-036-0	02	1	9906-9907
560	SEAL; COVER CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (C) OD=20 T=0.05 BLACK	5-76777-036-0	02	1	9908-
560	SEAL; COVER EXC. AIR CONDITIONER MANUAL CONTROL(C60) (A) OD=36 T=0.05 BLACK	5-76777-035-0	01	1	9906-
560	SEAL; COVER EXC. HEATER & DEFROSTER(C41) (C) OD=36 BLACK	5-76777-035-0	02	1	9606-9708
560	SEAL; COVER EXC. HEATER & DEFROSTER(C41) (C) OD=36 BLACK	1-76798-018-0	02	1	9709-9806
560	SEAL; COVER EXC. HEATER & DEFROSTER(C41) (C) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	9807-9905
560	SEAL; COVER (C) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	9906-
560	SEAL; COVER EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (C) OD=36 T=0.05 BLACK	5-76777-035-0	02	1	9906-
561	COVER; HEATER CORE	1-71998-829-1	01	1	9606-
562	BOLT; COVER M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	9606-9905
562	BOLT; COVER CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	9906-
562	BOLT; COVER M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	9606-
563	BOLT; DASH PANEL M8X20	1-79198-002-0	16	1	9606-9707
563	BOLT; DASH PANEL M8X20	1-79198-002-0	14	1	9708-9807
563	BOLT; DASH PANEL M8X20	1-79198-002-0	18	1	9808-
563	BOLT; DASH PANEL M8X29.5 W/LK+PL WASHER	8-94279-209-0	02	1	9606-9707
563	BOLT; DASH PANEL M8X20 W/LK&PL WASHER	8-94279-216-0	04	1	9708-9807
564	GROMMET; DASH PANEL OD=23.5	1-09983-101-0	02	1	9606-
567	PLUG; FRT MTG RAIL OD=15 BLACK	8-94279-804-0	01	1	9606-9712
567	PLUG; FRT MTG RAIL EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=15 BLACK	8-94279-804-0	01	1	9801-9803
567	PLUG; FRT MTG RAIL EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK	1-76798-019-0	01	1	9804-9804
567	PLUG; FRT MTG RAIL OD=25 BLACK	1-76798-019-0	01	1	9906-
568	PATCH; INST REINF	1-61480-675-2	02	1	9606-
569	PATCH; LWR GRIP (A)	1-61480-689-2	01	1	9606-
569	PATCH; LWR GRIP (B)	1-61480-736-2	01	1	9606-
576	FRAME; INST SIDE	1-62280-177-7	01	1	9606-
576	FRAME; INST SIDE	1-62280-176-6	01	1	9606-
578	COVER; WIPER MOTOR	1-62280-185-3	01	1	9606-0009
578	COVER; WIPER MOTOR	1-62280-254-1	01	1	0010-
585	PLATE; EVAPOLATOR	1-71996-084-1	01	1	9606-9905
585	PLATE; EVAPOLATOR HEATER VENTILATION AIR CONDITIONING DELETE(TFA)	1-71996-084-1	01	1	9906-
590	LOCK; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ>	1-79318-010-1	01	1	9906-
590	LOCK; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ>	1-79318-009-3	01	1	9906-
617	SEAL; DASH	1-61281-497-0	02	1	9606-

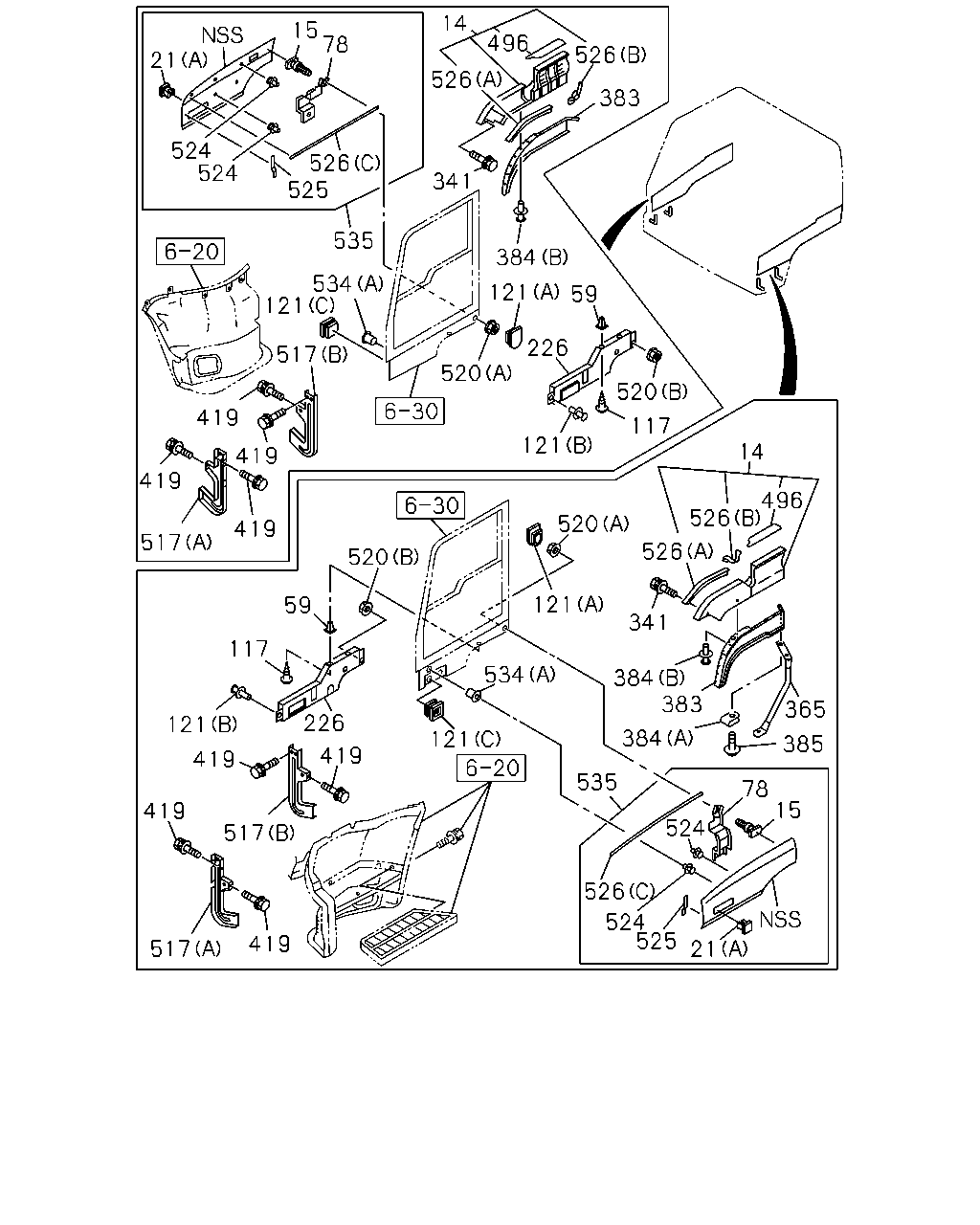

14 15 78 496 526 21 526 383 524 524 526 525 341 535 384 534 121 121 59 226 517 520 520 419 117 121 14 419 419 496 526 520 419 517 526 520 121 59 341 117 534 384 383 365 226 121 384 121 385 419 419 535 78 15 419 524 517 526 524 525 419 517 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	FENDER; FRT BODY COLOR ARC WHITE(729)	1-65471-888-1	01	1	9606-9704
14	FENDER; FRT WHITE	1-65472-453-0	01	1	9705-9708
14	FENDER; FRT EXC. CAB UP +50MM<W60> WHITE	1-65472-453-0	01	1	9709-9905
14	FENDER; FRT WHITE	1-65472-453-3	01	1	9906-
14	FENDER; FRT BODY COLOR ARC WHITE(729)	1-65471-887-1	01	1	9606-9704
14	FENDER; FRT WHITE	1-65472-452-0	01	1	9705-9708
14	FENDER; FRT EXC. CAB UP +50MM<W60> WHITE	1-65472-452-0	01	1	9709-9905
14	FENDER; FRT WHITE	1-65472-452-3	01	1	9906-
14	FENDER; FRT BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915)	1-65471-722-9	01	1	9606-9704
14	FENDER; FRT BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915)	1-65471-721-9	01	1	9606-9704
14	FENDER; FRT BODY COLOR MARINE BLUE(890)	1-65471-722-9	01	1	9606-9704
14	FENDER; FRT BODY COLOR MARINE BLUE(890)	1-65471-721-9	01	1	9606-9704
14	FENDER; FRT CAB UP +50MM<W60>	1-65472-467-0	01	1	9709-9905
14	FENDER; FRT CAB UP +50MM<W60>	1-65472-466-0	01	1	9709-9905
15	BOLT; FENDER M6X7	1-71268-294-0	04	1	9606-
21	GROMMET; SCREW,FRT SIDE PANEL (B) D=10.5X7 L=10.5 M5	1-09983-160-3	12	1	9606-
21	GROMMET; SCREW,FRT SIDE PANEL (A) D=8.6X7.7 L=7.5	8-94279-078-0	02	1	9606-
59	GROMMET; SCREW D=7.8X7.8 L=18 NATURAL	8-94279-043-0	10	1	9606-
78	BRACKET; FENDER	1-71267-215-0	01	1	9606-
78	BRACKET; FENDER	1-71267-214-0	01	1	9606-
117	SCREW; COVER M5X16 W/PL WASHER TAPPING	8-94279-123-0	10	1	9606-
121	GROMMET; FENDER (A)	1-09983-162-0	02	1	9606-
121	GROMMET; FENDER (B) D8X13.5	1-09987-248-1	08	1	9606-
121	GROMMET; FENDER (C) 14.5X14.5 BLACK	8-94279-714-0	02	1	9606-
226	PROTECTOR; FRT	1-71267-153-7	01	1	9606-9902
226	PROTECTOR; FRT	1-71267-269-1	01	1	9903-
226	PROTECTOR; FRT	1-71267-152-7	01	1	9606-9902
226	PROTECTOR; FRT	1-71267-268-1	01	1	9903-
341	BOLT; FENDER TO COWL M6X16 W/LK&PL WASHER	1-09980-492-0	18	1	9606-
365	SUPPORT; FENDER CAB UP +110MM<TGG>	1-71907-418-1	01	1	9906-
365	SUPPORT; FENDER CAB UP +110MM<TGG>	1-71907-417-1	01	1	9906-
383	GUARD; MUD,FENDER LWR	1-71907-443-2	01	1	9606-9708
383	GUARD; MUD,FENDER LWR EXC. CAB UP +50MM<W60>	1-71907-443-2	01	1	9709-9905
383	GUARD; MUD,FENDER LWR EXC. CAB UP +110MM<TGG>	1-71907-443-2	01	1	9906-
383	GUARD; MUD,FENDER LWR	1-71907-442-2	01	1	9606-9708
383	GUARD; MUD,FENDER LWR EXC. CAB UP +50MM<W60>	1-71907-442-2	01	1	9709-9905
383	GUARD; MUD,FENDER LWR EXC. CAB UP +110MM<TGG>	1-71907-442-2	01	1	9906-
383	GUARD; MUD,FENDER LWR CAB UP +50MM<W60>	1-71907-416-2	01	1	9709-9905
383	GUARD; MUD,FENDER LWR CAB UP +110MM<TGG>	1-71907-457-2	01	1	9906-
383	GUARD; MUD,FENDER LWR CAB UP +50MM<W60>	1-71907-415-2	01	1	9709-9905
383	GUARD; MUD,FENDER LWR CAB UP +110MM<TGG>	1-71907-456-2	01	1	9906-
384	CLIP; FENDER LWR (B) D8X13.5	1-09987-248-1	11	1	9606-9708
384	CLIP; FENDER LWR CAB UP +50MM<W60> (B) D8X13.5	1-09987-248-1	13	1	9709-9905
384	CLIP; FENDER LWR CAB UP +110MM<TGG> (B) D8X13.5	1-09987-248-1	09	1	9906-
384	CLIP; FENDER LWR CAB UP +110MM<TGG> (A) ID=6	1-09987-266-0	04	1	9906-
384	CLIP; FENDER LWR EXC. CAB UP +50MM<W60> (B) D8X13.5	1-09987-248-1	11	1	9709-9905
384	CLIP; FENDER LWR EXC. CAB UP +110MM<TGG> (B) D8X13.5	1-09987-248-1	11	1	9906-
385	SCREW; FENDER LWR CAB UP +110MM<TGG> M6X25	1-65481-736-0	04	1	9906-
419	BOLT; STEP M8X24.5 W/LK&PL WASHER	8-94279-208-0	10	1	9606-
496	RUBBER; STEP	1-71998-862-0	01	1	9606-
496	RUBBER; STEP	1-71998-861-0	01	1	9606-
517	SUPPORT; STEP PANEL (A)	1-65671-529-3	01	1	9606-9904
517	SUPPORT; STEP PANEL (A)	1-65671-767-1	01	1	9905-
517	SUPPORT; STEP PANEL (B)	1-65671-531-1	01	1	9606-
517	SUPPORT; STEP PANEL (A)	1-65671-528-3	01	1	9606-9904
517	SUPPORT; STEP PANEL (A)	1-65671-766-1	01	1	9905-
517	SUPPORT; STEP PANEL (B)	1-65671-530-1	01	1	9606-
520	NUT; FENDER (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	9606-
520	NUT; FENDER (B) M6	8-94343-366-1	02	1	9606-
524	CLIP; FENDER COVER D5.4X8	1-09983-174-0	08	1	9606-9803
524	CLIP; FENDER COVER D5.4X8	1-09983-154-0	08	1	9804-
525	SEAL; FENDER 10X145	1-71268-281-1	02	1	9606-
526	FINISHER; FENDER (A)	1-71998-900-3	02	1	9606-
526	FINISHER; FENDER (C)	1-71268-276-1	01	1	9606-
526	FINISHER; FENDER (B)	1-71907-181-4	01	1	9606-
526	FINISHER; FENDER (C)	1-71268-275-1	01	1	9606-
526	FINISHER; FENDER (B)	1-71907-180-4	01	1	9606-
534	FASTENER (B) ID=5.4 OD=6.8	1-09989-019-0	08	1	9606-9803
534	FASTENER (B) ID=5.4 OD=6.8	1-09989-020-1	08	1	9804-0001
534	FASTENER (B) ID=5.4 OD=6.8	1-09989-021-0	08	1	0002-
534	FASTENER (A) D6X12.5	8-94146-425-0	02	1	9606-
535	FENDER; BLISTER	1-71267-186-1	01	1	9606-
535	FENDER; BLISTER	1-71267-185-1	01	1	9606-

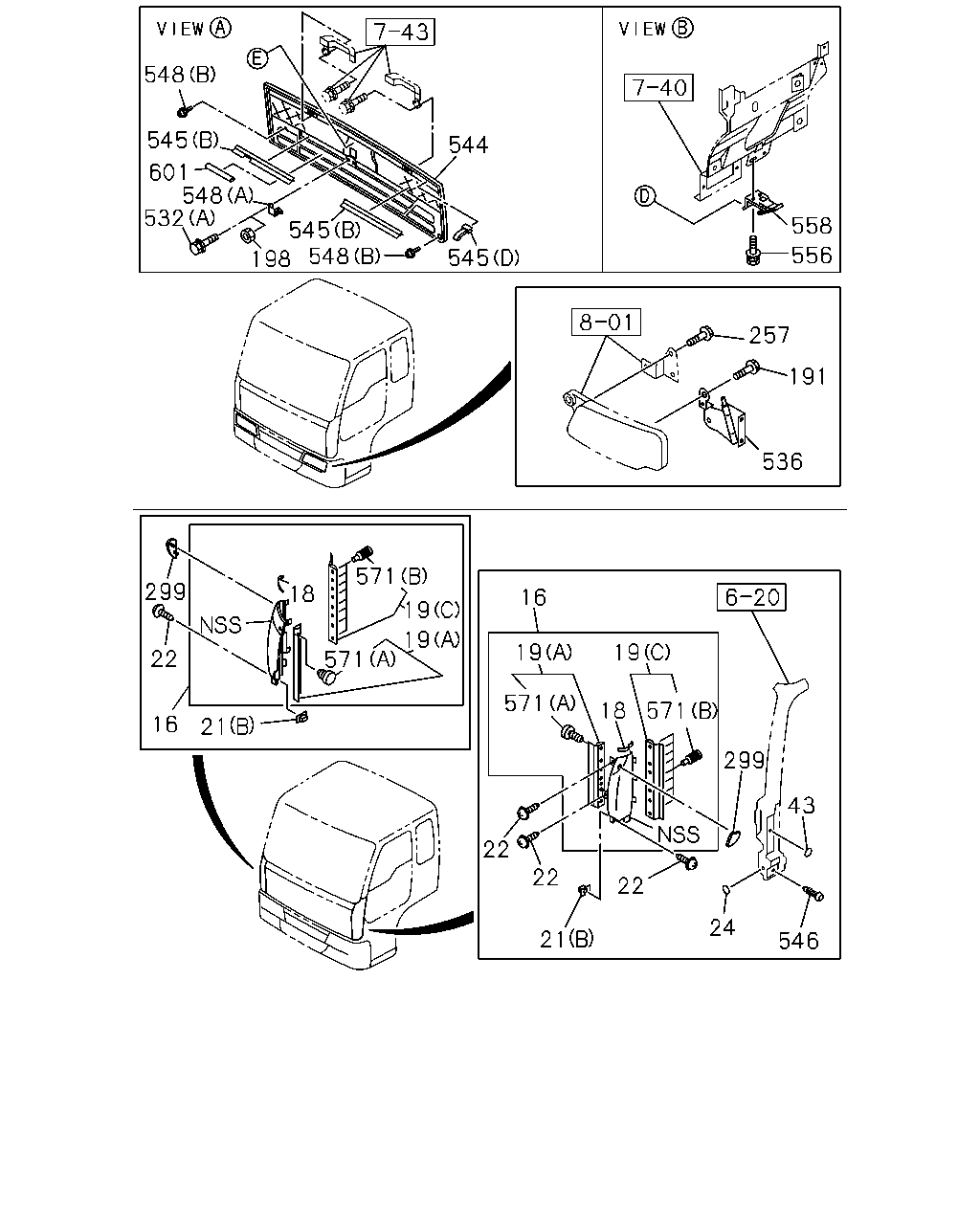

548 545 544 601 548 532 558 545 548 198 556 545 257 191 536 571 571 299 18 16 19 19 19 19 22 571 18 571 16 21 299 43 22 22 22 24 21 546

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	PANEL; FRONT,SIDE BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-65471-899-0	01	1	9710-9905
16	PANEL; FRONT,SIDE BUMPER W/HEADLAMPS<SLB>	1-65471-899-1	01	1	9906-
16	PANEL; FRONT,SIDE BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-65471-898-0	01	1	9710-9905
16	PANEL; FRONT,SIDE BUMPER W/HEADLAMPS<SLB>	1-65471-898-1	01	1	9906-
16	PANEL; FRONT,SIDE EXC. BUMPER W/HEADLAMPS<SLB>	1-65471-897-0	01	1	9606-
16	PANEL; FRONT,SIDE EXC. BUMPER W/HEADLAMPS<SLB>	1-65472-217-0	01	1	9606-9705
16	PANEL; FRONT,SIDE EXC. BUMPER W/HEADLAMPS<SLB>	1-65471-896-0	01	1	9706-
18	SEAL; A-POST UPR,FRT SIDE PANEL	1-71998-899-2	01	1	9606-
18	SEAL; A-POST UPR,FRT SIDE PANEL	1-71998-898-2	01	1	9606-
19	SEAL; FRT SIDE PANEL (C)	1-71907-411-0	01	1	9606-
19	SEAL; FRT SIDE PANEL (A)	1-71907-159-4	01	1	9606-9705
19	SEAL; FRT SIDE PANEL BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) (A)	1-71907-159-4	01	1	9706-9709
19	SEAL; FRT SIDE PANEL BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71907-159-5	01	1	9710-
19	SEAL; FRT SIDE PANEL (C)	1-71907-410-0	01	1	9606-
19	SEAL; FRT SIDE PANEL (B) OD=45 BLACK	1-76798-017-0	03	1	9704-
19	SEAL; FRT SIDE PANEL BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) (A)	1-71907-160-4	01	1	9606-9709
19	SEAL; FRT SIDE PANEL BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71907-160-5	01	1	9710-
19	SEAL; FRT SIDE PANEL BODY COLOR MARINE BLUE(890) (A)	1-71907-165-4	01	1	9606-9709
19	SEAL; FRT SIDE PANEL BODY COLOR MARINE BLUE(890) EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71907-165-4	01	1	9710-9905
19	SEAL; FRT SIDE PANEL BODY COLOR ARC WHITE(729) BUMPER W/HEADLAMPS<SLB> (A)	1-71907-165-4	01	1	9710-9905
19	SEAL; FRT SIDE PANEL BODY COLOR MARINE BLUE(890) (A)	1-71907-165-5	01	1	9906-
19	SEAL; FRT SIDE PANEL BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) BUMPER W/HEADLAMPS<SLB> (A)	1-71907-165-5	01	1	9906-
19	SEAL; FRT SIDE PANEL BODY COLOR MARINE BLUE(890) (A)	1-71907-164-4	01	1	9706-9709
19	SEAL; FRT SIDE PANEL BODY COLOR MARINE BLUE(890) EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71907-164-4	01	1	9710-9905
19	SEAL; FRT SIDE PANEL BODY COLOR ARC WHITE(729) BUMPER W/HEADLAMPS<SLB> (A)	1-71907-164-4	01	1	9710-9905
19	SEAL; FRT SIDE PANEL BODY COLOR MARINE BLUE(890) (A)	1-71907-164-5	01	1	9906-
19	SEAL; FRT SIDE PANEL BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) BUMPER W/HEADLAMPS<SLB> (A)	1-71907-164-5	01	1	9906-
21	GROMMET; SCREW,FRT SIDE PANEL (B) D=10.5X7 L=10.5 M5	1-09983-160-3	12	1	9606-
21	GROMMET; SCREW,FRT SIDE PANEL (A) D=8.6X7.7 L=7.5	8-94279-078-0	02	1	9606-
22	SCREW; FRT PANEL SIDE M5X16 W/PL WASHER TAPPING	8-94279-123-0	12	1	9606-0003
22	SCREW; FRT PANEL SIDE M5X20 W/PL WASHER TAPPING	8-97893-344-0	12	1	0004-
24	SEAL; FRT PANEL LWR OD=25 BLACK	1-76798-019-0	04	1	9606-9811
24	SEAL; FRT PANEL LWR POWER WINDOW<A30> OD=25 BLACK	1-76798-019-0	04	1	9812-9903
24	SEAL; FRT PANEL LWR POWER WINDOW<A30> OD=25 BLACK	1-76798-019-0	06	1	9904-
24	SEAL; FRT PANEL LWR EXC. POWER WINDOW<A30> OD=25 BLACK	1-76798-019-0	10	1	9812-
43	GROMMET; LOCATION HOLE,A-POST OD=45 BLACK	1-76798-017-0	02	1	9606-9807
43	GROMMET; LOCATION HOLE,A-POST OD=45 BLACK	1-76798-017-0	02	1	9808-9811
43	GROMMET; LOCATION HOLE,A-POST EXC. POWER WINDOW<A30> OD=45 BLACK	1-76798-017-0	02	1	9808-9811
43	GROMMET; LOCATION HOLE,A-POST OD=45 BLACK	1-76798-017-0	02	1	9812-
191	BOLT; HINGE M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	9606-9905
191	BOLT; HINGE EXC. BUMPER W/HEADLAMPS<SLB> M6X19.5 W/LK&PL WASHER	8-94279-201-0	04	1	9906-
198	NUT; PANEL CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> M6 FLANGE	8-94197-199-0	02	1	9906-
257	BOLT; BRKT M6X12 W/LK&PL WASHER	8-94279-200-0	04	1	9606-9905
257	BOLT; BRKT EXC. BUMPER W/HEADLAMPS<SLB> M6X12 W/LK&PL WASHER	8-94279-200-0	04	1	9906-
299	COVER; FRT PANEL SIDE	1-71998-995-1	01	1	9706-9905
299	COVER; FRT PANEL SIDE MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1>,MIR O/SREMOTE,W/DEFG,WO/WIPER & WASHER<TDD>	1-71998-995-1	01	1	9906-0002
299	COVER; FRT PANEL SIDE MIR STAY O/S W/REMOTE<TBA> EXC. MIR O/S RR VIEW LONG ARM<DH2>,MIR O/S REMOTE, W/DEFG,WO/WIPER & WASHER<TDD>	1-71998-995-1	01	1	9906-0002
299	COVER; FRT PANEL SIDE EXC. MIR O/S RR VIEW LONG ARM<DH2>	1-71998-995-1	01	1	0003-
299	COVER; FRT PANEL SIDE MIR O/S RR VIEW DOOR MOUNTED PASS SIDE<DG1> NEW ZEALAND EQUIPMENT(PK5)	1-71998-996-1	01	1	0012-
299	COVER; FRT PANEL SIDE PAPUA NEW GUINEA EQUIPMENT(PV5)	1-71998-996-1	01	1	9706-9905
532	BOLT; FRT PANEL (C) M8X20	1-79198-002-0	02	1	9606-
532	BOLT; FRT PANEL (A) M6X12 W/LK&PL WASHER	8-94279-200-0	02	1	9606-9905
532	BOLT; FRT PANEL CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (A) M6X12 W/LK&PL WASHER	8-94279-200-0	02	1	9906-
532	BOLT; FRT PANEL (B) M8X29.5 W/LK+PL WASHER	8-94279-209-0	08	1	9606-
536	HINGE	1-86830-032-5	01	1	9606-9905
536	HINGE EXC. BUMPER W/HEADLAMPS<SLB>	1-86830-032-5	01	1	9906-
536	HINGE	1-86830-031-5	01	1	9606-9905
536	HINGE EXC. BUMPER W/HEADLAMPS<SLB>	1-86830-031-5	01	1	9906-
544	LID; FRT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71107-108-6	01	1	9710-9905
544	LID; FRT CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>	1-71107-249-1	01	1	9906-
544	LID; FRT DELUXE CAB<W14>	1-71107-249-1	01	1	9906-
544	LID; FRT EXC. BUMPER W/HEADLAMPS<SLB>	1-71107-107-6	01	1	9606-9905
544	LID; FRT CAB FRT PANEL CARGO FACE VAR 1<NBH>	1-71107-237-2	01	1	9906-
544	LID; FRT DELUXE CAB<W14>	1-71107-237-2	01	1	9906-
544	LID; FRT CAB FRT PANEL CARGO FACE VAR 1<NBH>	1-71107-345-0	01	1	9906-
544	LID; FRT EXC. DELUXE CAB<W14>	1-71107-345-0	01	1	9906-
544	LID; FRT CAB FRT PANEL CARGO FACE VAR 2<NBJ>	1-71107-218-3	01	1	9906-
544	LID; FRT DELUXE CAB<W14>	1-71107-218-3	01	1	9906-
544	LID; FRT CAB FRT PANEL CARGO FACE VAR 2<NBJ>	1-71107-281-0	01	1	9906-
544	LID; FRT EXC. DELUXE CAB<W14>	1-71107-281-0	01	1	9906-
544	LID; FRT CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>	1-71107-346-0	01	1	9906-
544	LID; FRT EXC. DELUXE CAB<W14>	1-71107-346-0	01	1	9906-
544	LID; FRT CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>	1-71107-217-2	01	1	9906-
544	LID; FRT DELUXE CAB<W14>	1-71107-217-2	01	1	9906-
544	LID; FRT CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>	1-71107-293-0	01	1	9906-
544	LID; FRT EXC. DELUXE CAB<W14>	1-71107-293-0	01	1	9906-
545	SEAL; FRT LID (A) L=2038	1-71907-481-1	01	1	9606-
545	SEAL; FRT LID (B)	1-71907-154-4	01	1	9606-9905
545	SEAL; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (B)	1-71907-154-4	01	1	9906-
545	SEAL; FRT LID (B)	1-71907-153-3	01	1	9606-9905
545	SEAL; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 1<NBF>,CAB FRT PANEL CARGO FACE VAR 1<NBH> (B)	1-71907-153-3	01	1	9906-
545	SEAL; FRT LID CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) L=502	1-71907-470-0	01	1	9906-
545	SEAL; FRT LID CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) L=502	1-71907-471-0	01	1	9906-
545	SEAL; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 2<NBG> (B)	1-71907-472-0	02	1	9906-
545	SEAL; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (D) L=63	1-71998-963-2	01	1	9906-
545	SEAL; FRT LID CAB FRT PANEL OFF ROAD FACE VAR 2<NBG>,CAB FRT PANEL CARGO FACE VAR 2<NBJ> (C) OD=25 BLACK	1-76798-019-0	01	1	9906-
546	PLUG; DUMMY HOLE OD=16 L=11	1-76378-155-0	02	1	9606-
548	STRIKER; FRT LID PANEL (A)	1-79317-003-0	01	1	9606-
548	STRIKER; FRT LID PANEL (B)	1-79318-008-0	02	1	9606-
556	BOLT; CABLE M6X12 W/LK&PL WASHER	8-94279-200-0	02	1	9606-9611
556	BOLT; CABLE M6X12 W/LK&PL WASHER	8-94279-200-0	01	1	9612-
558	LEVER; FRT LID	1-79338-003-1	01	1	9606-
571	CLIP; SEAL (B) PINK	1-09987-256-0	08	1	9606-
571	CLIP; SEAL (B) NATURAL	1-09987-257-0	08	1	9606-
571	CLIP; SEAL BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) (A)	1-09987-228-0	14	1	9606-9709
571	CLIP; SEAL BODY COLOR MARINE BLUE(890) EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-09987-228-0	16	1	9710-9905
571	CLIP; SEAL BODY COLOR ARC WHITE(729) BUMPER W/HEADLAMPS<SLB> (A)	1-09987-228-0	16	1	9710-9905
571	CLIP; SEAL BODY COLOR MARINE BLUE(890) (A)	1-09987-228-0	16	1	9906-
571	CLIP; SEAL BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) BUMPER W/HEADLAMPS<SLB> (A)	1-09987-228-0	16	1	9906-
571	CLIP; SEAL BODY COLOR MARINE BLUE(890) (A)	1-09987-228-0	15	1	9606-9705
571	CLIP; SEAL BODY COLOR MARINE BLUE(890) (A)	1-09987-228-0	16	1	9706-9709
571	CLIP; SEAL BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-09987-228-0	14	1	9710-
601	FINISHER; LID CAB FRT PANEL CARGO FACE VAR 2<NBJ> L=120 SERVICED BY L=190	1-71998-300-0	01	1	9906-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
