1 |

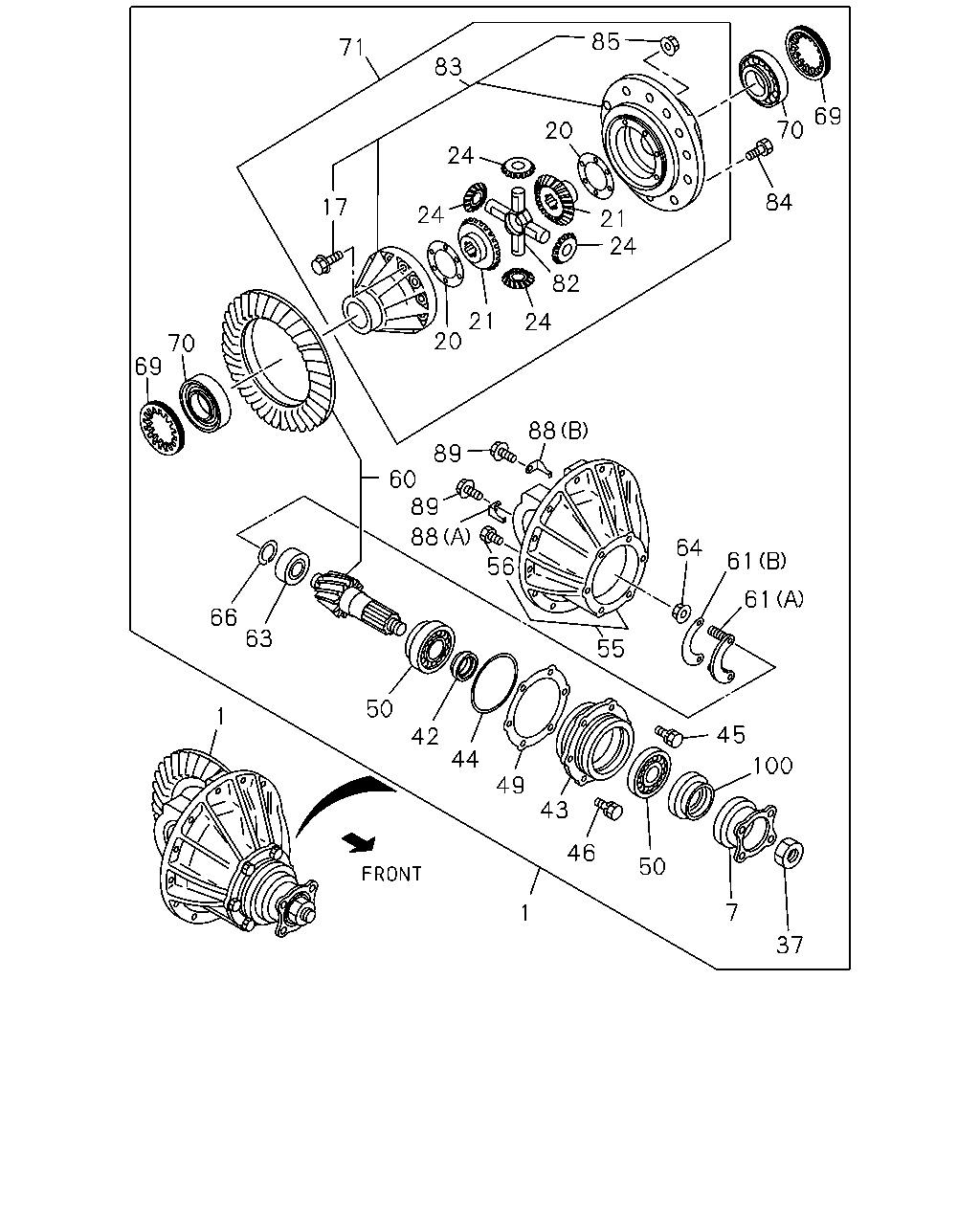

05.505 DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 39/7(GV1)
39/7
|
8-98015-141-0 |
01 |
1 |
0810- |
| |
1 |
05.505 DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-98015-142-0 |
01 |
1 |
0810- |
| |
1 |
05.505 DRIVE ASM; FINAL,RR
FINAL GEAR RATIO 43/7(R42)
43/7
|
8-98015-143-0 |
01 |
1 |
0810- |
| |
7 |
05.545 FLANGE; FINAL
|
8-94477-723-4 |
01 |
1 |
0810- |
| |
17 |
05.510 BOLT; DIFF CAGE SETTING
M10X75 FLANGE
|
8-97232-161-0 |
12 |
1 |
0810- |
| |
20 |
05.543 WASHER; THRUST,SIDE GEAR
T=1.40
|
9-41562-601-0 |
02 |
1 |
0810- |
| |
21 |
05.528 GEAR; SIDE,DIFF
05.515
Z=20
|
8-97362-599-1 |
02 |
1 |
0810- |
| |
24 |
05.526 GEAR; PINION,DIFF
Z=10
|
8-98015-202-0 |
04 |
1 |
0810- |
| |
37 |
05.595 NUT; DRIVING PINION
M24 FLANGE
|
8-94329-526-1 |
01 |
1 |
0810- |
| |
42 |
05.453 COLLAR; DIST,COLLAPSIBLE
L=19.6
|
9-41219-603-1 |
01 |
1 |
0810- |
| |
43 |
05.453 CAGE; FINAL PINION
|
8-94400-890-0 |
01 |
1 |
0810- |
| |
44 |
05.476 GASKET; PINION CAGE
05.458
|
9-09720-505-0 |
01 |
1 |
0810- |
| |
45 |
05.453 BOLT; FINAL PINION CAGE
M12X38 W/LK WASHER
|
0-50051-238-0 |
05 |
1 |
0810-0909 |
| |
45 |
05.453 BOLT; FINAL PINION CAGE
M12X38 W/LK WASHER
|
0-50551-238-0 |
05 |
1 |
0910-1311 |
| |
45 |
05.453 BOLT; FINAL PINION CAGE
M12X38 W/LK WASHER
|
8-98221-264-0 |
05 |
1 |
1312- |
| |
46 |
05.453 BOLT
M14X35 W/LK WASHER
|
0-50051-435-0 |
01 |
1 |
0810-0909 |
| |
46 |
05.453 BOLT
M14X35 W/LK WASHER
|
0-50551-435-0 |
01 |
1 |
0910- |
| |
49 |
05.458 SHIM; FINAL PINION CAGE
ID=132 T=0.10
|
8-94401-335-0 |
AR |
1 |
0810- |
| |
49 |
05.458 SHIM; FINAL PINION CAGE
ID=132 T=0.12
|
8-94401-336-0 |
AR |
1 |
0810- |
| |
49 |
05.458 SHIM; FINAL PINION CAGE
ID=132 T=0.14
|
8-94401-337-0 |
AR |
1 |
0810- |
| |
49 |
05.458 SHIM; FINAL PINION CAGE
ID=132 T=0.16
|
8-94401-338-0 |
AR |
1 |
0810- |
| |
49 |
05.458 SHIM; FINAL PINION CAGE
ID=132 T=0.18
|
8-94401-339-0 |
AR |
1 |
0810- |
| |
49 |
05.458 SHIM; FINAL PINION CAGE
ID=132 T=0.20
|
8-94401-340-0 |
AR |
1 |
0810- |
| |
50 |
05.447 BEARING; FINAL PINION
05.484
JTEKT
|
5-09812-062-1 |
02 |
1 |
0810- |
| |
50 |
05.447 BEARING; FINAL PINION
05.484
NSK
|
5-09812-063-0 |
02 |
1 |
0810- |
| |
55 |
05.505 CARRIER; DIFF
|
8-97307-760-0 |
01 |
1 |
0810- |
| |
56 |
05.506 BOLT; BRG CAP
05.387
M14X80
|
8-94365-377-3 |
04 |
1 |
0810- |
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-97319-161-0 |
01 |
1 |
1312- |
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 39/7(GV1)
39/7
|
8-97319-160-0 |
01 |
1 |
0810- |
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-97319-161-0 |
01 |
1 |
0810-1201 |
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 41/7(R41)
41/7
|
8-98092-031-1 |
01 |
1 |
1202- |
| |
60 |
05.529 GEAR SET; FINAL DRIVE,RR
FINAL GEAR RATIO 43/7(R42)
43/7
|
8-97320-103-0 |
01 |
1 |
0810- |
| |
61 |
05.476 RETAINER; PILOT BRG,PINION
(A)
W/STUD
|
5-41227-001-0 |
01 |
1 |
0810- |
| |
61 |
05.476 RETAINER; PILOT BRG,PINION
(B)
|
9-41227-601-0 |
01 |
1 |
0810- |
| |
63 |
05.447 BEARING; PINION PILOT
NSK
|
5-09810-008-1 |
01 |
1 |
0810- |
| |
63 |
05.447 BEARING; PINION PILOT
JTEKT
|
8-97107-548-0 |
01 |
1 |
0810- |
| |
64 |
05.476 NUT; RET
01.062
M6 FLANGE
|
0-91180-106-0 |
02 |
1 |
0810- |
| |
66 |
05.476 RING; SNAP,PILOT BRG
|
9-09752-002-0 |
01 |
1 |
0810- |
| |
69 |
05.506 NUT; ADJ,DIFF CAGE
M110 H=10
|
5-41121-001-0 |
02 |
1 |
0810- |
| |
70 |
05.536 BEARING; DIFF CAGE
NSK
|
9-00093-602-0 |
02 |
1 |
0810- |
| |
71 |
05.510 CAGE ASM; DIFF,FINAL DRIVE
|
8-98015-182-1 |
01 |
1 |
0810- |
| |
82 |
05.517 SPIDER; DIFF PINION
05.520
|
5-41521-008-0 |
01 |
1 |
0810- |
| |
83 |
05.510 CAGE ASM; DIFF
|
8-97319-396-1 |
01 |
1 |
0810- |
| |
84 |
05.531 BOLT; FINAL DRIVE GEAR
M14X25
|
8-97318-938-1 |
12 |
1 |
0810- |
| |
85 |
05.510 NUT; DIFF CAGE SETTING
04.085
M10 FLANGE
|
0-91180-210-0 |
12 |
1 |
0810- |
| |
88 |
05.506 PLATE; LK,ADJ NUT
(A)
|
8-97027-281-0 |
AR |
1 |
0810- |
| |
88 |
05.506 PLATE; LK,ADJ NUT
(B)
|
8-97027-282-0 |
AR |
1 |
0810- |
| |
89 |
05.506 BOLT; LK PLATE
02.343
M8X16 FLANGE
|
0-28050-816-0 |
02 |
1 |
0810- |
| |
100 |
05.469 SEAL; OIL,FINAL PINION
OD=103
|
8-94408-083-0 |
01 |
1 |
0810- |
