Isuzu WW
▶
TRUCKS
▶
NMR
▶
51385 - NMR 71(MIDDLE EAST)
▶
3 - Brakes, Brake System
▶
3-52 - BRAKE PIPING; OIL,FRONT
▶

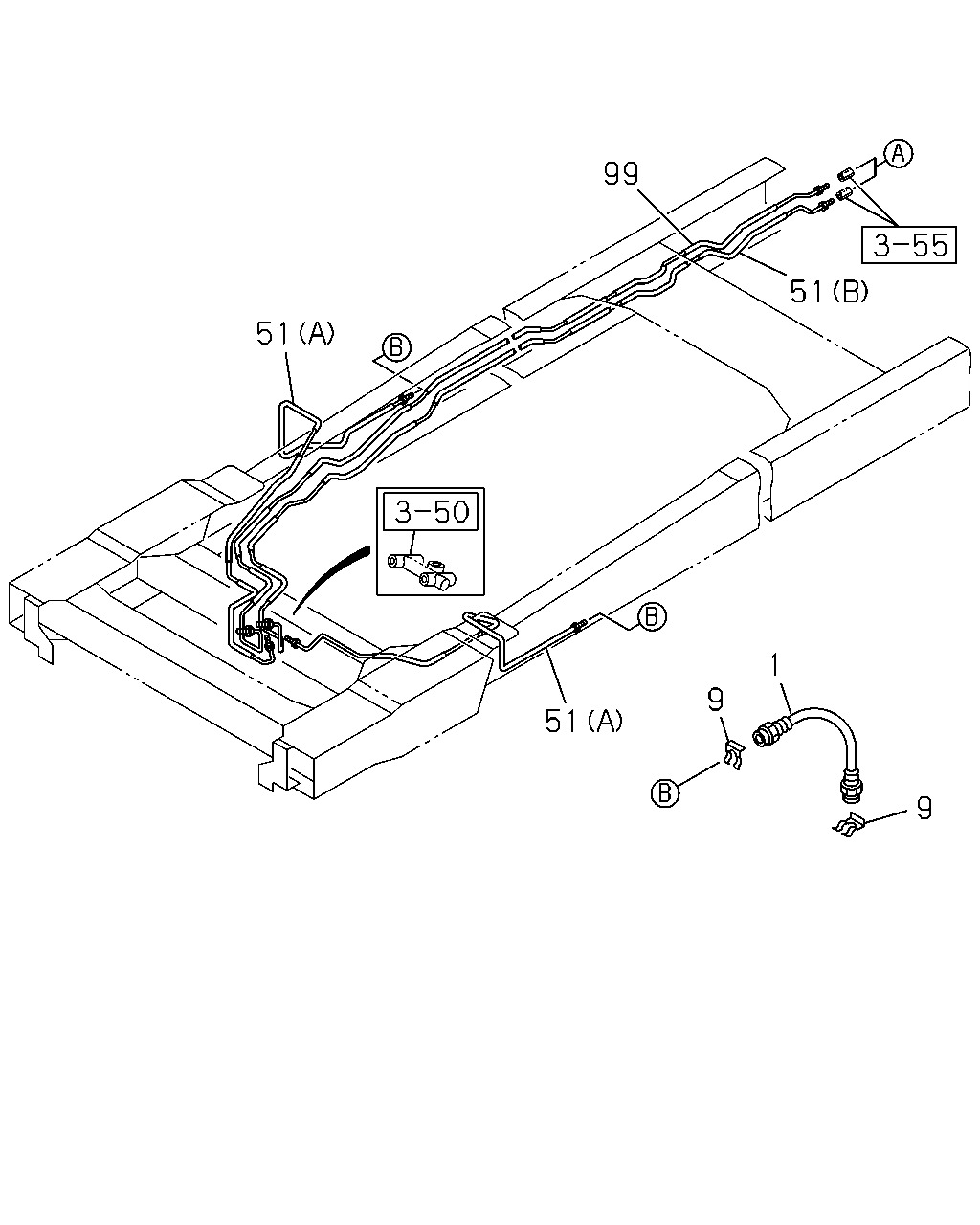

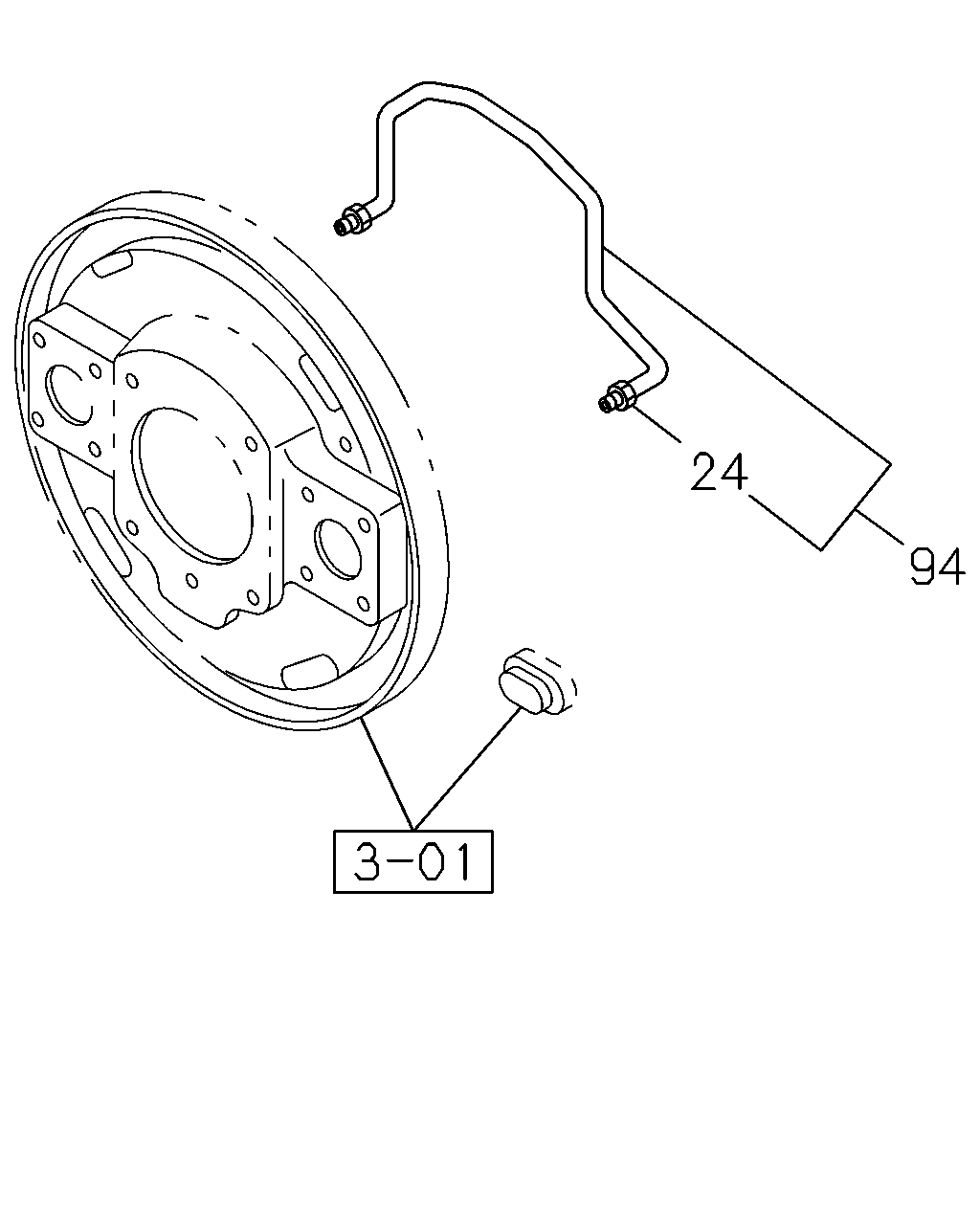

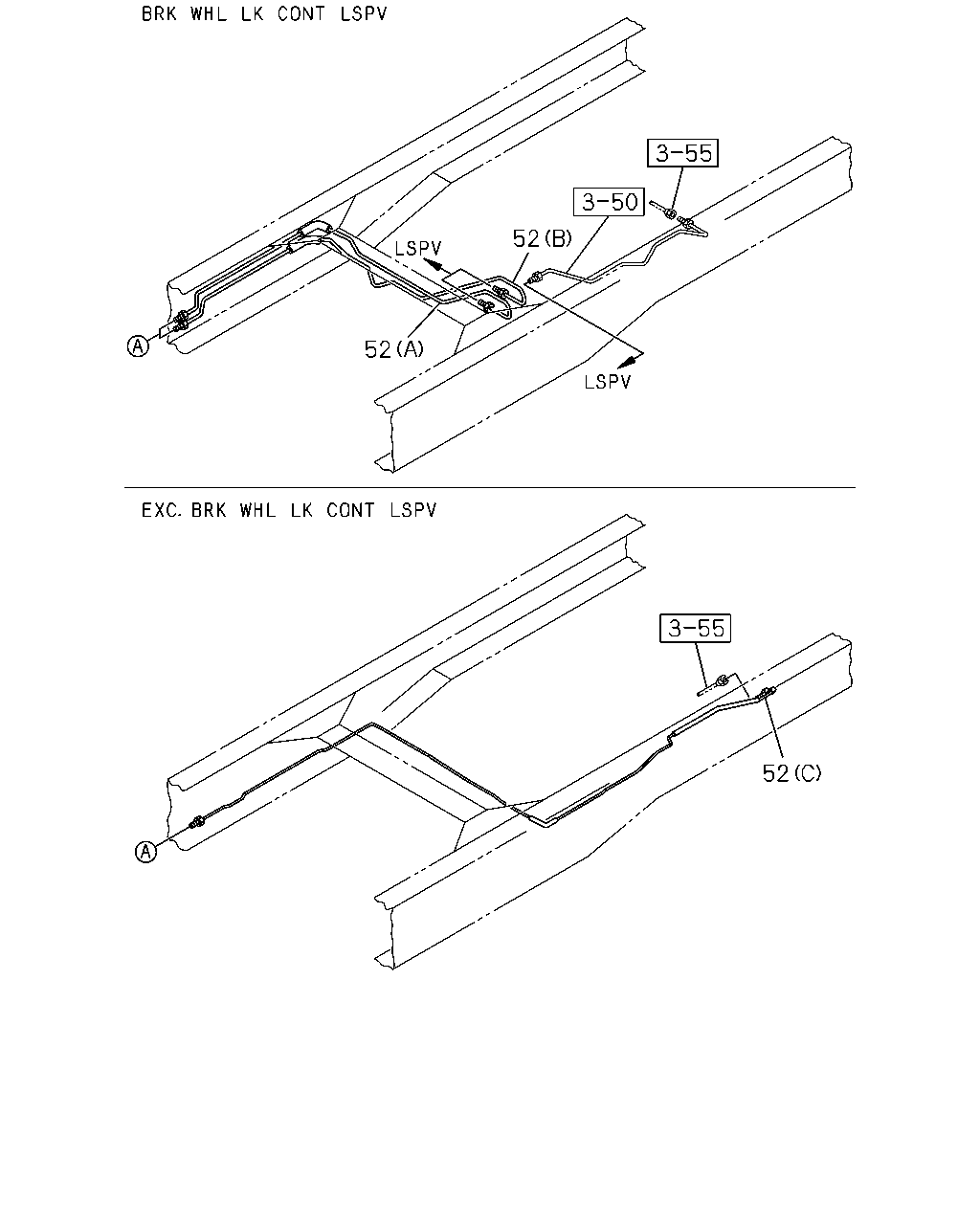

3-52 — BRAKE PIPING; OIL,FRONT
(#51400) — 19 parça
◀
[352A] PIPING;REAR (7 parça)
[352A] PIPING;FRONT (9 parça)
[352A] OTHER PARTS (3 parça)
▶
52
52
52
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
52
04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> (B) 2WAY TO LSPV,FRONT
8-97389-446-1
01
1
0810-
52
04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> (A) 2WAY TO LSPV,REAR
8-98113-418-0
01
1
0810-
52
04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH> (C) 2WAY TO REAR
8-98063-432-0
01
1
0810-
52
04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) EXC. BRK WHL LK CONT LSPV<6PH>,FRAME-KICK UP<7EW> (C) 2WAY TO REAR
8-98054-694-0
01
1
0810-
52
04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> (B) 2WAY TO LSPV,FRONT
8-97389-449-1
01
1
0810-
52
04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> (A) 2WAY TO LSPV,REAR
8-98113-419-0
01
1
0810-
52
04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. BRK WHL LK CONT LSPV<6PH>,FRAME-KICK UP<7EW> (C) 2WAY TO REAR
8-98054-696-0
01
1
0810-
99
51
51
1
9
51
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
04.680 HOSE; FLEX,FRT BRK
8-97042-976-0
02
1
0810-
9
04.686 CLIP; FLEX HOSE,FRT BRK
8-97360-054-0
02
1
0810-
9
04.686 CLIP; FLEX HOSE,FRT BRK
8-97360-054-0
02
1
0810-
51
04.685 PIPE; BRK
(A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT
8-98054-530-0
01
1
0810-
51
04.685 PIPE; BRK
(A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT
8-98054-531-1
01
1
0810-
51
04.685 PIPE; BRK
BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> (B) 5/6WAY TO 2WAY,FRONT
8-98131-077-0
01
1
0810-0901
51
04.685 PIPE; BRK
BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> (B) 5/6WAY TO 2WAY,FRONT
8-98139-680-0
01
1
0902-
99
04.686 PIPE ASM; 4/5/6 WAY
FRAME-KICK UP<7EW>
8-98063-431-0
01
1
0810-
99
04.686 PIPE ASM; 4/5/6 WAY
EXC. FRAME-KICK UP<7EW>
8-98131-078-0
01
1
0810-
24
94
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
04.686 NUT; UNION,OIL PIPE
0-92107-605-0
02
1
0810-
94
04.685 PIPE; BRK,W/C TO W/C
8-97019-222-0
01
1
0810-
94
04.685 PIPE; BRK,W/C TO W/C
8-97019-223-0
01
1
0810-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
