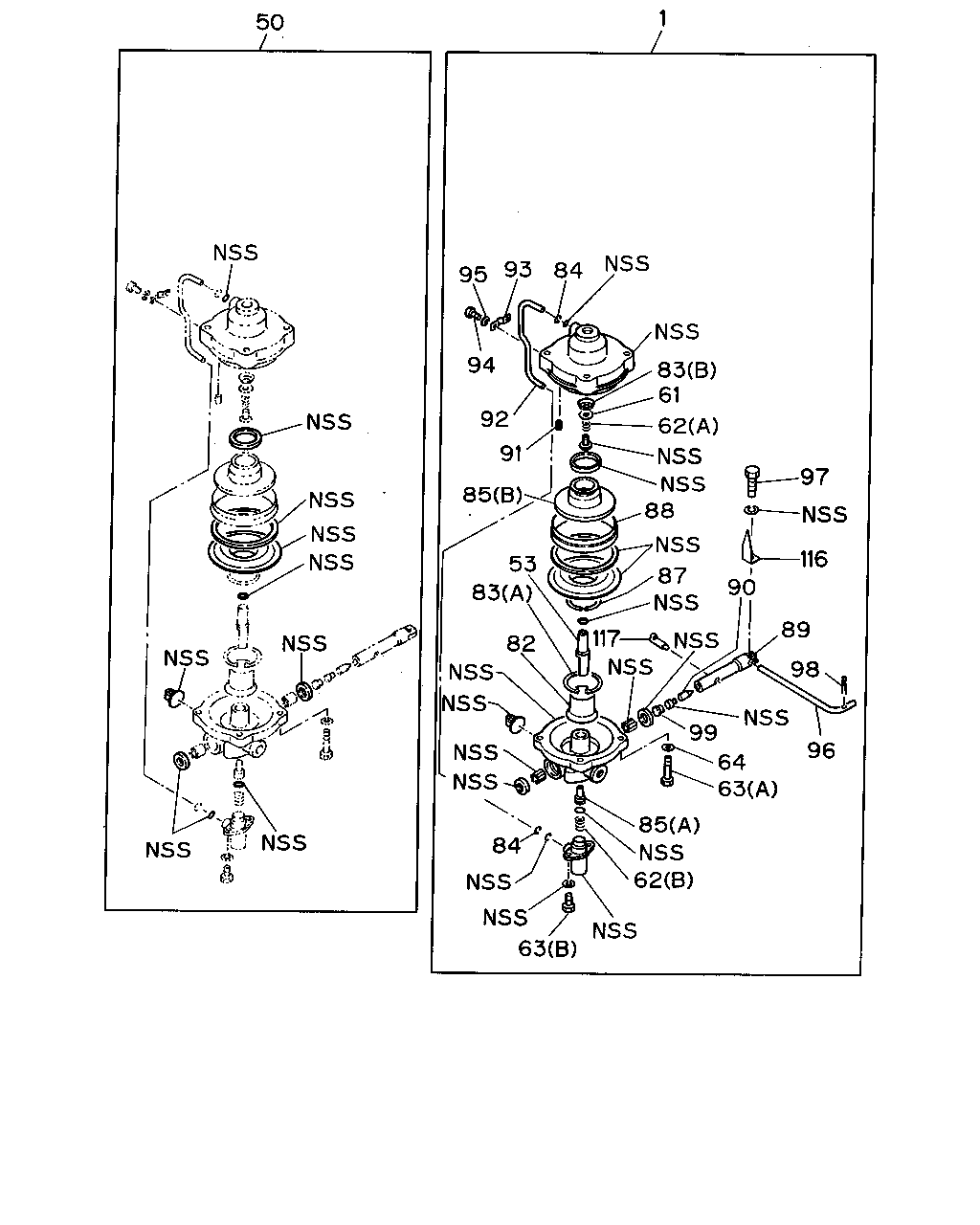

3-45 — LOAD SENSING PROPORTIONING VALVE (#514) — 55 parça

50 1 95 93 84 94 92 91 85 53 83 82 84 63 62 85 63 64 99 96 98 89 90 116 97 87 88 61 62 117 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; LOAD SENSING PROPORTIONING NYLON TUBE AIR PIPING<Z29>	1-47720-026-1	01	1	9307-9405
1	VALVE ASM; LOAD SENSING PROPORTIONING NYLON TUBE AIR PIPING<Z29>	1-47720-065-0	01	1	9406-
50	REPAIR KIT; LSPV NYLON TUBE AIR PIPING<Z29>	1-47769-088-0	01	1	9307-
53	PLUNGER; LSPV NYLON TUBE AIR PIPING<Z29>	1-47769-033-0	01	1	9307-
61	RETAINER; SPRING NYLON TUBE AIR PIPING<Z29>	1-47769-026-0	01	1	9307-
62	SPRING; LSPV NYLON TUBE AIR PIPING<Z29> (A)	1-47769-025-0	01	1	9307-
62	SPRING; LSPV NYLON TUBE AIR PIPING<Z29> (B)	1-47769-042-0	01	1	9307-
63	BOLT; LSPV NYLON TUBE AIR PIPING<Z29> (A)	1-47769-035-0	04	1	9307-
63	BOLT; LSPV NYLON TUBE AIR PIPING<Z29> (B)	1-47769-045-0	02	1	9307-
64	WASHER; LSPV NYLON TUBE AIR PIPING<Z29>	1-47769-036-0	04	1	9307-
82	GUIDE; PISTON,LSPV NYLON TUBE AIR PIPING<Z29>	1-47769-016-0	01	1	9307-
83	RING; SNAP,RET NYLON TUBE AIR PIPING<Z29> (A)	1-47769-017-0	01	1	9307-
83	RING; SNAP,RET NYLON TUBE AIR PIPING<Z29> (B)	1-47769-027-0	01	1	9307-
84	RETAINER; GASKET NYLON TUBE AIR PIPING<Z29>	1-47769-021-0	02	1	9307-
85	PISTON; LSPV NYLON TUBE AIR PIPING<Z29> (B)	1-47769-023-0	01	1	9307-
85	PISTON; LSPV NYLON TUBE AIR PIPING<Z29> (A)	1-47769-043-0	01	1	9307-
87	RETAINER; DIAPH NYLON TUBE AIR PIPING<Z29>	1-47769-031-0	01	1	9307-
88	GUIDE; DIAPH NYLON TUBE AIR PIPING<Z29>	1-47769-032-0	01	1	9307-
89	ROD; CONN,LSPV NYLON TUBE AIR PIPING<Z29>	1-47769-037-0	01	1	9307-
90	SCREW; CAM NYLON TUBE AIR PIPING<Z29>	1-47769-039-0	01	1	9307-
91	FILTER; LSPV NYLON TUBE AIR PIPING<Z29>	1-47769-047-0	01	1	9307-
92	PIPE; LSPV NYLON TUBE AIR PIPING<Z29>	1-47769-048-0	01	1	9307-
93	CLIP; PIPE NYLON TUBE AIR PIPING<Z29>	1-47769-050-0	01	1	9307-
94	SCREW; CLIP NYLON TUBE AIR PIPING<Z29>	1-47769-051-0	02	1	9307-
95	WASHER; CLIP NYLON TUBE AIR PIPING<Z29>	1-47769-052-0	02	1	9307-
96	ARM; OPERATING NYLON TUBE AIR PIPING<Z29>	1-47769-053-0	01	1	9307-
97	BOLT; OPERATING ARM NYLON TUBE AIR PIPING<Z29>	1-47769-054-0	01	1	9307-
98	PIN; SPLIT NYLON TUBE AIR PIPING<Z29> OD=1.8 L=15	9-08112-015-0	01	1	9307-
99	CAP; SCREW NYLON TUBE AIR PIPING<Z29>	1-47769-055-0	01	1	9307-
116	INDICATOR; LSPV NYLON TUBE AIR PIPING<Z29>	1-47769-046-0	01	1	9307-
117	CAM; LSPV NYLON TUBE AIR PIPING<Z29>	1-47769-038-0	01	1	9307-

100 11 13 14 1 58 10 111 34 2 8 36 111 36 35 37 37 26 111 112 43 115 114 33 113 30 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE ASM; LOAD SENSING PROPORTIONING NYLON TUBE AIR PIPING<Z29>	1-47720-026-1	01	1	9307-9405
1	VALVE ASM; LOAD SENSING PROPORTIONING NYLON TUBE AIR PIPING<Z29>	1-47720-065-0	01	1	9406-
2	DAMPER NYLON TUBE AIR PIPING<Z29>	1-47725-016-0	01	1	9307-
8	ROD END NYLON TUBE AIR PIPING<Z29>	1-47723-001-0	01	1	9307-
10	BOLT; BRKT NYLON TUBE AIR PIPING<Z29> M10X30 W/LK WASHER	0-50041-030-0	03	1	9307-
11	NUT; BRKT NYLON TUBE AIR PIPING<Z29> M10	9-09110-510-0	01	1	9307-
13	NUT; LSPV TO BRKT NYLON TUBE AIR PIPING<Z29> M8	9-09110-508-0	03	1	9307-
14	WASHER; LK,LSPV TO BRKT NYLON TUBE AIR PIPING<Z29> ID=8.2	9-09150-508-0	03	1	9307-
26	BOLT; DAMPER NYLON TUBE AIR PIPING<Z29> M8X20 FLANGE	0-28080-820-0	02	1	9307-
30	WASHER; PL NYLON TUBE AIR PIPING<Z29> ID=8.4	9-09160-508-0	02	1	9307-
33	PIN; SPLIT NYLON TUBE AIR PIPING<Z29> OD=1.8 L=25	9-08112-025-0	01	1	9307-
34	ROD; LEVER TO ROD,LSPV NYLON TUBE AIR PIPING<Z29>	1-09740-048-0	01	1	9307-
35	ROD; LINK,LSPV NYLON TUBE AIR PIPING<Z29>	1-09740-049-0	01	1	9307-
36	WASHER; PL,ROD NYLON TUBE AIR PIPING<Z29> ID=8.4	9-09160-508-0	02	1	9307-
37	PIN; SPLIT,ROD NYLON TUBE AIR PIPING<Z29> OD=1.8 L=25	9-08112-025-0	02	1	9307-
43	BRACKET; DAMPER TO AXLE NYLON TUBE AIR PIPING<Z29>	1-42129-185-0	01	1	9307-
58	CONNECTOR; LSPV NYLON TUBE AIR PIPING<Z29> (A)	1-09660-287-0	01	1	9307-
58	CONNECTOR; LSPV NYLON TUBE AIR PIPING<Z29> (B)	1-09660-610-0	01	1	9307-
100	BRACKET; LSPV NYLON TUBE AIR PIPING<Z29>	1-42129-038-1	01	1	9307-
111	RUBBER; JOINT,LSPV NEW ZEALAND EQUIPMENT(PK5)	1-47723-001-0	03	1	9307-
112	PIN; JOINT RUBBER NEW ZEALAND EQUIPMENT(PK5)	1-09744-052-0	01	1	9307-
113	NUT; JOINT RUBBER NEW ZEALAND EQUIPMENT(PK5) M8	9-09110-408-0	01	1	9307-
114	WASHER; PL,JOINT RUBBER NEW ZEALAND EQUIPMENT(PK5) ID=8.4	9-09160-508-0	01	1	9307-
115	WASHER; LK,JOINT RUBBER NEW ZEALAND EQUIPMENT(PK5) ID=8.2	9-09150-508-0	01	1	9307-
