3-11 — PARKING BRAKE CONTROL
(#51394) — 45 parça
◀

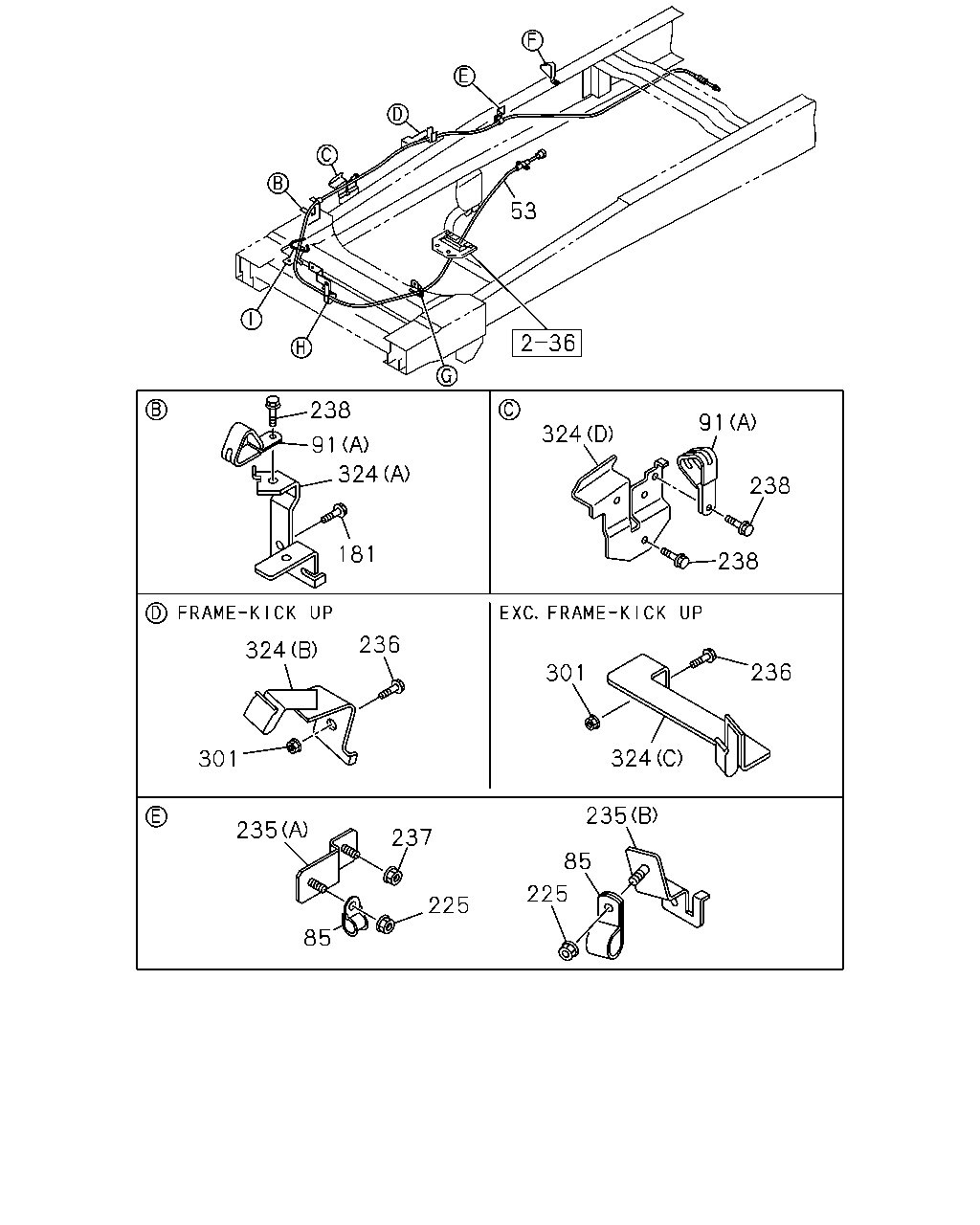

[311A] FIXING PARTS(NO.1) (22 parça)

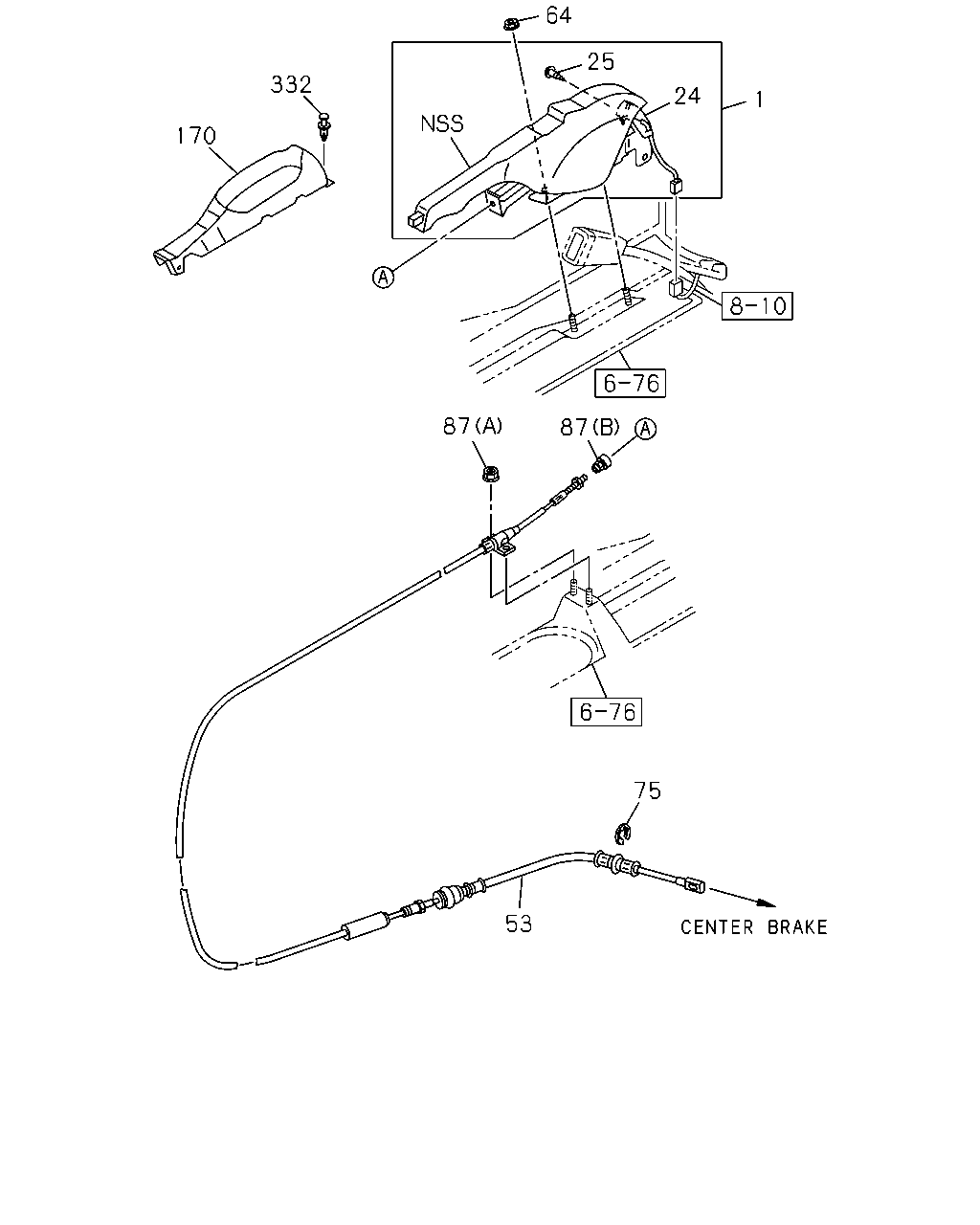

[311A] STEM AND CABLE (12 parça)
[311A] FIXING PARTS(NO.2) (11 parça)
▶
53
238
91
324
91
324
238
181
238
236
324
236
301
324
301
235
235
237
85
225
225
85
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
53
04.779 CABLE; PARK BRK,FRT LWR
8-98105-154-2
01
1
0810-
85
04.785 CLIP; BRKT
ID=14.5 L=20
1-09701-012-0
01
1
0810-
91
04.785 CLIP; PARKING BRK CABLE
04.047 (A)
8-97036-333-1
03
1
0810-
91
04.785 CLIP; PARKING BRK CABLE
04.047 (B)
8-97039-295-0
01
1
0810-
181
04.785 BOLT; BRKT
06.216 M8X25 FLANGE
0-28650-825-0
02
1
0810-
181
04.785 BOLT; BRKT
06.216 M8X25 FLANGE
0-28650-825-0
02
1
0810-
225
04.785 NUT; CABLE CLIP
01.062 M8 FLANGE
0-91180-108-0
01
1
0810-
225
04.785 NUT; CABLE CLIP
01.062 M8 FLANGE
0-91180-108-0
01
1
0810-
235
04.785 BRACKET; CONT CABLE TO FRAME
FRAME-KICK UP<7EW> (B)
8-98013-968-0
01
1
0810-
235
04.785 BRACKET; CONT CABLE TO FRAME
EXC. FRAME-KICK UP<7EW> (A)
8-98034-352-0
01
1
0810-
236
04.785 BOLT; BRKT TO FRAME
06.216 M8X25 FLANGE
0-28650-825-0
01
1
0810-
236
04.785 BOLT; BRKT TO FRAME
06.216 M8X25 FLANGE
0-28650-825-0
01
1
0810-
237
04.785 NUT; BRKT TO FRAME
01.062 M8 FLANGE
0-91180-108-0
01
1
0810-
238
04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE
0-28650-825-0
03
1
0810-
301
04.785 NUT; BRKT,BRK & CLU PEDAL
01.062 M8 FLANGE
0-91180-108-0
01
1
0810-
324
04.785 BRACKET
FRAME-KICK UP<7EW> (B)
8-98063-429-0
01
1
0810-
324
04.785 BRACKET
(A)
8-98003-642-1
01
1
0810-
324
04.785 BRACKET
(E)
8-98047-573-0
01
1
0810-
324
04.785 BRACKET
(F)
8-98047-575-1
01
1
0810-
324
04.785 BRACKET
(D)
8-98100-180-1
01
1
0810-
324
04.785 BRACKET
(G)
8-98116-060-0
01
1
0810-
324
04.785 BRACKET
EXC. FRAME-KICK UP<7EW> (C)
8-98038-563-0
01
1
0810-
64
25
332
24
1
170
87
87
75
53
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
04.592 STEM ASM; PARKING BRK
GRAY
8-97406-006-0
01
1
0810-1303
1
04.592 STEM ASM; PARKING BRK
GRAY
8-97426-514-0
01
1
1304-
24
04.589 SWITCH ASM; PARK BRK
8-97995-828-1
01
1
0810-1303
24
04.589 SWITCH ASM; PARK BRK
8-98238-611-0
01
1
1304-
25
04.589 SCREW; SW,PARKING BRK
8-98152-463-0
01
1
0810-
53
04.779 CABLE; PARK BRK,FRT LWR
8-98105-154-2
01
1
0810-
64
04.595 NUT; PARKING BRK
16.682 M8 LOCK NUT FLANGE
0-91380-008-0
02
1
0810-
75
04.790 RING; SNAP,HAND BRK CABLE
ID=12
0-91805-512-0
01
1
0810-
87
04.785 NUT
01.062 (A) M8 FLANGE
0-91180-108-0
02
1
0810-
87
04.785 NUT
(B) M6
8-98034-313-1
01
1
0810-
170
04.595 COVER; PARKING BRK LEVER
GRAY
8-97411-674-1
01
1
0810-
332
04.785 CLIP; COVER
04.012 GRAY
8-97406-179-0
01
1
0810-
238
91
237
324
324
238
238
91
238
324
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
91
04.785 CLIP; PARKING BRK CABLE
04.047 (A)
8-97036-333-1
03
1
0810-
91
04.785 CLIP; PARKING BRK CABLE
04.047 (B)
8-97039-295-0
01
1
0810-
237
04.785 NUT; BRKT TO FRAME
01.062 M8 FLANGE
0-91180-108-0
01
1
0810-
238
04.785 BOLT; CLIP TO BRKT
06.216 M8X25 FLANGE
0-28650-825-0
03
1
0810-
324
04.785 BRACKET
FRAME-KICK UP<7EW> (B)
8-98063-429-0
01
1
0810-
324
04.785 BRACKET
(A)
8-98003-642-1
01
1
0810-
324
04.785 BRACKET
(E)
8-98047-573-0
01
1
0810-
324
04.785 BRACKET
(F)
8-98047-575-1
01
1
0810-
324
04.785 BRACKET
(D)
8-98100-180-1
01
1
0810-
324
04.785 BRACKET
(G)
8-98116-060-0
01
1
0810-
324
04.785 BRACKET
EXC. FRAME-KICK UP<7EW> (C)
8-98038-563-0
01
1
0810-
