2-85 — POWER TAKE OFF CONTROL (#51389) — 105 parça

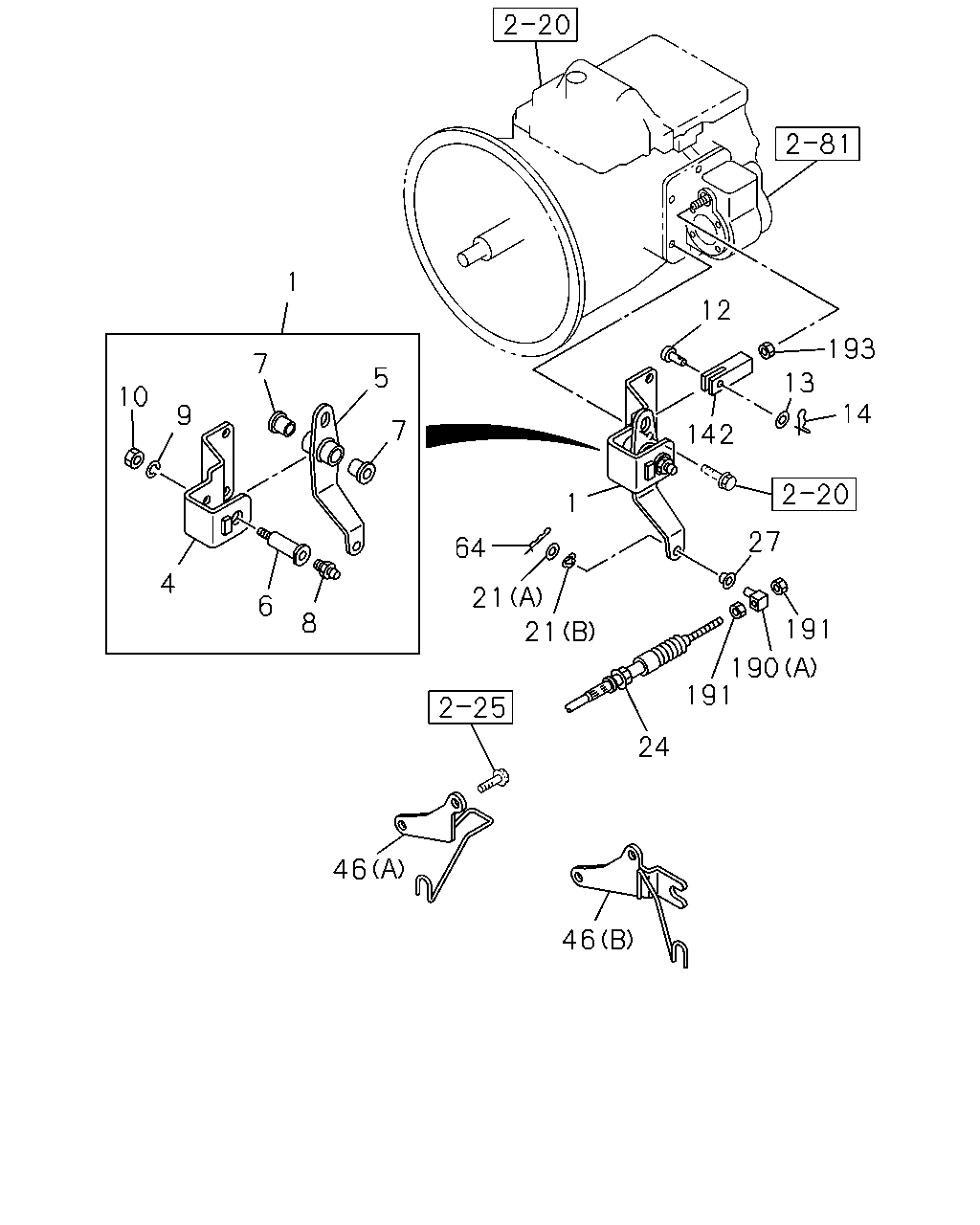

1 12 193 7 5 13 10 14 9 7 142 1 27 64 4 21 21 6 8 191 190 191 24 46 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66)	8-98032-714-0	01	1	0810-1107
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66)	8-98150-089-1	01	1	1108-
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66)	8-98032-717-0	01	1	0810-1107
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66)	8-98150-099-1	01	1	1108-
5	04.439 LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66)	8-98032-718-0	01	1	0810-
6	04.439 SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66)	8-98032-720-0	01	1	0810-1107
6	04.439 SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66)	8-98150-101-0	01	1	1108-
7	04.439 BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66)	5-33659-053-0	02	1	0810-
8	04.439 NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	0810-
9	04.439 WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) ID=8.2	0-91510-508-0	01	1	0810-
10	04.439 NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) 02.334 M8	0-91110-508-0	01	1	0810-
12	04.439 JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66)	8-98031-692-0	01	1	0810-
13	04.439 WASHER; PL,YOKE PTO TRANSMISSION SIDE(V66) ID=12.5 OD=22	0-91610-512-0	01	1	0810-
14	04.439 PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66)	8-97581-216-0	01	1	0810-
21	04.439 WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 02.277 (A) ID=8.4 OD=22	0-91614-708-0	01	1	0810-1009
21	04.439 WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D),PTO T/M SIDE DIRECTPUMP(8KZ) 02.277 (A) ID=8.4 OD=22	0-91614-708-0	01	1	1010-
21	04.439 WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 04.037 (B) ID=8.5 T=0.3	5-09509-001-0	01	1	0810-1009
21	04.439 WASHER; PL,CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D),PTO T/M SIDE DIRECTPUMP(8KZ) 04.037 (B) ID=8.5 T=0.3	5-09509-001-0	01	1	1010-
24	04.439 CABLE; PTO CONT . DUMP CHASSIS(V4D) L=2999	8-98071-365-2	01	1	0810-0902
24	04.439 CABLE; PTO CONT . DUMP CHASSIS(V4D) L=2999	8-98139-161-0	01	1	0903-1204
24	04.439 CABLE; PTO CONT . DUMP CHASSIS(V4D) L=2999	8-98212-287-0	01	1	1205-1207
24	04.439 CABLE; PTO CONT . DUMP CHASSIS(V4D) L=2999	8-98223-293-0	01	1	1208-1507
24	04.439 CABLE; PTO CONT . DUMP CHASSIS(V4D) L=2999	8-98328-259-1	01	1	1508-
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) L=3053	8-98071-357-2	01	1	0810-0902
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) L=3013	8-98139-162-0	01	1	0903-1204
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) L=3013	8-98212-226-0	01	1	1205-1207
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) L=3013	8-98223-340-0	01	1	1208-
27	04.439 BUSHING; LEVER,PTO PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 04.042	8-94367-367-0	01	1	0810-1009
27	04.439 BUSHING; LEVER,PTO PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D),PTO T/M SIDE DIRECTPUMP(8KZ) 04.042	8-94367-367-0	01	1	1010-
46	04.439 BRACKET; PTO,TRANS SIDE DUMP CHASSIS(V4D) (A)	8-98133-150-0	01	1	0810-
46	04.439 BRACKET; PTO,TRANS SIDE PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (B)	8-98133-149-0	01	1	0810-
64	04.439 PIN; SNAP,CONT CABLE JOINT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 00.833 L=27.7	8-94111-137-0	01	1	0810-1009
64	04.439 PIN; SNAP,CONT CABLE JOINT PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D),PTO T/M SIDE DIRECTPUMP(8KZ) 00.833 L=27.7	8-94111-137-0	01	1	1010-
142	04.439 CLEVIS; CONT BOX PTO TRANSMISSION SIDE(V66)	8-98031-691-0	01	1	0810-
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (B)	8-98029-878-0	01	1	0810-
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 04.307 (A)	8-94366-842-2	01	1	0810-1009
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D),PTO T/M SIDE DIRECTPUMP(8KZ) 04.307 (A)	8-94366-842-2	01	1	1010-
191	04.439 NUT; BOSS PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 03.330 M6	0-91110-506-0	02	1	0810-1009
191	04.439 NUT; BOSS PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D),PTO T/M SIDE DIRECTPUMP(8KZ) 03.330 M6	0-91110-506-0	02	1	1010-
193	04.439 NUT PTO TRANSMISSION SIDE(V66) M12	0-91111-512-0	01	1	0810-

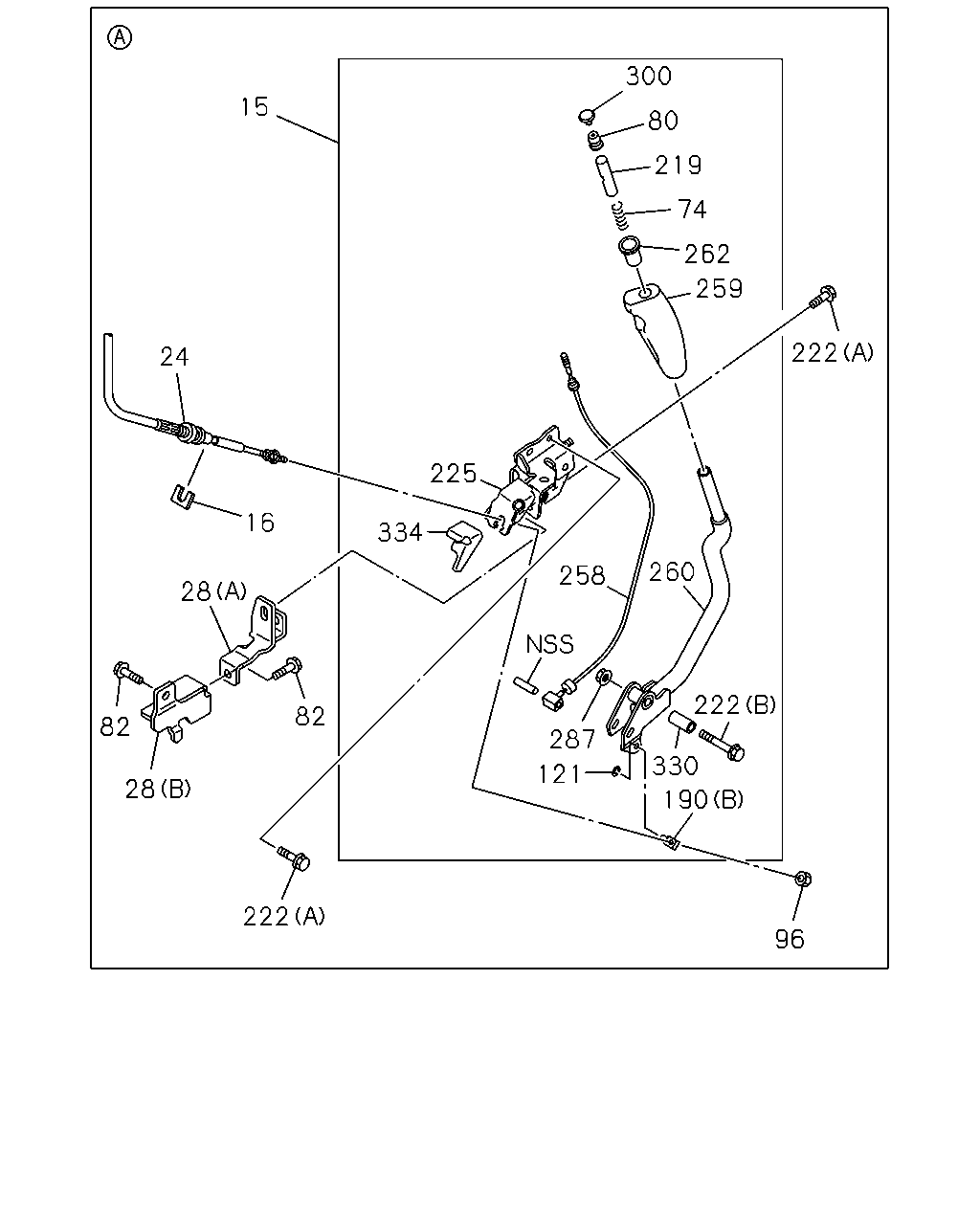

15 24 16 28 82 28 82 222 121 287 330 190 222 96 260 258 334 225 259 262 74 222 219 80 300

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	04.439 LEVER ASM; PTO CONT PTO MANUAL CONTROL(6WC)	8-98124-519-0	01	1	0810-
16	04.439 CLIP; CABLE,PTO PTO MANUAL CONTROL(6WC)	8-98050-126-0	01	1	0810-
24	04.439 CABLE; PTO CONT . DUMP CHASSIS(V4D) L=2999	8-98071-365-2	01	1	0810-0902
24	04.439 CABLE; PTO CONT . DUMP CHASSIS(V4D) L=2999	8-98139-161-0	01	1	0903-1204
24	04.439 CABLE; PTO CONT . DUMP CHASSIS(V4D) L=2999	8-98212-287-0	01	1	1205-1207
24	04.439 CABLE; PTO CONT . DUMP CHASSIS(V4D) L=2999	8-98223-293-0	01	1	1208-1507
24	04.439 CABLE; PTO CONT . DUMP CHASSIS(V4D) L=2999	8-98328-259-1	01	1	1508-
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) L=3053	8-98071-357-2	01	1	0810-0902
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) L=3013	8-98139-162-0	01	1	0903-1204
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) L=3013	8-98212-226-0	01	1	1205-1207
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) L=3013	8-98223-340-0	01	1	1208-
28	04.439 BRACKET; CONT LEVER DUMP CHASSIS(V4D) (A)	8-98096-005-2	01	1	0810-1005
28	04.439 BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (A)	8-98096-005-2	01	1	0810-1005
28	04.439 BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC) (A)	8-98096-005-2	01	1	1006-
28	04.439 BRACKET; CONT LEVER DUMP CHASSIS(V4D) (B)	8-98096-006-0	01	1	0810-1005
28	04.439 BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) (B)	8-98096-006-0	01	1	0810-1005
28	04.439 BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC) (B)	8-98096-006-0	01	1	1006-
74	04.439 SPRING; RETURN,CONT LEVER PTO MANUAL CONTROL(6WC)	8-98029-874-0	01	1	0810-
80	04.439 COVER; CONT LEVER PTO MANUAL CONTROL(6WC)	8-97122-741-0	01	1	0810-
82	04.128 BOLT; CONT LEVER DUMP CHASSIS(V4D) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0810-1005
82	04.128 BOLT; CONT LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0810-1005
82	04.128 BOLT; CONT LEVER PTO MANUAL CONTROL(6WC) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	1006-
96	04.439 NUT PTO MANUAL CONTROL(6WC) 03.330 M6	0-91110-506-0	01	1	0810-
121	04.439 RING; SNAP PTO MANUAL CONTROL(6WC) 03.485 ID=4	0-91805-504-0	01	1	0810-
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) (B)	8-98029-878-0	01	1	0810-
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 04.307 (A)	8-94366-842-2	01	1	0810-1009
190	04.439 BOSS; LEVER,PTO PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D),PTO T/M SIDE DIRECTPUMP(8KZ) 04.307 (A)	8-94366-842-2	01	1	1010-
219	04.439 KNOB; LEVER PTO MANUAL CONTROL(6WC)	8-97122-736-0	01	1	0810-
222	04.439 BOLT; LEVER PTO MANUAL CONTROL(6WC) (B) M8X60	0-10855-860-0	01	1	0810-
222	04.439 BOLT; LEVER DUMP CHASSIS(V4D) 01.531 (A) M8X20 FLANGE	0-28650-820-0	03	1	0810-1005
222	04.439 BOLT; LEVER PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) 01.531 (A) M8X20 FLANGE	0-28650-820-0	03	1	0810-1005
222	04.439 BOLT; LEVER PTO MANUAL CONTROL(6WC) 01.531 (A) M8X20 FLANGE	0-28650-820-0	03	1	1006-
225	04.439 BRACKET; CONT LEVER PTO MANUAL CONTROL(6WC)	8-98077-250-2	01	1	0810-
258	04.439 CABLE; DUMP CONT . PTO MANUAL CONTROL(6WC)	8-98077-160-1	01	1	0810-
259	04.439 GRIP; CONT LEVER PTO MANUAL CONTROL(6WC)	8-97141-653-0	01	1	0810-
260	04.439 LEVER; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98077-136-1	01	1	0810-
262	04.439 RETAINER; SPRING PTO MANUAL CONTROL(6WC)	8-97129-397-0	01	1	0810-
287	04.439 NUT; SWITCH,CONT LEVER PTO MANUAL CONTROL(6WC) 01.540 M8 FLANGE	0-91180-208-0	01	1	0810-
300	04.439 CAP; KNOB PTO MANUAL CONTROL(6WC)	8-97122-740-0	01	1	0810-
330	04.439 COLOR; DUMP CONT PTO MANUAL CONTROL(6WC)	8-98049-802-0	01	1	0810-
334	04.439 SHEET; PTO PTO MANUAL CONTROL(6WC)	8-98109-990-1	01	1	0811-

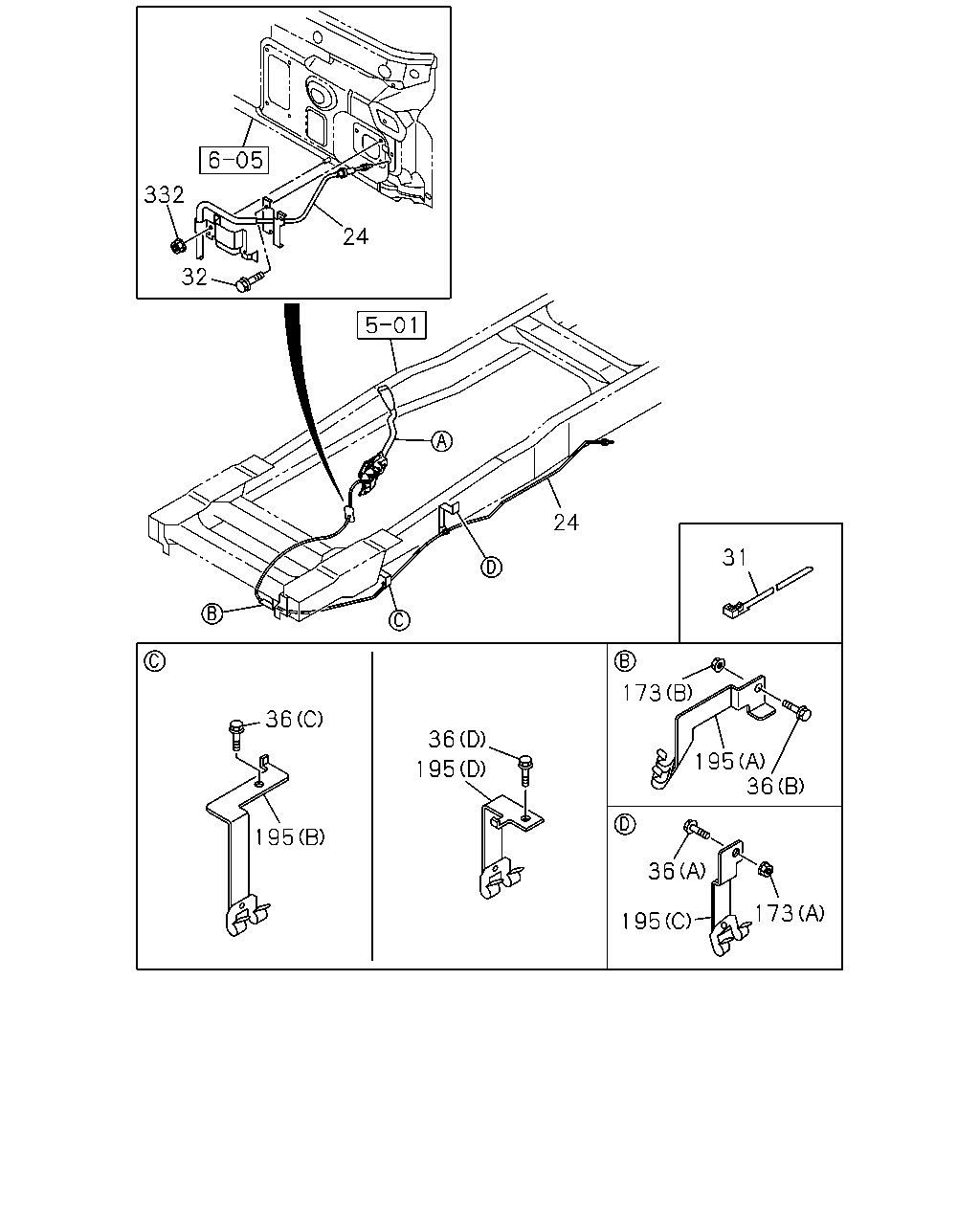

332 24 32 24 31 173 36 36 195 36 195 195 36 173 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	04.439 CABLE; PTO CONT . DUMP CHASSIS(V4D) L=2999	8-98071-365-2	01	1	0810-0902
24	04.439 CABLE; PTO CONT . DUMP CHASSIS(V4D) L=2999	8-98139-161-0	01	1	0903-1204
24	04.439 CABLE; PTO CONT . DUMP CHASSIS(V4D) L=2999	8-98212-287-0	01	1	1205-1207
24	04.439 CABLE; PTO CONT . DUMP CHASSIS(V4D) L=2999	8-98223-293-0	01	1	1208-1507
24	04.439 CABLE; PTO CONT . DUMP CHASSIS(V4D) L=2999	8-98328-259-1	01	1	1508-
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) L=3053	8-98071-357-2	01	1	0810-0902
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) L=3013	8-98139-162-0	01	1	0903-1204
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) L=3013	8-98212-226-0	01	1	1205-1207
24	04.439 CABLE; PTO CONT . PTO MANUAL CONTROL(6WC) EXC. DUMP CHASSIS(V4D) L=3013	8-98223-340-0	01	1	1208-
31	04.439 CLIP; BAND,CABLE DUMP CHASSIS(V4D) 02.559 L=300	1-09707-001-1	02	1	0810-
31	04.439 CLIP; BAND,CABLE PTO MANUAL CONTROL(6WC) 02.559 L=250	5-09707-030-1	01	1	0810-
32	04.439 BOLT; CLIP,CABLE PTO MANUAL CONTROL(6WC) 02.361 M6X12 FLANGE	8-97329-610-0	02	1	0810-
36	04.439 BOLT; PTO BRKT AIR CONDITIONER MANUAL CONT(C60) PTO MANUAL CONTROL(6WC) 03.162 (A) M6X20 FLANGE	0-28650-620-0	01	1	0810-
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) 07.395 (D) M12X30 FLANGE	0-28651-230-0	01	1	0810-
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) 07.874 (B) M14X30 FLANGE	0-28651-430-0	01	1	0810-
36	04.439 BOLT; PTO BRKT PTO MANUAL CONTROL(6WC) EXC. AIR CONDITIONER MANUAL CONT(C60) 06.216 (C) M8X25 FLANGE	0-28650-825-0	01	1	0810-
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) 07.529 (B) M14 FLANGE	0-91180-114-0	01	1	1112-
173	04.439 NUT; BRKT AIR CONDITIONER MANUAL CONT(C60) PTO MANUAL CONTROL(6WC) 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0810-
173	04.439 NUT; BRKT PTO MANUAL CONTROL(6WC) 07.529 (B) M14 FLANGE	0-91180-114-0	01	1	0810-1111
195	04.439 BRACKET; CONT CABLE AIR CONDITIONER MANUAL CONT(C60) PTO MANUAL CONTROL(6WC) (C)	8-98086-266-0	01	1	0810-
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) (A)	8-98086-263-0	01	1	0810-
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) (D)	8-98108-504-1	01	1	0810-
195	04.439 BRACKET; CONT CABLE PTO MANUAL CONTROL(6WC) EXC. AIR CONDITIONER MANUAL CONT(C60) (B)	8-98086-265-0	01	1	0810-
332	04.439 NUT; PTO CONT CABLE PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE	0-91180-106-0	01	1	0810-
