Sayfa 6-01 - Isuzu EPC

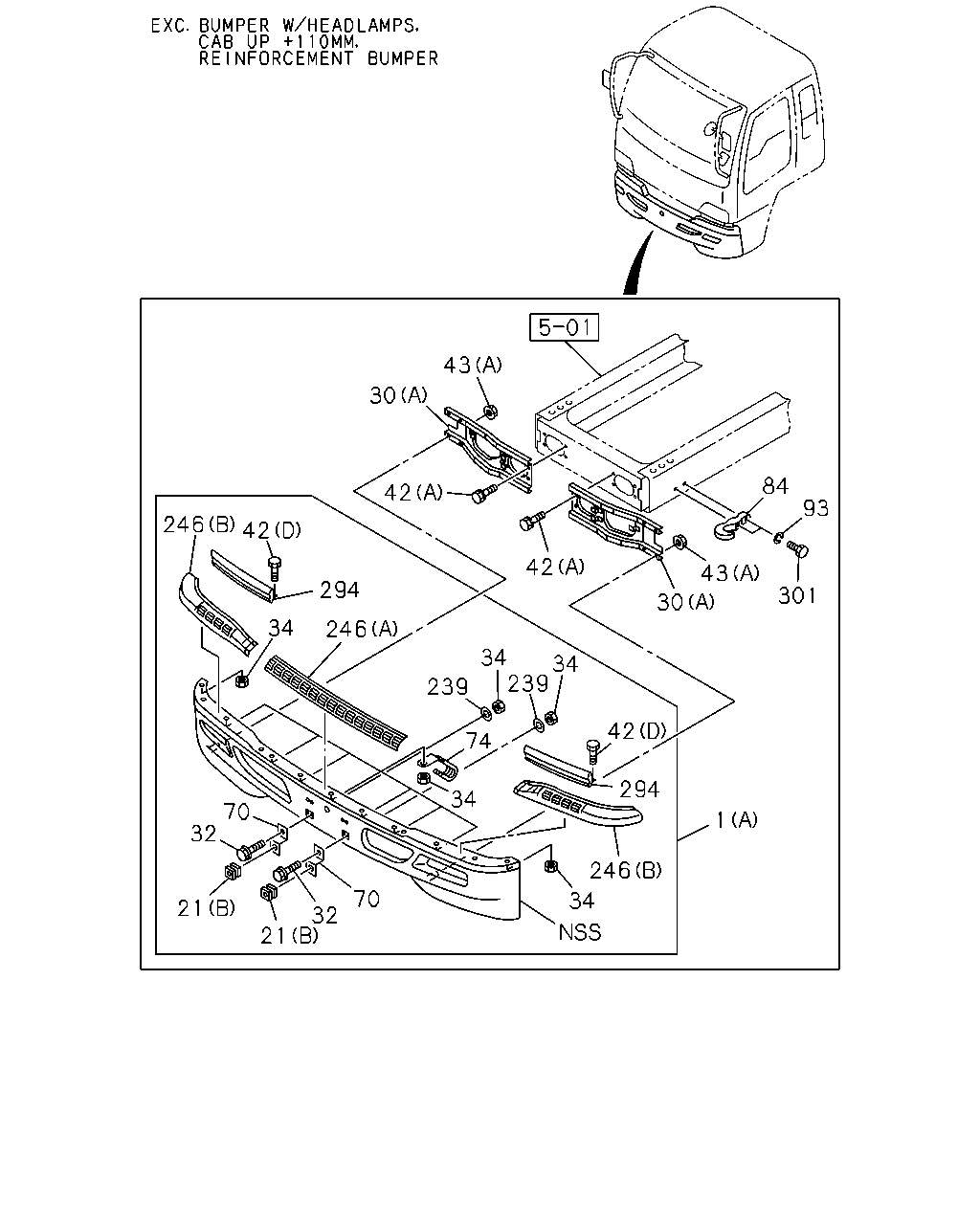

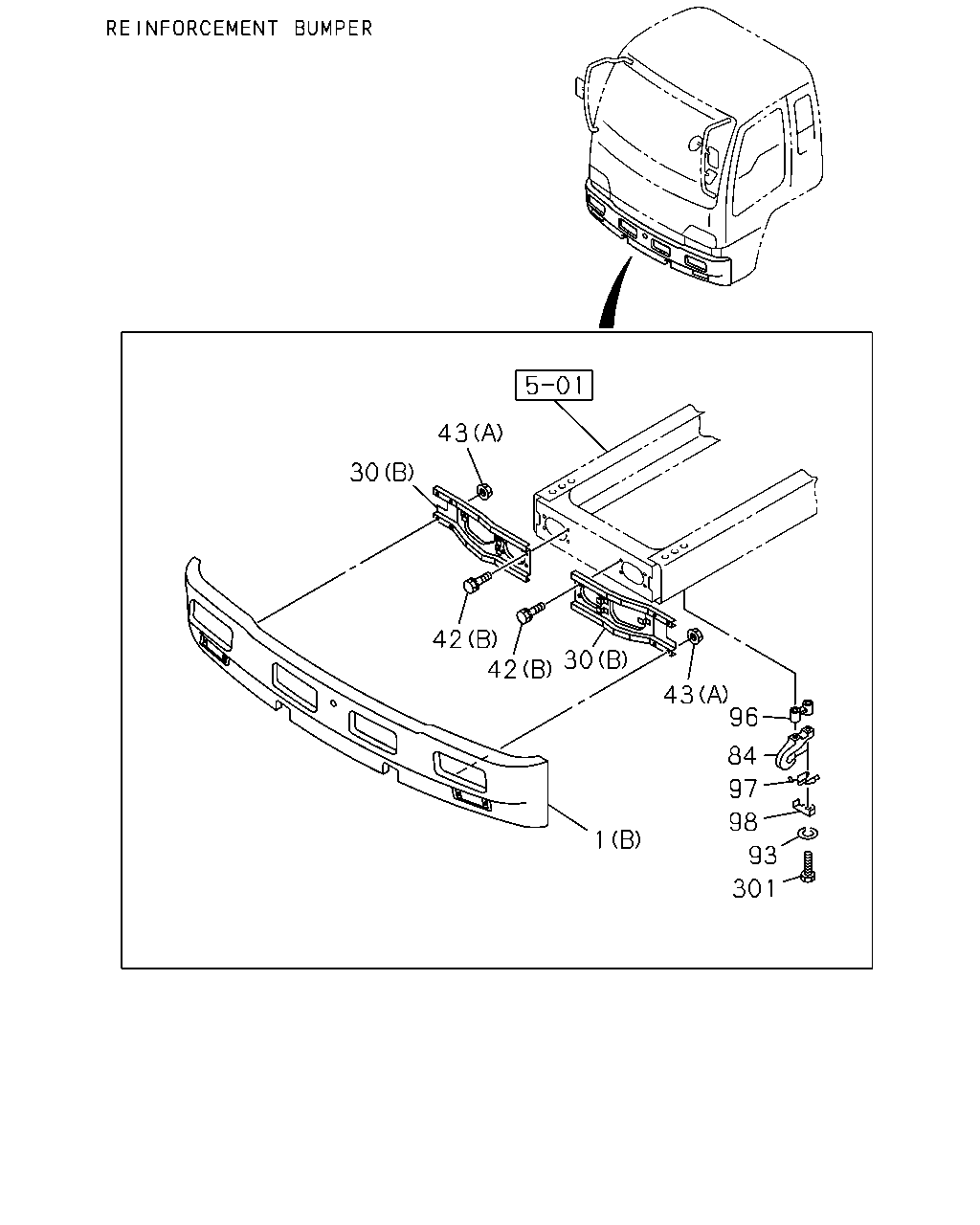

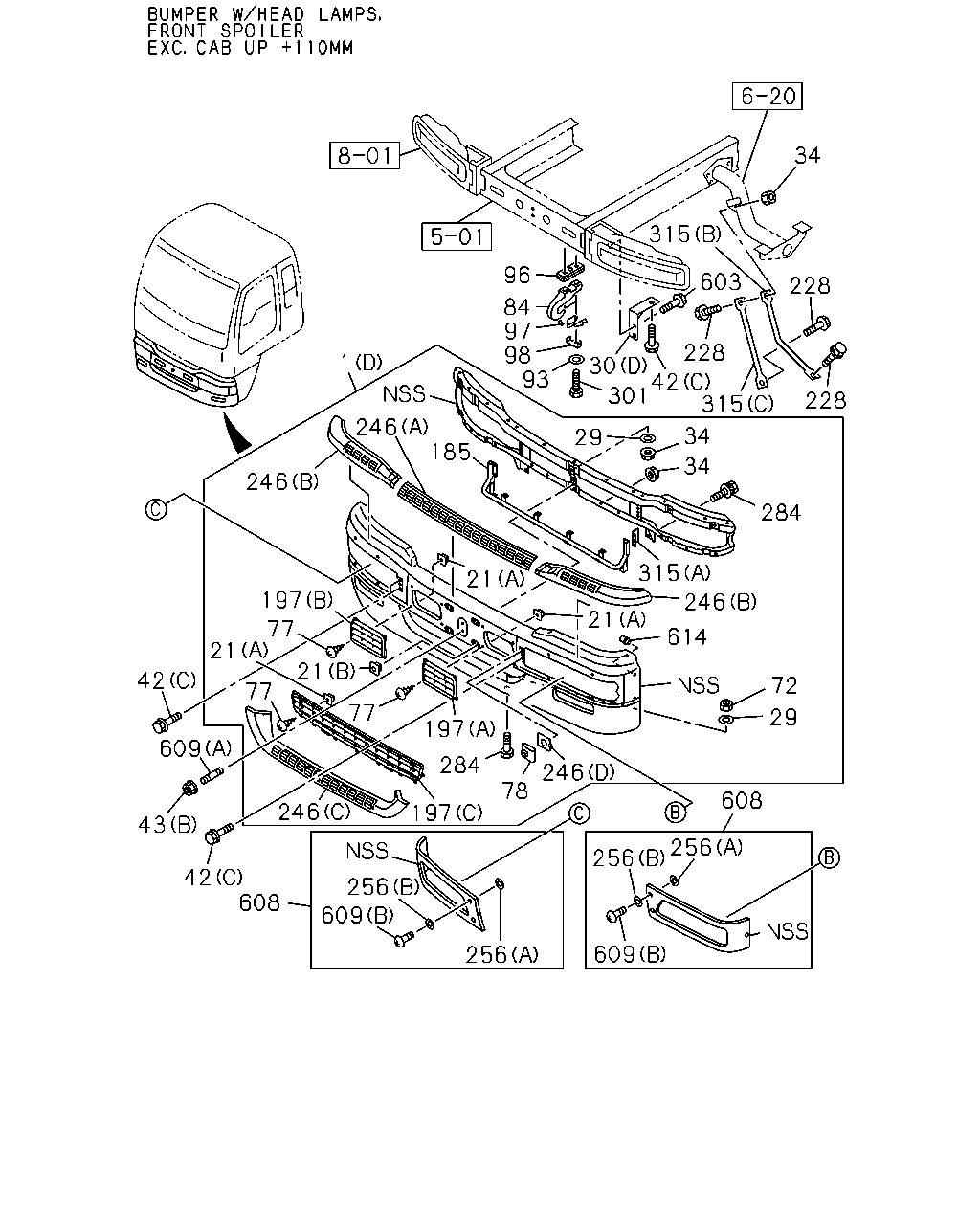

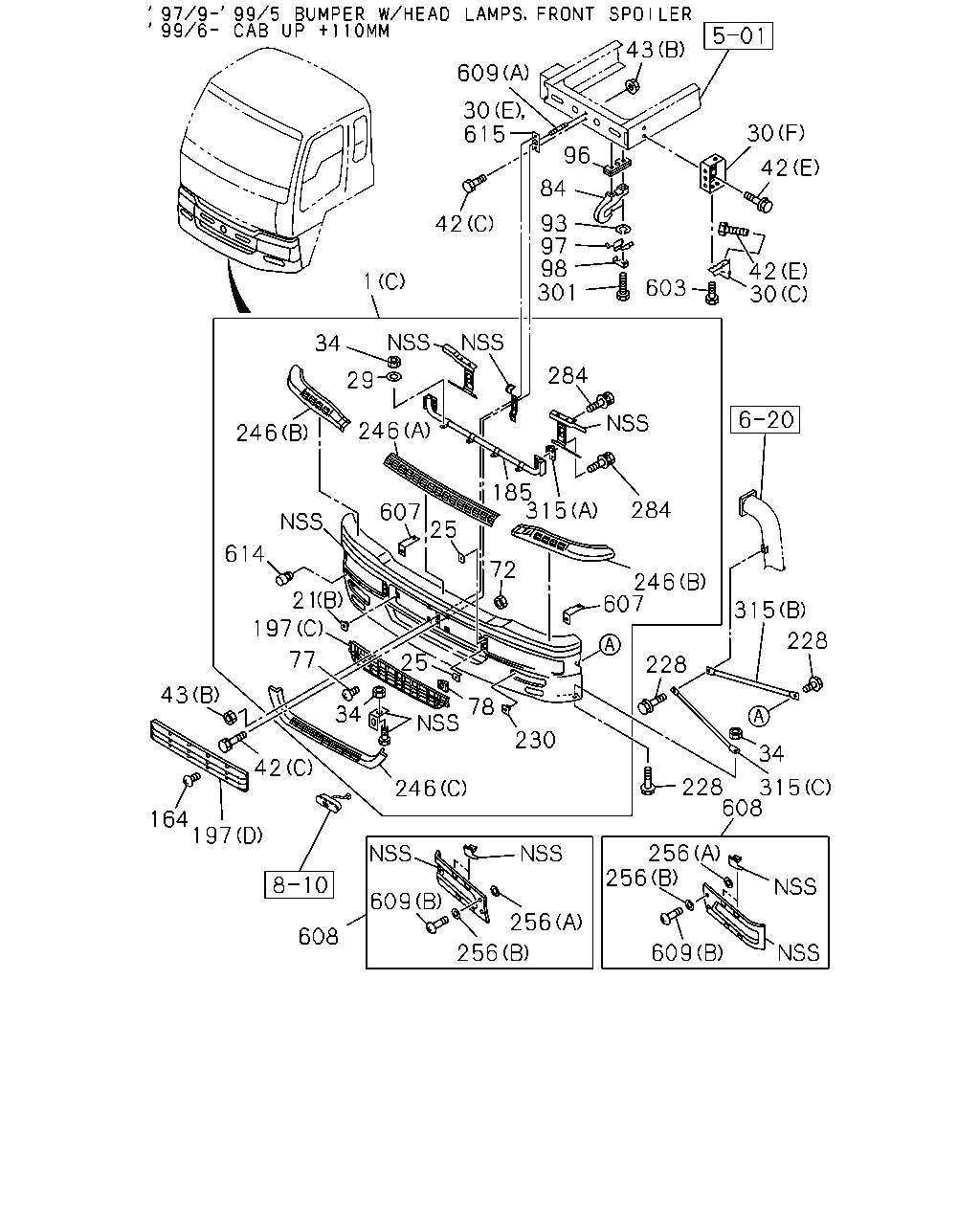

6-01 — FRONT BUMPER (#5138) — 649 parça

34 315 96 603 228 84 97 98 93 228 1 30 42 301 315 228 246 185 34 29 34 246 21 284 315 197 246 21 77 614 21 21 42 72 77 77 29 197 609 246 284 246 78 608 197 43 256 256 42 608 256 609 609 256

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C) WHITE	1-71210-746-3	01	1	9709-9905
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (D)	1-71210-769-7	01	1	9906-
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (A)	1-71210-806-0	01	1	9906-
1	BUMPER ASM; FRT CAB UP +50MM<W60> EXC. REINFORCEMENT BUMPER<VG7> (A)	1-71210-808-0	01	1	9707-9804
1	BUMPER ASM; FRT BODY COLOR ARC WHITE(729) CAB UP +50MM<W60> EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A)	1-71210-808-0	01	1	9805-9905
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> (B)	1-71210-659-1	01	1	9606-9608
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> (B)	1-71210-815-0	01	1	9609-
1	BUMPER ASM; FRT EXC. REINFORCEMENT BUMPER<VG7> (A)	1-71210-546-3	01	1	9606-9608
1	BUMPER ASM; FRT EXC. REINFORCEMENT BUMPER<VG7> (A)	1-71210-806-0	01	1	9609-9706
1	BUMPER ASM; FRT EXC. REINFORCEMENT BUMPER<VG7>,CAB UP +50MM<W60> (A)	1-71210-806-0	01	1	9707-9905
1	BUMPER ASM; FRT CAB UP +110MM<TGG> FRONT SPOILER<VP1> (C) WHITE	1-71210-746-5	01	1	9906-
21	GROMMET; SCREW,BUMPER PROTECTOR BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B) D=9.7X9.7 L=8	8-94222-314-0	24	1	9709-9905
21	GROMMET; SCREW,BUMPER PROTECTOR BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) CAB UP +110MM<TGG> FRONT SPOILER<VP1> (B) D=9.7X9.7 L=8	8-94222-314-0	24	1	9906-9910
21	GROMMET; SCREW,BUMPER PROTECTOR CAB UP +110MM<TGG> FRONT SPOILER<VP1> (B) D=9.7X9.7 L=8	8-94222-314-0	24	1	9911-
21	GROMMET; SCREW,BUMPER PROTECTOR BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (A) D=9X9 L=7 M5	8-94163-979-0	24	1	9906-
21	GROMMET; SCREW,BUMPER PROTECTOR EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (B) D=9.7X9.7 L=8	8-94222-314-0	04	1	9906-
21	GROMMET; SCREW,BUMPER PROTECTOR EXC. REINFORCEMENT BUMPER<VG7> (B) D=9.7X9.7 L=8	8-94222-314-0	04	1	9606-9804
21	GROMMET; SCREW,BUMPER PROTECTOR EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (B) D=9.7X9.7 L=8	8-94222-314-0	04	1	9805-9905
21	GROMMET; SCREW,BUMPER PROTECTOR BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (B) D=9.7X9.7 L=8	8-94222-314-0	08	1	9906-9910
21	GROMMET; SCREW,BUMPER PROTECTOR BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (B) D=9.7X9.7 L=8	8-94222-314-0	08	1	9911-
29	WASHER; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> ID=8.4	9-09160-508-0	21	1	9709-9905
29	WASHER; FRT BUMPER BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) CAB UP +110MM<TGG> FRONT SPOILER<VP1> ID=8.4	9-09160-508-0	21	1	9906-9910
29	WASHER; FRT BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> ID=8.4	9-09160-508-0	21	1	9911-
29	WASHER; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> ID=8.4 OD=22	9-09160-708-0	19	1	9906-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (E)	1-71230-411-0	01	1	9709-9905
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (D)	1-71230-428-0	01	1	9906-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C)	1-71230-430-0	01	1	9709-9905
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (D)	1-71230-429-0	01	1	9906-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C)	1-71230-431-0	01	1	9709-9905
30	BRACKET; FRT BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (C)	1-71230-431-0	01	1	9906-
30	BRACKET; FRT BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (C)	1-71230-430-0	01	1	9906-
30	BRACKET; FRT BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (F)	1-71230-455-1	01	1	9906-
30	BRACKET; FRT BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (F)	1-71230-456-1	01	1	9906-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (B)	1-71230-421-0	01	1	9606-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (B)	1-71230-420-0	01	1	9606-
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A)	1-71230-283-1	01	1	9606-9804
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A)	1-71230-283-1	01	1	9805-9905
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (A)	1-71230-283-1	01	1	9906-
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A)	1-71230-282-1	01	1	9606-9804
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A)	1-71230-282-1	01	1	9805-9905
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (A)	1-71230-282-1	01	1	9906-
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M8 FLANGE	0-91150-108-0	02	1	9709-9905
34	NUT; BRKT,BUMPER FRONT SPOILER<VP1> M8 FLANGE	0-91150-108-0	02	1	9906-
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M8 FLANGE	0-91150-108-0	17	1	9709-9905
34	NUT; BRKT,BUMPER BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	17	1	9906-9910
34	NUT; BRKT,BUMPER BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) CAB UP +110MM<TGG> FRONT SPOILER<VP1> M8 FLANGE	0-91150-108-0	17	1	9906-9910
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	17	1	9911-
34	NUT; BRKT,BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> M8 FLANGE	0-91150-108-0	17	1	9911-
34	NUT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M8 FLANGE	0-91150-108-0	15	1	9606-9804
34	NUT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M8 FLANGE	0-91150-108-0	15	1	9805-9905
34	NUT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> M8 FLANGE	0-91150-108-0	15	1	9906-
42	BOLT; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C) M10X25 FLANGE	0-28681-025-0	07	1	9709-9905
42	BOLT; BUMPER FRONT SPOILER<VP1> (C) M10X25 FLANGE	0-28681-025-0	07	1	9906-
42	BOLT; BUMPER CAB UP +50MM<W60> EXC. REINFORCEMENT BUMPER<VG7> (D) M6X12 FLANGE	0-28080-612-0	10	1	9707-9804
42	BOLT; BUMPER BODY COLOR ARC WHITE(729) CAB UP +50MM<W60> EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (D) M6X12 FLANGE	0-28080-612-0	10	1	9805-9905
42	BOLT; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (E) M10X35 FLANGE	0-28081-035-0	08	1	9906-
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> (B) M10X25 FLANGE	0-28081-025-0	04	1	9606-
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> (B) M10X30 FLANGE	0-28081-030-0	04	1	9606-
42	BOLT; BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A) M10X25 FLANGE	0-28081-025-0	08	1	9606-9804
42	BOLT; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A) M10X25 FLANGE	0-28081-025-0	08	1	9805-9905
42	BOLT; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (A) M10X25 FLANGE	0-28081-025-0	08	1	9906-
43	NUT; BRKT TO BUMPER (A) M10 FLANGE	5-09440-006-0	08	1	9606-9905
43	NUT; BRKT TO BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG> (A) M10 FLANGE	5-09440-006-0	08	1	9906-
43	NUT; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B) M10 FLANGE	0-91150-210-0	01	1	9709-9905
43	NUT; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (B) M10 FLANGE	0-91150-210-0	01	1	9906-
43	NUT; BRKT TO BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (B) M10 FLANGE	0-91150-210-0	02	1	9906-
72	NUT; BRKT BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) CAB UP +110MM<TGG> FRONT SPOILER<VP1> M8	9-09110-508-0	04	1	9906-9910
72	NUT; BRKT CAB UP +110MM<TGG> FRONT SPOILER<VP1> M8	9-09110-508-0	04	1	9911-
72	NUT; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M8	9-09110-508-0	04	1	9709-9905
72	NUT; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M8	9-09110-508-0	02	1	9906-
77	SCREW; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M5X12	9-93490-512-0	16	1	9709-9905
77	SCREW; BRKT BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) CAB UP +110MM<TGG> FRONT SPOILER<VP1> M5X12	9-93490-512-0	16	1	9906-9910
77	SCREW; BRKT CAB UP +110MM<TGG> FRONT SPOILER<VP1> M5X12	9-93490-512-0	16	1	9911-
77	SCREW; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M5X20	9-93490-520-0	24	1	9906-
78	NUT; SPIRE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) CAB UP +110MM<TGG> FRONT SPOILER<VP1>	1-71260-152-0	04	1	9906-9910
78	NUT; SPIRE CAB UP +110MM<TGG> FRONT SPOILER<VP1>	1-71260-152-0	04	1	9911-
78	NUT; SPIRE BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71260-152-0	04	1	9709-9905
78	NUT; SPIRE BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG>	1-71260-152-0	06	1	9906-
84	HOOK	1-57181-027-1	01	1	9606-
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	9606-
93	WASHER; LK,HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> ID=16.2	9-09150-516-0	01	1	9906-
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-53497-594-0	01	1	9709-9905
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG>	1-53497-473-0	01	1	9906-
96	PLATE; DIST,HOOK CAB UP +110MM<TGG> FRONT SPOILER<VP1>	1-53497-560-0	01	1	9906-
96	PLATE; DIST,HOOK REINFORCEMENT BUMPER<VG7>	1-57189-193-0	01	1	9606-9905
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1>	1-57189-203-1	01	1	9906-
97	SPRING; FRT HOOK REINFORCEMENT BUMPER<VG7>	9-53519-003-0	01	1	9606-9905
97	SPRING; FRT HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	9-53519-003-0	01	1	9906-
97	SPRING; FRT HOOK CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB>	9-53519-003-0	01	1	9906-
98	STOPPER; SPR,FRT HOOK REINFORCEMENT BUMPER<VG7>	9-53519-006-0	01	1	9606-9905
98	STOPPER; SPR,FRT HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	9-53519-006-0	01	1	9906-
98	STOPPER; SPR,FRT HOOK CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB>	9-53519-006-0	01	1	9906-
185	BRACKET; BUMPER,INNER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71230-406-0	01	1	9709-9905
185	BRACKET; BUMPER,INNER BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) CAB UP +110MM<TGG> FRONT SPOILER<VP1>	1-71230-406-0	01	1	9906-9910
185	BRACKET; BUMPER,INNER CAB UP +110MM<TGG> FRONT SPOILER<VP1>	1-71230-406-0	01	1	9911-
185	BRACKET; BUMPER,INNER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG>	1-71230-416-0	01	1	9906-
197	GRILLE; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C)	1-71260-117-0	01	1	9709-9905
197	GRILLE; BUMPER BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (C)	1-71260-117-0	01	1	9906-9910
197	GRILLE; BUMPER BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) CAB UP +110MM<TGG> FRONT SPOILER<VP1> (C)	1-71260-117-0	01	1	9906-9910
197	GRILLE; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (C)	1-71260-117-0	01	1	9911-
197	GRILLE; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (C)	1-71260-117-0	01	1	9911-
197	GRILLE; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (D)	1-71260-157-2	01	1	9709-9905
197	GRILLE; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (D)	1-71260-157-2	01	1	9906-
197	GRILLE; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (A)	1-71260-115-1	01	1	9906-9910
197	GRILLE; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (A)	1-71260-115-1	01	1	9911-
197	GRILLE; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (B)	1-71260-116-1	01	1	9906-9910
197	GRILLE; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (B)	1-71260-116-1	01	1	9911-
228	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M8X25 FLANGE	0-28680-825-0	06	1	9709-9905
228	BOLT; BRKT FRONT SPOILER<VP1> M8X25 FLANGE	0-28680-825-0	06	1	9906-
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C)	1-71260-156-1	01	1	9709-9905
246	PROTECTOR; BUMPER BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (C)	1-71260-156-1	01	1	9906-9910
246	PROTECTOR; BUMPER BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) CAB UP +110MM<TGG> FRONT SPOILER<VP1> (C)	1-71260-156-1	01	1	9906-9910
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (C)	1-71260-156-1	01	1	9911-
246	PROTECTOR; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (C)	1-71260-156-1	01	1	9911-
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (D)	1-71260-162-0	06	1	9906-9910
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (D)	1-71260-162-0	06	1	9911-
246	PROTECTOR; BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A)	1-71260-155-0	01	1	9606-9910
246	PROTECTOR; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (A)	1-71260-155-0	01	1	9911-
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (A)	1-71260-155-0	01	1	9911-
246	PROTECTOR; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (A)	1-71260-155-0	01	1	9911-
246	PROTECTOR; BUMPER EXC. REINFORCEMENT BUMPER<VG7> (B)	1-71260-094-1	01	1	9606-9910
246	PROTECTOR; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (B)	1-71260-094-1	01	1	9911-
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (B)	1-71260-094-1	01	1	9911-
246	PROTECTOR; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (B)	1-71260-094-1	01	1	9911-
246	PROTECTOR; BUMPER EXC. REINFORCEMENT BUMPER<VG7> (B)	1-71260-095-1	01	1	9606-9910
246	PROTECTOR; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (B)	1-71260-095-1	01	1	9911-
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (B)	1-71260-095-1	01	1	9911-
246	PROTECTOR; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (B)	1-71260-095-1	01	1	9911-
256	WASHER; PL BODY COLOR ARC WHITE(729) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71260-153-0	03	1	9906-9910
256	WASHER; PL BODY COLOR ARC WHITE(729),BODY COLOR FIRE RED(915) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71260-153-0	03	1	9911-
256	WASHER; PL BODY COLOR ARC WHITE(729) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71260-165-0	03	1	9906-9910
256	WASHER; PL BODY COLOR ARC WHITE(729),BODY COLOR FIRE RED(915) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71260-165-0	03	1	9911-
256	WASHER; PL BODY COLOR MARINE BLUE(890) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71260-173-0	06	1	9906-9910
256	WASHER; PL BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71260-173-0	06	1	9906-9910
256	WASHER; PL BODY COLOR ARC WHITE(729),BODY COLOR FIRE RED(915) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71260-173-0	03	1	9911-
256	WASHER; PL BODY COLOR MARINE BLUE(890) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B) ID=6.5 OD=14 T=1.2 NYLON	5-09985-028-0	06	1	9906-9910
256	WASHER; PL BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B) ID=6.5 OD=14 T=1.2 NYLON	5-09985-028-0	06	1	9906-9910
256	WASHER; PL BODY COLOR ARC WHITE(729),BODY COLOR FIRE RED(915) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B) ID=6.5 OD=14 T=1.2 NYLON	5-09985-028-0	03	1	9911-
256	WASHER; PL BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71260-173-0	06	1	9709-9905
256	WASHER; PL BODY COLOR ARC WHITE(729) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71260-173-0	03	1	9906-9910
256	WASHER; PL BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71260-173-0	06	1	9911-
256	WASHER; PL BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71260-173-0	06	1	9911-
256	WASHER; PL BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B) ID=6.5 OD=14 T=1.2 NYLON	5-09985-028-0	06	1	9709-9905
256	WASHER; PL BODY COLOR ARC WHITE(729) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B) ID=6.5 OD=14 T=1.2 NYLON	5-09985-028-0	03	1	9906-9910
256	WASHER; PL BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B) ID=6.5 OD=14 T=1.2 NYLON	5-09985-028-0	06	1	9911-
256	WASHER; PL BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B) ID=6.5 OD=14 T=1.2 NYLON	5-09985-028-0	06	1	9911-
284	BOLT; BRKT BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) CAB UP +110MM<TGG> FRONT SPOILER<VP1> M8X20 W/LK&PL WASHER	0-50140-820-0	04	1	9906-9910
284	BOLT; BRKT CAB UP +110MM<TGG> FRONT SPOILER<VP1> M8X20 W/LK&PL WASHER	0-50140-820-0	04	1	9911-
284	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M8X20 W/LK&PL WASHER	0-50140-820-0	04	1	9709-9905
284	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9906-
284	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	9709-9905
284	BOLT; BRKT BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	9906-9910
284	BOLT; BRKT BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) CAB UP +110MM<TGG> FRONT SPOILER<VP1> M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	9906-9910
284	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	9911-
284	BOLT; BRKT CAB UP +110MM<TGG> FRONT SPOILER<VP1> M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	9911-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M16X125	1-09070-007-0	01	1	9709-9710
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M16X140	9-09801-144-1	01	1	9711-9905
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M16X90	0-10811-690-0	01	1	9906-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M16X141 FLANGE	1-09070-013-0	01	1	9709-9710
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M16X95	0-10811-695-0	01	1	9906-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> M16X80	9-91061-680-0	01	1	9906-
301	BOLT; HOOK TO FRAME CAB UP +110MM<TGG> FRONT SPOILER<VP1> M16X80	0-10811-680-0	01	1	9906-
301	BOLT; HOOK TO FRAME REINFORCEMENT BUMPER<VG7> M16X158	1-09040-077-0	01	1	9606-0007
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X158	1-09040-077-0	01	1	0008-
301	BOLT; HOOK TO FRAME REINFORCEMENT BUMPER<VG7> M16X147	5-51361-003-3	01	1	9606-9710
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X147	5-51361-003-3	01	1	9711-9905
301	BOLT; HOOK TO FRAME REINFORCEMENT BUMPER<VG7> M16X147	5-51361-003-3	01	1	9906-0007
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X147	5-51361-003-3	01	1	0008-
301	BOLT; HOOK TO FRAME EXC. REINFORCEMENT BUMPER<VG7> M16X70	0-10811-670-0	01	1	9606-9905
301	BOLT; HOOK TO FRAME CAB UP +110MM<TGG> FRONT SPOILER<VP1> M16X70	0-10811-670-0	01	1	9906-
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> M16X70	0-10811-670-0	01	1	9906-
301	BOLT; HOOK TO FRAME EXC. REINFORCEMENT BUMPER<VG7> M16X60	0-20801-660-0	01	1	9606-9712
301	BOLT; HOOK TO FRAME EXC. REINFORCEMENT BUMPER<VG7> M16X60	0-10811-660-0	01	1	9801-9905
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> M16X60	0-10811-660-0	01	1	9906-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C)	1-71230-400-1	01	1	9709-9711
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C)	1-71230-447-0	01	1	9712-9905
315	STAY; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (C)	1-71230-447-0	01	1	9906-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-71230-444-0	01	1	9709-9905
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (C)	1-71230-480-0	01	1	9906-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71230-346-1	01	1	9709-9905
315	STAY; BUMPER BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (A)	1-71230-346-1	01	1	9906-9910
315	STAY; BUMPER BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) CAB UP +110MM<TGG> FRONT SPOILER<VP1> (A)	1-71230-346-1	01	1	9906-9910
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (A)	1-71230-346-2	01	1	9911-
315	STAY; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (A)	1-71230-346-2	01	1	9911-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C)	1-71230-381-1	01	1	9709-9905
315	STAY; BUMPER FRONT SPOILER<VP1> (C)	1-71230-381-1	01	1	9906-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-71230-443-0	01	1	9709-9905
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (B)	1-71230-443-0	01	1	9906-0004
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (B)	1-71230-503-0	01	1	0005-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71230-347-1	01	1	9709-9905
315	STAY; BUMPER BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (A)	1-71230-347-1	01	1	9906-9910
315	STAY; BUMPER BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) CAB UP +110MM<TGG> FRONT SPOILER<VP1> (A)	1-71230-347-1	01	1	9906-9910
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (A)	1-71230-347-2	01	1	9911-
315	STAY; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (A)	1-71230-347-2	01	1	9911-
315	STAY; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (B)	1-71230-458-0	01	1	9906-0004
315	STAY; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (B)	1-71230-505-0	01	1	0005-
315	STAY; BUMPER FRONT SPOILER<VP1> (B)	1-71230-444-0	01	1	9906-
603	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M8X25 FLANGE	0-28680-825-0	04	1	9709-9905
603	BOLT; BRKT FRONT SPOILER<VP1> M8X25 FLANGE	0-28680-825-0	04	1	9906-
608	LID; BUMPER BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71210-752-4	01	1	9911-
608	LID; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71210-753-4	01	1	9709-
608	LID; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71210-752-4	01	1	9709-9905
608	LID; BUMPER BODY COLOR ARC WHITE(729) BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71210-752-4	01	1	9906-
608	LID; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB>	1-71210-897-0	01	1	9906-
608	LID; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB>	1-71210-896-0	01	1	9906-
609	STUD; BUMPER BODY COLOR ARC WHITE(729) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71260-164-0	03	1	9906-9910
609	STUD; BUMPER BODY COLOR ARC WHITE(729),BODY COLOR FIRE RED(915) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71260-164-0	03	1	9911-
609	STUD; BUMPER BODY COLOR MARINE BLUE(890) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71260-175-0	06	1	9906-9910
609	STUD; BUMPER BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-71260-175-0	06	1	9906-9910
609	STUD; BUMPER BODY COLOR ARC WHITE(729),BODY COLOR FIRE RED(915) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71260-175-0	03	1	9911-
609	STUD; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-71260-175-0	06	1	9709-9905
609	STUD; BUMPER BODY COLOR ARC WHITE(729) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71260-175-0	03	1	9906-9910
609	STUD; BUMPER BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71260-175-0	06	1	9911-
609	STUD; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-71260-175-0	06	1	9911-
609	STUD; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A) M10X28,M10X15 L=50	5-09300-050-0	01	1	9709-9905
609	STUD; BUMPER FRONT SPOILER<VP1> (A) M10X28,M10X15 L=50	5-09300-050-0	01	1	9906-
614	STOPPER; LID BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71260-163-0	12	1	9709-9905
614	STOPPER; LID BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG>	1-71260-163-0	12	1	9906-9910
614	STOPPER; LID BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) CAB UP +110MM<TGG> FRONT SPOILER<VP1>	1-71260-163-0	12	1	9906-9910
614	STOPPER; LID BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG>	1-71260-163-0	12	1	9911-
614	STOPPER; LID CAB UP +110MM<TGG> FRONT SPOILER<VP1>	1-71260-163-0	12	1	9911-

43 609 30 615 30 96 42 84 93 97 98 301 42 42 30 1 603 34 284 29 246 246 185 607 315 25 284 614 72 246 607 21 315 197 228 25 77 228 43 34 78 230 34 42 608 246 164 197 256 256 609 256 608 256 609 228 315

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C) WHITE	1-71210-746-3	01	1	9709-9905
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (D)	1-71210-769-7	01	1	9906-
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (A)	1-71210-806-0	01	1	9906-
1	BUMPER ASM; FRT CAB UP +50MM<W60> EXC. REINFORCEMENT BUMPER<VG7> (A)	1-71210-808-0	01	1	9707-9804
1	BUMPER ASM; FRT BODY COLOR ARC WHITE(729) CAB UP +50MM<W60> EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A)	1-71210-808-0	01	1	9805-9905
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> (B)	1-71210-659-1	01	1	9606-9608
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> (B)	1-71210-815-0	01	1	9609-
1	BUMPER ASM; FRT EXC. REINFORCEMENT BUMPER<VG7> (A)	1-71210-546-3	01	1	9606-9608
1	BUMPER ASM; FRT EXC. REINFORCEMENT BUMPER<VG7> (A)	1-71210-806-0	01	1	9609-9706
1	BUMPER ASM; FRT EXC. REINFORCEMENT BUMPER<VG7>,CAB UP +50MM<W60> (A)	1-71210-806-0	01	1	9707-9905
1	BUMPER ASM; FRT CAB UP +110MM<TGG> FRONT SPOILER<VP1> (C) WHITE	1-71210-746-5	01	1	9906-
21	GROMMET; SCREW,BUMPER PROTECTOR BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B) D=9.7X9.7 L=8	8-94222-314-0	24	1	9709-9905
21	GROMMET; SCREW,BUMPER PROTECTOR BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) CAB UP +110MM<TGG> FRONT SPOILER<VP1> (B) D=9.7X9.7 L=8	8-94222-314-0	24	1	9906-9910
21	GROMMET; SCREW,BUMPER PROTECTOR CAB UP +110MM<TGG> FRONT SPOILER<VP1> (B) D=9.7X9.7 L=8	8-94222-314-0	24	1	9911-
21	GROMMET; SCREW,BUMPER PROTECTOR BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (A) D=9X9 L=7 M5	8-94163-979-0	24	1	9906-
21	GROMMET; SCREW,BUMPER PROTECTOR EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (B) D=9.7X9.7 L=8	8-94222-314-0	04	1	9906-
21	GROMMET; SCREW,BUMPER PROTECTOR EXC. REINFORCEMENT BUMPER<VG7> (B) D=9.7X9.7 L=8	8-94222-314-0	04	1	9606-9804
21	GROMMET; SCREW,BUMPER PROTECTOR EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (B) D=9.7X9.7 L=8	8-94222-314-0	04	1	9805-9905
21	GROMMET; SCREW,BUMPER PROTECTOR BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (B) D=9.7X9.7 L=8	8-94222-314-0	08	1	9906-9910
21	GROMMET; SCREW,BUMPER PROTECTOR BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (B) D=9.7X9.7 L=8	8-94222-314-0	08	1	9911-
25	SPACER; PLATFORM BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71260-162-0	06	1	9709-9905
25	SPACER; PLATFORM BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) CAB UP +110MM<TGG> FRONT SPOILER<VP1>	1-71260-162-0	06	1	9906-9910
25	SPACER; PLATFORM CAB UP +110MM<TGG> FRONT SPOILER<VP1>	1-71260-162-0	06	1	9911-
29	WASHER; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> ID=8.4	9-09160-508-0	21	1	9709-9905
29	WASHER; FRT BUMPER BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) CAB UP +110MM<TGG> FRONT SPOILER<VP1> ID=8.4	9-09160-508-0	21	1	9906-9910
29	WASHER; FRT BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> ID=8.4	9-09160-508-0	21	1	9911-
29	WASHER; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> ID=8.4 OD=22	9-09160-708-0	19	1	9906-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (E)	1-71230-411-0	01	1	9709-9905
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (D)	1-71230-428-0	01	1	9906-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C)	1-71230-430-0	01	1	9709-9905
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (D)	1-71230-429-0	01	1	9906-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C)	1-71230-431-0	01	1	9709-9905
30	BRACKET; FRT BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (C)	1-71230-431-0	01	1	9906-
30	BRACKET; FRT BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (C)	1-71230-430-0	01	1	9906-
30	BRACKET; FRT BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (F)	1-71230-455-1	01	1	9906-
30	BRACKET; FRT BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (F)	1-71230-456-1	01	1	9906-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (B)	1-71230-421-0	01	1	9606-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (B)	1-71230-420-0	01	1	9606-
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A)	1-71230-283-1	01	1	9606-9804
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A)	1-71230-283-1	01	1	9805-9905
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (A)	1-71230-283-1	01	1	9906-
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A)	1-71230-282-1	01	1	9606-9804
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A)	1-71230-282-1	01	1	9805-9905
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (A)	1-71230-282-1	01	1	9906-
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M8 FLANGE	0-91150-108-0	02	1	9709-9905
34	NUT; BRKT,BUMPER FRONT SPOILER<VP1> M8 FLANGE	0-91150-108-0	02	1	9906-
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M8 FLANGE	0-91150-108-0	17	1	9709-9905
34	NUT; BRKT,BUMPER BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	17	1	9906-9910
34	NUT; BRKT,BUMPER BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) CAB UP +110MM<TGG> FRONT SPOILER<VP1> M8 FLANGE	0-91150-108-0	17	1	9906-9910
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	17	1	9911-
34	NUT; BRKT,BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> M8 FLANGE	0-91150-108-0	17	1	9911-
34	NUT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M8 FLANGE	0-91150-108-0	15	1	9606-9804
34	NUT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M8 FLANGE	0-91150-108-0	15	1	9805-9905
34	NUT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> M8 FLANGE	0-91150-108-0	15	1	9906-
42	BOLT; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C) M10X25 FLANGE	0-28681-025-0	07	1	9709-9905
42	BOLT; BUMPER FRONT SPOILER<VP1> (C) M10X25 FLANGE	0-28681-025-0	07	1	9906-
42	BOLT; BUMPER CAB UP +50MM<W60> EXC. REINFORCEMENT BUMPER<VG7> (D) M6X12 FLANGE	0-28080-612-0	10	1	9707-9804
42	BOLT; BUMPER BODY COLOR ARC WHITE(729) CAB UP +50MM<W60> EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (D) M6X12 FLANGE	0-28080-612-0	10	1	9805-9905
42	BOLT; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (E) M10X35 FLANGE	0-28081-035-0	08	1	9906-
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> (B) M10X25 FLANGE	0-28081-025-0	04	1	9606-
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> (B) M10X30 FLANGE	0-28081-030-0	04	1	9606-
42	BOLT; BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A) M10X25 FLANGE	0-28081-025-0	08	1	9606-9804
42	BOLT; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A) M10X25 FLANGE	0-28081-025-0	08	1	9805-9905
42	BOLT; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (A) M10X25 FLANGE	0-28081-025-0	08	1	9906-
43	NUT; BRKT TO BUMPER (A) M10 FLANGE	5-09440-006-0	08	1	9606-9905
43	NUT; BRKT TO BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG> (A) M10 FLANGE	5-09440-006-0	08	1	9906-
43	NUT; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B) M10 FLANGE	0-91150-210-0	01	1	9709-9905
43	NUT; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (B) M10 FLANGE	0-91150-210-0	01	1	9906-
43	NUT; BRKT TO BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (B) M10 FLANGE	0-91150-210-0	02	1	9906-
72	NUT; BRKT BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) CAB UP +110MM<TGG> FRONT SPOILER<VP1> M8	9-09110-508-0	04	1	9906-9910
72	NUT; BRKT CAB UP +110MM<TGG> FRONT SPOILER<VP1> M8	9-09110-508-0	04	1	9911-
72	NUT; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M8	9-09110-508-0	04	1	9709-9905
72	NUT; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M8	9-09110-508-0	02	1	9906-
77	SCREW; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M5X12	9-93490-512-0	16	1	9709-9905
77	SCREW; BRKT BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) CAB UP +110MM<TGG> FRONT SPOILER<VP1> M5X12	9-93490-512-0	16	1	9906-9910
77	SCREW; BRKT CAB UP +110MM<TGG> FRONT SPOILER<VP1> M5X12	9-93490-512-0	16	1	9911-
77	SCREW; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M5X20	9-93490-520-0	24	1	9906-
78	NUT; SPIRE BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) CAB UP +110MM<TGG> FRONT SPOILER<VP1>	1-71260-152-0	04	1	9906-9910
78	NUT; SPIRE CAB UP +110MM<TGG> FRONT SPOILER<VP1>	1-71260-152-0	04	1	9911-
78	NUT; SPIRE BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71260-152-0	04	1	9709-9905
78	NUT; SPIRE BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG>	1-71260-152-0	06	1	9906-
84	HOOK	1-57181-027-1	01	1	9606-
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	9606-
93	WASHER; LK,HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> ID=16.2	9-09150-516-0	01	1	9906-
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-53497-594-0	01	1	9709-9905
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG>	1-53497-473-0	01	1	9906-
96	PLATE; DIST,HOOK CAB UP +110MM<TGG> FRONT SPOILER<VP1>	1-53497-560-0	01	1	9906-
96	PLATE; DIST,HOOK REINFORCEMENT BUMPER<VG7>	1-57189-193-0	01	1	9606-9905
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1>	1-57189-203-1	01	1	9906-
97	SPRING; FRT HOOK REINFORCEMENT BUMPER<VG7>	9-53519-003-0	01	1	9606-9905
97	SPRING; FRT HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	9-53519-003-0	01	1	9906-
97	SPRING; FRT HOOK CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB>	9-53519-003-0	01	1	9906-
98	STOPPER; SPR,FRT HOOK REINFORCEMENT BUMPER<VG7>	9-53519-006-0	01	1	9606-9905
98	STOPPER; SPR,FRT HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	9-53519-006-0	01	1	9906-
98	STOPPER; SPR,FRT HOOK CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB>	9-53519-006-0	01	1	9906-
164	SCREW; AIR INT GRILLE BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M6X20	1-71260-141-0	06	1	9709-9905
164	SCREW; AIR INT GRILLE CAB UP +110MM<TGG> FRONT SPOILER<VP1> M6X20	1-71260-141-0	06	1	9906-
185	BRACKET; BUMPER,INNER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71230-406-0	01	1	9709-9905
185	BRACKET; BUMPER,INNER BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) CAB UP +110MM<TGG> FRONT SPOILER<VP1>	1-71230-406-0	01	1	9906-9910
185	BRACKET; BUMPER,INNER CAB UP +110MM<TGG> FRONT SPOILER<VP1>	1-71230-406-0	01	1	9911-
185	BRACKET; BUMPER,INNER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG>	1-71230-416-0	01	1	9906-
197	GRILLE; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C)	1-71260-117-0	01	1	9709-9905
197	GRILLE; BUMPER BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (C)	1-71260-117-0	01	1	9906-9910
197	GRILLE; BUMPER BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) CAB UP +110MM<TGG> FRONT SPOILER<VP1> (C)	1-71260-117-0	01	1	9906-9910
197	GRILLE; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (C)	1-71260-117-0	01	1	9911-
197	GRILLE; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (C)	1-71260-117-0	01	1	9911-
197	GRILLE; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (D)	1-71260-157-2	01	1	9709-9905
197	GRILLE; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (D)	1-71260-157-2	01	1	9906-
197	GRILLE; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (A)	1-71260-115-1	01	1	9906-9910
197	GRILLE; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (A)	1-71260-115-1	01	1	9911-
197	GRILLE; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (B)	1-71260-116-1	01	1	9906-9910
197	GRILLE; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (B)	1-71260-116-1	01	1	9911-
228	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M8X25 FLANGE	0-28680-825-0	06	1	9709-9905
228	BOLT; BRKT FRONT SPOILER<VP1> M8X25 FLANGE	0-28680-825-0	06	1	9906-
230	NUT; BRK,HD LAMP,LWR BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> D=9.7X9.7 L=8	8-94222-314-0	04	1	9709-9905
230	NUT; BRK,HD LAMP,LWR BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) CAB UP +110MM<TGG> FRONT SPOILER<VP1> D=9.7X9.7 L=8	8-94222-314-0	04	1	9906-9910
230	NUT; BRK,HD LAMP,LWR CAB UP +110MM<TGG> FRONT SPOILER<VP1> D=9.7X9.7 L=8	8-94222-314-0	04	1	9911-
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C)	1-71260-156-1	01	1	9709-9905
246	PROTECTOR; BUMPER BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (C)	1-71260-156-1	01	1	9906-9910
246	PROTECTOR; BUMPER BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) CAB UP +110MM<TGG> FRONT SPOILER<VP1> (C)	1-71260-156-1	01	1	9906-9910
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (C)	1-71260-156-1	01	1	9911-
246	PROTECTOR; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (C)	1-71260-156-1	01	1	9911-
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (D)	1-71260-162-0	06	1	9906-9910
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (D)	1-71260-162-0	06	1	9911-
246	PROTECTOR; BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A)	1-71260-155-0	01	1	9606-9910
246	PROTECTOR; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (A)	1-71260-155-0	01	1	9911-
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (A)	1-71260-155-0	01	1	9911-
246	PROTECTOR; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (A)	1-71260-155-0	01	1	9911-
246	PROTECTOR; BUMPER EXC. REINFORCEMENT BUMPER<VG7> (B)	1-71260-094-1	01	1	9606-9910
246	PROTECTOR; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (B)	1-71260-094-1	01	1	9911-
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (B)	1-71260-094-1	01	1	9911-
246	PROTECTOR; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (B)	1-71260-094-1	01	1	9911-
246	PROTECTOR; BUMPER EXC. REINFORCEMENT BUMPER<VG7> (B)	1-71260-095-1	01	1	9606-9910
246	PROTECTOR; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (B)	1-71260-095-1	01	1	9911-
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (B)	1-71260-095-1	01	1	9911-
246	PROTECTOR; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (B)	1-71260-095-1	01	1	9911-
256	WASHER; PL BODY COLOR ARC WHITE(729) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71260-153-0	03	1	9906-9910
256	WASHER; PL BODY COLOR ARC WHITE(729),BODY COLOR FIRE RED(915) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71260-153-0	03	1	9911-
256	WASHER; PL BODY COLOR ARC WHITE(729) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71260-165-0	03	1	9906-9910
256	WASHER; PL BODY COLOR ARC WHITE(729),BODY COLOR FIRE RED(915) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71260-165-0	03	1	9911-
256	WASHER; PL BODY COLOR MARINE BLUE(890) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71260-173-0	06	1	9906-9910
256	WASHER; PL BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71260-173-0	06	1	9906-9910
256	WASHER; PL BODY COLOR ARC WHITE(729),BODY COLOR FIRE RED(915) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71260-173-0	03	1	9911-
256	WASHER; PL BODY COLOR MARINE BLUE(890) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B) ID=6.5 OD=14 T=1.2 NYLON	5-09985-028-0	06	1	9906-9910
256	WASHER; PL BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B) ID=6.5 OD=14 T=1.2 NYLON	5-09985-028-0	06	1	9906-9910
256	WASHER; PL BODY COLOR ARC WHITE(729),BODY COLOR FIRE RED(915) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B) ID=6.5 OD=14 T=1.2 NYLON	5-09985-028-0	03	1	9911-
256	WASHER; PL BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71260-173-0	06	1	9709-9905
256	WASHER; PL BODY COLOR ARC WHITE(729) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71260-173-0	03	1	9906-9910
256	WASHER; PL BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71260-173-0	06	1	9911-
256	WASHER; PL BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71260-173-0	06	1	9911-
256	WASHER; PL BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B) ID=6.5 OD=14 T=1.2 NYLON	5-09985-028-0	06	1	9709-9905
256	WASHER; PL BODY COLOR ARC WHITE(729) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B) ID=6.5 OD=14 T=1.2 NYLON	5-09985-028-0	03	1	9906-9910
256	WASHER; PL BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B) ID=6.5 OD=14 T=1.2 NYLON	5-09985-028-0	06	1	9911-
256	WASHER; PL BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B) ID=6.5 OD=14 T=1.2 NYLON	5-09985-028-0	06	1	9911-
284	BOLT; BRKT BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) CAB UP +110MM<TGG> FRONT SPOILER<VP1> M8X20 W/LK&PL WASHER	0-50140-820-0	04	1	9906-9910
284	BOLT; BRKT CAB UP +110MM<TGG> FRONT SPOILER<VP1> M8X20 W/LK&PL WASHER	0-50140-820-0	04	1	9911-
284	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M8X20 W/LK&PL WASHER	0-50140-820-0	04	1	9709-9905
284	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9906-
284	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	9709-9905
284	BOLT; BRKT BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	9906-9910
284	BOLT; BRKT BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) CAB UP +110MM<TGG> FRONT SPOILER<VP1> M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	9906-9910
284	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	9911-
284	BOLT; BRKT CAB UP +110MM<TGG> FRONT SPOILER<VP1> M8X25 W/LK&PL WASHER	0-50140-825-0	04	1	9911-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M16X125	1-09070-007-0	01	1	9709-9710
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M16X140	9-09801-144-1	01	1	9711-9905
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M16X90	0-10811-690-0	01	1	9906-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M16X141 FLANGE	1-09070-013-0	01	1	9709-9710
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M16X95	0-10811-695-0	01	1	9906-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> M16X80	9-91061-680-0	01	1	9906-
301	BOLT; HOOK TO FRAME CAB UP +110MM<TGG> FRONT SPOILER<VP1> M16X80	0-10811-680-0	01	1	9906-
301	BOLT; HOOK TO FRAME REINFORCEMENT BUMPER<VG7> M16X158	1-09040-077-0	01	1	9606-0007
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X158	1-09040-077-0	01	1	0008-
301	BOLT; HOOK TO FRAME REINFORCEMENT BUMPER<VG7> M16X147	5-51361-003-3	01	1	9606-9710
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X147	5-51361-003-3	01	1	9711-9905
301	BOLT; HOOK TO FRAME REINFORCEMENT BUMPER<VG7> M16X147	5-51361-003-3	01	1	9906-0007
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X147	5-51361-003-3	01	1	0008-
301	BOLT; HOOK TO FRAME EXC. REINFORCEMENT BUMPER<VG7> M16X70	0-10811-670-0	01	1	9606-9905
301	BOLT; HOOK TO FRAME CAB UP +110MM<TGG> FRONT SPOILER<VP1> M16X70	0-10811-670-0	01	1	9906-
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> M16X70	0-10811-670-0	01	1	9906-
301	BOLT; HOOK TO FRAME EXC. REINFORCEMENT BUMPER<VG7> M16X60	0-20801-660-0	01	1	9606-9712
301	BOLT; HOOK TO FRAME EXC. REINFORCEMENT BUMPER<VG7> M16X60	0-10811-660-0	01	1	9801-9905
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> M16X60	0-10811-660-0	01	1	9906-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C)	1-71230-400-1	01	1	9709-9711
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C)	1-71230-447-0	01	1	9712-9905
315	STAY; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (C)	1-71230-447-0	01	1	9906-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-71230-444-0	01	1	9709-9905
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (C)	1-71230-480-0	01	1	9906-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71230-346-1	01	1	9709-9905
315	STAY; BUMPER BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (A)	1-71230-346-1	01	1	9906-9910
315	STAY; BUMPER BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) CAB UP +110MM<TGG> FRONT SPOILER<VP1> (A)	1-71230-346-1	01	1	9906-9910
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (A)	1-71230-346-2	01	1	9911-
315	STAY; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (A)	1-71230-346-2	01	1	9911-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C)	1-71230-381-1	01	1	9709-9905
315	STAY; BUMPER FRONT SPOILER<VP1> (C)	1-71230-381-1	01	1	9906-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-71230-443-0	01	1	9709-9905
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (B)	1-71230-443-0	01	1	9906-0004
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (B)	1-71230-503-0	01	1	0005-
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A)	1-71230-347-1	01	1	9709-9905
315	STAY; BUMPER BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (A)	1-71230-347-1	01	1	9906-9910
315	STAY; BUMPER BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) CAB UP +110MM<TGG> FRONT SPOILER<VP1> (A)	1-71230-347-1	01	1	9906-9910
315	STAY; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (A)	1-71230-347-2	01	1	9911-
315	STAY; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (A)	1-71230-347-2	01	1	9911-
315	STAY; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (B)	1-71230-458-0	01	1	9906-0004
315	STAY; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (B)	1-71230-505-0	01	1	0005-
315	STAY; BUMPER FRONT SPOILER<VP1> (B)	1-71230-444-0	01	1	9906-
603	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M8X25 FLANGE	0-28680-825-0	04	1	9709-9905
603	BOLT; BRKT FRONT SPOILER<VP1> M8X25 FLANGE	0-28680-825-0	04	1	9906-
607	BRACKET BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71230-454-0	02	1	9807-9905
607	BRACKET BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) CAB UP +110MM<TGG> FRONT SPOILER<VP1>	1-71230-454-0	02	1	9906-9910
607	BRACKET CAB UP +110MM<TGG> FRONT SPOILER<VP1>	1-71230-454-0	02	1	9911-
608	LID; BUMPER BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71210-752-4	01	1	9911-
608	LID; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71210-753-4	01	1	9709-
608	LID; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71210-752-4	01	1	9709-9905
608	LID; BUMPER BODY COLOR ARC WHITE(729) BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71210-752-4	01	1	9906-
608	LID; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB>	1-71210-897-0	01	1	9906-
608	LID; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB>	1-71210-896-0	01	1	9906-
609	STUD; BUMPER BODY COLOR ARC WHITE(729) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71260-164-0	03	1	9906-9910
609	STUD; BUMPER BODY COLOR ARC WHITE(729),BODY COLOR FIRE RED(915) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71260-164-0	03	1	9911-
609	STUD; BUMPER BODY COLOR MARINE BLUE(890) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71260-175-0	06	1	9906-9910
609	STUD; BUMPER BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-71260-175-0	06	1	9906-9910
609	STUD; BUMPER BODY COLOR ARC WHITE(729),BODY COLOR FIRE RED(915) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71260-175-0	03	1	9911-
609	STUD; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-71260-175-0	06	1	9709-9905
609	STUD; BUMPER BODY COLOR ARC WHITE(729) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71260-175-0	03	1	9906-9910
609	STUD; BUMPER BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911) CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (B)	1-71260-175-0	06	1	9911-
609	STUD; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B)	1-71260-175-0	06	1	9911-
609	STUD; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (A) M10X28,M10X15 L=50	5-09300-050-0	01	1	9709-9905
609	STUD; BUMPER FRONT SPOILER<VP1> (A) M10X28,M10X15 L=50	5-09300-050-0	01	1	9906-
614	STOPPER; LID BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-71260-163-0	12	1	9709-9905
614	STOPPER; LID BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG>	1-71260-163-0	12	1	9906-9910
614	STOPPER; LID BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) CAB UP +110MM<TGG> FRONT SPOILER<VP1>	1-71260-163-0	12	1	9906-9910
614	STOPPER; LID BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG>	1-71260-163-0	12	1	9911-
614	STOPPER; LID CAB UP +110MM<TGG> FRONT SPOILER<VP1>	1-71260-163-0	12	1	9911-
615	BRACKET; BUMPER CENTER CAB UP +110MM<TGG> FRONT SPOILER<VP1>	1-71230-407-0	01	1	9906-

43 30 84 42 93 246 42 42 43 294 301 30 34 246 34 34 239 239 42 74 294 34 70 32 1 246 70 34 21 32 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C) WHITE	1-71210-746-3	01	1	9709-9905
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (D)	1-71210-769-7	01	1	9906-
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (A)	1-71210-806-0	01	1	9906-
1	BUMPER ASM; FRT CAB UP +50MM<W60> EXC. REINFORCEMENT BUMPER<VG7> (A)	1-71210-808-0	01	1	9707-9804
1	BUMPER ASM; FRT BODY COLOR ARC WHITE(729) CAB UP +50MM<W60> EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A)	1-71210-808-0	01	1	9805-9905
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> (B)	1-71210-659-1	01	1	9606-9608
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> (B)	1-71210-815-0	01	1	9609-
1	BUMPER ASM; FRT EXC. REINFORCEMENT BUMPER<VG7> (A)	1-71210-546-3	01	1	9606-9608
1	BUMPER ASM; FRT EXC. REINFORCEMENT BUMPER<VG7> (A)	1-71210-806-0	01	1	9609-9706
1	BUMPER ASM; FRT EXC. REINFORCEMENT BUMPER<VG7>,CAB UP +50MM<W60> (A)	1-71210-806-0	01	1	9707-9905
1	BUMPER ASM; FRT CAB UP +110MM<TGG> FRONT SPOILER<VP1> (C) WHITE	1-71210-746-5	01	1	9906-
21	GROMMET; SCREW,BUMPER PROTECTOR BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B) D=9.7X9.7 L=8	8-94222-314-0	24	1	9709-9905
21	GROMMET; SCREW,BUMPER PROTECTOR BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) CAB UP +110MM<TGG> FRONT SPOILER<VP1> (B) D=9.7X9.7 L=8	8-94222-314-0	24	1	9906-9910
21	GROMMET; SCREW,BUMPER PROTECTOR CAB UP +110MM<TGG> FRONT SPOILER<VP1> (B) D=9.7X9.7 L=8	8-94222-314-0	24	1	9911-
21	GROMMET; SCREW,BUMPER PROTECTOR BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (A) D=9X9 L=7 M5	8-94163-979-0	24	1	9906-
21	GROMMET; SCREW,BUMPER PROTECTOR EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (B) D=9.7X9.7 L=8	8-94222-314-0	04	1	9906-
21	GROMMET; SCREW,BUMPER PROTECTOR EXC. REINFORCEMENT BUMPER<VG7> (B) D=9.7X9.7 L=8	8-94222-314-0	04	1	9606-9804
21	GROMMET; SCREW,BUMPER PROTECTOR EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (B) D=9.7X9.7 L=8	8-94222-314-0	04	1	9805-9905
21	GROMMET; SCREW,BUMPER PROTECTOR BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (B) D=9.7X9.7 L=8	8-94222-314-0	08	1	9906-9910
21	GROMMET; SCREW,BUMPER PROTECTOR BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (B) D=9.7X9.7 L=8	8-94222-314-0	08	1	9911-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (E)	1-71230-411-0	01	1	9709-9905
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (D)	1-71230-428-0	01	1	9906-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C)	1-71230-430-0	01	1	9709-9905
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (D)	1-71230-429-0	01	1	9906-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C)	1-71230-431-0	01	1	9709-9905
30	BRACKET; FRT BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (C)	1-71230-431-0	01	1	9906-
30	BRACKET; FRT BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (C)	1-71230-430-0	01	1	9906-
30	BRACKET; FRT BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (F)	1-71230-455-1	01	1	9906-
30	BRACKET; FRT BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (F)	1-71230-456-1	01	1	9906-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (B)	1-71230-421-0	01	1	9606-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (B)	1-71230-420-0	01	1	9606-
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A)	1-71230-283-1	01	1	9606-9804
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A)	1-71230-283-1	01	1	9805-9905
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (A)	1-71230-283-1	01	1	9906-
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A)	1-71230-282-1	01	1	9606-9804
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A)	1-71230-282-1	01	1	9805-9905
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (A)	1-71230-282-1	01	1	9906-
32	BOLT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9606-9804
32	BOLT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9805-9905
32	BOLT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> M8X20 W/LK&PL WASHER	0-50140-820-0	02	1	9906-
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M8 FLANGE	0-91150-108-0	02	1	9709-9905
34	NUT; BRKT,BUMPER FRONT SPOILER<VP1> M8 FLANGE	0-91150-108-0	02	1	9906-
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M8 FLANGE	0-91150-108-0	17	1	9709-9905
34	NUT; BRKT,BUMPER BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	17	1	9906-9910
34	NUT; BRKT,BUMPER BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) CAB UP +110MM<TGG> FRONT SPOILER<VP1> M8 FLANGE	0-91150-108-0	17	1	9906-9910
34	NUT; BRKT,BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M8 FLANGE	0-91150-108-0	17	1	9911-
34	NUT; BRKT,BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> M8 FLANGE	0-91150-108-0	17	1	9911-
34	NUT; BRKT,BUMPER EXC. REINFORCEMENT BUMPER<VG7> M8 FLANGE	0-91150-108-0	15	1	9606-9804
34	NUT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M8 FLANGE	0-91150-108-0	15	1	9805-9905
34	NUT; BRKT,BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> M8 FLANGE	0-91150-108-0	15	1	9906-
42	BOLT; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C) M10X25 FLANGE	0-28681-025-0	07	1	9709-9905
42	BOLT; BUMPER FRONT SPOILER<VP1> (C) M10X25 FLANGE	0-28681-025-0	07	1	9906-
42	BOLT; BUMPER CAB UP +50MM<W60> EXC. REINFORCEMENT BUMPER<VG7> (D) M6X12 FLANGE	0-28080-612-0	10	1	9707-9804
42	BOLT; BUMPER BODY COLOR ARC WHITE(729) CAB UP +50MM<W60> EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (D) M6X12 FLANGE	0-28080-612-0	10	1	9805-9905
42	BOLT; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (E) M10X35 FLANGE	0-28081-035-0	08	1	9906-
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> (B) M10X25 FLANGE	0-28081-025-0	04	1	9606-
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> (B) M10X30 FLANGE	0-28081-030-0	04	1	9606-
42	BOLT; BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A) M10X25 FLANGE	0-28081-025-0	08	1	9606-9804
42	BOLT; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A) M10X25 FLANGE	0-28081-025-0	08	1	9805-9905
42	BOLT; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (A) M10X25 FLANGE	0-28081-025-0	08	1	9906-
43	NUT; BRKT TO BUMPER (A) M10 FLANGE	5-09440-006-0	08	1	9606-9905
43	NUT; BRKT TO BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG> (A) M10 FLANGE	5-09440-006-0	08	1	9906-
43	NUT; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B) M10 FLANGE	0-91150-210-0	01	1	9709-9905
43	NUT; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (B) M10 FLANGE	0-91150-210-0	01	1	9906-
43	NUT; BRKT TO BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (B) M10 FLANGE	0-91150-210-0	02	1	9906-
70	BRACKET; LICENSE PLATE,FRT EXC. REINFORCEMENT BUMPER<VG7>	1-71260-150-0	02	1	9606-9804
70	BRACKET; LICENSE PLATE,FRT EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	1-71260-150-0	02	1	9805-9905
70	BRACKET; LICENSE PLATE,FRT EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7>	1-71260-150-0	02	1	9906-
74	CLIP; FOG LAMP HARNESS EXC. REINFORCEMENT BUMPER<VG7>	1-09701-203-0	07	1	9606-9804
74	CLIP; FOG LAMP HARNESS EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	1-09701-203-0	07	1	9805-9905
74	CLIP; FOG LAMP HARNESS EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7>	1-09701-203-0	07	1	9906-
84	HOOK	1-57181-027-1	01	1	9606-
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	9606-
93	WASHER; LK,HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> ID=16.2	9-09150-516-0	01	1	9906-
239	WASHER; PL,BRKT EXC. REINFORCEMENT BUMPER<VG7> ID=8.4 OD=22	9-09160-708-0	02	1	9606-9804
239	WASHER; PL,BRKT EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> ID=8.4 OD=22	9-09160-708-0	02	1	9805-9905
239	WASHER; PL,BRKT EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> ID=8.4 OD=22	9-09160-708-0	02	1	9906-
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C)	1-71260-156-1	01	1	9709-9905
246	PROTECTOR; BUMPER BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (C)	1-71260-156-1	01	1	9906-9910
246	PROTECTOR; BUMPER BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) CAB UP +110MM<TGG> FRONT SPOILER<VP1> (C)	1-71260-156-1	01	1	9906-9910
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (C)	1-71260-156-1	01	1	9911-
246	PROTECTOR; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (C)	1-71260-156-1	01	1	9911-
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (D)	1-71260-162-0	06	1	9906-9910
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (D)	1-71260-162-0	06	1	9911-
246	PROTECTOR; BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A)	1-71260-155-0	01	1	9606-9910
246	PROTECTOR; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (A)	1-71260-155-0	01	1	9911-
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (A)	1-71260-155-0	01	1	9911-
246	PROTECTOR; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (A)	1-71260-155-0	01	1	9911-
246	PROTECTOR; BUMPER EXC. REINFORCEMENT BUMPER<VG7> (B)	1-71260-094-1	01	1	9606-9910
246	PROTECTOR; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (B)	1-71260-094-1	01	1	9911-
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (B)	1-71260-094-1	01	1	9911-
246	PROTECTOR; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (B)	1-71260-094-1	01	1	9911-
246	PROTECTOR; BUMPER EXC. REINFORCEMENT BUMPER<VG7> (B)	1-71260-095-1	01	1	9606-9910
246	PROTECTOR; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (B)	1-71260-095-1	01	1	9911-
246	PROTECTOR; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (B)	1-71260-095-1	01	1	9911-
246	PROTECTOR; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (B)	1-71260-095-1	01	1	9911-
294	RUBBER; CUSHION CAB UP +50MM<W60> EXC. REINFORCEMENT BUMPER<VG7>	1-71260-148-1	01	1	9707-9804
294	RUBBER; CUSHION BODY COLOR ARC WHITE(729) CAB UP +50MM<W60> EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	1-71260-148-1	01	1	9805-9905
294	RUBBER; CUSHION CAB UP +50MM<W60> EXC. REINFORCEMENT BUMPER<VG7>	1-71260-149-1	01	1	9707-9804
294	RUBBER; CUSHION BODY COLOR ARC WHITE(729) CAB UP +50MM<W60> EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	1-71260-149-1	01	1	9805-9905
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M16X125	1-09070-007-0	01	1	9709-9710
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M16X140	9-09801-144-1	01	1	9711-9905
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M16X90	0-10811-690-0	01	1	9906-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M16X141 FLANGE	1-09070-013-0	01	1	9709-9710
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M16X95	0-10811-695-0	01	1	9906-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> M16X80	9-91061-680-0	01	1	9906-
301	BOLT; HOOK TO FRAME CAB UP +110MM<TGG> FRONT SPOILER<VP1> M16X80	0-10811-680-0	01	1	9906-
301	BOLT; HOOK TO FRAME REINFORCEMENT BUMPER<VG7> M16X158	1-09040-077-0	01	1	9606-0007
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X158	1-09040-077-0	01	1	0008-
301	BOLT; HOOK TO FRAME REINFORCEMENT BUMPER<VG7> M16X147	5-51361-003-3	01	1	9606-9710
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X147	5-51361-003-3	01	1	9711-9905
301	BOLT; HOOK TO FRAME REINFORCEMENT BUMPER<VG7> M16X147	5-51361-003-3	01	1	9906-0007
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X147	5-51361-003-3	01	1	0008-
301	BOLT; HOOK TO FRAME EXC. REINFORCEMENT BUMPER<VG7> M16X70	0-10811-670-0	01	1	9606-9905
301	BOLT; HOOK TO FRAME CAB UP +110MM<TGG> FRONT SPOILER<VP1> M16X70	0-10811-670-0	01	1	9906-
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> M16X70	0-10811-670-0	01	1	9906-
301	BOLT; HOOK TO FRAME EXC. REINFORCEMENT BUMPER<VG7> M16X60	0-20801-660-0	01	1	9606-9712
301	BOLT; HOOK TO FRAME EXC. REINFORCEMENT BUMPER<VG7> M16X60	0-10811-660-0	01	1	9801-9905
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> M16X60	0-10811-660-0	01	1	9906-

43 30 42 30 42 43 96 84 97 98 1 93 301

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C) WHITE	1-71210-746-3	01	1	9709-9905
1	BUMPER ASM; FRT BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (D)	1-71210-769-7	01	1	9906-
1	BUMPER ASM; FRT EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (A)	1-71210-806-0	01	1	9906-
1	BUMPER ASM; FRT CAB UP +50MM<W60> EXC. REINFORCEMENT BUMPER<VG7> (A)	1-71210-808-0	01	1	9707-9804
1	BUMPER ASM; FRT BODY COLOR ARC WHITE(729) CAB UP +50MM<W60> EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A)	1-71210-808-0	01	1	9805-9905
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> (B)	1-71210-659-1	01	1	9606-9608
1	BUMPER ASM; FRT REINFORCEMENT BUMPER<VG7> (B)	1-71210-815-0	01	1	9609-
1	BUMPER ASM; FRT EXC. REINFORCEMENT BUMPER<VG7> (A)	1-71210-546-3	01	1	9606-9608
1	BUMPER ASM; FRT EXC. REINFORCEMENT BUMPER<VG7> (A)	1-71210-806-0	01	1	9609-9706
1	BUMPER ASM; FRT EXC. REINFORCEMENT BUMPER<VG7>,CAB UP +50MM<W60> (A)	1-71210-806-0	01	1	9707-9905
1	BUMPER ASM; FRT CAB UP +110MM<TGG> FRONT SPOILER<VP1> (C) WHITE	1-71210-746-5	01	1	9906-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (E)	1-71230-411-0	01	1	9709-9905
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (D)	1-71230-428-0	01	1	9906-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C)	1-71230-430-0	01	1	9709-9905
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (D)	1-71230-429-0	01	1	9906-
30	BRACKET; FRT BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C)	1-71230-431-0	01	1	9709-9905
30	BRACKET; FRT BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (C)	1-71230-431-0	01	1	9906-
30	BRACKET; FRT BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (C)	1-71230-430-0	01	1	9906-
30	BRACKET; FRT BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (F)	1-71230-455-1	01	1	9906-
30	BRACKET; FRT BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (F)	1-71230-456-1	01	1	9906-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (B)	1-71230-421-0	01	1	9606-
30	BRACKET; FRT BUMPER REINFORCEMENT BUMPER<VG7> (B)	1-71230-420-0	01	1	9606-
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A)	1-71230-283-1	01	1	9606-9804
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A)	1-71230-283-1	01	1	9805-9905
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (A)	1-71230-283-1	01	1	9906-
30	BRACKET; FRT BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A)	1-71230-282-1	01	1	9606-9804
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A)	1-71230-282-1	01	1	9805-9905
30	BRACKET; FRT BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (A)	1-71230-282-1	01	1	9906-
42	BOLT; BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (C) M10X25 FLANGE	0-28681-025-0	07	1	9709-9905
42	BOLT; BUMPER FRONT SPOILER<VP1> (C) M10X25 FLANGE	0-28681-025-0	07	1	9906-
42	BOLT; BUMPER CAB UP +50MM<W60> EXC. REINFORCEMENT BUMPER<VG7> (D) M6X12 FLANGE	0-28080-612-0	10	1	9707-9804
42	BOLT; BUMPER BODY COLOR ARC WHITE(729) CAB UP +50MM<W60> EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (D) M6X12 FLANGE	0-28080-612-0	10	1	9805-9905
42	BOLT; BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB> (E) M10X35 FLANGE	0-28081-035-0	08	1	9906-
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> (B) M10X25 FLANGE	0-28081-025-0	04	1	9606-
42	BOLT; BUMPER REINFORCEMENT BUMPER<VG7> (B) M10X30 FLANGE	0-28081-030-0	04	1	9606-
42	BOLT; BUMPER EXC. REINFORCEMENT BUMPER<VG7> (A) M10X25 FLANGE	0-28081-025-0	08	1	9606-9804
42	BOLT; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> (A) M10X25 FLANGE	0-28081-025-0	08	1	9805-9905
42	BOLT; BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> (A) M10X25 FLANGE	0-28081-025-0	08	1	9906-
43	NUT; BRKT TO BUMPER (A) M10 FLANGE	5-09440-006-0	08	1	9606-9905
43	NUT; BRKT TO BUMPER EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG> (A) M10 FLANGE	5-09440-006-0	08	1	9906-
43	NUT; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> (B) M10 FLANGE	0-91150-210-0	01	1	9709-9905
43	NUT; BRKT TO BUMPER BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> (B) M10 FLANGE	0-91150-210-0	01	1	9906-
43	NUT; BRKT TO BUMPER CAB UP +110MM<TGG> FRONT SPOILER<VP1> (B) M10 FLANGE	0-91150-210-0	02	1	9906-
84	HOOK	1-57181-027-1	01	1	9606-
93	WASHER; LK,HOOK ID=16.2	9-09150-516-0	02	1	9606-
93	WASHER; LK,HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> ID=16.2	9-09150-516-0	01	1	9906-
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1>	1-53497-594-0	01	1	9709-9905
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG>	1-53497-473-0	01	1	9906-
96	PLATE; DIST,HOOK CAB UP +110MM<TGG> FRONT SPOILER<VP1>	1-53497-560-0	01	1	9906-
96	PLATE; DIST,HOOK REINFORCEMENT BUMPER<VG7>	1-57189-193-0	01	1	9606-9905
96	PLATE; DIST,HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1>	1-57189-203-1	01	1	9906-
97	SPRING; FRT HOOK REINFORCEMENT BUMPER<VG7>	9-53519-003-0	01	1	9606-9905
97	SPRING; FRT HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	9-53519-003-0	01	1	9906-
97	SPRING; FRT HOOK CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB>	9-53519-003-0	01	1	9906-
98	STOPPER; SPR,FRT HOOK REINFORCEMENT BUMPER<VG7>	9-53519-006-0	01	1	9606-9905
98	STOPPER; SPR,FRT HOOK BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7>	9-53519-006-0	01	1	9906-
98	STOPPER; SPR,FRT HOOK CAB UP +110MM<TGG> FRONT SPOILER<VP1> EXC. BUMPER W/HEADLAMPS<SLB>	9-53519-006-0	01	1	9906-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M16X125	1-09070-007-0	01	1	9709-9710
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M16X140	9-09801-144-1	01	1	9711-9905
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M16X90	0-10811-690-0	01	1	9906-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> M16X141 FLANGE	1-09070-013-0	01	1	9709-9710
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB> FRONT SPOILER<VP1> EXC. CAB UP +110MM<TGG> M16X95	0-10811-695-0	01	1	9906-
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> EXC. FRONT SPOILER<VP1> M16X80	9-91061-680-0	01	1	9906-
301	BOLT; HOOK TO FRAME CAB UP +110MM<TGG> FRONT SPOILER<VP1> M16X80	0-10811-680-0	01	1	9906-
301	BOLT; HOOK TO FRAME REINFORCEMENT BUMPER<VG7> M16X158	1-09040-077-0	01	1	9606-0007
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X158	1-09040-077-0	01	1	0008-
301	BOLT; HOOK TO FRAME REINFORCEMENT BUMPER<VG7> M16X147	5-51361-003-3	01	1	9606-9710
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X147	5-51361-003-3	01	1	9711-9905
301	BOLT; HOOK TO FRAME REINFORCEMENT BUMPER<VG7> M16X147	5-51361-003-3	01	1	9906-0007
301	BOLT; HOOK TO FRAME BUMPER W/HEADLAMPS<SLB>,REINFORCEMENT BUMPER<VG7> M16X147	5-51361-003-3	01	1	0008-
301	BOLT; HOOK TO FRAME EXC. REINFORCEMENT BUMPER<VG7> M16X70	0-10811-670-0	01	1	9606-9905
301	BOLT; HOOK TO FRAME CAB UP +110MM<TGG> FRONT SPOILER<VP1> M16X70	0-10811-670-0	01	1	9906-
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> M16X70	0-10811-670-0	01	1	9906-
301	BOLT; HOOK TO FRAME EXC. REINFORCEMENT BUMPER<VG7> M16X60	0-20801-660-0	01	1	9606-9712
301	BOLT; HOOK TO FRAME EXC. REINFORCEMENT BUMPER<VG7> M16X60	0-10811-660-0	01	1	9801-9905
301	BOLT; HOOK TO FRAME EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> M16X60	0-10811-660-0	01	1	9906-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
