◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51385 - NMR 71(MIDDLE EAST) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-05 - CLUTCH PIPING ▶
2-05 — CLUTCH PIPING (#51377) — 15 parça
çizim 14594
183
BalonParca AdiParca NoAdetTipApplied Date
183 00.785 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) 		8-98047-185-0 01 1 0810-

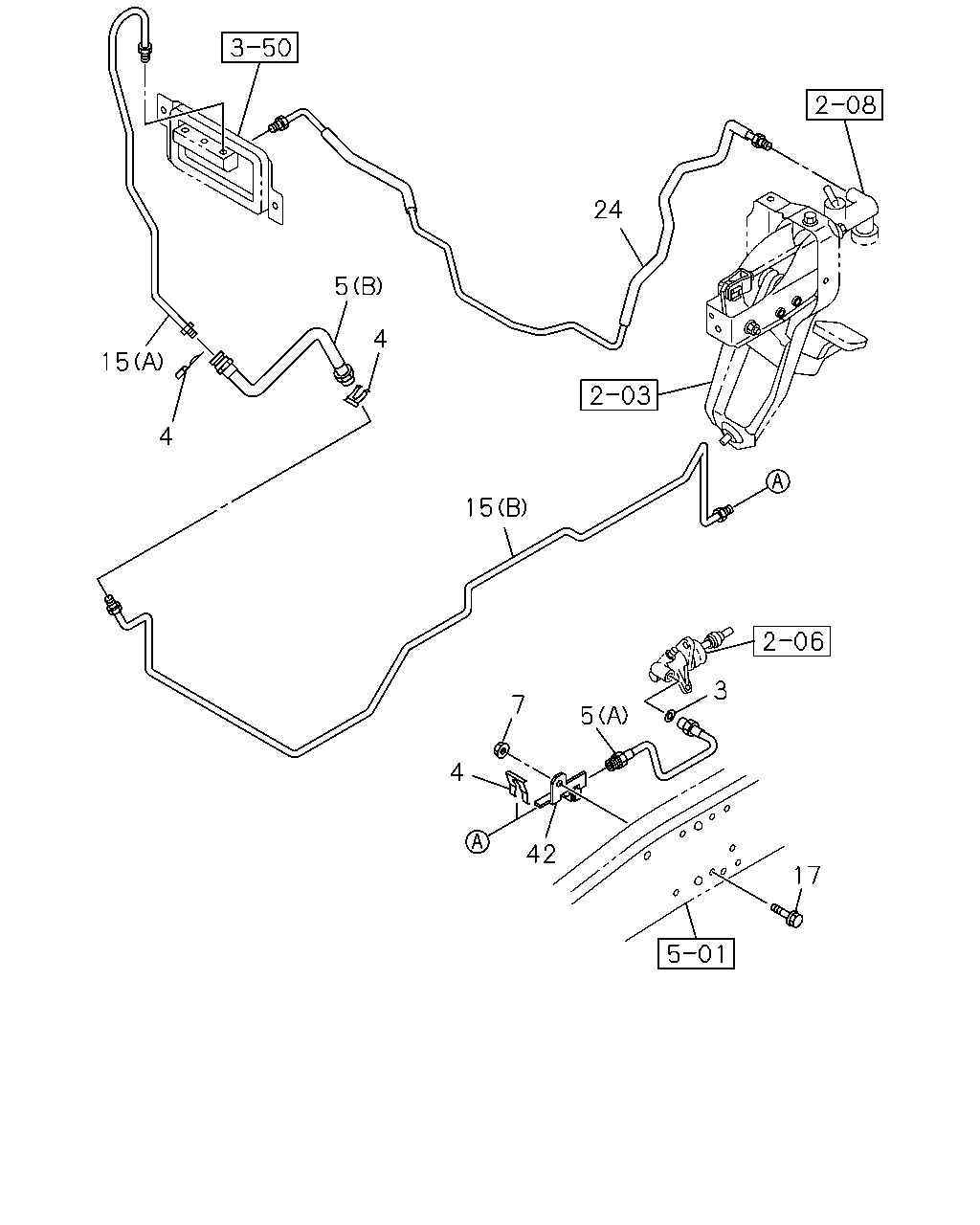

çizim 14695
24 5 4 15 4 15 3 7 5 4 42 17
BalonParca AdiParca NoAdetTipApplied Date
3 00.785 GASKET; FLEX HOSE,CLU 9-09920-873-1 01 1 0810-
4 00.785 CLIP; FLEX HOSE,CLU CONT
04.681 		8-97365-304-0 01 1 0810-
4 00.785 CLIP; FLEX HOSE,CLU CONT
04.681 		8-97365-304-0 02 1 0810-
5 00.785 HOSE; FLEX,CLU PIPE
(A) 		8-97168-853-0 01 1 0810-
5 00.785 HOSE; FLEX,CLU PIPE
(B) 		8-98083-907-0 01 1 0810-
7 00.785 NUT; FLEX HOSE,CLU CONT
03.162 M10 FLANGE 		0-91180-110-0 01 1 0810-
15 00.785 PIPE; CLU,FLEX HOSE
(A) 		8-98047-211-1 01 1 0810-
15 00.785 PIPE; CLU,FLEX HOSE
(B) 		8-98100-031-2 01 1 0810-
17 00.785 BOLT; BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 01 1 0810-
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) 		8-98099-806-2 01 1 0810-1504
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) 		8-98250-075-0 01 1 1505-
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T) 		8-98097-187-1 01 1 0810-1504
24 00.785 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T) 		8-98250-071-0 01 1 1505-
42 00.785 BRACKET; FLEX HOSE,CLU CONT 8-98094-498-0 01 1 0810-
