1-56 — EXHAUST BRAKE SYSTEM (#51374) — 13 parça

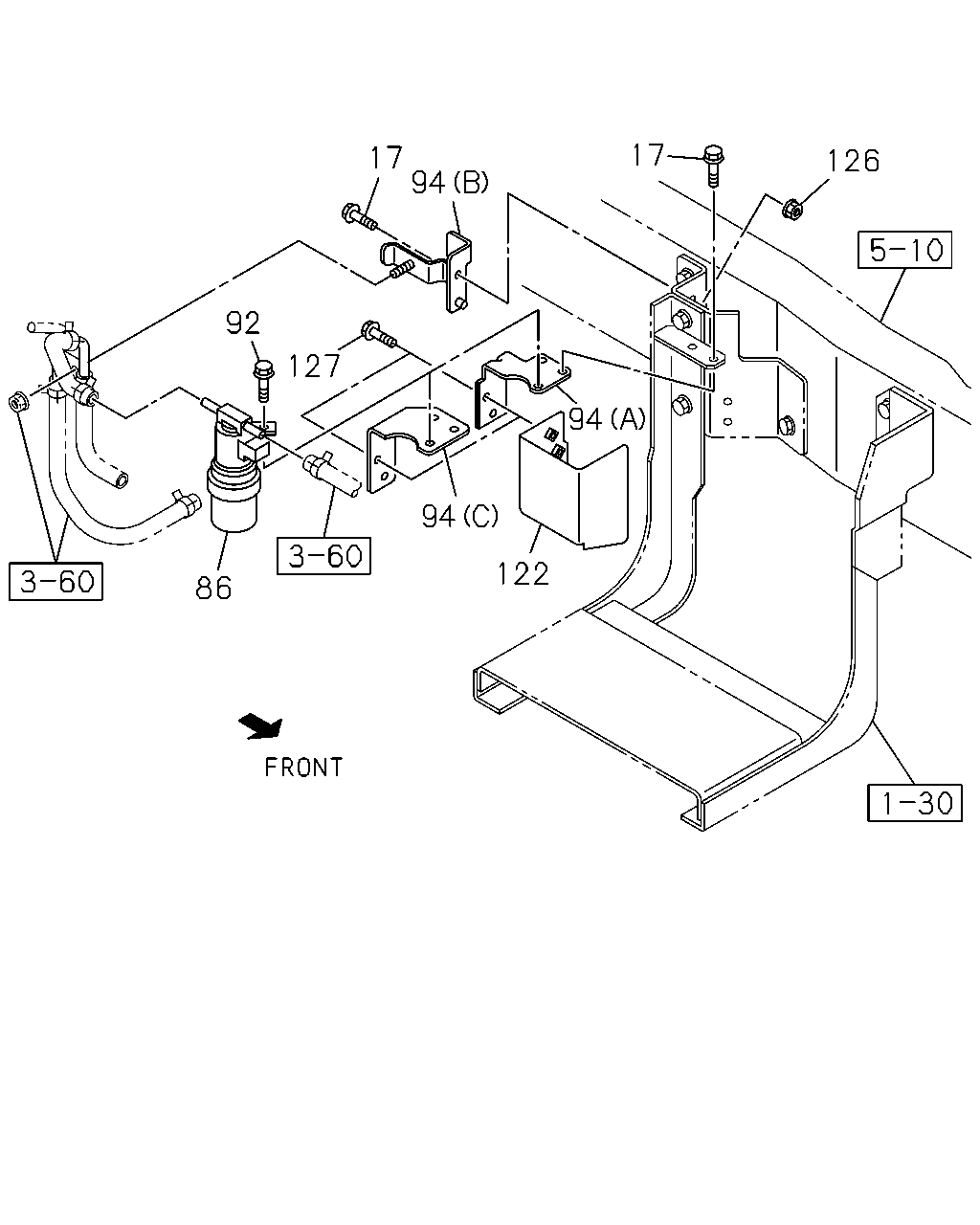

çizim 14592
122 94 86 127 92 17 94 17 94 126
BalonParca AdiParca NoAdetTipApplied Date
17 03.634 BOLT; BRKT
EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE 		0-28650-825-0 02 1 0810-
17 03.634 BOLT; BRKT
WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0810-
86 03.636 VALVE; MAG,EXH BRK
EXHAUST BRAKE<NF8> 		8-98043-344-0 01 1 0810-
92 08.900 BOLT; MAG VLV
EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE 		0-28650-825-0 01 1 0810-
94 03.634 BRACKET; MAG VLV,EXH BRAKE
EXHAUST BRAKE<NF8> (A) 		8-98042-145-2 01 1 0810-1206
94 03.634 BRACKET; MAG VLV,EXH BRAKE
EXHAUST BRAKE<NF8> (C) 		8-98211-757-1 01 1 1207-
94 03.634 BRACKET; MAG VLV,EXH BRAKE
WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> (B) 		8-98042-694-2 01 1 0810-
122 03.640 PROTECTOR; MAG VLV
EXHAUST BRAKE<NF8> 		8-98098-564-0 01 1 0810-
126 03.634 NUT; BRKT
WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> 01.062 M8 FLANGE 		0-91180-108-0 01 1 0810-
127 04.902 BOLT; PROTECTOR
EXHAUST BRAKE<NF8> 03.162 M6X12 FLANGE 		0-28050-612-0 02 1 0810-
çizim 98620
8 1 5 5
BalonParca AdiParca NoAdetTipApplied Date
1 03.632 BRAKE UNIT; EXH
EXHAUST BRAKE<NF8> 		8-98108-289-1 01 1 0810-
5 03.634 GASKET; EXH BRAKE UNIT
EXHAUST BRAKE<NF8> ID=54 		8-94328-354-0 02 1 0810-
8 03.632 NUT; EXH BRAKE UNIT FIX
EXHAUST BRAKE<NF8> 03.417 M8 W/LK WASHER 		8-97581-234-0 04 1 0810-
