Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#51372) — 189 parça

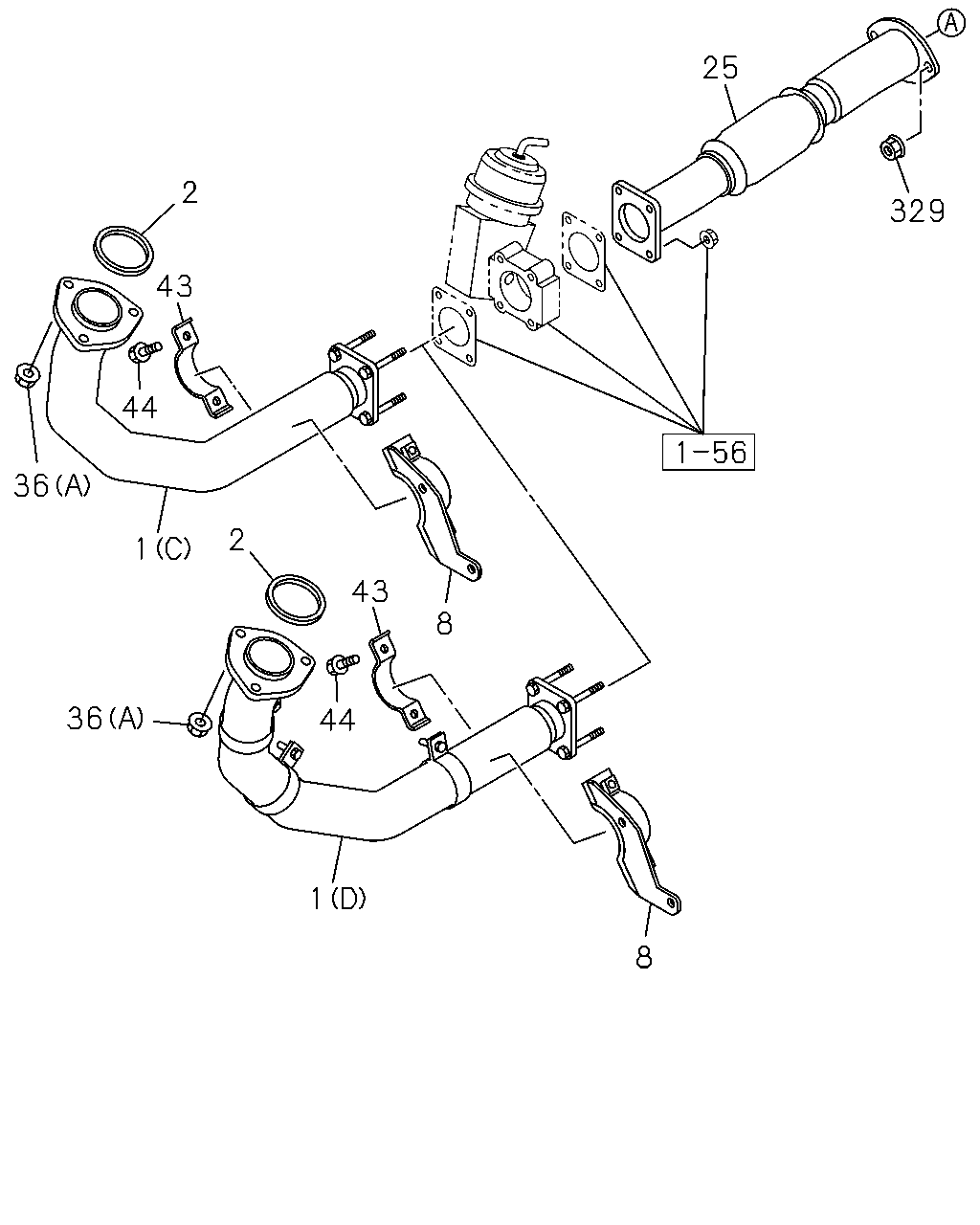

25 2 329 43 44 36 2 1 43 8 36 44 1 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.609 PIPE; EXH EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> (D)	8-98125-907-0	01	1	0810-1205
1	03.609 PIPE; EXH EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> (D)	8-98216-288-0	01	1	1206-
1	03.609 PIPE; EXH EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> (C)	8-98108-157-0	01	1	0810-1205
1	03.609 PIPE; EXH EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> (C)	8-98216-286-0	01	1	1206-
1	03.609 PIPE; EXH FRAME-KICK UP<7EW> EXC. EXHAUST BRAKE<NF8> (B)	8-98126-083-0	01	1	0810-1205
1	03.609 PIPE; EXH FRAME-KICK UP<7EW> EXC. EXHAUST BRAKE<NF8> (B)	8-98216-289-0	01	1	1206-
1	03.609 PIPE; EXH EXC. EXHAUST BRAKE<NF8>,FRAME-KICK UP<7EW> (A)	8-98117-519-0	01	1	0810-1205
1	03.609 PIPE; EXH EXC. EXHAUST BRAKE<NF8>,FRAME-KICK UP<7EW> (A)	8-98216-287-0	01	1	1206-
2	03.611 GASKET; PIPE TO MANIF	8-97381-455-0	01	1	0810-
8	03.704 BRACKET; EXH PIPE	8-97358-599-4	01	1	0810-
25	03.609 PIPE; EXH,BRK VLV TO SILENCER EXHAUST BRAKE<NF8>	8-98108-163-1	01	1	0810-
36	03.613 NUT; EXH PIPE WHEEL BASE 3300MM(33W) 01.062 (B) M8 FLANGE	0-91180-108-0	04	1	0810-
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	0810-
43	03.611 CLAMP; EXH PIPE	8-97351-200-1	01	1	0810-
44	03.613 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0810-
329	03.613 NUT; EXH PIPE TO PIPE 03.162 M10 FLANGE	0-91180-110-0	02	1	0810-

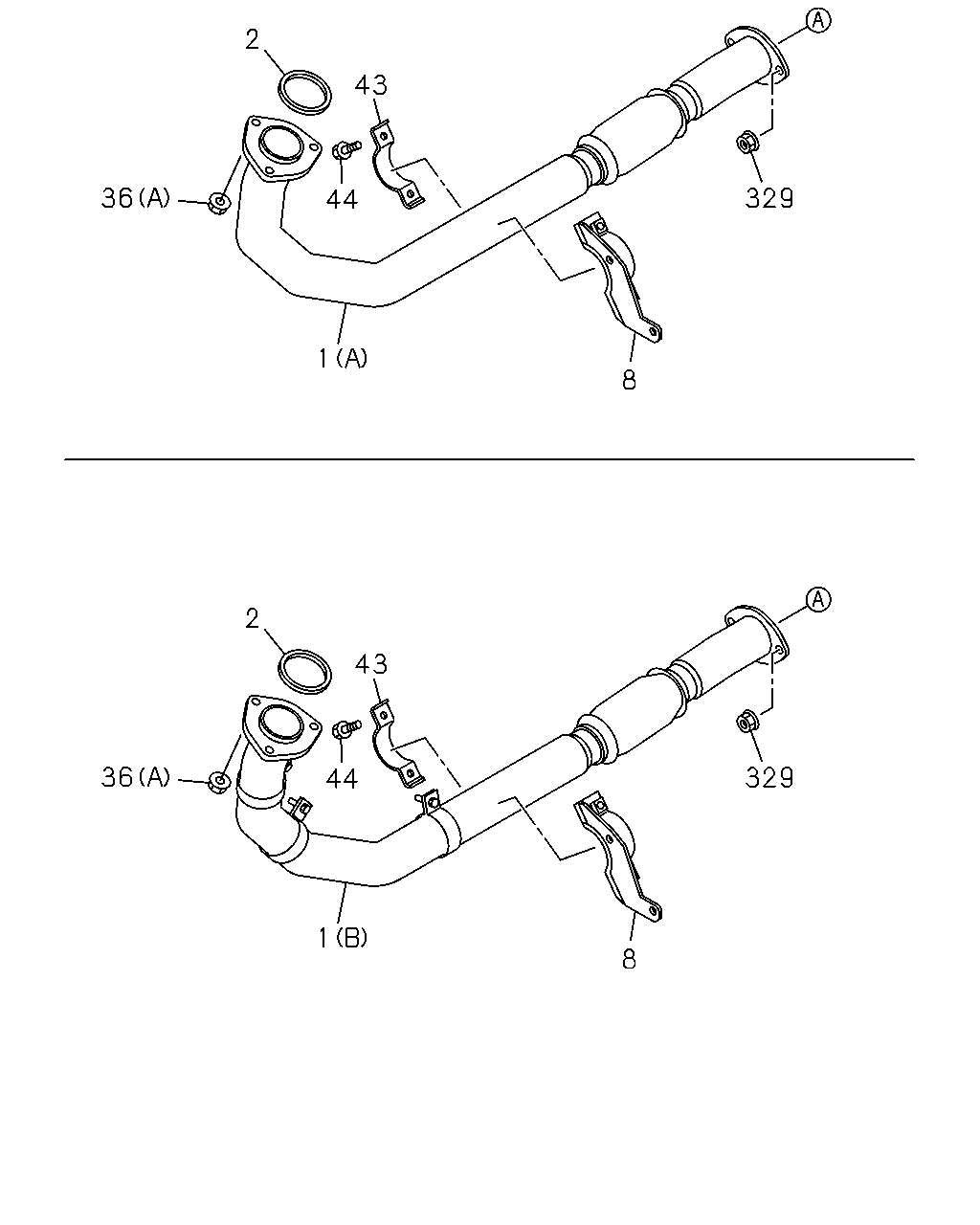

2 43 36 329 44 1 8 2 43 36 329 44 1 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	03.609 PIPE; EXH EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> (D)	8-98125-907-0	01	1	0810-1205
1	03.609 PIPE; EXH EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> (D)	8-98216-288-0	01	1	1206-
1	03.609 PIPE; EXH EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> (C)	8-98108-157-0	01	1	0810-1205
1	03.609 PIPE; EXH EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> (C)	8-98216-286-0	01	1	1206-
1	03.609 PIPE; EXH FRAME-KICK UP<7EW> EXC. EXHAUST BRAKE<NF8> (B)	8-98126-083-0	01	1	0810-1205
1	03.609 PIPE; EXH FRAME-KICK UP<7EW> EXC. EXHAUST BRAKE<NF8> (B)	8-98216-289-0	01	1	1206-
1	03.609 PIPE; EXH EXC. EXHAUST BRAKE<NF8>,FRAME-KICK UP<7EW> (A)	8-98117-519-0	01	1	0810-1205
1	03.609 PIPE; EXH EXC. EXHAUST BRAKE<NF8>,FRAME-KICK UP<7EW> (A)	8-98216-287-0	01	1	1206-
2	03.611 GASKET; PIPE TO MANIF	8-97381-455-0	01	1	0810-
8	03.704 BRACKET; EXH PIPE	8-97358-599-4	01	1	0810-
36	03.613 NUT; EXH PIPE WHEEL BASE 3300MM(33W) 01.062 (B) M8 FLANGE	0-91180-108-0	04	1	0810-
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	0810-
43	03.611 CLAMP; EXH PIPE	8-97351-200-1	01	1	0810-
44	03.613 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0810-
329	03.613 NUT; EXH PIPE TO PIPE 03.162 M10 FLANGE	0-91180-110-0	02	1	0810-

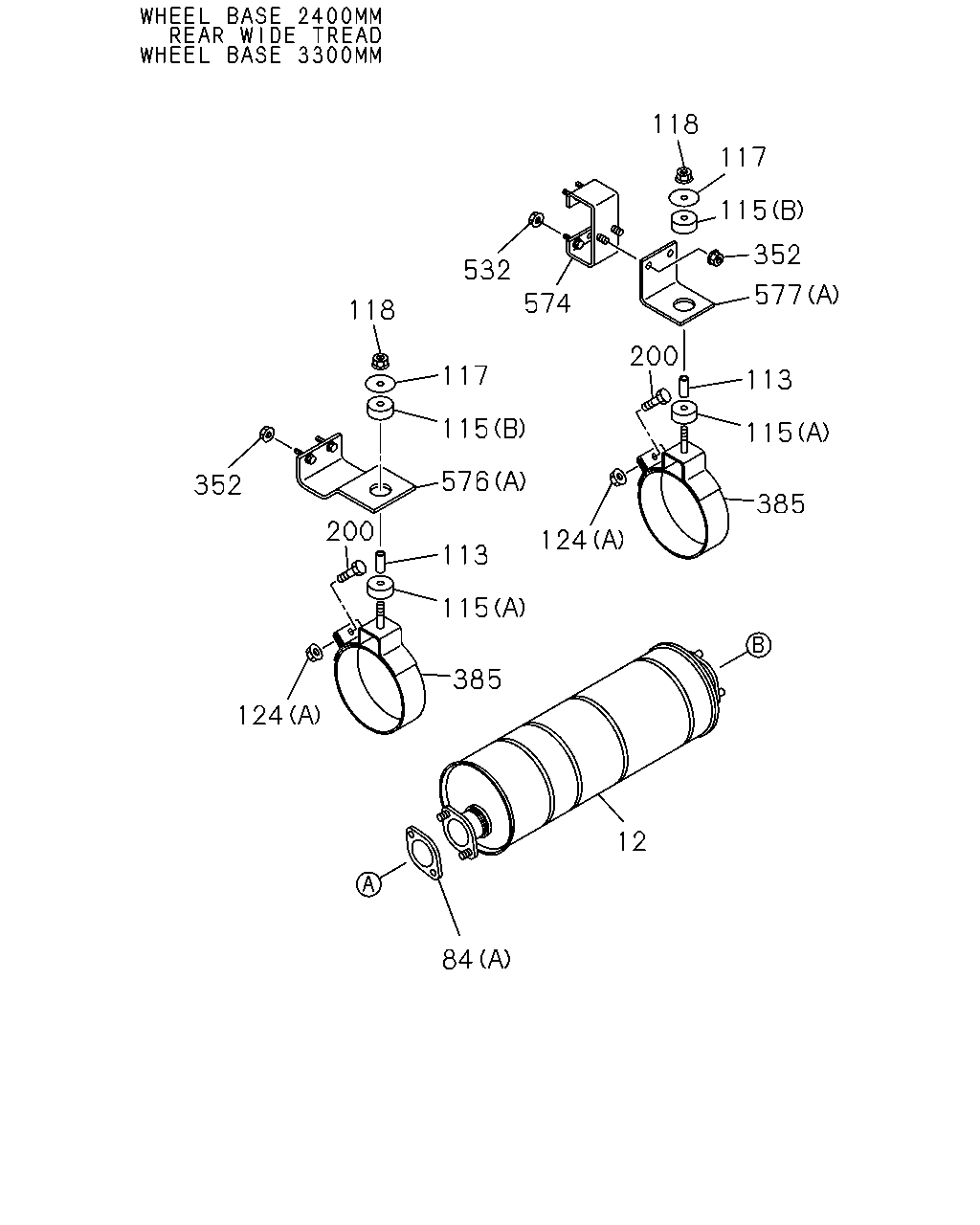

118 117 115 352 532 577 574 118 200 117 113 115 115 576 352 385 200 124 113 115 385 124 12 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	03.701 SILENCER ASM; EXH	8-98117-518-0	01	1	0810-
84	03.611 GASKET; EXH PIPE WHEEL BASE 3300MM(33W) (B) ID=64	8-97373-108-0	01	1	0810-
84	03.611 GASKET; EXH PIPE 03.704 (A) ID=64.7	8-94328-352-0	01	1	0810-
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	02	1	0810-
115	03.704 RUBBER; MTG,SILENCER (A)	8-97379-882-0	02	1	0810-
115	03.704 RUBBER; MTG,SILENCER (B)	8-97379-927-0	02	1	0810-
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	02	1	0810-
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	02	1	0810-
124	03.704 NUT; SUPPORT RUBBER 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0810-
124	03.704 NUT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0810-
124	03.704 NUT; SUPPORT RUBBER 02.334 (A) M8	0-91110-508-0	02	1	0810-
200	03.704 BOLT; SUPPORT RUBBER 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	0810-0909
200	03.704 BOLT; SUPPORT RUBBER M8X45 W/LK WASHER	0-50540-845-0	02	1	0910-
352	03.613 NUT; BRKT WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 M10 FLANGE	0-91180-110-0	01	1	0810-
352	03.613 NUT; BRKT WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0810-
385	03.704 BRACKET; SILENCER MTG 03.706	8-97076-020-0	02	1	0810-
532	03.704 NUT WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 M10 FLANGE	0-91180-110-0	02	1	0810-
532	03.704 NUT WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0810-
574	03.706 SPACER; DPD WHEEL BASE 3300MM(33W)	8-98044-774-0	01	1	0810-
574	03.706 SPACER; DPD WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-98095-053-0	01	1	0810-0810
574	03.706 SPACER; DPD WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-98137-248-0	01	1	0811-
576	03.706 BRACKET; DPD FRT TO FRAME WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98117-517-1	01	1	0810-
576	03.706 BRACKET; DPD FRT TO FRAME WHEEL BASE 3300MM(33W) (A)	8-98117-517-1	01	1	0810-
576	03.706 BRACKET; DPD FRT TO FRAME WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (B)	8-98108-191-0	01	1	0810-
577	03.706 BRACKET; DPD RR TO FRAME WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98109-166-0	01	1	0810-
577	03.706 BRACKET; DPD RR TO FRAME WHEEL BASE 3300MM(33W) (A)	8-98109-166-0	01	1	0810-
577	03.706 BRACKET; DPD RR TO FRAME WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (B)	8-98108-445-0	01	1	0810-

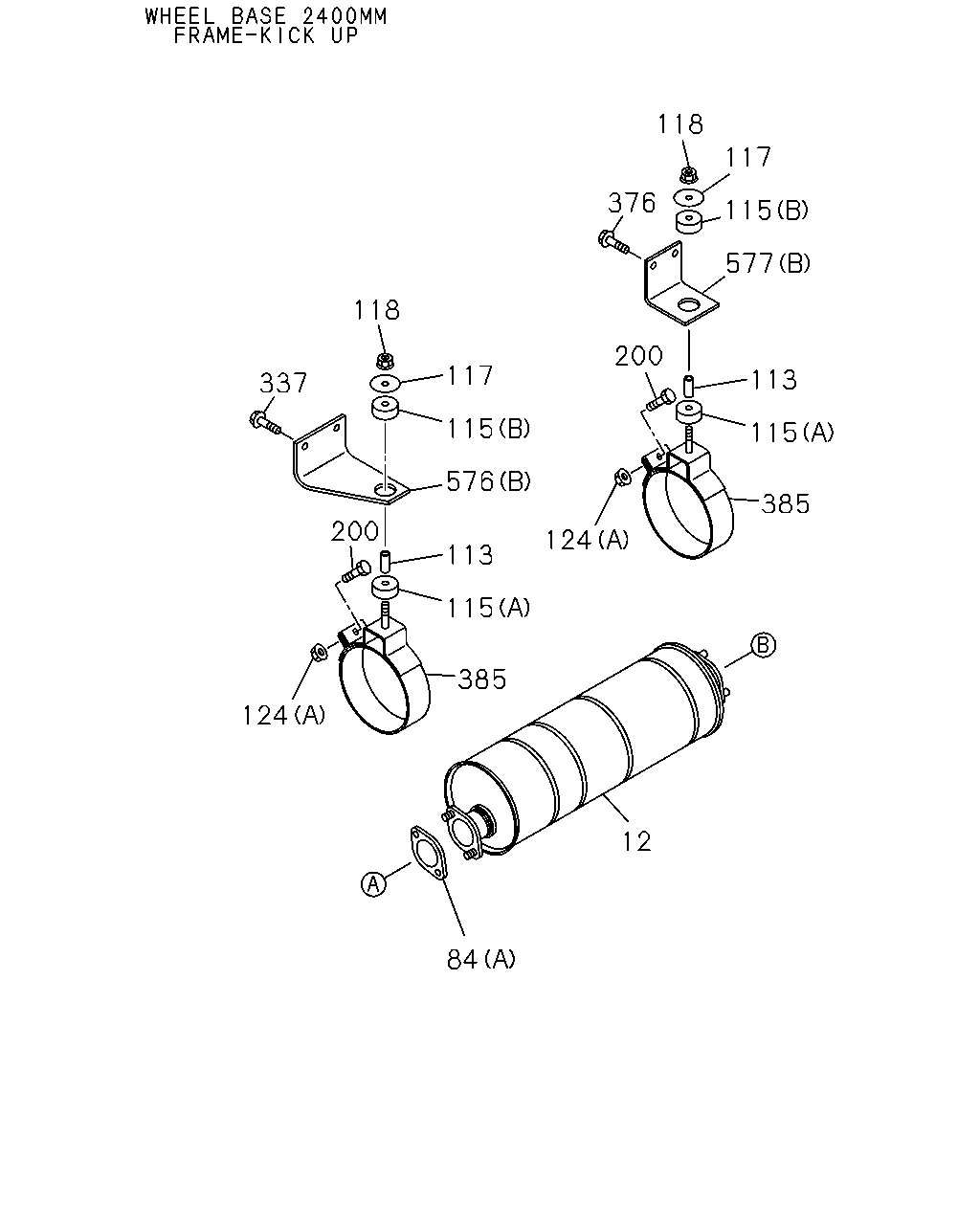

118 117 376 115 577 118 200 117 113 337 115 115 576 385 200 124 113 115 385 124 12 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	03.701 SILENCER ASM; EXH	8-98117-518-0	01	1	0810-
84	03.611 GASKET; EXH PIPE WHEEL BASE 3300MM(33W) (B) ID=64	8-97373-108-0	01	1	0810-
84	03.611 GASKET; EXH PIPE 03.704 (A) ID=64.7	8-94328-352-0	01	1	0810-
113	03.704 COLLAR; DIST,MTG BRKT 03.706 L=37.5	9-22151-217-0	02	1	0810-
115	03.704 RUBBER; MTG,SILENCER (A)	8-97379-882-0	02	1	0810-
115	03.704 RUBBER; MTG,SILENCER (B)	8-97379-927-0	02	1	0810-
117	03.704 WASHER; PL,SILENCER MTG BRKT OD=55	9-09852-169-0	02	1	0810-
118	03.704 NUT; SILENCER MTG BRKT 07.874 M10 FLANGE	5-09440-006-0	02	1	0810-
124	03.704 NUT; SUPPORT RUBBER 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0810-
124	03.704 NUT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0810-
124	03.704 NUT; SUPPORT RUBBER 02.334 (A) M8	0-91110-508-0	02	1	0810-
200	03.704 BOLT; SUPPORT RUBBER 01.252 M8X45 W/LK WASHER	0-50040-845-0	02	1	0810-0909
200	03.704 BOLT; SUPPORT RUBBER M8X45 W/LK WASHER	0-50540-845-0	02	1	0910-
337	03.706 BOLT; RUBBER,SUPPORT WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0810-
376	03.708 BOLT; BRKT WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0810-
385	03.704 BRACKET; SILENCER MTG 03.706	8-97076-020-0	02	1	0810-
576	03.706 BRACKET; DPD FRT TO FRAME WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98117-517-1	01	1	0810-
576	03.706 BRACKET; DPD FRT TO FRAME WHEEL BASE 3300MM(33W) (A)	8-98117-517-1	01	1	0810-
576	03.706 BRACKET; DPD FRT TO FRAME WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (B)	8-98108-191-0	01	1	0810-
577	03.706 BRACKET; DPD RR TO FRAME WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98109-166-0	01	1	0810-
577	03.706 BRACKET; DPD RR TO FRAME WHEEL BASE 3300MM(33W) (A)	8-98109-166-0	01	1	0810-
577	03.706 BRACKET; DPD RR TO FRAME WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (B)	8-98108-445-0	01	1	0810-

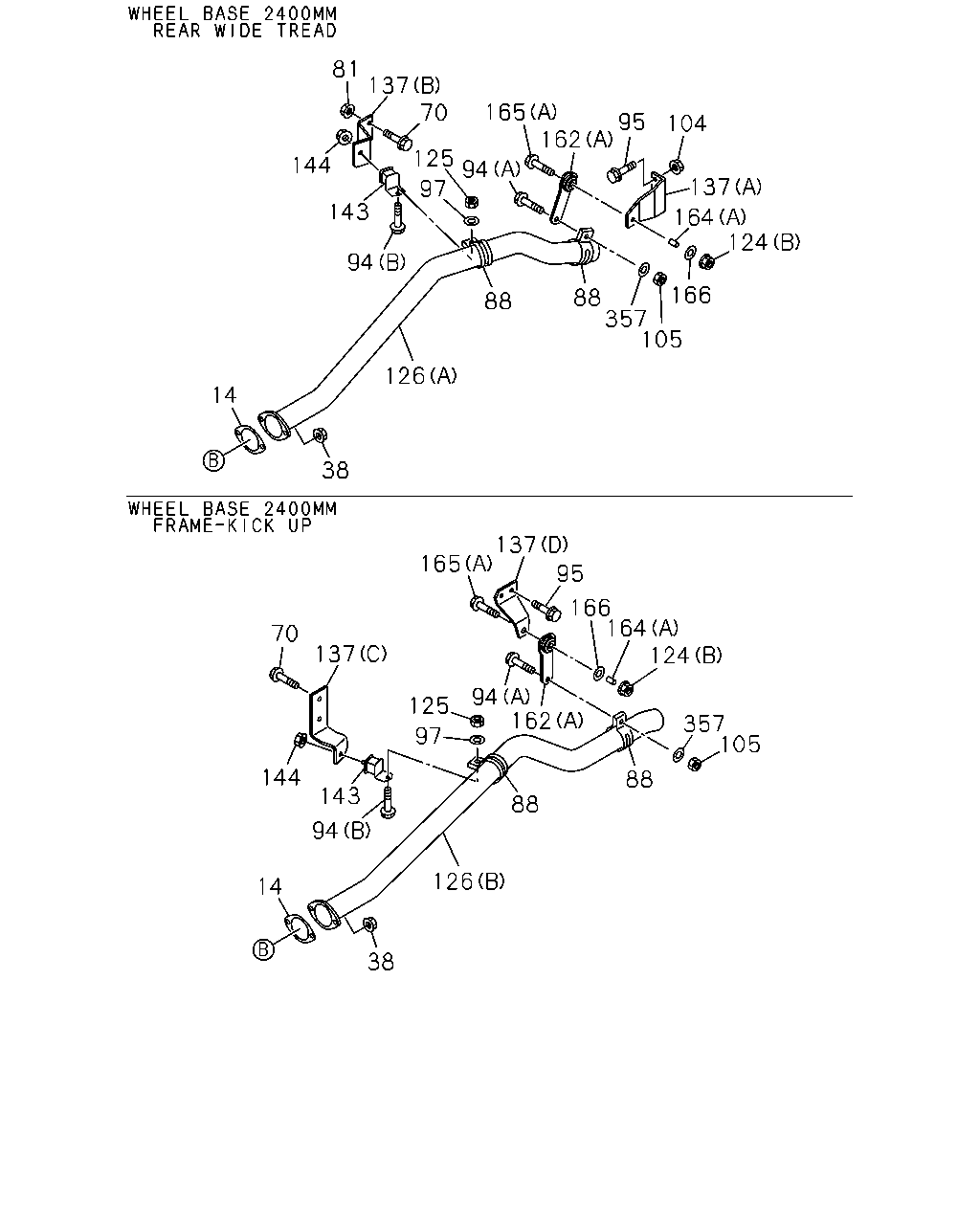

81 137 70 165 162 95 104 125 94 144 137 97 143 164 124 94 166 88 357 105 88 126 14 38 137 165 95 166 164 124 70 137 94 162 125 357 105 97 144 88 143 88 94 126 14 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0810-
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	02	1	0810-
70	03.706 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0810-
81	03.704 NUT; BRKT WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 M10 FLANGE	0-91180-110-0	02	1	0810-
81	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0810-
81	03.704 NUT; BRKT WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 M10 FLANGE	0-91180-110-0	02	1	0810-
81	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0810-
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	02	1	0810-0912
88	03.708 CLAMP; EXH PIPE WHEEL BASE 3300MM(33W)	8-97373-158-0	01	1	0810-0912
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	1001-
88	03.708 CLAMP; EXH PIPE WHEEL BASE 3300MM(33W)	8-97373-158-0	01	1	1001-
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	1001-
94	03.704 BOLT; CLAMP 00.685 (A) M10X45 FLANGE	0-28051-045-0	01	1	0810-
94	03.704 BOLT; CLAMP WHEEL BASE 3300MM(33W) 00.685 (A) M10X45 FLANGE	0-28051-045-0	01	1	0810-
94	03.704 BOLT; CLAMP 03.023 (B) M10X50 FLANGE	8-97301-165-0	01	1	0810-
95	03.708 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0810-
97	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0810-
104	03.704 NUT; BRKT WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 M10 FLANGE	0-91180-110-0	02	1	0810-
104	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0810-
105	03.704 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	0810-
105	03.704 NUT; CLAMP WHEEL BASE 3300MM(33W) 00.833 M10	0-91110-510-0	01	1	0810-
124	03.704 NUT; SUPPORT RUBBER 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0810-
124	03.704 NUT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0810-
124	03.704 NUT; SUPPORT RUBBER 02.334 (A) M8	0-91110-508-0	02	1	0810-
125	03.708 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	0810-
126	03.705 PIPE; EXH,RR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98108-182-0	01	1	0810-
126	03.705 PIPE; EXH,RR WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (B)	8-98108-183-0	01	1	0810-
126	03.705 PIPE; EXH,RR WHEEL BASE 3300MM(33W) (C)	8-98116-727-0	01	1	0810-
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98038-762-1	01	1	0810-
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-98075-678-0	01	1	0810-
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (C)	8-98072-151-0	01	1	0810-
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (D)	8-98072-152-0	01	1	0810-
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) (E)	8-98075-674-0	01	1	0810-
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) (F)	8-98075-675-1	01	1	0810-
143	03.704 RUBBER; SUPPORT	8-98034-767-0	01	1	0810-
144	03.613 NUT; MTG RUBBER 01.062 M8 FLANGE	0-91180-108-0	01	1	0810-
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 2400MM(24W) (A)	8-98032-150-0	01	1	0810-
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 3300MM(33W) (B) L=115	8-98034-765-0	02	1	0810-0912
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 3300MM(33W) (B) L=115	8-98034-765-0	01	1	1001-
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 3300MM(33W) (B) L=115	8-98034-765-0	01	1	1001-
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 2400MM(24W) (A) L=23	8-98006-011-0	01	1	0810-
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 3300MM(33W) (B) L=37.5	9-22151-217-0	01	1	0810-
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 2400MM(24W) 00.685 (A) M10X45 FLANGE	0-28051-045-0	01	1	0810-
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) (B) M10X70 FLANGE	0-28051-070-0	02	1	0810-0912
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) (B) M10X70 FLANGE	0-28051-070-0	01	1	1001-
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) (B) M10X70 FLANGE	0-28051-070-0	01	1	1001-
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0810-
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI WHEEL BASE 3300MM(33W) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0810-
357	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0810-
357	03.708 WASHER; PL,CLAMP WHEEL BASE 3300MM(33W) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0810-

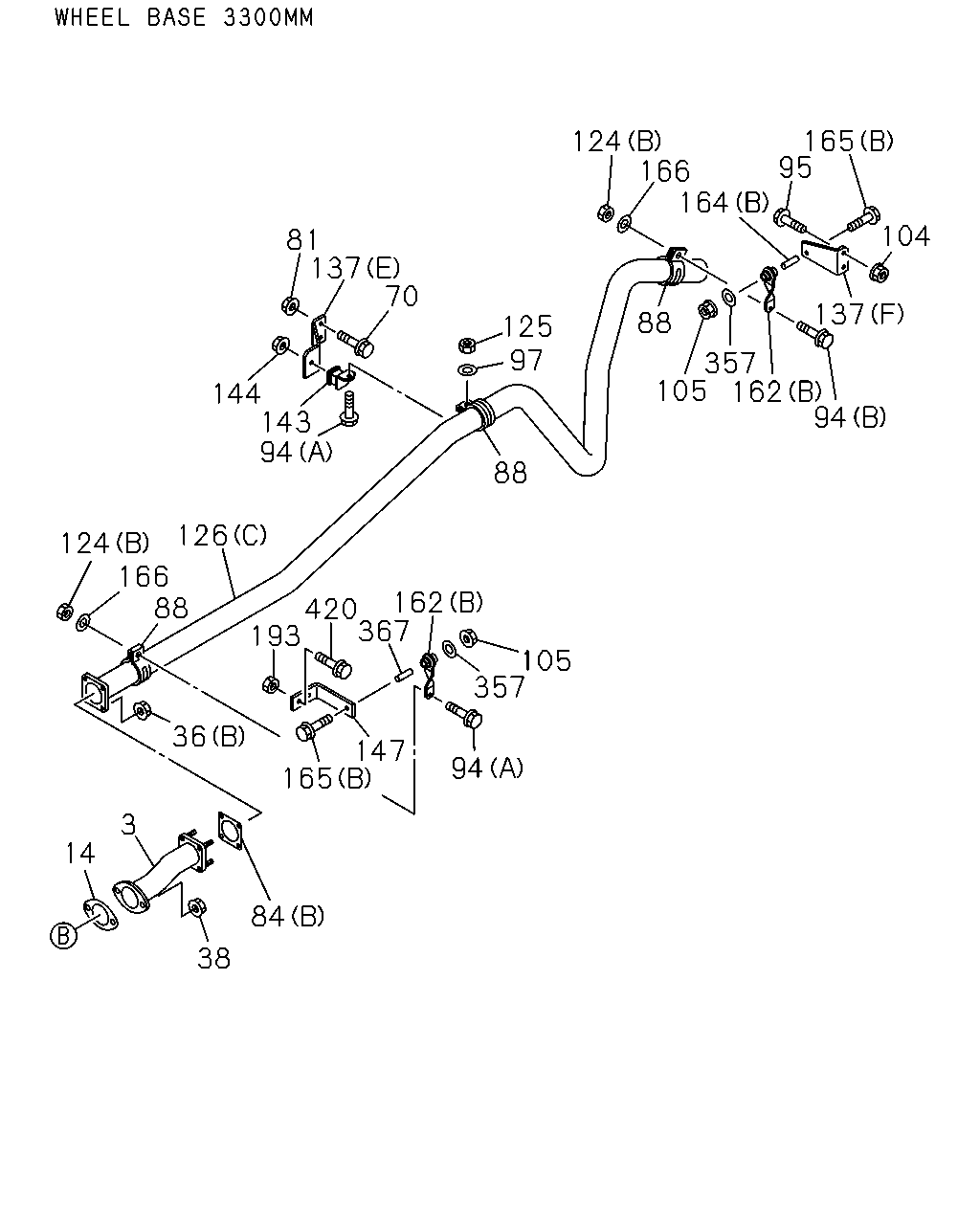

124 165 166 95 164 104 81 137 70 137 88 125 97 357 94 144 143 94 88 126 124 166 88 162 420 193 367 105 357 36 147 165 94 3 14 84 38 105 162

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	03.609 PIPE; EXH,CENTER WHEEL BASE 3300MM(33W)	8-98117-523-0	01	1	0810-
14	03.704 GASKET; SILENCER TO EXH PIPE ID=64.7	8-94328-352-0	01	1	0810-
36	03.613 NUT; EXH PIPE WHEEL BASE 3300MM(33W) 01.062 (B) M8 FLANGE	0-91180-108-0	04	1	0810-
36	03.613 NUT; EXH PIPE (A) M10 FLANGE	8-97096-192-1	03	1	0810-
38	00.002 NUT; SILENCER 03.162 M10 FLANGE	0-91180-110-0	02	1	0810-
70	03.706 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0810-
81	03.704 NUT; BRKT WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 M10 FLANGE	0-91180-110-0	02	1	0810-
81	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0810-
81	03.704 NUT; BRKT WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 M10 FLANGE	0-91180-110-0	02	1	0810-
81	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0810-
84	03.611 GASKET; EXH PIPE WHEEL BASE 3300MM(33W) (B) ID=64	8-97373-108-0	01	1	0810-
84	03.611 GASKET; EXH PIPE 03.704 (A) ID=64.7	8-94328-352-0	01	1	0810-
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	02	1	0810-0912
88	03.708 CLAMP; EXH PIPE WHEEL BASE 3300MM(33W)	8-97373-158-0	01	1	0810-0912
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	1001-
88	03.708 CLAMP; EXH PIPE WHEEL BASE 3300MM(33W)	8-97373-158-0	01	1	1001-
88	03.708 CLAMP; EXH PIPE	8-97373-158-0	01	1	1001-
94	03.704 BOLT; CLAMP 00.685 (A) M10X45 FLANGE	0-28051-045-0	01	1	0810-
94	03.704 BOLT; CLAMP WHEEL BASE 3300MM(33W) 00.685 (A) M10X45 FLANGE	0-28051-045-0	01	1	0810-
94	03.704 BOLT; CLAMP 03.023 (B) M10X50 FLANGE	8-97301-165-0	01	1	0810-
95	03.708 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0810-
97	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0810-
104	03.704 NUT; BRKT WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 M10 FLANGE	0-91180-110-0	02	1	0810-
104	03.704 NUT; BRKT WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0810-
105	03.704 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	0810-
105	03.704 NUT; CLAMP WHEEL BASE 3300MM(33W) 00.833 M10	0-91110-510-0	01	1	0810-
124	03.704 NUT; SUPPORT RUBBER 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0810-
124	03.704 NUT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) 03.162 (B) M10 FLANGE	0-91180-110-0	01	1	0810-
124	03.704 NUT; SUPPORT RUBBER 02.334 (A) M8	0-91110-508-0	02	1	0810-
125	03.708 NUT; CLAMP 00.833 M10	0-91110-510-0	01	1	0810-
126	03.705 PIPE; EXH,RR WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98108-182-0	01	1	0810-
126	03.705 PIPE; EXH,RR WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (B)	8-98108-183-0	01	1	0810-
126	03.705 PIPE; EXH,RR WHEEL BASE 3300MM(33W) (C)	8-98116-727-0	01	1	0810-
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (A)	8-98038-762-1	01	1	0810-
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-98075-678-0	01	1	0810-
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (C)	8-98072-151-0	01	1	0810-
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (D)	8-98072-152-0	01	1	0810-
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) (E)	8-98075-674-0	01	1	0810-
137	03.706 BRACKET; TAIL PIPE WHEEL BASE 3300MM(33W) (F)	8-98075-675-1	01	1	0810-
143	03.704 RUBBER; SUPPORT	8-98034-767-0	01	1	0810-
144	03.613 NUT; MTG RUBBER 01.062 M8 FLANGE	0-91180-108-0	01	1	0810-
147	03.704 BRACKET; VERTICAL PIPE WHEEL BASE 3300MM(33W)	8-98117-532-0	01	1	0810-
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 2400MM(24W) (A)	8-98032-150-0	01	1	0810-
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 3300MM(33W) (B) L=115	8-98034-765-0	02	1	0810-0912
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 3300MM(33W) (B) L=115	8-98034-765-0	01	1	1001-
162	03.706 RUBBER; SUPPORT,TAIL PIPE WHEEL BASE 3300MM(33W) (B) L=115	8-98034-765-0	01	1	1001-
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 2400MM(24W) (A) L=23	8-98006-011-0	01	1	0810-
164	03.706 COLLAR; DIST,TAIL PIPE WHEEL BASE 3300MM(33W) (B) L=37.5	9-22151-217-0	01	1	0810-
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 2400MM(24W) 00.685 (A) M10X45 FLANGE	0-28051-045-0	01	1	0810-
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) (B) M10X70 FLANGE	0-28051-070-0	02	1	0810-0912
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) (B) M10X70 FLANGE	0-28051-070-0	01	1	1001-
165	03.706 BOLT; SUPPORT RUBBER WHEEL BASE 3300MM(33W) (B) M10X70 FLANGE	0-28051-070-0	01	1	1001-
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0810-
166	03.706 WASHER; PL,SUPPORT RUBBER,EXH PI WHEEL BASE 3300MM(33W) 00.002 ID=10.5 OD=32	0-91614-810-0	01	1	0810-
193	03.704 NUT; BRKT,VERTICAL PIPE WHEEL BASE 3300MM(33W) 03.162 M10 FLANGE	0-91180-110-0	02	1	0810-
357	03.708 WASHER; PL,CLAMP 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0810-
357	03.708 WASHER; PL,CLAMP WHEEL BASE 3300MM(33W) 00.002 ID=10.5 OD=22	0-91614-610-0	01	1	0810-
367	03.704 COLLAR; DIST,SUPPORT RUBBER WHEEL BASE 3300MM(33W) 03.706 L=37.5	9-22151-217-0	01	1	0810-
420	03.704 BOLT; BRKT,VERTICAL PIPE WHEEL BASE 3300MM(33W) 00.029 M10X30 FLANGE	0-28651-030-0	02	1	0810-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
