Sayfa 1-41 - Isuzu EPC

1-41 — FUEL PIPING; CHASSIS (#51370) — 248 parça

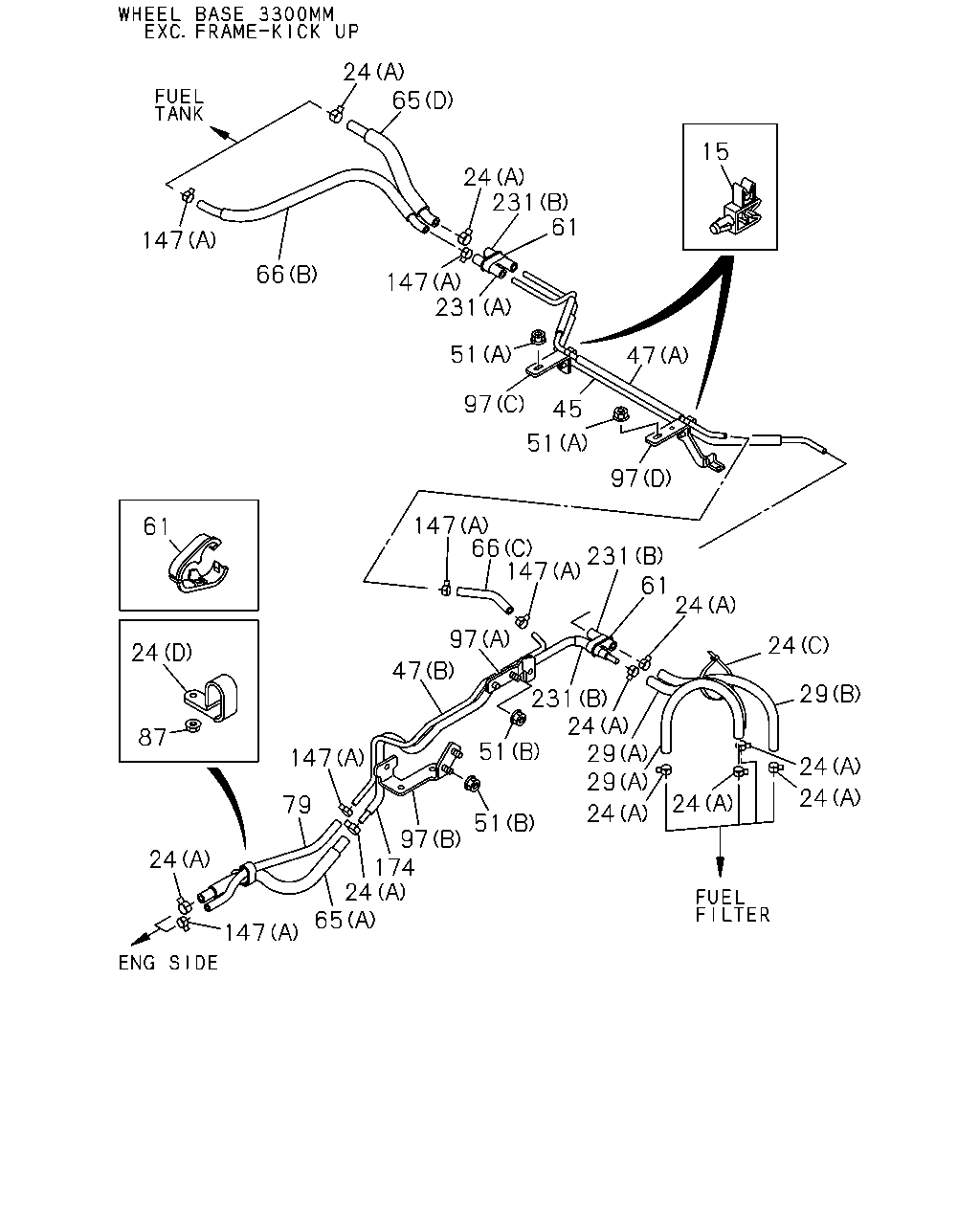

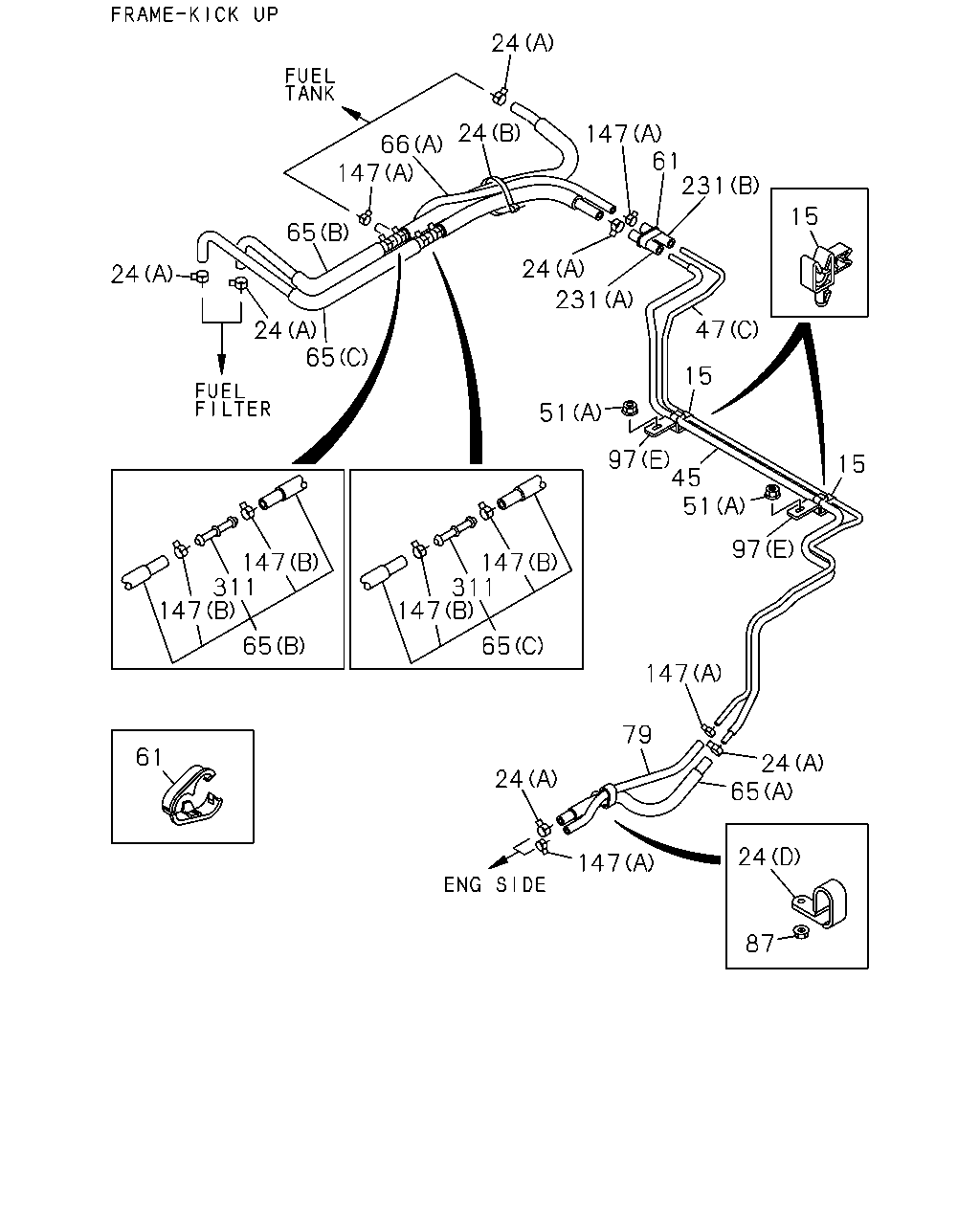

24 24 147 61 231 66 147 15 65 24 24 231 47 24 65 15 51 97 45 51 15 97 147 311 147 147 311 147 65 65 147 79 61 24 65 24 24 147 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	03.162 CLIP; FUEL PIPE ID=12 & 6.35	8-97215-437-0	02	1	0810-
24	03.162 CLIP; FUEL HOSE WHEEL BASE 2400MM(24W) 02.559 (B) L=250	5-09707-030-1	01	1	0810-
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (C) L=140	5-09707-031-1	01	1	0810-
24	03.162 CLIP; FUEL HOSE WHEEL BASE 2400MM(24W) FUEL FILTER DUAL(S6B) EXC. FRAME-KICK UP<7EW> (C) L=140	5-09707-031-1	01	1	0810-
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (C) L=140	5-09707-031-1	01	1	0810-
24	03.162 CLIP; FUEL HOSE (D)	9-09916-239-1	01	1	0810-
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) EXC. FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	02	1	0810-0911
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) EXC. FRAME-KICK UP<7EW> (A) ID=16	8-98008-098-0	02	1	0912-
24	03.162 CLIP; FUEL HOSE FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	06	1	0810-0911
24	03.162 CLIP; FUEL HOSE FRAME-KICK UP<7EW> (A) ID=16	8-98008-098-0	06	1	0912-
24	03.162 CLIP; FUEL HOSE EXC. FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	08	1	0810-0911
24	03.162 CLIP; FUEL HOSE EXC. FRAME-KICK UP<7EW> (A) ID=16	8-98008-098-0	08	1	0912-
45	03.163 PIPE; FUEL,DELIVERY WHEEL BASE 2400MM(24W) FUEL FILTER DUAL(S6B) EXC. FRAME-KICK UP<7EW>	8-98128-274-0	01	1	0810-
45	03.163 PIPE; FUEL,DELIVERY WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW>	8-98128-274-0	01	1	0810-
45	03.163 PIPE; FUEL,DELIVERY WHEEL BASE 2400MM(24W) EXC. FUEL FILTER DUAL(S6B),FRAME-KICK UP<7EW> L=744	8-98069-488-1	01	1	0810-
45	03.163 PIPE; FUEL,DELIVERY FRAME-KICK UP<7EW>	8-98122-615-1	01	1	0810-
47	03.163 PIPE; FUEL,RETURN FRAME-KICK UP<7EW> (C)	8-98100-171-2	01	1	0810-
47	03.163 PIPE; FUEL,RETURN EXC. FRAME-KICK UP<7EW> (A) L=690	8-98083-666-2	01	1	0810-
47	03.163 PIPE; FUEL,RETURN EXC. FRAME-KICK UP<7EW> (B)	8-98100-169-1	01	1	0810-
51	03.162 NUT; CLIP,PIPE 00.787 (A) M10	0-91111-510-0	02	1	0810-
51	03.162 NUT; CLIP,PIPE EXC. FRAME-KICK UP<7EW> (B) M10 FLANGE	0-91180-110-0	02	1	0810-
61	03.162 GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	0810-
61	03.162 GROMMET; PIPE TO FRAME EXC. FRAME-KICK UP<7EW>	8-98038-801-0	01	1	0810-
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (E)	8-98121-198-0	01	1	0810-0810
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (F)	8-98132-679-0	01	1	0810-0810
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) EXC. FUEL FILTER DUAL(S6B),FRAME-KICK UP<7EW> 03.003 (G) L=120 SERVICED BY L=3000	0-01259-300-0	01	1	0810-
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (D)	8-97389-790-0	01	1	0810-
65	03.163 HOSE; FUEL,DELIVERY PIPE (A)	8-98122-769-1	01	1	0810-
65	03.163 HOSE; FUEL,DELIVERY PIPE FRAME-KICK UP<7EW> (C)	8-98112-359-1	01	1	0810-0810
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) (C)	8-98112-359-2	01	1	0811-
65	03.163 HOSE; FUEL,DELIVERY PIPE FRAME-KICK UP<7EW> (B)	8-98112-360-1	01	1	0810-0810
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) (B)	8-98112-360-2	01	1	0811-
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (A) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	0810-
66	03.163 HOSE; FUEL,RETURN PIPE FRAME-KICK UP<7EW> (A) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	0810-
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (B) L=500	8-98057-029-0	01	1	0810-
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FRAME-KICK UP<7EW> (C) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	0810-
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN	8-98129-537-0	01	1	0810-
87	03.162 NUT; CLIP,FUEL HOSE 01.062 M6 FLANGE	0-91180-106-0	01	1	0810-
97	03.162 BRACKET; CLIP FRAME-KICK UP<7EW> (E)	8-98034-748-1	02	1	0810-
97	03.162 BRACKET; CLIP EXC. FRAME-KICK UP<7EW> (C)	8-98006-480-1	01	1	0810-
97	03.162 BRACKET; CLIP EXC. FRAME-KICK UP<7EW> (D)	8-98039-929-1	01	1	0810-
97	03.162 BRACKET; CLIP EXC. FRAME-KICK UP<7EW> (A)	8-98064-442-1	01	1	0810-
97	03.162 BRACKET; CLIP EXC. FRAME-KICK UP<7EW> (B)	8-98122-640-1	01	1	0810-1301
97	03.162 BRACKET; CLIP EXC. FRAME-KICK UP<7EW> (B)	8-98224-033-0	01	1	1302-
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> 04.930 (B) ID=16	8-94238-568-0	04	1	0810-0810
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> 04.930 (B) ID=16	8-94238-568-0	02	1	0810-0810
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) 04.930 (B) ID=16	8-94238-568-0	04	1	0811-0911
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) (B) ID=16	8-98008-098-0	04	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> 01.219 (A) ID=12	8-94238-610-0	04	1	0810-0911
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> 01.240 (A) ID=12	8-98150-358-0	04	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FRAME-KICK UP<7EW> 01.219 (A) ID=12	8-94238-610-0	06	1	0810-0911
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FRAME-KICK UP<7EW> 01.240 (A) ID=12	8-98150-358-0	06	1	0912-
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	0810-
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=16.5 L=50	8-97214-235-0	01	1	0810-
231	03.162 RUBBER; SUPPORT,FUEL PIPE EXC. FRAME-KICK UP<7EW> (B) OD=16.5 L=50	8-97214-235-0	02	1	0810-
311	03.163 JOINT; HOSE FRAME-KICK UP<7EW>	8-97353-668-0	02	1	0810-0810
311	03.163 JOINT; HOSE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW>	8-97353-668-0	01	1	0810-0810
311	03.163 JOINT; HOSE WHEEL BASE 2400MM(24W)	8-97353-668-0	02	1	0811-

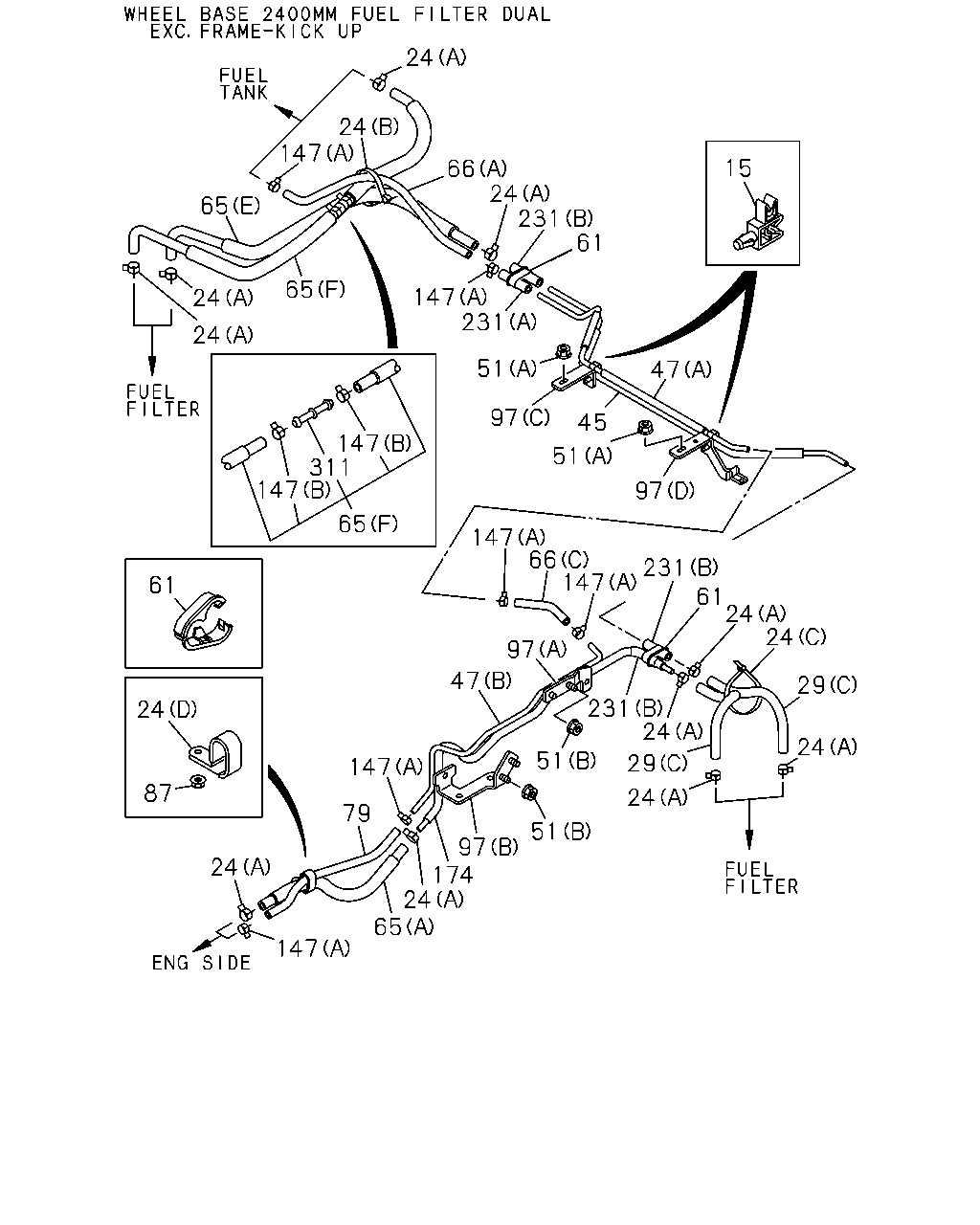

24 24 147 15 66 24 231 61 65 65 147 231 24 24 51 47 97 45 147 311 147 51 97 65 147 66 147 231 61 24 24 61 97 47 29 231 24 24 24 51 29 147 87 24 79 51 97 174 24 65 24 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	03.162 CLIP; FUEL PIPE ID=12 & 6.35	8-97215-437-0	02	1	0810-
24	03.162 CLIP; FUEL HOSE WHEEL BASE 2400MM(24W) 02.559 (B) L=250	5-09707-030-1	01	1	0810-
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (C) L=140	5-09707-031-1	01	1	0810-
24	03.162 CLIP; FUEL HOSE WHEEL BASE 2400MM(24W) FUEL FILTER DUAL(S6B) EXC. FRAME-KICK UP<7EW> (C) L=140	5-09707-031-1	01	1	0810-
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (C) L=140	5-09707-031-1	01	1	0810-
24	03.162 CLIP; FUEL HOSE (D)	9-09916-239-1	01	1	0810-
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) EXC. FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	02	1	0810-0911
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) EXC. FRAME-KICK UP<7EW> (A) ID=16	8-98008-098-0	02	1	0912-
24	03.162 CLIP; FUEL HOSE FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	06	1	0810-0911
24	03.162 CLIP; FUEL HOSE FRAME-KICK UP<7EW> (A) ID=16	8-98008-098-0	06	1	0912-
24	03.162 CLIP; FUEL HOSE EXC. FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	08	1	0810-0911
24	03.162 CLIP; FUEL HOSE EXC. FRAME-KICK UP<7EW> (A) ID=16	8-98008-098-0	08	1	0912-
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) FUEL FILTER DUAL(S6B) EXC. FRAME-KICK UP<7EW> 03.003 (C) L=260 SERVICED BY L=3000	0-01259-300-0	02	1	0810-
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) FUEL FILTER DUAL(S6B) EXC. FRAME-KICK UP<7EW> 03.003 (A) L=280 SERVICED BY L=3000	0-01259-300-0	02	1	0810-
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> 03.003 (B) L=360 SERVICED BY L=3000	0-01259-300-0	01	1	0810-
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) EXC. FUEL FILTER DUAL(S6B),FRAME-KICK UP<7EW> 03.003 (B) L=360 SERVICED BY L=3000	0-01259-300-0	01	1	0810-
45	03.163 PIPE; FUEL,DELIVERY WHEEL BASE 2400MM(24W) FUEL FILTER DUAL(S6B) EXC. FRAME-KICK UP<7EW>	8-98128-274-0	01	1	0810-
45	03.163 PIPE; FUEL,DELIVERY WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW>	8-98128-274-0	01	1	0810-
45	03.163 PIPE; FUEL,DELIVERY WHEEL BASE 2400MM(24W) EXC. FUEL FILTER DUAL(S6B),FRAME-KICK UP<7EW> L=744	8-98069-488-1	01	1	0810-
45	03.163 PIPE; FUEL,DELIVERY FRAME-KICK UP<7EW>	8-98122-615-1	01	1	0810-
47	03.163 PIPE; FUEL,RETURN FRAME-KICK UP<7EW> (C)	8-98100-171-2	01	1	0810-
47	03.163 PIPE; FUEL,RETURN EXC. FRAME-KICK UP<7EW> (A) L=690	8-98083-666-2	01	1	0810-
47	03.163 PIPE; FUEL,RETURN EXC. FRAME-KICK UP<7EW> (B)	8-98100-169-1	01	1	0810-
51	03.162 NUT; CLIP,PIPE 00.787 (A) M10	0-91111-510-0	02	1	0810-
51	03.162 NUT; CLIP,PIPE EXC. FRAME-KICK UP<7EW> (B) M10 FLANGE	0-91180-110-0	02	1	0810-
61	03.162 GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	0810-
61	03.162 GROMMET; PIPE TO FRAME EXC. FRAME-KICK UP<7EW>	8-98038-801-0	01	1	0810-
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (E)	8-98121-198-0	01	1	0810-0810
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (F)	8-98132-679-0	01	1	0810-0810
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) EXC. FUEL FILTER DUAL(S6B),FRAME-KICK UP<7EW> 03.003 (G) L=120 SERVICED BY L=3000	0-01259-300-0	01	1	0810-
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (D)	8-97389-790-0	01	1	0810-
65	03.163 HOSE; FUEL,DELIVERY PIPE (A)	8-98122-769-1	01	1	0810-
65	03.163 HOSE; FUEL,DELIVERY PIPE FRAME-KICK UP<7EW> (C)	8-98112-359-1	01	1	0810-0810
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) (C)	8-98112-359-2	01	1	0811-
65	03.163 HOSE; FUEL,DELIVERY PIPE FRAME-KICK UP<7EW> (B)	8-98112-360-1	01	1	0810-0810
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) (B)	8-98112-360-2	01	1	0811-
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (A) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	0810-
66	03.163 HOSE; FUEL,RETURN PIPE FRAME-KICK UP<7EW> (A) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	0810-
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (B) L=500	8-98057-029-0	01	1	0810-
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FRAME-KICK UP<7EW> (C) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	0810-
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN	8-98129-537-0	01	1	0810-
87	03.162 NUT; CLIP,FUEL HOSE 01.062 M6 FLANGE	0-91180-106-0	01	1	0810-
97	03.162 BRACKET; CLIP FRAME-KICK UP<7EW> (E)	8-98034-748-1	02	1	0810-
97	03.162 BRACKET; CLIP EXC. FRAME-KICK UP<7EW> (C)	8-98006-480-1	01	1	0810-
97	03.162 BRACKET; CLIP EXC. FRAME-KICK UP<7EW> (D)	8-98039-929-1	01	1	0810-
97	03.162 BRACKET; CLIP EXC. FRAME-KICK UP<7EW> (A)	8-98064-442-1	01	1	0810-
97	03.162 BRACKET; CLIP EXC. FRAME-KICK UP<7EW> (B)	8-98122-640-1	01	1	0810-1301
97	03.162 BRACKET; CLIP EXC. FRAME-KICK UP<7EW> (B)	8-98224-033-0	01	1	1302-
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> 04.930 (B) ID=16	8-94238-568-0	04	1	0810-0810
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> 04.930 (B) ID=16	8-94238-568-0	02	1	0810-0810
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) 04.930 (B) ID=16	8-94238-568-0	04	1	0811-0911
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) (B) ID=16	8-98008-098-0	04	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> 01.219 (A) ID=12	8-94238-610-0	04	1	0810-0911
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> 01.240 (A) ID=12	8-98150-358-0	04	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FRAME-KICK UP<7EW> 01.219 (A) ID=12	8-94238-610-0	06	1	0810-0911
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FRAME-KICK UP<7EW> 01.240 (A) ID=12	8-98150-358-0	06	1	0912-
174	03.163 PIPE; FUEL,FEED,FRT WHEEL BASE 2400MM(24W) FUEL FILTER DUAL(S6B) EXC. FRAME-KICK UP<7EW>	8-98100-168-1	01	1	0810-
174	03.163 PIPE; FUEL,FEED,FRT WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW>	8-98100-168-1	01	1	0810-
174	03.163 PIPE; FUEL,FEED,FRT WHEEL BASE 2400MM(24W) EXC. FUEL FILTER DUAL(S6B),FRAME-KICK UP<7EW>	8-98121-182-0	01	1	0810-
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	0810-
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=16.5 L=50	8-97214-235-0	01	1	0810-
231	03.162 RUBBER; SUPPORT,FUEL PIPE EXC. FRAME-KICK UP<7EW> (B) OD=16.5 L=50	8-97214-235-0	02	1	0810-
311	03.163 JOINT; HOSE FRAME-KICK UP<7EW>	8-97353-668-0	02	1	0810-0810
311	03.163 JOINT; HOSE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW>	8-97353-668-0	01	1	0810-0810
311	03.163 JOINT; HOSE WHEEL BASE 2400MM(24W)	8-97353-668-0	02	1	0811-

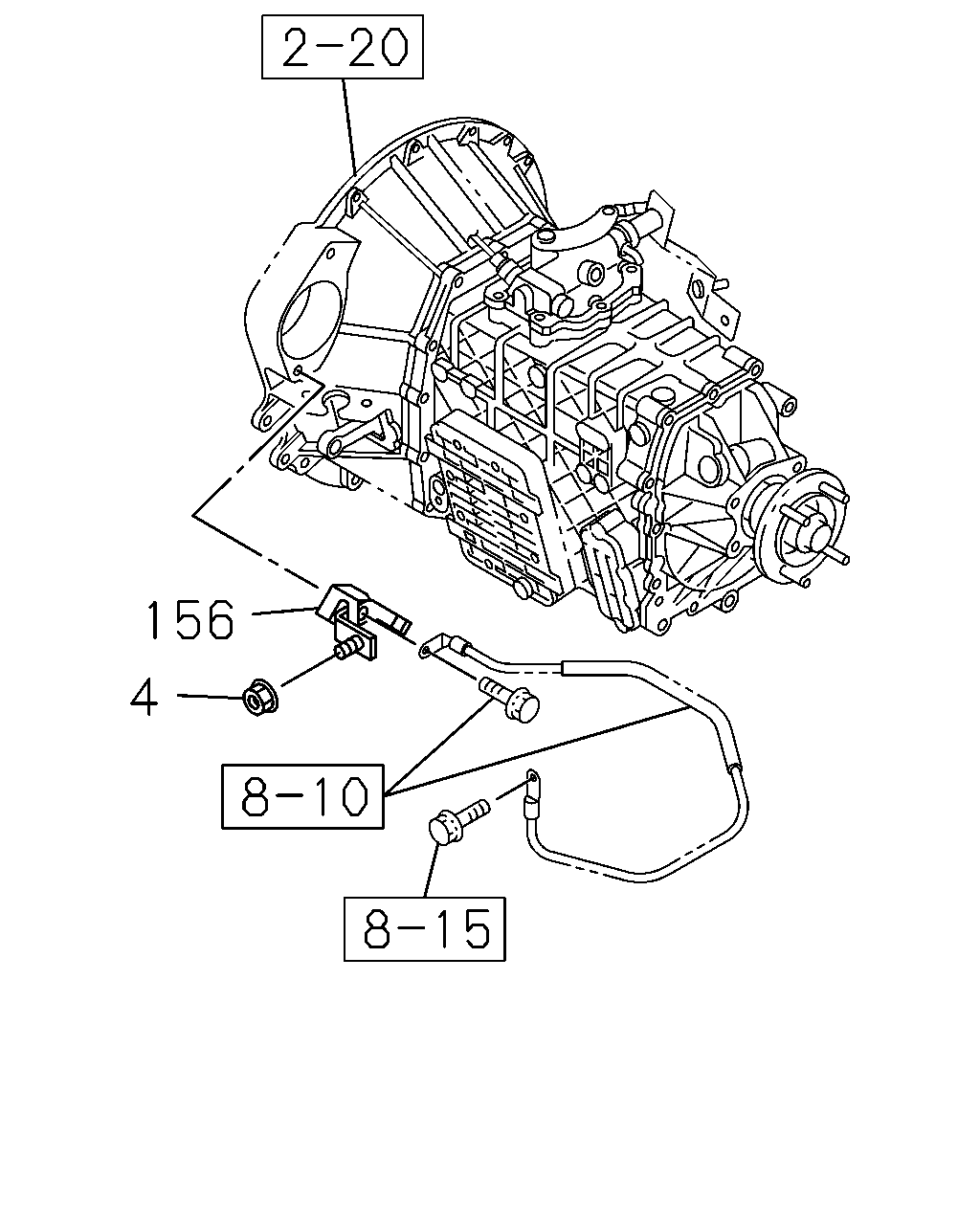

156 4

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	4	03.130 NUT; BRKT 00.787 M10	0-91111-510-0	01	1	0810-1106
	156	03.162 BRACKET; FUEL HOSE	8-98131-857-1	01	1	0810-1106

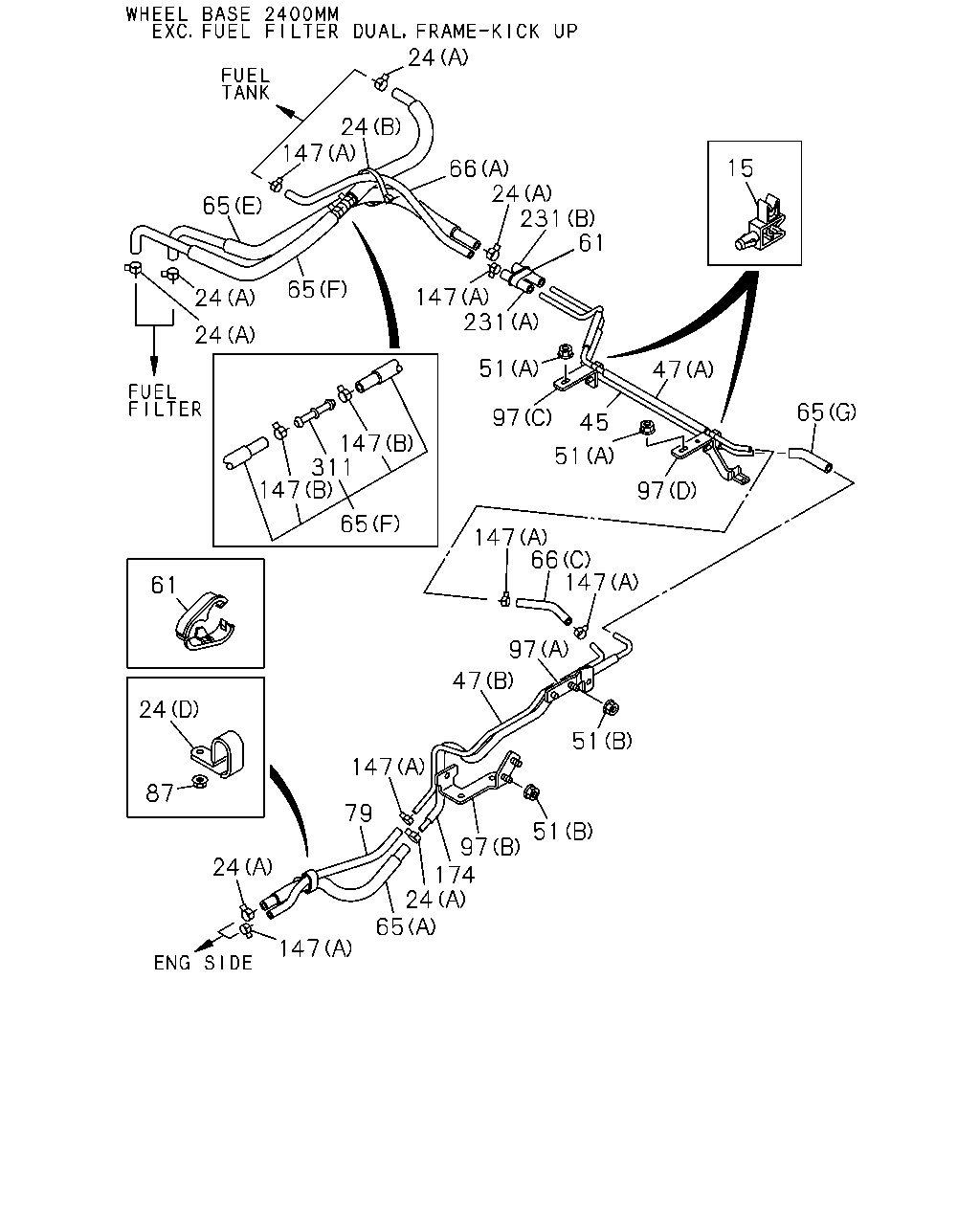

24 24 147 15 66 24 231 61 65 65 147 231 24 24 51 47 65 97 45 147 311 147 51 97 65 147 66 147 61 97 47 24 51 147 87 79 51 97 174 24 65 24 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	03.162 CLIP; FUEL PIPE ID=12 & 6.35	8-97215-437-0	02	1	0810-
24	03.162 CLIP; FUEL HOSE WHEEL BASE 2400MM(24W) 02.559 (B) L=250	5-09707-030-1	01	1	0810-
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (C) L=140	5-09707-031-1	01	1	0810-
24	03.162 CLIP; FUEL HOSE WHEEL BASE 2400MM(24W) FUEL FILTER DUAL(S6B) EXC. FRAME-KICK UP<7EW> (C) L=140	5-09707-031-1	01	1	0810-
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (C) L=140	5-09707-031-1	01	1	0810-
24	03.162 CLIP; FUEL HOSE (D)	9-09916-239-1	01	1	0810-
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) EXC. FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	02	1	0810-0911
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) EXC. FRAME-KICK UP<7EW> (A) ID=16	8-98008-098-0	02	1	0912-
24	03.162 CLIP; FUEL HOSE FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	06	1	0810-0911
24	03.162 CLIP; FUEL HOSE FRAME-KICK UP<7EW> (A) ID=16	8-98008-098-0	06	1	0912-
24	03.162 CLIP; FUEL HOSE EXC. FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	08	1	0810-0911
24	03.162 CLIP; FUEL HOSE EXC. FRAME-KICK UP<7EW> (A) ID=16	8-98008-098-0	08	1	0912-
45	03.163 PIPE; FUEL,DELIVERY WHEEL BASE 2400MM(24W) FUEL FILTER DUAL(S6B) EXC. FRAME-KICK UP<7EW>	8-98128-274-0	01	1	0810-
45	03.163 PIPE; FUEL,DELIVERY WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW>	8-98128-274-0	01	1	0810-
45	03.163 PIPE; FUEL,DELIVERY WHEEL BASE 2400MM(24W) EXC. FUEL FILTER DUAL(S6B),FRAME-KICK UP<7EW> L=744	8-98069-488-1	01	1	0810-
45	03.163 PIPE; FUEL,DELIVERY FRAME-KICK UP<7EW>	8-98122-615-1	01	1	0810-
47	03.163 PIPE; FUEL,RETURN FRAME-KICK UP<7EW> (C)	8-98100-171-2	01	1	0810-
47	03.163 PIPE; FUEL,RETURN EXC. FRAME-KICK UP<7EW> (A) L=690	8-98083-666-2	01	1	0810-
47	03.163 PIPE; FUEL,RETURN EXC. FRAME-KICK UP<7EW> (B)	8-98100-169-1	01	1	0810-
51	03.162 NUT; CLIP,PIPE 00.787 (A) M10	0-91111-510-0	02	1	0810-
51	03.162 NUT; CLIP,PIPE EXC. FRAME-KICK UP<7EW> (B) M10 FLANGE	0-91180-110-0	02	1	0810-
61	03.162 GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	0810-
61	03.162 GROMMET; PIPE TO FRAME EXC. FRAME-KICK UP<7EW>	8-98038-801-0	01	1	0810-
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (E)	8-98121-198-0	01	1	0810-0810
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (F)	8-98132-679-0	01	1	0810-0810
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) EXC. FUEL FILTER DUAL(S6B),FRAME-KICK UP<7EW> 03.003 (G) L=120 SERVICED BY L=3000	0-01259-300-0	01	1	0810-
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (D)	8-97389-790-0	01	1	0810-
65	03.163 HOSE; FUEL,DELIVERY PIPE (A)	8-98122-769-1	01	1	0810-
65	03.163 HOSE; FUEL,DELIVERY PIPE FRAME-KICK UP<7EW> (C)	8-98112-359-1	01	1	0810-0810
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) (C)	8-98112-359-2	01	1	0811-
65	03.163 HOSE; FUEL,DELIVERY PIPE FRAME-KICK UP<7EW> (B)	8-98112-360-1	01	1	0810-0810
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) (B)	8-98112-360-2	01	1	0811-
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (A) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	0810-
66	03.163 HOSE; FUEL,RETURN PIPE FRAME-KICK UP<7EW> (A) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	0810-
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (B) L=500	8-98057-029-0	01	1	0810-
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FRAME-KICK UP<7EW> (C) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	0810-
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN	8-98129-537-0	01	1	0810-
87	03.162 NUT; CLIP,FUEL HOSE 01.062 M6 FLANGE	0-91180-106-0	01	1	0810-
97	03.162 BRACKET; CLIP FRAME-KICK UP<7EW> (E)	8-98034-748-1	02	1	0810-
97	03.162 BRACKET; CLIP EXC. FRAME-KICK UP<7EW> (C)	8-98006-480-1	01	1	0810-
97	03.162 BRACKET; CLIP EXC. FRAME-KICK UP<7EW> (D)	8-98039-929-1	01	1	0810-
97	03.162 BRACKET; CLIP EXC. FRAME-KICK UP<7EW> (A)	8-98064-442-1	01	1	0810-
97	03.162 BRACKET; CLIP EXC. FRAME-KICK UP<7EW> (B)	8-98122-640-1	01	1	0810-1301
97	03.162 BRACKET; CLIP EXC. FRAME-KICK UP<7EW> (B)	8-98224-033-0	01	1	1302-
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> 04.930 (B) ID=16	8-94238-568-0	04	1	0810-0810
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> 04.930 (B) ID=16	8-94238-568-0	02	1	0810-0810
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) 04.930 (B) ID=16	8-94238-568-0	04	1	0811-0911
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) (B) ID=16	8-98008-098-0	04	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> 01.219 (A) ID=12	8-94238-610-0	04	1	0810-0911
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> 01.240 (A) ID=12	8-98150-358-0	04	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FRAME-KICK UP<7EW> 01.219 (A) ID=12	8-94238-610-0	06	1	0810-0911
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FRAME-KICK UP<7EW> 01.240 (A) ID=12	8-98150-358-0	06	1	0912-
174	03.163 PIPE; FUEL,FEED,FRT WHEEL BASE 2400MM(24W) FUEL FILTER DUAL(S6B) EXC. FRAME-KICK UP<7EW>	8-98100-168-1	01	1	0810-
174	03.163 PIPE; FUEL,FEED,FRT WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW>	8-98100-168-1	01	1	0810-
174	03.163 PIPE; FUEL,FEED,FRT WHEEL BASE 2400MM(24W) EXC. FUEL FILTER DUAL(S6B),FRAME-KICK UP<7EW>	8-98121-182-0	01	1	0810-
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	0810-
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=16.5 L=50	8-97214-235-0	01	1	0810-
231	03.162 RUBBER; SUPPORT,FUEL PIPE EXC. FRAME-KICK UP<7EW> (B) OD=16.5 L=50	8-97214-235-0	02	1	0810-
311	03.163 JOINT; HOSE FRAME-KICK UP<7EW>	8-97353-668-0	02	1	0810-0810
311	03.163 JOINT; HOSE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW>	8-97353-668-0	01	1	0810-0810
311	03.163 JOINT; HOSE WHEEL BASE 2400MM(24W)	8-97353-668-0	02	1	0811-

24 65 15 24 231 61 147 66 147 231 51 47 97 45 51 97 147 66 147 61 231 61 24 97 24 24 47 29 231 24 29 29 87 51 147 24 24 24 79 24 51 97 174 24 65 24 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	03.162 CLIP; FUEL PIPE ID=12 & 6.35	8-97215-437-0	02	1	0810-
24	03.162 CLIP; FUEL HOSE WHEEL BASE 2400MM(24W) 02.559 (B) L=250	5-09707-030-1	01	1	0810-
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (C) L=140	5-09707-031-1	01	1	0810-
24	03.162 CLIP; FUEL HOSE WHEEL BASE 2400MM(24W) FUEL FILTER DUAL(S6B) EXC. FRAME-KICK UP<7EW> (C) L=140	5-09707-031-1	01	1	0810-
24	03.162 CLIP; FUEL HOSE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (C) L=140	5-09707-031-1	01	1	0810-
24	03.162 CLIP; FUEL HOSE (D)	9-09916-239-1	01	1	0810-
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) EXC. FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	02	1	0810-0911
24	03.162 CLIP; FUEL HOSE FUEL FILTER DUAL(S6B) EXC. FRAME-KICK UP<7EW> (A) ID=16	8-98008-098-0	02	1	0912-
24	03.162 CLIP; FUEL HOSE FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	06	1	0810-0911
24	03.162 CLIP; FUEL HOSE FRAME-KICK UP<7EW> (A) ID=16	8-98008-098-0	06	1	0912-
24	03.162 CLIP; FUEL HOSE EXC. FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	08	1	0810-0911
24	03.162 CLIP; FUEL HOSE EXC. FRAME-KICK UP<7EW> (A) ID=16	8-98008-098-0	08	1	0912-
29	03.163 HOSE; FUEL WHEEL BASE 2400MM(24W) FUEL FILTER DUAL(S6B) EXC. FRAME-KICK UP<7EW> 03.003 (C) L=260 SERVICED BY L=3000	0-01259-300-0	02	1	0810-
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) FUEL FILTER DUAL(S6B) EXC. FRAME-KICK UP<7EW> 03.003 (A) L=280 SERVICED BY L=3000	0-01259-300-0	02	1	0810-
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> 03.003 (B) L=360 SERVICED BY L=3000	0-01259-300-0	01	1	0810-
29	03.163 HOSE; FUEL WHEEL BASE 3300MM(33W) EXC. FUEL FILTER DUAL(S6B),FRAME-KICK UP<7EW> 03.003 (B) L=360 SERVICED BY L=3000	0-01259-300-0	01	1	0810-
45	03.163 PIPE; FUEL,DELIVERY WHEEL BASE 2400MM(24W) FUEL FILTER DUAL(S6B) EXC. FRAME-KICK UP<7EW>	8-98128-274-0	01	1	0810-
45	03.163 PIPE; FUEL,DELIVERY WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW>	8-98128-274-0	01	1	0810-
45	03.163 PIPE; FUEL,DELIVERY WHEEL BASE 2400MM(24W) EXC. FUEL FILTER DUAL(S6B),FRAME-KICK UP<7EW> L=744	8-98069-488-1	01	1	0810-
45	03.163 PIPE; FUEL,DELIVERY FRAME-KICK UP<7EW>	8-98122-615-1	01	1	0810-
47	03.163 PIPE; FUEL,RETURN FRAME-KICK UP<7EW> (C)	8-98100-171-2	01	1	0810-
47	03.163 PIPE; FUEL,RETURN EXC. FRAME-KICK UP<7EW> (A) L=690	8-98083-666-2	01	1	0810-
47	03.163 PIPE; FUEL,RETURN EXC. FRAME-KICK UP<7EW> (B)	8-98100-169-1	01	1	0810-
51	03.162 NUT; CLIP,PIPE 00.787 (A) M10	0-91111-510-0	02	1	0810-
51	03.162 NUT; CLIP,PIPE EXC. FRAME-KICK UP<7EW> (B) M10 FLANGE	0-91180-110-0	02	1	0810-
61	03.162 GROMMET; PIPE TO FRAME	8-98038-801-0	01	1	0810-
61	03.162 GROMMET; PIPE TO FRAME EXC. FRAME-KICK UP<7EW>	8-98038-801-0	01	1	0810-
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (E)	8-98121-198-0	01	1	0810-0810
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (F)	8-98132-679-0	01	1	0810-0810
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) EXC. FUEL FILTER DUAL(S6B),FRAME-KICK UP<7EW> 03.003 (G) L=120 SERVICED BY L=3000	0-01259-300-0	01	1	0810-
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (D)	8-97389-790-0	01	1	0810-
65	03.163 HOSE; FUEL,DELIVERY PIPE (A)	8-98122-769-1	01	1	0810-
65	03.163 HOSE; FUEL,DELIVERY PIPE FRAME-KICK UP<7EW> (C)	8-98112-359-1	01	1	0810-0810
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) (C)	8-98112-359-2	01	1	0811-
65	03.163 HOSE; FUEL,DELIVERY PIPE FRAME-KICK UP<7EW> (B)	8-98112-360-1	01	1	0810-0810
65	03.163 HOSE; FUEL,DELIVERY PIPE WHEEL BASE 2400MM(24W) (B)	8-98112-360-2	01	1	0811-
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (A) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	0810-
66	03.163 HOSE; FUEL,RETURN PIPE FRAME-KICK UP<7EW> (A) L=400 SERVICED BY L=3000	0-01855-300-0	01	1	0810-
66	03.163 HOSE; FUEL,RETURN PIPE WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW> (B) L=500	8-98057-029-0	01	1	0810-
66	03.163 HOSE; FUEL,RETURN PIPE EXC. FRAME-KICK UP<7EW> (C) L=120 SERVICED BY L=3000	0-01855-300-0	01	1	0810-
79	03.163 HOSE; FUEL,PUMP TO PIPE,RETURN	8-98129-537-0	01	1	0810-
87	03.162 NUT; CLIP,FUEL HOSE 01.062 M6 FLANGE	0-91180-106-0	01	1	0810-
97	03.162 BRACKET; CLIP FRAME-KICK UP<7EW> (E)	8-98034-748-1	02	1	0810-
97	03.162 BRACKET; CLIP EXC. FRAME-KICK UP<7EW> (C)	8-98006-480-1	01	1	0810-
97	03.162 BRACKET; CLIP EXC. FRAME-KICK UP<7EW> (D)	8-98039-929-1	01	1	0810-
97	03.162 BRACKET; CLIP EXC. FRAME-KICK UP<7EW> (A)	8-98064-442-1	01	1	0810-
97	03.162 BRACKET; CLIP EXC. FRAME-KICK UP<7EW> (B)	8-98122-640-1	01	1	0810-1301
97	03.162 BRACKET; CLIP EXC. FRAME-KICK UP<7EW> (B)	8-98224-033-0	01	1	1302-
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> 04.930 (B) ID=16	8-94238-568-0	04	1	0810-0810
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> 04.930 (B) ID=16	8-94238-568-0	02	1	0810-0810
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) 04.930 (B) ID=16	8-94238-568-0	04	1	0811-0911
147	03.162 CLIP; FUEL PIPE TO HOSE WHEEL BASE 2400MM(24W) (B) ID=16	8-98008-098-0	04	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> 01.219 (A) ID=12	8-94238-610-0	04	1	0810-0911
147	03.162 CLIP; FUEL PIPE TO HOSE FRAME-KICK UP<7EW> 01.240 (A) ID=12	8-98150-358-0	04	1	0912-
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FRAME-KICK UP<7EW> 01.219 (A) ID=12	8-94238-610-0	06	1	0810-0911
147	03.162 CLIP; FUEL PIPE TO HOSE EXC. FRAME-KICK UP<7EW> 01.240 (A) ID=12	8-98150-358-0	06	1	0912-
174	03.163 PIPE; FUEL,FEED,FRT WHEEL BASE 2400MM(24W) FUEL FILTER DUAL(S6B) EXC. FRAME-KICK UP<7EW>	8-98100-168-1	01	1	0810-
174	03.163 PIPE; FUEL,FEED,FRT WHEEL BASE 3300MM(33W) EXC. FRAME-KICK UP<7EW>	8-98100-168-1	01	1	0810-
174	03.163 PIPE; FUEL,FEED,FRT WHEEL BASE 2400MM(24W) EXC. FUEL FILTER DUAL(S6B),FRAME-KICK UP<7EW>	8-98121-182-0	01	1	0810-
231	03.162 RUBBER; SUPPORT,FUEL PIPE (A) OD=17 L=50	8-94157-054-1	01	1	0810-
231	03.162 RUBBER; SUPPORT,FUEL PIPE (B) OD=16.5 L=50	8-97214-235-0	01	1	0810-
231	03.162 RUBBER; SUPPORT,FUEL PIPE EXC. FRAME-KICK UP<7EW> (B) OD=16.5 L=50	8-97214-235-0	02	1	0810-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
