Sayfa 5-01 - Isuzu EPC

5-01 — FRAME AND OTHER PARTS (#51362) — 227 parça

376 376 376 376 376 376 376 376 376 376 376 376 376 376 40 60 176 176 296 118 62 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	08.155 BOLT; BRKT TO FRAME AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1109-1309	●
40	08.155 BOLT; BRKT TO FRAME WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1310-	●
40	08.155 BOLT; BRKT TO FRAME 04.338 M8X20 FLANGE	0-28050-820-0	02	1	1310-		●
60	05.601 BOLT; MBR 07.039 M10X30	0-20851-030-0	04	1	1109-1210	●
60	05.601 BOLT; MBR 07.039 M10X30	0-20851-030-0	04	1	1211-1309	●	●
60	05.601 BOLT; MBR WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 07.039 M10X30	0-20851-030-0	04	1	1310-	●
60	05.601 BOLT; MBR 07.039 M10X30	0-20851-030-0	04	1	1310-		●
62	05.601 NUT; MBR 04.085 M10 FLANGE	0-91180-210-0	04	1	1109-1210	●
62	05.601 NUT; MBR 04.085 M10 FLANGE	0-91180-210-0	04	1	1211-1309	●	●
62	05.601 NUT; MBR WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 04.085 M10 FLANGE	0-91180-210-0	04	1	1310-	●
62	05.601 NUT; MBR 04.085 M10 FLANGE	0-91180-210-0	04	1	1310-		●
67	07.011 NUT; C/MBR 04.085 M10 FLANGE	0-91180-210-0	04	1	1109-1210	●
67	07.011 NUT; C/MBR 04.085 M10 FLANGE	0-91180-210-0	04	1	1211-	●	●
118	07.529 NUT; STOPPER WHEEL BASE 3300MM(33W) M8 LOCK NUT	0-91370-008-0	02	1	1109-1210	●
118	07.529 NUT; STOPPER WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) M8 LOCK NUT	0-91370-008-0	02	1	1211-	●
118	07.529 NUT; STOPPER M8 LOCK NUT	0-91370-008-0	02	1	1211-		●
176	04.085 BOLT; C/MBR,ENG MTG WHEEL BASE 2800MM(28W) (B) M14X45 FLANGE	0-29261-445-0	08	1	1310-	●
176	04.085 BOLT; C/MBR,ENG MTG WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (A) M10X30 FLANGE	0-28061-030-0	08	1	1310-	●
176	04.085 BOLT; C/MBR,ENG MTG WHEEL BASE 3300MM(33W) FRONT STABILIZER SHAFT<F59> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (A) M10X30 FLANGE	0-28061-030-0	08	1	1310-	●
176	04.085 BOLT; C/MBR,ENG MTG WHEEL BASE 3300MM(33W) (A) M10X30 FLANGE	0-28061-030-0	08	1	1310-		●
176	04.085 BOLT; C/MBR,ENG MTG 03.890 (A) M10X30 FLANGE	0-28051-030-0	08	1	1109-1210	●
176	04.085 BOLT; C/MBR,ENG MTG 03.890 (A) M10X30 FLANGE	0-28051-030-0	08	1	1211-1309	●	●
176	04.085 BOLT; C/MBR,ENG MTG WHEEL BASE 2400MM(24W) 03.890 (A) M10X30 FLANGE	0-28051-030-0	08	1	1310-	●	●
176	04.085 BOLT; C/MBR,ENG MTG WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 03.890 (A) M10X30 FLANGE	0-28051-030-0	08	1	1310-	●
176	04.085 BOLT; C/MBR,ENG MTG WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> 03.890 (A) M10X30 FLANGE	0-28051-030-0	08	1	1310-	●
296	07.039 BOLT; 3RD C/MBR WHEEL BASE 2800MM(28W) M10X30	0-20851-030-0	04	1	1310-	●
376	07.039 RIVET; FRAME 07.011 (A) D8X22 TAPER END	9-06750-822-0	AR	1	1109-1210	●
376	07.039 RIVET; FRAME 07.011 (A) D8X22 TAPER END	9-06750-822-0	AR	1	1211-	●	●
376	07.039 RIVET; FRAME 07.395 (B) D8X26 TAPER END	9-06750-826-0	AR	1	1109-1210	●
376	07.039 RIVET; FRAME 07.395 (B) D8X26 TAPER END	9-06750-826-0	AR	1	1211-	●	●
376	07.039 RIVET; FRAME (C) D10X22 TAPER END	9-06751-022-0	AR	1	1109-1210	●
376	07.039 RIVET; FRAME (C) D10X22 TAPER END	9-06751-022-0	AR	1	1211-	●	●
376	07.039 RIVET; FRAME (D) D10X24 TAPER END	9-06751-024-0	AR	1	1109-1210	●
376	07.039 RIVET; FRAME (D) D10X24 TAPER END	9-06751-024-0	AR	1	1211-	●	●
376	07.039 RIVET; FRAME (E) D10X26 TAPER END	9-06751-026-0	AR	1	1109-1210	●
376	07.039 RIVET; FRAME (E) D10X26 TAPER END	9-06751-026-0	AR	1	1211-	●	●
376	07.039 RIVET; FRAME (F) D10X28 TAPER END	9-06751-028-0	AR	1	1109-1210	●
376	07.039 RIVET; FRAME (F) D10X28 TAPER END	9-06751-028-0	AR	1	1211-	●	●
376	07.039 RIVET; FRAME (G) D10X30 TAPER END	9-06751-030-0	AR	1	1109-1210	●
376	07.039 RIVET; FRAME (G) D10X30 TAPER END	9-06751-030-0	AR	1	1211-	●	●
376	07.039 RIVET; FRAME (H) D10X32 TAPER END	9-06751-032-0	AR	1	1109-1210	●
376	07.039 RIVET; FRAME (H) D10X32 TAPER END	9-06751-032-0	AR	1	1211-	●	●
376	07.039 RIVET; FRAME (I) M10X34 TAPER END	9-06751-034-0	AR	1	1109-1210	●
376	07.039 RIVET; FRAME (I) M10X34 TAPER END	9-06751-034-0	AR	1	1211-	●	●
376	07.039 RIVET; FRAME (J) D10X36 TAPER END	9-06751-036-0	AR	1	1109-1210	●
376	07.039 RIVET; FRAME (J) D10X36 TAPER END	9-06751-036-0	AR	1	1211-	●	●
376	07.039 RIVET; FRAME 07.105 (K) D12X30 TAPER END	9-06751-230-0	AR	1	1109-1210	●
376	07.039 RIVET; FRAME 07.105 (K) D12X30 TAPER END	9-06751-230-0	AR	1	1211-	●	●
376	07.039 RIVET; FRAME 07.006 (L) D12X32 TAPER END	9-06751-232-0	AR	1	1109-1210	●
376	07.039 RIVET; FRAME 07.006 (L) D12X32 TAPER END	9-06751-232-0	AR	1	1211-	●	●
376	07.039 RIVET; FRAME 07.535 (M) D12X34 TAPER END	9-06751-234-0	AR	1	1109-1210	●
376	07.039 RIVET; FRAME 07.535 (M) D12X34 TAPER END	9-06751-234-0	AR	1	1211-	●	●
376	07.039 RIVET; FRAME 07.428 (N) D12X36 TAPER END	9-06751-236-0	AR	1	1109-1210	●
376	07.039 RIVET; FRAME 07.428 (N) D12X36 TAPER END	9-06751-236-0	AR	1	1211-	●	●

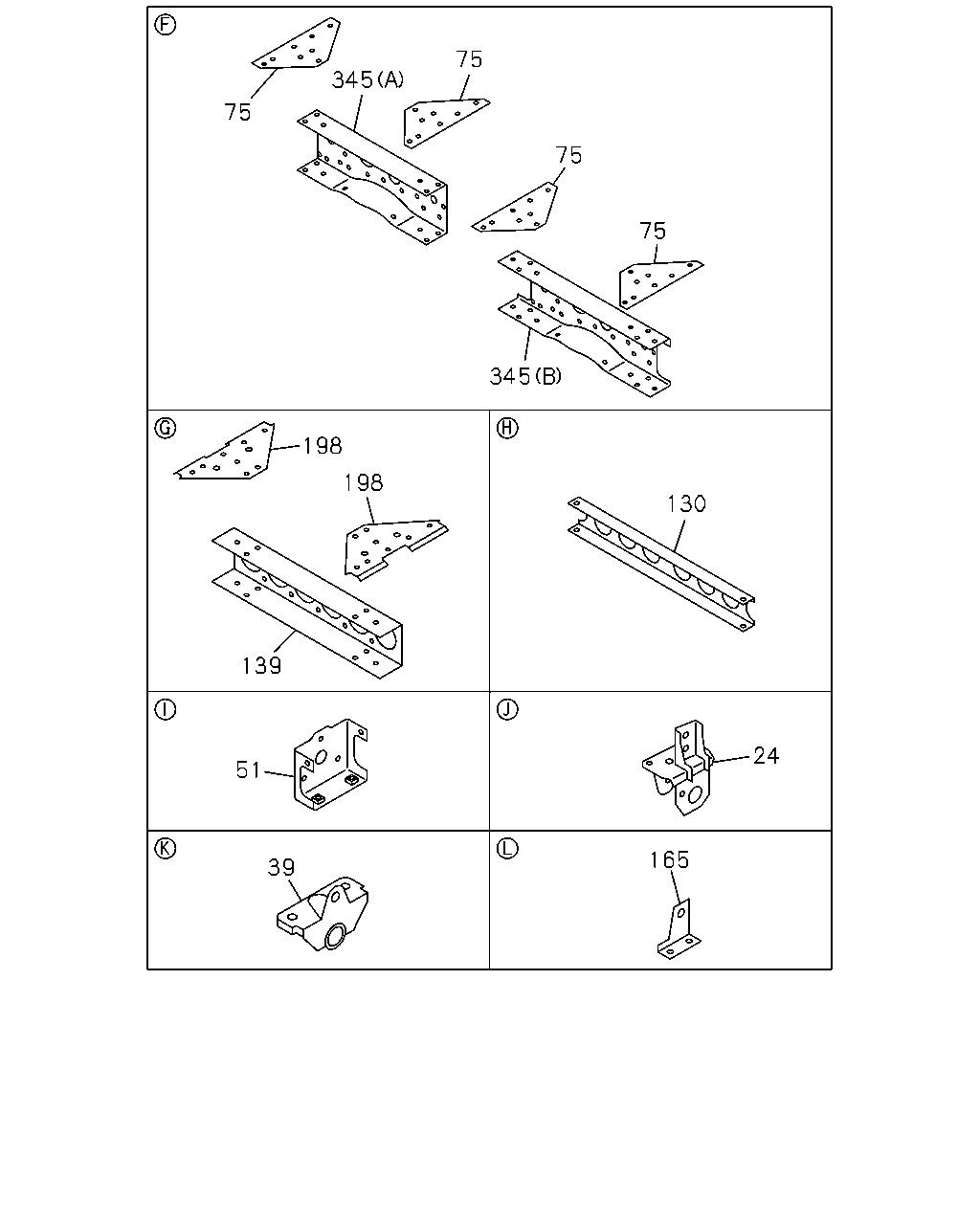

75 345 75 75 75 345 198 198 139 51 39 165 24 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	07.105 BRACKET; FRT SPR,FRT	8-98029-126-0	01	1	1109-1210	●
24	07.105 BRACKET; FRT SPR,FRT	8-98029-126-0	01	1	1211-	●	●
24	07.105 BRACKET; FRT SPR,FRT	8-98029-127-0	01	1	1109-1210	●
24	07.105 BRACKET; FRT SPR,FRT	8-98029-127-0	01	1	1211-	●	●
39	07.112 BRACKET; FRT SPR,RR	8-94258-091-0	02	1	1109-1210	●
39	07.112 BRACKET; FRT SPR,RR	8-94258-091-0	02	1	1211-	●	●
51	07.011 BRACKET; ENG SUPPORT,OUTER	8-98038-962-3	02	1	1109-1210	●
51	07.011 BRACKET; ENG SUPPORT,OUTER	8-98038-962-3	02	1	1211-	●	●
75	07.039 GUSSET; 5TH C/MBR	8-98011-863-0	04	1	1109-1210	●
75	07.039 GUSSET; 5TH C/MBR	8-98011-863-0	04	1	1211-	●	●
130	07.014 MEMBER; CROSS,END WHEEL BASE 3300MM(33W)	8-98041-239-0	01	1	1109-1210	●
130	07.014 MEMBER; CROSS,END WHEEL BASE 3300MM(33W)	8-98041-239-1	01	1	1211-	●	●
139	07.012 MEMBER; CROSS,6TH	8-97384-745-0	01	1	1109-1210	●
139	07.012 MEMBER; CROSS,6TH	8-97384-745-0	01	1	1211-	●	●
165	01.270 BRACKET; RAD STAY	8-98000-886-0	01	1	1109-1210	●
165	01.270 BRACKET; RAD STAY	8-98000-886-0	01	1	1211-	●	●
198	07.039 GUSSET; 6TH C/MBR RH-LOWER & LH-UPPER	8-94258-068-1	02	1	1109-1210	●
198	07.039 GUSSET; 6TH C/MBR RH-LOWER & LH-UPPER	8-94258-068-1	02	1	1211-	●	●
198	07.039 GUSSET; 6TH C/MBR RH-UPPER & LH-LOWER	8-94258-069-1	02	1	1109-1210	●
198	07.039 GUSSET; 6TH C/MBR RH-UPPER & LH-LOWER	8-94258-069-1	02	1	1211-	●	●
345	07.012 MEMBER; CROSS,5TH WHEEL BASE 2400MM(24W) (B)	8-97384-744-2	01	1	1109-	●
345	07.012 MEMBER; CROSS,5TH WHEEL BASE 3300MM(33W) (A)	8-98011-861-2	01	1	1109-1210	●
345	07.012 MEMBER; CROSS,5TH WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A)	8-98011-861-2	01	1	1211-	●
345	07.012 MEMBER; CROSS,5TH (A)	8-98011-861-2	01	1	1211-		●

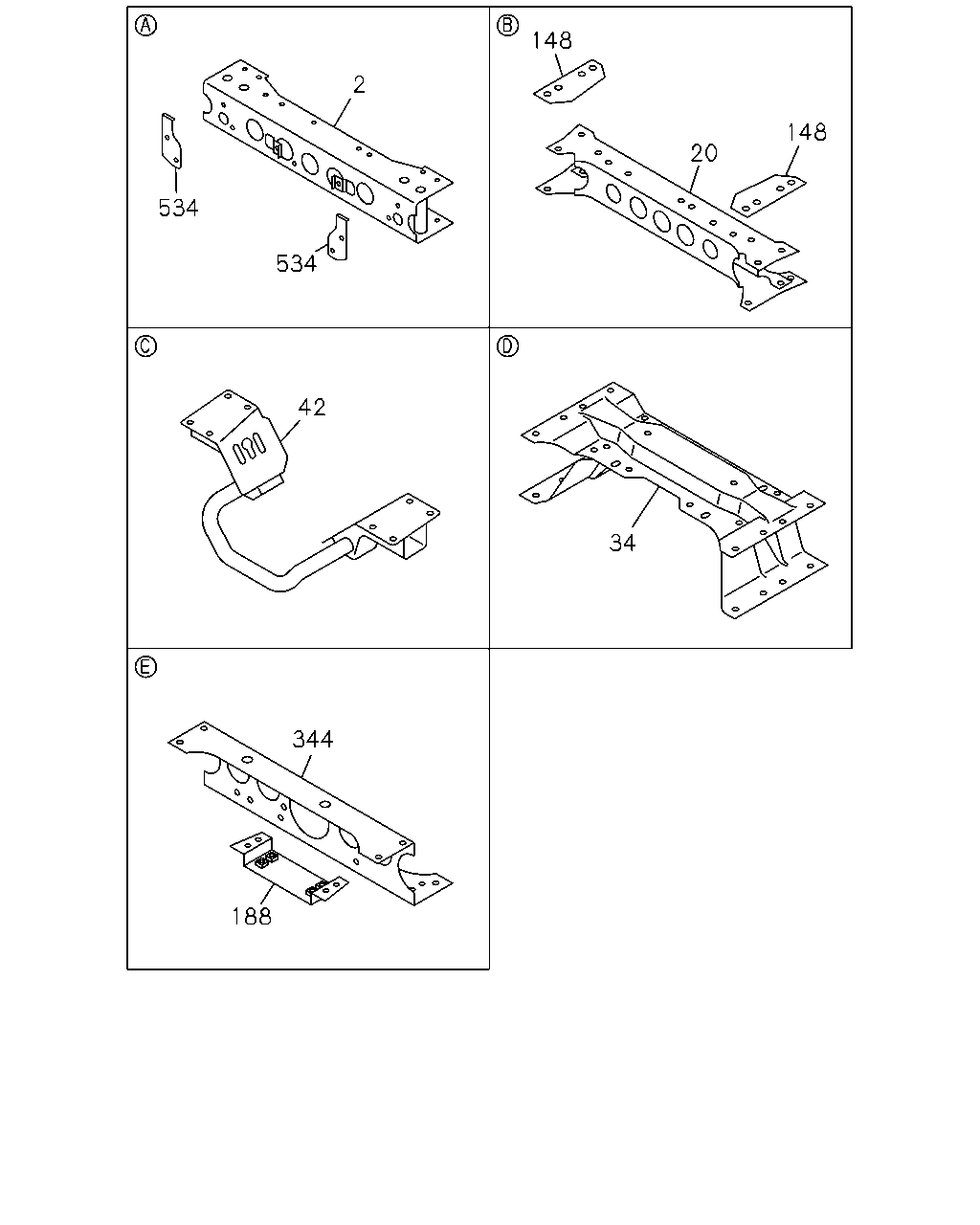

534 534 2 148 20 148 34 42 344 188

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	07.010 MEMBER; CROSS,1ST	8-97384-741-5	01	1	1109-1210	●
2	07.010 MEMBER; CROSS,1ST	8-97384-741-5	01	1	1211-	●	●
20	07.012 MEMBER; CROSS,2ND AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98038-419-2	01	1	1109-1309	●
20	07.012 MEMBER; CROSS,2ND WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98038-419-2	01	1	1310-1502	●
20	07.012 MEMBER; CROSS,2ND WHEEL BASE 2800MM(28W)	8-98038-419-2	01	1	1310-1502	●
20	07.012 MEMBER; CROSS,2ND AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98038-419-2	01	1	1503-	●
20	07.012 MEMBER; CROSS,2ND EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98088-281-1	01	1	1109-1210	●
20	07.012 MEMBER; CROSS,2ND EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98088-281-1	01	1	1211-1309	●
20	07.012 MEMBER; CROSS,2ND	8-98088-281-1	01	1	1211-1309		●
20	07.012 MEMBER; CROSS,2ND WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98088-281-1	01	1	1310-1502	●
20	07.012 MEMBER; CROSS,2ND	8-98088-281-1	01	1	1310-1502		●
20	07.012 MEMBER; CROSS,2ND EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98088-281-1	01	1	1503-	●
20	07.012 MEMBER; CROSS,2ND	8-98088-281-1	01	1	1503-		●
34	07.012 MEMBER; CROSS,3RD AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-97384-743-1	01	1	1109-1309	●
34	07.012 MEMBER; CROSS,3RD	8-97384-743-1	01	1	1310-	●	●
34	07.012 MEMBER; CROSS,3RD EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98081-959-0	01	1	1109-1210	●
34	07.012 MEMBER; CROSS,3RD EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98081-959-0	01	1	1211-1309	●
34	07.012 MEMBER; CROSS,3RD	8-98081-959-0	01	1	1211-1309		●
42	07.011 MEMBER; CROSS,ENG MTG	8-98006-224-1	01	1	1109-1210	●
42	07.011 MEMBER; CROSS,ENG MTG	8-98006-224-1	01	1	1211-	●	●
148	07.105 SPACER; C/MBR EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98081-958-0	04	1	1109-1210	●
148	07.105 SPACER; C/MBR EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98081-958-0	04	1	1211-1309	●
148	07.105 SPACER; C/MBR	8-98081-958-0	04	1	1211-1309		●
188	07.039 BRACKET; SUPPORT,CTR BRG WHEEL BASE 3300MM(33W)	8-97083-157-1	01	1	1109-1210	●
188	07.039 BRACKET; SUPPORT,CTR BRG WHEEL BASE 3300MM(33W)	8-97083-157-1	01	1	1211-	●	●
344	07.012 MEMBER; CROSS,4TH WHEEL BASE 3300MM(33W)	8-98005-959-1	01	1	1109-1210	●
344	07.012 MEMBER; CROSS,4TH WHEEL BASE 3300MM(33W)	8-98005-959-1	01	1	1211-	●	●
534	07.869 BRACKET; BACK BAR	8-98061-413-0	01	1	1109-1210	●
534	07.869 BRACKET; BACK BAR	8-98061-413-0	01	1	1211-	●	●
534	07.869 BRACKET; BACK BAR	8-98061-414-0	01	1	1109-1210	●
534	07.869 BRACKET; BACK BAR	8-98061-414-0	01	1	1211-	●	●

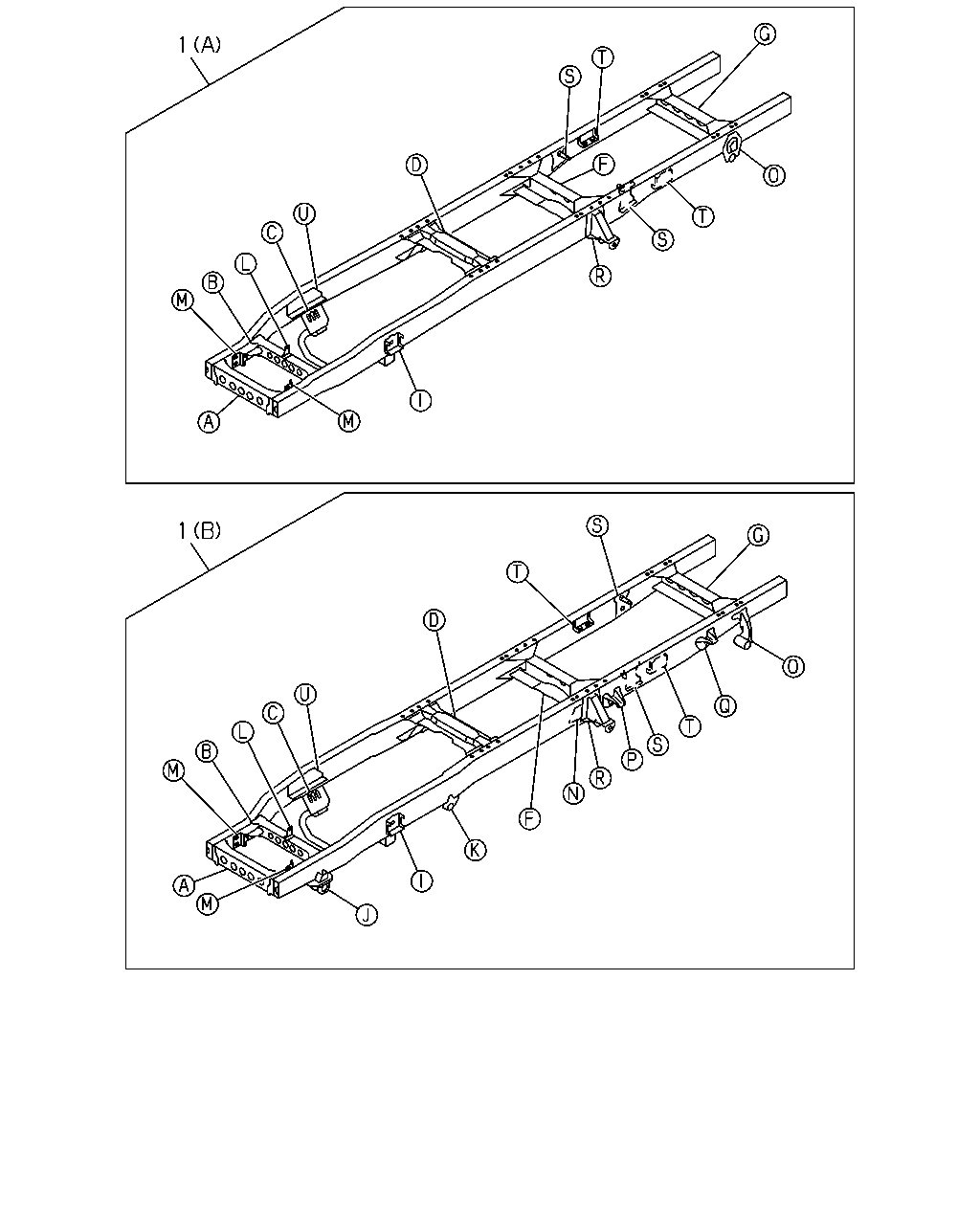

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRONT STABILIZER SHAFT<F59> SUSPENSION - RR UNDER SLUNG<V4U> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (A)	8-98089-852-3	01	1	1211-1309	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRONT STABILIZER SHAFT<F59> SUSPENSION - RR UNDER SLUNG<V4U> HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (A)	8-98254-655-0	01	1	1310-	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (A)	8-98023-299-4	01	1	1211-1309	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (A)	8-98254-656-0	01	1	1310-	●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) FRONT STABILIZER SHAFT<F59> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (B)	8-98145-938-0	01	1	1211-1309	●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) FRONT STABILIZER SHAFT<F59> HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (B)	8-98254-684-0	01	1	1310-	●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) FRONT STABILIZER SHAFT<F59> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (B)	8-98145-937-0	01	1	1211-1309	●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) FRONT STABILIZER SHAFT<F59> HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (B)	8-98254-683-0	01	1	1310-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRONT STABILIZER SHAFT<F59> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (C)	8-98089-854-3	01	1	1211-1309	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRONT STABILIZER SHAFT<F59> HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (C)	8-98254-667-0	01	1	1310-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (C)	8-98023-275-4	01	1	1211-1309	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (C)	8-98254-668-0	01	1	1310-	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98023-313-4	01	1	1211-1309		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98254-661-0	01	1	1310-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98089-853-3	01	1	1211-1309		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98254-659-1	01	1	1310-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98072-764-4	01	1	1211-1309		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98254-671-0	01	1	1310-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98089-855-3	01	1	1211-1309		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98254-670-1	01	1	1310-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SUSPENSION - RR UNDER SLUNG<V4U> (A)	8-98193-489-1	01	1	1109-1210	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SUSPENSION - RR UNDER SLUNG<V4U> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98193-489-1	01	1	1211-	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (B)	8-98193-488-1	01	1	1109-1210	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> (B)	8-98193-488-1	01	1	1211-1309	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> (B)	8-98254-654-1	01	1	1310-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C)	8-98193-491-1	01	1	1109-1210	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98193-491-1	01	1	1211-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (C)	8-98193-490-1	01	1	1109-1210	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> (C)	8-98193-490-1	01	1	1211-1309	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> (C)	8-98254-666-0	01	1	1310-	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRONT STABILIZER SHAFT<F59> SUSPENSION - RR UNDER SLUNG<V4U> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (A)	8-98089-852-3	01	1	1211-1309	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) FRONT STABILIZER SHAFT<F59> SUSPENSION - RR UNDER SLUNG<V4U> HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (A)	8-98254-655-0	01	1	1310-	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (A)	8-98023-299-4	01	1	1211-1309	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (A)	8-98254-656-0	01	1	1310-	●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) FRONT STABILIZER SHAFT<F59> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (B)	8-98145-938-0	01	1	1211-1309	●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) FRONT STABILIZER SHAFT<F59> HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (B)	8-98254-684-0	01	1	1310-	●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) FRONT STABILIZER SHAFT<F59> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (B)	8-98145-937-0	01	1	1211-1309	●
1	07.003 FRAME ASM WHEEL BASE 2800MM(28W) FRONT STABILIZER SHAFT<F59> HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (B)	8-98254-683-0	01	1	1310-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRONT STABILIZER SHAFT<F59> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (C)	8-98089-854-3	01	1	1211-1309	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) FRONT STABILIZER SHAFT<F59> HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (C)	8-98254-667-0	01	1	1310-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (C)	8-98023-275-4	01	1	1211-1309	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (C)	8-98254-668-0	01	1	1310-	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98023-313-4	01	1	1211-1309		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98254-661-0	01	1	1310-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98089-853-3	01	1	1211-1309		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98254-659-1	01	1	1310-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98072-764-4	01	1	1211-1309		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98254-671-0	01	1	1310-		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98089-855-3	01	1	1211-1309		●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98254-670-1	01	1	1310-		●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SUSPENSION - RR UNDER SLUNG<V4U> (A)	8-98193-489-1	01	1	1109-1210	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SUSPENSION - RR UNDER SLUNG<V4U> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A)	8-98193-489-1	01	1	1211-	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (B)	8-98193-488-1	01	1	1109-1210	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> (B)	8-98193-488-1	01	1	1211-1309	●
1	07.003 FRAME ASM WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> (B)	8-98254-654-1	01	1	1310-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (C)	8-98193-491-1	01	1	1109-1210	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C)	8-98193-491-1	01	1	1211-	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (C)	8-98193-490-1	01	1	1109-1210	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> (C)	8-98193-490-1	01	1	1211-1309	●
1	07.003 FRAME ASM WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59> (C)	8-98254-666-0	01	1	1310-	●

533 533 173 173 173 215 215 105 215 105 215 103 147 446 103 147 101 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
101	07.112 BRACKET; RR SPR,FRT WHEEL BASE 2800MM(28W) (A)	8-98243-604-0	02	1	1310-	●
101	07.112 BRACKET; RR SPR,FRT WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (A)	8-98243-604-0	02	1	1310-	●
101	07.112 BRACKET; RR SPR,FRT (A)	8-98243-604-0	02	1	1310-		●
101	07.112 BRACKET; RR SPR,FRT WHEEL BASE 2400MM(24W) (B)	8-98028-305-0	01	1	1109-	●
101	07.112 BRACKET; RR SPR,FRT WHEEL BASE 2400MM(24W) (B)	8-98028-306-0	01	1	1109-	●
101	07.112 BRACKET; RR SPR,FRT WHEEL BASE 3300MM(33W) (A)	8-97034-156-1	02	1	1109-1210	●
101	07.112 BRACKET; RR SPR,FRT WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A)	8-97034-156-1	02	1	1211-1309	●
101	07.112 BRACKET; RR SPR,FRT (A)	8-97034-156-1	02	1	1211-1309		●
101	07.112 BRACKET; RR SPR,FRT WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-97034-156-1	02	1	1310-	●
103	07.420 STOPPER; SUB SPR WHEEL BASE 3300MM(33W) (B)	8-97223-748-0	02	1	1109-1210	●
103	07.420 STOPPER; SUB SPR WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-97223-748-0	02	1	1211-	●
103	07.420 STOPPER; SUB SPR (B)	8-97223-748-0	02	1	1211-		●
103	07.420 STOPPER; SUB SPR WHEEL BASE 3300MM(33W) (A)	8-97223-750-0	02	1	1109-1210	●
103	07.420 STOPPER; SUB SPR WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A)	8-97223-750-0	02	1	1211-	●
103	07.420 STOPPER; SUB SPR (A)	8-97223-750-0	02	1	1211-		●
105	07.112 BRACKET; RR SPR,RR WHEEL BASE 2400MM(24W) (A)	8-97166-684-2	02	1	1109-	●
105	07.112 BRACKET; RR SPR,RR WHEEL BASE 3300MM(33W) (B)	8-98032-488-0	01	1	1109-1210	●
105	07.112 BRACKET; RR SPR,RR WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-98032-488-0	01	1	1211-	●
105	07.112 BRACKET; RR SPR,RR (B)	8-98032-488-0	01	1	1211-		●
105	07.112 BRACKET; RR SPR,RR WHEEL BASE 3300MM(33W) (B)	8-98032-489-0	01	1	1109-1210	●
105	07.112 BRACKET; RR SPR,RR WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-98032-489-0	01	1	1211-	●
105	07.112 BRACKET; RR SPR,RR (B)	8-98032-489-0	01	1	1211-		●
147	07.535 RUBBER; SUB SPRING WHEEL BASE 3300MM(33W)	8-97254-387-0	04	1	1109-1210	●
147	07.535 RUBBER; SUB SPRING WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W)	8-97254-387-0	04	1	1211-	●
147	07.535 RUBBER; SUB SPRING	8-97254-387-0	04	1	1211-		●
173	07.112 STIFFENER; RR SPRING (B)	8-98012-947-3	02	1	1211-1309		●
173	07.112 STIFFENER; RR SPRING WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (B)	8-98012-947-3	02	1	1310-	●
173	07.112 STIFFENER; RR SPRING WHEEL BASE 3300MM(33W) FRONT STABILIZER SHAFT<F59> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (B)	8-98012-947-3	02	1	1310-	●
173	07.112 STIFFENER; RR SPRING (B)	8-98012-947-3	02	1	1310-		●
173	07.112 STIFFENER; RR SPRING (C)	8-98012-948-2	02	1	1211-1309		●
173	07.112 STIFFENER; RR SPRING WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER(8GF) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (C)	8-98012-948-2	02	1	1310-	●
173	07.112 STIFFENER; RR SPRING WHEEL BASE 3300MM(33W) FRONT STABILIZER SHAFT<F59> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (C)	8-98012-948-2	02	1	1310-	●
173	07.112 STIFFENER; RR SPRING (C)	8-98012-948-2	02	1	1310-		●
173	07.112 STIFFENER; RR SPRING WHEEL BASE 2400MM(24W) (A)	8-97386-634-0	02	1	1109-	●
215	07.524 BUSHING; BRKT,RR SPRING	8-97184-699-1	04	1	1109-1210	●
215	07.524 BUSHING; BRKT,RR SPRING	8-97184-699-1	04	1	1211-	●	●
446	07.112 STIFFENER; SPRING STOPPER WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98060-184-0	01	1	1109-1210	●
446	07.112 STIFFENER; SPRING STOPPER WHEEL BASE 2800MM(28W) FRONT STABILIZER SHAFT<F59> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98060-184-1	01	1	1211-1309	●
446	07.112 STIFFENER; SPRING STOPPER WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98060-184-1	01	1	1211-1309	●
446	07.112 STIFFENER; SPRING STOPPER WHEEL BASE 3300MM(33W)	8-98060-184-1	01	1	1211-1309		●
446	07.112 STIFFENER; SPRING STOPPER WHEEL BASE 2800MM(28W)	8-98060-184-1	01	1	1310-	●
446	07.112 STIFFENER; SPRING STOPPER WHEEL BASE 3300MM(33W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,FRONT STABILIZER SHAFT<F59>	8-98060-184-1	01	1	1310-	●
533	07.010 STIFFENER; REINFORCEMENT AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98006-680-1	02	1	1109-1309	●
533	07.010 STIFFENER; REINFORCEMENT	8-98006-680-1	02	1	1310-	●	●

140 140 140 217 356 356

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
140	07.112 BRACKET; S/ABS,RR WHEEL BASE 2400MM(24W) (A)	8-98006-178-0	01	1	1109-	●
140	07.112 BRACKET; S/ABS,RR (B)	8-98006-176-0	01	1	1109-1210	●
140	07.112 BRACKET; S/ABS,RR (B)	8-98006-176-0	01	1	1211-	●	●
140	07.112 BRACKET; S/ABS,RR WHEEL BASE 3300MM(33W) (C)	8-98006-180-0	01	1	1109-1210	●
140	07.112 BRACKET; S/ABS,RR WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (C)	8-98006-180-0	01	1	1211-	●
140	07.112 BRACKET; S/ABS,RR (C)	8-98006-180-0	01	1	1211-		●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING	8-97202-417-0	02	1	1109-1210	●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING	8-97202-417-0	02	1	1211-	●	●
356	07.011 BRACKET; ENG SUPPORT,INNER EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (A)	8-98062-610-1	01	1	1109-1210	●
356	07.011 BRACKET; ENG SUPPORT,INNER EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (A)	8-98062-610-1	01	1	1211-1309	●
356	07.011 BRACKET; ENG SUPPORT,INNER (A)	8-98062-610-1	01	1	1211-1309		●
356	07.011 BRACKET; ENG SUPPORT,INNER EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (B)	8-98062-611-1	01	1	1109-1210	●
356	07.011 BRACKET; ENG SUPPORT,INNER EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (B)	8-98062-611-1	01	1	1211-1309	●
356	07.011 BRACKET; ENG SUPPORT,INNER (B)	8-98062-611-1	01	1	1211-1309		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
