Sayfa 4-80 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51248 - NLR85(LHD) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶

4-80 — ROAD WHEEL (#51361) — 102 parça

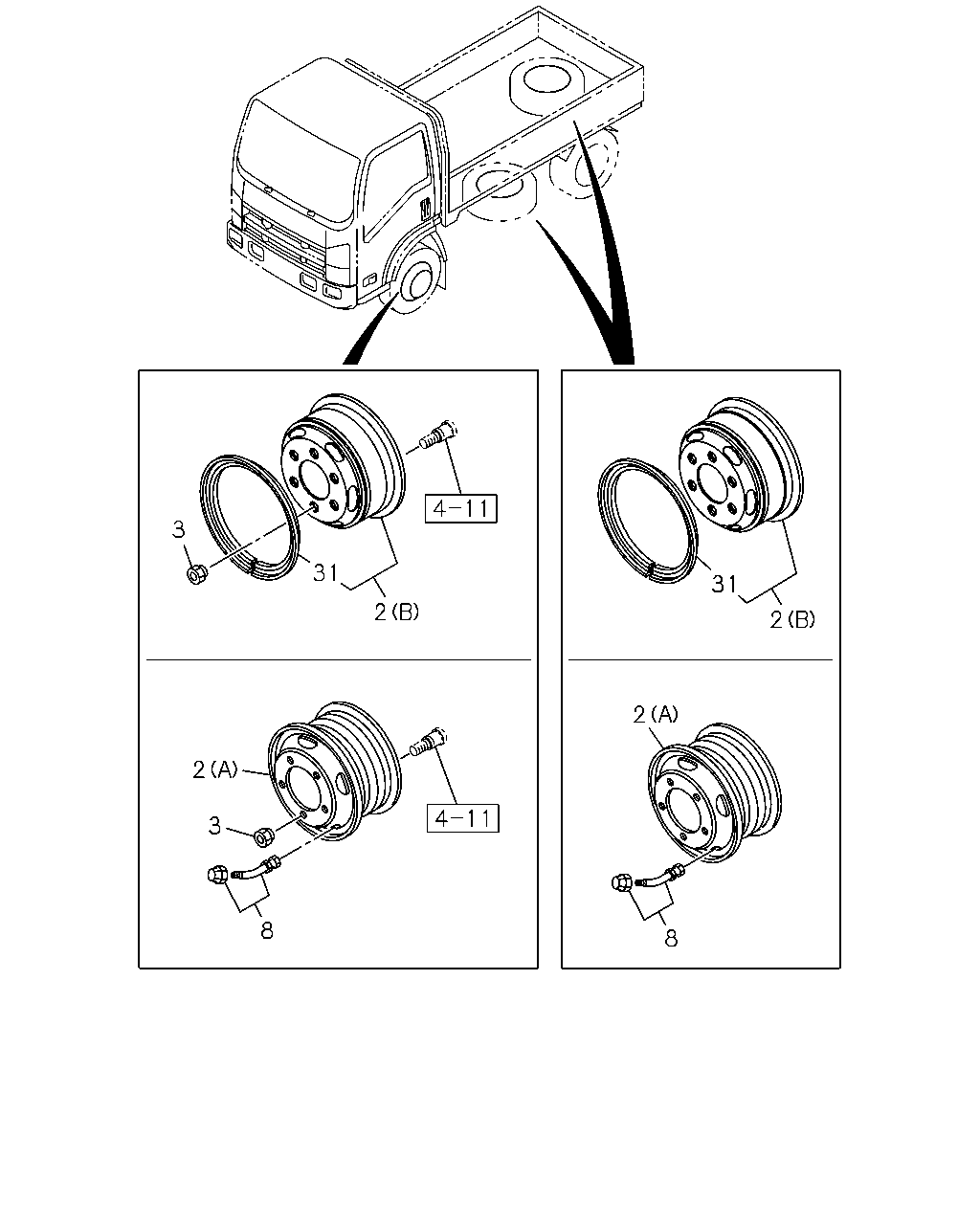

3 31 2 2 3 8 8 2 31 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ) (B) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE	8-94116-196-0	02	1	1211-	●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ) (B) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE	8-94116-196-0	02	1	1211-	●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT) (B) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE	8-94116-196-0	01	1	1211-	●
2	05.803 WHEEL; DISC FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT) (B) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE	8-94116-196-0	04	1	1211-	●
2	05.803 WHEEL; DISC FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) (B) SPARE 5.5FX16 OFFSET=25 BLACK 6-HOLE	8-94128-561-0	01	1	1211-	●
2	05.803 WHEEL; DISC FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) (B) FRONT,REAR 5.5FX16 OFFSET=25 BLACK 6-HOLE	8-94128-561-0	04	1	1211-	●
2	05.803 WHEEL; DISC (A) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	1109-1210	●
2	05.803 WHEEL; DISC FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 185/85R16 16X5.5J-116.5 SI LVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) (A) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	1211-	●
2	05.803 WHEEL; DISC (A) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	1211-		●
2	05.803 WHEEL; DISC (A) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	06	1	1109-1210	●
2	05.803 WHEEL; DISC FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 185/85R16 16X5.5J-116.5 SI LVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) (A) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	06	1	1211-	●
2	05.803 WHEEL; DISC (A) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	06	1	1211-		●
3	05.813 NUT; WHEEL,FRT AXLE SINGLE RR TIRE(6TD) M14 RH THREAD	8-98007-905-0	06	1	1211-	●
3	05.813 NUT; WHEEL,FRT AXLE SINGLE RR TIRE(6TD) M14 LH THREAD	8-98007-906-0	06	1	1211-	●
3	05.813 NUT; WHEEL,FRT AXLE M18 RH THREAD	8-98007-907-0	05	1	1109-1210	●
3	05.813 NUT; WHEEL,FRT AXLE EXC. SINGLE RR TIRE(6TD) M18 RH THREAD	8-98007-907-0	05	1	1211-	●
3	05.813 NUT; WHEEL,FRT AXLE M18 RH THREAD	8-98007-907-0	05	1	1211-		●
3	05.813 NUT; WHEEL,FRT AXLE M18 LH THREAD	8-98007-908-0	05	1	1109-1210	●
3	05.813 NUT; WHEEL,FRT AXLE EXC. SINGLE RR TIRE(6TD) M18 LH THREAD	8-98007-908-0	05	1	1211-	●
3	05.813 NUT; WHEEL,FRT AXLE M18 LH THREAD	8-98007-908-0	05	1	1211-		●
8	05.875 VALVE; TIRE SPARE	8-98221-106-0	01	1	1109-1210	●
8	05.875 VALVE; TIRE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 185/85R16 16X5.5J-116.5 SI LVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) SPARE	8-98221-106-0	01	1	1211-	●
8	05.875 VALVE; TIRE SPARE	8-98221-106-0	01	1	1211-		●
8	05.875 VALVE; TIRE FRONT,REAR	8-98221-106-0	06	1	1109-1210	●
8	05.875 VALVE; TIRE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 185/85R16 16X5.5J-116.5 SI LVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) FRONT,REAR	8-98221-106-0	06	1	1211-	●
8	05.875 VALVE; TIRE FRONT,REAR	8-98221-106-0	06	1	1211-		●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ) FRONT,REAR 15X5.50F STAMP, BLACK	8-94135-599-0	02	1	1211-	●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ) FRONT,REAR 15X5.50F STAMP, BLACK	8-94135-599-0	02	1	1211-	●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT) SPARE 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	1211-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT) FRONT,REAR 15X5.50F STAMP, BLACK	8-94135-599-0	04	1	1211-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) SPARE 16X5.50F STAMP, BLACK	8-94135-601-0	01	1	1211-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) FRONT,REAR 16X5.50F STAMP, BLACK	8-94135-601-0	04	1	1211-	●

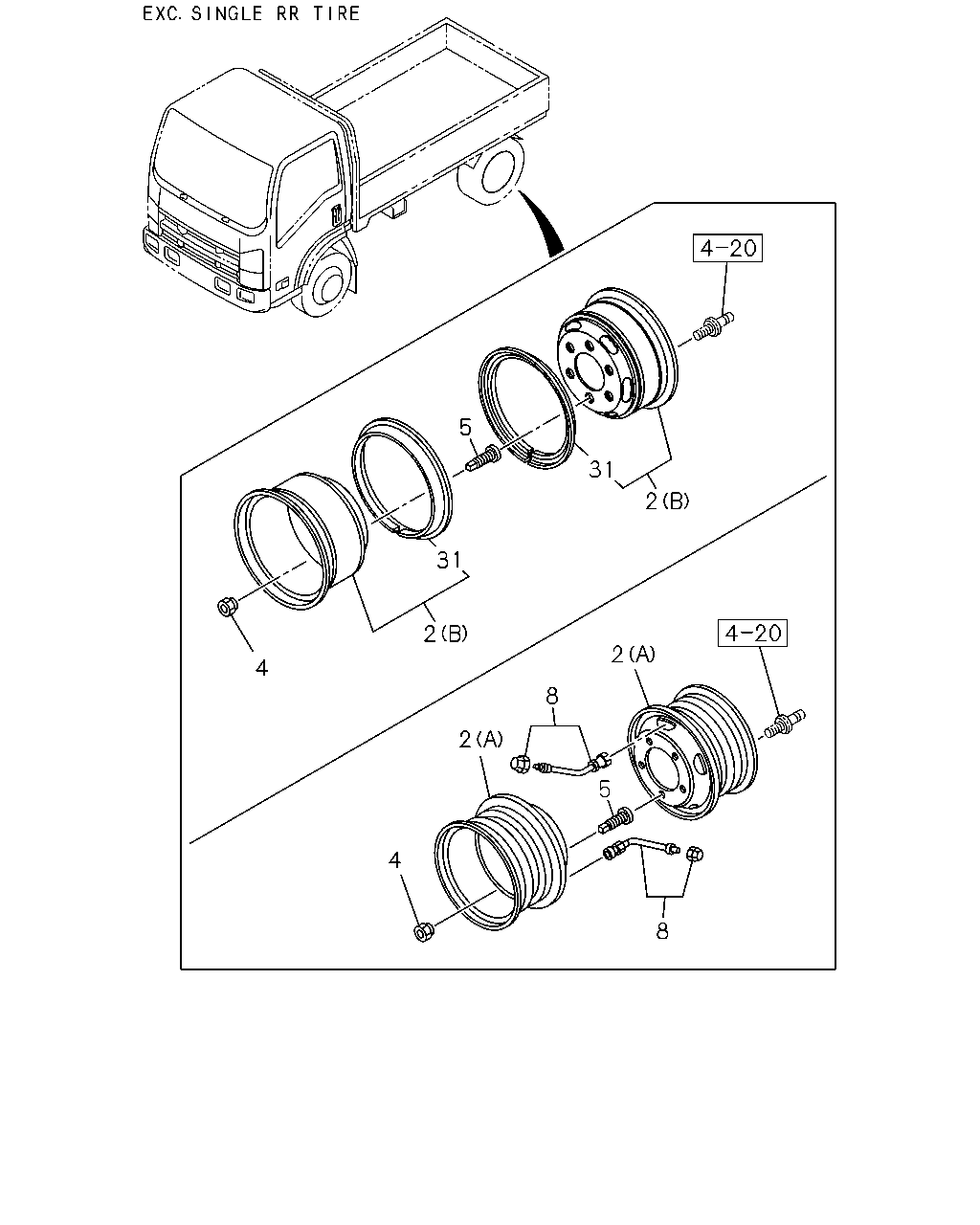

2 31 5 31 2 4 4 2 8 2 8 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ) (B) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE	8-94116-196-0	02	1	1211-	●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ) (B) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE	8-94116-196-0	02	1	1211-	●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT) (B) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE	8-94116-196-0	01	1	1211-	●
2	05.803 WHEEL; DISC FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT) (B) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE	8-94116-196-0	04	1	1211-	●
2	05.803 WHEEL; DISC FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) (B) SPARE 5.5FX16 OFFSET=25 BLACK 6-HOLE	8-94128-561-0	01	1	1211-	●
2	05.803 WHEEL; DISC FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) (B) FRONT,REAR 5.5FX16 OFFSET=25 BLACK 6-HOLE	8-94128-561-0	04	1	1211-	●
2	05.803 WHEEL; DISC (A) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	1109-1210	●
2	05.803 WHEEL; DISC FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 185/85R16 16X5.5J-116.5 SI LVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) (A) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	1211-	●
2	05.803 WHEEL; DISC (A) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	1211-		●
2	05.803 WHEEL; DISC (A) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	06	1	1109-1210	●
2	05.803 WHEEL; DISC FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 185/85R16 16X5.5J-116.5 SI LVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) (A) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	06	1	1211-	●
2	05.803 WHEEL; DISC (A) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	06	1	1211-		●
4	05.813 NUT; WHEEL,RR AXLE SINGLE RR TIRE(6TD) M14 RH THREAD	8-98007-905-0	06	1	1211-	●
4	05.813 NUT; WHEEL,RR AXLE SINGLE RR TIRE(6TD) M14 LH THREAD	8-98007-906-0	06	1	1211-	●
4	05.813 NUT; WHEEL,RR AXLE M27 RH THREAD	8-98007-824-0	05	1	1109-1210	●
4	05.813 NUT; WHEEL,RR AXLE EXC. SINGLE RR TIRE(6TD) M27 RH THREAD	8-98007-824-0	05	1	1211-	●
4	05.813 NUT; WHEEL,RR AXLE M27 RH THREAD	8-98007-824-0	05	1	1211-		●
4	05.813 NUT; WHEEL,RR AXLE M27 LH THREAD	8-98007-825-0	05	1	1109-1210	●
4	05.813 NUT; WHEEL,RR AXLE EXC. SINGLE RR TIRE(6TD) M27 LH THREAD	8-98007-825-0	05	1	1211-	●
4	05.813 NUT; WHEEL,RR AXLE M27 LH THREAD	8-98007-825-0	05	1	1211-		●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 RH THREAD	8-98007-810-0	05	1	1109-1210	●
5	05.813 NUT; WHEEL,INNER,RR AXLE EXC. SINGLE RR TIRE(6TD) OUTER M27,INNER M18 RH THREAD	8-98007-810-0	05	1	1211-	●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 RH THREAD	8-98007-810-0	05	1	1211-		●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 LH THREAD	8-98007-811-0	05	1	1109-1210	●
5	05.813 NUT; WHEEL,INNER,RR AXLE EXC. SINGLE RR TIRE(6TD) OUTER M27,INNER M18 LH THREAD	8-98007-811-0	05	1	1211-	●
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M27,INNER M18 LH THREAD	8-98007-811-0	05	1	1211-		●
8	05.875 VALVE; TIRE SPARE	8-98221-106-0	01	1	1109-1210	●
8	05.875 VALVE; TIRE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 185/85R16 16X5.5J-116.5 SI LVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) SPARE	8-98221-106-0	01	1	1211-	●
8	05.875 VALVE; TIRE SPARE	8-98221-106-0	01	1	1211-		●
8	05.875 VALVE; TIRE FRONT,REAR	8-98221-106-0	06	1	1109-1210	●
8	05.875 VALVE; TIRE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 185/85R16 16X5.5J-116.5 SI LVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) FRONT,REAR	8-98221-106-0	06	1	1211-	●
8	05.875 VALVE; TIRE FRONT,REAR	8-98221-106-0	06	1	1211-		●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ) FRONT,REAR 15X5.50F STAMP, BLACK	8-94135-599-0	02	1	1211-	●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ) FRONT,REAR 15X5.50F STAMP, BLACK	8-94135-599-0	02	1	1211-	●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT) SPARE 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	1211-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT) FRONT,REAR 15X5.50F STAMP, BLACK	8-94135-599-0	04	1	1211-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) SPARE 16X5.50F STAMP, BLACK	8-94135-601-0	01	1	1211-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) FRONT,REAR 16X5.50F STAMP, BLACK	8-94135-601-0	04	1	1211-	●

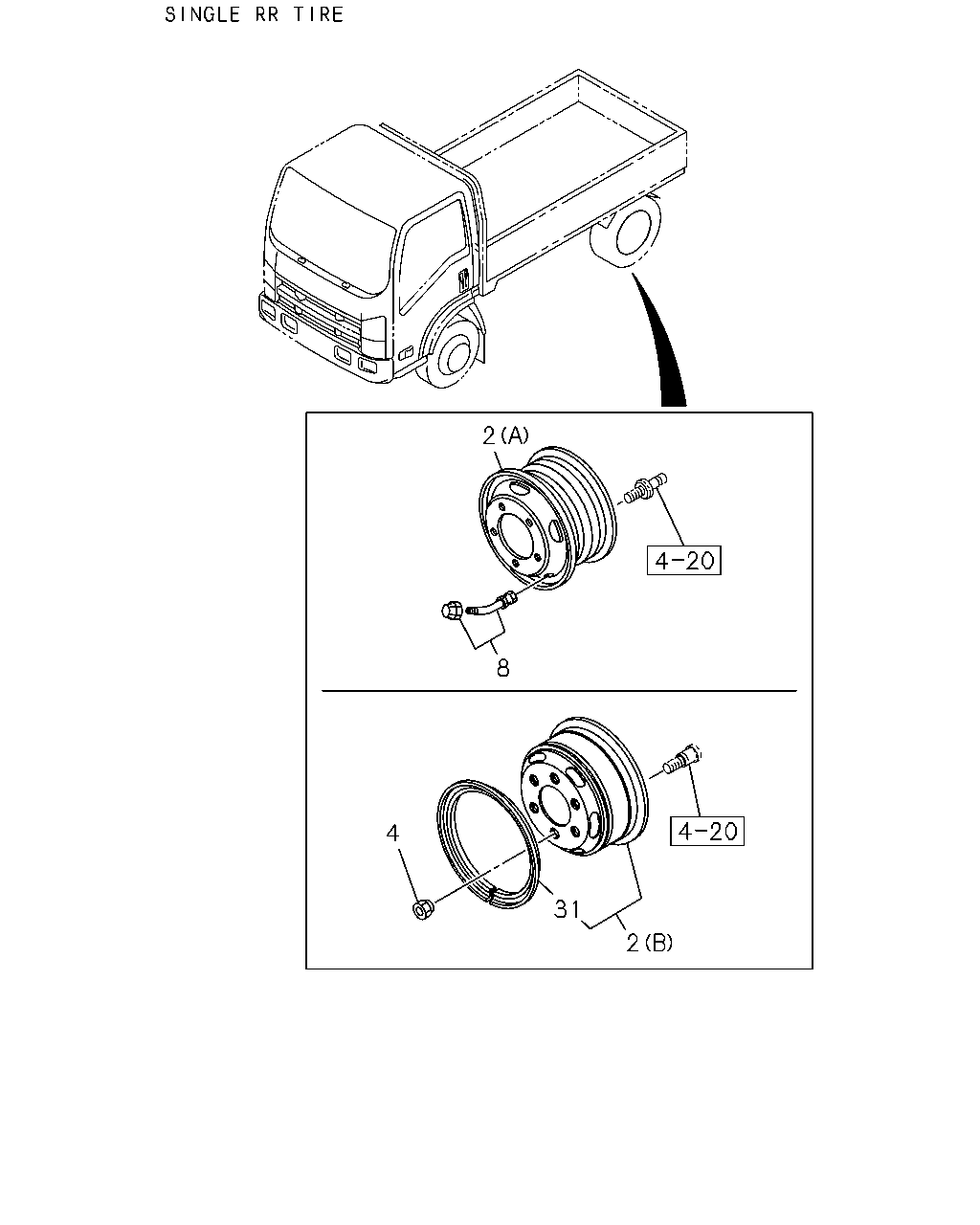

2 8 31 4 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ) (B) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE	8-94116-196-0	02	1	1211-	●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ) (B) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE	8-94116-196-0	02	1	1211-	●
2	05.803 WHEEL; DISC FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT) (B) SPARE 5.5FX15 OFFSET=25 BLACK 6-HOLE	8-94116-196-0	01	1	1211-	●
2	05.803 WHEEL; DISC FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT) (B) FRONT,REAR 5.5FX15 OFFSET=25 BLACK 6-HOLE	8-94116-196-0	04	1	1211-	●
2	05.803 WHEEL; DISC FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) (B) SPARE 5.5FX16 OFFSET=25 BLACK 6-HOLE	8-94128-561-0	01	1	1211-	●
2	05.803 WHEEL; DISC FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) (B) FRONT,REAR 5.5FX16 OFFSET=25 BLACK 6-HOLE	8-94128-561-0	04	1	1211-	●
2	05.803 WHEEL; DISC (A) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	1109-1210	●
2	05.803 WHEEL; DISC FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 185/85R16 16X5.5J-116.5 SI LVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) (A) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	1211-	●
2	05.803 WHEEL; DISC (A) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	1211-		●
2	05.803 WHEEL; DISC (A) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	06	1	1109-1210	●
2	05.803 WHEEL; DISC FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 185/85R16 16X5.5J-116.5 SI LVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) (A) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	06	1	1211-	●
2	05.803 WHEEL; DISC (A) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	06	1	1211-		●
4	05.813 NUT; WHEEL,RR AXLE SINGLE RR TIRE(6TD) M14 RH THREAD	8-98007-905-0	06	1	1211-	●
4	05.813 NUT; WHEEL,RR AXLE SINGLE RR TIRE(6TD) M14 LH THREAD	8-98007-906-0	06	1	1211-	●
4	05.813 NUT; WHEEL,RR AXLE M27 RH THREAD	8-98007-824-0	05	1	1109-1210	●
4	05.813 NUT; WHEEL,RR AXLE EXC. SINGLE RR TIRE(6TD) M27 RH THREAD	8-98007-824-0	05	1	1211-	●
4	05.813 NUT; WHEEL,RR AXLE M27 RH THREAD	8-98007-824-0	05	1	1211-		●
4	05.813 NUT; WHEEL,RR AXLE M27 LH THREAD	8-98007-825-0	05	1	1109-1210	●
4	05.813 NUT; WHEEL,RR AXLE EXC. SINGLE RR TIRE(6TD) M27 LH THREAD	8-98007-825-0	05	1	1211-	●
4	05.813 NUT; WHEEL,RR AXLE M27 LH THREAD	8-98007-825-0	05	1	1211-		●
8	05.875 VALVE; TIRE SPARE	8-98221-106-0	01	1	1109-1210	●
8	05.875 VALVE; TIRE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 185/85R16 16X5.5J-116.5 SI LVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) SPARE	8-98221-106-0	01	1	1211-	●
8	05.875 VALVE; TIRE SPARE	8-98221-106-0	01	1	1211-		●
8	05.875 VALVE; TIRE FRONT,REAR	8-98221-106-0	06	1	1109-1210	●
8	05.875 VALVE; TIRE FRT&RR 195-16C-75R DISC 16X5.5J-116.5 EEC (BQU),FRT&RR 185/85R16 16X5.5J-116.5 SILVER(CSZ),FRT&RR 185/85R16 16X5.5J-116.5 SI LVER BS(CVQ),FRT&RR TIRE 195/75R16C DISC 16X5.5J-116.5 BS(CVR) FRONT,REAR	8-98221-106-0	06	1	1211-	●
8	05.875 VALVE; TIRE FRONT,REAR	8-98221-106-0	06	1	1211-		●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ) FRONT,REAR 15X5.50F STAMP, BLACK	8-94135-599-0	02	1	1211-	●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ) FRONT,REAR 15X5.50F STAMP, BLACK	8-94135-599-0	02	1	1211-	●
31	05.839 RING; SIDE,DISC WHEEL FRT 7R-15-8 RR 7.5R-15-10 DISC 5.5F-15-25 (CTQ),FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT) SPARE 15X5.50F STAMP, BLACK	8-94135-599-0	01	1	1211-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.00R-15-10 DISC 5.50FX15-170(CUT) FRONT,REAR 15X5.50F STAMP, BLACK	8-94135-599-0	04	1	1211-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) SPARE 16X5.50F STAMP, BLACK	8-94135-601-0	01	1	1211-	●
31	05.839 RING; SIDE,DISC WHEEL FRT&RR 7.0R-16-10 DISC 5.50FX16-25(CUU) FRONT,REAR 16X5.50F STAMP, BLACK	8-94135-601-0	04	1	1211-	●
