Isuzu WW
▶
TRUCKS
▶
CXH
▶
10722 - CXH RHD
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶

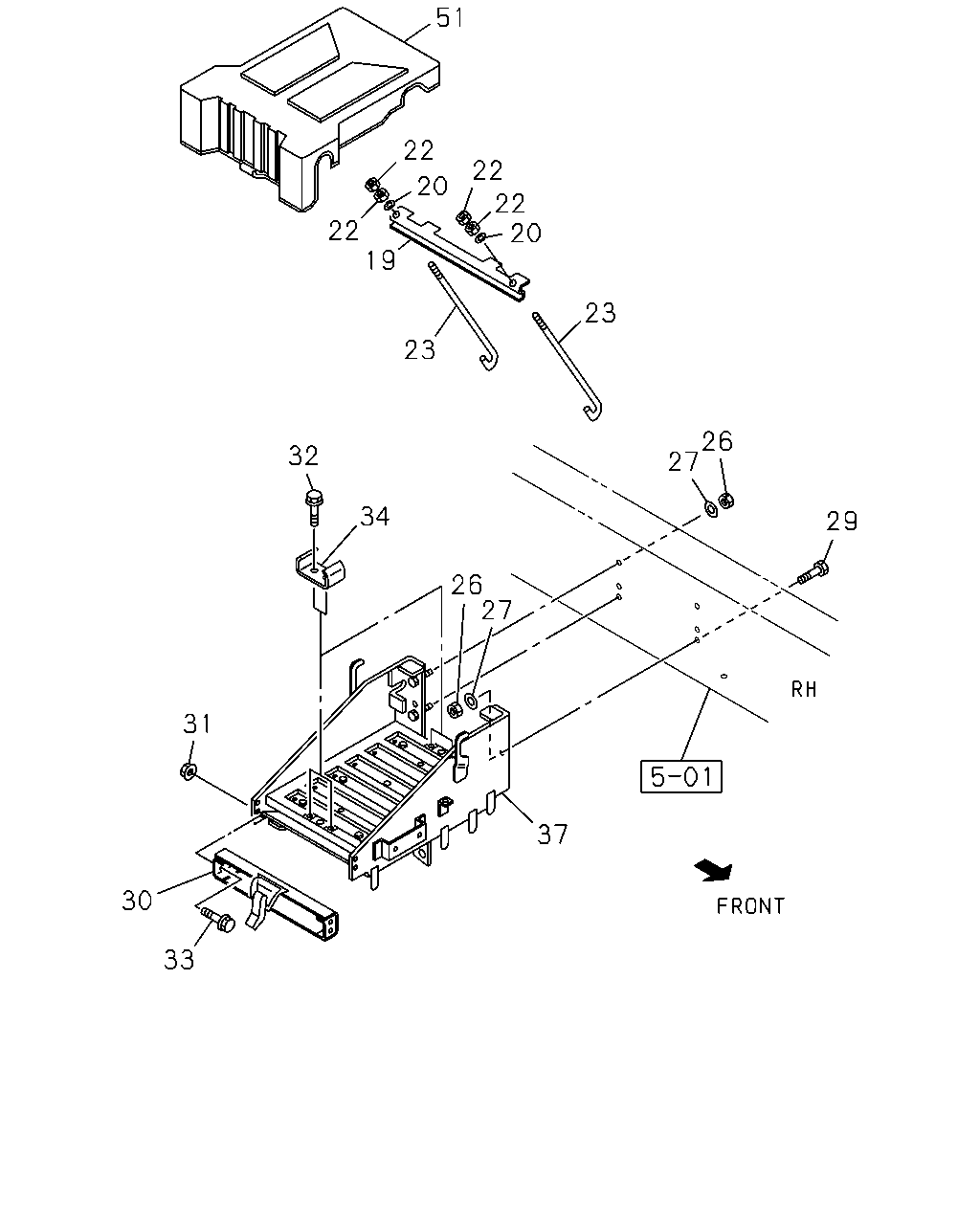

5-20 — BATTERY CARRIER
(#5136) — 19 parça
51
22
22
22
20
20
22
19
23
23
26
27
32
34
29
26
27
31
37
30
33
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
19
STAY; BATTERY
1-53618-039-2
01
1
9606-
20
WASHER; PL,STAY
ID=8.4 OD=22
9-09164-708-0
02
1
9606-
22
NUT; STAY
M8
9-09110-508-0
04
1
9606-9606
22
NUT; STAY
M8 FLANGE
0-91150-108-0
04
1
9607-9812
22
NUT; STAY
M8
9-09110-408-0
04
1
9901-
23
BOLT; STAY
1-53616-109-0
02
1
9606-9905
23
BOLT; STAY
L=250
1-53616-108-0
02
1
9906-
26
NUT; BRKT
M14
9-99110-514-0
04
1
9606-
27
WASHER; LK,BRKT
ID=14.2
9-09150-514-0
04
1
9606-
29
BOLT; BRKT TO FRAME
M14X40
0-20801-440-0
02
1
9606-
30
PLATE; BATTERY
1-53619-086-0
01
1
9606-
31
NUT; PLATE
M8
9-09110-508-0
04
1
9606-9606
31
NUT; PLATE
M8 FLANGE
0-91150-108-0
04
1
9607-
32
BOLT; PLATE TO SPACER
EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4> M8X16 FLANGE
0-28080-816-0
04
1
9606-
33
BOLT; PLATE TO BRKT
M8X16 FLANGE
0-28080-816-0
04
1
9606-
34
SPACER; BATTERY BRKT
EXC. BATTERY 145G51 N150<SJ8>,BATTERY 165G51 NS200<SQ4>
1-53619-084-0
02
1
9606-
37
BRACKET; BATTERY
WHEEL BASE 6300MM(63W)
1-53610-130-0
01
1
9606-
37
BRACKET; BATTERY
WHEEL BASE 6600MM(66W)
1-53610-131-1
01
1
9606-
51
COVER; BATTERY
1-53612-040-1
01
1
9606-
