◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51248 - NLR85(LHD) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#51357) — 114 parça

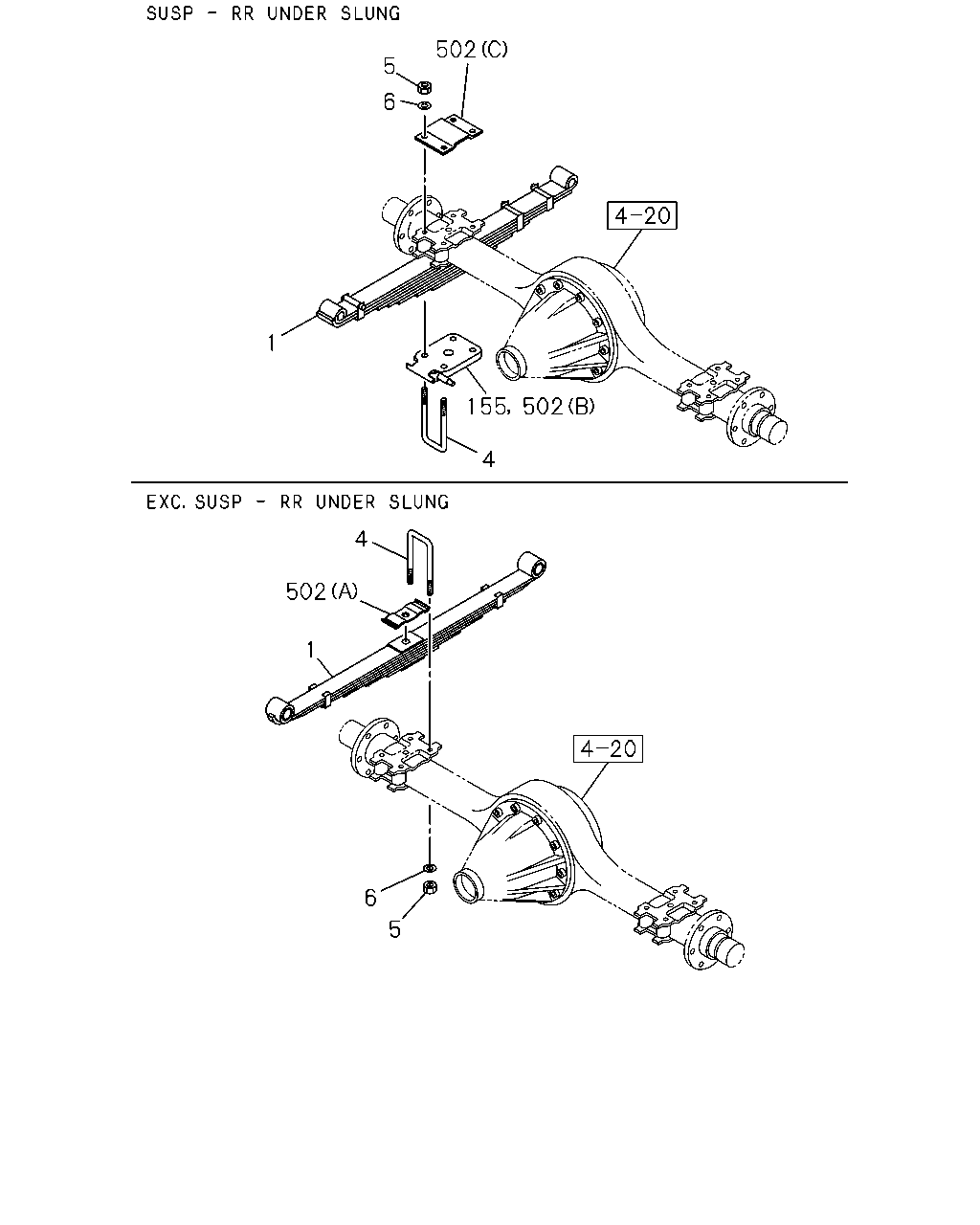

çizim 147745
5 502 6 1 155 502 4 4 502 1 6 5
BalonParca AdiParca NoAdetTipApplied Date A B
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP) SUSPENSION - RR UNDER SLUNG<V4U> EXC. SOFT RIDE SUSPENSION SYSTEM(FE1),RR BODY FLAT BED(RS6),REAR WIDE TREAD(V4T), SINGLE RR TIRE(6TD) 5-LEAF 		8-98001-564-0 02 1 1211- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 10-LEAF 		8-98022-373-0 02 1 1109-1210 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP) REAR WIDE TREAD(V4T) EXC. SOFT RIDE SUSPENSION SYSTEM(FE1), SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR T IRE(6TD) 10-LEAF 		8-98022-373-0 02 1 1211-1308 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TURKEY EQUIPMENT(B11) G.V.W. 3.5-4.0TON(RPQ) REAR WIDE TREAD(V4T) EXC. RR BODY FLAT BED(RS6),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 10-LEAF 		8-98022-373-0 02 1 1211-1308 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 10-LEAF 		8-98022-373-0 02 1 1211-1308 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP) REAR WIDE TREAD(V4T) EXC. SOFT RIDE SUSPENSION SYSTEM(FE1), SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR T IRE(6TD) 10-LEAF 		8-98022-373-0 02 1 1309- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TURKEY EQUIPMENT(B11) G.V.W. 3.5-4.0TON(RPQ) REAR WIDE TREAD(V4T) EXC. RR BODY FLAT BED(RS6),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 10-LEAF 		8-98022-373-0 02 1 1309- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 10-LEAF 		8-98022-373-0 02 1 1309- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) 5-LEAF 		8-98048-271-0 02 1 1109-1210 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TURKEY EQUIPMENT(B11) G.V.W. 3.5-4.0TON(RPQ) SUSPENSION - RR UNDER SLUNG<V4U> EXC. RR BODY FLAT BED(RS6),REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD) 5-LEAF 		8-98048-271-0 02 1 1211- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAIWAN EQUIPMENT(B04) SOFT RIDE SUSPENSION SYSTEM(FE1) G.V.W. 3.0-3.5TON(RPP) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD) 5-LEAF 		8-98048-271-0 02 1 1211- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP) RR BODY FLAT BED(RS6) SUSPENSION - RR UNDER SLUNG<V4U> EXC. SOFT RIDE SUSPENSION SYSTEM(FE1), REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD) 5-LEAF 		8-98048-271-0 02 1 1211- ●
4 07.516 U-BOLT; RR SPR
REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> L=265 		8-94127-923-3 04 1 1109-1210 ●
4 07.516 U-BOLT; RR SPR
TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) L=265 		8-94127-923-3 04 1 1211-1308 ●
4 07.516 U-BOLT; RR SPR
TURKEY EQUIPMENT(B11) G.V.W. 3.5-4.0TON(RPQ) REAR WIDE TREAD(V4T) EXC. RR BODY FLAT BED(RS6),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) L=265 		8-94127-923-3 04 1 1211-1308 ●
4 07.516 U-BOLT; RR SPR
L=265 		8-94127-923-3 04 1 1211-1308 ●
4 07.516 U-BOLT; RR SPR
TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) L=265 		8-94127-923-3 04 1 1309- ●
4 07.516 U-BOLT; RR SPR
TURKEY EQUIPMENT(B11) G.V.W. 3.5-4.0TON(RPQ) REAR WIDE TREAD(V4T) EXC. RR BODY FLAT BED(RS6),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) L=265 		8-94127-923-3 04 1 1309- ●
4 07.516 U-BOLT; RR SPR
WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) L=265 		8-94127-923-3 04 1 1309- ●
4 07.516 U-BOLT; RR SPR
SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) L=235 		8-97262-039-0 04 1 1109-1210 ●
4 07.516 U-BOLT; RR SPR
TURKEY EQUIPMENT(B11) G.V.W. 3.5-4.0TON(RPQ) SUSPENSION - RR UNDER SLUNG<V4U> EXC. RR BODY FLAT BED(RS6),REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD) L=235 		8-97262-039-0 04 1 1211- ●
4 07.516 U-BOLT; RR SPR
TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD) L=235 		8-97262-039-0 04 1 1211- ●
5 07.529 NUT; U-BOLT,RR SPR
07.417 M16 		8-97360-121-0 08 1 1109-1210 ●
5 07.529 NUT; U-BOLT,RR SPR
07.417 M16 		8-97360-121-0 08 1 1211- ● ●
6 07.516 WASHER; PL,U-BOLT
ID=16.4 		8-97360-118-0 08 1 1109-1210 ●
6 07.516 WASHER; PL,U-BOLT
ID=16.4 		8-97360-118-0 08 1 1211- ● ●
155 07.380 BRACKET; S/ABS
SINGLE RR TIRE(6TD) 		8-94128-360-4 01 1 1211- ●
155 07.380 BRACKET; S/ABS
SINGLE RR TIRE(6TD) 		8-94128-361-4 01 1 1211- ●
502 07.506 CLAMP; RR LEAF SPR
REAR WIDE TREAD(V4T) 07.518 (A) L=130 T=4.5 		8-94119-069-2 02 1 1109-1210 ●
502 07.506 CLAMP; RR LEAF SPR
REAR WIDE TREAD(V4T) EXC. SINGLE RR TIRE(6TD) 07.518 (A) L=130 T=4.5 		8-94119-069-2 02 1 1211- ●
502 07.506 CLAMP; RR LEAF SPR
SINGLE RR TIRE(6TD) 07.518 (A) L=130 T=4.5 		8-94119-069-2 02 1 1211- ●
502 07.506 CLAMP; RR LEAF SPR
07.518 (A) L=130 T=4.5 		8-94119-069-2 02 1 1211- ●
502 07.506 CLAMP; RR LEAF SPR
SUSPENSION - RR UNDER SLUNG<V4U> (B) 		8-94113-325-2 01 1 1109-1210 ●
502 07.506 CLAMP; RR LEAF SPR
SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> (B) 		8-94113-325-2 01 1 1211- ●
502 07.506 CLAMP; RR LEAF SPR
SUSPENSION - RR UNDER SLUNG<V4U> (B) 		8-94113-326-2 01 1 1109-1210 ●
502 07.506 CLAMP; RR LEAF SPR
SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> (B) 		8-94113-326-2 01 1 1211- ●
502 07.506 CLAMP; RR LEAF SPR
SUSPENSION - RR UNDER SLUNG<V4U> (C) L=176 T=8 		8-97136-907-0 02 1 1109-1210 ●
502 07.506 CLAMP; RR LEAF SPR
G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> (C) L=176 T=8 		8-97136-907-0 02 1 1211- ●

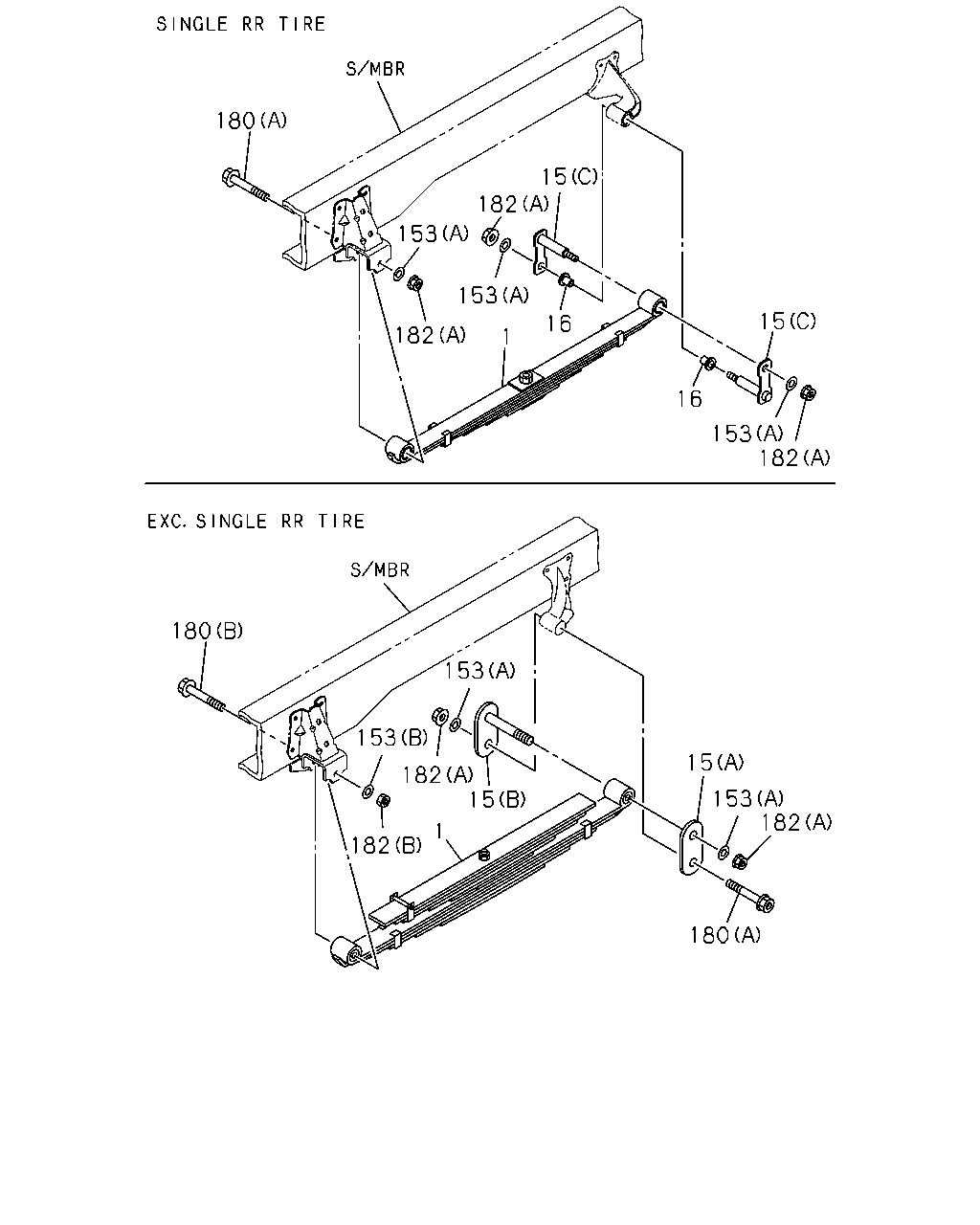

çizim 147756
180 153 182 15 16 153 182 15 16 182 153 180 153 153 182 15 15 153 182 180 182 1 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP) SUSPENSION - RR UNDER SLUNG<V4U> EXC. SOFT RIDE SUSPENSION SYSTEM(FE1),RR BODY FLAT BED(RS6),REAR WIDE TREAD(V4T), SINGLE RR TIRE(6TD) 5-LEAF 		8-98001-564-0 02 1 1211- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 10-LEAF 		8-98022-373-0 02 1 1109-1210 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP) REAR WIDE TREAD(V4T) EXC. SOFT RIDE SUSPENSION SYSTEM(FE1), SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR T IRE(6TD) 10-LEAF 		8-98022-373-0 02 1 1211-1308 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TURKEY EQUIPMENT(B11) G.V.W. 3.5-4.0TON(RPQ) REAR WIDE TREAD(V4T) EXC. RR BODY FLAT BED(RS6),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 10-LEAF 		8-98022-373-0 02 1 1211-1308 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 10-LEAF 		8-98022-373-0 02 1 1211-1308 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP) REAR WIDE TREAD(V4T) EXC. SOFT RIDE SUSPENSION SYSTEM(FE1), SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR T IRE(6TD) 10-LEAF 		8-98022-373-0 02 1 1309- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TURKEY EQUIPMENT(B11) G.V.W. 3.5-4.0TON(RPQ) REAR WIDE TREAD(V4T) EXC. RR BODY FLAT BED(RS6),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 10-LEAF 		8-98022-373-0 02 1 1309- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. WHEEL BASE 2400MM(24W),WHEEL BASE 3300MM(33W) 10-LEAF 		8-98022-373-0 02 1 1309- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) 5-LEAF 		8-98048-271-0 02 1 1109-1210 ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TURKEY EQUIPMENT(B11) G.V.W. 3.5-4.0TON(RPQ) SUSPENSION - RR UNDER SLUNG<V4U> EXC. RR BODY FLAT BED(RS6),REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD) 5-LEAF 		8-98048-271-0 02 1 1211- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAIWAN EQUIPMENT(B04) SOFT RIDE SUSPENSION SYSTEM(FE1) G.V.W. 3.0-3.5TON(RPP) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD) 5-LEAF 		8-98048-271-0 02 1 1211- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP) RR BODY FLAT BED(RS6) SUSPENSION - RR UNDER SLUNG<V4U> EXC. SOFT RIDE SUSPENSION SYSTEM(FE1), REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD) 5-LEAF 		8-98048-271-0 02 1 1211- ●
15 07.523 SHACKLE; RR SPR
SINGLE RR TIRE(6TD) (C) 		8-94113-322-3 02 1 1211- ●
15 07.523 SHACKLE; RR SPR
SINGLE RR TIRE(6TD) (C) 		8-94113-322-3 02 1 1211- ●
15 07.523 SHACKLE; RR SPR
(A) 		8-94118-511-3 02 1 1109-1210 ●
15 07.523 SHACKLE; RR SPR
EXC. SINGLE RR TIRE(6TD) (A) 		8-94118-511-3 02 1 1211- ●
15 07.523 SHACKLE; RR SPR
(A) 		8-94118-511-3 02 1 1211- ●
15 07.523 SHACKLE; RR SPR
(B) 		8-97360-011-0 02 1 1109-1210 ●
15 07.523 SHACKLE; RR SPR
EXC. SINGLE RR TIRE(6TD) (B) 		8-97360-011-0 02 1 1211- ●
15 07.523 SHACKLE; RR SPR
(B) 		8-97360-011-0 02 1 1211- ●
16 07.524 BUSHING; SHACKLE,RR SPR
SINGLE RR TIRE(6TD) 		8-94113-323-2 04 1 1211- ●
16 07.524 BUSHING; SHACKLE,RR SPR
SINGLE RR TIRE(6TD) 		8-94113-323-2 04 1 1211- ●
16 07.524 BUSHING; SHACKLE,RR SPR
SINGLE RR TIRE(6TD) BEST VALUE PARTS 		5-87610-160-0 04 1 1211- ●
16 07.524 BUSHING; SHACKLE,RR SPR
SINGLE RR TIRE(6TD) BEST VALUE PARTS 		5-87610-160-0 04 1 1211- ●
153 07.529 WASHER; PL,SPRING PIN
KD PREPARATORY PACK<6HF> SINGLE RR TIRE(6TD) 07.427 (A) ID=16.5 		8-98011-489-0 02 1 1211- ●
153 07.529 WASHER; PL,SPRING PIN
KD PREPARATORY PACK<6HF> 07.427 (A) ID=16.5 		8-98011-489-0 04 1 1109-1210 ●
153 07.529 WASHER; PL,SPRING PIN
KD PREPARATORY PACK<6HF> 07.427 (A) ID=16.5 		8-98011-489-0 04 1 1211- ● ●
153 07.529 WASHER; PL,SPRING PIN
(B) ID=19 		8-97360-119-0 02 1 1109-1210 ●
153 07.529 WASHER; PL,SPRING PIN
EXC. SINGLE RR TIRE(6TD) (B) ID=19 		8-97360-119-0 02 1 1211- ●
153 07.529 WASHER; PL,SPRING PIN
(B) ID=19 		8-97360-119-0 02 1 1211- ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 		8-98011-487-0 02 1 1109-1210 ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 		8-98011-487-0 02 1 1211- ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130 		8-98011-488-0 02 1 1109-1210 ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> EXC. SINGLE RR TIRE(6TD) (B) M18X130 		8-98011-488-0 02 1 1211- ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130 		8-98011-488-0 02 1 1211- ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 FLANGE 		8-97360-110-0 02 1 1109-1210 ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 FLANGE 		8-97360-110-0 02 1 1211- ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE 		8-97360-112-0 02 1 1109-1210 ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF>,SINGLE RR TIRE(6TD) (B) M18X130 FLANGE 		8-97360-112-0 02 1 1211- ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE 		8-97360-112-0 02 1 1211- ●
182 07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> SINGLE RR TIRE(6TD) 06.509 (A) FRONT M16 		0-91110-516-0 02 1 1211- ●
182 07.529 NUT; PIN,RR SPR
SINGLE RR TIRE(6TD) EXC. KD PREPARATORY PACK<6HF> 07.427 (A) FRONT M16 FLANGE 		8-97360-125-0 02 1 1211- ●
182 07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> 06.509 (A) REAR M16 		0-91110-516-0 04 1 1109-1210 ●
182 07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> 06.509 (A) REAR M16 		0-91110-516-0 04 1 1211- ● ●
182 07.529 NUT; PIN,RR SPR
(B) FRONT M18 		0-91110-518-0 02 1 1109-1210 ●
182 07.529 NUT; PIN,RR SPR
EXC. SINGLE RR TIRE(6TD) (B) FRONT M18 		0-91110-518-0 02 1 1211- ●
182 07.529 NUT; PIN,RR SPR
(B) FRONT M18 		0-91110-518-0 02 1 1211- ●
182 07.529 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) REAR M16 FLANGE 		8-97360-125-0 04 1 1109-1210 ●
182 07.529 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) REAR M16 FLANGE 		8-97360-125-0 04 1 1211- ● ●

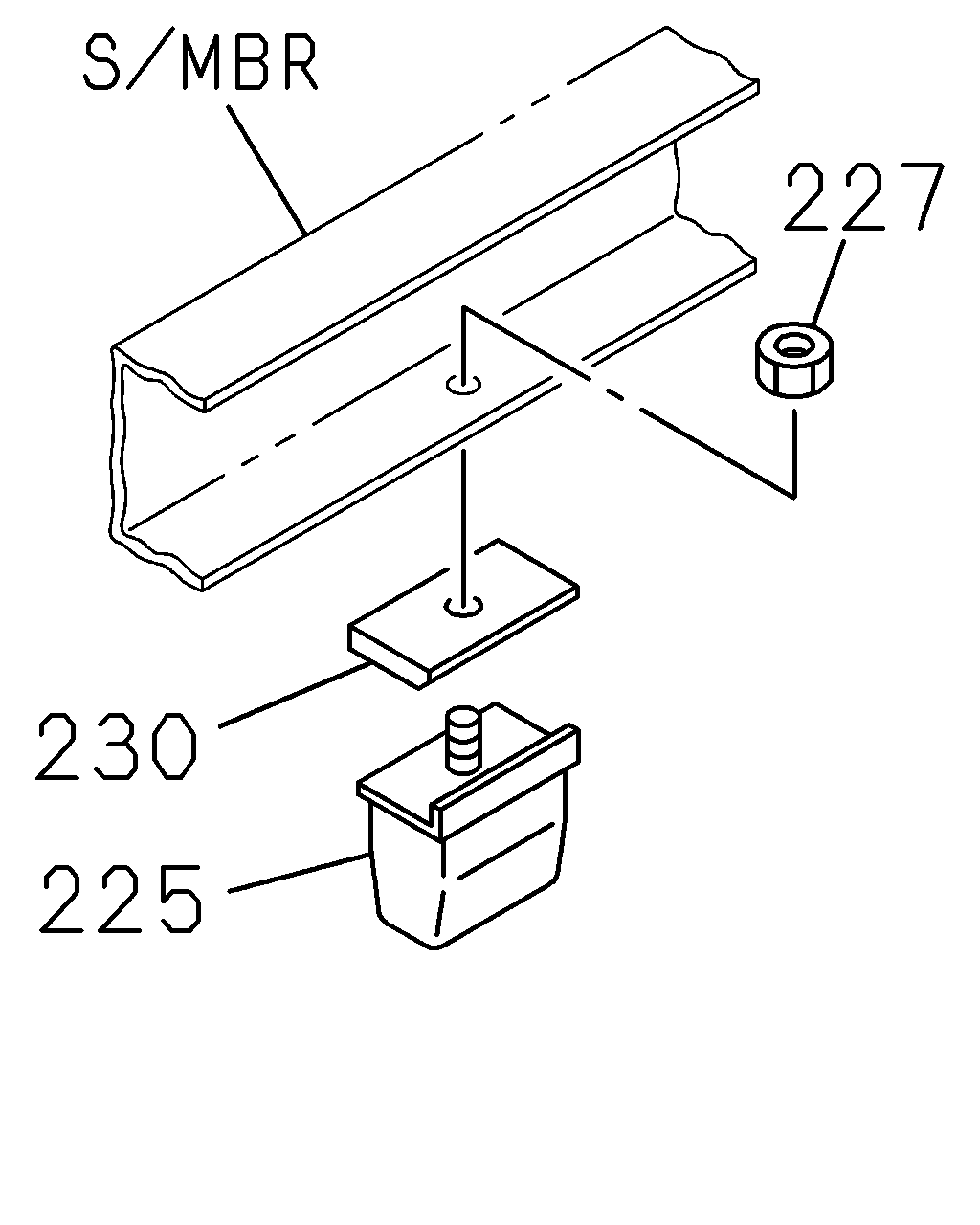

çizim 320048
227 230 225
BalonParca AdiParca NoAdetTipApplied Date A B
225 07.535 RUBBER; CUSHION,RR SPR
TAIWAN EQUIPMENT(B04) SOFT RIDE SUSPENSION SYSTEM(FE1) G.V.W. 3.0-3.5TON(RPP) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> EXC. SINGLE RR TIRE(6TD) 		8-98187-340-0 02 1 1301- ●
225 07.535 RUBBER; CUSHION,RR SPR
TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP) RR BODY FLAT BED(RS6) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> EXC. SOFT RIDE SUSPENSION SYSTEM(FE1), SINGLE RR TIRE(6TD) 		8-98187-340-0 02 1 1301- ●
225 07.535 RUBBER; CUSHION,RR SPR
REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 		8-98021-554-0 02 1 1109-1210 ●
225 07.535 RUBBER; CUSHION,RR SPR
SUSPENSION - RR UNDER SLUNG<V4U> 		8-98021-554-0 02 1 1109-1210 ●
225 07.535 RUBBER; CUSHION,RR SPR
TURKEY EQUIPMENT(B11) G.V.W. 3.5-4.0TON(RPQ) REAR WIDE TREAD(V4T) EXC. RR BODY FLAT BED(RS6),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 		8-98021-554-0 02 1 1211-1212 ●
225 07.535 RUBBER; CUSHION,RR SPR
TURKEY EQUIPMENT(B11) G.V.W. 3.5-4.0TON(RPQ) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> EXC. RR BODY FLAT BED(RS6),SINGLE RR TIRE(6TD) 		8-98021-554-0 02 1 1211-1212 ●
225 07.535 RUBBER; CUSHION,RR SPR
TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 		8-98021-554-0 02 1 1211-1212 ●
225 07.535 RUBBER; CUSHION,RR SPR
TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> EXC. RR BODY FLAT BED(RS6),SINGLE RR TIRE(6TD) 		8-98021-554-0 02 1 1211-1212 ●
225 07.535 RUBBER; CUSHION,RR SPR 8-98021-554-0 02 1 1211-1212 ●
225 07.535 RUBBER; CUSHION,RR SPR
TURKEY EQUIPMENT(B11) G.V.W. 3.5-4.0TON(RPQ) REAR WIDE TREAD(V4T) EXC. SOFT RIDE SUSPENSION SYSTEM(FE1),RR BODY FLAT BED(RS6),SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 		8-98021-554-0 02 1 1301-1308 ●
225 07.535 RUBBER; CUSHION,RR SPR
TURKEY EQUIPMENT(B11) G.V.W. 3.5-4.0TON(RPQ) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> EXC. SOFT RIDE SUSPENSION SYSTEM(FE1),RR BODY FLAT BED(RS6),SINGLE RR TIRE(6TD) 		8-98021-554-0 02 1 1301-1308 ●
225 07.535 RUBBER; CUSHION,RR SPR
TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP) REAR WIDE TREAD(V4T) EXC. SOFT RIDE SUSPENSION SYSTEM(FE1), SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR T IRE(6TD) 		8-98021-554-0 02 1 1301-1308 ●
225 07.535 RUBBER; CUSHION,RR SPR
TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> EXC. SOFT RIDE SUSPENSION SYSTEM(FE1),RR BODY FLAT BED(RS6),SINGLE RR TIRE(6TD) 		8-98021-554-0 02 1 1301-1308 ●
225 07.535 RUBBER; CUSHION,RR SPR 8-98021-554-0 02 1 1301-1308 ●
225 07.535 RUBBER; CUSHION,RR SPR
TURKEY EQUIPMENT(B11) G.V.W. 3.5-4.0TON(RPQ) REAR WIDE TREAD(V4T) EXC. SOFT RIDE SUSPENSION SYSTEM(FE1),RR BODY FLAT BED(RS6),SUSPENSION - RR UNDER SLUNG<V4U>,FULL FLATLOW<6GL>,SINGLE RR TIRE(6TD) 		8-98021-554-0 02 1 1309- ●
225 07.535 RUBBER; CUSHION,RR SPR
TURKEY EQUIPMENT(B11) G.V.W. 3.5-4.0TON(RPQ) REAR WIDE TREAD(V4T) FULL FLATLOW<6GL> EXC. SOFT RIDE SUSPENSION SYSTEM(FE1),RR BODY FLAT BED(RS6),SINGLE RR TIRE(6TD) 		8-98021-554-0 02 1 1309- ●
225 07.535 RUBBER; CUSHION,RR SPR
TURKEY EQUIPMENT(B11) G.V.W. 3.5-4.0TON(RPQ) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> EXC. SOFT RIDE SUSPENSION SYSTEM(FE1),RR BODY FLAT BED(RS6),REAR WIDE TREAD(V4T), SINGLE RR TIRE(6TD) 		8-98021-554-0 02 1 1309- ●
225 07.535 RUBBER; CUSHION,RR SPR
TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP) RR BODY FLAT BED(RS6) REAR WIDE TREAD(V4T) FULL FLATLOW<6GL> EXC. SOFT RIDE SUSPENSION SYSTEM(FE1), SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR T IRE(6TD) 		8-98021-554-0 02 1 1309- ●
225 07.535 RUBBER; CUSHION,RR SPR
TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP) REAR WIDE TREAD(V4T) EXC. SOFT RIDE SUSPENSION SYSTEM(FE1), SUSPENSION - RR UNDER SLUNG<V4U>,FULL FLATLO W<6GL>,SINGLE RR TIRE(6TD) 		8-98021-554-0 02 1 1309- ●
225 07.535 RUBBER; CUSHION,RR SPR
TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP) REAR WIDE TREAD(V4T) FULL FLATLOW<6GL> EXC. SOFT RIDE SUSPENSION SYSTEM(FE1),RR BODY FLAT BED(RS6),SINGLE RR TIRE(6TD) 		8-98021-554-0 02 1 1309- ●
225 07.535 RUBBER; CUSHION,RR SPR
TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> EXC. SOFT RIDE SUSPENSION SYSTEM(FE1),RR BODY FLAT BED(RS6),REAR WIDE TREAD(V4T), SINGLE RR TIRE(6TD) 		8-98021-554-0 02 1 1309- ●
225 07.535 RUBBER; CUSHION,RR SPR 8-98021-554-0 02 1 1309- ●
227 07.535 NUT; CUSHION RUBBER
02.042 M12 FLANGE 		0-91180-112-0 02 1 1109-1210 ●
227 07.535 NUT; CUSHION RUBBER
02.042 M12 FLANGE 		0-91180-112-0 02 1 1211- ● ●
230 07.518 SPACER; CUSHION RUBBER
REAR WIDE TREAD(V4T) 		8-97136-852-0 02 1 1109-1210 ●
230 07.518 SPACER; CUSHION RUBBER
REAR WIDE TREAD(V4T) 		8-97136-852-0 02 1 1211- ●
230 07.518 SPACER; CUSHION RUBBER 8-97136-852-0 02 1 1211- ●
