◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51248 - NLR85(LHD) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#51355) — 76 parça

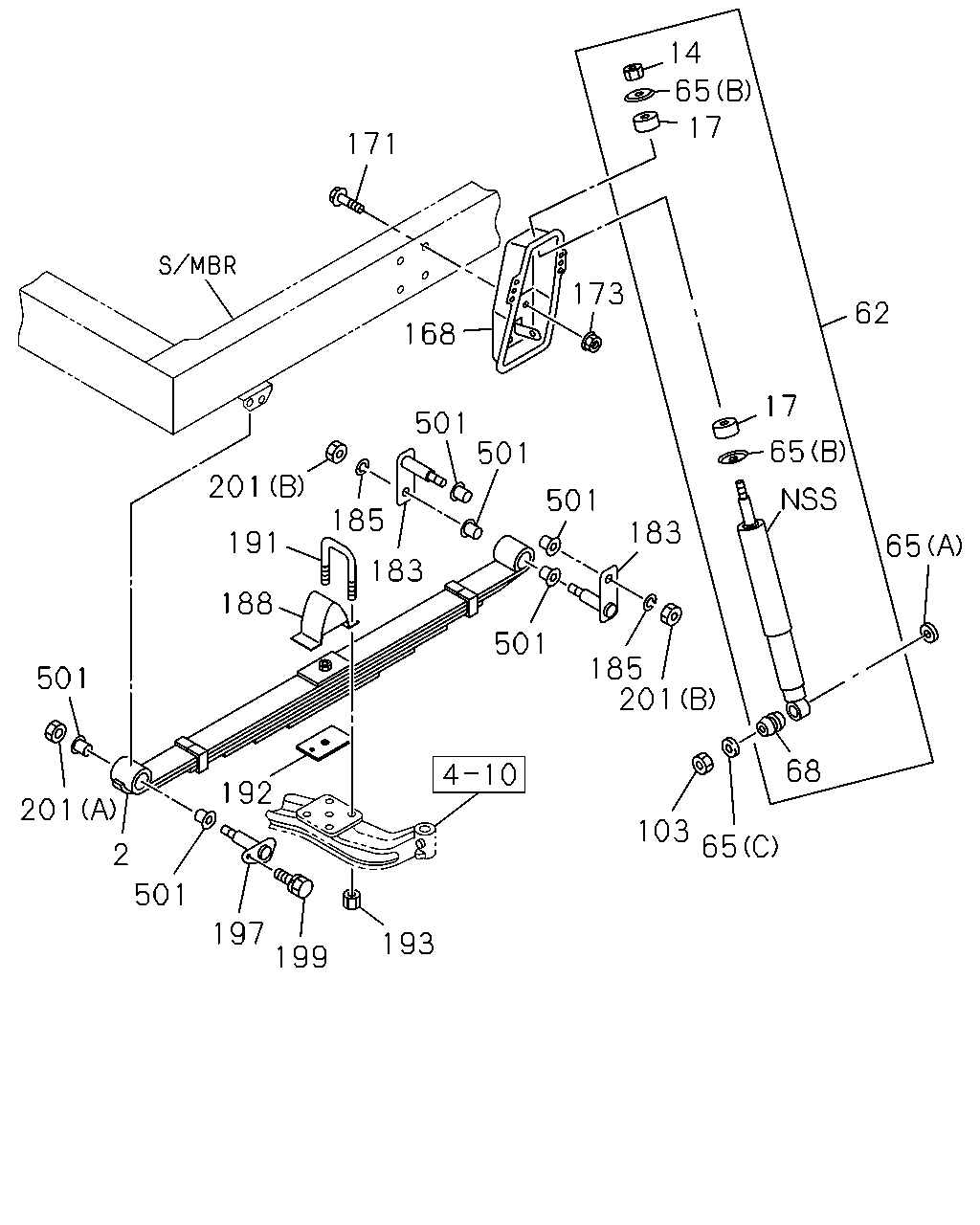

çizim 147754
171 14 65 17 62 17 65 65 68 65 103 201 185 501 183 501 501 501 168 173 201 191 188 185 183 192 501 201 2 501 197 199 193
BalonParca AdiParca NoAdetTipApplied Date A B
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP) EXC. SOFT RIDE SUSPENSION SYSTEM(FE1), SINGLE RR TIRE(6TD) 6-LEAF 		8-98001-533-0 01 1 1211- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF 		8-98001-533-0 01 1 1211- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. TAIWAN EQUIPMENT(B04) G.V.W. 3.0-3.5TON(RPP) EXC. SOFT RIDE SUSPENSION SYSTEM(FE1), SINGLE RR TIRE(6TD) 6-LEAF 		8-98079-881-0 01 1 1211- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF 		8-98079-881-0 01 1 1211- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF 		8-98079-885-0 01 1 1109-1210 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. TAIWAN EQUIPMENT(B04) SOFT RIDE SUSPENSION SYSTEM(FE1) G.V.W. 3.0-3.5TON(RPP) EXC. REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD) 6-LEAF 		8-98079-885-0 01 1 1211- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. TURKEY EQUIPMENT(B11) G.V.W. 3.5-4.0TON(RPQ) EXC. SOFT RIDE SUSPENSION SYSTEM(FE1), SINGLE RR TIRE(6TD) 6-LEAF 		8-98079-885-0 01 1 1211- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 6-LEAF 		8-98079-887-0 01 1 1109-1210 ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. TAIWAN EQUIPMENT(B04) SOFT RIDE SUSPENSION SYSTEM(FE1) G.V.W. 3.0-3.5TON(RPP) EXC. REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD) 6-LEAF 		8-98079-887-0 01 1 1211- ●
2 07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. TURKEY EQUIPMENT(B11) G.V.W. 3.5-4.0TON(RPQ) EXC. SOFT RIDE SUSPENSION SYSTEM(FE1), SINGLE RR TIRE(6TD) 6-LEAF 		8-98079-887-0 01 1 1211- ●
14 07.389 NUT; S/ABS,UPR
M10 		8-94317-772-0 02 1 1109-1210 ●
14 07.389 NUT; S/ABS,UPR
M10 		8-94317-772-0 02 1 1211- ● ●
17 07.388 BUSHING; RUBBER,S/ABS
TOKICO 		9-51631-603-0 04 1 1109-1210 ●
17 07.388 BUSHING; RUBBER,S/ABS
TOKICO 		9-51631-603-0 04 1 1211- ● ●
62 07.345 ABSORBER ASM; SHOCK,FRT
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98085-708-1 02 1 1211- ●
62 07.345 ABSORBER ASM; SHOCK,FRT 8-98085-708-1 02 1 1211- ●
62 07.345 ABSORBER ASM; SHOCK,FRT 8-98085-709-1 02 1 1109-1210 ●
62 07.345 ABSORBER ASM; SHOCK,FRT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98085-709-1 02 1 1211-1506 ●
62 07.345 ABSORBER ASM; SHOCK,FRT
BEST VALUE PARTS 		5-87610-159-0 02 1 1204-1204 ●
62 07.345 ABSORBER ASM; SHOCK,FRT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> BEST VALUE PARTS 		5-87610-159-0 02 1 1205-1506 ●
62 07.345 ABSORBER ASM; SHOCK,FRT
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98316-235-0 02 1 1507- ●
65 07.347 WASHER; S/ABS
(A) ID=17 OD=32 		0-91614-616-0 02 1 1109-1210 ●
65 07.347 WASHER; S/ABS
(A) ID=17 OD=32 		0-91614-616-0 02 1 1211- ● ●
65 07.347 WASHER; S/ABS
07.245 (B) ID=10.5 OD=38 		9-51631-062-0 04 1 1109-1210 ●
65 07.347 WASHER; S/ABS
07.245 (B) ID=10.5 OD=38 		9-51631-062-0 04 1 1211- ● ●
65 07.347 WASHER; S/ABS
(C) ID=12.5 		9-51679-022-0 02 1 1109-1210 ●
65 07.347 WASHER; S/ABS
(C) ID=12.5 		9-51679-022-0 02 1 1211- ● ●
68 07.388 BUSHING; S/ABS
07.347 TOKICO 		8-94224-694-0 02 1 1109-1210 ●
68 07.388 BUSHING; S/ABS
07.347 TOKICO 		8-94224-694-0 02 1 1211- ● ●
103 07.347 NUT; S/ABS TO LWR LINK
04.439 M12 		0-91111-512-0 02 1 1109-1210 ●
103 07.347 NUT; S/ABS TO LWR LINK
04.439 M12 		0-91111-512-0 02 1 1211- ● ●
168 07.380 BRACKET; S/ABS,FRT SUSP
DISC BRAKE FRT<J52> 		8-98002-082-1 01 1 1211- ●
168 07.380 BRACKET; S/ABS,FRT SUSP 8-98002-082-1 01 1 1211- ●
168 07.380 BRACKET; S/ABS,FRT SUSP
DISC BRAKE FRT<J52> 		8-98002-083-0 01 1 1211- ●
168 07.380 BRACKET; S/ABS,FRT SUSP 8-98002-083-0 01 1 1211- ●
168 07.380 BRACKET; S/ABS,FRT SUSP 8-98002-080-1 01 1 1109-1210 ●
168 07.380 BRACKET; S/ABS,FRT SUSP
EXC. DISC BRAKE FRT<J52> 		8-98002-080-1 01 1 1211- ●
168 07.380 BRACKET; S/ABS,FRT SUSP 8-98002-081-0 01 1 1109-1210 ●
168 07.380 BRACKET; S/ABS,FRT SUSP
EXC. DISC BRAKE FRT<J52> 		8-98002-081-0 01 1 1211- ●
171 07.395 BOLT; S/ABS BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 08 1 1109-1210 ●
171 07.395 BOLT; S/ABS BRKT
00.029 M10X30 FLANGE 		0-28651-030-0 08 1 1211- ● ●
173 07.395 NUT; S/ABS
03.162 M10 FLANGE 		0-91180-110-0 08 1 1109-1210 ●
173 07.395 NUT; S/ABS
03.162 M10 FLANGE 		0-91180-110-0 08 1 1211- ● ●
183 07.436 SHACKLE; FRT SUSP 8-98034-341-0 04 1 1109-1210 ●
183 07.436 SHACKLE; FRT SUSP 8-98034-341-0 04 1 1211- ● ●
185 07.427 WASHER; LK,PIN
ID=16.5 		8-98011-489-0 04 1 1109-1210 ●
185 07.427 WASHER; LK,PIN
ID=16.5 		8-98011-489-0 04 1 1211- ● ●
188 07.436 RUBBER; CLAMP,U-BOLT,FRT SPR 8-98033-515-0 02 1 1109-1210 ●
188 07.436 RUBBER; CLAMP,U-BOLT,FRT SPR 8-98033-515-0 02 1 1211- ● ●
191 07.417 U-BOLT; FRT SPR
FRONT STABILIZER SHAFT<F59> G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) L=115 		8-97304-075-1 02 1 1211- ●
191 07.417 U-BOLT; FRT SPR
L=115 		8-97304-075-1 02 1 1211- ●
191 07.417 U-BOLT; FRT SPR
G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) EXC. FRONT STABILIZER SHAFT<F59> L=105 		8-97304-074-1 04 1 1211- ●
191 07.417 U-BOLT; FRT SPR
L=105 		8-97304-074-1 04 1 1109-1210 ●
191 07.417 U-BOLT; FRT SPR
FRONT STABILIZER SHAFT<F59> G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) L=105 		8-97304-074-1 02 1 1211-1510 ●
191 07.417 U-BOLT; FRT SPR
L=105 		8-97304-074-1 02 1 1211-1510 ●
191 07.417 U-BOLT; FRT SPR
FRONT STABILIZER SHAFT<F59> L=105 		8-97304-074-1 02 1 1511- ●
191 07.417 U-BOLT; FRT SPR
L=105 		8-97304-074-1 02 1 1511- ●
192 07.436 PIECE; DIST
SINGLE RR TIRE(6TD) 07.425 		8-94249-413-1 02 1 1211- ●
193 07.417 NUT; U BOLT
06.174 M14 FLANGE 		8-97360-124-0 08 1 1109-1210 ●
193 07.417 NUT; U BOLT
06.174 M14 FLANGE 		8-97360-124-0 08 1 1211- ● ●
197 07.427 PIN; FRT SPR,FRT 8-94117-900-1 02 1 1109-1210 ●
197 07.427 PIN; FRT SPR,FRT 8-94117-900-1 02 1 1211-1405 ● ●
197 07.427 PIN; FRT SPR,FRT
G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) 		8-94117-900-1 02 1 1406- ●
197 07.427 PIN; FRT SPR,FRT 8-94117-900-1 02 1 1406- ●
199 07.427 BOLT
00.029 M10X25 FLANGE 		0-28651-025-0 02 1 1109-1210 ●
199 07.427 BOLT
00.029 M10X25 FLANGE 		0-28651-025-0 02 1 1211- ● ●
201 07.427 NUT; PIN LK
06.509 (B) M16 		0-91110-516-0 04 1 1109-1210 ●
201 07.427 NUT; PIN LK
06.509 (B) M16 		0-91110-516-0 04 1 1211- ● ●
201 07.427 NUT; PIN LK
(A) M16 FLANGE 		8-97360-125-0 02 1 1109-1210 ●
201 07.427 NUT; PIN LK
(A) M16 FLANGE 		8-97360-125-0 02 1 1211- ● ●
501 07.413 BUSHING; LEAF SPR,FRT
G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) 07.105 		8-97081-531-0 04 1 1406-1510 ●
501 07.413 BUSHING; LEAF SPR,FRT
07.105 		8-97081-531-0 04 1 1406-1510 ●
501 07.413 BUSHING; LEAF SPR,FRT
07.105 		8-97081-531-0 04 1 1511- ● ●
501 07.413 BUSHING; LEAF SPR,FRT
07.105 		8-97081-531-0 12 1 1109-1210 ●
501 07.413 BUSHING; LEAF SPR,FRT
07.105 		8-97081-531-0 12 1 1211-1405 ● ●
501 07.413 BUSHING; LEAF SPR,FRT
07.105 		8-97081-531-0 08 1 1406- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
