4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#51351) — 208 parça

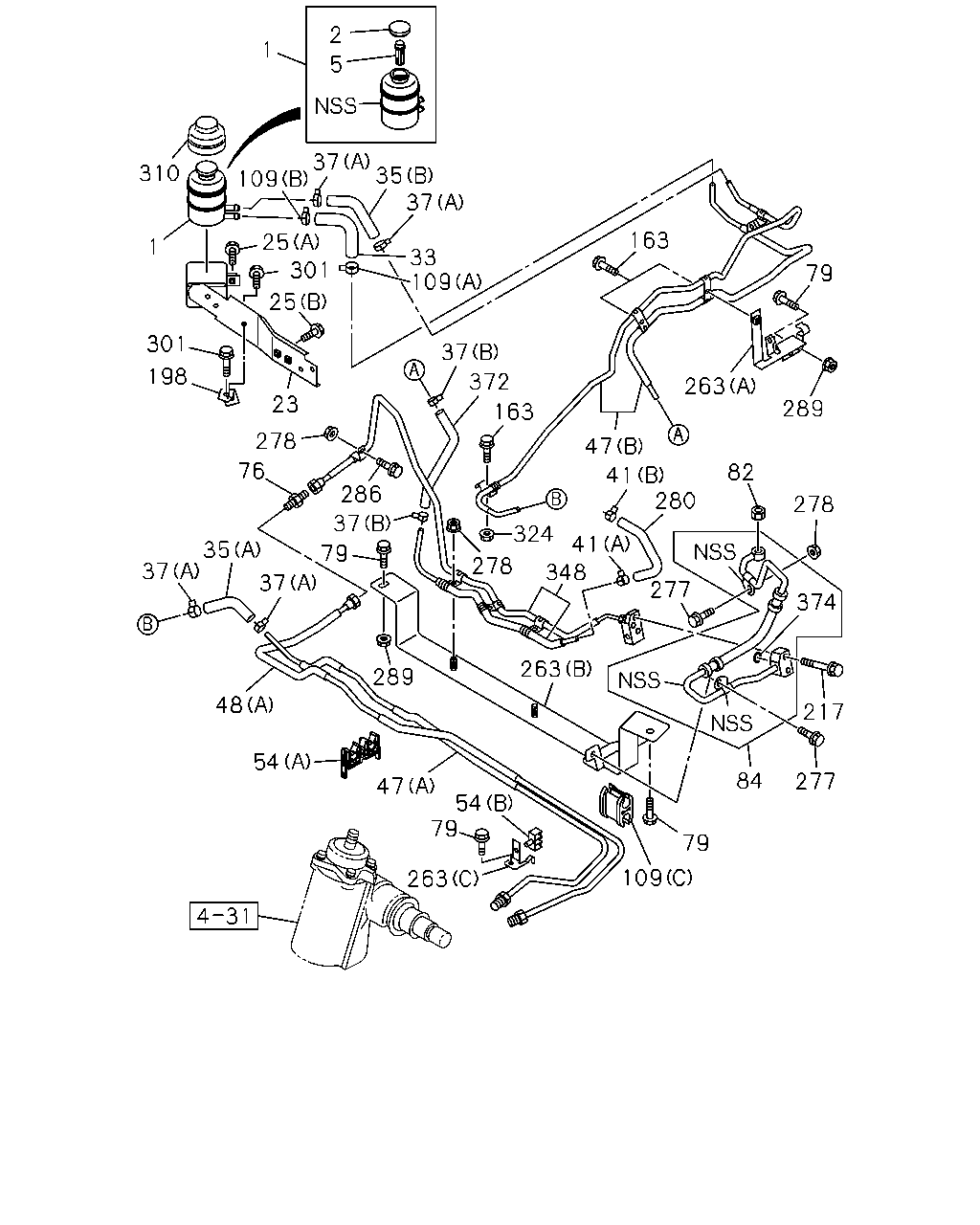

1 310 109 37 35 37 33 109 37 1 301 198 37 35 76 278 23 372 163 163 263 79 289 82 47 286 37 79 37 48 54 289 47 25 25 301 324 278 41 41 280 278 277 348 263 54 79 263 79 84 277 217 374 2 5 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	1109-1210	●
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	1211-	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	1109-1210	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	1211-	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1109-1210	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1211-	●	●
23	06.672 BRACKET; OIL TANK,P/S	8-98053-625-2	01	1	1109-1210	●
23	06.672 BRACKET; OIL TANK,P/S	8-98053-625-2	01	1	1211-	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	1109-1210	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	1211-	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1109-1210	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1211-	●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-98054-267-0	01	1	1109-1210	●
33	06.672 HOSE; RUBBER,POWER STRG	8-98054-267-0	01	1	1211-	●	●
35	06.671 HOSE; RETURN,P/S TANK (A) L=150	0-09809-150-0	01	1	1109-1210	●
35	06.671 HOSE; RETURN,P/S TANK (A) L=150	0-09809-150-0	01	1	1211-	●	●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98054-265-0	01	1	1109-1210	●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98054-265-0	01	1	1211-	●	●
37	01.762 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	02	1	1109-1210	●
37	01.762 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	02	1	1211-	●	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	1109-1210	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	1109-1210	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	1211-	●	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	1211-	●	●
41	06.672 CLIP; HOSE,P/S 08.846 (A) ID=21.7	8-97203-074-0	01	1	1109-1210	●
41	06.672 CLIP; HOSE,P/S 08.846 (A) ID=21.7	8-97203-074-0	01	1	1211-	●	●
41	06.672 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	01	1	1109-1210	●
41	06.672 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	01	1	1211-	●	●
47	06.671 PIPE; RETURN (A)	8-98125-312-0	01	1	1109-1210	●
47	06.671 PIPE; RETURN (A)	8-98125-312-0	01	1	1211-	●	●
47	06.671 PIPE; RETURN (B)	8-98174-013-0	01	1	1109-1210	●
47	06.671 PIPE; RETURN (B)	8-98174-013-0	01	1	1211-	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT (A) L=1337	8-98125-313-0	01	1	1109-1210	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT (A) L=1337	8-98125-313-0	01	1	1211-	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT (B)	8-98250-106-0	01	1	1401-	●	●
54	06.672 CLIP; OIL PIPE 04.930 (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1109-1210	●
54	06.672 CLIP; OIL PIPE 04.930 (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1211-	●	●
54	06.672 CLIP; OIL PIPE 04.128 (B) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	1109-1210	●
54	06.672 CLIP; OIL PIPE 04.128 (B) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	1211-	●	●
76	06.673 UNION; OIL PIPE M16 STRAIGHT L=42	0-92123-010-0	01	1	1109-1210	●
76	06.673 UNION; OIL PIPE M16 STRAIGHT L=42	0-92123-010-0	01	1	1211-	●	●
79	06.672 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1109-1210	●
79	06.672 BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1211-	●	●
79	06.672 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1211-	●	●
79	06.672 BOLT; BRKT 07.395 M12X30 FLANGE	0-28651-230-0	02	1	1109-1210	●
79	06.672 BOLT; BRKT 07.395 M12X30 FLANGE	0-28651-230-0	02	1	1211-	●	●
82	06.672 NUT; FLEX HOSE,P/S 06.606 M12 SELF LOCK	8-97028-390-1	01	1	1109-1210	●
82	06.672 NUT; FLEX HOSE,P/S 06.606 M12 SELF LOCK	8-97028-390-1	01	1	1211-	●	●
84	06.670 HOSE; FLEX,P/S	8-98095-050-0	01	1	1109-1210	●
84	06.670 HOSE; FLEX,P/S	8-98095-050-0	01	1	1211-1312	●	●
84	06.670 HOSE; FLEX,P/S	8-98250-111-0	01	1	1401-	●	●
109	06.672 CLIP; RUBBER HOSE (C) ID=10X2 H=22	8-94252-455-2	01	1	1109-1210	●
109	06.672 CLIP; RUBBER HOSE (C) ID=10X2 H=22	8-94252-455-2	01	1	1211-	●	●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1109-1210	●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1211-	●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	1109-1210	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	1211-	●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1109-1210	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1211-	●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1109-1210	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1211-	●	●
198	06.672 STAY; OIL TANK,POWER STEERING TAIWAN EQUIPMENT(B04)	8-98082-763-0	01	1	1211-	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-98082-763-0	01	1	1211-		●
198	06.672 STAY; OIL TANK,POWER STEERING	8-98011-885-1	01	1	1109-1210	●
198	06.672 STAY; OIL TANK,POWER STEERING EXC. TAIWAN EQUIPMENT(B04)	8-98011-885-1	01	1	1211-	●
217	06.672 BOLT; FLEX HOSE,P/S 03.162 M6X35 FLANGE	0-28650-635-0	02	1	1109-1210	●
217	06.672 BOLT; FLEX HOSE,P/S 03.162 M6X35 FLANGE	0-28650-635-0	02	1	1211-	●	●
263	06.672 BRACKET; P/S PIPE (A)	8-98008-078-0	01	1	1109-1210	●
263	06.672 BRACKET; P/S PIPE (A)	8-98008-078-0	01	1	1211-	●	●
263	06.672 BRACKET; P/S PIPE (C)	8-98063-136-0	01	1	1109-1210	●
263	06.672 BRACKET; P/S PIPE (C)	8-98063-136-0	01	1	1211-	●	●
263	06.672 BRACKET; P/S PIPE (B)	8-98094-949-1	01	1	1109-1210	●
263	06.672 BRACKET; P/S PIPE (B)	8-98094-949-1	01	1	1211-1312	●	●
263	06.672 BRACKET; P/S PIPE (D)	8-98250-108-0	01	1	1401-	●	●
277	06.672 BOLT; HOSE CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1109-1210	●
277	06.672 BOLT; HOSE CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1211-	●	●
277	06.672 BOLT; HOSE CLIP 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1109-1210	●
277	06.672 BOLT; HOSE CLIP 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1211-1312	●	●
278	06.670 NUT; HOSE CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	1109-1210	●
278	06.670 NUT; HOSE CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	1109-1210	●
278	06.670 NUT; HOSE CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	1211-	●	●
278	06.670 NUT; HOSE CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	1211-	●	●
280	06.672 HOSE; P/S OIL PUMP,INL	8-98041-245-2	01	1	1109-1210	●
280	06.672 HOSE; P/S OIL PUMP,INL	8-98041-245-2	01	1	1211-	●	●
286	06.672 BOLT; CLIP,P/S HOSE 03.403 M8X30 FLANGE	0-28650-830-0	01	1	1109-1210	●
286	06.672 BOLT; CLIP,P/S HOSE 03.403 M8X30 FLANGE	0-28650-830-0	01	1	1211-	●	●
289	06.673 NUT; BRKT,POWER STRG 01.062 M8 FLANGE	0-91180-108-0	01	1	1109-1210	●
289	06.673 NUT; BRKT,POWER STRG EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	1211-	●	●
289	06.673 NUT; BRKT,POWER STRG 02.042 M12 FLANGE	0-91180-112-0	01	1	1109-1210	●
289	06.673 NUT; BRKT,POWER STRG 02.042 M12 FLANGE	0-91180-112-0	01	1	1211-	●	●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1109-1210	●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1211-	●	●
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	1109-1210	●
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	1211-	●	●
324	06.660 NUT; OIL PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	1109-1210	●
324	06.660 NUT; OIL PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	1211-	●	●
348	06.671 PIPE; OIL,P/S PRESS	8-98156-807-0	01	1	1109-1210	●
348	06.671 PIPE; OIL,P/S PRESS	8-98156-807-0	01	1	1211-1312	●	●
348	06.671 PIPE; OIL,P/S PRESS	8-98250-107-0	01	1	1401-	●	●
372	06.673 HOSE; RUBBER	8-98054-269-0	01	1	1109-1210	●
372	06.673 HOSE; RUBBER	8-98054-269-0	01	1	1211-1312	●	●
372	06.673 HOSE; RUBBER 06.670 L=180 SERVICED BY L=300	0-09814-300-0	01	1	1401-	●	●
374	06.673 GASKET; HOSE,P/S	8-98139-036-0	01	1	1109-1210	●
374	06.673 GASKET; HOSE,P/S	8-98139-036-0	01	1	1211-	●	●

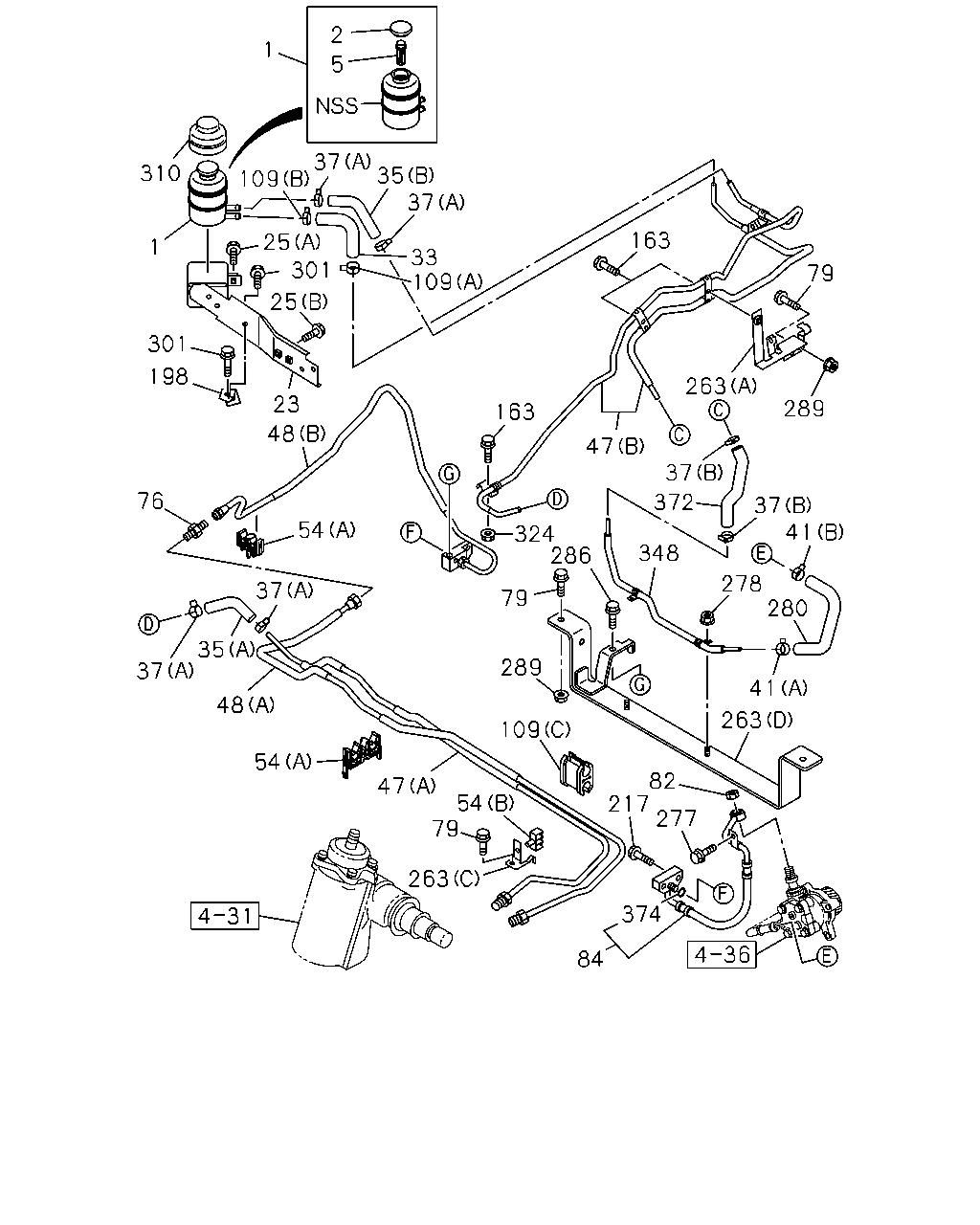

1 2 5 310 109 37 35 37 33 109 1 25 301 25 301 23 198 48 76 54 37 35 37 48 54 47 263 79 54 217 277 374 82 263 280 41 37 289 79 163 263 163 47 37 372 324 79 348 278 41 289 109 286 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	1109-1210	●
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	1211-	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	1109-1210	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	1211-	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1109-1210	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	1211-	●	●
23	06.672 BRACKET; OIL TANK,P/S	8-98053-625-2	01	1	1109-1210	●
23	06.672 BRACKET; OIL TANK,P/S	8-98053-625-2	01	1	1211-	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	1109-1210	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	1211-	●	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1109-1210	●
25	06.635 BOLT; OIL TANK BRKT 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	1211-	●	●
33	06.672 HOSE; RUBBER,POWER STRG	8-98054-267-0	01	1	1109-1210	●
33	06.672 HOSE; RUBBER,POWER STRG	8-98054-267-0	01	1	1211-	●	●
35	06.671 HOSE; RETURN,P/S TANK (A) L=150	0-09809-150-0	01	1	1109-1210	●
35	06.671 HOSE; RETURN,P/S TANK (A) L=150	0-09809-150-0	01	1	1211-	●	●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98054-265-0	01	1	1109-1210	●
35	06.671 HOSE; RETURN,P/S TANK (B)	8-98054-265-0	01	1	1211-	●	●
37	01.762 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	02	1	1109-1210	●
37	01.762 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	02	1	1211-	●	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	1109-1210	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	1109-1210	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	1211-	●	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	1211-	●	●
41	06.672 CLIP; HOSE,P/S 08.846 (A) ID=21.7	8-97203-074-0	01	1	1109-1210	●
41	06.672 CLIP; HOSE,P/S 08.846 (A) ID=21.7	8-97203-074-0	01	1	1211-	●	●
41	06.672 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	01	1	1109-1210	●
41	06.672 CLIP; HOSE,P/S 04.681 (B) ID=21	8-98150-355-0	01	1	1211-	●	●
47	06.671 PIPE; RETURN (A)	8-98125-312-0	01	1	1109-1210	●
47	06.671 PIPE; RETURN (A)	8-98125-312-0	01	1	1211-	●	●
47	06.671 PIPE; RETURN (B)	8-98174-013-0	01	1	1109-1210	●
47	06.671 PIPE; RETURN (B)	8-98174-013-0	01	1	1211-	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT (A) L=1337	8-98125-313-0	01	1	1109-1210	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT (A) L=1337	8-98125-313-0	01	1	1211-	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT (B)	8-98250-106-0	01	1	1401-	●	●
54	06.672 CLIP; OIL PIPE 04.930 (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1109-1210	●
54	06.672 CLIP; OIL PIPE 04.930 (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	1211-	●	●
54	06.672 CLIP; OIL PIPE 04.128 (B) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	1109-1210	●
54	06.672 CLIP; OIL PIPE 04.128 (B) ID=10 OR 12X2 & 4.76	8-98058-323-0	01	1	1211-	●	●
76	06.673 UNION; OIL PIPE M16 STRAIGHT L=42	0-92123-010-0	01	1	1109-1210	●
76	06.673 UNION; OIL PIPE M16 STRAIGHT L=42	0-92123-010-0	01	1	1211-	●	●
79	06.672 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1109-1210	●
79	06.672 BOLT; BRKT TRANSMISSION CONTROL-SMOOTHER(8GF) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1211-	●	●
79	06.672 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1211-	●	●
79	06.672 BOLT; BRKT 07.395 M12X30 FLANGE	0-28651-230-0	02	1	1109-1210	●
79	06.672 BOLT; BRKT 07.395 M12X30 FLANGE	0-28651-230-0	02	1	1211-	●	●
82	06.672 NUT; FLEX HOSE,P/S 06.606 M12 SELF LOCK	8-97028-390-1	01	1	1109-1210	●
82	06.672 NUT; FLEX HOSE,P/S 06.606 M12 SELF LOCK	8-97028-390-1	01	1	1211-	●	●
84	06.670 HOSE; FLEX,P/S	8-98095-050-0	01	1	1109-1210	●
84	06.670 HOSE; FLEX,P/S	8-98095-050-0	01	1	1211-1312	●	●
84	06.670 HOSE; FLEX,P/S	8-98250-111-0	01	1	1401-	●	●
109	06.672 CLIP; RUBBER HOSE (C) ID=10X2 H=22	8-94252-455-2	01	1	1109-1210	●
109	06.672 CLIP; RUBBER HOSE (C) ID=10X2 H=22	8-94252-455-2	01	1	1211-	●	●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1109-1210	●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1211-	●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	1109-1210	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	01	1	1211-	●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1109-1210	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1211-	●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1109-1210	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1211-	●	●
198	06.672 STAY; OIL TANK,POWER STEERING TAIWAN EQUIPMENT(B04)	8-98082-763-0	01	1	1211-	●
198	06.672 STAY; OIL TANK,POWER STEERING	8-98082-763-0	01	1	1211-		●
198	06.672 STAY; OIL TANK,POWER STEERING	8-98011-885-1	01	1	1109-1210	●
198	06.672 STAY; OIL TANK,POWER STEERING EXC. TAIWAN EQUIPMENT(B04)	8-98011-885-1	01	1	1211-	●
217	06.672 BOLT; FLEX HOSE,P/S 03.162 M6X35 FLANGE	0-28650-635-0	02	1	1109-1210	●
217	06.672 BOLT; FLEX HOSE,P/S 03.162 M6X35 FLANGE	0-28650-635-0	02	1	1211-	●	●
263	06.672 BRACKET; P/S PIPE (A)	8-98008-078-0	01	1	1109-1210	●
263	06.672 BRACKET; P/S PIPE (A)	8-98008-078-0	01	1	1211-	●	●
263	06.672 BRACKET; P/S PIPE (C)	8-98063-136-0	01	1	1109-1210	●
263	06.672 BRACKET; P/S PIPE (C)	8-98063-136-0	01	1	1211-	●	●
263	06.672 BRACKET; P/S PIPE (B)	8-98094-949-1	01	1	1109-1210	●
263	06.672 BRACKET; P/S PIPE (B)	8-98094-949-1	01	1	1211-1312	●	●
263	06.672 BRACKET; P/S PIPE (D)	8-98250-108-0	01	1	1401-	●	●
277	06.672 BOLT; HOSE CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1109-1210	●
277	06.672 BOLT; HOSE CLIP 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1211-	●	●
277	06.672 BOLT; HOSE CLIP 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1109-1210	●
277	06.672 BOLT; HOSE CLIP 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1211-1312	●	●
278	06.670 NUT; HOSE CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	1109-1210	●
278	06.670 NUT; HOSE CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	1109-1210	●
278	06.670 NUT; HOSE CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	1211-	●	●
278	06.670 NUT; HOSE CLIP 01.062 M8 FLANGE	0-91180-108-0	02	1	1211-	●	●
280	06.672 HOSE; P/S OIL PUMP,INL	8-98041-245-2	01	1	1109-1210	●
280	06.672 HOSE; P/S OIL PUMP,INL	8-98041-245-2	01	1	1211-	●	●
286	06.672 BOLT; CLIP,P/S HOSE 03.403 M8X30 FLANGE	0-28650-830-0	01	1	1109-1210	●
286	06.672 BOLT; CLIP,P/S HOSE 03.403 M8X30 FLANGE	0-28650-830-0	01	1	1211-	●	●
289	06.673 NUT; BRKT,POWER STRG 01.062 M8 FLANGE	0-91180-108-0	01	1	1109-1210	●
289	06.673 NUT; BRKT,POWER STRG EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) 01.062 M8 FLANGE	0-91180-108-0	01	1	1211-	●	●
289	06.673 NUT; BRKT,POWER STRG 02.042 M12 FLANGE	0-91180-112-0	01	1	1109-1210	●
289	06.673 NUT; BRKT,POWER STRG 02.042 M12 FLANGE	0-91180-112-0	01	1	1211-	●	●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1109-1210	●
301	06.672 BOLT; STAY,OIL TANK 06.216 M8X25 FLANGE	0-28650-825-0	02	1	1211-	●	●
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	1109-1210	●
310	06.672 COVER; OIL TANK	8-97103-394-0	01	1	1211-	●	●
324	06.660 NUT; OIL PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	1109-1210	●
324	06.660 NUT; OIL PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	1211-	●	●
348	06.671 PIPE; OIL,P/S PRESS	8-98156-807-0	01	1	1109-1210	●
348	06.671 PIPE; OIL,P/S PRESS	8-98156-807-0	01	1	1211-1312	●	●
348	06.671 PIPE; OIL,P/S PRESS	8-98250-107-0	01	1	1401-	●	●
372	06.673 HOSE; RUBBER	8-98054-269-0	01	1	1109-1210	●
372	06.673 HOSE; RUBBER	8-98054-269-0	01	1	1211-1312	●	●
372	06.673 HOSE; RUBBER 06.670 L=180 SERVICED BY L=300	0-09814-300-0	01	1	1401-	●	●
374	06.673 GASKET; HOSE,P/S	8-98139-036-0	01	1	1109-1210	●
374	06.673 GASKET; HOSE,P/S	8-98139-036-0	01	1	1211-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
