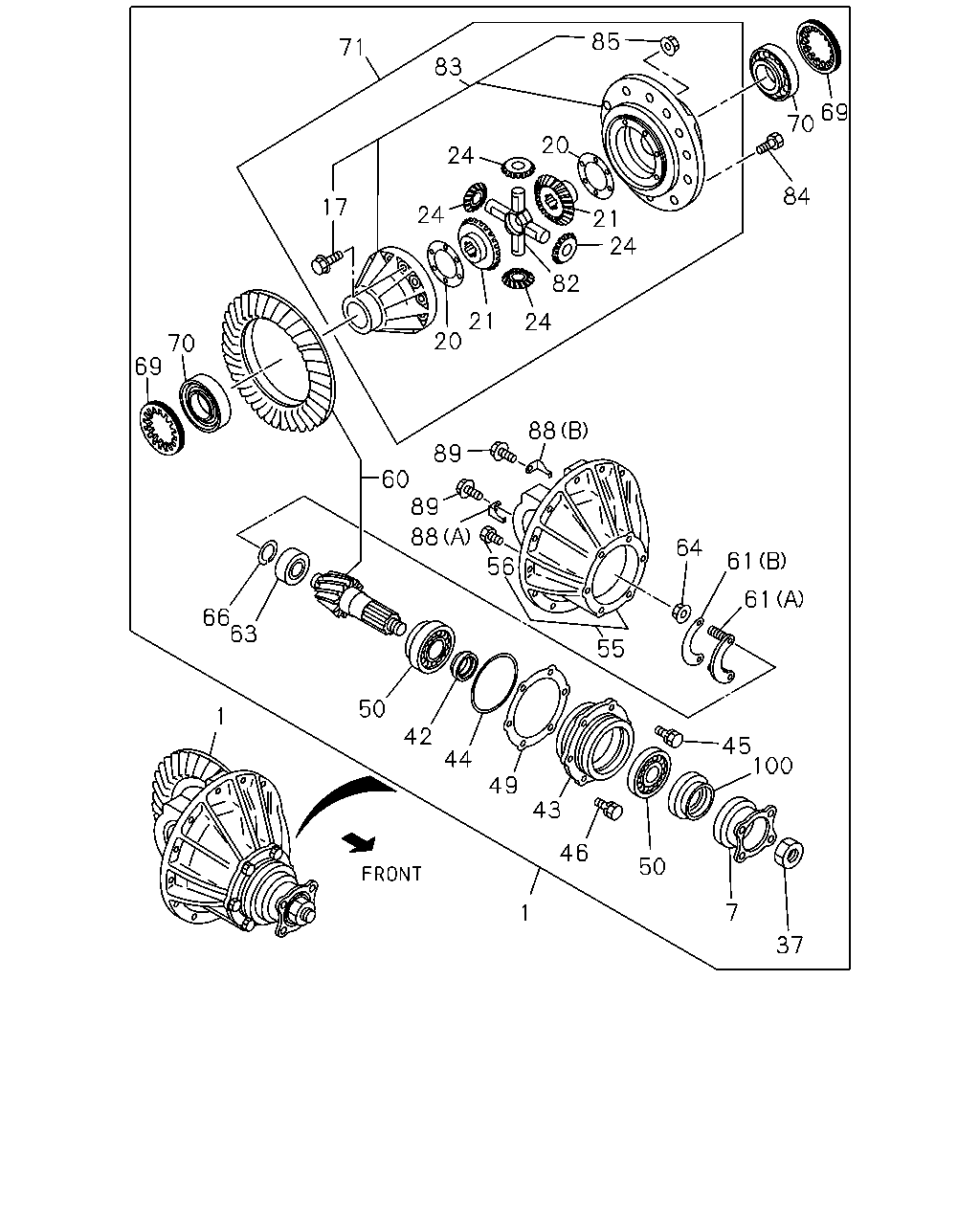

4-25 — REAR FINAL DRIVE (#51347) — 88 parça

37 7 50 46 43 49 44 42 50 1 1 63 66 100 45 61 61 64 55 88 89 60 89 88 56 24 82 24 21 20 85 83 24 24 21 20 17 71 84 70 69 70 69

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 43/10(S7C) 43/10	8-98015-136-0	01	1	1211-	●	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/9(HC6) 41/9	8-98015-137-0	01	1	1211-		●
1	05.505 DRIVE ASM; FINAL,RR 41/10	8-98015-135-0	01	1	1109-1210	●
1	05.505 DRIVE ASM; FINAL,RR FINAL GEAR RATIO 41/10(GT5) 41/10	8-98015-135-0	01	1	1211-	●
7	05.545 FLANGE; FINAL	8-94477-723-4	01	1	1109-1210	●
7	05.545 FLANGE; FINAL	8-94477-723-4	01	1	1211-	●	●
17	05.510 BOLT; DIFF CAGE SETTING M10X75 FLANGE	8-97232-161-0	12	1	1109-1210	●
17	05.510 BOLT; DIFF CAGE SETTING M10X75 FLANGE	8-97232-161-0	12	1	1211-	●	●
20	05.543 WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	1109-1210	●
20	05.543 WASHER; THRUST,SIDE GEAR T=1.40	9-41562-601-0	02	1	1211-	●	●
21	05.528 GEAR; SIDE,DIFF 05.515 Z=20	8-97362-599-0	02	1	1109-1210	●
21	05.528 GEAR; SIDE,DIFF 05.515 Z=20	8-97362-599-1	02	1	1211-	●	●
24	05.526 GEAR; PINION,DIFF Z=10	8-98015-202-0	04	1	1109-1210	●
24	05.526 GEAR; PINION,DIFF Z=10	8-98015-202-0	04	1	1211-	●	●
37	05.595 NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	1109-1210	●
37	05.595 NUT; DRIVING PINION M24 FLANGE	8-94329-526-1	01	1	1211-	●	●
42	05.453 COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	1109-1210	●
42	05.453 COLLAR; DIST,COLLAPSIBLE L=19.6	9-41219-603-1	01	1	1211-	●	●
43	05.453 CAGE; FINAL PINION	8-94400-890-0	01	1	1109-1210	●
43	05.453 CAGE; FINAL PINION	8-94400-890-0	01	1	1211-	●	●
44	05.476 GASKET; PINION CAGE 05.458	9-09720-505-0	01	1	1109-1210	●
44	05.476 GASKET; PINION CAGE 05.458	9-09720-505-0	01	1	1211-	●	●
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50551-238-0	05	1	1109-1210	●
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	0-50551-238-0	05	1	1211-1311	●	●
45	05.453 BOLT; FINAL PINION CAGE M12X38 W/LK WASHER	8-98221-264-0	05	1	1312-	●	●
46	05.453 BOLT M14X35 W/LK WASHER	0-50551-435-0	01	1	1109-1210	●
46	05.453 BOLT M14X35 W/LK WASHER	0-50551-435-0	01	1	1211-	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.10	8-94401-335-0	AR	1	1109-1210	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.10	8-94401-335-0	AR	1	1211-	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.12	8-94401-336-0	AR	1	1109-1210	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.12	8-94401-336-0	AR	1	1211-	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.14	8-94401-337-0	AR	1	1109-1210	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.14	8-94401-337-0	AR	1	1211-	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.16	8-94401-338-0	AR	1	1109-1210	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.16	8-94401-338-0	AR	1	1211-	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.18	8-94401-339-0	AR	1	1109-1210	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.18	8-94401-339-0	AR	1	1211-	●	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.20	8-94401-340-0	AR	1	1109-1210	●
49	05.458 SHIM; FINAL PINION CAGE ID=132 T=0.20	8-94401-340-0	AR	1	1211-	●	●
50	05.447 BEARING; FINAL PINION 05.484 JTEKT	5-09812-062-1	02	1	1109-1210	●
50	05.447 BEARING; FINAL PINION 05.484 JTEKT	5-09812-062-1	02	1	1211-	●	●
50	05.447 BEARING; FINAL PINION 05.484 NSK	5-09812-063-0	02	1	1109-1210	●
50	05.447 BEARING; FINAL PINION 05.484 NSK	5-09812-063-0	02	1	1211-	●	●
55	05.505 CARRIER; DIFF	8-97307-760-0	01	1	1109-1210	●
55	05.505 CARRIER; DIFF	8-97307-760-0	01	1	1211-	●	●
56	05.506 BOLT; BRG CAP 05.387 M14X80	8-94365-377-3	04	1	1109-1210	●
56	05.506 BOLT; BRG CAP 05.387 M14X80	8-94365-377-3	04	1	1211-	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/10(S7C) 43/10	8-97319-155-0	01	1	1211-1311	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 43/10(S7C) 43/10	8-98092-052-0	01	1	1312-	●	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/9(HC6) 41/9	8-97319-156-0	01	1	1211-1311		●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/9(HC6) 41/9	8-98092-049-0	01	1	1312-		●
60	05.529 GEAR SET; FINAL DRIVE,RR 41/10	8-97319-153-0	01	1	1109-1210	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/10(GT5) 41/10	8-97319-153-0	01	1	1211-1311	●
60	05.529 GEAR SET; FINAL DRIVE,RR FINAL GEAR RATIO 41/10(GT5) 41/10	8-98092-055-0	01	1	1312-	●
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	5-41227-001-0	01	1	1109-1210	●
61	05.476 RETAINER; PILOT BRG,PINION (A) W/STUD	5-41227-001-0	01	1	1211-	●	●
61	05.476 RETAINER; PILOT BRG,PINION (B)	9-41227-601-0	01	1	1109-1210	●
61	05.476 RETAINER; PILOT BRG,PINION (B)	9-41227-601-0	01	1	1211-	●	●
63	05.447 BEARING; PINION PILOT NSK	5-09810-008-1	01	1	1109-1210	●
63	05.447 BEARING; PINION PILOT NSK	5-09810-008-1	01	1	1211-	●	●
63	05.447 BEARING; PINION PILOT JTEKT	8-97107-548-0	01	1	1109-1210	●
63	05.447 BEARING; PINION PILOT JTEKT	8-97107-548-0	01	1	1211-	●	●
64	05.476 NUT; RET 01.062 M6 FLANGE	0-91180-106-0	02	1	1109-1210	●
64	05.476 NUT; RET 01.062 M6 FLANGE	0-91180-106-0	02	1	1211-	●	●
66	05.476 RING; SNAP,PILOT BRG	9-09752-002-0	01	1	1109-1210	●
66	05.476 RING; SNAP,PILOT BRG	9-09752-002-0	01	1	1211-	●	●
69	05.506 NUT; ADJ,DIFF CAGE M110 H=10	5-41121-001-0	02	1	1109-1210	●
69	05.506 NUT; ADJ,DIFF CAGE M110 H=10	5-41121-001-0	02	1	1211-	●	●
70	05.536 BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	1109-1210	●
70	05.536 BEARING; DIFF CAGE NSK	9-00093-602-0	02	1	1211-	●	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE	8-98015-181-0	01	1	1109-1210	●
71	05.510 CAGE ASM; DIFF,FINAL DRIVE	8-98015-181-1	01	1	1211-	●	●
82	05.517 SPIDER; DIFF PINION 05.520	5-41521-008-0	01	1	1109-1210	●
82	05.517 SPIDER; DIFF PINION 05.520	5-41521-008-0	01	1	1211-	●	●
83	05.510 CAGE ASM; DIFF	8-97319-398-1	01	1	1109-1210	●
83	05.510 CAGE ASM; DIFF	8-97319-398-1	01	1	1211-	●	●
84	05.531 BOLT; FINAL DRIVE GEAR M14X25	8-97318-938-1	12	1	1109-1210	●
84	05.531 BOLT; FINAL DRIVE GEAR M14X25	8-97318-938-1	12	1	1211-	●	●
85	05.510 NUT; DIFF CAGE SETTING 04.085 M10 FLANGE	0-91180-210-0	12	1	1109-1210	●
85	05.510 NUT; DIFF CAGE SETTING 04.085 M10 FLANGE	0-91180-210-0	12	1	1211-	●	●
88	05.506 PLATE; LK,ADJ NUT (A)	8-97027-281-0	AR	1	1109-1210	●
88	05.506 PLATE; LK,ADJ NUT (A)	8-97027-281-0	AR	1	1211-	●	●
88	05.506 PLATE; LK,ADJ NUT (B)	8-97027-282-0	AR	1	1109-1210	●
88	05.506 PLATE; LK,ADJ NUT (B)	8-97027-282-0	AR	1	1211-	●	●
89	05.506 BOLT; LK PLATE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1109-1210	●
89	05.506 BOLT; LK PLATE 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1211-	●	●
100	05.469 SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	1109-1210	●
100	05.469 SEAL; OIL,FINAL PINION OD=103	8-94408-083-0	01	1	1211-	●	●
