4-11 — FRONT HUB AND DRUM OR ROTOR (#51345) — 84 parça

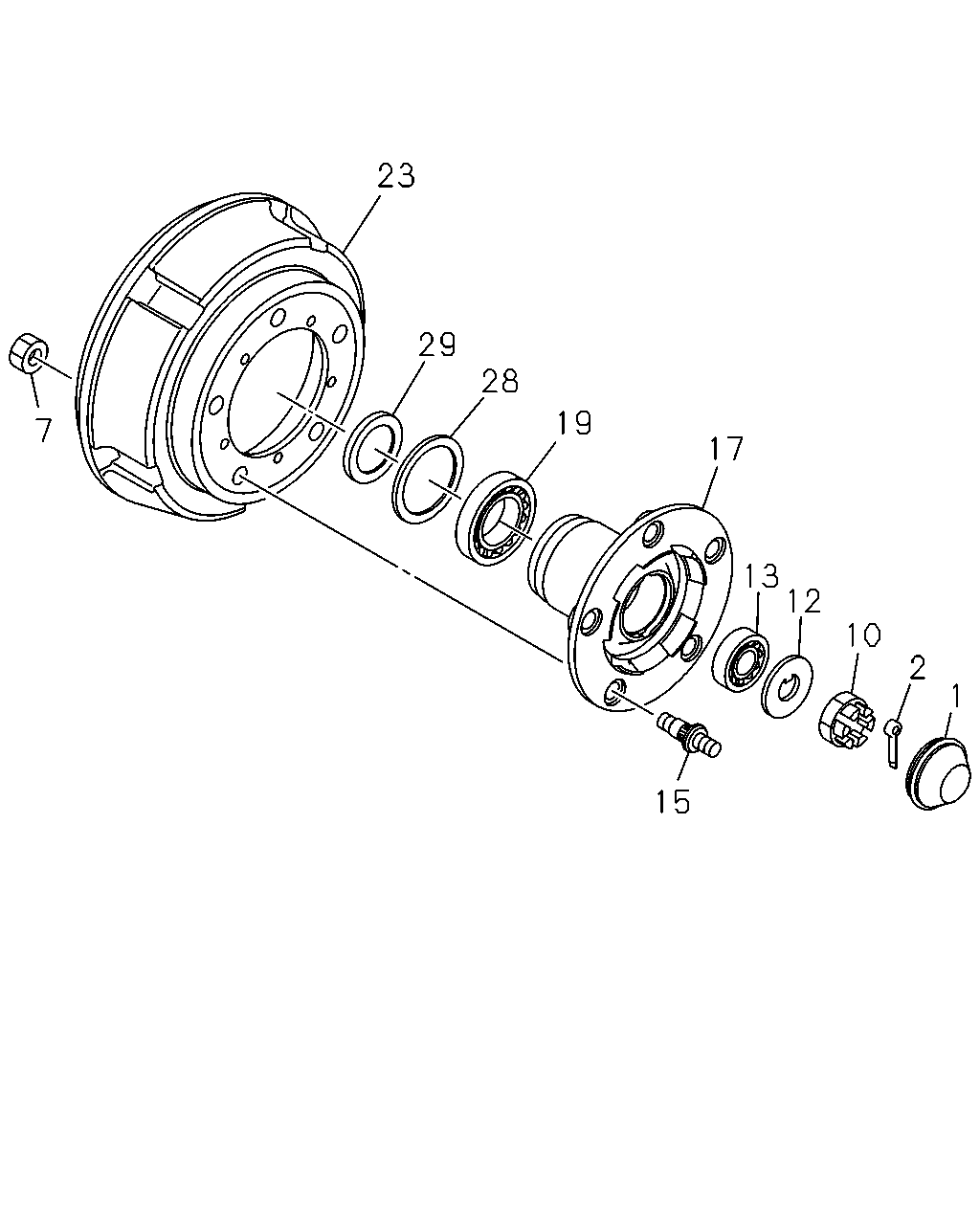

7 23 29 28 19 17 13 12 10 2 1 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	06.330 CAP; HUB,FRT AXLE	8-97360-101-0	02	1	1109-1210	●
1	06.330 CAP; HUB,FRT AXLE	8-97360-101-0	02	1	1211-1407	●	●
1	06.330 CAP; HUB,FRT AXLE	8-98276-604-0	02	1	1408-	●	●
2	05.812 PIN; SPLIT,HUB TO AXLE SHAFT OD=4.6 L=40	0-81125-040-0	02	1	1109-1210	●
2	05.812 PIN; SPLIT,HUB TO AXLE SHAFT OD=4.6 L=40	0-81125-040-0	02	1	1211-	●	●
7	05.812 NUT; FRT HUB M20	0-91110-520-0	10	1	1109-1210	●
7	05.812 NUT; FRT HUB EXC. DISC BRAKE FRT<J52> M20	0-91110-520-0	10	1	1211-	●
10	05.812 NUT; FRT HUB BRG 06.022	8-94247-357-1	02	1	1109-1210	●
10	05.812 NUT; FRT HUB BRG 06.022	8-94247-357-1	02	1	1211-	●	●
12	06.321 WASHER; LK,FRT HUB BRG	8-94247-356-1	02	1	1109-1210	●
12	06.321 WASHER; LK,FRT HUB BRG	8-94247-356-1	02	1	1211-1502	●	●
12	06.321 WASHER; LK,FRT HUB BRG 05.812	8-98282-435-0	02	1	1503-	●	●
13	06.313 BEARING; HUB OUTER,FRT AXLE NSK	9-00093-172-0	02	1	1109-1210	●
13	06.313 BEARING; HUB OUTER,FRT AXLE NSK	9-00093-172-0	02	1	1211-	●	●
13	06.313 BEARING; HUB OUTER,FRT AXLE BEST VALUE PARTS	5-87610-134-0	02	1	1109-1210	●
13	06.313 BEARING; HUB OUTER,FRT AXLE BEST VALUE PARTS	5-87610-134-0	02	1	1211-	●	●
15	05.812 PIN; WHEEL,FRT AXLE DISC BRAKE FRT<J52> M18X46 RH THREAD	8-98028-532-1	05	1	1211-	●
15	05.812 PIN; WHEEL,FRT AXLE M18X46 RH THREAD	8-98028-532-1	05	1	1211-		●
15	05.812 PIN; WHEEL,FRT AXLE DISC BRAKE FRT<J52> M18X46 LH THREAD	8-98028-533-1	05	1	1211-	●
15	05.812 PIN; WHEEL,FRT AXLE M18X46 LH THREAD	8-98028-533-1	05	1	1211-		●
15	05.812 PIN; WHEEL,FRT AXLE M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	1109-1210	●
15	05.812 PIN; WHEEL,FRT AXLE EXC. DISC BRAKE FRT<J52> M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	1211-	●
15	05.812 PIN; WHEEL,FRT AXLE M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	1109-1210	●
15	05.812 PIN; WHEEL,FRT AXLE EXC. DISC BRAKE FRT<J52> M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	1211-	●
17	06.307 HUB; FRT AXLE DISC BRAKE FRT<J52> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97017-193-0	02	1	1211-	●
17	06.307 HUB; FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52>	8-97035-160-0	02	1	1211-	●
17	06.307 HUB; FRT AXLE	8-97035-160-0	02	1	1211-		●
17	06.307 HUB; FRT AXLE	8-94365-459-0	02	1	1109-1210	●
17	06.307 HUB; FRT AXLE EXC. DISC BRAKE FRT<J52>	8-94365-459-0	02	1	1211-	●
19	06.311 BEARING; HUB INNER,FRT AXLE JTEKT	8-98171-254-0	02	1	1109-1210	●
19	06.311 BEARING; HUB INNER,FRT AXLE JTEKT	8-98171-254-0	02	1	1211-	●	●
19	06.311 BEARING; HUB INNER,FRT AXLE BEST VALUE PARTS	1-87610-134-0	02	1	1109-1210	●
19	06.311 BEARING; HUB INNER,FRT AXLE BEST VALUE PARTS	1-87610-134-0	02	1	1211-	●	●
23	05.809 DRUM; BRK,FRT	8-97094-434-2	02	1	1109-1210	●
23	05.809 DRUM; BRK,FRT EXC. DISC BRAKE FRT<J52>	8-97094-434-2	02	1	1211-	●
28	06.326 SEAL; OIL,FRT HUB	8-94248-117-1	02	1	1109-1210	●
28	06.326 SEAL; OIL,FRT HUB	8-94248-117-1	02	1	1211-	●	●
29	06.326 DISTANCE PIECE; HUB BRKT NTN	8-97234-513-0	02	1	1109-1210	●
29	06.326 DISTANCE PIECE; HUB BRKT NTN	8-97234-513-0	02	1	1211-	●	●

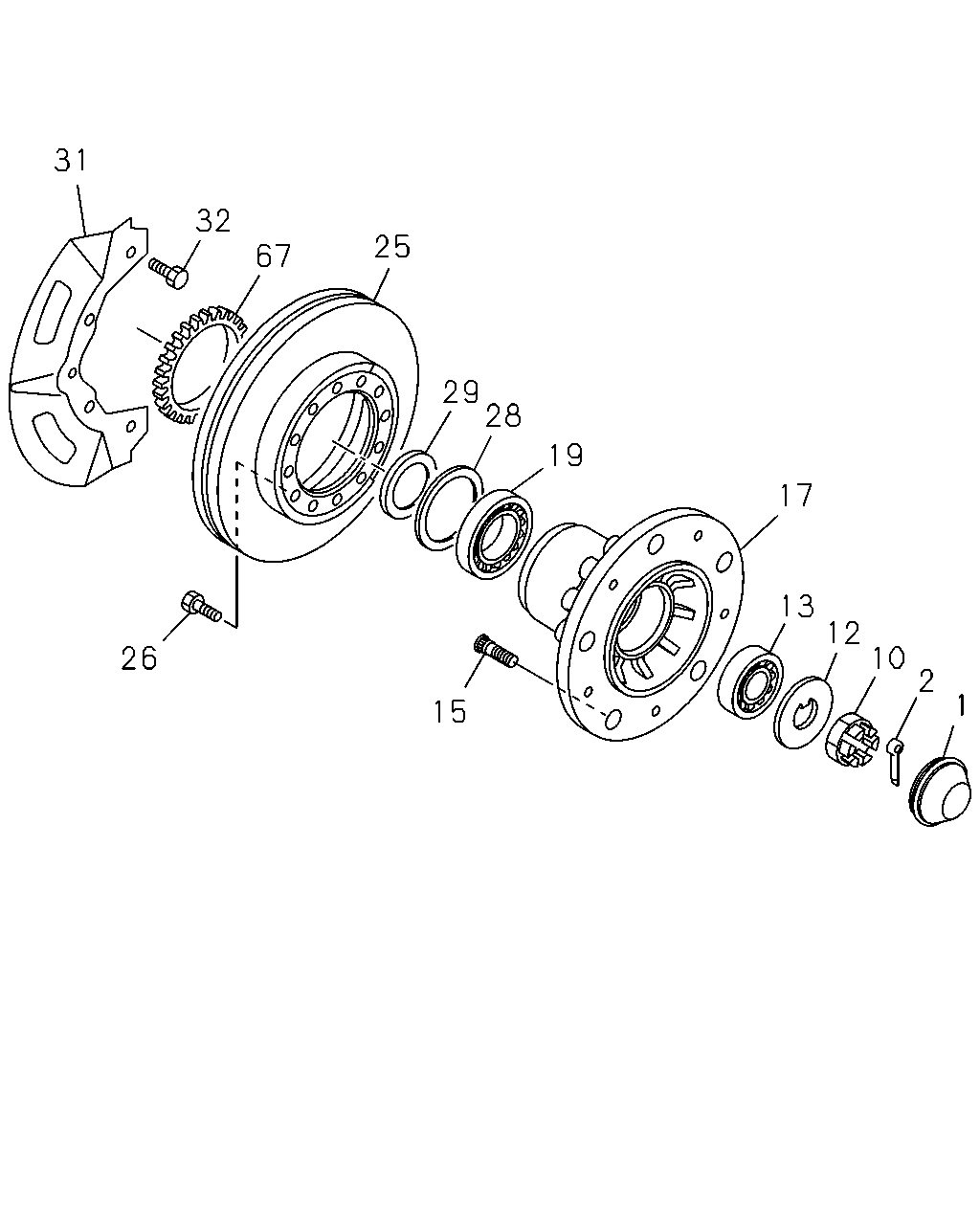

31 32 67 25 29 28 26 15 19 17 13 12 10 2 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	06.330 CAP; HUB,FRT AXLE	8-97360-101-0	02	1	1109-1210	●
1	06.330 CAP; HUB,FRT AXLE	8-97360-101-0	02	1	1211-1407	●	●
1	06.330 CAP; HUB,FRT AXLE	8-98276-604-0	02	1	1408-	●	●
2	05.812 PIN; SPLIT,HUB TO AXLE SHAFT OD=4.6 L=40	0-81125-040-0	02	1	1109-1210	●
2	05.812 PIN; SPLIT,HUB TO AXLE SHAFT OD=4.6 L=40	0-81125-040-0	02	1	1211-	●	●
10	05.812 NUT; FRT HUB BRG 06.022	8-94247-357-1	02	1	1109-1210	●
10	05.812 NUT; FRT HUB BRG 06.022	8-94247-357-1	02	1	1211-	●	●
12	06.321 WASHER; LK,FRT HUB BRG	8-94247-356-1	02	1	1109-1210	●
12	06.321 WASHER; LK,FRT HUB BRG	8-94247-356-1	02	1	1211-1502	●	●
12	06.321 WASHER; LK,FRT HUB BRG 05.812	8-98282-435-0	02	1	1503-	●	●
13	06.313 BEARING; HUB OUTER,FRT AXLE NSK	9-00093-172-0	02	1	1109-1210	●
13	06.313 BEARING; HUB OUTER,FRT AXLE NSK	9-00093-172-0	02	1	1211-	●	●
13	06.313 BEARING; HUB OUTER,FRT AXLE BEST VALUE PARTS	5-87610-134-0	02	1	1109-1210	●
13	06.313 BEARING; HUB OUTER,FRT AXLE BEST VALUE PARTS	5-87610-134-0	02	1	1211-	●	●
15	05.812 PIN; WHEEL,FRT AXLE DISC BRAKE FRT<J52> M18X46 RH THREAD	8-98028-532-1	05	1	1211-	●
15	05.812 PIN; WHEEL,FRT AXLE M18X46 RH THREAD	8-98028-532-1	05	1	1211-		●
15	05.812 PIN; WHEEL,FRT AXLE DISC BRAKE FRT<J52> M18X46 LH THREAD	8-98028-533-1	05	1	1211-	●
15	05.812 PIN; WHEEL,FRT AXLE M18X46 LH THREAD	8-98028-533-1	05	1	1211-		●
15	05.812 PIN; WHEEL,FRT AXLE M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	1109-1210	●
15	05.812 PIN; WHEEL,FRT AXLE EXC. DISC BRAKE FRT<J52> M18X29,M20X43.5 RH THREAD	8-94383-436-2	05	1	1211-	●
15	05.812 PIN; WHEEL,FRT AXLE M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	1109-1210	●
15	05.812 PIN; WHEEL,FRT AXLE EXC. DISC BRAKE FRT<J52> M18X29 LH THREAD,M20X43.5 RH THREAD	8-94383-437-2	05	1	1211-	●
17	06.307 HUB; FRT AXLE DISC BRAKE FRT<J52> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97017-193-0	02	1	1211-	●
17	06.307 HUB; FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52>	8-97035-160-0	02	1	1211-	●
17	06.307 HUB; FRT AXLE	8-97035-160-0	02	1	1211-		●
17	06.307 HUB; FRT AXLE	8-94365-459-0	02	1	1109-1210	●
17	06.307 HUB; FRT AXLE EXC. DISC BRAKE FRT<J52>	8-94365-459-0	02	1	1211-	●
19	06.311 BEARING; HUB INNER,FRT AXLE JTEKT	8-98171-254-0	02	1	1109-1210	●
19	06.311 BEARING; HUB INNER,FRT AXLE JTEKT	8-98171-254-0	02	1	1211-	●	●
19	06.311 BEARING; HUB INNER,FRT AXLE BEST VALUE PARTS	1-87610-134-0	02	1	1109-1210	●
19	06.311 BEARING; HUB INNER,FRT AXLE BEST VALUE PARTS	1-87610-134-0	02	1	1211-	●	●
25	05.809 ROTOR; DISC BRK,FRT DISC BRAKE FRT<J52>	8-97387-229-0	02	1	1211-	●
25	05.809 ROTOR; DISC BRK,FRT	8-97387-229-0	02	1	1211-		●
26	05.812 BOLT; BRK,DISC TO HUB DISC BRAKE FRT<J52>	8-94474-923-0	24	1	1211-	●
26	05.812 BOLT; BRK,DISC TO HUB	8-94474-923-0	24	1	1211-		●
28	06.326 SEAL; OIL,FRT HUB	8-94248-117-1	02	1	1109-1210	●
28	06.326 SEAL; OIL,FRT HUB	8-94248-117-1	02	1	1211-	●	●
29	06.326 DISTANCE PIECE; HUB BRKT NTN	8-97234-513-0	02	1	1109-1210	●
29	06.326 DISTANCE PIECE; HUB BRKT NTN	8-97234-513-0	02	1	1211-	●	●
31	04.665 COVER; DUST,FRT BRAKE DISC BRAKE FRT<J52>	8-98037-377-0	02	1	1211-	●
31	04.665 COVER; DUST,FRT BRAKE	8-98037-377-0	02	1	1211-		●
32	04.665 BOLT; DUST COVER TO KNUCKLE DISC BRAKE FRT<J52> 02.343 M8X12 FLANGE	0-28050-812-0	08	1	1211-	●
32	04.665 BOLT; DUST COVER TO KNUCKLE 02.343 M8X12 FLANGE	0-28050-812-0	08	1	1211-		●
67	05.811 ROTOR; SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52>	8-97387-159-0	02	1	1211-	●
67	05.811 ROTOR; SENSOR	8-97387-159-0	02	1	1211-		●
