Sayfa 3-60 - Isuzu EPC

3-60 — BRAKE PIPING; VACUUM (#51342) — 697 parça

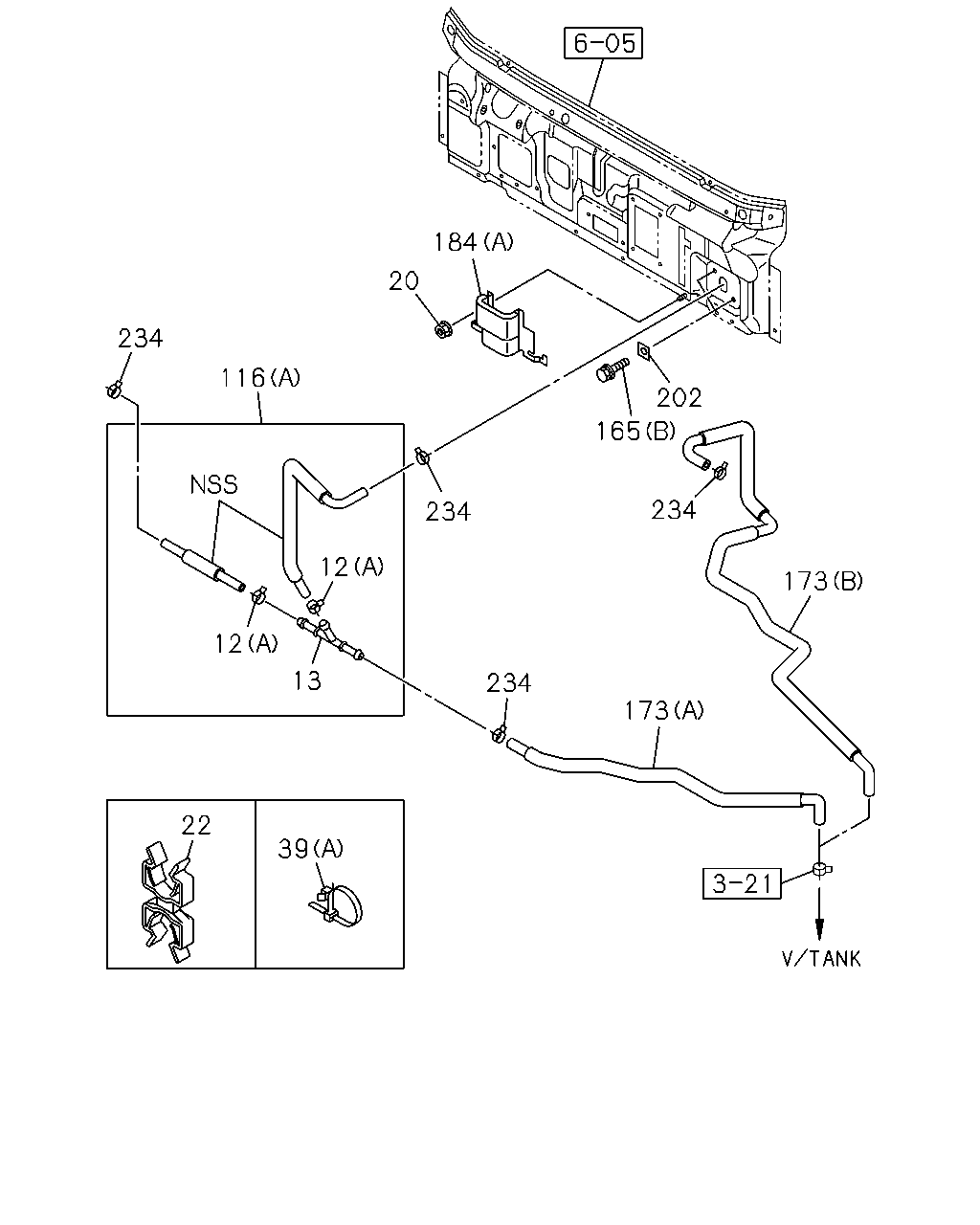

165 184 39 184 184 184 162 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1109-1210	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1211-	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1109-1210	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1211-	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1109-1210	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1211-	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1109-1210	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1211-	●	●
162	04.931 HOSE; VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98034-154-2	01	1	1109-1210	●
162	04.931 HOSE; VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98034-154-2	01	1	1211-	●	●
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1109-1210	●
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1211-	●	●
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1109-1210	●
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1211-	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (F)	8-98255-541-0	01	1	1312-	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (E)	8-98183-468-1	01	1	1109-1210	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (E)	8-98183-468-1	01	1	1211-	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B)	8-98183-465-1	01	1	1109-1210	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B)	8-98183-465-1	01	1	1211-1311	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-536-0	01	1	1312-	●	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (F)	8-98156-526-0	01	1	1109-1210	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (F)	8-98156-526-0	01	1	1211-	●	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (D)	8-98183-469-1	01	1	1109-1210	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (D)	8-98183-469-1	01	1	1211-	●	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-466-1	01	1	1109-1210	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-466-1	01	1	1211-1311	●	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-537-0	01	1	1312-	●	●
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (A)	8-98039-684-3	01	1	1109-1204	●
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (A)	8-98211-373-0	01	1	1205-1210	●
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (A)	8-98211-373-0	01	1	1211-	●	●

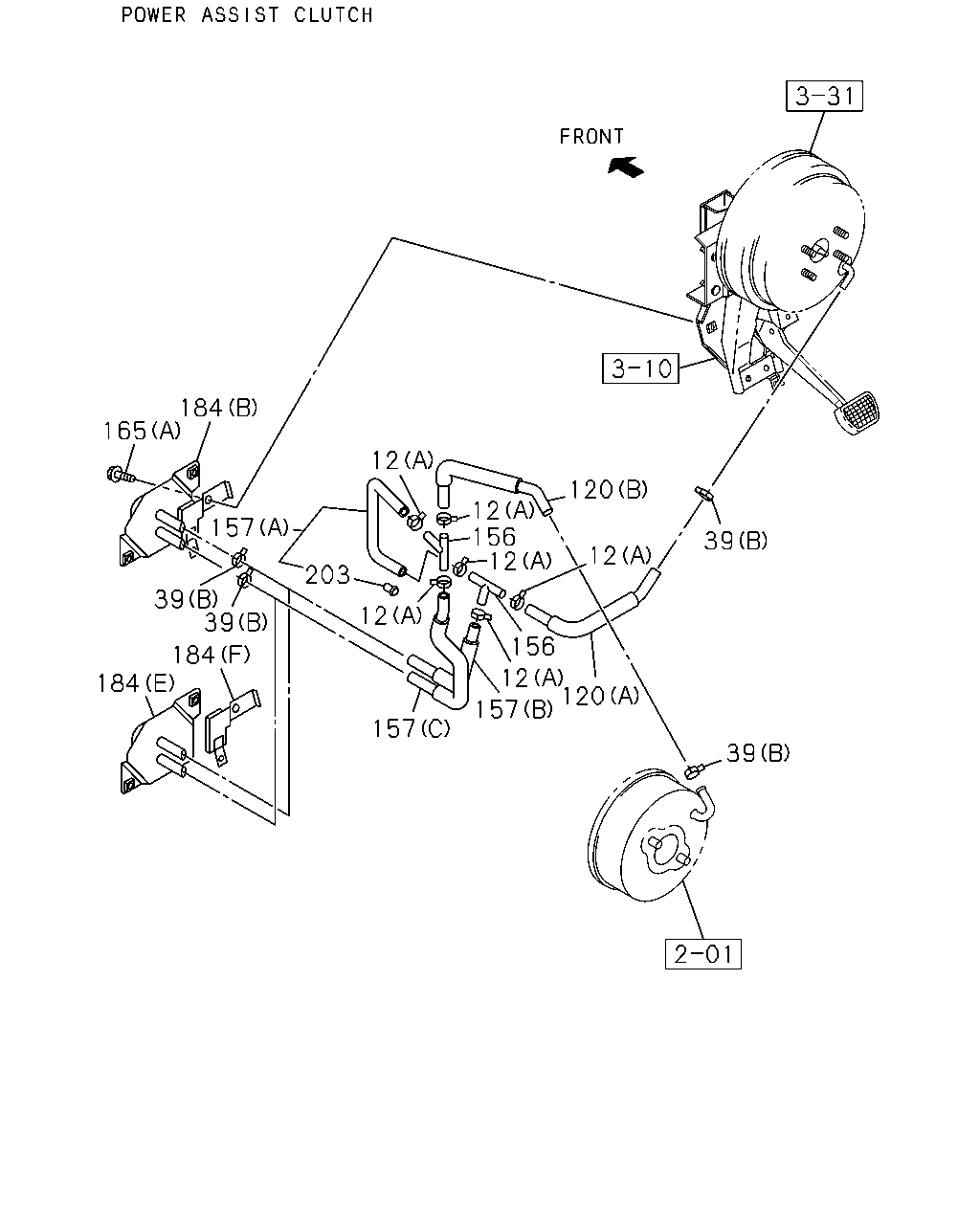

184 165 157 39 39 184 184 203 12 12 157 157 12 156 12 156 12 120 12 39 120 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	08	1	1109-1210	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	08	1	1211-	●	●
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) 03.162 (B) ID=16	8-98008-098-0	04	1	1109-1210	●
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) 03.162 (B) ID=16	8-98008-098-0	04	1	1211-	●
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) 03.162 (B) ID=16	8-98008-098-0	04	1	1211-		●
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1109-1210	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1109-1210	●
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1211-	●
12	04.681 CLIP; HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1211-	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1211-		●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) (C) ID=18 L=80	1-09701-069-0	01	1	1109-1210	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) (C) ID=18 L=80	1-09701-069-0	01	1	1211-	●	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 04.930 (E) ID=10 H=40	8-94462-219-0	01	1	1109-1210	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 04.930 (E) ID=10 H=40	8-94462-219-0	01	1	1211-	●	●
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	02	1	1109-1210	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 03.162 (B) ID=16	8-98008-098-0	02	1	1109-1210	●
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	02	1	1211-	●	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 03.162 (B) ID=16	8-98008-098-0	02	1	1211-	●	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1109-1210	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1211-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1109-1210	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1211-	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1109-1210	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1211-	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1109-1210	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1211-	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1109-1210	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1211-	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (A)	8-98060-856-2	01	1	1109-1210	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (A)	8-98060-856-2	01	1	1211-	●	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98060-857-3	01	1	1109-1210	●
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98060-857-3	01	1	1211-	●	●
156	04.931 JOINT; 3 WAY POWER ASSIST CLUTCH(S2T) 04.681	8-98035-106-0	02	1	1109-1210	●
156	04.931 JOINT; 3 WAY POWER ASSIST CLUTCH(S2T) 04.681	8-98035-106-0	02	1	1211-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98060-858-1	01	1	1109-1210	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98060-858-1	01	1	1211-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98060-859-2	01	1	1109-1210	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98060-859-2	01	1	1211-	●	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98060-860-2	01	1	1109-1210	●
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98060-860-2	01	1	1211-	●	●
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1109-1210	●
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1211-	●	●
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1109-1210	●
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1211-	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (F)	8-98255-541-0	01	1	1312-	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (E)	8-98183-468-1	01	1	1109-1210	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (E)	8-98183-468-1	01	1	1211-	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B)	8-98183-465-1	01	1	1109-1210	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B)	8-98183-465-1	01	1	1211-1311	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-536-0	01	1	1312-	●	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (F)	8-98156-526-0	01	1	1109-1210	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (F)	8-98156-526-0	01	1	1211-	●	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (D)	8-98183-469-1	01	1	1109-1210	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (D)	8-98183-469-1	01	1	1211-	●	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-466-1	01	1	1109-1210	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-466-1	01	1	1211-1311	●	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-537-0	01	1	1312-	●	●
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (A)	8-98039-684-3	01	1	1109-1204	●
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (A)	8-98211-373-0	01	1	1205-1210	●
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (A)	8-98211-373-0	01	1	1211-	●	●
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T)	8-94386-540-0	01	1	1109-1210	●
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T)	8-94386-540-0	01	1	1211-	●	●

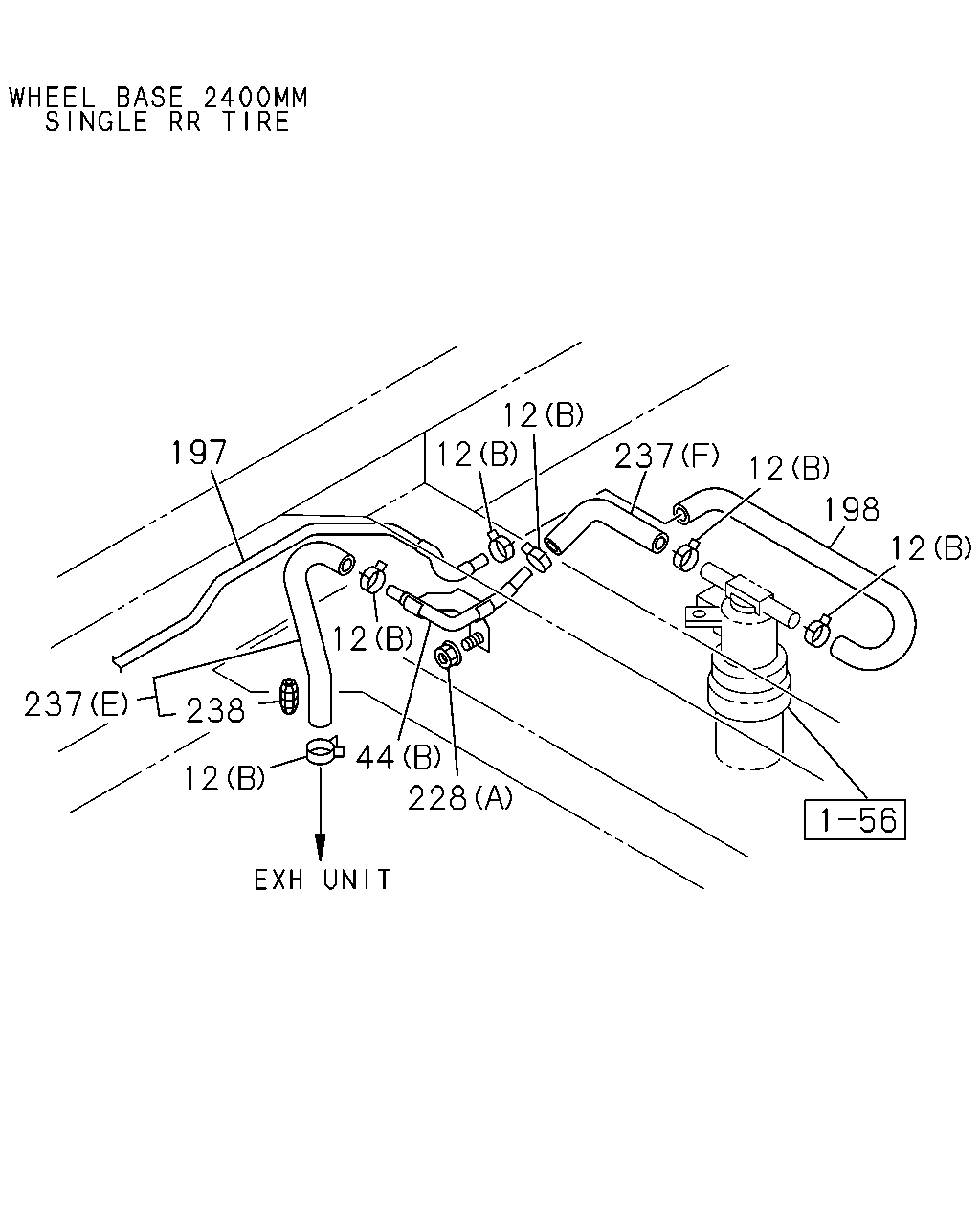

197 237 238 12 228 44 12 12 12 237 12 198 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	08	1	1109-1210	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	08	1	1211-	●	●
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) 03.162 (B) ID=16	8-98008-098-0	04	1	1109-1210	●
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) 03.162 (B) ID=16	8-98008-098-0	04	1	1211-	●
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) 03.162 (B) ID=16	8-98008-098-0	04	1	1211-		●
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1109-1210	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1109-1210	●
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1211-	●
12	04.681 CLIP; HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1211-	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1211-		●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) (C) ID=18 L=80	1-09701-069-0	01	1	1109-1210	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) (C) ID=18 L=80	1-09701-069-0	01	1	1211-	●	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 04.930 (E) ID=10 H=40	8-94462-219-0	01	1	1109-1210	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 04.930 (E) ID=10 H=40	8-94462-219-0	01	1	1211-	●	●
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	02	1	1109-1210	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 03.162 (B) ID=16	8-98008-098-0	02	1	1109-1210	●
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	02	1	1211-	●	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 03.162 (B) ID=16	8-98008-098-0	02	1	1211-	●	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1109-1210	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1211-	●	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (B)	8-98039-808-2	01	1	1211-	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2800MM(28W) (C)	8-98145-928-0	01	1	1211-	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-98039-806-0	01	1	1109-1210	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-98039-806-0	01	1	1211-	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2400MM(24W) (B)	8-98039-806-0	01	1	1211-		●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (B)	8-98039-807-1	01	1	1109-	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 3300MM(33W) (A)	8-98042-654-0	01	1	1109-1210	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A)	8-98042-654-0	01	1	1211-	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 3300MM(33W) (A)	8-98042-654-0	01	1	1211-		●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SINGLE RR TIRE(6TD)	8-98089-483-0	01	1	1211-1309	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SINGLE RR TIRE(6TD) EXC. HEAVY DUTY FRAME<6WB>	8-98089-483-0	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) HEAVY DUTY FRAME<6WB> SINGLE RR TIRE(6TD)	8-98089-483-0	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98064-725-1	01	1	1211-1309	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>	8-98064-725-1	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98039-803-1	01	1	1211-1309	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. HEAVY DUTY FRAME<6WB>	8-98039-803-1	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W) HEAVY DUTY FRAME<6WB>	8-98039-803-1	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98145-534-0	01	1	1211-1309	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>	8-98145-534-0	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T)	8-98039-852-1	01	1	1109-1309	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) EXC. HEAVY DUTY FRAME<6WB>	8-98039-852-1	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) HEAVY DUTY FRAME<6WB> REAR WIDE TREAD(V4T)	8-98039-852-1	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W)	8-98039-852-1	01	1	1310-		●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SUSPENSION - RR UNDER SLUNG<V4U>	8-98039-801-1	01	1	1109-1309	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SUSPENSION - RR UNDER SLUNG<V4U> EXC. HEAVY DUTY FRAME<6WB>	8-98039-801-1	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) HEAVY DUTY FRAME<6WB> SUSPENSION - RR UNDER SLUNG<V4U>	8-98039-801-1	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98064-727-0	01	1	1109-1210	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98064-727-0	01	1	1211-1309	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W)	8-98064-727-0	01	1	1211-1309		●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>	8-98064-727-0	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98064-728-0	01	1	1109-1309	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>	8-98064-728-0	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98039-805-2	01	1	1109-1309	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. HEAVY DUTY FRAME<6WB>	8-98039-805-2	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB>	8-98039-805-2	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W)	8-98039-805-2	01	1	1310-		●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98064-730-0	01	1	1109-1210	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98064-730-0	01	1	1211-1309	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W)	8-98064-730-0	01	1	1211-1309		●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>	8-98064-730-0	01	1	1310-	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD)	8-97371-687-0	01	1	1211-	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-98039-787-0	01	1	1109-1210	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-98039-787-0	01	1	1211-	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W)	8-98039-787-0	01	1	1211-		●
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U>	8-98039-788-1	01	1	1109-1210	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U>	8-98039-788-1	01	1	1211-	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W)	8-98039-788-1	01	1	1211-	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W)	8-98063-388-0	01	1	1109-1210	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W)	8-98063-388-0	01	1	1211-	●	●
228	04.930 NUT; PIPE WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1211-	●
228	04.930 NUT; PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1109-1210	●
228	04.930 NUT; PIPE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1109-1210	●
228	04.930 NUT; PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1211-	●
228	04.930 NUT; PIPE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1211-	●
228	04.930 NUT; PIPE WHEEL BASE 2400MM(24W) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1211-		●
228	04.930 NUT; PIPE WHEEL BASE 3300MM(33W) 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1109-1210	●
228	04.930 NUT; PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1211-	●
228	04.930 NUT; PIPE WHEEL BASE 3300MM(33W) 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1211-		●

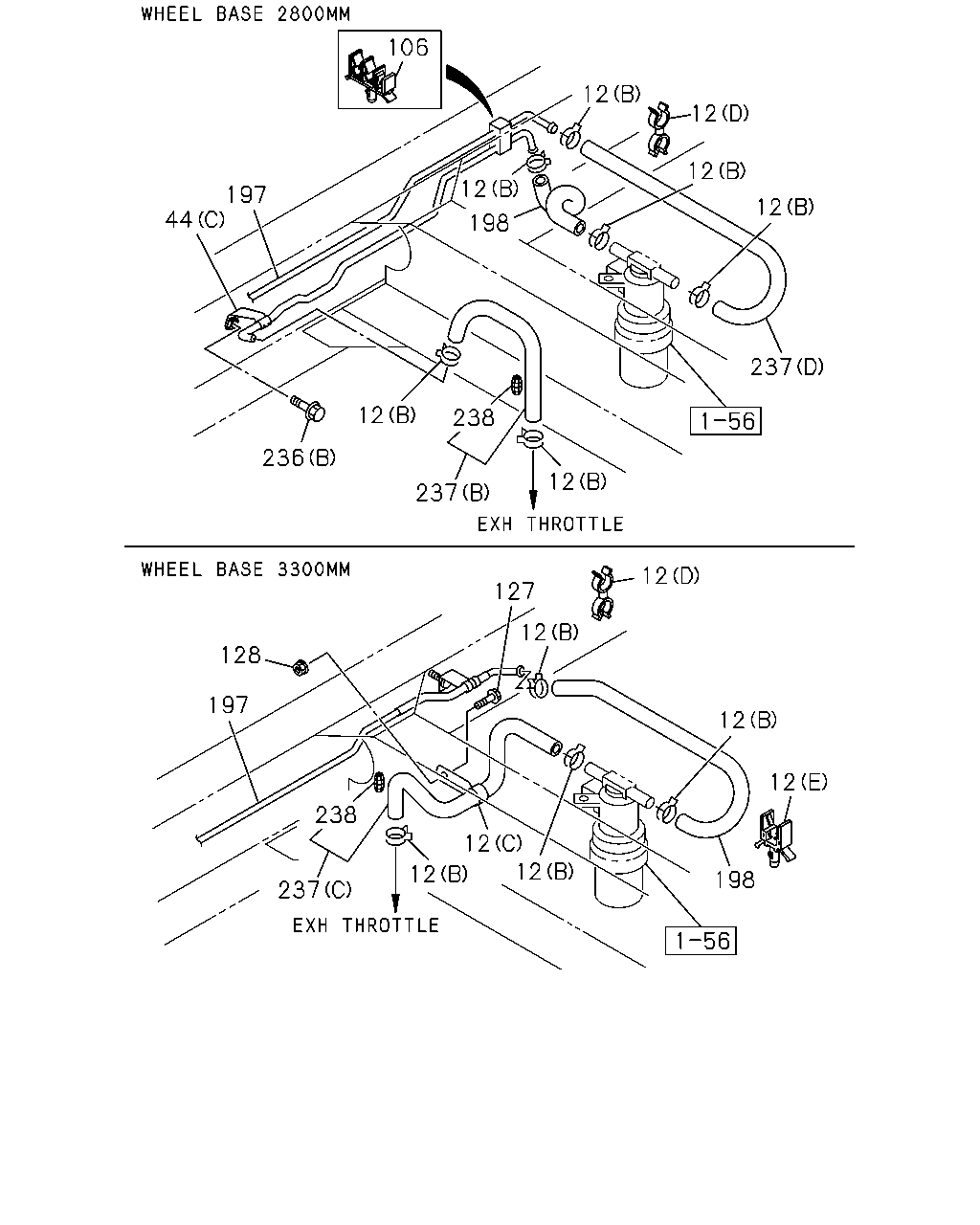

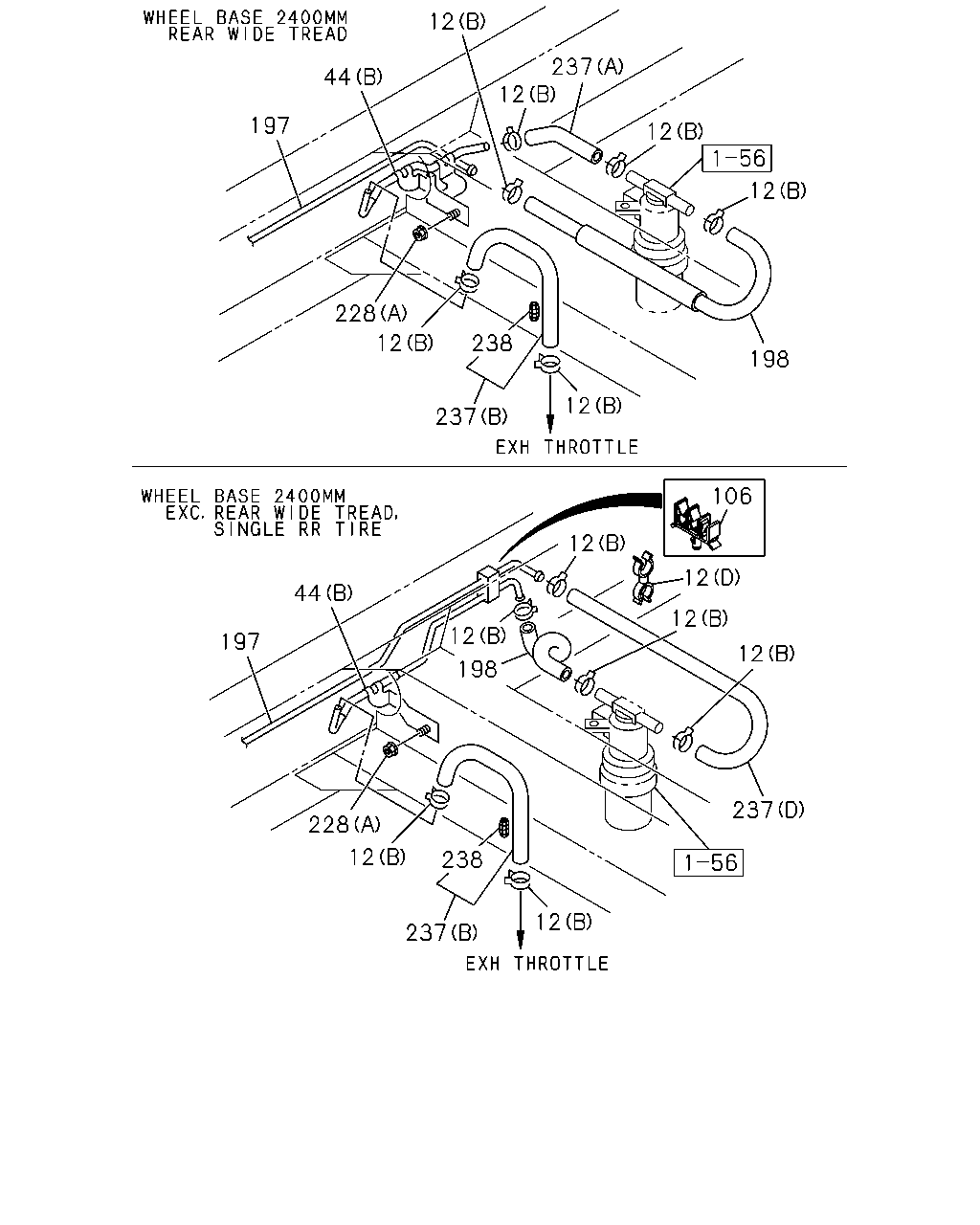

237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (E)	8-98036-102-0	01	1	1211-	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (F)	8-98039-790-0	01	1	1211-	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.630 (A) L=170 SERVICED BY L=3000	0-08258-300-0	01	1	1109-1210	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.630 (A) L=170 SERVICED BY L=3000	0-08258-300-0	01	1	1211-	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) 03.630 (A) L=170 SERVICED BY L=3000	0-08258-300-0	01	1	1211-		●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-98034-429-0	01	1	1109-1210	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) (B)	8-98034-429-0	01	1	1109-1210	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) REAR WIDE TREAD(V4T) (B)	8-98034-429-0	01	1	1211-	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) (B)	8-98034-429-0	01	1	1211-	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) (B)	8-98034-429-0	01	1	1211-		●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (D)	8-98039-789-1	01	1	1109-1210	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (D)	8-98039-789-1	01	1	1211-	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2800MM(28W) (D)	8-98039-789-1	01	1	1211-	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 3300MM(33W) (C)	8-98171-286-0	01	1	1109-1210	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 3300MM(33W) (C)	8-98171-286-0	01	1	1211-	●	●
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-97377-521-0	01	1	1109-1210	●
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T)	8-97377-521-0	01	1	1109-1210	●
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD)	8-97377-521-0	01	1	1211-	●
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) REAR WIDE TREAD(V4T)	8-97377-521-0	01	1	1211-	●
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T)	8-97377-521-0	01	1	1211-	●
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W)	8-97377-521-0	01	1	1211-		●

197 78 80 98 85 66 66 39 39 236 96 78 39 39 116 80 136 136 78 228 136 122 136 136 122 136 136 44 136 78 136

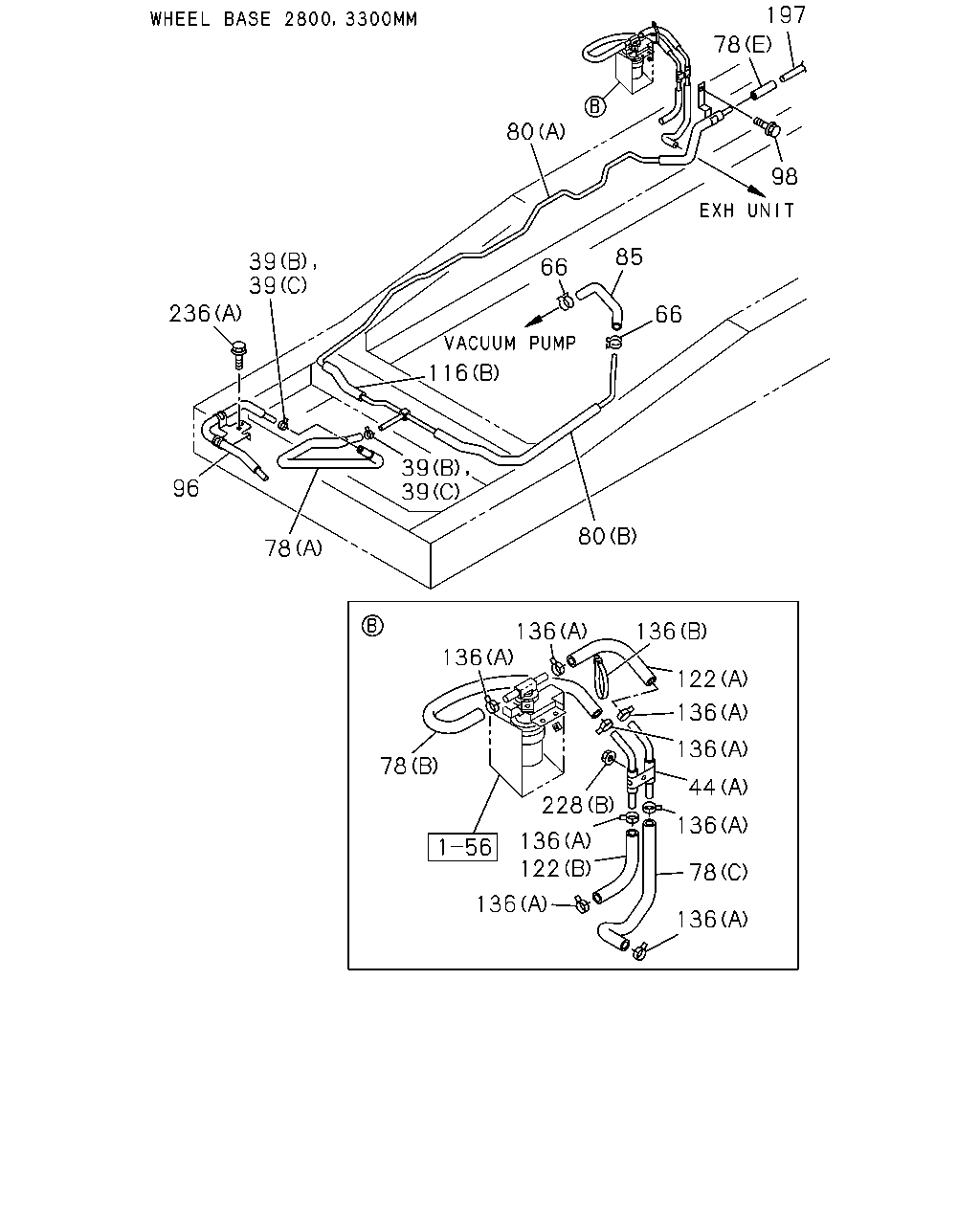

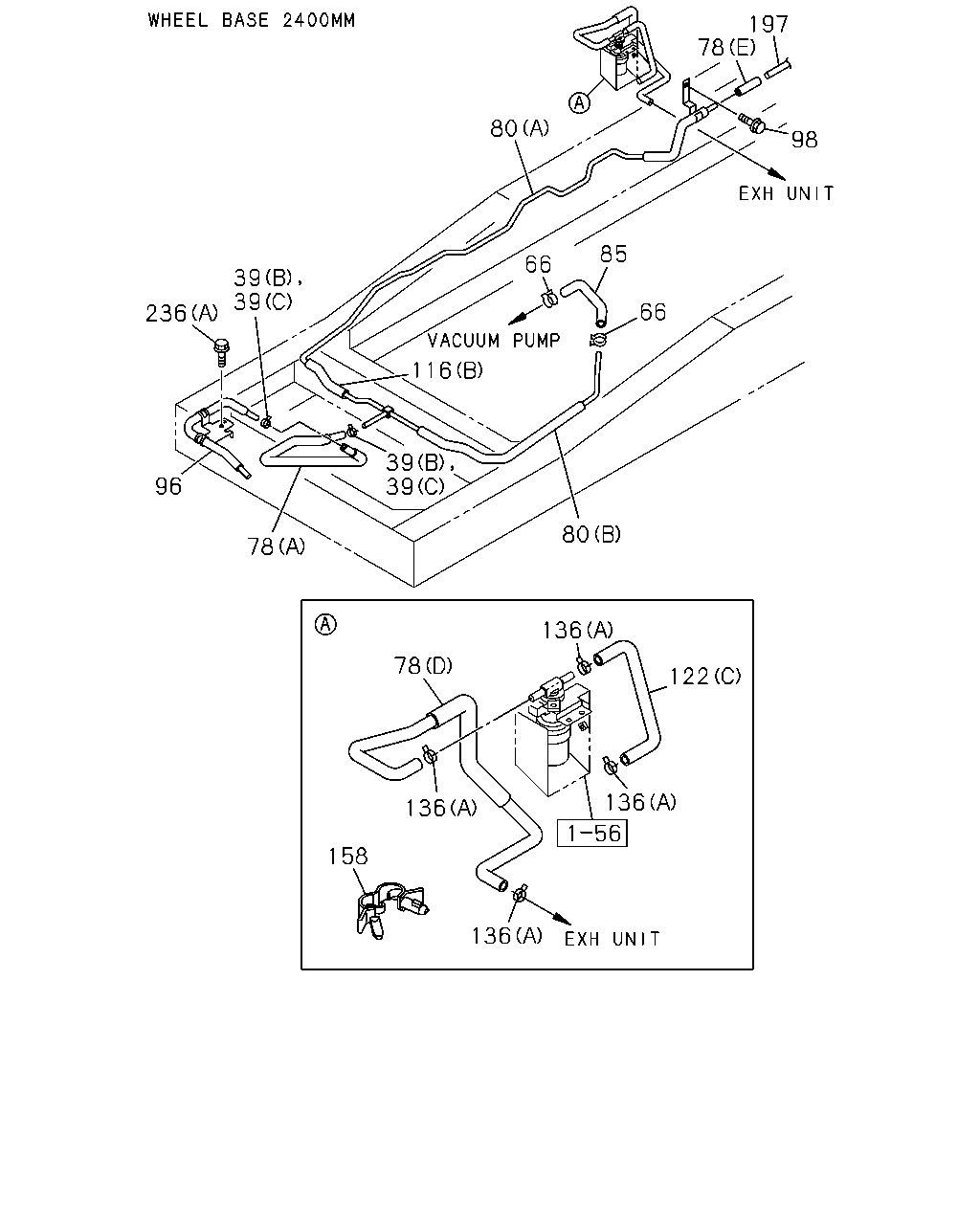

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1109-1210	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1211-	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1109-1210	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1211-	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1109-1210	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1211-	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1109-1210	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1211-	●	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (B)	8-98039-808-2	01	1	1211-	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2800MM(28W) (C)	8-98145-928-0	01	1	1211-	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-98039-806-0	01	1	1109-1210	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-98039-806-0	01	1	1211-	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2400MM(24W) (B)	8-98039-806-0	01	1	1211-		●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (B)	8-98039-807-1	01	1	1109-	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 3300MM(33W) (A)	8-98042-654-0	01	1	1109-1210	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A)	8-98042-654-0	01	1	1211-	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 3300MM(33W) (A)	8-98042-654-0	01	1	1211-		●
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	1109-1210	●
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	1211-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 03.630 (E) L=200 SERVICED BY L=3000	0-08258-300-0	01	1	1109-1309	●
78	04.931 HOSE; VAC,PIPE TO PIPE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. HEAVY DUTY FRAME<6WB> 03.630 (E) L=200 SERVICED BY L=3000	0-08258-300-0	01	1	1310-	●
78	04.931 HOSE; VAC,PIPE TO PIPE HEAVY DUTY FRAME<6WB> 03.630 (E) L=200 SERVICED BY L=3000	0-08258-300-0	01	1	1310-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (E) L=200 SERVICED BY L=3000	0-08258-300-0	01	1	1310-		●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 2400MM(24W) (D)	8-98098-174-0	01	1	1109-1210	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 2400MM(24W) (D)	8-98098-174-0	01	1	1211-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) (C)	8-98189-223-0	01	1	1109-1210	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (C)	8-98189-223-0	01	1	1211-	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) (C)	8-98189-223-0	01	1	1211-		●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) (B)	8-98189-224-0	01	1	1109-1210	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-98189-224-0	01	1	1211-	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) (B)	8-98189-224-0	01	1	1211-		●
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98138-842-0	01	1	1109-1210	●
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98138-842-0	01	1	1211-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> 03.630 (E) L=240 SERVICED BY L=3000	0-08258-300-0	01	1	1109-1210	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> 03.630 (E) L=240 SERVICED BY L=3000	0-08258-300-0	01	1	1211-1309	●
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (E) L=240 SERVICED BY L=3000	0-08258-300-0	01	1	1211-1309		●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> 03.630 (E) L=240 SERVICED BY L=3000	0-08258-300-0	01	1	1310-	●
80	04.930 PIPE; VAC,ENG SIDE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98064-345-2	01	1	1205-	●
80	04.930 PIPE; VAC,ENG SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98042-655-2	01	1	1109-1309	●
80	04.930 PIPE; VAC,ENG SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. HEAVY DUTY FRAME<6WB> (A)	8-98042-655-2	01	1	1310-	●
80	04.930 PIPE; VAC,ENG SIDE HEAVY DUTY FRAME<6WB> (A)	8-98042-655-2	01	1	1310-	●
80	04.930 PIPE; VAC,ENG SIDE (A)	8-98042-655-2	01	1	1310-		●
80	04.930 PIPE; VAC,ENG SIDE (B)	8-98075-014-0	01	1	1109-1204	●
80	04.930 PIPE; VAC,ENG SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98075-014-0	01	1	1205-1210	●
80	04.930 PIPE; VAC,ENG SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98075-014-0	01	1	1211-	●
80	04.930 PIPE; VAC,ENG SIDE (B)	8-98075-014-0	01	1	1211-		●
80	04.930 PIPE; VAC,ENG SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (A)	8-98064-565-3	01	1	1109-1210	●
80	04.930 PIPE; VAC,ENG SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (A)	8-98064-565-3	01	1	1211-1309	●
80	04.930 PIPE; VAC,ENG SIDE (A)	8-98064-565-3	01	1	1211-1309		●
80	04.930 PIPE; VAC,ENG SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> (A)	8-98064-565-3	01	1	1310-	●
85	04.931 HOSE; VAC,ENG SIDE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98135-573-0	01	1	1205-	●
85	04.931 HOSE; VAC,ENG SIDE	8-98075-176-0	01	1	1109-1204	●
85	04.931 HOSE; VAC,ENG SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98075-176-0	01	1	1205-1210	●
85	04.931 HOSE; VAC,ENG SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98075-176-0	01	1	1211-	●
85	04.931 HOSE; VAC,ENG SIDE	8-98075-176-0	01	1	1211-		●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP L=353	8-98138-795-0	01	1	1109-1210	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP L=353	8-98138-795-0	01	1	1211-	●	●
98	04.931 BOLT; VAC PIPE FIX EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1205-	●
98	04.931 BOLT; VAC PIPE FIX 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1109-1210	●
98	04.931 BOLT; VAC PIPE FIX 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1211-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98113-002-1	01	1	1109-1210	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98113-002-1	01	1	1211-	●	●
116	04.931 HOSE; VAC,M/VAC (B) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	1109-1210	●
116	04.931 HOSE; VAC,M/VAC (B) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	1211-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98113-003-1	01	1	1109-1210	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98113-003-1	01	1	1211-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2400MM(24W) (C)	8-98076-068-1	01	1	1109-1210	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2400MM(24W) (C)	8-98076-068-1	01	1	1211-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) (A)	8-98189-222-0	01	1	1109-1210	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A)	8-98189-222-0	01	1	1211-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) (A)	8-98189-222-0	01	1	1211-		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) (B)	8-98189-226-0	01	1	1109-1210	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-98189-226-0	01	1	1211-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) (B)	8-98189-226-0	01	1	1211-		●
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) 03.162 (B) L=140	5-09707-031-1	01	1	1109-1210	●
136	04.681 CLIP; VAC HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.162 (B) L=140	5-09707-031-1	01	1	1211-	●
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) 03.162 (B) L=140	5-09707-031-1	01	1	1211-		●
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) 03.162 (A) ID=16	8-98008-098-0	02	1	1109-1210	●
136	04.681 CLIP; VAC HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.162 (A) ID=16	8-98008-098-0	02	1	1211-	●
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) 03.162 (A) ID=16	8-98008-098-0	02	1	1211-		●
136	04.681 CLIP; VAC HOSE 03.162 (A) ID=16	8-98008-098-0	04	1	1109-1210	●
136	04.681 CLIP; VAC HOSE 03.162 (A) ID=16	8-98008-098-0	04	1	1211-	●	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SINGLE RR TIRE(6TD)	8-98089-483-0	01	1	1211-1309	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SINGLE RR TIRE(6TD) EXC. HEAVY DUTY FRAME<6WB>	8-98089-483-0	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) HEAVY DUTY FRAME<6WB> SINGLE RR TIRE(6TD)	8-98089-483-0	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98064-725-1	01	1	1211-1309	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>	8-98064-725-1	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98039-803-1	01	1	1211-1309	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. HEAVY DUTY FRAME<6WB>	8-98039-803-1	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W) HEAVY DUTY FRAME<6WB>	8-98039-803-1	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98145-534-0	01	1	1211-1309	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>	8-98145-534-0	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T)	8-98039-852-1	01	1	1109-1309	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) EXC. HEAVY DUTY FRAME<6WB>	8-98039-852-1	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) HEAVY DUTY FRAME<6WB> REAR WIDE TREAD(V4T)	8-98039-852-1	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W)	8-98039-852-1	01	1	1310-		●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SUSPENSION - RR UNDER SLUNG<V4U>	8-98039-801-1	01	1	1109-1309	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SUSPENSION - RR UNDER SLUNG<V4U> EXC. HEAVY DUTY FRAME<6WB>	8-98039-801-1	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) HEAVY DUTY FRAME<6WB> SUSPENSION - RR UNDER SLUNG<V4U>	8-98039-801-1	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98064-727-0	01	1	1109-1210	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98064-727-0	01	1	1211-1309	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W)	8-98064-727-0	01	1	1211-1309		●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>	8-98064-727-0	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98064-728-0	01	1	1109-1309	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>	8-98064-728-0	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98039-805-2	01	1	1109-1309	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. HEAVY DUTY FRAME<6WB>	8-98039-805-2	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB>	8-98039-805-2	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W)	8-98039-805-2	01	1	1310-		●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98064-730-0	01	1	1109-1210	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98064-730-0	01	1	1211-1309	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W)	8-98064-730-0	01	1	1211-1309		●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>	8-98064-730-0	01	1	1310-	●
228	04.930 NUT; PIPE WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1211-	●
228	04.930 NUT; PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1109-1210	●
228	04.930 NUT; PIPE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1109-1210	●
228	04.930 NUT; PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1211-	●
228	04.930 NUT; PIPE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1211-	●
228	04.930 NUT; PIPE WHEEL BASE 2400MM(24W) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1211-		●
228	04.930 NUT; PIPE WHEEL BASE 3300MM(33W) 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1109-1210	●
228	04.930 NUT; PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1211-	●
228	04.930 NUT; PIPE WHEEL BASE 3300MM(33W) 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1211-		●
236	04.930 BOLT; PIPE WHEEL BASE 2800MM(28W) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1211-	●
236	04.930 BOLT; PIPE 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1109-1210	●
236	04.930 BOLT; PIPE 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1211-	●	●

236 39 39 96 78 39 39 116 66 80 78 197 98 85 66 80 136 78 122 136 136 158 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1109-1210	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1211-	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1109-1210	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1211-	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1109-1210	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1211-	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1109-1210	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1211-	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	1109-1210	●
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	1211-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> 03.630 (E) L=200 SERVICED BY L=3000	0-08258-300-0	01	1	1109-1309	●
78	04.931 HOSE; VAC,PIPE TO PIPE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. HEAVY DUTY FRAME<6WB> 03.630 (E) L=200 SERVICED BY L=3000	0-08258-300-0	01	1	1310-	●
78	04.931 HOSE; VAC,PIPE TO PIPE HEAVY DUTY FRAME<6WB> 03.630 (E) L=200 SERVICED BY L=3000	0-08258-300-0	01	1	1310-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (E) L=200 SERVICED BY L=3000	0-08258-300-0	01	1	1310-		●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 2400MM(24W) (D)	8-98098-174-0	01	1	1109-1210	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 2400MM(24W) (D)	8-98098-174-0	01	1	1211-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) (C)	8-98189-223-0	01	1	1109-1210	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (C)	8-98189-223-0	01	1	1211-	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) (C)	8-98189-223-0	01	1	1211-		●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) (B)	8-98189-224-0	01	1	1109-1210	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-98189-224-0	01	1	1211-	●
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) (B)	8-98189-224-0	01	1	1211-		●
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98138-842-0	01	1	1109-1210	●
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98138-842-0	01	1	1211-	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> 03.630 (E) L=240 SERVICED BY L=3000	0-08258-300-0	01	1	1109-1210	●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> 03.630 (E) L=240 SERVICED BY L=3000	0-08258-300-0	01	1	1211-1309	●
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (E) L=240 SERVICED BY L=3000	0-08258-300-0	01	1	1211-1309		●
78	04.931 HOSE; VAC,PIPE TO PIPE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> 03.630 (E) L=240 SERVICED BY L=3000	0-08258-300-0	01	1	1310-	●
80	04.930 PIPE; VAC,ENG SIDE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98064-345-2	01	1	1205-	●
80	04.930 PIPE; VAC,ENG SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> (A)	8-98042-655-2	01	1	1109-1309	●
80	04.930 PIPE; VAC,ENG SIDE AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. HEAVY DUTY FRAME<6WB> (A)	8-98042-655-2	01	1	1310-	●
80	04.930 PIPE; VAC,ENG SIDE HEAVY DUTY FRAME<6WB> (A)	8-98042-655-2	01	1	1310-	●
80	04.930 PIPE; VAC,ENG SIDE (A)	8-98042-655-2	01	1	1310-		●
80	04.930 PIPE; VAC,ENG SIDE (B)	8-98075-014-0	01	1	1109-1204	●
80	04.930 PIPE; VAC,ENG SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98075-014-0	01	1	1205-1210	●
80	04.930 PIPE; VAC,ENG SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)	8-98075-014-0	01	1	1211-	●
80	04.930 PIPE; VAC,ENG SIDE (B)	8-98075-014-0	01	1	1211-		●
80	04.930 PIPE; VAC,ENG SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (A)	8-98064-565-3	01	1	1109-1210	●
80	04.930 PIPE; VAC,ENG SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> (A)	8-98064-565-3	01	1	1211-1309	●
80	04.930 PIPE; VAC,ENG SIDE (A)	8-98064-565-3	01	1	1211-1309		●
80	04.930 PIPE; VAC,ENG SIDE EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,HEAVY DUTY FRAME<6WB> (A)	8-98064-565-3	01	1	1310-	●
85	04.931 HOSE; VAC,ENG SIDE EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98135-573-0	01	1	1205-	●
85	04.931 HOSE; VAC,ENG SIDE	8-98075-176-0	01	1	1109-1204	●
85	04.931 HOSE; VAC,ENG SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98075-176-0	01	1	1205-1210	●
85	04.931 HOSE; VAC,ENG SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)	8-98075-176-0	01	1	1211-	●
85	04.931 HOSE; VAC,ENG SIDE	8-98075-176-0	01	1	1211-		●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP L=353	8-98138-795-0	01	1	1109-1210	●
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP L=353	8-98138-795-0	01	1	1211-	●	●
98	04.931 BOLT; VAC PIPE FIX EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.531 M8X20 FLANGE	0-28650-820-0	01	1	1205-	●
98	04.931 BOLT; VAC PIPE FIX 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1109-1210	●
98	04.931 BOLT; VAC PIPE FIX 00.029 M10X30 FLANGE	0-28651-030-0	01	1	1211-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98113-002-1	01	1	1109-1210	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98113-002-1	01	1	1211-	●	●
116	04.931 HOSE; VAC,M/VAC (B) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	1109-1210	●
116	04.931 HOSE; VAC,M/VAC (B) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	1211-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98113-003-1	01	1	1109-1210	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98113-003-1	01	1	1211-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2400MM(24W) (C)	8-98076-068-1	01	1	1109-1210	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2400MM(24W) (C)	8-98076-068-1	01	1	1211-	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) (A)	8-98189-222-0	01	1	1109-1210	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A)	8-98189-222-0	01	1	1211-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) (A)	8-98189-222-0	01	1	1211-		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) (B)	8-98189-226-0	01	1	1109-1210	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (B)	8-98189-226-0	01	1	1211-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) (B)	8-98189-226-0	01	1	1211-		●
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) 03.162 (B) L=140	5-09707-031-1	01	1	1109-1210	●
136	04.681 CLIP; VAC HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.162 (B) L=140	5-09707-031-1	01	1	1211-	●
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) 03.162 (B) L=140	5-09707-031-1	01	1	1211-		●
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) 03.162 (A) ID=16	8-98008-098-0	02	1	1109-1210	●
136	04.681 CLIP; VAC HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 03.162 (A) ID=16	8-98008-098-0	02	1	1211-	●
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) 03.162 (A) ID=16	8-98008-098-0	02	1	1211-		●
136	04.681 CLIP; VAC HOSE 03.162 (A) ID=16	8-98008-098-0	04	1	1109-1210	●
136	04.681 CLIP; VAC HOSE 03.162 (A) ID=16	8-98008-098-0	04	1	1211-	●	●
158	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) ID=18-24 L=14.5	1-09709-298-0	01	1	1109-1210	●
158	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) ID=18-24 L=14.5	1-09709-298-0	01	1	1211-	●	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SINGLE RR TIRE(6TD)	8-98089-483-0	01	1	1211-1309	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SINGLE RR TIRE(6TD) EXC. HEAVY DUTY FRAME<6WB>	8-98089-483-0	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) HEAVY DUTY FRAME<6WB> SINGLE RR TIRE(6TD)	8-98089-483-0	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98064-725-1	01	1	1211-1309	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>	8-98064-725-1	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98039-803-1	01	1	1211-1309	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. HEAVY DUTY FRAME<6WB>	8-98039-803-1	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W) HEAVY DUTY FRAME<6WB>	8-98039-803-1	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98145-534-0	01	1	1211-1309	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>	8-98145-534-0	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T)	8-98039-852-1	01	1	1109-1309	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) EXC. HEAVY DUTY FRAME<6WB>	8-98039-852-1	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) HEAVY DUTY FRAME<6WB> REAR WIDE TREAD(V4T)	8-98039-852-1	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W)	8-98039-852-1	01	1	1310-		●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SUSPENSION - RR UNDER SLUNG<V4U>	8-98039-801-1	01	1	1109-1309	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SUSPENSION - RR UNDER SLUNG<V4U> EXC. HEAVY DUTY FRAME<6WB>	8-98039-801-1	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) HEAVY DUTY FRAME<6WB> SUSPENSION - RR UNDER SLUNG<V4U>	8-98039-801-1	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98064-727-0	01	1	1109-1210	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98064-727-0	01	1	1211-1309	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W)	8-98064-727-0	01	1	1211-1309		●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>	8-98064-727-0	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98064-728-0	01	1	1109-1309	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>	8-98064-728-0	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98039-805-2	01	1	1109-1309	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. HEAVY DUTY FRAME<6WB>	8-98039-805-2	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB>	8-98039-805-2	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W)	8-98039-805-2	01	1	1310-		●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98064-730-0	01	1	1109-1210	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98064-730-0	01	1	1211-1309	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W)	8-98064-730-0	01	1	1211-1309		●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>	8-98064-730-0	01	1	1310-	●
236	04.930 BOLT; PIPE WHEEL BASE 2800MM(28W) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1211-	●
236	04.930 BOLT; PIPE 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1109-1210	●
236	04.930 BOLT; PIPE 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1211-	●	●

184 20 202 165 234 173 173 234 234 116 234 12 12 13 22 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	08	1	1109-1210	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	08	1	1211-	●	●
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) 03.162 (B) ID=16	8-98008-098-0	04	1	1109-1210	●
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) 03.162 (B) ID=16	8-98008-098-0	04	1	1211-	●
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) 03.162 (B) ID=16	8-98008-098-0	04	1	1211-		●
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1109-1210	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1109-1210	●
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1211-	●
12	04.681 CLIP; HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1211-	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1211-		●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) (C) ID=18 L=80	1-09701-069-0	01	1	1109-1210	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) (C) ID=18 L=80	1-09701-069-0	01	1	1211-	●	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 04.930 (E) ID=10 H=40	8-94462-219-0	01	1	1109-1210	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 04.930 (E) ID=10 H=40	8-94462-219-0	01	1	1211-	●	●
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	02	1	1109-1210	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 03.162 (B) ID=16	8-98008-098-0	02	1	1109-1210	●
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	02	1	1211-	●	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 03.162 (B) ID=16	8-98008-098-0	02	1	1211-	●	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1109-1210	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1211-	●	●
13	04.681 JOINT; HOSE,VAC	8-98035-106-0	02	1	1109-1210	●
13	04.681 JOINT; HOSE,VAC	8-98035-106-0	02	1	1211-	●	●
20	04.686 NUT; BRKT EXC. PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE	0-91180-106-0	01	1	1109-1210	●
20	04.686 NUT; BRKT EXC. PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE	0-91180-106-0	01	1	1211-	●	●
22	04.681 CLIP; HOSE,VAC TANK 01.166 ID=22 & 22	8-94464-837-0	01	1	1109-1210	●
22	04.681 CLIP; HOSE,VAC TANK 01.166 ID=22 & 22	8-94464-837-0	01	1	1211-	●	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1109-1210	●
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	1211-	●	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1109-1210	●
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	1211-	●	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1109-1210	●
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	1211-	●	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1109-1210	●
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	1211-	●	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98113-002-1	01	1	1109-1210	●
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98113-002-1	01	1	1211-	●	●
116	04.931 HOSE; VAC,M/VAC (B) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	1109-1210	●
116	04.931 HOSE; VAC,M/VAC (B) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	1211-	●	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98113-003-1	01	1	1109-1210	●
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98113-003-1	01	1	1211-	●	●
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1109-1210	●
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1211-	●	●
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1109-1210	●
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	1211-	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98047-184-2	01	1	1109-1210	●
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98047-184-2	01	1	1211-	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98031-774-1	01	1	1109-1210	●
173	04.931 HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98031-774-1	01	1	1211-	●	●
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (F)	8-98255-541-0	01	1	1312-	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (E)	8-98183-468-1	01	1	1109-1210	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (E)	8-98183-468-1	01	1	1211-	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B)	8-98183-465-1	01	1	1109-1210	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B)	8-98183-465-1	01	1	1211-1311	●	●
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-536-0	01	1	1312-	●	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (F)	8-98156-526-0	01	1	1109-1210	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (F)	8-98156-526-0	01	1	1211-	●	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (D)	8-98183-469-1	01	1	1109-1210	●
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (D)	8-98183-469-1	01	1	1211-	●	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-466-1	01	1	1109-1210	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-466-1	01	1	1211-1311	●	●
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-537-0	01	1	1312-	●	●
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (A)	8-98039-684-3	01	1	1109-1204	●
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (A)	8-98211-373-0	01	1	1205-1210	●
184	04.685 BRACKET; UNION FIX EXC. PTO MANUAL CONTROL(6WC) (A)	8-98211-373-0	01	1	1211-	●	●
202	04.686 SEAL 08.845	8-97856-616-0	02	1	1109-1210	●
202	04.686 SEAL 08.845	8-97856-616-0	02	1	1211-	●	●
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	04	1	1109-1210	●
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	04	1	1211-	●	●
234	04.685 CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	03	1	1109-1210	●
234	04.685 CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	03	1	1211-	●	●

12 44 197 228 12 238 237 12 198 12 12 237 12 44 197 228 12 237 12 238 198 12 12 12 12 12 237 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	08	1	1109-1210	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	08	1	1211-	●	●
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) 03.162 (B) ID=16	8-98008-098-0	04	1	1109-1210	●
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) 03.162 (B) ID=16	8-98008-098-0	04	1	1211-	●
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) 03.162 (B) ID=16	8-98008-098-0	04	1	1211-		●
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1109-1210	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1109-1210	●
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1211-	●
12	04.681 CLIP; HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1211-	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1211-		●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) (C) ID=18 L=80	1-09701-069-0	01	1	1109-1210	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) (C) ID=18 L=80	1-09701-069-0	01	1	1211-	●	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 04.930 (E) ID=10 H=40	8-94462-219-0	01	1	1109-1210	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 04.930 (E) ID=10 H=40	8-94462-219-0	01	1	1211-	●	●
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	02	1	1109-1210	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 03.162 (B) ID=16	8-98008-098-0	02	1	1109-1210	●
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	02	1	1211-	●	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 03.162 (B) ID=16	8-98008-098-0	02	1	1211-	●	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1109-1210	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1211-	●	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (B)	8-98039-808-2	01	1	1211-	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2800MM(28W) (C)	8-98145-928-0	01	1	1211-	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-98039-806-0	01	1	1109-1210	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-98039-806-0	01	1	1211-	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2400MM(24W) (B)	8-98039-806-0	01	1	1211-		●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (B)	8-98039-807-1	01	1	1109-	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 3300MM(33W) (A)	8-98042-654-0	01	1	1109-1210	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A)	8-98042-654-0	01	1	1211-	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 3300MM(33W) (A)	8-98042-654-0	01	1	1211-		●
106	04.930 CLIP; PIPE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> ID=10X2 & 4.76	8-97170-259-0	01	1	1109-1210	●
106	04.930 CLIP; PIPE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> ID=10X2 & 4.76	8-97170-259-0	01	1	1211-	●
106	04.930 CLIP; PIPE WHEEL BASE 2800MM(28W) ID=10X2 & 4.76	8-97170-259-0	01	1	1211-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SINGLE RR TIRE(6TD)	8-98089-483-0	01	1	1211-1309	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SINGLE RR TIRE(6TD) EXC. HEAVY DUTY FRAME<6WB>	8-98089-483-0	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) HEAVY DUTY FRAME<6WB> SINGLE RR TIRE(6TD)	8-98089-483-0	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98064-725-1	01	1	1211-1309	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>	8-98064-725-1	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98039-803-1	01	1	1211-1309	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. HEAVY DUTY FRAME<6WB>	8-98039-803-1	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W) HEAVY DUTY FRAME<6WB>	8-98039-803-1	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98145-534-0	01	1	1211-1309	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>	8-98145-534-0	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T)	8-98039-852-1	01	1	1109-1309	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) EXC. HEAVY DUTY FRAME<6WB>	8-98039-852-1	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) HEAVY DUTY FRAME<6WB> REAR WIDE TREAD(V4T)	8-98039-852-1	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W)	8-98039-852-1	01	1	1310-		●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SUSPENSION - RR UNDER SLUNG<V4U>	8-98039-801-1	01	1	1109-1309	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SUSPENSION - RR UNDER SLUNG<V4U> EXC. HEAVY DUTY FRAME<6WB>	8-98039-801-1	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) HEAVY DUTY FRAME<6WB> SUSPENSION - RR UNDER SLUNG<V4U>	8-98039-801-1	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98064-727-0	01	1	1109-1210	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98064-727-0	01	1	1211-1309	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W)	8-98064-727-0	01	1	1211-1309		●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>	8-98064-727-0	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98064-728-0	01	1	1109-1309	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>	8-98064-728-0	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98039-805-2	01	1	1109-1309	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. HEAVY DUTY FRAME<6WB>	8-98039-805-2	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB>	8-98039-805-2	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W)	8-98039-805-2	01	1	1310-		●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98064-730-0	01	1	1109-1210	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98064-730-0	01	1	1211-1309	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W)	8-98064-730-0	01	1	1211-1309		●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>	8-98064-730-0	01	1	1310-	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD)	8-97371-687-0	01	1	1211-	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-98039-787-0	01	1	1109-1210	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-98039-787-0	01	1	1211-	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W)	8-98039-787-0	01	1	1211-		●
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U>	8-98039-788-1	01	1	1109-1210	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U>	8-98039-788-1	01	1	1211-	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W)	8-98039-788-1	01	1	1211-	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W)	8-98063-388-0	01	1	1109-1210	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W)	8-98063-388-0	01	1	1211-	●	●
228	04.930 NUT; PIPE WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) 01.062 (A) M8 FLANGE	0-91180-108-0	02	1	1211-	●
228	04.930 NUT; PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1109-1210	●
228	04.930 NUT; PIPE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1109-1210	●
228	04.930 NUT; PIPE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1211-	●
228	04.930 NUT; PIPE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1211-	●
228	04.930 NUT; PIPE WHEEL BASE 2400MM(24W) 03.162 (A) M10 FLANGE	0-91180-110-0	01	1	1211-		●
228	04.930 NUT; PIPE WHEEL BASE 3300MM(33W) 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1109-1210	●
228	04.930 NUT; PIPE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1211-	●
228	04.930 NUT; PIPE WHEEL BASE 3300MM(33W) 01.062 (B) M6 FLANGE	0-91180-106-0	01	1	1211-		●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (E)	8-98036-102-0	01	1	1211-	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (F)	8-98039-790-0	01	1	1211-	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.630 (A) L=170 SERVICED BY L=3000	0-08258-300-0	01	1	1109-1210	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.630 (A) L=170 SERVICED BY L=3000	0-08258-300-0	01	1	1211-	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) 03.630 (A) L=170 SERVICED BY L=3000	0-08258-300-0	01	1	1211-		●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-98034-429-0	01	1	1109-1210	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) (B)	8-98034-429-0	01	1	1109-1210	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) REAR WIDE TREAD(V4T) (B)	8-98034-429-0	01	1	1211-	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) (B)	8-98034-429-0	01	1	1211-	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) (B)	8-98034-429-0	01	1	1211-		●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (D)	8-98039-789-1	01	1	1109-1210	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (D)	8-98039-789-1	01	1	1211-	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2800MM(28W) (D)	8-98039-789-1	01	1	1211-	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 3300MM(33W) (C)	8-98171-286-0	01	1	1109-1210	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 3300MM(33W) (C)	8-98171-286-0	01	1	1211-	●	●
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-97377-521-0	01	1	1109-1210	●
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T)	8-97377-521-0	01	1	1109-1210	●
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD)	8-97377-521-0	01	1	1211-	●
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) REAR WIDE TREAD(V4T)	8-97377-521-0	01	1	1211-	●
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T)	8-97377-521-0	01	1	1211-	●
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W)	8-97377-521-0	01	1	1211-		●

106 12 12 12 12 237 12 237 238 12 236 44 197 127 12 12 12 12 198 12 12 12 237 238 197 128 12 198

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	08	1	1109-1210	●
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	08	1	1211-	●	●
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) 03.162 (B) ID=16	8-98008-098-0	04	1	1109-1210	●
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) 03.162 (B) ID=16	8-98008-098-0	04	1	1211-	●
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) 03.162 (B) ID=16	8-98008-098-0	04	1	1211-		●
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1109-1210	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1109-1210	●
12	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1211-	●
12	04.681 CLIP; HOSE WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1211-	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 02.559 (D) ID=16.5 & 16.5	8-94468-380-0	01	1	1211-		●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) (C) ID=18 L=80	1-09701-069-0	01	1	1109-1210	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) (C) ID=18 L=80	1-09701-069-0	01	1	1211-	●	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 04.930 (E) ID=10 H=40	8-94462-219-0	01	1	1109-1210	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 04.930 (E) ID=10 H=40	8-94462-219-0	01	1	1211-	●	●
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	02	1	1109-1210	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 03.162 (B) ID=16	8-98008-098-0	02	1	1109-1210	●
12	04.681 CLIP; HOSE 03.162 (B) ID=16	8-98008-098-0	02	1	1211-	●	●
12	04.681 CLIP; HOSE WHEEL BASE 3300MM(33W) 03.162 (B) ID=16	8-98008-098-0	02	1	1211-	●	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1109-1210	●
12	04.681 CLIP; HOSE EXC. POWER ASSIST CLUTCH(S2T) 04.930 (A) ID=15.5	8-98008-097-0	02	1	1211-	●	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (B)	8-98039-808-2	01	1	1211-	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2800MM(28W) (C)	8-98145-928-0	01	1	1211-	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-98039-806-0	01	1	1109-1210	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-98039-806-0	01	1	1211-	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2400MM(24W) (B)	8-98039-806-0	01	1	1211-		●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (B)	8-98039-807-1	01	1	1109-	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 3300MM(33W) (A)	8-98042-654-0	01	1	1109-1210	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 2800MM(28W),WHEEL BASE 3300MM(33W) (A)	8-98042-654-0	01	1	1211-	●
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 3300MM(33W) (A)	8-98042-654-0	01	1	1211-		●
106	04.930 CLIP; PIPE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> ID=10X2 & 4.76	8-97170-259-0	01	1	1109-1210	●
106	04.930 CLIP; PIPE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> ID=10X2 & 4.76	8-97170-259-0	01	1	1211-	●
106	04.930 CLIP; PIPE WHEEL BASE 2800MM(28W) ID=10X2 & 4.76	8-97170-259-0	01	1	1211-	●
127	04.930 BOLT; CLIP WHEEL BASE 3300MM(33W) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1109-1210	●
127	04.930 BOLT; CLIP WHEEL BASE 3300MM(33W) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	1211-	●	●
128	04.930 NUT; CLIP WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE	0-91180-108-0	01	1	1109-1210	●
128	04.930 NUT; CLIP WHEEL BASE 3300MM(33W) 01.062 M8 FLANGE	0-91180-108-0	01	1	1211-	●	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SINGLE RR TIRE(6TD)	8-98089-483-0	01	1	1211-1309	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SINGLE RR TIRE(6TD) EXC. HEAVY DUTY FRAME<6WB>	8-98089-483-0	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) HEAVY DUTY FRAME<6WB> SINGLE RR TIRE(6TD)	8-98089-483-0	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98064-725-1	01	1	1211-1309	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>	8-98064-725-1	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98039-803-1	01	1	1211-1309	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. HEAVY DUTY FRAME<6WB>	8-98039-803-1	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W) HEAVY DUTY FRAME<6WB>	8-98039-803-1	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98145-534-0	01	1	1211-1309	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>	8-98145-534-0	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T)	8-98039-852-1	01	1	1109-1309	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> REAR WIDE TREAD(V4T) EXC. HEAVY DUTY FRAME<6WB>	8-98039-852-1	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) HEAVY DUTY FRAME<6WB> REAR WIDE TREAD(V4T)	8-98039-852-1	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W)	8-98039-852-1	01	1	1310-		●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SUSPENSION - RR UNDER SLUNG<V4U>	8-98039-801-1	01	1	1109-1309	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> SUSPENSION - RR UNDER SLUNG<V4U> EXC. HEAVY DUTY FRAME<6WB>	8-98039-801-1	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) HEAVY DUTY FRAME<6WB> SUSPENSION - RR UNDER SLUNG<V4U>	8-98039-801-1	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98064-727-0	01	1	1109-1210	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98064-727-0	01	1	1211-1309	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W)	8-98064-727-0	01	1	1211-1309		●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>	8-98064-727-0	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98064-728-0	01	1	1109-1309	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>	8-98064-728-0	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5>	8-98039-805-2	01	1	1109-1309	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) AIR BAG DRIVER<AJ3>,AIR BAG DRIVER & PASSENGER<AK5> EXC. HEAVY DUTY FRAME<6WB>	8-98039-805-2	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) HEAVY DUTY FRAME<6WB>	8-98039-805-2	01	1	1310-	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W)	8-98039-805-2	01	1	1310-		●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98064-730-0	01	1	1109-1210	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>	8-98064-730-0	01	1	1211-1309	●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W)	8-98064-730-0	01	1	1211-1309		●
197	04.930 PIPE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W) EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5>,HEAVY DUTY FRAME<6WB>	8-98064-730-0	01	1	1310-	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD)	8-97371-687-0	01	1	1211-	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-98039-787-0	01	1	1109-1210	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-98039-787-0	01	1	1211-	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W)	8-98039-787-0	01	1	1211-		●
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U>	8-98039-788-1	01	1	1109-1210	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U>	8-98039-788-1	01	1	1211-	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 2800MM(28W)	8-98039-788-1	01	1	1211-	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W)	8-98063-388-0	01	1	1109-1210	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV WHEEL BASE 3300MM(33W)	8-98063-388-0	01	1	1211-	●	●
236	04.930 BOLT; PIPE WHEEL BASE 2800MM(28W) 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1211-	●
236	04.930 BOLT; PIPE 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1109-1210	●
236	04.930 BOLT; PIPE 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	1211-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (E)	8-98036-102-0	01	1	1211-	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD) (F)	8-98039-790-0	01	1	1211-	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.630 (A) L=170 SERVICED BY L=3000	0-08258-300-0	01	1	1109-1210	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) 03.630 (A) L=170 SERVICED BY L=3000	0-08258-300-0	01	1	1211-	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) 03.630 (A) L=170 SERVICED BY L=3000	0-08258-300-0	01	1	1211-		●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T) (B)	8-98034-429-0	01	1	1109-1210	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) (B)	8-98034-429-0	01	1	1109-1210	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) REAR WIDE TREAD(V4T) (B)	8-98034-429-0	01	1	1211-	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) (B)	8-98034-429-0	01	1	1211-	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) (B)	8-98034-429-0	01	1	1211-		●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (D)	8-98039-789-1	01	1	1109-1210	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> (D)	8-98039-789-1	01	1	1211-	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 2800MM(28W) (D)	8-98039-789-1	01	1	1211-	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 3300MM(33W) (C)	8-98171-286-0	01	1	1109-1210	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE WHEEL BASE 3300MM(33W) (C)	8-98171-286-0	01	1	1211-	●	●
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W) REAR WIDE TREAD(V4T)	8-97377-521-0	01	1	1109-1210	●
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T)	8-97377-521-0	01	1	1109-1210	●
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W) SINGLE RR TIRE(6TD)	8-97377-521-0	01	1	1211-	●
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W),WHEEL BASE 2800MM(28W) REAR WIDE TREAD(V4T)	8-97377-521-0	01	1	1211-	●
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T)	8-97377-521-0	01	1	1211-	●
238	04.892 ORIFICE; VACUUM HOSE WHEEL BASE 2400MM(24W)	8-97377-521-0	01	1	1211-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
