◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51248 - NLR85(LHD) ▶ 3 - Brakes, Brake System ▶ 3-55 - BRAKE PIPING; OIL,REAR ▶
3-55 — BRAKE PIPING; OIL,REAR (#51340) — 59 parça

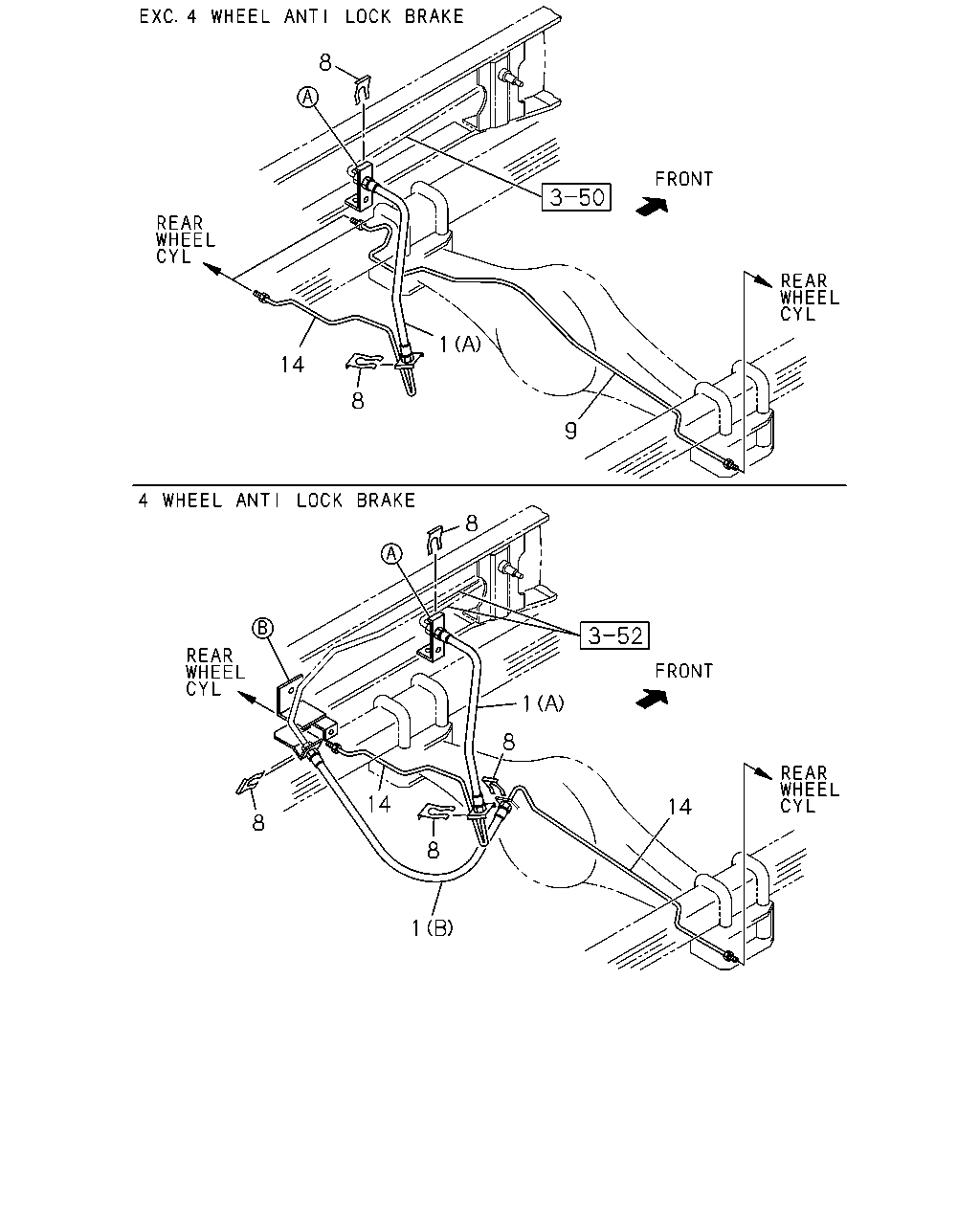

çizim 147719
8 14 8 1 9 8 8 14 8 1 8 1 14
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> SINGLE RR TIRE(6TD) (B) L=345 		8-97230-284-1 01 1 1211- ●
1 04.680 HOSE; FLEX,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. SINGLE RR TIRE(6TD) (B) L=430 		8-97077-458-0 01 1 1211- ●
1 04.680 HOSE; FLEX,RR BRK
(B) L=430 		8-97077-458-0 01 1 1211- ●
1 04.680 HOSE; FLEX,RR BRK
(A) L=370 		8-97035-574-0 01 1 1109-1210 ●
1 04.680 HOSE; FLEX,RR BRK
(A) L=370 		8-97035-574-0 01 1 1211- ● ●
8 04.686 CLIP; RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97360-054-0 02 1 1211- ●
8 04.686 CLIP; RR BRK 8-97360-054-0 02 1 1109-1210 ●
8 04.686 CLIP; RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97360-054-0 04 1 1211- ●
8 04.686 CLIP; RR BRK 8-97360-054-0 04 1 1211- ●
9 04.685 PIPE; BRK,RR AXLE
G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) REAR WIDE TREAD(V4T) SINGLE RR TIRE(6TD) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, SUSPENSION - RR UNDER SLUNG<V4U> 		8-98067-256-0 01 1 1309- ●
9 04.685 PIPE; BRK,RR AXLE
G.V.W. 3.0-3.5TON(RPP) REAR WIDE TREAD(V4T) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 		8-98021-870-0 01 1 1211-1308 ●
9 04.685 PIPE; BRK,RR AXLE
G.V.W. 3.0-3.5TON(RPP) REAR WIDE TREAD(V4T) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 		8-98021-870-0 01 1 1309- ●
9 04.685 PIPE; BRK,RR AXLE
G.V.W. 3.0-3.5TON(RPP) SUSPENSION - RR UNDER SLUNG<V4U> BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD) 		8-98034-198-0 01 1 1211-1308 ●
9 04.685 PIPE; BRK,RR AXLE
G.V.W. 3.0-3.5TON(RPP) SUSPENSION - RR UNDER SLUNG<V4U> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD) 		8-98034-198-0 01 1 1309- ●
9 04.685 PIPE; BRK,RR AXLE
G.V.W. 3.0-3.5TON(RPP) BRK WHL LK CONT LSPV<6PH> SINGLE RR TIRE(6TD) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG <V4U> 		8-98021-864-0 01 1 1211-1308 ●
9 04.685 PIPE; BRK,RR AXLE
G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG <V4U> 		8-98021-864-0 01 1 1309- ●
9 04.685 PIPE; BRK,RR AXLE
REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 		8-98045-395-0 01 1 1109-1210 ●
9 04.685 PIPE; BRK,RR AXLE
G.V.W. 3.5-4.0TON(RPQ) REAR WIDE TREAD(V4T) FULL FLATLOW<6GL> BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 		8-98045-395-0 01 1 1211-1308 ●
9 04.685 PIPE; BRK,RR AXLE
G.V.W. 3.5-4.0TON(RPQ) REAR WIDE TREAD(V4T) FULL FLATLOW<6GL> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 		8-98045-395-0 01 1 1309- ●
9 04.685 PIPE; BRK,RR AXLE
SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) 		8-98045-394-0 01 1 1109-1210 ●
9 04.685 PIPE; BRK,RR AXLE
G.V.W. 3.5-4.0TON(RPQ) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD) 		8-98045-394-0 01 1 1211-1308 ●
9 04.685 PIPE; BRK,RR AXLE
G.V.W. 3.5-4.0TON(RPQ) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD) 		8-98045-394-0 01 1 1309- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 3.5-4.0TON(RPQ) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD) 		8-98045-394-0 01 1 1309-1309 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 3.5-4.0TON(RPQ) REAR WIDE TREAD(V4T) FULL FLATLOW<6GL> BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 		8-98045-395-0 01 1 1309-1309 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) SINGLE RR TIRE(6TD) EXC. REAR WIDE TREAD(V4T),SUSPENSION - RRUNDER SLUNG<V4U> 		8-98021-877-0 01 1 1309- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 3.0-3.5TON(RPP) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, BRKWHL LK CONT LSPV<6PH>,SINGLE RR TIRE(6TD) 		8-98021-871-0 01 1 1211- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98021-871-0 01 1 1211- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 3.0-3.5TON(RPP) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, BRKWHL LK CONT LSPV<6PH>,SINGLE RR TIRE(6TD) 		8-98021-879-0 01 1 1211-1308 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98021-879-0 01 1 1211-1308 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) REAR WIDE TREAD(V4T) FULL FLATLOW<6GL> EXC. SUSPENSION - RR UNDER SLUNG<V4U>, SINGLE RR TIRE(6TD) 		8-98021-879-0 01 1 1309- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) REAR WIDE TREAD(V4T) SINGLE RR TIRE(6TD) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 		8-98021-879-0 01 1 1309- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 3.0-3.5TON(RPP) REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U>, FULL FLATLOW<6GL>,SINGLE RR TIRE(6TD) 		8-98021-879-0 01 1 1309- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 8-98021-879-0 01 1 1309- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 3.0-3.5TON(RPP) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T),BRK WHL LK CONTLSPV<6PH>,SINGLE RR TIRE(6TD) 		8-98034-193-0 01 1 1211- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 3.0-3.5TON(RPP) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T),BRK WHL LK CONTLSPV<6PH>,SINGLE RR TIRE(6TD) 		8-98034-196-0 01 1 1211-1308 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> EXC. REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD) 		8-98034-196-0 01 1 1309- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> G.V.W. 3.0-3.5TON(RPP) SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T),FULL FLATLOW<6GL>,SINGLE RR TIRE(6TD) 		8-98034-196-0 01 1 1309- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 3.0-3.5TON(RPP) BRK WHL LK CONT LSPV<6PH> SINGLE RR TIRE(6TD) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,REAR WIDE TREAD(V4T),SUSPENSION - RR UNDER SLUNG <V4U> 		8-98021-860-0 01 1 1211- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR WIDE TREAD(V4T) EXC. SUSPENSION - RR UNDER SLUNG<V4U> 		8-98021-869-0 01 1 1109-1210 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) REAR WIDE TREAD(V4T) FULL FLATLOW<6GL> BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, SUSPENSION - RR UNDER SLUNG<V4U>,SINGLE RR TIRE(6TD) 		8-98021-869-0 01 1 1211- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 3.0-3.5TON(RPP) REAR WIDE TREAD(V4T) BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>, SUSPENSION - RR UNDER SLUNG<V4U>,FULL FLATLOW<6GL>,SINGLE RR TIRE(6TD) 		8-98021-869-0 01 1 1211- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
SUSPENSION - RR UNDER SLUNG<V4U> EXC. REAR WIDE TREAD(V4T) 		8-98034-192-0 01 1 1109-1210 ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 3.0-3.5TON(RPP),G.V.W. 3.5-4.0TON(RPQ) SUSPENSION - RR UNDER SLUNG<V4U> FULL FLATLOW<6GL> BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,REAR WIDE TREAD(V4T),SINGLE RR TIRE(6TD) 		8-98034-192-0 01 1 1211- ●
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
G.V.W. 3.0-3.5TON(RPP) SUSPENSION - RR UNDER SLUNG<V4U> BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,REAR WIDE TREAD(V4T),FULL FLATLOW<6GL>,SINGLE RR TIRE(6TD) 		8-98034-192-0 01 1 1211- ●
çizim 320036
3 3 25 3 3
BalonParca AdiParca NoAdetTipApplied Date A B
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> SINGLE RR TIRE(6TD) (C) 		8-98117-513-0 01 1 1211- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. SINGLE RR TIRE(6TD) (D) 		8-98153-296-0 01 1 1211- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(D) 		8-98153-296-0 01 1 1211- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
SINGLE RR TIRE(6TD) (B) 		8-97251-436-0 01 1 1211- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(A) 		8-97205-198-0 01 1 1109-1210 ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
EXC. SINGLE RR TIRE(6TD) (A) 		8-97205-198-0 01 1 1211- ●
3 04.681 BRACKET; FLEX HOSE,RR BRK
(A) 		8-97205-198-0 01 1 1211- ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 1109-1210 ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 1109-1210 ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 1211- ● ●
25 04.686 CONNECTOR
WHEEL BASE 3300MM(33W) 4 WHEEL ANTI LOCK BRAKE<JE5> M10 STRAIGHT 		0-92107-005-0 01 1 1211- ●
25 04.686 CONNECTOR
4 WHEEL ANTI LOCK BRAKE<JE5> EXC. BRK WHL LK CONT LSPV<6PH> M10 STRAIGHT 		0-92107-005-0 01 1 1211- ●
25 04.686 CONNECTOR
BRK WHL LK CONT LSPV<6PH> M10 STRAIGHT 		0-92107-005-0 01 1 1211- ●
25 04.686 CONNECTOR
WHEEL BASE 3300MM(33W) M10 STRAIGHT 		0-92107-005-0 01 1 1211- ●
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 1211- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
