3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#51338) — 124 parça

19 19 8 7 7 8 129 117 56 10 253

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

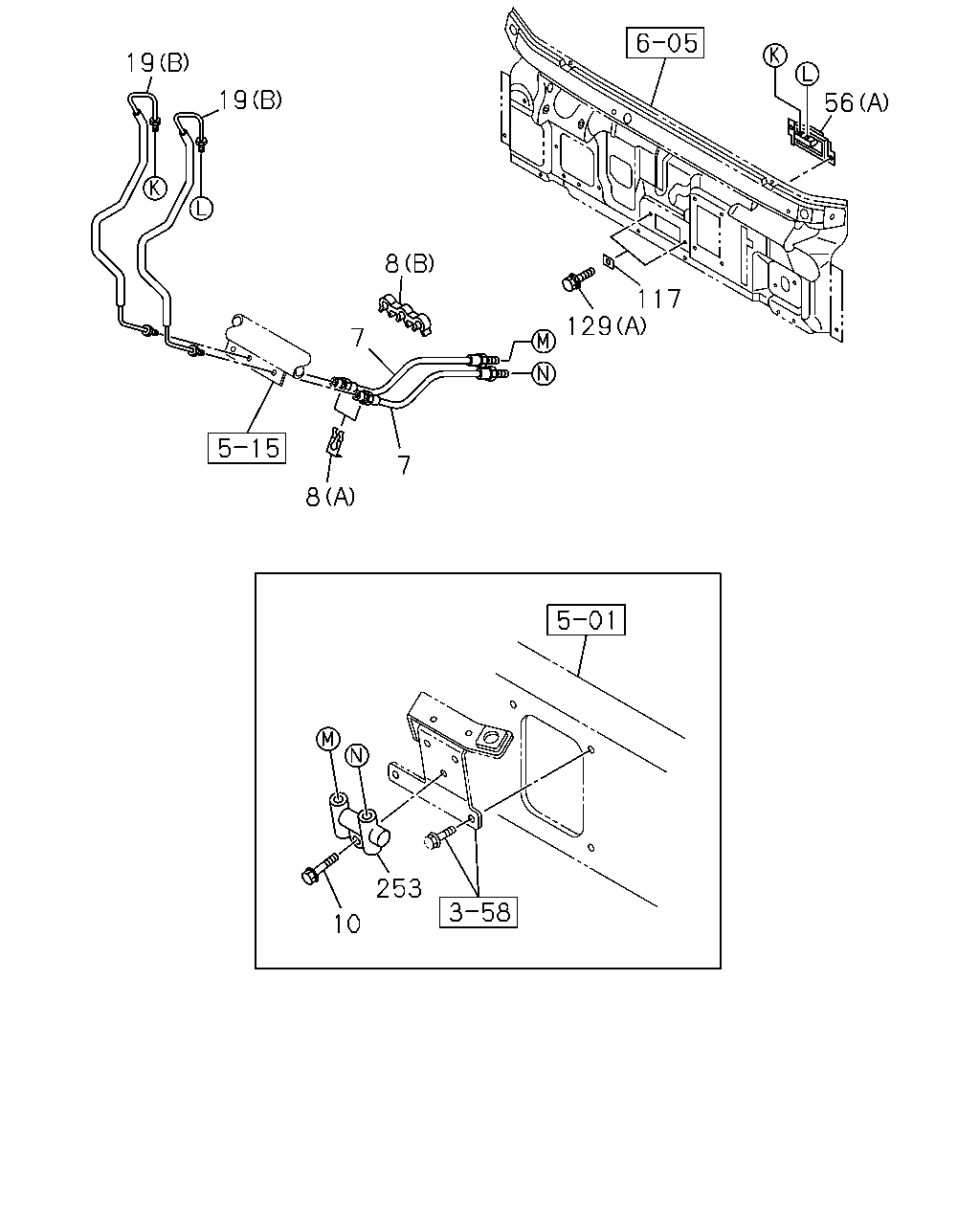

7	04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT	8-98033-732-0	02	1	1109-1210	●
7	04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT	8-98033-732-0	02	1	1211-	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE (A)	8-97365-304-0	02	1	1109-1210	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE (A)	8-97365-304-0	02	1	1211-	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE (B)	8-98056-614-0	01	1	1109-1210	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE (B)	8-98056-614-0	01	1	1211-	●	●
10	04.686 BOLT; JOINT 00.685 M6X40 FLANGE	0-28650-640-0	01	1	1109-1210	●
10	04.686 BOLT; JOINT 00.685 M6X40 FLANGE	0-28650-640-0	01	1	1211-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-98047-210-2	02	1	1109-1210	●
19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-98047-210-2	02	1	1211-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98076-015-0	01	1	1109-1210	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98076-015-0	01	1	1211-	●	●
56	04.686 BRACKET; UNION,BRK TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98154-269-1	01	1	1211-	●	●
56	04.686 BRACKET; UNION,BRK (B)	8-98034-299-3	01	1	1109-1210	●
56	04.686 BRACKET; UNION,BRK (B)	8-98034-299-3	01	1	1211-	●	●
56	04.686 BRACKET; UNION,BRK (A)	8-98154-268-1	01	1	1109-1210	●
56	04.686 BRACKET; UNION,BRK EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98154-268-1	01	1	1211-	●	●
117	04.686 SEAL; UNION,BRK PIPE JOINT 08.845	8-97856-616-0	02	1	1109-1210	●
117	04.686 SEAL; UNION,BRK PIPE JOINT 08.845	8-97856-616-0	02	1	1211-	●	●
129	04.710 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1109-1210	●
129	04.710 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1211-	●	●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1109-1210	●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1211-	●	●
253	04.840 JOINT 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97038-940-1	01	1	1211-	●
253	04.840 JOINT	8-97038-940-1	01	1	1211-		●
253	04.840 JOINT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,BRK WHLLK CONT LSPV<6PH> 04.686	5-47456-009-1	01	1	1211-	●
253	04.840 JOINT 04.686	8-97120-033-2	01	1	1109-1210	●
253	04.840 JOINT BRK WHL LK CONT LSPV<6PH> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.686	8-97120-033-2	01	1	1211-	●

56 129 153 256 56 19 145

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

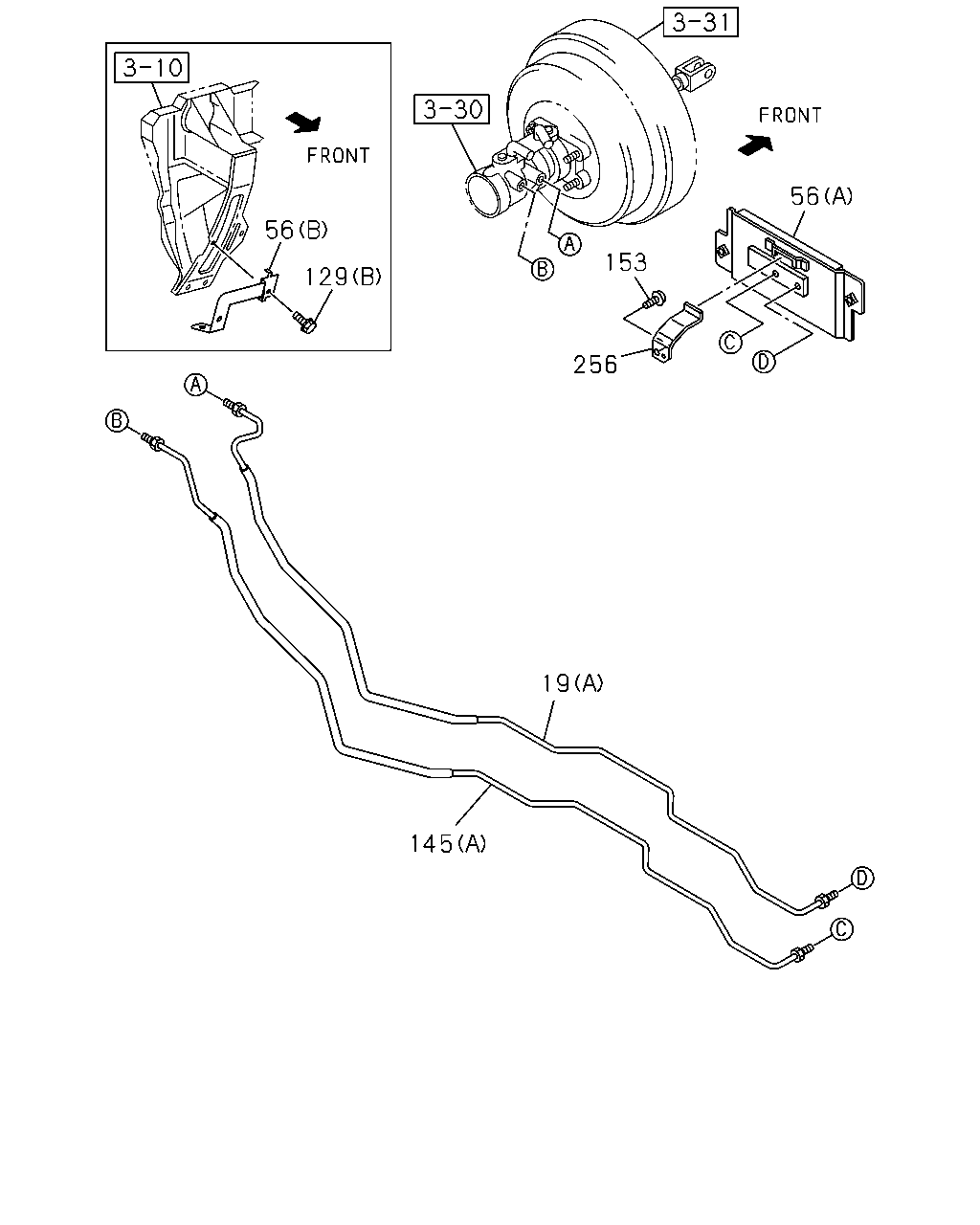

19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-98047-210-2	02	1	1109-1210	●
19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-98047-210-2	02	1	1211-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98076-015-0	01	1	1109-1210	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98076-015-0	01	1	1211-	●	●
56	04.686 BRACKET; UNION,BRK TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98154-269-1	01	1	1211-	●	●
56	04.686 BRACKET; UNION,BRK (B)	8-98034-299-3	01	1	1109-1210	●
56	04.686 BRACKET; UNION,BRK (B)	8-98034-299-3	01	1	1211-	●	●
56	04.686 BRACKET; UNION,BRK (A)	8-98154-268-1	01	1	1109-1210	●
56	04.686 BRACKET; UNION,BRK EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98154-268-1	01	1	1211-	●	●
129	04.710 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1109-1210	●
129	04.710 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1211-	●	●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1109-1210	●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1211-	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (B) L=247	8-98133-410-0	01	1	1211-	●
145	04.685 PIPE; BRK,METERING VLV TO UNION (B) L=247	8-98133-410-0	01	1	1211-		●
145	04.685 PIPE; BRK,METERING VLV TO UNION (A)	8-98070-477-1	01	1	1109-1210	●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98070-477-1	01	1	1211-	●
153	04.730 SCREW; BRKT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	1109-1210	●
153	04.730 SCREW; BRKT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	1211-	●
153	04.730 SCREW; BRKT FIX EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	1211-		●
256	04.840 BRACKET; BRK PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV>	8-98163-521-0	01	1	1109-1210	●
256	04.840 BRACKET; BRK PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV>	8-98163-521-0	01	1	1211-	●
256	04.840 BRACKET; BRK PIPE EXC. KD PREPARATORY PACK VAR.4<7TV>	8-98163-521-0	01	1	1211-		●

56 129 258 237 264 256 153 56 145 47 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

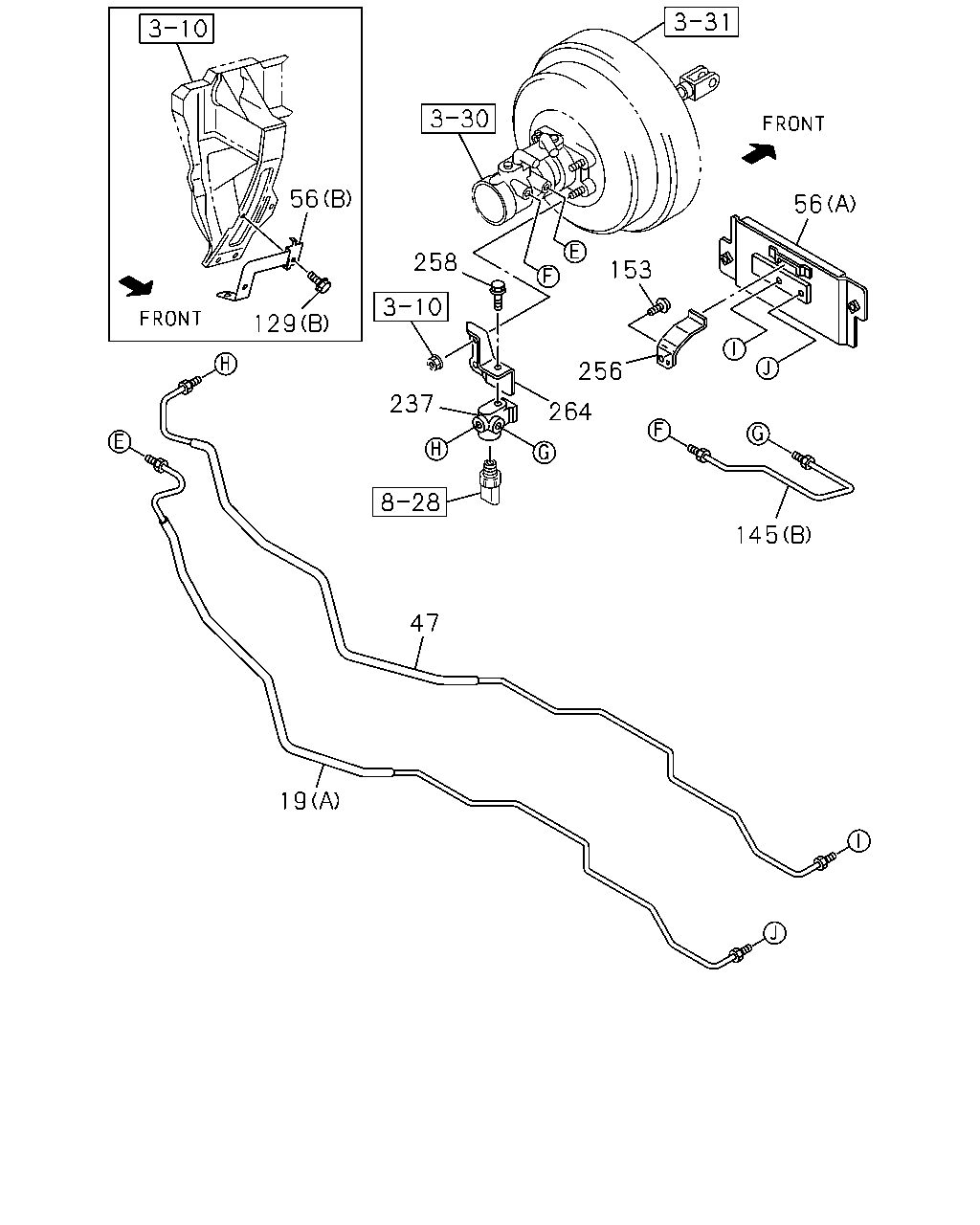

19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-98047-210-2	02	1	1109-1210	●
19	04.685 PIPE; BRK,M/CYL TO UNION (B)	8-98047-210-2	02	1	1211-	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98076-015-0	01	1	1109-1210	●
19	04.685 PIPE; BRK,M/CYL TO UNION (A)	8-98076-015-0	01	1	1211-	●	●
47	04.685 PIPE; OIL,FRT BRK 4 WHEEL ANTI LOCK BRAKE<JE5> L=876	8-98133-415-0	01	1	1211-	●
47	04.685 PIPE; OIL,FRT BRK L=876	8-98133-415-0	01	1	1211-		●
56	04.686 BRACKET; UNION,BRK TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98154-269-1	01	1	1211-	●	●
56	04.686 BRACKET; UNION,BRK (B)	8-98034-299-3	01	1	1109-1210	●
56	04.686 BRACKET; UNION,BRK (B)	8-98034-299-3	01	1	1211-	●	●
56	04.686 BRACKET; UNION,BRK (A)	8-98154-268-1	01	1	1109-1210	●
56	04.686 BRACKET; UNION,BRK EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A)	8-98154-268-1	01	1	1211-	●	●
129	04.710 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1109-1210	●
129	04.710 BOLT; BRKT 02.343 (B) M6X16 FLANGE	0-28650-616-0	01	1	1211-	●	●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1109-1210	●
129	04.710 BOLT; BRKT 08.857 (A) M6X20 W/LK&PL WASHER	8-98081-030-0	02	1	1211-	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION 4 WHEEL ANTI LOCK BRAKE<JE5> (B) L=247	8-98133-410-0	01	1	1211-	●
145	04.685 PIPE; BRK,METERING VLV TO UNION (B) L=247	8-98133-410-0	01	1	1211-		●
145	04.685 PIPE; BRK,METERING VLV TO UNION (A)	8-98070-477-1	01	1	1109-1210	●
145	04.685 PIPE; BRK,METERING VLV TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-98070-477-1	01	1	1211-	●
153	04.730 SCREW; BRKT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	1109-1210	●
153	04.730 SCREW; BRKT FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	1211-	●
153	04.730 SCREW; BRKT FIX EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR	0-72180-512-0	01	1	1211-		●
237	04.840 CONNECTOR; MODULATOR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-98111-748-1	01	1	1211-	●
237	04.840 CONNECTOR; MODULATOR	8-98111-748-1	01	1	1211-		●
256	04.840 BRACKET; BRK PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV>	8-98163-521-0	01	1	1109-1210	●
256	04.840 BRACKET; BRK PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV>	8-98163-521-0	01	1	1211-	●
256	04.840 BRACKET; BRK PIPE EXC. KD PREPARATORY PACK VAR.4<7TV>	8-98163-521-0	01	1	1211-		●
258	04.730 BOLT; PIPE,BRK 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1211-	●
258	04.730 BOLT; PIPE,BRK 02.343 M8X12 FLANGE	0-28050-812-0	01	1	1211-		●
264	04.681 BRACKET; SENSOR,PRESSURE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97387-683-2	01	1	1211-	●
264	04.681 BRACKET; SENSOR,PRESSURE	8-97387-683-2	01	1	1211-		●

35 11 262 261 261 260 263 164 13 11 104 26 104 26 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A

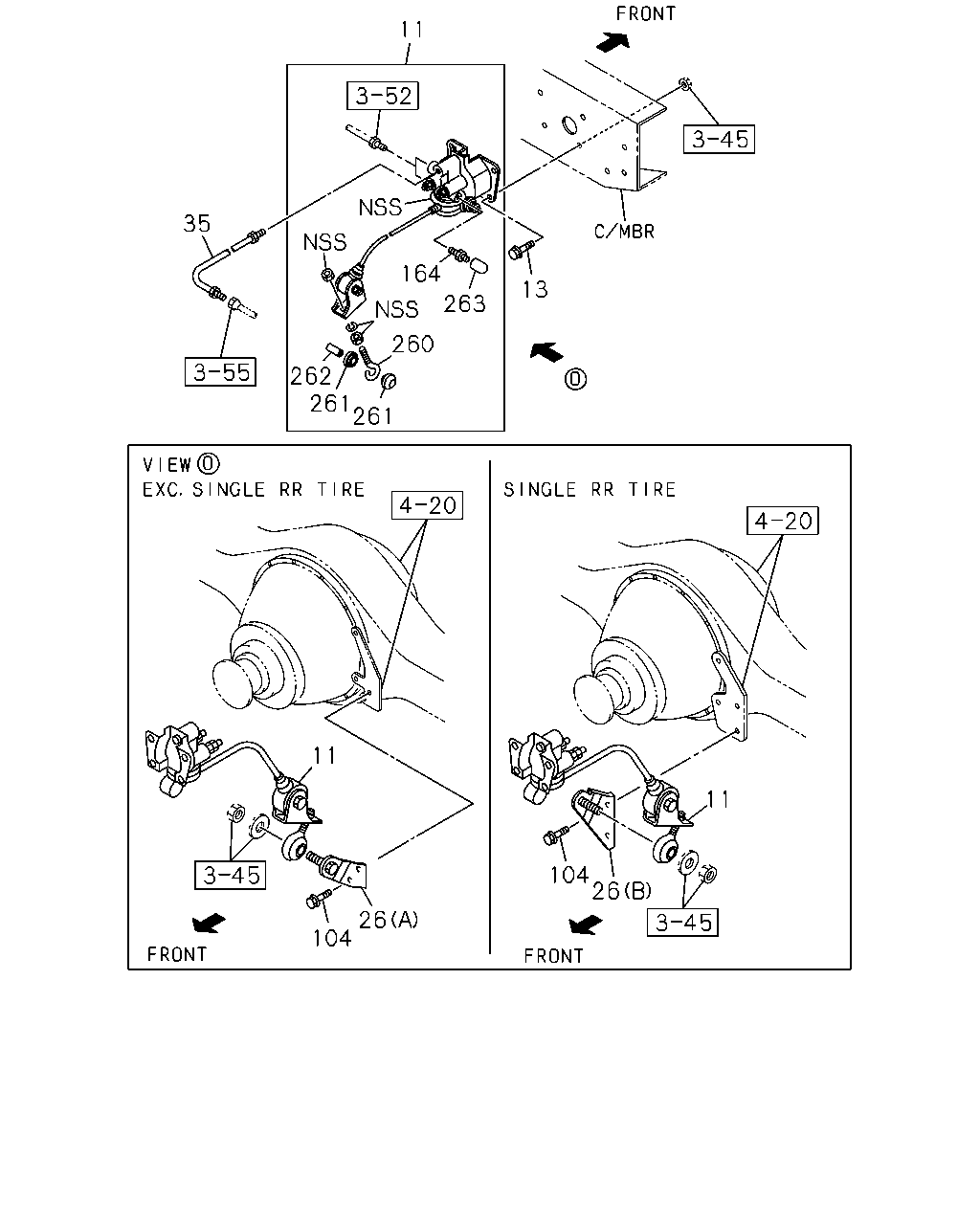

11	04.686 VALVE; BRK CONT BRK WHL LK CONT LSPV<6PH> SINGLE RR TIRE(6TD) 04.730	8-94368-455-2	01	1	1211-	●
11	04.686 VALVE; BRK CONT 04.730	8-97070-721-0	01	1	1109-1210	●
11	04.686 VALVE; BRK CONT BRK WHL LK CONT LSPV<6PH> EXC. SINGLE RR TIRE(6TD) 04.730	8-97070-721-0	01	1	1211-	●
13	04.686 BOLT; VLV TO BRKT 02.343 M8X16 FLANGE	0-28050-816-0	04	1	1109-1210	●
13	04.686 BOLT; VLV TO BRKT BRK WHL LK CONT LSPV<6PH> 02.343 M8X16 FLANGE	0-28050-816-0	04	1	1211-	●
26	04.730 BRACKET; PROPORTIONING VLV BRK WHL LK CONT LSPV<6PH> SINGLE RR TIRE(6TD) (B)	8-98029-822-0	01	1	1211-	●
26	04.730 BRACKET; PROPORTIONING VLV (A)	8-98029-821-0	01	1	1109-1210	●
26	04.730 BRACKET; PROPORTIONING VLV BRK WHL LK CONT LSPV<6PH> EXC. SINGLE RR TIRE(6TD) (A)	8-98029-821-0	01	1	1211-	●
35	04.685 PIPE; BRK,VLV TO RR AXLE BRK WHL LK CONT LSPV<6PH> SINGLE RR TIRE(6TD)	8-98064-716-0	01	1	1211-	●
35	04.685 PIPE; BRK,VLV TO RR AXLE	8-97389-540-0	01	1	1109-1210	●
35	04.685 PIPE; BRK,VLV TO RR AXLE BRK WHL LK CONT LSPV<6PH> EXC. SINGLE RR TIRE(6TD)	8-97389-540-0	01	1	1211-	●
104	04.730 BOLT; BRKT TO BODY 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1109-1210	●
104	04.730 BOLT; BRKT TO BODY BRK WHL LK CONT LSPV<6PH> 02.343 M8X16 FLANGE	0-28050-816-0	02	1	1211-	●
164	04.730 SCREW; BLEEDER 04.685	8-97093-663-0	01	1	1109-1210	●
164	04.730 SCREW; BLEEDER BRK WHL LK CONT LSPV<6PH> 04.685	8-97093-663-0	01	1	1211-	●
260	04.685 SHACKLE; LSPV 04.710	8-97173-366-0	01	1	1109-1210	●
260	04.685 SHACKLE; LSPV BRK WHL LK CONT LSPV<6PH> 04.710	8-97173-366-0	01	1	1211-	●
261	04.685 BUSHING; LSPV 04.710	8-97145-631-0	02	1	1109-1210	●
261	04.685 BUSHING; LSPV BRK WHL LK CONT LSPV<6PH> 04.710	8-97145-631-0	02	1	1211-	●
262	04.685 COLLAR; LSPV 04.710	8-97139-186-0	01	1	1109-1210	●
262	04.685 COLLAR; LSPV BRK WHL LK CONT LSPV<6PH> 04.710	8-97139-186-0	01	1	1211-	●
263	04.685 CAP; BLEEDER	8-97093-662-0	01	1	1109-1210	●
263	04.685 CAP; BLEEDER BRK WHL LK CONT LSPV<6PH>	8-97093-662-0	01	1	1211-	●

89 100 72 90 72 103 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
72	04.686 BOLT; BRKT TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1211-	●
72	04.686 BOLT; BRKT TO BODY 06.216 M8X25 FLANGE	0-28650-825-0	04	1	1211-		●

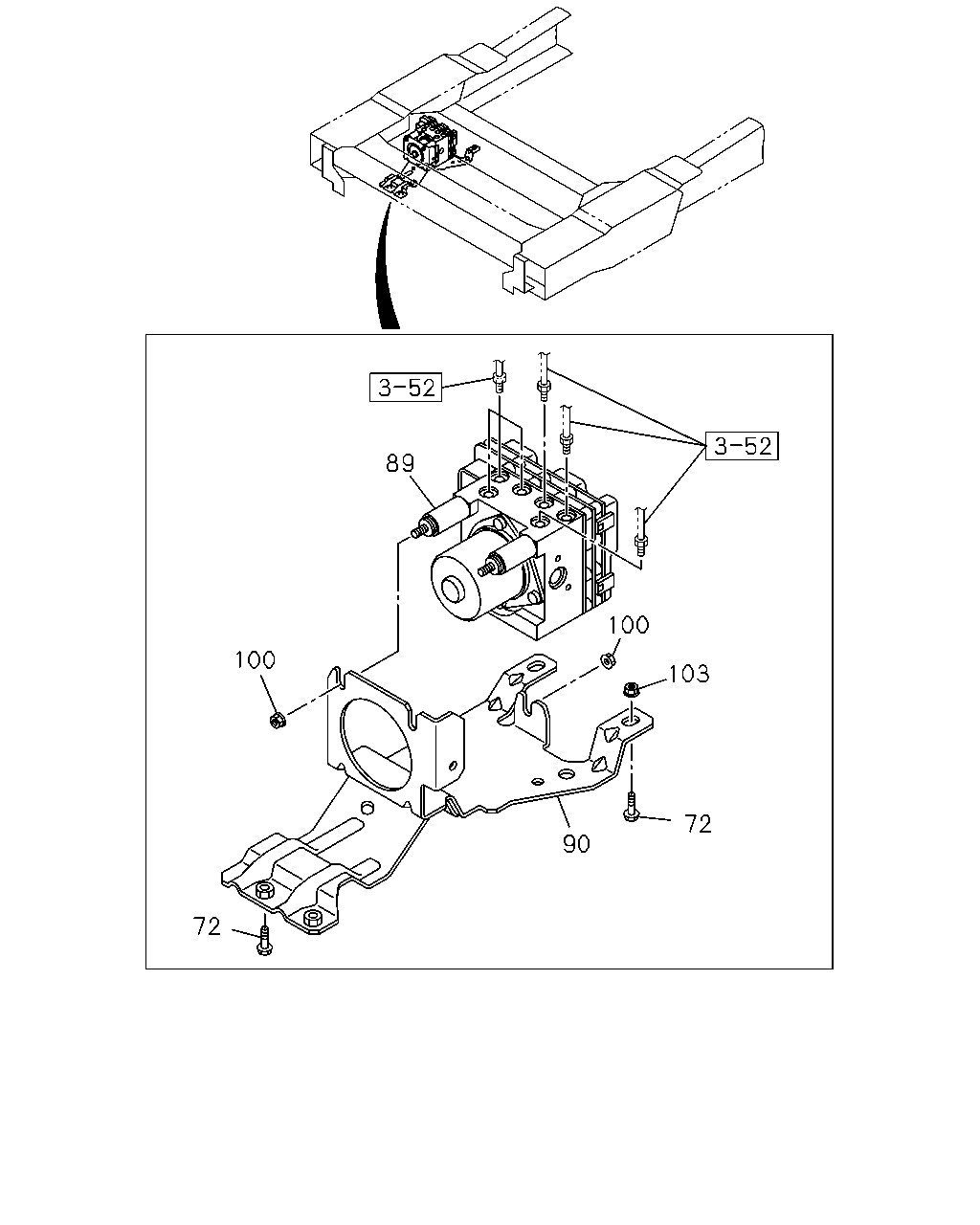

89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK TAIWAN EQUIPMENT(B04) 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52>	8-98214-136-1	01	1	1211-	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK	8-98214-136-1	01	1	1211-		●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> DISC BRAKE FRT<J52> EXC. TAIWAN EQUIPMENT(B04)	8-98158-007-1	01	1	1211-	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. DISC BRAKE FRT<J52>	8-98158-006-1	01	1	1211-	●
90	04.730 BRACKET; HYDRAULIC UNIT,ABS 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97386-355-0	01	1	1211-	●
90	04.730 BRACKET; HYDRAULIC UNIT,ABS	8-97386-355-0	01	1	1211-		●
100	04.730 NUT; HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> 01.062 M8 FLANGE	0-91180-108-0	03	1	1211-	●
100	04.730 NUT; HYDRAULIC UNIT 01.062 M8 FLANGE	0-91180-108-0	03	1	1211-		●
103	04.730 NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> EXC. AIR BAG DRIVER<AJ3>,AIR BAG DRIVER &PASSENGER<AK5> 01.062 M8 FLANGE	0-91180-108-0	02	1	1211-	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 01.062 M8 FLANGE	0-91180-108-0	02	1	1211-		●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
35	04.685 PIPE; BRK,VLV TO RR AXLE BRK WHL LK CONT LSPV<6PH> SINGLE RR TIRE(6TD)	8-98064-716-0	01	1	1211-	●
35	04.685 PIPE; BRK,VLV TO RR AXLE	8-97389-540-0	01	1	1109-1210	●
35	04.685 PIPE; BRK,VLV TO RR AXLE BRK WHL LK CONT LSPV<6PH> EXC. SINGLE RR TIRE(6TD)	8-97389-540-0	01	1	1211-	●

130 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
130	04.686 BRACKET; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97080-060-2	02	1	1211-	●
130	04.686 BRACKET; SPEED SENSOR	8-97080-060-2	02	1	1211-		●
131	04.710 BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1211-	●
131	04.710 BOLT; BRKT 02.343 M8X12 FLANGE	0-28050-812-0	02	1	1211-		●
