◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51248 - NLR85(LHD) ▶ 3 - Brakes, Brake System ▶ 3-30 - BRAKE MASTER CYLINDER ▶
3-30 — BRAKE MASTER CYLINDER (#51335) — 68 parça

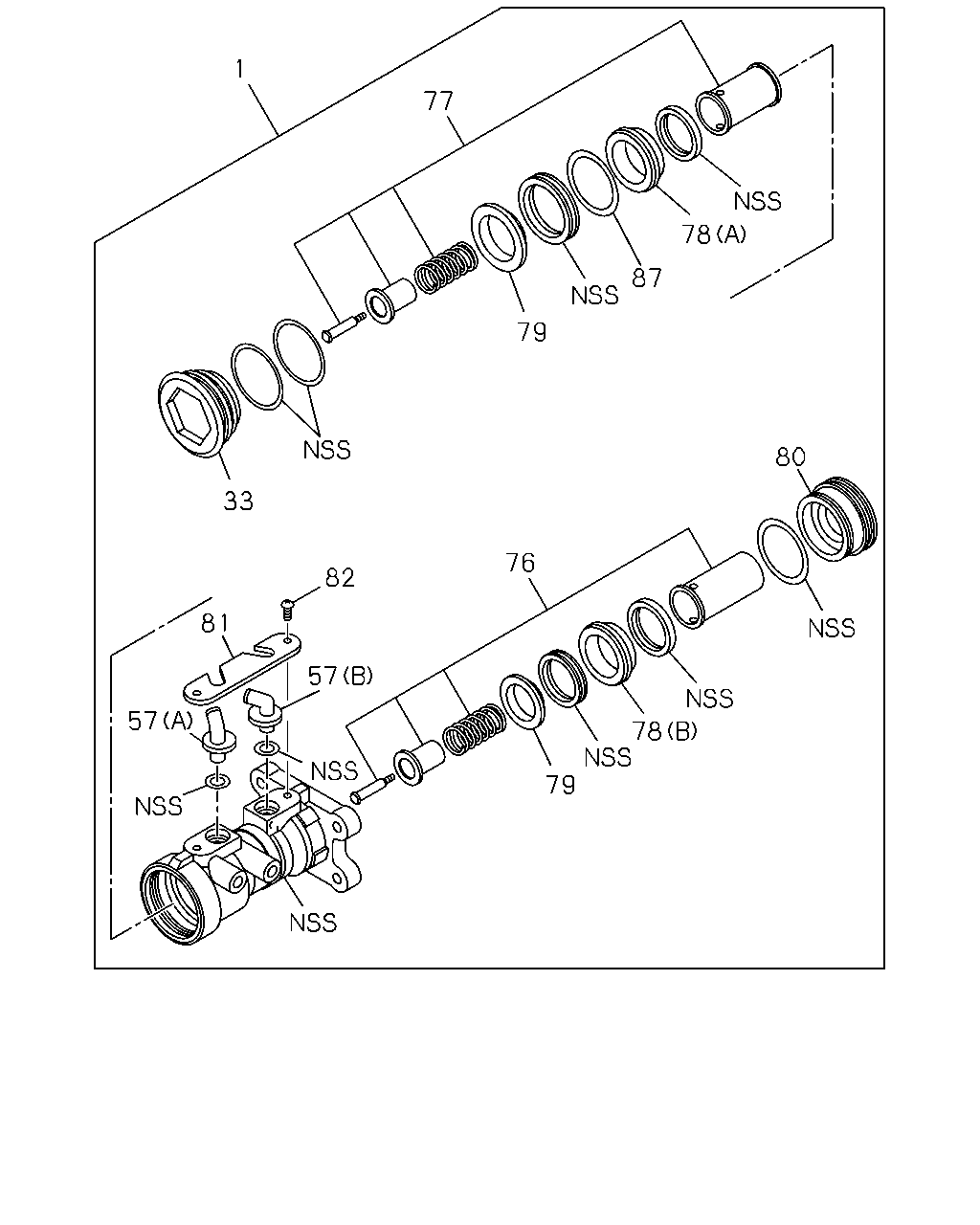

çizim 147720
1 77 33 79 87 78 81 82 57 57 76 80 79 78
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.650 CYLINDER ASM; BRK MASTER
DISC BRAKE FRT<J52> 		8-98032-602-0 01 1 1211- ●
1 04.650 CYLINDER ASM; BRK MASTER 8-98032-602-0 01 1 1211- ●
1 04.650 CYLINDER ASM; BRK MASTER
EXC. TURKEY EQUIPMENT(B11),DISC BRAKE FRT<J52> 		8-98032-617-0 01 1 1211- ●
1 04.650 CYLINDER ASM; BRK MASTER 8-98032-617-0 01 1 1109-1109 ●
1 04.650 CYLINDER ASM; BRK MASTER 8-98093-122-0 01 1 1109-1210 ●
1 04.650 CYLINDER ASM; BRK MASTER
TURKEY EQUIPMENT(B11) EXC. DISC BRAKE FRT<J52> 		8-98093-122-0 01 1 1211- ●
33 04.661 PLUG; END,M/CYL
DISC BRAKE FRT<J52> 		8-97186-697-0 01 1 1211- ●
33 04.661 PLUG; END,M/CYL 8-97186-697-0 01 1 1211- ●
33 04.661 PLUG; END,M/CYL
EXC. TURKEY EQUIPMENT(B11),DISC BRAKE FRT<J52> 		8-97186-696-0 01 1 1211- ●
33 04.661 PLUG; END,M/CYL 8-97186-696-0 01 1 1109-1109 ●
33 04.661 PLUG; END,M/CYL 8-97186-698-0 01 1 1109-1210 ●
33 04.661 PLUG; END,M/CYL
TURKEY EQUIPMENT(B11) EXC. DISC BRAKE FRT<J52> 		8-97186-698-0 01 1 1211- ●
57 04.651 NIPPLE; BRK M/CYL
(A) 		8-97130-441-0 01 1 1109-1210 ●
57 04.651 NIPPLE; BRK M/CYL
(A) 		8-97130-441-0 01 1 1211- ● ●
57 04.651 NIPPLE; BRK M/CYL
(B) 		8-97130-442-0 01 1 1109-1210 ●
57 04.651 NIPPLE; BRK M/CYL
(B) 		8-97130-442-0 01 1 1211- ● ●
76 04.653 PISTON ASM; PRIMARY
DISC BRAKE FRT<J52> 		8-97224-643-0 01 1 1211- ●
76 04.653 PISTON ASM; PRIMARY 8-97224-643-0 01 1 1211- ●
76 04.653 PISTON ASM; PRIMARY
EXC. TURKEY EQUIPMENT(B11),DISC BRAKE FRT<J52> 		8-97224-636-0 01 1 1211- ●
76 04.653 PISTON ASM; PRIMARY 8-97224-636-0 01 1 1109-1109 ●
76 04.653 PISTON ASM; PRIMARY 8-97224-639-0 01 1 1109-1210 ●
76 04.653 PISTON ASM; PRIMARY
TURKEY EQUIPMENT(B11) EXC. DISC BRAKE FRT<J52> 		8-97224-639-0 01 1 1211- ●
77 04.653 PISTON ASM; SECONDARY
DISC BRAKE FRT<J52> 		8-97224-642-0 01 1 1211- ●
77 04.653 PISTON ASM; SECONDARY 8-97224-642-0 01 1 1211- ●
77 04.653 PISTON ASM; SECONDARY
EXC. TURKEY EQUIPMENT(B11),DISC BRAKE FRT<J52> 		8-97224-635-0 01 1 1211- ●
77 04.653 PISTON ASM; SECONDARY 8-97224-635-0 01 1 1109-1109 ●
77 04.653 PISTON ASM; SECONDARY 8-97224-637-0 01 1 1109-1210 ●
77 04.653 PISTON ASM; SECONDARY
TURKEY EQUIPMENT(B11) EXC. DISC BRAKE FRT<J52> 		8-97224-637-0 01 1 1211- ●
78 04.651 BUSHING; MASTER CYL
DISC BRAKE FRT<J52> (A) 		8-97130-455-0 01 1 1211- ●
78 04.651 BUSHING; MASTER CYL
(A) 		8-97130-455-0 01 1 1211- ●
78 04.651 BUSHING; MASTER CYL
DISC BRAKE FRT<J52> (B) 		8-97217-312-0 01 1 1211- ●
78 04.651 BUSHING; MASTER CYL
(B) 		8-97217-312-0 01 1 1211- ●
78 04.651 BUSHING; MASTER CYL
EXC. TURKEY EQUIPMENT(B11),DISC BRAKE FRT<J52> (A) 		8-97130-454-0 01 1 1211- ●
78 04.651 BUSHING; MASTER CYL
EXC. TURKEY EQUIPMENT(B11),DISC BRAKE FRT<J52> (B) 		8-97217-310-0 01 1 1211- ●
78 04.651 BUSHING; MASTER CYL
(A) 		8-97130-454-0 01 1 1109-1109 ●
78 04.651 BUSHING; MASTER CYL
(A) 		8-97141-410-0 01 1 1109-1210 ●
78 04.651 BUSHING; MASTER CYL
TURKEY EQUIPMENT(B11) EXC. DISC BRAKE FRT<J52> (A) 		8-97141-410-0 01 1 1211- ●
78 04.651 BUSHING; MASTER CYL
(B) 		8-97217-310-0 01 1 1109-1109 ●
78 04.651 BUSHING; MASTER CYL
(B) 		8-97217-830-0 01 1 1109-1210 ●
78 04.651 BUSHING; MASTER CYL
TURKEY EQUIPMENT(B11) EXC. DISC BRAKE FRT<J52> (B) 		8-97217-830-0 01 1 1211- ●
79 04.651 SUPPORTER; CUP
DISC BRAKE FRT<J52> 		8-97130-463-0 02 1 1211- ●
79 04.651 SUPPORTER; CUP 8-97130-463-0 02 1 1211- ●
79 04.651 SUPPORTER; CUP
EXC. TURKEY EQUIPMENT(B11),DISC BRAKE FRT<J52> 		8-97130-462-0 02 1 1211- ●
79 04.651 SUPPORTER; CUP 8-97130-462-0 02 1 1109-1109 ●
79 04.651 SUPPORTER; CUP 8-97141-417-0 02 1 1109-1210 ●
79 04.651 SUPPORTER; CUP
TURKEY EQUIPMENT(B11) EXC. DISC BRAKE FRT<J52> 		8-97141-417-0 02 1 1211- ●
80 04.651 COVER; MASTER CYL
DISC BRAKE FRT<J52> 		8-97130-449-0 01 1 1211- ●
80 04.651 COVER; MASTER CYL 8-97130-449-0 01 1 1211- ●
80 04.651 COVER; MASTER CYL
EXC. TURKEY EQUIPMENT(B11),DISC BRAKE FRT<J52> 		8-97130-448-0 01 1 1211- ●
80 04.651 COVER; MASTER CYL 8-97130-448-0 01 1 1109-1109 ●
80 04.651 COVER; MASTER CYL 8-97141-404-0 01 1 1109-1210 ●
80 04.651 COVER; MASTER CYL
TURKEY EQUIPMENT(B11) EXC. DISC BRAKE FRT<J52> 		8-97141-404-0 01 1 1211- ●
81 04.651 HOLDER; NIPPLE 8-97315-168-0 01 1 1109-1210 ●
81 04.651 HOLDER; NIPPLE 8-97315-168-0 01 1 1211- ● ●
82 04.651 SCREW; HOLDER 8-97130-446-0 02 1 1109-1210 ●
82 04.651 SCREW; HOLDER 8-97130-446-0 02 1 1211- ● ●
87 04.662 SPACER; CUP
DISC BRAKE FRT<J52> 		8-97130-459-0 01 1 1211- ●
87 04.662 SPACER; CUP 8-97130-459-0 01 1 1211- ●
87 04.662 SPACER; CUP
EXC. TURKEY EQUIPMENT(B11),DISC BRAKE FRT<J52> 		8-97130-458-0 01 1 1211- ●
87 04.662 SPACER; CUP 8-97130-458-0 01 1 1109-1109 ●
87 04.662 SPACER; CUP 8-97141-413-0 01 1 1109-1210 ●
87 04.662 SPACER; CUP
TURKEY EQUIPMENT(B11) EXC. DISC BRAKE FRT<J52> 		8-97141-413-0 01 1 1211- ●
çizim 147723
2
BalonParca AdiParca NoAdetTipApplied Date A B
2 04.649 REPAIR KIT; BRK,M/CYL
DISC BRAKE FRT<J52> 		8-97130-471-0 01 1 1211- ●
2 04.649 REPAIR KIT; BRK,M/CYL 8-97130-471-0 01 1 1211- ●
2 04.649 REPAIR KIT; BRK,M/CYL
EXC. TURKEY EQUIPMENT(B11),DISC BRAKE FRT<J52> 		8-97130-470-0 01 1 1211- ●
2 04.649 REPAIR KIT; BRK,M/CYL 8-97130-470-0 01 1 1109-1109 ●
2 04.649 REPAIR KIT; BRK,M/CYL 8-97141-423-0 01 1 1109-1210 ●
2 04.649 REPAIR KIT; BRK,M/CYL
TURKEY EQUIPMENT(B11) EXC. DISC BRAKE FRT<J52> 		8-97141-423-0 01 1 1211- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
