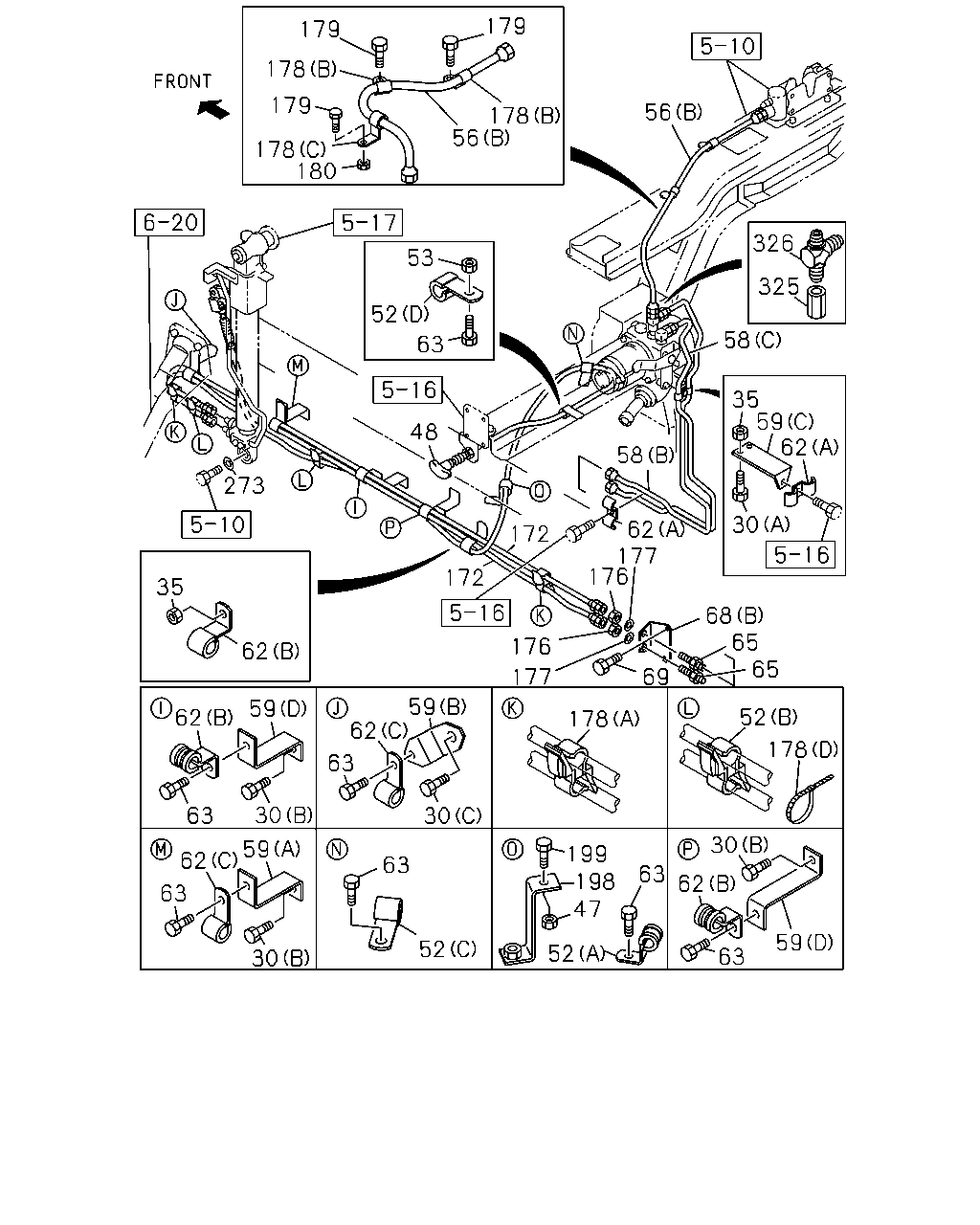

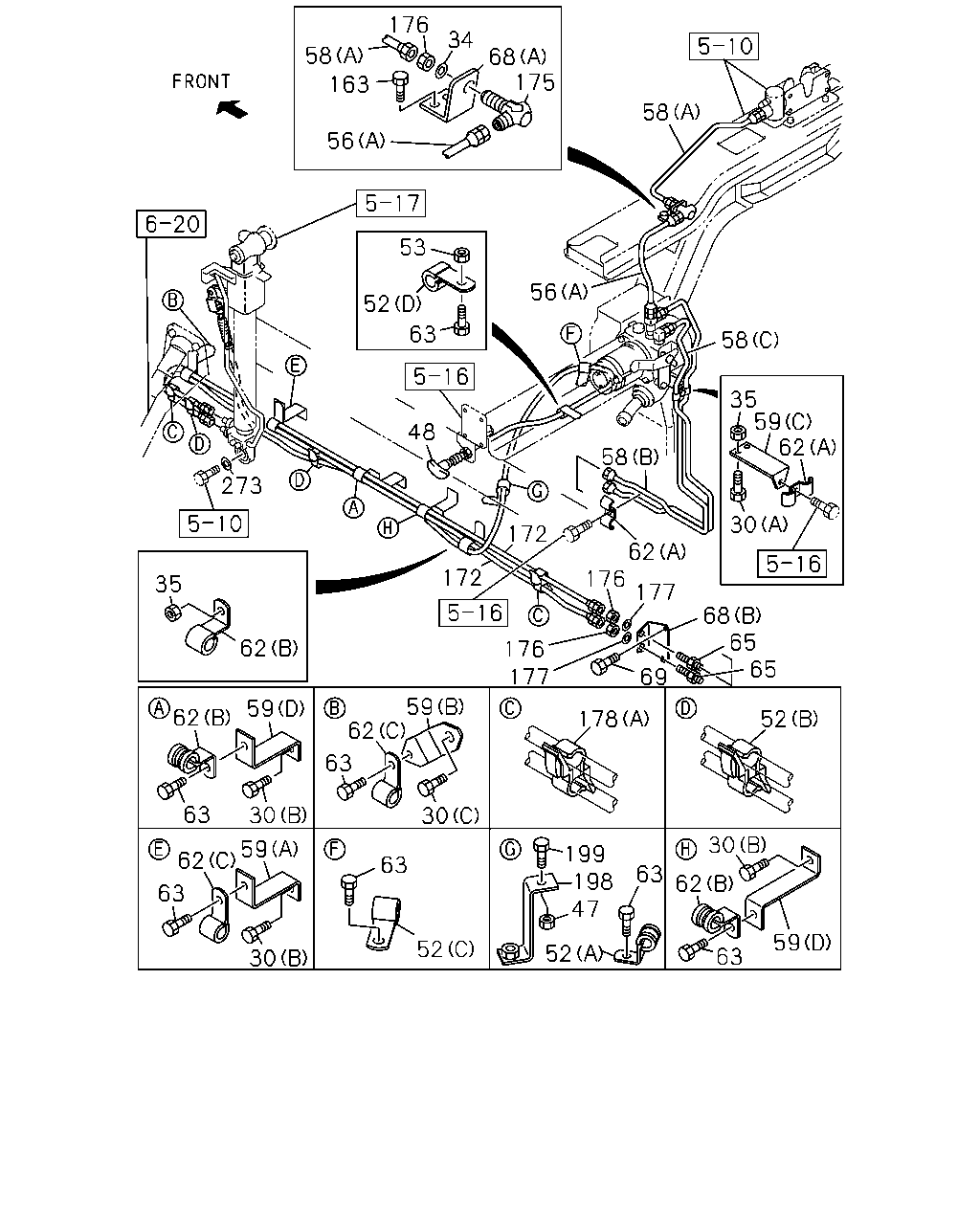

30 |
BOLT; BRKT FIX
(A)
M8X20 FLANGE
|
0-28080-820-0 |
02 |
1 |
9606-9606 |
| |
30 |
BOLT; BRKT FIX
(A)
M8X25 FLANGE
|
0-28680-825-0 |
02 |
1 |
9607-9905 |
| |
30 |
BOLT; BRKT FIX
(A)
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
9906- |
| |
30 |
BOLT; BRKT FIX
(B)
M8X25 FLANGE
|
0-28080-825-0 |
03 |
1 |
9606-9606 |
| |
30 |
BOLT; BRKT FIX
(B)
M8X25 FLANGE
|
0-28680-825-0 |
03 |
1 |
9607- |
| |
30 |
BOLT; BRKT FIX
(C)
M12X25 FLANGE
|
0-28081-225-0 |
01 |
1 |
9606-9606 |
| |
30 |
BOLT; BRKT FIX
(C)
M12X25 FLANGE
|
0-28681-225-0 |
01 |
1 |
9607- |
| |
35 |
NUT; BRKT
M8
|
9-09110-408-0 |
02 |
1 |
9606-9606 |
| |
35 |
NUT; BRKT
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9607- |
| |
47 |
NUT; BRKT
6WA1 TC-S(56L)
EXC. ANTI NOISE EQUIPMENT<SV9>
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9606- |
| |
48 |
CABLE ASM; CONT
10PE1S(60L)
L=2457
|
1-62500-670-6 |
01 |
1 |
9606-9711 |
| |
48 |
CABLE ASM; CONT
L=2457
|
1-62500-670-6 |
01 |
1 |
9712-9910 |
| |
48 |
CABLE ASM; CONT
L=2457
|
1-62500-730-0 |
01 |
1 |
9911- |
| |
48 |
CABLE ASM; CONT
6WA1 TC-S(56L)
L=2688
|
1-62500-684-2 |
01 |
1 |
9606-9711 |
| |
52 |
CLIP; CONT CABLE
(A)
ID=6 H=20 L=20
|
1-09700-603-0 |
01 |
1 |
9606- |
| |
52 |
CLIP; CONT CABLE
(B)
ID=6-10 & 10-14
|
1-09709-201-1 |
02 |
1 |
9606-9907 |
| |
52 |
CLIP; CONT CABLE
(B)
ID=6-10 & 10-14
|
1-09709-201-1 |
01 |
1 |
9908- |
| |
52 |
CLIP; CONT CABLE
(C)
ID=7 L=20
|
9-09524-635-0 |
01 |
1 |
9606- |
| |
52 |
CLIP; CONT CABLE
(D)
ID=7 L=50
|
9-09524-685-0 |
01 |
1 |
9606- |
| |
52 |
CLIP; CONT CABLE
6WA1 TC-S(56L)
EXC. ANTI NOISE EQUIPMENT<SV9>
(B)
ID=6-10 & 10-14
|
1-09709-201-1 |
01 |
1 |
9606-9905 |
| |
53 |
NUT; CLIP
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
9606- |
| |
56 |
HOSE; FLEX,OIL PIPE
(A)
L=300
|
1-09364-545-1 |
01 |
1 |
9606-9610 |
| |
56 |
HOSE; FLEX,OIL PIPE
(B)
L=650
|
1-09364-432-3 |
01 |
1 |
9611-9905 |
| |
56 |
HOSE; FLEX,OIL PIPE
CAB UP +110MM<TGG>
(B)
L=750
|
1-09365-058-0 |
01 |
1 |
9906- |
| |
56 |
HOSE; FLEX,OIL PIPE
EXC. CAB UP +110MM<TGG>
(B)
L=650
|
1-09365-053-0 |
01 |
1 |
9906- |
| |
58 |
PIPE; OIL,POWER UNIT
(A)
|
1-47424-665-1 |
01 |
1 |
9606-9610 |
| |
58 |
PIPE; OIL,POWER UNIT
(B)
|
1-47428-473-0 |
01 |
1 |
9606-9905 |
| |
58 |
PIPE; OIL,POWER UNIT
CAB UP +110MM<TGG>
(B)
|
1-49163-338-0 |
01 |
1 |
9906- |
| |
58 |
PIPE; OIL,POWER UNIT
(C)
|
1-47428-474-0 |
01 |
1 |
9606-9905 |
| |
58 |
PIPE; OIL,POWER UNIT
CAB UP +110MM<TGG>
(C)
|
1-49163-344-0 |
01 |
1 |
9906- |
| |
58 |
PIPE; OIL,POWER UNIT
EXC. CAB UP +110MM<TGG>
(B)
|
1-49163-336-0 |
01 |
1 |
9906- |
| |
58 |
PIPE; OIL,POWER UNIT
EXC. CAB UP +110MM<TGG>
(C)
|
1-49163-342-0 |
01 |
1 |
9906- |
| |
59 |
BRACKET; CLIP
(A)
|
1-47476-200-0 |
01 |
1 |
9606- |
| |
59 |
BRACKET; CLIP
(C)
|
1-47477-317-0 |
01 |
1 |
9606- |
| |
59 |
BRACKET; CLIP
(B)
|
1-47477-631-1 |
01 |
1 |
9606- |
| |
59 |
BRACKET; CLIP
(D)
L=90
|
1-82699-856-0 |
02 |
1 |
9606- |
| |
62 |
CLIP; OIL PIPE
(A)
ID=9 & 9 L=17 & 17
|
1-09700-651-0 |
02 |
1 |
9606-9905 |
| |
62 |
CLIP; OIL PIPE
(A)
ID=7 & 7 L=17.5 & 17.5
|
1-09700-745-0 |
02 |
1 |
9906- |
| |
62 |
CLIP; OIL PIPE
(B)
ID=25 H=30 L=35
|
1-09700-875-0 |
02 |
1 |
9606-9905 |
| |
62 |
CLIP; OIL PIPE
(B)
ID=18 H=23 L=28
|
1-09700-860-0 |
02 |
1 |
9906- |
| |
62 |
CLIP; OIL PIPE
(C)
ID=11X2 L=16
|
9-09535-025-0 |
02 |
1 |
9606-9905 |
| |
62 |
CLIP; OIL PIPE
(C)
ID=9X2 L=16
|
9-09534-825-0 |
02 |
1 |
9906- |
| |
63 |
BOLT; CLIP
M8X20 FLANGE
|
0-28080-820-0 |
06 |
1 |
9606-9606 |
| |
63 |
BOLT; CLIP
M8X20 FLANGE
|
0-28680-820-0 |
06 |
1 |
9607- |
| |
65 |
UNION; OIL PIPE
M14
|
9-09223-308-1 |
02 |
1 |
9606-9905 |
| |
65 |
UNION; OIL PIPE
M12 L=66.5
|
9-09223-306-1 |
02 |
1 |
9906- |
| |
68 |
BRACKET; UNION
(A)
|
1-47476-898-0 |
01 |
1 |
9606-9610 |
| |
68 |
BRACKET; UNION
(B)
|
1-47477-750-0 |
01 |
1 |
9606-9902 |
| |
68 |
BRACKET; UNION
(B)
|
1-47478-383-0 |
01 |
1 |
9903-9903 |
| |
68 |
BRACKET; UNION
(B)
|
1-47478-499-0 |
01 |
1 |
9904-9905 |
| |
68 |
BRACKET; UNION
(B)
|
1-47478-383-0 |
01 |
1 |
9906- |
| |
69 |
BOLT; BRKT
M8X25 FLANGE
|
0-28080-825-0 |
02 |
1 |
9606-9606 |
| |
69 |
BOLT; BRKT
M8X30 FLANGE
|
0-28680-830-0 |
02 |
1 |
9607- |
| |
172 |
HOSE; FLEX,OIL TILT
L=1600
|
1-09364-825-1 |
02 |
1 |
9606-9905 |
| |
172 |
HOSE; FLEX,OIL TILT
L=1600
|
1-09365-052-1 |
02 |
1 |
9906- |
| |
176 |
NUT; UNION
M14
|
9-99111-414-0 |
03 |
1 |
9606-9610 |
| |
176 |
NUT; UNION
M14
|
9-99111-414-0 |
02 |
1 |
9611-9905 |
| |
176 |
NUT; UNION
M12
|
9-09840-280-0 |
02 |
1 |
9906- |
| |
177 |
WASHER; LK,UNION
ID=14.2
|
9-09150-514-0 |
02 |
1 |
9606-9905 |
| |
177 |
WASHER; LK,UNION
ID=12.2
|
9-09150-512-0 |
02 |
1 |
9906- |
| |
178 |
CLIP; FLEX HOSE
(A)
ID=12-16 & 12-16
|
1-09709-191-0 |
02 |
1 |
9606-9706 |
| |
178 |
CLIP; FLEX HOSE
(B)
ID=11 H=20 L=20
|
5-09700-351-0 |
02 |
1 |
9611-9905 |
| |
178 |
CLIP; FLEX HOSE
(C)
ID=8 H=20 L=20
|
1-09700-604-0 |
02 |
1 |
9906- |
| |
178 |
CLIP; FLEX HOSE
ANTI NOISE EQUIPMENT<SV9>
L TYPE ENG<90L>
(D)
L=140
|
5-09707-031-1 |
01 |
1 |
9908- |
| |
178 |
CLIP; FLEX HOSE
V TYPE ENG<91L>
(D)
L=140
|
5-09707-031-1 |
01 |
1 |
9908- |
| |
178 |
CLIP; FLEX HOSE
6WA1 TC-S(56L)
EXC. ANTI NOISE EQUIPMENT<SV9>
(D)
L=140
|
5-09707-031-1 |
02 |
1 |
9908- |
| |
179 |
BOLT; CLIP,FLEX HOSE
M8X20 FLANGE
|
0-28680-820-0 |
02 |
1 |
9611- |
| |
180 |
NUT; CLIP
CAB UP +110MM<TGG>
M8 FLANGE
|
0-91150-108-0 |
02 |
1 |
9906- |
| |
198 |
BRACKET; CABLE
6WA1 TC-S(56L)
EXC. ANTI NOISE EQUIPMENT<SV9>
|
1-46147-101-0 |
01 |
1 |
9606- |
| |
199 |
BOLT; BRKT
6WA1 TC-S(56L)
EXC. ANTI NOISE EQUIPMENT<SV9>
M8X20 FLANGE
|
0-28080-820-0 |
01 |
1 |
9606-9606 |
| |
199 |
BOLT; BRKT
6WA1 TC-S(56L)
EXC. ANTI NOISE EQUIPMENT<SV9>
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
9607- |
| |
273 |
WASHER; PL,OIL CYL
ID=10.5 OD=32
|
9-09164-810-0 |
01 |
1 |
9606- |
| |
325 |
ADAPTER; PUMP
M12 & RC1/4 STRAIGHT
|
1-09660-885-0 |
01 |
1 |
9906- |
| |
326 |
UNION; PUMP
M12X2 & PT1/4 3WAY
|
1-09656-230-1 |
01 |
1 |
9906- |
