◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NLR ▶ 51248 - NLR85(LHD) ▶ 3 - Brakes, Brake System ▶ 3-01 - FRONT WHEEL BRAKE ▶
3-01 — FRONT WHEEL BRAKE (#51329) — 92 parça

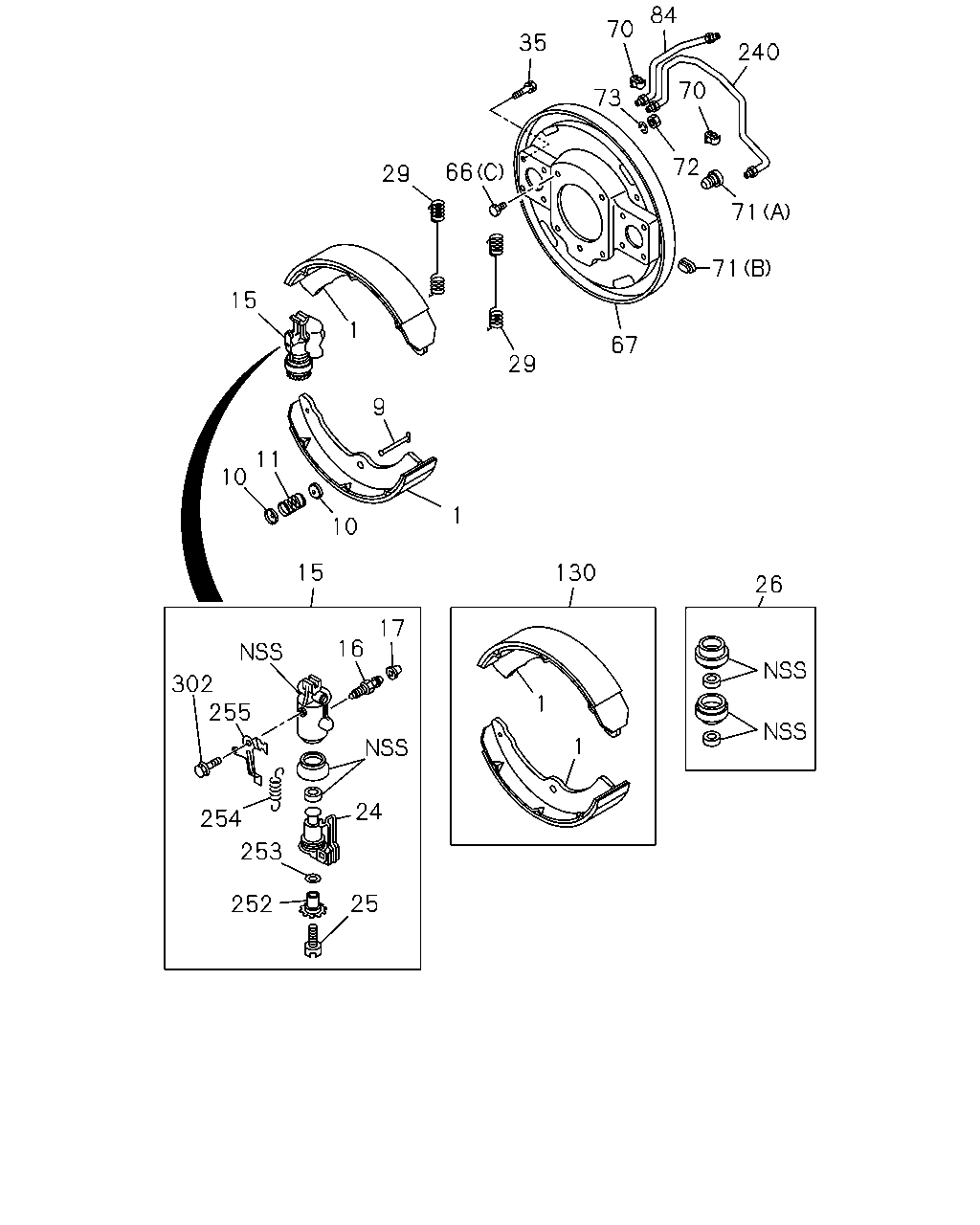

çizim 147706
240 70 72 71 71 84 70 73 35 66 29 15 10 11 1 67 29 9 1 10 15 17 16 302 255 254 253 252 24 25 1 1 130 26
BalonParca AdiParca NoAdetTipApplied Date A B
1 05.017 SHOE; BRK,FRT 8-97035-085-1 04 1 1109-1210 ●
1 05.017 SHOE; BRK,FRT
EXC. DISC BRAKE FRT<J52> 		8-97035-085-1 04 1 1211- ●
1 05.017 SHOE; BRK,FRT
BEST VALUE PARTS 		5-87610-123-0 04 1 1109-1210 ●
1 05.017 SHOE; BRK,FRT
EXC. DISC BRAKE FRT<J52> BEST VALUE PARTS 		5-87610-123-0 04 1 1211- ●
9 05.026 PIN; SHOE HOLDER 8-97019-207-0 04 1 1109-1210 ●
9 05.026 PIN; SHOE HOLDER
EXC. DISC BRAKE FRT<J52> 		8-97019-207-0 04 1 1211- ●
10 05.043 CUP; SHOE HOLDING 9-47162-033-0 08 1 1109-1210 ●
10 05.043 CUP; SHOE HOLDING
EXC. DISC BRAKE FRT<J52> 		9-47162-033-0 08 1 1211- ●
11 05.027 SPRING; SHOE HOLDING
05.043 		9-09940-989-1 04 1 1109-1210 ●
11 05.027 SPRING; SHOE HOLDING
EXC. DISC BRAKE FRT<J52> 05.043 		9-09940-989-1 04 1 1211- ●
15 04.665 CYLINDER; WHEEL,FRT BRK
FRONT 		8-98081-276-0 01 1 1109-1210 ●
15 04.665 CYLINDER; WHEEL,FRT BRK
EXC. DISC BRAKE FRT<J52> FRONT 		8-98081-276-0 01 1 1211- ●
15 04.665 CYLINDER; WHEEL,FRT BRK
FRONT 		8-98081-277-0 01 1 1109-1210 ●
15 04.665 CYLINDER; WHEEL,FRT BRK
EXC. DISC BRAKE FRT<J52> FRONT 		8-98081-277-0 01 1 1211- ●
15 04.665 CYLINDER; WHEEL,FRT BRK
REAR 		8-98081-278-0 01 1 1109-1210 ●
15 04.665 CYLINDER; WHEEL,FRT BRK
EXC. DISC BRAKE FRT<J52> REAR 		8-98081-278-0 01 1 1211- ●
15 04.665 CYLINDER; WHEEL,FRT BRK
REAR 		8-98081-279-0 01 1 1109-1210 ●
15 04.665 CYLINDER; WHEEL,FRT BRK
EXC. DISC BRAKE FRT<J52> REAR 		8-98081-279-0 01 1 1211- ●
16 04.666 SCREW; BLEEDER,FRT BRK 8-98050-476-0 02 1 1109-1210 ●
16 04.666 SCREW; BLEEDER,FRT BRK
EXC. DISC BRAKE FRT<J52> 		8-98050-476-0 02 1 1211- ●
17 04.666 CAP; BLEEDER,FRT WHEEL CYL 8-98050-479-0 02 1 1109-1210 ●
17 04.666 CAP; BLEEDER,FRT WHEEL CYL
EXC. DISC BRAKE FRT<J52> 		8-98050-479-0 02 1 1211- ●
24 04.668 PISTON; FRT WHEEL CYL 8-98081-284-0 02 1 1109-1210 ●
24 04.668 PISTON; FRT WHEEL CYL
EXC. DISC BRAKE FRT<J52> 		8-98081-284-0 02 1 1211- ●
24 04.668 PISTON; FRT WHEEL CYL 8-98081-285-0 02 1 1109-1210 ●
24 04.668 PISTON; FRT WHEEL CYL
EXC. DISC BRAKE FRT<J52> 		8-98081-285-0 02 1 1211- ●
25 05.110 SCREW; ADJ,FRT WHEEL CYL
04.666 M12X30.2 RH THREAD 		5-47622-003-1 02 1 1109-1210 ●
25 05.110 SCREW; ADJ,FRT WHEEL CYL
EXC. DISC BRAKE FRT<J52> 04.666 M12X30.2 RH THREAD 		5-47622-003-1 02 1 1211- ●
25 05.110 SCREW; ADJ,FRT WHEEL CYL
04.666 M12X30.2 LH THREAD 		5-47622-004-1 02 1 1109-1210 ●
25 05.110 SCREW; ADJ,FRT WHEEL CYL
EXC. DISC BRAKE FRT<J52> 04.666 M12X30.2 LH THREAD 		5-47622-004-1 02 1 1211- ●
26 04.667 CUP SET; FRT WHEEL CYL 5-87831-599-0 01 1 1109-1210 ●
26 04.667 CUP SET; FRT WHEEL CYL
EXC. DISC BRAKE FRT<J52> 		5-87831-599-0 01 1 1211- ●
29 05.026 SPRING; RETURN,FRT BRK SHOE 8-97358-890-0 04 1 1109-1210 ●
29 05.026 SPRING; RETURN,FRT BRK SHOE
EXC. DISC BRAKE FRT<J52> 		8-97358-890-0 04 1 1211- ●
35 04.665 BOLT; FRT WHEEL CYL 8-97025-734-0 16 1 1109-1210 ●
35 04.665 BOLT; FRT WHEEL CYL
EXC. DISC BRAKE FRT<J52> 		8-97025-734-0 16 1 1211- ●
66 05.815 BOLT; OIL SHIELD COVER
DISC BRAKE FRT<J52> (B) M14X43 		8-97168-638-1 06 1 1211- ●
66 05.815 BOLT; OIL SHIELD COVER
(B) M14X43 		8-97168-638-1 06 1 1211- ●
66 05.815 BOLT; OIL SHIELD COVER
DISC BRAKE FRT<J52> (A) M14X23.5 		8-97359-814-0 02 1 1211- ●
66 05.815 BOLT; OIL SHIELD COVER
(A) M14X23.5 		8-97359-814-0 02 1 1211- ●
66 05.815 BOLT; OIL SHIELD COVER
(C) M12X33 		8-98009-493-2 08 1 1109-1210 ●
66 05.815 BOLT; OIL SHIELD COVER
EXC. DISC BRAKE FRT<J52> (C) M12X33 		8-98009-493-2 08 1 1211- ●
67 05.001 PLATE; BACK,FRT BRK 8-98075-205-0 01 1 1109-1210 ●
67 05.001 PLATE; BACK,FRT BRK
EXC. DISC BRAKE FRT<J52> 		8-98075-205-0 01 1 1211- ●
67 05.001 PLATE; BACK,FRT BRK 8-98075-206-0 01 1 1109-1210 ●
67 05.001 PLATE; BACK,FRT BRK
EXC. DISC BRAKE FRT<J52> 		8-98075-206-0 01 1 1211- ●
70 04.685 CLIP; PIPE HOLD 8-94128-306-0 04 1 1109-1210 ●
70 04.685 CLIP; PIPE HOLD
EXC. DISC BRAKE FRT<J52> 		8-94128-306-0 04 1 1211- ●
71 05.002 GROMMET; CHECK HOLE
04.670 (A) 		1-47154-008-0 04 1 1109-1210 ●
71 05.002 GROMMET; CHECK HOLE
EXC. DISC BRAKE FRT<J52> 04.670 (A) 		1-47154-008-0 04 1 1211- ●
71 05.002 GROMMET; CHECK HOLE
(B) 		8-94171-287-0 06 1 1109-1210 ●
71 05.002 GROMMET; CHECK HOLE
EXC. DISC BRAKE FRT<J52> (B) 		8-94171-287-0 06 1 1211- ●
72 05.815 NUT; OIL SHIELD COVER
DISC BRAKE FRT<J52> 		8-97359-815-0 06 1 1211- ●
72 05.815 NUT; OIL SHIELD COVER 8-97359-815-0 06 1 1211- ●
72 05.815 NUT; OIL SHIELD COVER
05.002 M12 		0-91110-512-0 08 1 1109-1210 ●
72 05.815 NUT; OIL SHIELD COVER
EXC. DISC BRAKE FRT<J52> 05.002 M12 		0-91110-512-0 08 1 1211- ●
73 05.815 WASHER; LK,OIL SHIELD COVER
07.347 ID=12.2 		0-91510-812-0 08 1 1109-1210 ●
73 05.815 WASHER; LK,OIL SHIELD COVER
EXC. DISC BRAKE FRT<J52> 07.347 ID=12.2 		0-91510-812-0 08 1 1211- ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE 8-97019-224-0 01 1 1109-1210 ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE
EXC. DISC BRAKE FRT<J52> 		8-97019-224-0 01 1 1211- ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE 8-97019-225-0 01 1 1109-1210 ●
84 04.685 PIPE; BRK,WHEEL CYL TO HOSE
EXC. DISC BRAKE FRT<J52> 		8-97019-225-0 01 1 1211- ●
130 05.017 SHOE KIT; BRK,FRT 5-87832-045-0 01 1 1109-1210 ●
130 05.017 SHOE KIT; BRK,FRT
EXC. DISC BRAKE FRT<J52> 		5-87832-045-0 01 1 1211- ●
240 04.685 PIPE; OIL,FRT BRK 8-97019-222-0 01 1 1109-1210 ●
240 04.685 PIPE; OIL,FRT BRK
EXC. DISC BRAKE FRT<J52> 		8-97019-222-0 01 1 1211- ●
240 04.685 PIPE; OIL,FRT BRK 8-97019-223-0 01 1 1109-1210 ●
240 04.685 PIPE; OIL,FRT BRK
EXC. DISC BRAKE FRT<J52> 		8-97019-223-0 01 1 1211- ●
252 04.665 GEAR; ADJ,FRT WHEEL CYL
05.110 		8-94479-588-0 02 1 1109-1210 ●
252 04.665 GEAR; ADJ,FRT WHEEL CYL
EXC. DISC BRAKE FRT<J52> 05.110 		8-94479-588-0 02 1 1211- ●
252 04.665 GEAR; ADJ,FRT WHEEL CYL
05.110 		8-94479-589-0 02 1 1109-1210 ●
252 04.665 GEAR; ADJ,FRT WHEEL CYL
EXC. DISC BRAKE FRT<J52> 05.110 		8-94479-589-0 02 1 1211- ●
253 04.665 WASHER; THRUST
05.110 		8-97029-304-0 04 1 1109-1210 ●
253 04.665 WASHER; THRUST
EXC. DISC BRAKE FRT<J52> 05.110 		8-97029-304-0 04 1 1211- ●
254 04.665 SPRING; ADJ LEVER
05.107 		8-97349-745-0 04 1 1109-1210 ●
254 04.665 SPRING; ADJ LEVER
EXC. DISC BRAKE FRT<J52> 05.107 		8-97349-745-0 04 1 1211- ●
255 04.665 LEVER; ADJ
05.103 		8-97349-743-0 02 1 1109-1210 ●
255 04.665 LEVER; ADJ
EXC. DISC BRAKE FRT<J52> 05.103 		8-97349-743-0 02 1 1211- ●
255 04.665 LEVER; ADJ
05.103 		8-97349-744-0 02 1 1109-1210 ●
255 04.665 LEVER; ADJ
EXC. DISC BRAKE FRT<J52> 05.103 		8-97349-744-0 02 1 1211- ●
302 04.665 SCREW; ADJ LEVER
04.666 		8-97349-747-0 04 1 1109-1210 ●
302 04.665 SCREW; ADJ LEVER
EXC. DISC BRAKE FRT<J52> 04.666 		8-97349-747-0 04 1 1211- ●

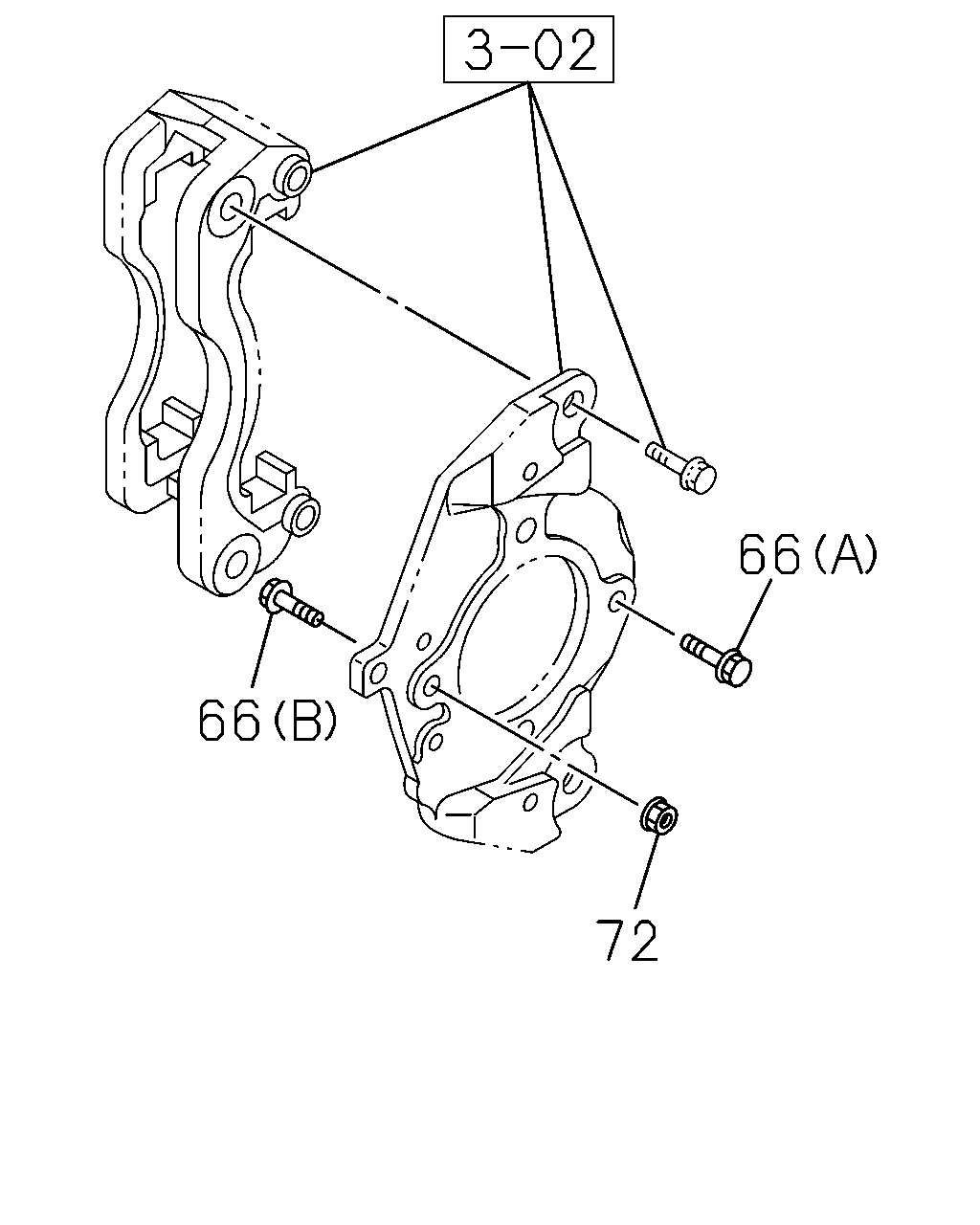

çizim 320112
66 72 66
BalonParca AdiParca NoAdetTipApplied Date A B
66 05.815 BOLT; OIL SHIELD COVER
DISC BRAKE FRT<J52> (B) M14X43 		8-97168-638-1 06 1 1211- ●
66 05.815 BOLT; OIL SHIELD COVER
(B) M14X43 		8-97168-638-1 06 1 1211- ●
66 05.815 BOLT; OIL SHIELD COVER
DISC BRAKE FRT<J52> (A) M14X23.5 		8-97359-814-0 02 1 1211- ●
66 05.815 BOLT; OIL SHIELD COVER
(A) M14X23.5 		8-97359-814-0 02 1 1211- ●
66 05.815 BOLT; OIL SHIELD COVER
(C) M12X33 		8-98009-493-2 08 1 1109-1210 ●
66 05.815 BOLT; OIL SHIELD COVER
EXC. DISC BRAKE FRT<J52> (C) M12X33 		8-98009-493-2 08 1 1211- ●
72 05.815 NUT; OIL SHIELD COVER
DISC BRAKE FRT<J52> 		8-97359-815-0 06 1 1211- ●
72 05.815 NUT; OIL SHIELD COVER 8-97359-815-0 06 1 1211- ●
72 05.815 NUT; OIL SHIELD COVER
05.002 M12 		0-91110-512-0 08 1 1109-1210 ●
72 05.815 NUT; OIL SHIELD COVER
EXC. DISC BRAKE FRT<J52> 05.002 M12 		0-91110-512-0 08 1 1211- ●
