Sayfa 5-10 - Isuzu EPC

5-10 — CAB MOUNTING; FRAME SIDE (#5132) — 527 parça

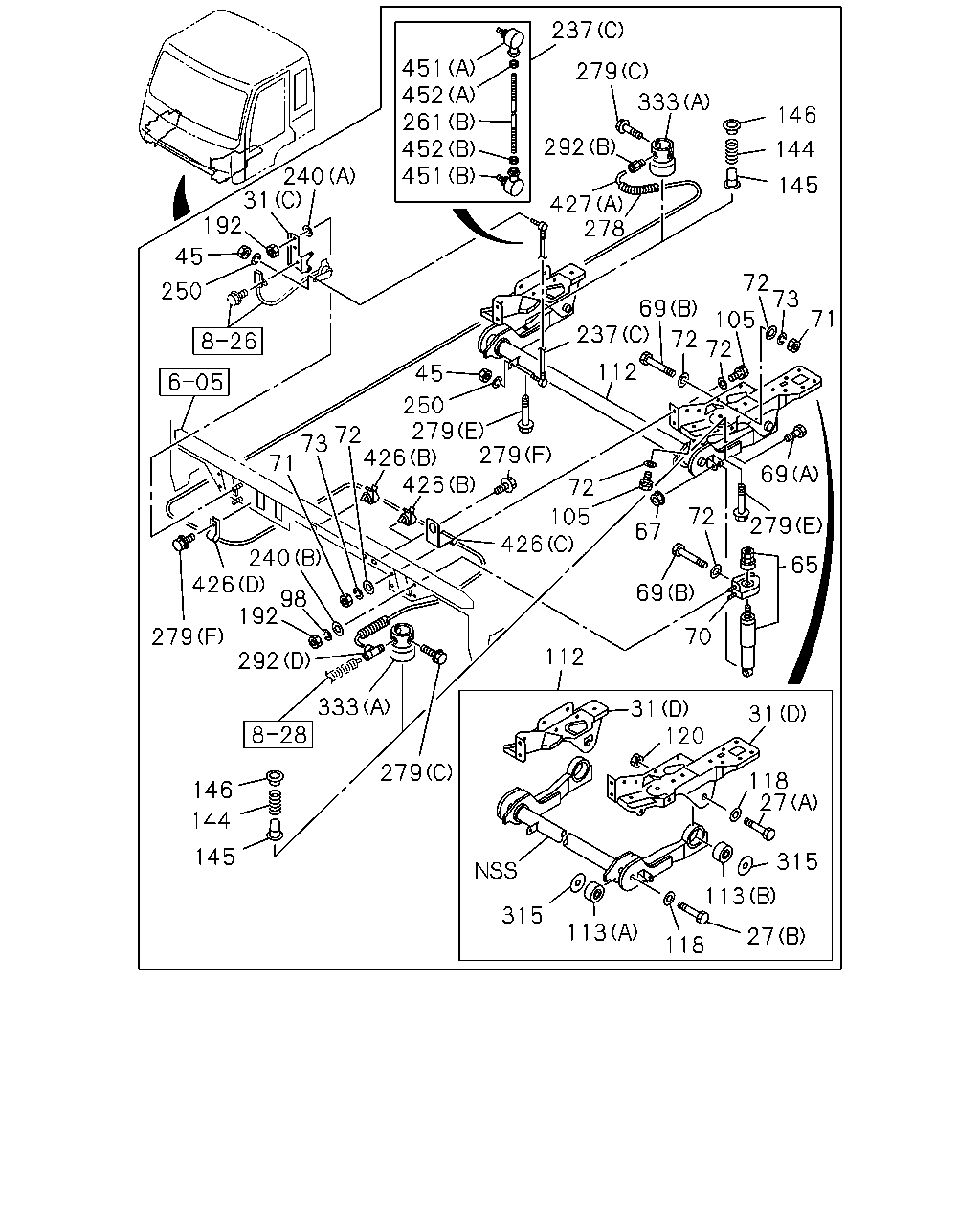

237 451 452 261 452 451 279 333 146 292 144 240 31 192 145 427 278 45 72 73 250 69 237 71 105 72 72 112 45 250 72 279 73 426 279 71 426 69 72 72 105 426 279 67 240 426 65 69 98 192 70 279 292 112 333 31 120 31 279 118 27 146 144 145 315 113 315 113 27 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
27	BOLT; BUSHING (B) M18X120	1-09000-442-1	02	1	9606-
27	BOLT; BUSHING (A) M18X100	9-91066-800-0	02	1	9606-0104
27	BOLT; BUSHING FULL FLOATING CAB(W16) (A) M18X100	9-91066-800-0	02	1	0105-0105
27	BOLT; BUSHING EXC. FULL FLOATING CAB(W16) (A) M18X90	9-91066-890-0	02	1	0105-0105
31	BRACKET; CAB (A)	1-44226-146-2	01	1	9606-9706
31	BRACKET; CAB EXC. CAB UP +50MM<W60> (A)	1-44226-146-2	01	1	9707-9905
31	BRACKET; CAB EXC. CAB UP +110MM<TGG> (A)	1-44226-146-2	01	1	9906-
31	BRACKET; CAB CAB UP +50MM<W60> (A)	1-44226-147-2	01	1	9707-9905
31	BRACKET; CAB CAB UP +110MM<TGG> (A)	1-44226-149-0	01	1	9906-
31	BRACKET; CAB FULL FLOATING CAB(W16) (B)	1-53458-374-1	01	1	9606-
31	BRACKET; CAB FULL FLOATING CAB(W16) (C)	1-81549-016-0	01	1	9606-
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-225-3	01	1	9606-
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-224-4	01	1	9606-
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-274-1	01	1	9606-
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-273-1	01	1	9606-
45	NUT FULL FLOATING CAB(W16) M5	9-99110-405-0	04	1	9606-0007
45	NUT FULL FLOATING CAB(W16) M5	9-99110-405-0	02	1	0008-
45	NUT FULL FLOATING CAB(W16) M5	9-99110-405-0	02	1	0008-
65	ABSORBER; SHOCK,CAB FRT SUSPENSION	1-51630-472-0	02	1	9606-9610
65	ABSORBER; SHOCK,CAB FRT SUSPENSION	1-51630-546-0	02	1	9611-9703
65	ABSORBER; SHOCK,CAB FRT SUSPENSION	1-51630-603-0	02	1	9704-
67	NUT; S/ABS,CAB FRT SUSPENSION M12 FLANGE	0-91150-112-0	02	1	9606-9606
67	NUT; S/ABS,CAB FRT SUSPENSION M12 FLANGE	0-91150-212-0	02	1	9607-
69	BOLT; S/ABS,CAB FRT SUSPENSION (A) M12X60	0-20801-260-0	02	1	9606-
69	BOLT; S/ABS,CAB FRT SUSPENSION (B) M10X100	1-09980-547-0	08	1	9606-
70	BRACKET; S/ABS,CAB FRT SUSP	1-53458-493-1	01	1	9606-
70	BRACKET; S/ABS,CAB FRT SUSP	1-53458-492-1	01	1	9606-
71	NUT; BRKT TO CAB FRAME M10	1-09984-142-0	06	1	9606-
72	WASHER; PL,BRKT TO FRAME ID=10.5 OD=26 T=2.6	1-09985-184-0	24	1	9606-
73	WASHER; LK,BRKT TO CAB FRAME ID=10	1-09985-185-0	12	1	9606-
98	WASHER; LK,BRKT ID=10	1-09985-185-0	04	1	9606-
105	BOLT; BRKT TO CAB FRAME M10X30	1-09980-546-0	08	1	9606-
112	ARM ASM; LINK,CAB FRT SUSP FULL FLOATING CAB(W16)	1-53450-568-4	01	1	9606-
112	ARM ASM; LINK,CAB FRT SUSP EXC. FULL FLOATING CAB(W16)	1-53450-565-6	01	1	9606-
113	BUSHING; RUBBER,FLOATING LINK ARM,W/PI (A)	1-53458-333-3	02	1	9606-
113	BUSHING; RUBBER,FLOATING LINK ARM,W/PI (B)	1-53458-714-0	02	1	9606-
118	WASHER; PL,STOPPER RUBBER,LINK ARM ID=19 OD=30	1-09503-279-0	04	1	9606-
120	NUT; STOPPER RUBBER,LINK ARM M18	9-99110-518-0	02	1	9606-
144	SPRING; COIL,CAB FRT SUSPENSION EXC. FULL FLOATING CAB(W16)	1-09580-537-0	02	1	9606-
145	RUBBER; CUSHION,CAB FRT SUSPENSION EXC. FULL FLOATING CAB(W16)	1-53366-139-0	02	1	9606-
146	SEAT; SPRING,CAB FRT SUSPENSION EXC. FULL FLOATING CAB(W16)	1-53366-138-0	02	1	9606-
192	NUT; BRKT FIX M10	1-09984-142-0	06	1	9606-
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	9606-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (A)	1-33670-407-0	01	1	9606-9905
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (C)	1-33670-773-0	01	1	9606-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (A)	1-33670-407-0	01	1	9906-
240	WASHER; PL,BRKT (A) ID=10.5 OD=18	1-09985-173-0	01	1	9606-
240	WASHER; PL,BRKT (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	9606-
240	WASHER; PL,BRKT (C) ID=12.5	9-09160-512-0	02	1	9706-
250	WASHER; LK FULL FLOATING CAB(W16) ID=5.1	9-09150-505-0	04	1	9606-0007
250	WASHER; LK FULL FLOATING CAB(W16) ID=5.1	9-09150-505-0	02	1	0008-
250	WASHER; LK FULL FLOATING CAB(W16) ID=5.1	9-09150-505-0	02	1	0008-
261	ROD; LINK FULL FLOATING CAB(W16) (B)	9-08410-507-0	01	1	9606-
261	ROD; LINK FULL FLOATING CAB(W16) (A)	9-08410-514-0	01	1	9606-
278	COVER CAB UP +110MM<TGG> FULL FLOATING CAB(W16) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	9906-9906
278	COVER DELUXE CAB<W14> FULL FLOATING CAB(W16) SERVICED BY L=800 ID=7	1-83129-031-1	01	1	9906-
278	COVER FULL FLOATING CAB(W16) L=1300 SERVICED BY L=2000 ID=7	1-87410-085-0	01	1	9606-9711
278	COVER FULL FLOATING CAB(W16) L=1200 SERVICED BY L=2000 ID=7	1-87410-085-0	01	1	9712-9905
278	COVER FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> L=1200 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	9906-9906
278	COVER FULL FLOATING CAB(W16) EXC. DELUXE CAB<W14> L=1200 SERVICED BY L=2000 ID=7	1-87411-016-0	01	1	9906-
279	BOLT (B) M12X40 FLANGE	0-28091-240-0	04	1	9606-
279	BOLT CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (F) M8X25	1-09980-511-0	02	1	9906-9906
279	BOLT FULL FLOATING CAB(W16) EXC. DELUXE CAB<W14> (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	9906-
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28080-816-0	04	1	9606-
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28080-820-0	07	1	9606-9606
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	07	1	9607-0007
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	01	1	0008-
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28080-860-0	02	1	9606-
279	BOLT FULL FLOATING CAB(W16) (F) M8X25	1-09980-511-0	02	1	9606-9711
279	BOLT FULL FLOATING CAB(W16) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	9712-9905
279	BOLT FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	9906-9906
279	BOLT DELUXE CAB<W14> FULL FLOATING CAB(W16) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	9906-
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	06	1	0008-
279	BOLT 10PE1S(60L) (A) M8X25 FLANGE	0-28080-825-0	02	1	9606-9606
279	BOLT 10PE1S(60L) (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9609
279	BOLT L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28680-825-0	02	1	9610-9701
279	BOLT V TYPE ENG<91L> (A) M8X25 FLANGE	0-28680-825-0	02	1	9610-9701
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28680-825-0	02	1	9702-
292	CONNECTOR; CAB SUSPENSION (E) M14	1-53458-047-0	01	1	9606-9905
292	CONNECTOR; CAB SUSPENSION (E) M12	1-53458-941-0	01	1	9906-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	9606-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (B) DIN6 R1/8 STRAIGHT	1-09660-759-1	01	1	9606-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	9606-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (D) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	9606-
315	WASHER; CAB MTG ID=34.5	1-53458-281-1	04	1	9606-
333	SPRING FULL FLOATING CAB(W16) (A) FRONT	1-52110-142-1	02	1	9606-
333	SPRING FULL FLOATING CAB(W16) (B) REAR	1-52110-143-1	02	1	9606-
426	CLIP CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (B) ID=5.8 L=8	8-94155-681-0	03	1	9906-9906
426	CLIP DELUXE CAB<W14> FULL FLOATING CAB(W16) (B) ID=5.8 L=8	8-94155-681-0	02	1	9906-
426	CLIP FULL FLOATING CAB(W16) (A) ID=6 H=20 L=20	1-09700-603-0	03	1	9606-9912
426	CLIP FULL FLOATING CAB(W16) (A) ID=6 H=20 L=20	1-09700-603-0	02	1	0001-
426	CLIP FULL FLOATING CAB(W16) (C) ID=11 H=20 L=20	5-09700-351-0	01	1	9606-9905
426	CLIP FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (C) ID=11 H=20 L=20	5-09700-351-0	01	1	9906-9906
426	CLIP FULL FLOATING CAB(W16) EXC. DELUXE CAB<W14> (C) ID=11 H=20 L=20	5-09700-351-0	01	1	9906-
426	CLIP FULL FLOATING CAB(W16) (B) ID=9.5	5-09709-020-0	01	1	9606-
426	CLIP FULL FLOATING CAB(W16) (D) ID=11 L=16	9-09525-025-0	01	1	9606-
426	CLIP FULL FLOATING CAB(W16) (E) ID=7 L=32	9-09524-665-0	01	1	0001-
427	TUBE FULL FLOATING CAB(W16) (B) L=400	1-09368-930-0	01	1	9606-9905
427	TUBE FULL FLOATING CAB(W16) (B) L=400 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	9906-
427	TUBE FULL FLOATING CAB(W16) (A) L=1300	1-09368-930-0	01	1	9606-9905
427	TUBE FULL FLOATING CAB(W16) (A) L=1300 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	9906-
451	JOINT; BALL FULL FLOATING CAB(W16) (A)	1-09760-103-1	02	1	9606-0007
451	JOINT; BALL FULL FLOATING CAB(W16) (A)	1-09760-103-1	01	1	0008-
451	JOINT; BALL FULL FLOATING CAB(W16) (A)	1-09760-103-1	01	1	0008-
451	JOINT; BALL FULL FLOATING CAB(W16) (B)	1-09760-104-1	02	1	9606-0007
451	JOINT; BALL FULL FLOATING CAB(W16) (B)	1-09760-104-1	01	1	0008-
451	JOINT; BALL FULL FLOATING CAB(W16) (B)	1-09760-104-1	01	1	0008-
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (B) M5 LH THREAD	9-09840-277-0	02	1	9606-0007
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (B) M5 LH THREAD	9-09840-277-0	01	1	0008-
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (B) M5 LH THREAD	9-09840-277-0	01	1	0008-
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (A) RH THREAD M5	9-99110-405-0	02	1	9606-0007
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (A) RH THREAD M5	9-99110-405-0	01	1	0008-
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (A) RH THREAD M5	9-99110-405-0	01	1	0008-

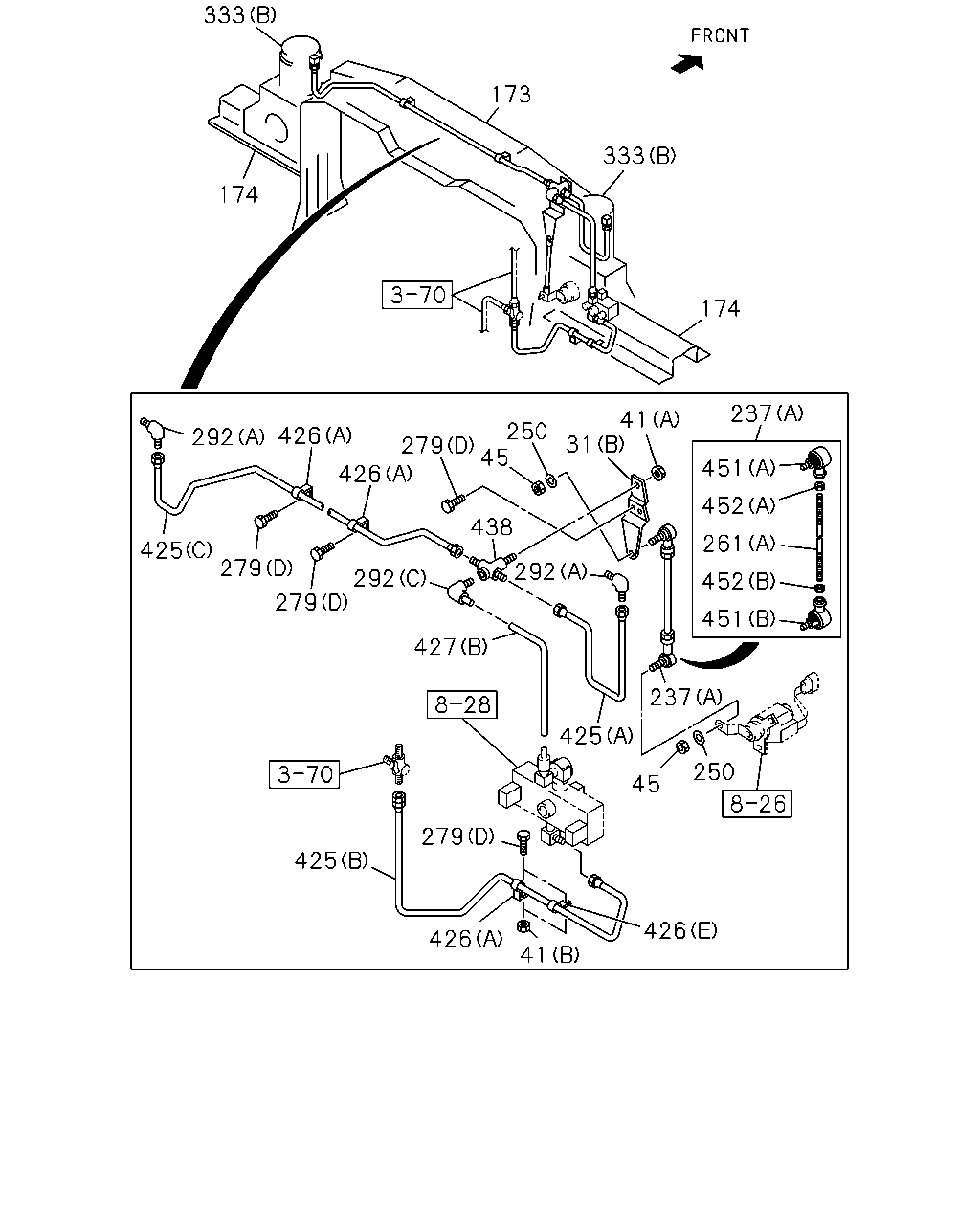

333 173 333 174 174 237 41 31 250 279 45 426 292 451 426 452 438 261 425 279 292 292 279 452 451 427 237 425 250 45 279 425 426 426 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	BRACKET; CAB (A)	1-44226-146-2	01	1	9606-9706
31	BRACKET; CAB EXC. CAB UP +50MM<W60> (A)	1-44226-146-2	01	1	9707-9905
31	BRACKET; CAB EXC. CAB UP +110MM<TGG> (A)	1-44226-146-2	01	1	9906-
31	BRACKET; CAB CAB UP +50MM<W60> (A)	1-44226-147-2	01	1	9707-9905
31	BRACKET; CAB CAB UP +110MM<TGG> (A)	1-44226-149-0	01	1	9906-
31	BRACKET; CAB FULL FLOATING CAB(W16) (B)	1-53458-374-1	01	1	9606-
31	BRACKET; CAB FULL FLOATING CAB(W16) (C)	1-81549-016-0	01	1	9606-
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-225-3	01	1	9606-
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-224-4	01	1	9606-
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-274-1	01	1	9606-
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-273-1	01	1	9606-
41	NUT FULL FLOATING CAB(W16) (A) M12 FLANGE	0-91150-112-0	01	1	9606-9606
41	NUT FULL FLOATING CAB(W16) (B) M8 FLANGE	0-91150-108-0	01	1	9607-
41	NUT FULL FLOATING CAB(W16) (B) M8	9-09110-508-0	01	1	9606-9606
41	NUT FULL FLOATING CAB(W16) (A) M12 FLANGE	0-91150-212-0	01	1	9607-
45	NUT FULL FLOATING CAB(W16) M5	9-99110-405-0	04	1	9606-0007
45	NUT FULL FLOATING CAB(W16) M5	9-99110-405-0	02	1	0008-
45	NUT FULL FLOATING CAB(W16) M5	9-99110-405-0	02	1	0008-
173	MEMBER; CAB MTG RR ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> FULL FLOATING CAB(W16)	1-53450-611-3	01	1	9906-
173	MEMBER; CAB MTG RR ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16)	1-53450-615-3	01	1	9906-
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> EXC. ANTI NOISE EQUIPMENT<SV9>,FULL FLOATING CAB(W16)	1-53450-614-2	01	1	9906-
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16)	1-53450-545-5	01	1	9606-9706
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16) EXC. CAB UP +50MM<W60>	1-53450-545-5	01	1	9707-9905
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG>	1-53450-545-6	01	1	9906-
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16) CAB UP +50MM<W60>	1-53450-547-6	01	1	9707-9905
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. ANTI NOISE EQUIPMENT<SV9>	1-53450-563-5	01	1	9906-9906
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. ANTI NOISE EQUIPMENT<SV9>	1-53450-560-8	01	1	9907-
173	MEMBER; CAB MTG RR EXC. FULL FLOATING CAB(W16)	1-53450-564-0	01	1	9606-9903
173	MEMBER; CAB MTG RR EXC. FULL FLOATING CAB(W16)	1-53450-617-0	01	1	9904-9905
173	MEMBER; CAB MTG RR EXC. CAB UP +110MM<TGG>,FULL FLOATING CAB(W16)	1-53450-617-2	01	1	9906-
174	OUTRIGGER	1-53456-246-6	02	1	9606-9607
174	OUTRIGGER	1-53456-277-3	01	1	9608-
174	OUTRIGGER	1-53456-278-3	01	1	9608-
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	9606-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (A)	1-33670-407-0	01	1	9606-9905
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (C)	1-33670-773-0	01	1	9606-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (A)	1-33670-407-0	01	1	9906-
250	WASHER; LK FULL FLOATING CAB(W16) ID=5.1	9-09150-505-0	04	1	9606-0007
250	WASHER; LK FULL FLOATING CAB(W16) ID=5.1	9-09150-505-0	02	1	0008-
250	WASHER; LK FULL FLOATING CAB(W16) ID=5.1	9-09150-505-0	02	1	0008-
261	ROD; LINK FULL FLOATING CAB(W16) (B)	9-08410-507-0	01	1	9606-
261	ROD; LINK FULL FLOATING CAB(W16) (A)	9-08410-514-0	01	1	9606-
279	BOLT (B) M12X40 FLANGE	0-28091-240-0	04	1	9606-
279	BOLT CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (F) M8X25	1-09980-511-0	02	1	9906-9906
279	BOLT FULL FLOATING CAB(W16) EXC. DELUXE CAB<W14> (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	9906-
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28080-816-0	04	1	9606-
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28080-820-0	07	1	9606-9606
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	07	1	9607-0007
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	01	1	0008-
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28080-860-0	02	1	9606-
279	BOLT FULL FLOATING CAB(W16) (F) M8X25	1-09980-511-0	02	1	9606-9711
279	BOLT FULL FLOATING CAB(W16) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	9712-9905
279	BOLT FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	9906-9906
279	BOLT DELUXE CAB<W14> FULL FLOATING CAB(W16) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	9906-
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	06	1	0008-
279	BOLT 10PE1S(60L) (A) M8X25 FLANGE	0-28080-825-0	02	1	9606-9606
279	BOLT 10PE1S(60L) (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9609
279	BOLT L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28680-825-0	02	1	9610-9701
279	BOLT V TYPE ENG<91L> (A) M8X25 FLANGE	0-28680-825-0	02	1	9610-9701
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28680-825-0	02	1	9702-
292	CONNECTOR; CAB SUSPENSION (E) M14	1-53458-047-0	01	1	9606-9905
292	CONNECTOR; CAB SUSPENSION (E) M12	1-53458-941-0	01	1	9906-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	9606-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (B) DIN6 R1/8 STRAIGHT	1-09660-759-1	01	1	9606-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	9606-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (D) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	9606-
333	SPRING FULL FLOATING CAB(W16) (A) FRONT	1-52110-142-1	02	1	9606-
333	SPRING FULL FLOATING CAB(W16) (B) REAR	1-52110-143-1	02	1	9606-
425	PIPE ASM; AIR CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (C)	1-49117-396-0	01	1	9906-
425	PIPE ASM; AIR CAB UP +110MM<TGG> L TYPE ENG<90L> EXC. MIXER TRUCK<RA2> (B)	1-49119-371-0	01	1	9906-9912
425	PIPE ASM; AIR CAB UP +110MM<TGG> L TYPE ENG<90L> EXC. MIXER TRUCK<RA2> (B)	1-49122-425-0	01	1	0001-0004
425	PIPE ASM; AIR CAB UP +110MM<TGG> L TYPE ENG<90L> EXC. MIXER TRUCK<RA2> (B)	1-49122-659-0	01	1	0005-
425	PIPE ASM; AIR FULL FLOATING CAB(W16) (A) L=298	1-47494-961-1	01	1	9606-
425	PIPE ASM; AIR FULL FLOATING CAB(W16) (B)	1-47499-071-0	01	1	9606-9702
425	PIPE ASM; AIR L TYPE ENG<90L> FULL FLOATING CAB(W16) EXC. MIXER TRUCK<RA2> (B)	1-47499-071-0	01	1	9703-9905
425	PIPE ASM; AIR V TYPE ENG<91L> FULL FLOATING CAB(W16) (B)	1-47499-071-0	01	1	9703-9905
425	PIPE ASM; AIR L TYPE ENG<90L> FULL FLOATING CAB(W16) EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG> (B)	1-47499-071-0	01	1	9906-9912
425	PIPE ASM; AIR V TYPE ENG<91L> FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (B)	1-47499-071-0	01	1	9906-9912
425	PIPE ASM; AIR L TYPE ENG<90L> FULL FLOATING CAB(W16) EXC. MIXER TRUCK<RA2>,CAB UP +110MM<TGG> (B) L=510	1-49122-367-0	01	1	0001-
425	PIPE ASM; AIR V TYPE ENG<91L> FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (B) L=510	1-49122-367-0	01	1	0001-
425	PIPE ASM; AIR FULL FLOATING CAB(W16) (C)	1-49113-541-0	01	1	9606-9905
425	PIPE ASM; AIR FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (C)	1-49113-541-0	01	1	9906-
425	PIPE ASM; AIR L TYPE ENG<90L> MIXER TRUCK<RA2> FULL FLOATING CAB(W16) (B)	1-49118-055-0	01	1	9703-9905
425	PIPE ASM; AIR L TYPE ENG<90L> MIXER TRUCK<RA2> FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (B)	1-49118-055-0	01	1	9906-9912
425	PIPE ASM; AIR L TYPE ENG<90L> MIXER TRUCK<RA2> FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (B)	1-49122-424-0	01	1	0001-
426	CLIP CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (B) ID=5.8 L=8	8-94155-681-0	03	1	9906-9906
426	CLIP DELUXE CAB<W14> FULL FLOATING CAB(W16) (B) ID=5.8 L=8	8-94155-681-0	02	1	9906-
426	CLIP FULL FLOATING CAB(W16) (A) ID=6 H=20 L=20	1-09700-603-0	03	1	9606-9912
426	CLIP FULL FLOATING CAB(W16) (A) ID=6 H=20 L=20	1-09700-603-0	02	1	0001-
426	CLIP FULL FLOATING CAB(W16) (C) ID=11 H=20 L=20	5-09700-351-0	01	1	9606-9905
426	CLIP FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (C) ID=11 H=20 L=20	5-09700-351-0	01	1	9906-9906
426	CLIP FULL FLOATING CAB(W16) EXC. DELUXE CAB<W14> (C) ID=11 H=20 L=20	5-09700-351-0	01	1	9906-
426	CLIP FULL FLOATING CAB(W16) (B) ID=9.5	5-09709-020-0	01	1	9606-
426	CLIP FULL FLOATING CAB(W16) (D) ID=11 L=16	9-09525-025-0	01	1	9606-
426	CLIP FULL FLOATING CAB(W16) (E) ID=7 L=32	9-09524-665-0	01	1	0001-
427	TUBE FULL FLOATING CAB(W16) (B) L=400	1-09368-930-0	01	1	9606-9905
427	TUBE FULL FLOATING CAB(W16) (B) L=400 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	9906-
427	TUBE FULL FLOATING CAB(W16) (A) L=1300	1-09368-930-0	01	1	9606-9905
427	TUBE FULL FLOATING CAB(W16) (A) L=1300 SERVICED BY L=2000 OD=6	1-87411-001-0	01	1	9906-
438	UNION FULL FLOATING CAB(W16) M12X2 & PT1/8 3WAY	1-09656-655-0	01	1	9606-
451	JOINT; BALL FULL FLOATING CAB(W16) (A)	1-09760-103-1	02	1	9606-0007
451	JOINT; BALL FULL FLOATING CAB(W16) (A)	1-09760-103-1	01	1	0008-
451	JOINT; BALL FULL FLOATING CAB(W16) (A)	1-09760-103-1	01	1	0008-
451	JOINT; BALL FULL FLOATING CAB(W16) (B)	1-09760-104-1	02	1	9606-0007
451	JOINT; BALL FULL FLOATING CAB(W16) (B)	1-09760-104-1	01	1	0008-
451	JOINT; BALL FULL FLOATING CAB(W16) (B)	1-09760-104-1	01	1	0008-
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (B) M5 LH THREAD	9-09840-277-0	02	1	9606-0007
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (B) M5 LH THREAD	9-09840-277-0	01	1	0008-
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (B) M5 LH THREAD	9-09840-277-0	01	1	0008-
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (A) RH THREAD M5	9-99110-405-0	02	1	9606-0007
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (A) RH THREAD M5	9-99110-405-0	01	1	0008-
452	NUT; BALL JOINT FULL FLOATING CAB(W16) (A) RH THREAD M5	9-99110-405-0	01	1	0008-

299 298 297 55 55 299 244 243 240 297 55 55 295 237 301 300 309 294 291 293 296 333 321 173 274 213 24 325 300 212 220 201 211 274 264 449 188 174 189 288 279 188 195 183 175 66 191 288 287 191 289 290 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	WASHER; PL ID=12.5	9-09160-512-0	01	1	9606-
55	NUT; RUBBER (A) M8 FLANGE	0-91150-108-0	02	1	9606-9607
55	NUT; RUBBER (C) M8 FLANGE	0-91150-108-0	06	1	9608-
55	NUT; RUBBER FULL FLOATING CAB(W16) (B) M8	9-09110-408-0	08	1	9606-9606
55	NUT; RUBBER FULL FLOATING CAB(W16) (B) M8 FLANGE	0-91150-108-0	08	1	9607-9607
55	NUT; RUBBER EXC. FULL FLOATING CAB(W16) (B) M8	9-09110-408-0	04	1	9606-9606
55	NUT; RUBBER EXC. FULL FLOATING CAB(W16) (B) M8 FLANGE	0-91150-108-0	04	1	9607-9607
66	BRACKET; S/ABS FULL FLOATING CAB(W16) CAB UP +50MM<W60> (A)	1-53458-753-0	01	1	9707-9905
66	BRACKET; S/ABS CAB UP +110MM<TGG> (B)	1-53458-755-1	01	1	9906-
66	BRACKET; S/ABS FULL FLOATING CAB(W16) CAB UP +50MM<W60> (A)	1-53458-754-0	01	1	9707-9905
66	BRACKET; S/ABS CAB UP +110MM<TGG> (B)	1-53458-786-0	01	1	9906-
173	MEMBER; CAB MTG RR ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> FULL FLOATING CAB(W16)	1-53450-611-3	01	1	9906-
173	MEMBER; CAB MTG RR ANTI NOISE EQUIPMENT<SV9> CAB UP +110MM<TGG> EXC. FULL FLOATING CAB(W16)	1-53450-615-3	01	1	9906-
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> EXC. ANTI NOISE EQUIPMENT<SV9>,FULL FLOATING CAB(W16)	1-53450-614-2	01	1	9906-
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16)	1-53450-545-5	01	1	9606-9706
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16) EXC. CAB UP +50MM<W60>	1-53450-545-5	01	1	9707-9905
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG>	1-53450-545-6	01	1	9906-
173	MEMBER; CAB MTG RR FULL FLOATING CAB(W16) CAB UP +50MM<W60>	1-53450-547-6	01	1	9707-9905
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. ANTI NOISE EQUIPMENT<SV9>	1-53450-563-5	01	1	9906-9906
173	MEMBER; CAB MTG RR CAB UP +110MM<TGG> FULL FLOATING CAB(W16) EXC. ANTI NOISE EQUIPMENT<SV9>	1-53450-560-8	01	1	9907-
173	MEMBER; CAB MTG RR EXC. FULL FLOATING CAB(W16)	1-53450-564-0	01	1	9606-9903
173	MEMBER; CAB MTG RR EXC. FULL FLOATING CAB(W16)	1-53450-617-0	01	1	9904-9905
173	MEMBER; CAB MTG RR EXC. CAB UP +110MM<TGG>,FULL FLOATING CAB(W16)	1-53450-617-2	01	1	9906-
174	OUTRIGGER	1-53456-246-6	02	1	9606-9607
174	OUTRIGGER	1-53456-277-3	01	1	9608-
174	OUTRIGGER	1-53456-278-3	01	1	9608-
175	BOLT; MEMBER TO FRAME M14X35	9-92061-435-0	08	1	9606-
183	WASHER; PL,MEMBER ID=15	9-09651-069-0	08	1	9606-
188	BOLT; OUTRIGGER (A) M10X20 FLANGE	0-28081-020-0	08	1	9606-9606
188	BOLT; OUTRIGGER (A) M10X20 FLANGE	0-28681-020-0	08	1	9607-9609
188	BOLT; OUTRIGGER (A) M10X25 FLANGE	0-28681-025-0	08	1	9610-
188	BOLT; OUTRIGGER CAB UP +110MM<TGG> (B) M10X20 FLANGE	0-28681-020-0	08	1	9906-
189	NUT; OUTRIGGER CAB UP +110MM<TGG> M10 FLANGE	0-91150-210-0	08	1	9906-
191	BOLT; BRKT FIX FULL FLOATING CAB(W16) CAB UP +50MM<W60> M10X25 FLANGE	0-28681-025-0	07	1	9707-9905
191	BOLT; BRKT FIX CAB UP +110MM<TGG> M10X25 FLANGE	0-28681-025-0	07	1	9906-
195	NUT; BRKT FIX FULL FLOATING CAB(W16) CAB UP +50MM<W60> M10 FLANGE	0-91150-210-0	04	1	9707-9905
195	NUT; BRKT FIX CAB UP +110MM<TGG> M10 FLANGE	0-91150-210-0	04	1	9906-
201	ABSORBER ASM; SHOCK,RR MTG	1-51630-480-0	02	1	9606-9703
201	ABSORBER ASM; SHOCK,RR MTG	1-51630-607-0	02	1	9704-
211	RUBBER; CUSHION,S/ABS EXC. FULL FLOATING CAB(W16)	1-53366-128-0	02	1	9606-
212	SPRING; COIL EXC. FULL FLOATING CAB(W16)	1-09580-515-0	02	1	9606-
213	SEAT; SPR,S/ABS EXC. FULL FLOATING CAB(W16)	1-53366-132-1	02	1	9606-
220	GUIDE; SPR FULL FLOATING CAB(W16)	1-53458-648-1	02	1	9606-
237	ROD ASM; LATERAL (B)	1-53458-343-0	01	1	9606-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (A)	1-33670-407-0	01	1	9606-9905
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (C)	1-33670-773-0	01	1	9606-
237	ROD ASM; LATERAL FULL FLOATING CAB(W16) (A)	1-33670-407-0	01	1	9906-
240	WASHER; PL,BRKT (A) ID=10.5 OD=18	1-09985-173-0	01	1	9606-
240	WASHER; PL,BRKT (B) ID=10.5 OD=26 T=2.6	1-09985-184-0	04	1	9606-
240	WASHER; PL,BRKT (C) ID=12.5	9-09160-512-0	02	1	9706-
243	WASHER; LK,LATERAL ROD ID=12.2	9-09150-512-0	02	1	9706-
244	NUT; LATERAL ROD M12	9-99110-412-0	02	1	9606-9606
244	NUT; LATERAL ROD M12 FLANGE	0-91150-212-0	02	1	9607-9705
244	NUT; LATERAL ROD M12	9-99110-512-0	02	1	9706-
264	PANEL; BACK L TYPE ENG<90L> MIXER TRUCK<RA2> ANTI NOISE EQUIPMENT<SV9>	1-53193-390-2	01	1	9703-
264	PANEL; BACK 10PE1S(60L)	1-53192-606-1	01	1	9606-9609
264	PANEL; BACK L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9>	1-53192-606-1	01	1	9610-9702
264	PANEL; BACK V TYPE ENG<91L>	1-53192-606-1	01	1	9610-9702
264	PANEL; BACK L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> EXC. MIXER TRUCK<RA2>	1-53192-606-2	01	1	9703-
264	PANEL; BACK V TYPE ENG<91L> ANTI NOISE EQUIPMENT<SV9>	1-53192-606-2	01	1	9703-
274	PIN (A)	1-09987-158-1	01	1	9606-
274	PIN (B) OD=12 L=72	9-08234-272-0	01	1	9606-
279	BOLT (B) M12X40 FLANGE	0-28091-240-0	04	1	9606-
279	BOLT CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (F) M8X25	1-09980-511-0	02	1	9906-9906
279	BOLT FULL FLOATING CAB(W16) EXC. DELUXE CAB<W14> (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	9906-
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28080-816-0	04	1	9606-
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28080-820-0	07	1	9606-9606
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	07	1	9607-0007
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	01	1	0008-
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28080-860-0	02	1	9606-
279	BOLT FULL FLOATING CAB(W16) (F) M8X25	1-09980-511-0	02	1	9606-9711
279	BOLT FULL FLOATING CAB(W16) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	9712-9905
279	BOLT FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	9906-9906
279	BOLT DELUXE CAB<W14> FULL FLOATING CAB(W16) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	9906-
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	06	1	0008-
279	BOLT 10PE1S(60L) (A) M8X25 FLANGE	0-28080-825-0	02	1	9606-9606
279	BOLT 10PE1S(60L) (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9609
279	BOLT L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28680-825-0	02	1	9610-9701
279	BOLT V TYPE ENG<91L> (A) M8X25 FLANGE	0-28680-825-0	02	1	9610-9701
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28680-825-0	02	1	9702-
287	NUT 10PE1S(60L) M8 FLANGE	0-91150-108-0	01	1	9606-9609
287	NUT L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	01	1	9610-9701
287	NUT V TYPE ENG<91L> M8 FLANGE	0-91150-108-0	01	1	9610-9701
287	NUT ANTI NOISE EQUIPMENT<SV9> M8 FLANGE	0-91150-108-0	01	1	9702-
288	WASHER; PL 10PE1S(60L) ID=8.4 OD=26	9-09164-808-0	03	1	9606-9609
288	WASHER; PL L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> ID=8.4 OD=26	9-09164-808-0	03	1	9610-9701
288	WASHER; PL V TYPE ENG<91L> ID=8.4 OD=26	9-09164-808-0	03	1	9610-9701
288	WASHER; PL ANTI NOISE EQUIPMENT<SV9> ID=8.4 OD=26	9-09164-808-0	03	1	9702-
289	GROMMET 10PE1S(60L) OD=40 T=4.8	9-09576-198-0	01	1	9606-9609
289	GROMMET L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> OD=40 T=4.8	9-09576-198-0	01	1	9610-9702
289	GROMMET V TYPE ENG<91L> OD=40 T=4.8	9-09576-198-0	01	1	9610-9702
289	GROMMET ANTI NOISE EQUIPMENT<SV9> OD=40 T=4.8	9-09576-198-0	01	1	9703-
290	RUBBER; MTG 10PE1S(60L)	1-53459-702-1	04	1	9606-9608
290	RUBBER; MTG 10PE1S(60L)	1-53459-702-1	03	1	9609-9609
290	RUBBER; MTG L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9>	1-53459-702-1	03	1	9610-9702
290	RUBBER; MTG V TYPE ENG<91L>	1-53459-702-1	03	1	9610-9702
290	RUBBER; MTG ANTI NOISE EQUIPMENT<SV9>	1-53459-702-1	03	1	9703-
291	BOLT; RATCH M10X20 FLANGE	0-28081-020-0	04	1	9606-9606
291	BOLT; RATCH M10X20 FLANGE	0-28681-020-0	04	1	9607-9609
291	BOLT; RATCH M10X25 FLANGE	0-28681-025-0	04	1	9610-

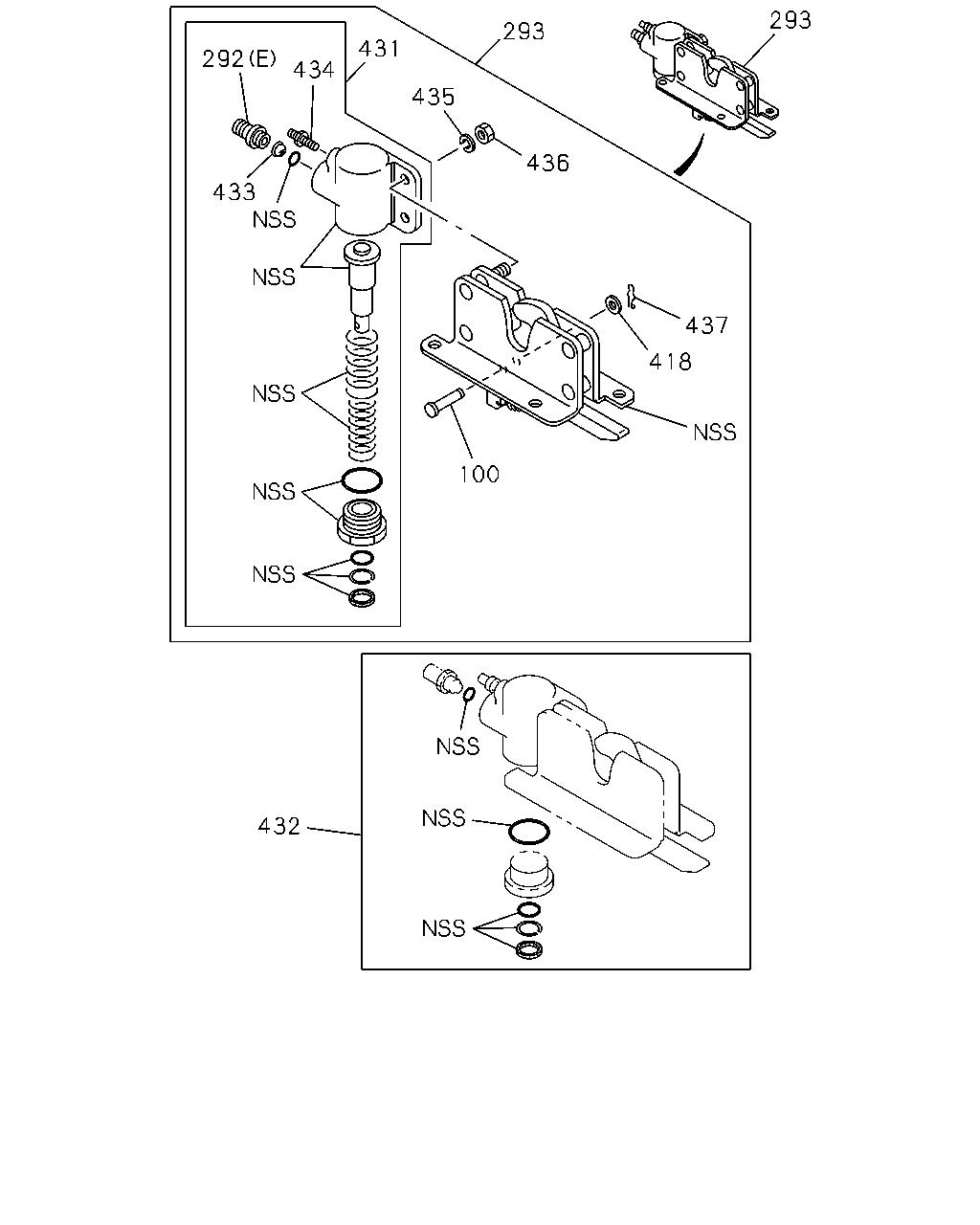

293	RATCH; CAB SUSP,RR	1-53458-346-0	01	1	9606-9705
293	RATCH; CAB SUSP,RR	1-53458-826-0	01	1	9706-9905
293	RATCH; CAB SUSP,RR	1-53458-923-0	01	1	9906-
294	MEMBER; FLOATING FULL FLOATING CAB(W16)	1-53454-561-4	01	1	9606-9607
294	MEMBER; FLOATING FULL FLOATING CAB(W16)	1-53454-692-1	01	1	9608-9803
294	MEMBER; FLOATING FULL FLOATING CAB(W16)	1-53454-737-2	01	1	9804-9903
294	MEMBER; FLOATING FULL FLOATING CAB(W16)	1-53454-828-2	01	1	9904-
294	MEMBER; FLOATING EXC. FULL FLOATING CAB(W16)	1-53454-629-3	01	1	9606-9607
294	MEMBER; FLOATING EXC. FULL FLOATING CAB(W16)	1-53454-695-1	01	1	9608-9803
294	MEMBER; FLOATING EXC. FULL FLOATING CAB(W16)	1-53454-740-2	01	1	9804-9903
294	MEMBER; FLOATING EXC. FULL FLOATING CAB(W16)	1-53454-831-2	01	1	9904-
295	BOLT; STOPPER,UPR M8X20 FLANGE	0-28080-820-0	04	1	9606-9606
295	BOLT; STOPPER,UPR M8X20 FLANGE	0-28680-820-0	04	1	9607-
296	STOPPER; UPR	1-53458-382-0	01	1	9606-
297	BRACKET; LIMIT SW (A)	1-53458-348-0	01	1	9606-9901
297	BRACKET; LIMIT SW (B)	1-53458-782-0	01	1	9902-
298	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	02	1	9606-9606
298	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	9607-9901
298	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	01	1	9902-9905
298	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	9906-
299	RUBBER; MTG (B)	1-53366-155-0	02	1	9606-
299	RUBBER; MTG (A)	1-53366-156-0	02	1	9606-
300	BOLT; MTG RUBBER M8X25 W/LK&PL WASHER	1-09030-027-0	08	1	9606-9607
300	BOLT; MTG RUBBER M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	9608-9612
300	BOLT; MTG RUBBER FULL FLOATING CAB(W16) M8X25 W/LK&PL WASHER	1-09030-027-0	04	1	9701-
300	BOLT; MTG RUBBER FULL FLOATING CAB(W16) M8X16 FLANGE	0-28080-816-0	04	1	9608-
300	BOLT; MTG RUBBER EXC. FULL FLOATING CAB(W16) M8X25 W/LK&PL WASHER	1-09030-027-0	08	1	9701-
301	PIN; LATERAL ROD M12X57.5	1-53459-498-1	02	1	9606-
309	NUT M10	9-09110-510-0	04	1	9606-9606
309	NUT M10 FLANGE	0-91150-210-0	04	1	9607-
321	SHIM; FRT CAB MTG	1-53458-629-1	04	1	9606-
325	BOLT; GUIDE NUT FULL FLOATING CAB(W16) M8X20 FLANGE	0-28080-820-0	02	1	9606-9606
325	BOLT; GUIDE NUT FULL FLOATING CAB(W16) M8X20 FLANGE	0-28680-820-0	02	1	9607-
333	SPRING FULL FLOATING CAB(W16) (A) FRONT	1-52110-142-1	02	1	9606-
333	SPRING FULL FLOATING CAB(W16) (B) REAR	1-52110-143-1	02	1	9606-
449	BRACKET; OUTRIGGER CAB UP +110MM<TGG>	1-53456-279-0	02	1	9906-

293 293 431 292 434 435 436 433 437 418 100 432

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
100	PIN; JOINT	1-53458-527-0	01	1	9606-9705
100	PIN; JOINT	1-53458-831-0	01	1	9706-
292	CONNECTOR; CAB SUSPENSION (E) M14	1-53458-047-0	01	1	9606-9905
292	CONNECTOR; CAB SUSPENSION (E) M12	1-53458-941-0	01	1	9906-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (A) M12 & PT1/4 ELBOW	1-09650-430-0	02	1	9606-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (B) DIN6 R1/8 STRAIGHT	1-09660-759-1	01	1	9606-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (C) TRI LC6X4-R1/8	1-09660-760-1	01	1	9606-
292	CONNECTOR; CAB SUSPENSION FULL FLOATING CAB(W16) (D) DIN6X2 & R1/8 3WAY	1-09660-761-1	01	1	9606-
293	RATCH; CAB SUSP,RR	1-53458-346-0	01	1	9606-9705
293	RATCH; CAB SUSP,RR	1-53458-826-0	01	1	9706-9905
293	RATCH; CAB SUSP,RR	1-53458-923-0	01	1	9906-
418	WASHER; PL,PIN	1-53458-059-0	01	1	9606-
431	CYLINDER; AIR,RATCH	1-53458-539-0	01	1	9606-9905
431	CYLINDER; AIR,RATCH	1-53457-013-0	01	1	9906-
432	REPAIR KIT; AIR CYL	1-85579-052-0	01	1	9606-
433	FILTER; AIR CYL	1-53458-048-0	01	1	9606-
434	SCREW; AIR BLEEDER	1-53458-529-0	01	1	9606-
435	WASHER; LK,AIR CYL ID=10.2	9-09150-510-0	02	1	9606-
436	NUT; AIR CYL	1-53458-528-0	02	1	9606-
437	PIN; SNAP	1-53458-526-0	01	1	9606-

65 65 202 202 202 202 203 203 204 204 205 205 204 204 203 203

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
65	ABSORBER; SHOCK,CAB FRT SUSPENSION	1-51630-472-0	02	1	9606-9610
65	ABSORBER; SHOCK,CAB FRT SUSPENSION	1-51630-546-0	02	1	9611-9703
65	ABSORBER; SHOCK,CAB FRT SUSPENSION	1-51630-603-0	02	1	9704-
202	NUT; S/ABS (A) M10	9-09110-410-0	06	1	9606-9610
202	NUT; S/ABS (A) M10	9-09110-410-0	04	1	9611-
202	NUT; S/ABS (B) M10	9-09111-410-0	06	1	9606-0007
202	NUT; S/ABS (B) M10	9-09111-410-0	02	1	0008-
202	NUT; S/ABS (C) M10 FLANGE	0-91150-110-0	02	1	9611-
202	NUT; S/ABS (B) M10	9-09111-410-0	04	1	0008-
203	WASHER; RUBBER,SHOCK (A)	1-51631-005-0	12	1	9606-9610
203	WASHER; RUBBER,SHOCK (A)	1-51631-005-0	10	1	9611-0007
203	WASHER; RUBBER,SHOCK (A)	1-51631-005-0	02	1	0008-
203	WASHER; RUBBER,SHOCK (B)	1-51631-104-0	02	1	9611-
203	WASHER; RUBBER,SHOCK (A)	1-51631-005-0	08	1	0008-
204	RUBBER; CUSHION,SHOCK	1-51631-004-0	12	1	9606-0007
204	RUBBER; CUSHION,SHOCK	1-51631-004-0	04	1	0008-
204	RUBBER; CUSHION,SHOCK	1-51631-004-0	08	1	0008-
205	WASHER; RUBBER,SHOCK	1-51631-079-0	08	1	9606-0007
205	WASHER; RUBBER,SHOCK	1-51631-079-0	02	1	0008-
205	WASHER; RUBBER,SHOCK	1-51631-079-0	06	1	0008-

201 202 202 203 204 205 204 203 203 204 205 205 204 203 202 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
201	ABSORBER ASM; SHOCK,RR MTG	1-51630-480-0	02	1	9606-9703
201	ABSORBER ASM; SHOCK,RR MTG	1-51630-607-0	02	1	9704-
202	NUT; S/ABS (A) M10	9-09110-410-0	06	1	9606-9610
202	NUT; S/ABS (A) M10	9-09110-410-0	04	1	9611-
202	NUT; S/ABS (B) M10	9-09111-410-0	06	1	9606-0007
202	NUT; S/ABS (B) M10	9-09111-410-0	02	1	0008-
202	NUT; S/ABS (C) M10 FLANGE	0-91150-110-0	02	1	9611-
202	NUT; S/ABS (B) M10	9-09111-410-0	04	1	0008-
203	WASHER; RUBBER,SHOCK (A)	1-51631-005-0	12	1	9606-9610
203	WASHER; RUBBER,SHOCK (A)	1-51631-005-0	10	1	9611-0007
203	WASHER; RUBBER,SHOCK (A)	1-51631-005-0	02	1	0008-
203	WASHER; RUBBER,SHOCK (B)	1-51631-104-0	02	1	9611-
203	WASHER; RUBBER,SHOCK (A)	1-51631-005-0	08	1	0008-
204	RUBBER; CUSHION,SHOCK	1-51631-004-0	12	1	9606-0007
204	RUBBER; CUSHION,SHOCK	1-51631-004-0	04	1	0008-
204	RUBBER; CUSHION,SHOCK	1-51631-004-0	08	1	0008-
205	WASHER; RUBBER,SHOCK	1-51631-079-0	08	1	9606-0007
205	WASHER; RUBBER,SHOCK	1-51631-079-0	02	1	0008-
205	WASHER; RUBBER,SHOCK	1-51631-079-0	06	1	0008-

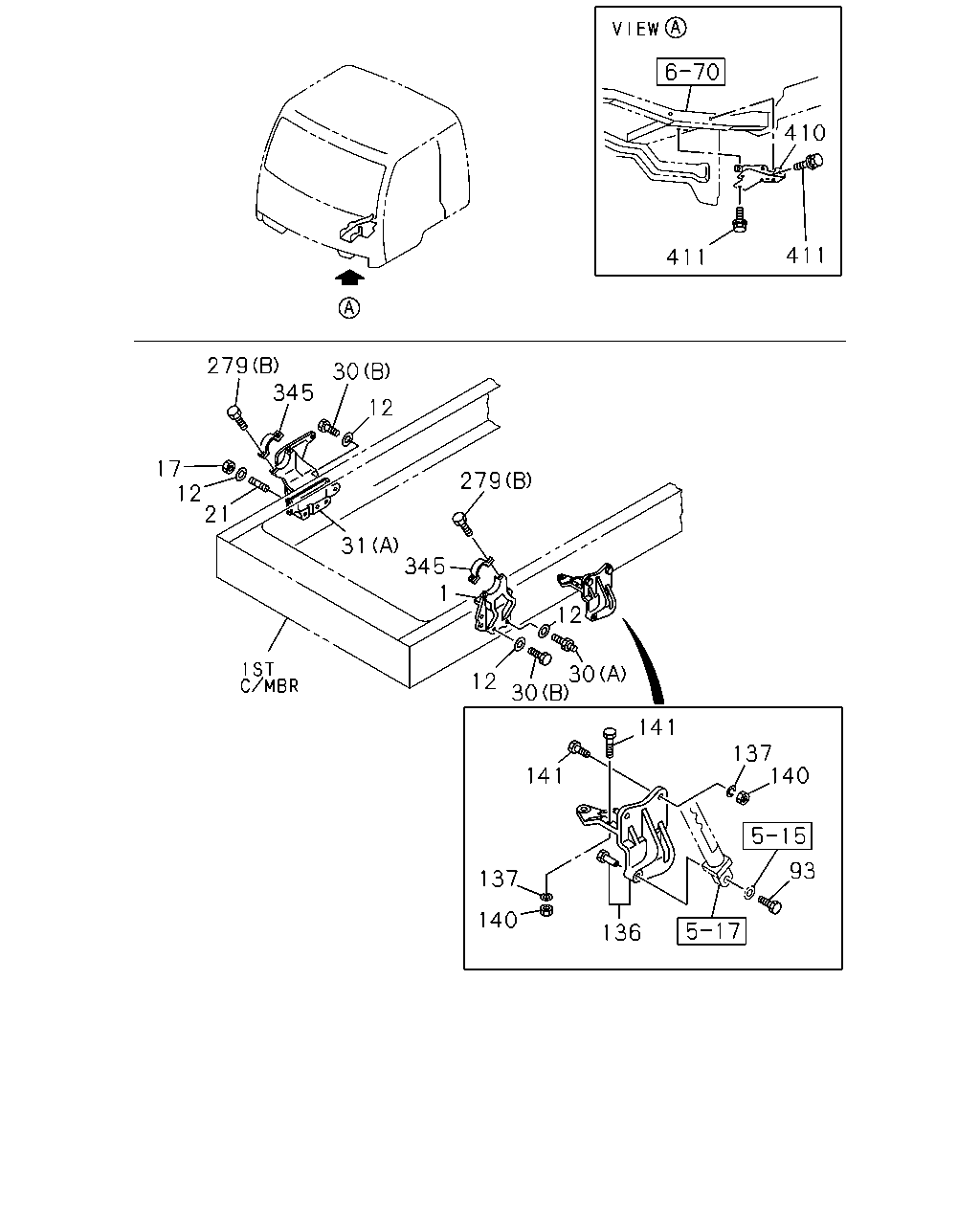

410 411 411 279 345 30 12 17 12 21 279 31 345 1 12 30 30 12 141 137 140 141 93 137 140 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BRACKET; CAB MTG	1-53453-214-1	01	1	9606-9706
1	BRACKET; CAB MTG EXC. CAB UP +50MM<W60>	1-53453-214-1	01	1	9707-9905
1	BRACKET; CAB MTG EXC. CAB UP +110MM<TGG>	1-53453-214-2	01	1	9906-
1	BRACKET; CAB MTG CAB UP +50MM<W60>	1-53453-215-2	01	1	9707-9905
1	BRACKET; CAB MTG CAB UP +110MM<TGG>	1-53453-246-1	01	1	9906-
12	WASHER; LK,BRKT ID=15	9-09651-069-0	11	1	9606-9905
12	WASHER; LK,BRKT EXC. CAB UP +110MM<TGG> ID=15	9-09651-069-0	11	1	9906-
12	WASHER; LK,BRKT CAB UP +110MM<TGG> ID=16.2	1-09503-223-0	11	1	9906-
17	NUT; BRKT,CAB TILT M14	9-99110-514-0	01	1	9606-9905
17	NUT; BRKT,CAB TILT EXC. CAB UP +110MM<TGG> M14	9-99110-514-0	01	1	9906-
17	NUT; BRKT,CAB TILT CAB UP +110MM<TGG> M16	9-99110-516-0	01	1	9906-
21	STUD; BRKT,CAB TILT M14X48 L=75	1-09300-094-0	01	1	9606-9905
21	STUD; BRKT,CAB TILT EXC. CAB UP +110MM<TGG> M14X48 L=75	1-09300-094-0	01	1	9906-
21	STUD; BRKT,CAB TILT CAB UP +110MM<TGG> M10X20,M16X50 L=81	1-09029-069-0	02	1	9906-
21	STUD; BRKT,CAB TILT CAB UP +110MM<TGG> M16X50 L=74	1-09300-117-0	01	1	9906-
30	BOLT; CAB FRT FOOT (A) M10X22,M14X55 L=88	1-09029-071-0	02	1	9606-9905
30	BOLT; CAB FRT FOOT EXC. CAB UP +110MM<TGG> (A) M10X22,M14X55 L=88	1-09029-071-0	02	1	9906-
30	BOLT; CAB FRT FOOT (B) M14X45	9-92061-445-0	08	1	9606-9905
30	BOLT; CAB FRT FOOT EXC. CAB UP +110MM<TGG> (B) M14X45	9-92061-445-0	08	1	9906-
30	BOLT; CAB FRT FOOT CAB UP +110MM<TGG> (B) M16X45	9-92061-645-0	08	1	9906-
31	BRACKET; CAB (A)	1-44226-146-2	01	1	9606-9706
31	BRACKET; CAB EXC. CAB UP +50MM<W60> (A)	1-44226-146-2	01	1	9707-9905
31	BRACKET; CAB EXC. CAB UP +110MM<TGG> (A)	1-44226-146-2	01	1	9906-
31	BRACKET; CAB CAB UP +50MM<W60> (A)	1-44226-147-2	01	1	9707-9905
31	BRACKET; CAB CAB UP +110MM<TGG> (A)	1-44226-149-0	01	1	9906-
31	BRACKET; CAB FULL FLOATING CAB(W16) (B)	1-53458-374-1	01	1	9606-
31	BRACKET; CAB FULL FLOATING CAB(W16) (C)	1-81549-016-0	01	1	9606-
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-225-3	01	1	9606-
31	BRACKET; CAB FULL FLOATING CAB(W16) (D)	1-53453-224-4	01	1	9606-
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-274-1	01	1	9606-
31	BRACKET; CAB EXC. FULL FLOATING CAB(W16) (D)	1-53453-273-1	01	1	9606-
93	BOLT; PIN M10X20 W/LK WASHER	0-50041-020-0	01	1	9606-9606
93	BOLT; PIN M10X20 FLANGE	0-28681-020-0	01	1	9607-9905
93	BOLT; PIN EXC. CAB UP +110MM<TGG> M10X20 FLANGE	0-28681-020-0	01	1	9906-
93	BOLT; PIN CAB UP +110MM<TGG> M10X30	1-09000-283-0	01	1	9906-
136	BRACKET; OIL CYL	1-53458-623-0	01	1	9606-9706
136	BRACKET; OIL CYL 6WA1 TC-S(56L),10PE1S(60L)	1-53458-623-0	01	1	9707-9905
136	BRACKET; OIL CYL 6WA1 TC-C(55L),6WA1 TC-S(56L),10PE1N(61L)	1-53458-623-0	01	1	9906-0003
136	BRACKET; OIL CYL 6WA1 TC-S(56L) WHEEL BASE 6600MM(66W) EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03>	1-53458-623-0	01	1	0004-
136	BRACKET; OIL CYL 6WA1 TC-C(55L) WHEEL BASE 6600MM(66W) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03>	1-53458-623-0	01	1	0004-
136	BRACKET; OIL CYL 6WA1 TC-C(55L) WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY<F03>	1-53458-623-0	01	1	0004-
136	BRACKET; OIL CYL 6WA1 TC-C(55L) WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY<F01> MIXER TRUCK<RA2>	1-53458-623-0	01	1	0004-
136	BRACKET; OIL CYL 10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM>	1-53458-623-0	01	1	0004-
136	BRACKET; OIL CYL 6WG1 TC-N(71L)	1-44515-073-0	01	1	9707-9905
136	BRACKET; OIL CYL 6WG1 TC-C(72L)	1-44515-073-0	01	1	9906-0003
136	BRACKET; OIL CYL 6WG1 TC-C(72L) WHEEL BASE 6600MM(66W) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03>	1-44515-073-0	01	1	0004-
136	BRACKET; OIL CYL 6WG1 TC-N(71L)	1-53458-624-0	01	1	9707-9905
136	BRACKET; OIL CYL 6WG1 TC-C(72L)	1-53458-829-0	01	1	9906-0003
136	BRACKET; OIL CYL 6WG1 TC-C(72L) WHEEL BASE 6600MM(66W) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03>	1-53458-829-0	01	1	0004-
137	WASHER; PL,BRKT ID=15	9-09651-069-0	04	1	9606-9706
137	WASHER; PL,BRKT 6WA1 TC-S(56L),10PE1S(60L) ID=15	9-09651-069-0	04	1	9707-9905
137	WASHER; PL,BRKT 6WA1 TC-C(55L),6WA1 TC-S(56L),10PE1N(61L) ID=15	9-09651-069-0	04	1	9906-0003
137	WASHER; PL,BRKT 6WA1 TC-S(56L) WHEEL BASE 6600MM(66W) EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> ID=15	9-09651-069-0	04	1	0004-
137	WASHER; PL,BRKT 6WA1 TC-C(55L) WHEEL BASE 6600MM(66W) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> ID=15	9-09651-069-0	04	1	0004-
137	WASHER; PL,BRKT 6WA1 TC-C(55L) WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY<F03> ID=15	9-09651-069-0	04	1	0004-
137	WASHER; PL,BRKT 6WA1 TC-C(55L) WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY<F01> MIXER TRUCK<RA2> ID=15	9-09651-069-0	04	1	0004-
137	WASHER; PL,BRKT 10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=15	9-09651-069-0	04	1	0004-
137	WASHER; PL,BRKT 6WG1 TC-N(71L) ID=15	9-09651-069-0	22	1	9707-9905
137	WASHER; PL,BRKT 6WG1 TC-C(72L) ID=15	9-09651-069-0	22	1	9906-0003
137	WASHER; PL,BRKT 6WG1 TC-C(72L) WHEEL BASE 6600MM(66W) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> ID=15	9-09651-069-0	22	1	0004-
140	NUT; BRKT M14	9-99110-514-0	02	1	9606-9706
140	NUT; BRKT 6WA1 TC-S(56L),10PE1S(60L) M14	9-99110-514-0	02	1	9707-9905
140	NUT; BRKT 6WA1 TC-C(55L),6WA1 TC-S(56L),10PE1N(61L) M14	9-99110-514-0	02	1	9906-0003
140	NUT; BRKT 6WA1 TC-S(56L) WHEEL BASE 6600MM(66W) EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> M14	9-99110-514-0	02	1	0004-
140	NUT; BRKT 6WA1 TC-C(55L) WHEEL BASE 6600MM(66W) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> M14	9-99110-514-0	02	1	0004-
140	NUT; BRKT 6WA1 TC-C(55L) WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY<F03> M14	9-99110-514-0	02	1	0004-
140	NUT; BRKT 6WA1 TC-C(55L) WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY<F01> MIXER TRUCK<RA2> M14	9-99110-514-0	02	1	0004-
140	NUT; BRKT 10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14	9-99110-514-0	02	1	0004-
140	NUT; BRKT 6WG1 TC-N(71L) M14	9-99110-514-0	11	1	9707-9905
140	NUT; BRKT 6WG1 TC-C(72L) M14	9-99110-514-0	11	1	9906-0003
140	NUT; BRKT 6WG1 TC-C(72L) WHEEL BASE 6600MM(66W) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> M14	9-99110-514-0	11	1	0004-
141	BOLT; BRKT M14X50	9-92061-450-0	04	1	9606-9706
141	BOLT; BRKT 6WA1 TC-S(56L),10PE1S(60L) M14X50	9-92061-450-0	04	1	9707-9905
141	BOLT; BRKT 6WA1 TC-C(55L),6WA1 TC-S(56L),10PE1N(61L) M14X50	9-92061-450-0	04	1	9906-0003
141	BOLT; BRKT 6WA1 TC-S(56L) WHEEL BASE 6600MM(66W) EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> M14X50	9-92061-450-0	04	1	0004-
141	BOLT; BRKT 6WA1 TC-C(55L) WHEEL BASE 6600MM(66W) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> M14X50	9-92061-450-0	04	1	0004-
141	BOLT; BRKT 6WA1 TC-C(55L) WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY<F03> M14X50	9-92061-450-0	04	1	0004-
141	BOLT; BRKT 6WA1 TC-C(55L) WHEEL BASE 6300MM(63W) FRAME EQUIPMENT HEAVY DUTY<F01> MIXER TRUCK<RA2> M14X50	9-92061-450-0	04	1	0004-
141	BOLT; BRKT 10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X50	9-92061-450-0	04	1	0004-
141	BOLT; BRKT 6WG1 TC-N(71L) M14X50	9-92061-450-0	09	1	9707-9905
141	BOLT; BRKT 6WG1 TC-C(72L) M14X50	9-92061-450-0	09	1	9906-0003
141	BOLT; BRKT 6WG1 TC-C(72L) WHEEL BASE 6600MM(66W) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> M14X50	9-92061-450-0	09	1	0004-
141	BOLT; BRKT 6WG1 TC-N(71L) M14X60	9-92061-460-0	04	1	9707-9905
141	BOLT; BRKT 6WG1 TC-C(72L) M14X60	9-92061-460-0	04	1	9906-0003
141	BOLT; BRKT 6WG1 TC-C(72L) WHEEL BASE 6600MM(66W) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> M14X60	9-92061-460-0	04	1	0004-
279	BOLT (B) M12X40 FLANGE	0-28091-240-0	04	1	9606-
279	BOLT CAB UP +110MM<TGG> FULL FLOATING CAB(W16) (F) M8X25	1-09980-511-0	02	1	9906-9906
279	BOLT FULL FLOATING CAB(W16) EXC. DELUXE CAB<W14> (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	9906-
279	BOLT FULL FLOATING CAB(W16) (C) M8X16 FLANGE	0-28080-816-0	04	1	9606-
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28080-820-0	07	1	9606-9606
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	07	1	9607-0007
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	01	1	0008-
279	BOLT FULL FLOATING CAB(W16) (E) M8X60 FLANGE	0-28080-860-0	02	1	9606-
279	BOLT FULL FLOATING CAB(W16) (F) M8X25	1-09980-511-0	02	1	9606-9711
279	BOLT FULL FLOATING CAB(W16) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	9712-9905
279	BOLT FULL FLOATING CAB(W16) EXC. CAB UP +110MM<TGG> (F) M8X25 W/LK&PL WASHER	1-09980-548-0	02	1	9906-9906
279	BOLT DELUXE CAB<W14> FULL FLOATING CAB(W16) (F) M8X25 W/LK&PL WASHER	1-09980-548-0	01	1	9906-
279	BOLT FULL FLOATING CAB(W16) (D) M8X20 FLANGE	0-28680-820-0	06	1	0008-
279	BOLT 10PE1S(60L) (A) M8X25 FLANGE	0-28080-825-0	02	1	9606-9606
279	BOLT 10PE1S(60L) (A) M8X25 FLANGE	0-28680-825-0	02	1	9607-9609
279	BOLT L TYPE ENG<90L> ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28680-825-0	02	1	9610-9701
279	BOLT V TYPE ENG<91L> (A) M8X25 FLANGE	0-28680-825-0	02	1	9610-9701
279	BOLT ANTI NOISE EQUIPMENT<SV9> (A) M8X25 FLANGE	0-28680-825-0	02	1	9702-
345	CAP; CAB	1-53458-336-3	02	1	9606-
410	REINFORCEMENT; CAB TILT	1-62570-864-0	01	1	9606-
411	BOLT; REINFORCEMENT M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	9606-
411	BOLT; REINFORCEMENT M10X20 W/LK&PL WASHER	8-94279-211-0	01	1	9606-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
