2-08 — CLUTCH MASTER CYLINDER (#51319) — 56 parça

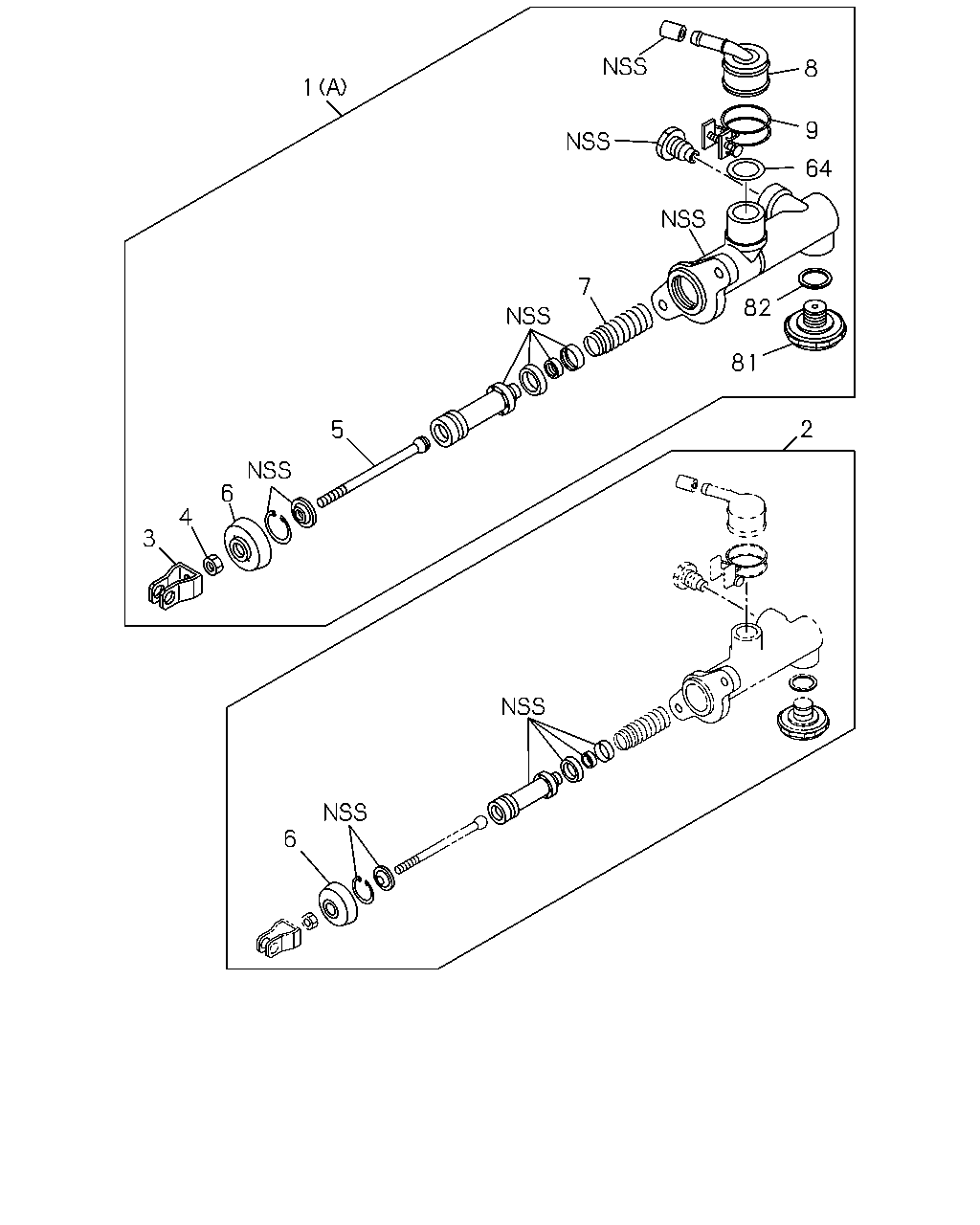

2 7 7 64 9 8 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.775 CYLINDER ASM; CLUTCH MASTER POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (B)	8-98098-251-0	01	1	1109-1210	●
1	00.775 CYLINDER ASM; CLUTCH MASTER POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98098-251-0	01	1	1211-	●	●
1	00.775 CYLINDER ASM; CLUTCH MASTER POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B)	8-98025-308-0	01	1	1109-1210	●
1	00.775 CYLINDER ASM; CLUTCH MASTER POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. KD PREPARATORY PACK VAR.4<7TV> (B)	8-98025-308-0	01	1	1211-	●	●
1	00.775 CYLINDER ASM; CLUTCH MASTER EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98117-643-0	01	1	1109-1210	●
1	00.775 CYLINDER ASM; CLUTCH MASTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98117-643-0	01	1	1211-	●	●
2	00.775 REPAIR KIT; CLU M/CYL POWER ASSIST CLUTCH(S2T)	5-87832-221-0	01	1	1109-1210	●
2	00.775 REPAIR KIT; CLU M/CYL POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	5-87832-221-0	01	1	1211-	●	●
2	00.775 REPAIR KIT; CLU M/CYL EXC. POWER ASSIST CLUTCH(S2T)	5-87832-226-0	01	1	1109-1210	●
2	00.775 REPAIR KIT; CLU M/CYL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T)	5-87832-226-0	01	1	1211-	●	●
7	00.775 SPRING ASM; CLU M/CYL POWER ASSIST CLUTCH(S2T)	8-98077-784-0	01	1	1109-1210	●
7	00.775 SPRING ASM; CLU M/CYL POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98077-784-0	01	1	1211-	●	●
7	00.775 SPRING ASM; CLU M/CYL EXC. POWER ASSIST CLUTCH(S2T)	8-97167-780-0	01	1	1109-1210	●
7	00.775 SPRING ASM; CLU M/CYL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T)	8-97167-780-0	01	1	1211-	●	●
8	00.777 CONNECTOR; PIPE,CLU M/CYL POWER ASSIST CLUTCH(S2T)	8-97163-191-0	01	1	1109-1210	●
8	00.777 CONNECTOR; PIPE,CLU M/CYL POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97163-191-0	01	1	1211-	●	●
8	00.777 CONNECTOR; PIPE,CLU M/CYL EXC. POWER ASSIST CLUTCH(S2T)	8-97167-766-0	01	1	1109-1210	●
8	00.777 CONNECTOR; PIPE,CLU M/CYL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T)	8-97167-766-0	01	1	1211-	●	●
9	00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL	8-97167-773-0	01	1	1109-1210	●
9	00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97167-773-0	01	1	1211-	●	●
64	00.777 GASKET; CONNECTOR	8-97167-767-0	01	1	1109-1210	●
64	00.777 GASKET; CONNECTOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97167-767-0	01	1	1211-	●	●

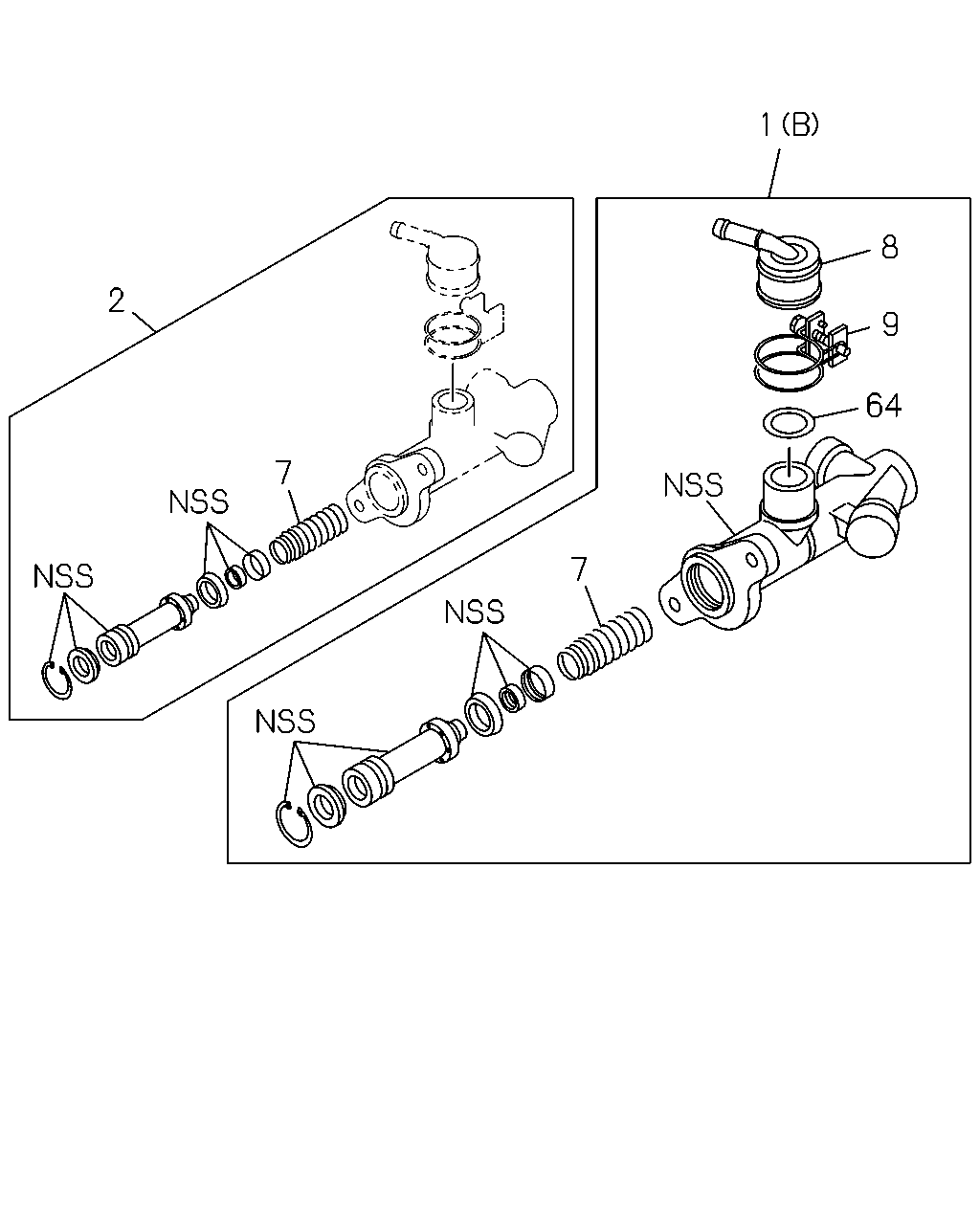

1 3 4 6 5 7 81 82 64 9 8 2 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	00.775 CYLINDER ASM; CLUTCH MASTER POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (B)	8-98098-251-0	01	1	1109-1210	●
1	00.775 CYLINDER ASM; CLUTCH MASTER POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)	8-98098-251-0	01	1	1211-	●	●
1	00.775 CYLINDER ASM; CLUTCH MASTER POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B)	8-98025-308-0	01	1	1109-1210	●
1	00.775 CYLINDER ASM; CLUTCH MASTER POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. KD PREPARATORY PACK VAR.4<7TV> (B)	8-98025-308-0	01	1	1211-	●	●
1	00.775 CYLINDER ASM; CLUTCH MASTER EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98117-643-0	01	1	1109-1210	●
1	00.775 CYLINDER ASM; CLUTCH MASTER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98117-643-0	01	1	1211-	●	●
2	00.775 REPAIR KIT; CLU M/CYL POWER ASSIST CLUTCH(S2T)	5-87832-221-0	01	1	1109-1210	●
2	00.775 REPAIR KIT; CLU M/CYL POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	5-87832-221-0	01	1	1211-	●	●
2	00.775 REPAIR KIT; CLU M/CYL EXC. POWER ASSIST CLUTCH(S2T)	5-87832-226-0	01	1	1109-1210	●
2	00.775 REPAIR KIT; CLU M/CYL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T)	5-87832-226-0	01	1	1211-	●	●
3	00.777 JOINT; JAW,CLU M/CYL EXC. POWER ASSIST CLUTCH(S2T)	8-97167-770-0	01	1	1109-1210	●
3	00.777 JOINT; JAW,CLU M/CYL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T)	8-97167-770-0	01	1	1211-	●	●
4	00.777 NUT; JAW JOINT EXC. POWER ASSIST CLUTCH(S2T) M8	0-91111-508-0	01	1	1109-1210	●
4	00.777 NUT; JAW JOINT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T) M8	0-91111-508-0	01	1	1211-	●	●
5	00.775 ROD; PUSH,CLU M/CYL EXC. POWER ASSIST CLUTCH(S2T)	8-97167-768-0	01	1	1109-1210	●
5	00.775 ROD; PUSH,CLU M/CYL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T)	8-97167-768-0	01	1	1211-	●	●
6	00.775 BOOT; CLU M/CYL EXC. POWER ASSIST CLUTCH(S2T)	8-94412-200-0	01	1	1109-1210	●
6	00.775 BOOT; CLU M/CYL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T)	8-94412-200-0	01	1	1211-	●	●
7	00.775 SPRING ASM; CLU M/CYL POWER ASSIST CLUTCH(S2T)	8-98077-784-0	01	1	1109-1210	●
7	00.775 SPRING ASM; CLU M/CYL POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98077-784-0	01	1	1211-	●	●
7	00.775 SPRING ASM; CLU M/CYL EXC. POWER ASSIST CLUTCH(S2T)	8-97167-780-0	01	1	1109-1210	●
7	00.775 SPRING ASM; CLU M/CYL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T)	8-97167-780-0	01	1	1211-	●	●
8	00.777 CONNECTOR; PIPE,CLU M/CYL POWER ASSIST CLUTCH(S2T)	8-97163-191-0	01	1	1109-1210	●
8	00.777 CONNECTOR; PIPE,CLU M/CYL POWER ASSIST CLUTCH(S2T) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97163-191-0	01	1	1211-	●	●
8	00.777 CONNECTOR; PIPE,CLU M/CYL EXC. POWER ASSIST CLUTCH(S2T)	8-97167-766-0	01	1	1109-1210	●
8	00.777 CONNECTOR; PIPE,CLU M/CYL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T)	8-97167-766-0	01	1	1211-	●	●
9	00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL	8-97167-773-0	01	1	1109-1210	●
9	00.777 CLAMP; PIPE CONNECTOR,CLU M/CYL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97167-773-0	01	1	1211-	●	●
64	00.777 GASKET; CONNECTOR	8-97167-767-0	01	1	1109-1210	●
64	00.777 GASKET; CONNECTOR TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-97167-767-0	01	1	1211-	●	●
81	00.777 DAMPER; MASTER CYL EXC. POWER ASSIST CLUTCH(S2T)	8-97190-913-0	01	1	1109-1210	●
81	00.777 DAMPER; MASTER CYL TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T)	8-97190-913-0	01	1	1211-	●	●
82	00.777 GASKET; DAMPER EXC. POWER ASSIST CLUTCH(S2T)	8-97191-396-0	01	1	1109-1210	●
82	00.777 GASKET; DAMPER TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. POWER ASSIST CLUTCH(S2T)	8-97191-396-0	01	1	1211-	●	●
