2 |

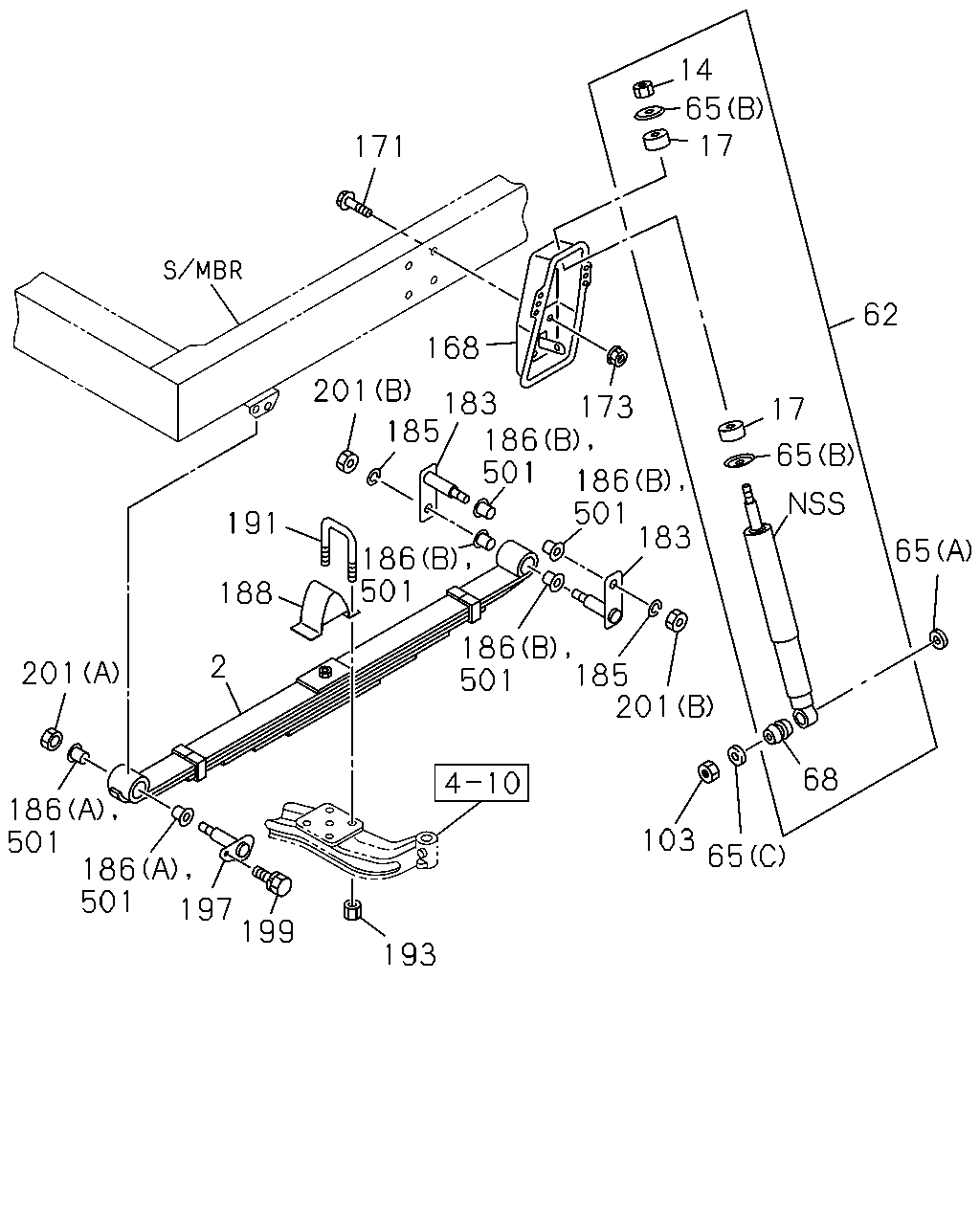

07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
SAUDI ARABIA EQUIPMENT(GH3)
EXC. FRAME-KICK UP<7EW>
2-LEAF
|
8-98001-530-0 |
01 |
1 |
0810- |
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
SAUDI ARABIA EQUIPMENT(GH3)
EXC. FRAME-KICK UP<7EW>
2-LEAF
|
8-98001-531-0 |
01 |
1 |
0810- |
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRAME-KICK UP<7EW>
5-LEAF
|
8-98079-897-0 |
01 |
1 |
0810- |
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRAME-KICK UP<7EW>
5-LEAF
|
8-98079-898-0 |
01 |
1 |
0810- |
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
EXC. SAUDI ARABIA EQUIPMENT(GH3),
FRAME-KICK UP<7EW>
6-LEAF
|
8-98001-533-0 |
01 |
1 |
0810- |
| |
2 |
07.412 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
EXC. SAUDI ARABIA EQUIPMENT(GH3),
FRAME-KICK UP<7EW>
6-LEAF
|
8-98079-881-0 |
01 |
1 |
0810- |
| |
14 |
07.389 NUT; S/ABS,UPR
M10
|
8-94317-772-0 |
02 |
1 |
0810- |
| |
17 |
07.388 BUSHING; RUBBER,S/ABS
TOKICO
|
9-51631-603-0 |
04 |
1 |
0810- |
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
|
8-98085-709-1 |
02 |
1 |
0810-1506 |
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
BEST VALUE PARTS
|
5-87610-159-0 |
02 |
1 |
1304-1506 |
| |
62 |
07.345 ABSORBER ASM; SHOCK,FRT
|
8-98316-235-0 |
02 |
1 |
1507- |
| |
65 |
07.347 WASHER; S/ABS
07.529
(A)
ID=17 OD=32
|
9-09164-616-0 |
02 |
1 |
0810-1011 |
| |
65 |
07.347 WASHER; S/ABS
(A)
ID=17 OD=32
|
0-91614-616-0 |
02 |
1 |
1012- |
| |
65 |
07.347 WASHER; S/ABS
07.245
(B)
ID=10.5 OD=38
|
9-51631-062-0 |
04 |
1 |
0810- |
| |
65 |
07.347 WASHER; S/ABS
(C)
ID=12.5
|
9-51679-022-0 |
02 |
1 |
0810- |
| |
68 |
07.388 BUSHING; S/ABS
07.347
TOKICO
|
8-94224-694-0 |
02 |
1 |
0810- |
| |
103 |
07.347 NUT; S/ABS TO LWR LINK
04.439
M12
|
0-91111-512-0 |
02 |
1 |
0810- |
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
|
8-98002-080-1 |
01 |
1 |
0810- |
| |
168 |
07.380 BRACKET; S/ABS,FRT SUSP
|
8-98002-081-0 |
01 |
1 |
0810- |
| |
171 |
07.395 BOLT; S/ABS BRKT
00.029
M10X30 FLANGE
|
0-28651-030-0 |
08 |
1 |
0810- |
| |
173 |
07.395 NUT; S/ABS
04.085
M10 FLANGE
|
0-91180-210-0 |
08 |
1 |
0810-1006 |
| |
173 |
07.395 NUT; S/ABS
03.162
M10 FLANGE
|
0-91180-110-0 |
08 |
1 |
1007- |
| |
183 |
07.436 SHACKLE; FRT SUSP
|
8-98034-341-0 |
04 |
1 |
0810- |
| |
185 |
07.427 WASHER; LK,PIN
ID=16.5
|
8-98011-489-0 |
04 |
1 |
0810- |
| |
186 |
07.105 BUSHING; SHACKLE
(B)
|
8-97081-531-0 |
08 |
1 |
0810-1010 |
| |
186 |
07.105 BUSHING; SHACKLE
(A)
|
8-97259-495-0 |
04 |
1 |
0810-1010 |
| |
188 |
07.436 RUBBER; CLAMP,U-BOLT,FRT SPR
|
8-98033-515-0 |
02 |
1 |
0810- |
| |
191 |
07.417 U-BOLT; FRT SPR
L=105
|
8-97304-074-1 |
04 |
1 |
0810- |
| |
193 |
07.417 NUT; U BOLT
06.174
M14 FLANGE
|
8-97360-124-0 |
08 |
1 |
0810- |
| |
197 |
07.427 PIN; FRT SPR,FRT
|
8-97261-861-0 |
02 |
1 |
0810-1010 |
| |
197 |
07.427 PIN; FRT SPR,FRT
|
8-94117-900-1 |
02 |
1 |
1011- |
| |
199 |
07.427 BOLT
00.029
M10X25 FLANGE
|
0-28651-025-0 |
02 |
1 |
0810- |
| |
201 |
07.427 NUT; PIN LK
06.509
(B)
M16
|
0-91110-516-0 |
04 |
1 |
0810- |
| |
201 |
07.427 NUT; PIN LK
(A)
M16 FLANGE
|
8-97360-125-0 |
02 |
1 |
0810- |
| |
501 |
07.413 BUSHING; LEAF SPR,FRT
07.105
|
8-97081-531-0 |
12 |
1 |
1011- |
