◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10722 - CXH RHD ▶ 5 - Frame, Cab Mounting ▶ 5-01 - FRAME AND OTHER PARTS ▶

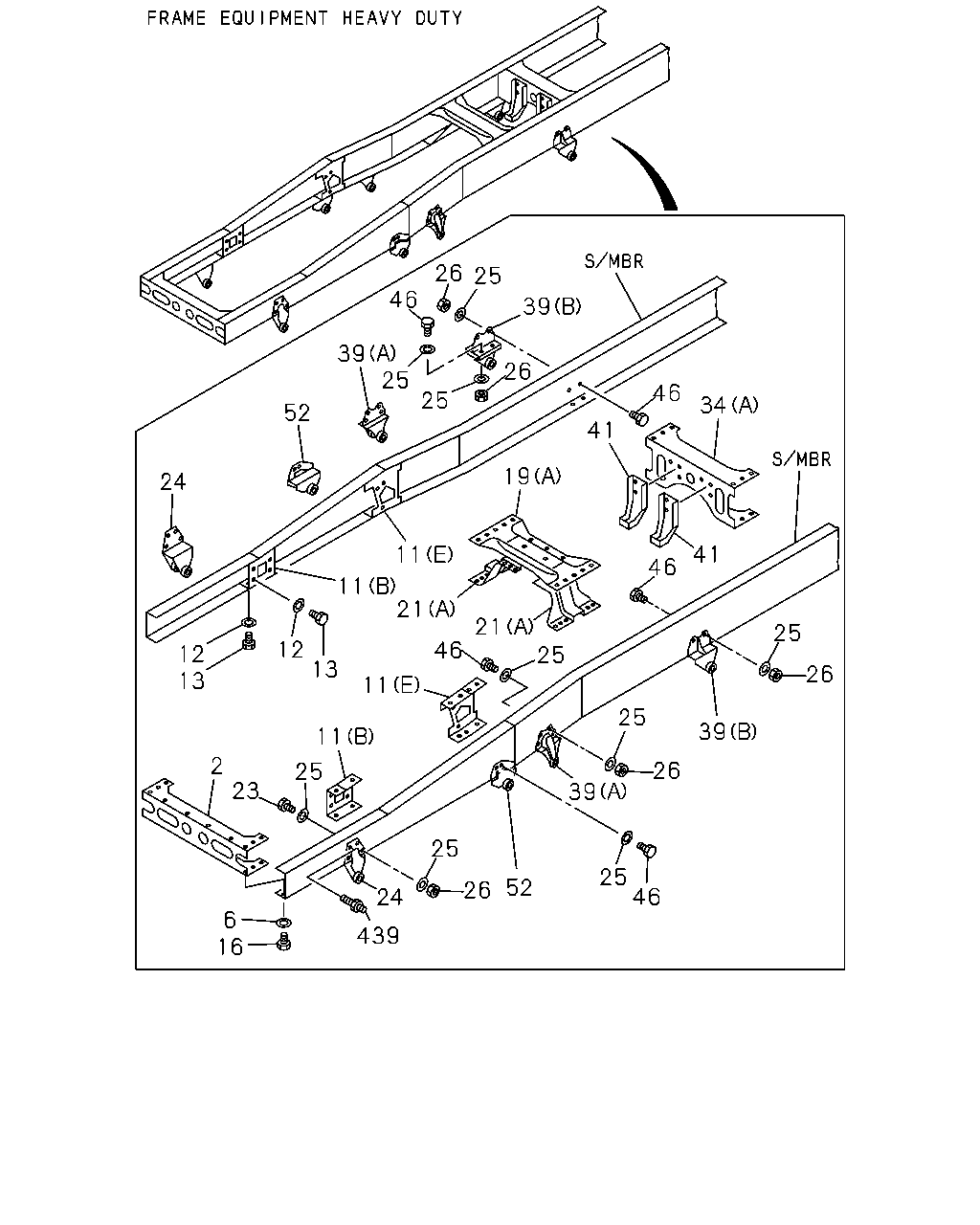

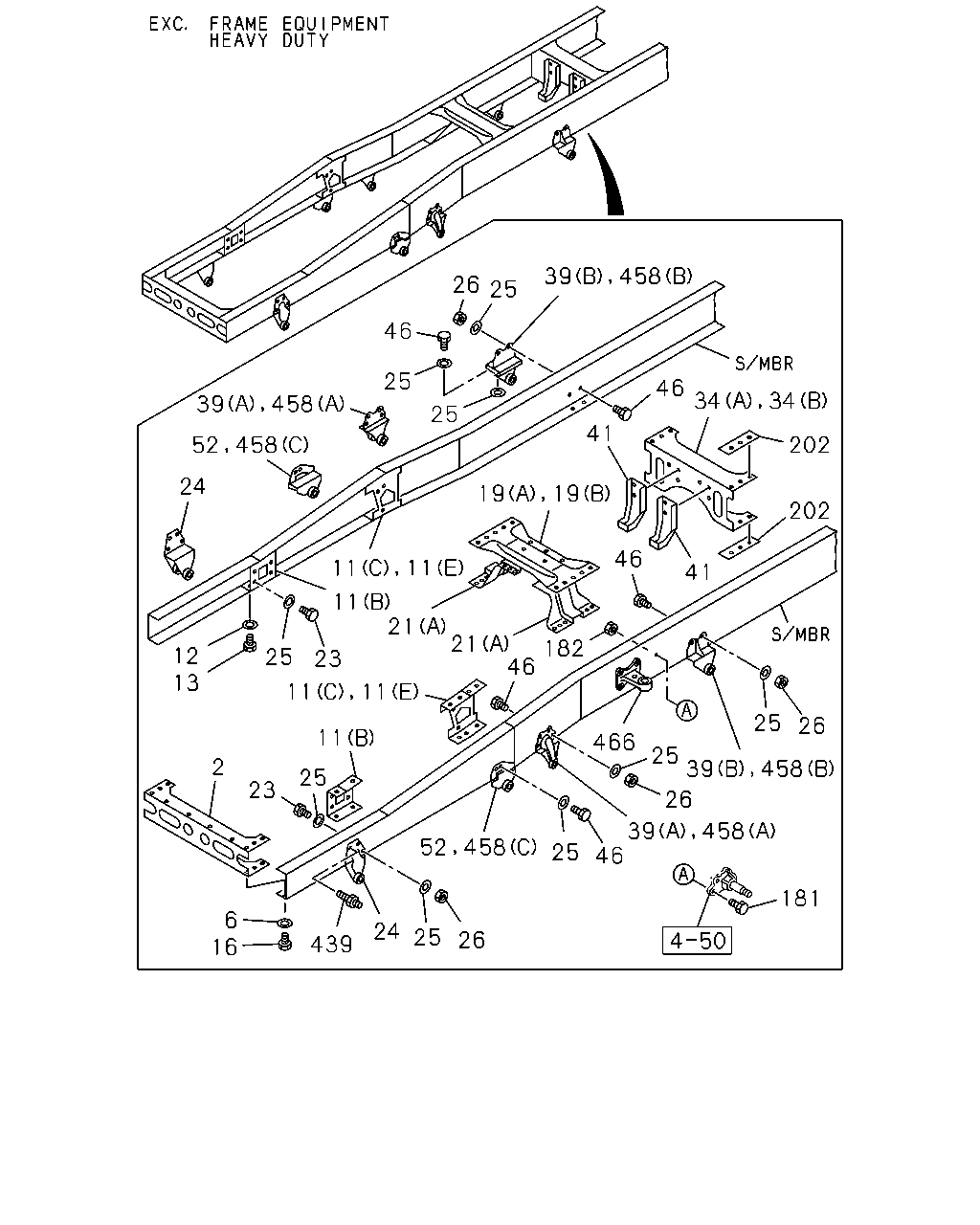

5-01 — FRAME AND OTHER PARTS (#5131) — 2177 parça

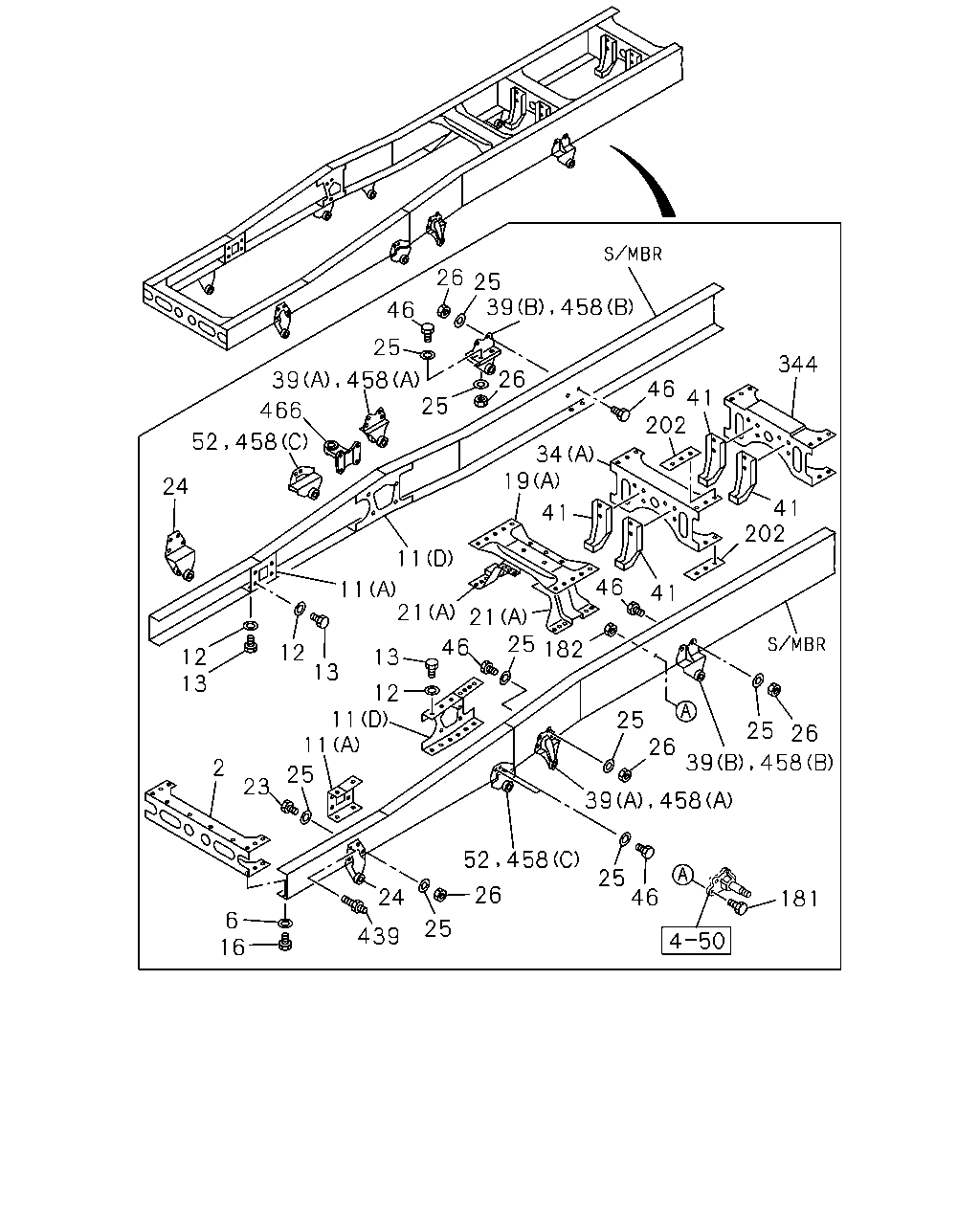

çizim 5808
26 25 46 25 344 26 39 458 25 46 41 202 466 34 19 24 41 202 41 46 182 11 11 21 41 21 25 46 12 12 13 13 13 12 11 11 25 26 25 26 2 25 23 458 39 25 46 26 24 181 6 16 25 439 39 458 52 458 39 458 52 458
BalonParca AdiParca NoAdetTipApplied Date A B
2 MEMBER; CROSS,1ST 1-53181-526-4 01 1 9606- ● ●
6 WASHER; LK,1ST C/MBR
EXC. REINFORCEMENT BUMPER<VG7> ID=16.2 		9-09150-616-0 02 1 9606-9905 ● ●
6 WASHER; LK,1ST C/MBR
EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> ID=16.2 		9-09150-616-0 02 1 9906- ● ●
11 BRACKET; ENG MTG
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> MIXER TRUCK<RA2> (E) 		1-53219-789-1 01 1 9703-9905 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) (E) 		1-53219-789-1 01 1 9906-9906 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) MIXER TRUCK<RA2> (E) 		1-53219-789-1 01 1 9906-0003 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> MIXER TRUCK<RA2> (E) 		1-53219-789-1 01 1 0004- ●
11 BRACKET; ENG MTG
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> MIXER TRUCK<RA2> (E) 		1-53219-788-1 01 1 9703-9905 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) (E) 		1-53219-788-1 01 1 9906-9906 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) MIXER TRUCK<RA2> (E) 		1-53219-788-1 01 1 9906-0003 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> MIXER TRUCK<RA2> (E) 		1-53219-788-1 01 1 0004- ●
11 BRACKET; ENG MTG
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> (E) 		1-53219-742-0 01 1 9610-9702 ● ●
11 BRACKET; ENG MTG
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> EXC. MIXER TRUCK<RA2> (E) 		1-53219-742-0 01 1 9703-9905 ●
11 BRACKET; ENG MTG
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> (E) 		1-53219-742-0 01 1 9703-9905 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> (E) 		1-53219-742-0 01 1 9906-9906 ● ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) (E) 		1-53219-742-0 01 1 9906-9906 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. MIXER TRUCK<RA2> (E) 		1-53219-742-0 01 1 9906-0003 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) (E) 		1-53219-742-0 01 1 9906-0003 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. MIXER TRUCK<RA2> (E) 		1-53219-742-0 01 1 0004- ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> (E) 		1-53219-742-0 01 1 0004- ●
11 BRACKET; ENG MTG
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> (E) 		1-53219-741-0 01 1 9610-9702 ● ●
11 BRACKET; ENG MTG
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> EXC. MIXER TRUCK<RA2> (E) 		1-53219-741-0 01 1 9703-9905 ●
11 BRACKET; ENG MTG
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> (E) 		1-53219-741-0 01 1 9703-9905 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> (E) 		1-53219-741-0 01 1 9906-9906 ● ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) (E) 		1-53219-741-0 01 1 9906-9906 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. MIXER TRUCK<RA2> (E) 		1-53219-741-0 01 1 9906-0003 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) (E) 		1-53219-741-0 01 1 9906-0003 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. MIXER TRUCK<RA2> (E) 		1-53219-741-0 01 1 0004- ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> (E) 		1-53219-741-0 01 1 0004- ●
11 BRACKET; ENG MTG
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53219-583-0 01 1 9606-9905 ● ●
11 BRACKET; ENG MTG
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53219-583-0 01 1 9906-9906 ● ●
11 BRACKET; ENG MTG
10PE1N(61L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53219-583-0 01 1 9906-0003 ● ●
11 BRACKET; ENG MTG
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53219-583-0 01 1 0004- ● ●
11 BRACKET; ENG MTG
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53219-582-0 01 1 9606-9905 ● ●
11 BRACKET; ENG MTG
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53219-582-0 01 1 9906-9906 ● ●
11 BRACKET; ENG MTG
10PE1N(61L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53219-582-0 01 1 9906-0003 ● ●
11 BRACKET; ENG MTG
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53219-582-0 01 1 0004- ● ●
11 BRACKET; ENG MTG
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (D) 		1-53219-728-1 01 1 9606-9905 ● ●
11 BRACKET; ENG MTG
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (D) 		1-53219-728-1 01 1 9906-9906 ● ●
11 BRACKET; ENG MTG
10PE1N(61L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (D) 		1-53219-728-1 01 1 9906-0003 ● ●
11 BRACKET; ENG MTG
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (D) 		1-53219-728-1 01 1 0004- ● ●
11 BRACKET; ENG MTG
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (D) 		1-53219-727-1 01 1 9606-9905 ● ●
11 BRACKET; ENG MTG
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (D) 		1-53219-727-1 01 1 9906-9906 ● ●
11 BRACKET; ENG MTG
10PE1N(61L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (D) 		1-53219-727-1 01 1 9906-0003 ● ●
11 BRACKET; ENG MTG
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (D) 		1-53219-727-1 01 1 0004- ● ●
11 BRACKET; ENG MTG
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> FRAME ENG MTG SEPARATE TYPE<SGM> (D) 		1-53219-730-1 01 1 9606-9905 ●
11 BRACKET; ENG MTG
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> FRAME ENG MTG SEPARATE TYPE<SGM> (D) 		1-53219-729-1 01 1 9606-9905 ●
11 BRACKET; ENG MTG
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53219-472-1 01 1 9606-9609 ●
11 BRACKET; ENG MTG
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53219-472-1 01 1 9610-9706 ● ●
11 BRACKET; ENG MTG
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53219-472-1 01 1 9610-9706 ●
11 BRACKET; ENG MTG
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53219-472-1 01 1 9707-9905 ●
11 BRACKET; ENG MTG
6WA1 TC-S(56L),6WG1 TC-N(71L) (B) 		1-53219-472-1 01 1 9707-9905 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) (B) 		1-53219-472-1 01 1 9906-9906 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (B) 		1-53219-472-1 01 1 9906-9906 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) (B) 		1-53219-472-1 01 1 9906- ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L),6WA1 TC-S(56L) (B) 		1-53219-472-1 01 1 9906- ●
11 BRACKET; ENG MTG
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (C) 		1-53219-577-2 01 1 9606-9706 ●
11 BRACKET; ENG MTG
6WA1 TC-S(56L),6WG1 TC-N(71L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (C) 		1-53219-577-2 01 1 9707-9905 ●
11 BRACKET; ENG MTG
6WA1 TC-S(56L),6WG1 TC-C(72L) (C) 		1-53219-577-2 01 1 9906-9906 ●
11 BRACKET; ENG MTG
6WA1 TC-S(56L) (C) 		1-53219-577-2 01 1 9906-0003 ●
11 BRACKET; ENG MTG
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> (C) 		1-53219-577-2 01 1 0004- ●
11 BRACKET; ENG MTG
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53219-471-0 01 1 9606-9609 ●
11 BRACKET; ENG MTG
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53219-471-0 01 1 9610-9706 ● ●
11 BRACKET; ENG MTG
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53219-471-0 01 1 9610-9706 ●
11 BRACKET; ENG MTG
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53219-471-0 01 1 9707-9905 ●
11 BRACKET; ENG MTG
6WA1 TC-S(56L),6WG1 TC-N(71L) (B) 		1-53219-471-0 01 1 9707-9905 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) (B) 		1-53219-471-0 01 1 9906-9906 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (B) 		1-53219-471-0 01 1 9906-9906 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) (B) 		1-53219-471-0 01 1 9906- ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L),6WA1 TC-S(56L) (B) 		1-53219-471-0 01 1 9906- ●
11 BRACKET; ENG MTG
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (C) 		1-53219-576-2 01 1 9606-9706 ●
11 BRACKET; ENG MTG
6WA1 TC-S(56L),6WG1 TC-N(71L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (C) 		1-53219-576-2 01 1 9707-9905 ●
11 BRACKET; ENG MTG
6WA1 TC-S(56L),6WG1 TC-C(72L) (C) 		1-53219-576-2 01 1 9906-9906 ●
11 BRACKET; ENG MTG
6WA1 TC-S(56L) (C) 		1-53219-576-2 01 1 9906-0003 ●
11 BRACKET; ENG MTG
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> (C) 		1-53219-576-2 01 1 0004- ●
11 BRACKET; ENG MTG
6WG1 TC-C(72L) (B) 		1-53219-778-0 01 1 9906-0003 ●
11 BRACKET; ENG MTG
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53219-778-1 01 1 0004- ●
11 BRACKET; ENG MTG
6WG1 TC-C(72L) (C) 		1-53219-780-1 01 1 9906-9907 ●
11 BRACKET; ENG MTG
6WG1 TC-C(72L) (C) 		1-53219-942-0 01 1 9908-0003 ●
11 BRACKET; ENG MTG
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> (C) 		1-53219-942-1 01 1 0004- ●
11 BRACKET; ENG MTG
6WG1 TC-C(72L) (B) 		1-53219-777-0 01 1 9906-0003 ●
11 BRACKET; ENG MTG
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53219-777-1 01 1 0004- ●
11 BRACKET; ENG MTG
6WG1 TC-C(72L) (C) 		1-53219-779-2 01 1 9906-9907 ●
11 BRACKET; ENG MTG
6WG1 TC-C(72L) (C) 		1-53219-941-0 01 1 9908-0003 ●
11 BRACKET; ENG MTG
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> (C) 		1-53219-941-0 01 1 0004- ●
12 WASHER; PL,BRKT,ENG MTG
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 01 1 9606-9609 ● ●
12 WASHER; PL,BRKT,ENG MTG
FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 01 1 9610-9905 ● ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) ID=15 		9-09651-069-0 02 1 9906-9906 ● ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-S(56L),6WG1 TC-C(72L) ID=15 		9-09651-069-0 02 1 9906-9906 ●
12 WASHER; PL,BRKT,ENG MTG
10PE1N(61L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,FRAME ENG MTGSEPARATE TYPE<SGM> ID=15 		9-09651-069-0 02 1 9906-9912 ● ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-C(55L) MIXER TRUCK<RA2> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 02 1 9906-9912 ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-S(56L),6WG1 TC-C(72L) ID=15 		9-09651-069-0 02 1 9906-9912 ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-C(55L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 02 1 9906-9912 ●
12 WASHER; PL,BRKT,ENG MTG
10PE1N(61L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=15 		9-09651-069-0 01 1 0001-0003 ● ●
12 WASHER; PL,BRKT,ENG MTG
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=15 		9-09651-069-0 01 1 0004- ● ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 02 1 9606-9706 ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-S(56L),6WG1 TC-N(71L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 02 1 9707-9905 ●
12 WASHER; PL,BRKT,ENG MTG
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=15 		9-09651-069-0 01 1 9906-9912 ● ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 01 1 9906-9912 ● ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-C(55L) ID=15 		9-09651-069-0 02 1 0001- ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-C(55L),6WA1 TC-S(56L) ID=15 		9-09651-069-0 02 1 0001- ●
12 WASHER; PL,BRKT,ENG MTG
6WG1 TC-C(72L) ID=15 		9-09651-069-0 04 1 0001-0003 ●
12 WASHER; PL,BRKT,ENG MTG
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 04 1 0004- ●
13 BOLT; BRKT,ENG MTG
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> M14X40 		9-92061-440-0 01 1 9606-9609 ● ●
13 BOLT; BRKT,ENG MTG
FRAME EQUIPMENT HEAVY DUTY<F03> M14X40 		9-92061-440-0 01 1 9610-9905 ● ●
13 BOLT; BRKT,ENG MTG
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) M14X40 		9-92061-440-0 02 1 9906-9906 ● ●
13 BOLT; BRKT,ENG MTG
6WA1 TC-S(56L),6WG1 TC-C(72L) M14X40 		9-92061-440-0 02 1 9906-9906 ●
13 BOLT; BRKT,ENG MTG
10PE1N(61L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,FRAME ENG MTGSEPARATE TYPE<SGM> M14X40 		9-92061-440-0 02 1 9906-9912 ● ●
13 BOLT; BRKT,ENG MTG
6WA1 TC-C(55L) MIXER TRUCK<RA2> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14X40 		9-92061-440-0 02 1 9906-9912 ●
13 BOLT; BRKT,ENG MTG
6WA1 TC-S(56L),6WG1 TC-C(72L) M14X40 		9-92061-440-0 02 1 9906-9912 ●
13 BOLT; BRKT,ENG MTG
6WA1 TC-C(55L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14X40 		9-92061-440-0 02 1 9906-9912 ●
13 BOLT; BRKT,ENG MTG
10PE1N(61L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X40 		9-92061-440-0 01 1 0001-0003 ● ●
13 BOLT; BRKT,ENG MTG
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X40 		9-92061-440-0 01 1 0004- ● ●
13 BOLT; BRKT,ENG MTG
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14X40 		9-92061-440-0 02 1 9606-9706 ●
13 BOLT; BRKT,ENG MTG
6WA1 TC-S(56L),6WG1 TC-N(71L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14X40 		9-92061-440-0 02 1 9707-9905 ●
13 BOLT; BRKT,ENG MTG
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X40 		9-92061-440-0 01 1 9906-9912 ● ●
13 BOLT; BRKT,ENG MTG
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> M14X40 		9-92061-440-0 01 1 9906-9912 ● ●
13 BOLT; BRKT,ENG MTG
6WA1 TC-C(55L) M14X40 		9-92061-440-0 02 1 0001- ●
13 BOLT; BRKT,ENG MTG
6WA1 TC-C(55L),6WA1 TC-S(56L) M14X40 		9-92061-440-0 02 1 0001- ●
13 BOLT; BRKT,ENG MTG
6WG1 TC-C(72L) M14X40 		9-92061-440-0 04 1 0001-0003 ●
13 BOLT; BRKT,ENG MTG
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> M14X40 		9-92061-440-0 04 1 0004- ●
16 BOLT; 1ST C/MBR TO S/MBR
EXC. REINFORCEMENT BUMPER<VG7> M16X40 		0-20801-640-0 02 1 9606-9905 ● ●
16 BOLT; 1ST C/MBR TO S/MBR
EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> M16X40 		0-20801-640-0 02 1 9906- ● ●

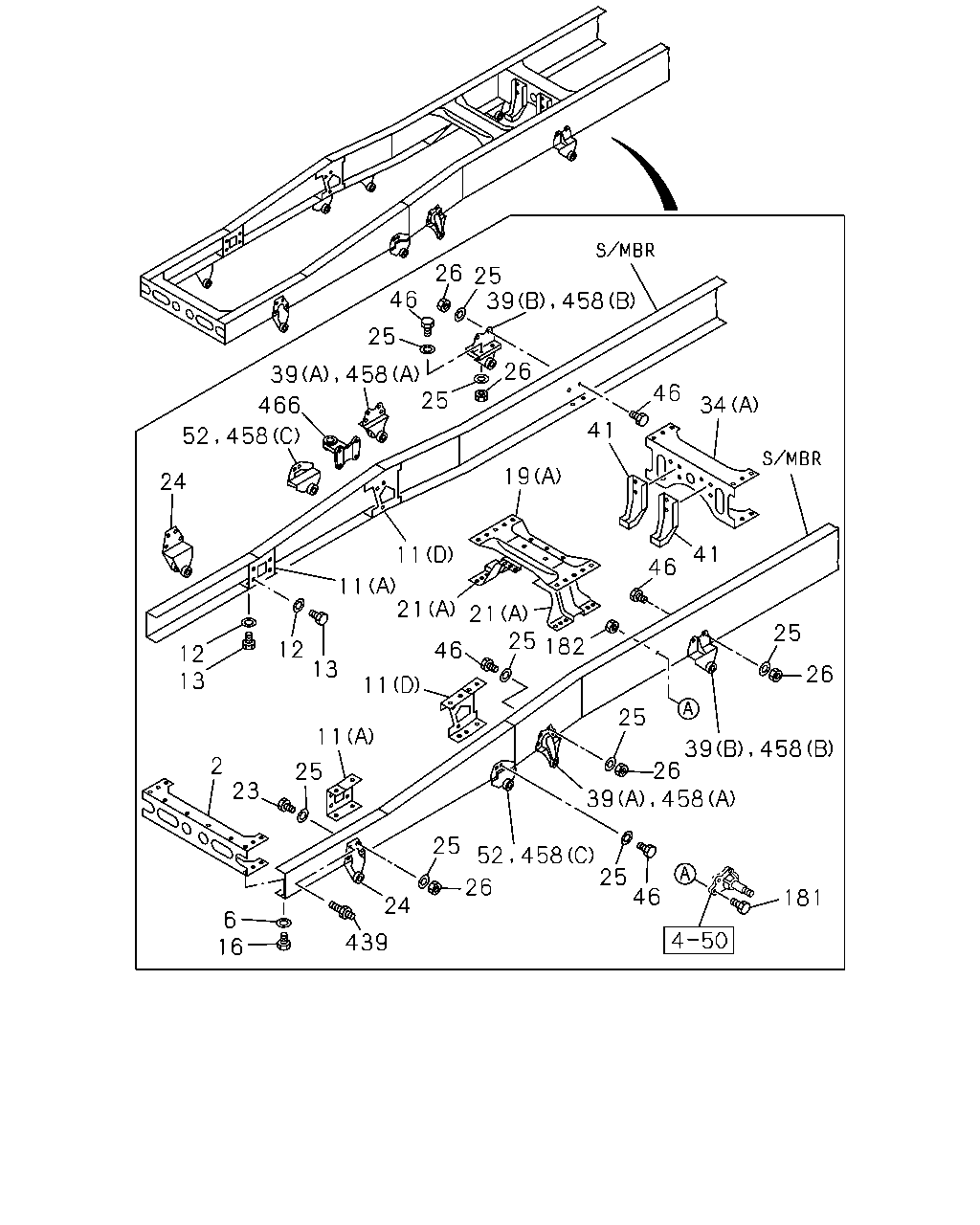

19 MEMBER; CROSS,2ND
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53174-221-0 01 1 9606-9609 ● ●
19 MEMBER; CROSS,2ND
FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53174-221-0 01 1 9610-9905 ● ●
19 MEMBER; CROSS,2ND
6WA1 TC-C(55L) (A) 		1-53174-221-0 01 1 9906-9906 ● ●
19 MEMBER; CROSS,2ND
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53174-221-0 01 1 9906-9906 ● ●
19 MEMBER; CROSS,2ND
6WA1 TC-C(55L),10PE1N(61L) (A) 		1-53174-221-0 01 1 9906- ● ●
19 MEMBER; CROSS,2ND
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53174-231-1 01 1 9606-9706 ●
19 MEMBER; CROSS,2ND
6WA1 TC-S(56L),6WG1 TC-N(71L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53174-231-1 01 1 9707-9905 ●
19 MEMBER; CROSS,2ND
6WA1 TC-S(56L),6WG1 TC-C(72L) (B) 		1-53174-231-1 01 1 9906- ●
21 GUSSET; 2ND CROSS
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53164-208-0 02 1 9606-9609 ● ●
21 GUSSET; 2ND CROSS
FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53164-208-0 02 1 9610-9905 ● ●
21 GUSSET; 2ND CROSS
6WA1 TC-C(55L) (A) 		1-53164-208-0 02 1 9906-9906 ● ●
21 GUSSET; 2ND CROSS
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53164-208-0 02 1 9906-9906 ● ●
21 GUSSET; 2ND CROSS
6WA1 TC-C(55L),10PE1N(61L) (A) 		1-53164-208-0 02 1 9906- ● ●
21 GUSSET; 2ND CROSS
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53167-287-1 02 1 9606-9609 ● ●
21 GUSSET; 2ND CROSS
FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53167-287-1 02 1 9610-9905 ● ●
21 GUSSET; 2ND CROSS
6WA1 TC-C(55L) (B) 		1-53167-287-1 02 1 9906-9906 ● ●
21 GUSSET; 2ND CROSS
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) 		1-53167-287-1 02 1 9906-9906 ● ●
21 GUSSET; 2ND CROSS
6WA1 TC-C(55L),10PE1N(61L) (B) 		1-53167-287-2 02 1 9906- ● ●
21 GUSSET; 2ND CROSS
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53164-185-0 02 1 9606-9706 ●
21 GUSSET; 2ND CROSS
6WA1 TC-S(56L),6WG1 TC-N(71L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53164-185-0 02 1 9707-9905 ●
21 GUSSET; 2ND CROSS
6WA1 TC-S(56L),6WG1 TC-C(72L) (A) 		1-53164-185-0 02 1 9906- ●
23 BOLT; BRKT,SPR
M14X40 		9-92061-440-0 06 1 9606-9706 ● ●
23 BOLT; BRKT,SPR
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X40 		9-92061-440-0 06 1 9707-9905 ● ●
23 BOLT; BRKT,SPR
6WA1 TC-S(56L) FRAME EQUIPMENT HEAVY DUTY<F03> M14X40 		9-92061-440-0 06 1 9707-9905 ●
23 BOLT; BRKT,SPR
6WA1 TC-S(56L) M14X40 		9-92061-440-0 06 1 9707-9905 ●
23 BOLT; BRKT,SPR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X40 		9-92061-440-0 06 1 9906-9906 ● ●
23 BOLT; BRKT,SPR
6WA1 TC-C(55L) M14X40 		9-92061-440-0 06 1 9906-9906 ●
23 BOLT; BRKT,SPR
6WA1 TC-C(55L),6WA1 TC-S(56L) M14X40 		9-92061-440-0 06 1 9906-9906 ●
23 BOLT; BRKT,SPR
6WA1 TC-C(55L),10PE1N(61L) M14X40 		9-92061-440-0 06 1 9906- ●
23 BOLT; BRKT,SPR
6WA1 TC-C(55L),6WA1 TC-S(56L),10PE1N(61L) M14X40 		9-92061-440-0 06 1 9906- ●
23 BOLT; BRKT,SPR
M16X50 		9-92061-650-0 04 1 9606-9706 ● ●
23 BOLT; BRKT,SPR
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M16X50 		9-92061-650-0 04 1 9707-9905 ● ●
23 BOLT; BRKT,SPR
6WA1 TC-S(56L) FRAME EQUIPMENT HEAVY DUTY<F03> M16X50 		9-92061-650-0 04 1 9707-9905 ●
23 BOLT; BRKT,SPR
6WA1 TC-S(56L) M16X50 		9-92061-650-0 04 1 9707-9905 ●
23 BOLT; BRKT,SPR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M16X50 		9-92061-650-0 04 1 9906- ● ●
23 BOLT; BRKT,SPR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> M16X50 		9-92061-650-0 04 1 9906- ● ●
23 BOLT; BRKT,SPR
6WA1 TC-S(56L) M16X50 		9-92061-650-0 04 1 9906- ●
23 BOLT; BRKT,SPR
6WG1 TC-N(71L) M14X40 		9-92061-440-0 10 1 9707-9905 ●
23 BOLT; BRKT,SPR
6WG1 TC-C(72L) M14X40 		9-92061-440-0 10 1 9906-0003 ●
23 BOLT; BRKT,SPR
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> M14X40 		9-92061-440-0 10 1 0004- ●
23 BOLT; BRKT,SPR
6WG1 TC-N(71L) M14X50 		9-92061-450-0 08 1 9707-9905 ●
23 BOLT; BRKT,SPR
6WG1 TC-C(72L) M14X50 		9-92061-450-0 08 1 9906-0003 ●
23 BOLT; BRKT,SPR
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> M14X50 		9-92061-450-0 08 1 0004- ●
23 BOLT; BRKT,SPR
6WG1 TC-N(71L) M16X50 		9-92061-650-0 12 1 9707-9905 ●
23 BOLT; BRKT,SPR
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) M16X50 		9-92061-650-0 12 1 9906-9906 ● ●
23 BOLT; BRKT,SPR
6WG1 TC-C(72L) M16X50 		9-92061-650-0 12 1 9906-9906 ●
23 BOLT; BRKT,SPR
6WA1 TC-C(55L),10PE1N(61L),6WG1 TC-C(72L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M16X50 		9-92061-650-0 12 1 9906- ● ●
24 BRACKET; FRT SPR,FRT 1-53351-220-0 01 1 9606-0003 ● ●
24 BRACKET; FRT SPR,FRT 1-53351-220-0 01 1 0004- ● ●
24 BRACKET; FRT SPR,FRT 1-53351-219-0 01 1 9606-0003 ● ●
24 BRACKET; FRT SPR,FRT 1-53351-219-0 01 1 0004- ● ●
25 WASHER; PL,BRKT
10PE1N(61L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=16.2 		1-09503-223-0 22 1 0001-0003 ● ●
25 WASHER; PL,BRKT
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=16.2 		1-09503-223-0 22 1 0004- ● ●
25 WASHER; PL,BRKT
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> ID=16.2 		1-09503-223-0 22 1 9606-9905 ● ●
25 WASHER; PL,BRKT
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=16.2 		1-09503-223-0 22 1 9906-9912 ● ●
25 WASHER; PL,BRKT
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=15 		9-09651-069-0 46 1 0001- ● ●
25 WASHER; PL,BRKT
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=15 		9-09651-069-0 46 1 9606-9609 ● ●
25 WASHER; PL,BRKT
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=15 		9-09651-069-0 46 1 9610-9905 ● ●
25 WASHER; PL,BRKT
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 46 1 9610-9905 ● ●
25 WASHER; PL,BRKT
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=15 		9-09651-069-0 46 1 9906-9912 ● ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 46 1 9906-9912 ● ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 48 1 0001-0003 ● ●
25 WASHER; PL,BRKT
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,LIGHT DUTY PACKAGE TRUCK(Y21) ID=15 		9-09651-069-0 48 1 0001-0003 ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 48 1 0004- ● ●
25 WASHER; PL,BRKT
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 48 1 0004- ●
25 WASHER; PL,BRKT
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> FRAME ENG MTG SEPARATE TYPE<SGM> ID=15 		9-09651-069-0 44 1 9606-9905 ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) ID=15 		9-09651-069-0 64 1 9906-9906 ● ●
25 WASHER; PL,BRKT
6WG1 TC-C(72L) ID=15 		9-09651-069-0 64 1 9906-9906 ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L),10PE1N(61L),6WG1 TC-C(72L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 64 1 9906-9912 ● ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L) MIXER TRUCK<RA2> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 64 1 0001-0003 ●
25 WASHER; PL,BRKT
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,LIGHT DUTY PACKAGE TRUCK(Y21) ID=15 		9-09651-069-0 64 1 0001-0003 ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 64 1 0001-0003 ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> MIXER TRUCK<RA2> ID=15 		9-09651-069-0 64 1 0004- ●
25 WASHER; PL,BRKT
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 64 1 0004- ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> ID=15 		9-09651-069-0 64 1 0004- ●
25 WASHER; PL,BRKT
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=16.2 		1-09503-223-0 24 1 9606-9609 ●
25 WASHER; PL,BRKT
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> ID=16.2 		1-09503-223-0 24 1 9610-9706 ● ●
25 WASHER; PL,BRKT
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=16.2 		1-09503-223-0 24 1 9610-9706 ●
25 WASHER; PL,BRKT
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> ID=16.2 		1-09503-223-0 24 1 9707-9905 ●
25 WASHER; PL,BRKT
6WA1 TC-S(56L),6WG1 TC-N(71L) ID=16.2 		1-09503-223-0 24 1 9707-9905 ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L) ID=16.2 		1-09503-223-0 24 1 9906-9906 ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) ID=16.2 		1-09503-223-0 24 1 9906-9906 ●
25 WASHER; PL,BRKT
10PE1N(61L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,FRAME ENG MTGSEPARATE TYPE<SGM> ID=16.2 		1-09503-223-0 24 1 9906-9912 ● ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L) ID=16.2 		1-09503-223-0 24 1 9906-9912 ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) ID=16.2 		1-09503-223-0 24 1 9906-9912 ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L) MIXER TRUCK<RA2> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=16.2 		1-09503-223-0 24 1 0001-0003 ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> ID=16.2 		1-09503-223-0 24 1 0001-0003 ●
25 WASHER; PL,BRKT
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,LIGHT DUTY PACKAGE TRUCK(Y21) ID=16.2 		1-09503-223-0 24 1 0001-0003 ●
25 WASHER; PL,BRKT
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,LIGHT DUTY PACKAGE TRUCK(Y21) ID=16.2 		1-09503-223-0 24 1 0001-0003 ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L) ID=16.2 		1-09503-223-0 24 1 0001-0003 ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> ID=16.2 		1-09503-223-0 24 1 0004- ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> MIXER TRUCK<RA2> ID=16.2 		1-09503-223-0 24 1 0004- ●
25 WASHER; PL,BRKT
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> ID=16.2 		1-09503-223-0 24 1 0004- ●
25 WASHER; PL,BRKT
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> ID=16.2 		1-09503-223-0 24 1 0004- ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> ID=16.2 		1-09503-223-0 24 1 0004- ●
25 WASHER; PL,BRKT
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 48 1 9606-9706 ●
25 WASHER; PL,BRKT
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 48 1 9707-9905 ●
25 WASHER; PL,BRKT
6WA1 TC-S(56L) ID=15 		9-09651-069-0 48 1 9906-9912 ●
25 WASHER; PL,BRKT
10PE1N(61L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,FRAME ENG MTGSEPARATE TYPE<SGM> ID=15 		9-09651-069-0 62 1 0001-0003 ● ●
25 WASHER; PL,BRKT
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=15 		9-09651-069-0 62 1 0004- ● ●
25 WASHER; PL,BRKT
6WG1 TC-N(71L) ID=15 		9-09651-069-0 64 1 9707-9905 ●
26 NUT; BRKT,SPR
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> M14 		9-99110-514-0 17 1 9610-9905 ● ●
26 NUT; BRKT,SPR
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> M16 		9-99110-516-0 10 1 9606-9905 ● ●
26 NUT; BRKT,SPR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M16 		9-99110-516-0 10 1 9906-9912 ● ●
26 NUT; BRKT,SPR
10PE1N(61L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M16 		9-99110-516-0 10 1 0001-0003 ● ●
26 NUT; BRKT,SPR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M16 		9-99110-516-0 10 1 0004- ● ●
26 NUT; BRKT,SPR
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14 		9-99110-514-0 18 1 9606-9905 ● ●
26 NUT; BRKT,SPR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14 		9-99110-514-0 18 1 9906-9912 ● ●
26 NUT; BRKT,SPR
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> FRAME ENG MTG SEPARATE TYPE<SGM> M14 		9-99110-514-0 16 1 9606-9905 ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) M14 		9-99110-514-0 20 1 9906-9906 ● ●
26 NUT; BRKT,SPR
6WA1 TC-S(56L),6WG1 TC-C(72L) M14 		9-99110-514-0 20 1 9906-9906 ●
26 NUT; BRKT,SPR
10PE1N(61L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,FRAME ENG MTGSEPARATE TYPE<SGM> M14 		9-99110-514-0 20 1 9906-9912 ● ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) MIXER TRUCK<RA2> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14 		9-99110-514-0 20 1 9906-9912 ●
26 NUT; BRKT,SPR
6WA1 TC-S(56L),6WG1 TC-C(72L) M14 		9-99110-514-0 20 1 9906-9912 ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14 		9-99110-514-0 20 1 9906-9912 ●
26 NUT; BRKT,SPR
10PE1N(61L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14 		9-99110-514-0 18 1 0001-0003 ● ●
26 NUT; BRKT,SPR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14 		9-99110-514-0 18 1 0004- ● ●
26 NUT; BRKT,SPR
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14 		9-99110-514-0 20 1 9606-9706 ●
26 NUT; BRKT,SPR
6WA1 TC-S(56L),6WG1 TC-N(71L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14 		9-99110-514-0 20 1 9707-9905 ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> M14 		9-99110-514-0 17 1 9906-9912 ● ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) MIXER TRUCK<RA2> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14 		9-99110-514-0 20 1 0001-0003 ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> M14 		9-99110-514-0 20 1 0001-0003 ●
26 NUT; BRKT,SPR
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,LIGHT DUTY PACKAGE TRUCK(Y21) M14 		9-99110-514-0 20 1 0001-0003 ●
26 NUT; BRKT,SPR
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,LIGHT DUTY PACKAGE TRUCK(Y21) M14 		9-99110-514-0 20 1 0001-0003 ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) M14 		9-99110-514-0 20 1 0001-0003 ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> M14 		9-99110-514-0 20 1 0004- ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> MIXER TRUCK<RA2> M14 		9-99110-514-0 20 1 0004- ●
26 NUT; BRKT,SPR
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> M14 		9-99110-514-0 20 1 0004- ●
26 NUT; BRKT,SPR
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> M14 		9-99110-514-0 20 1 0004- ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> M14 		9-99110-514-0 20 1 0004- ●
26 NUT; BRKT,SPR
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M16 		9-99110-516-0 12 1 9606-9609 ●
26 NUT; BRKT,SPR
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> M16 		9-99110-516-0 12 1 9610-9706 ● ●
26 NUT; BRKT,SPR
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M16 		9-99110-516-0 12 1 9610-9706 ●
26 NUT; BRKT,SPR
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> M16 		9-99110-516-0 12 1 9707-9905 ●
26 NUT; BRKT,SPR
6WA1 TC-S(56L),6WG1 TC-N(71L) M16 		9-99110-516-0 12 1 9707-9905 ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) M16 		9-99110-516-0 12 1 9906-9906 ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) M16 		9-99110-516-0 12 1 9906-9906 ●
26 NUT; BRKT,SPR
10PE1N(61L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,FRAME ENG MTGSEPARATE TYPE<SGM> M16 		9-99110-516-0 12 1 9906-9912 ● ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) M16 		9-99110-516-0 12 1 9906-9912 ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) M16 		9-99110-516-0 12 1 9906-9912 ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) MIXER TRUCK<RA2> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M16 		9-99110-516-0 12 1 0001-0003 ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> M16 		9-99110-516-0 12 1 0001-0003 ●
26 NUT; BRKT,SPR
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,LIGHT DUTY PACKAGE TRUCK(Y21) M16 		9-99110-516-0 12 1 0001-0003 ●
26 NUT; BRKT,SPR
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,LIGHT DUTY PACKAGE TRUCK(Y21) M16 		9-99110-516-0 12 1 0001-0003 ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) M16 		9-99110-516-0 12 1 0001-0003 ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> M16 		9-99110-516-0 12 1 0004- ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> MIXER TRUCK<RA2> M16 		9-99110-516-0 12 1 0004- ●
26 NUT; BRKT,SPR
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> M16 		9-99110-516-0 12 1 0004- ●
26 NUT; BRKT,SPR
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> M16 		9-99110-516-0 12 1 0004- ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> M16 		9-99110-516-0 12 1 0004- ●
34 MEMBER; CROSS,3RD
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53181-644-1 01 1 9606-9609 ● ●
34 MEMBER; CROSS,3RD
FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53181-644-1 01 1 9610-9905 ● ●
34 MEMBER; CROSS,3RD
6WA1 TC-C(55L) (A) 		1-53181-644-1 01 1 9906-9906 ● ●
34 MEMBER; CROSS,3RD
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53181-644-1 01 1 9906-9906 ● ●
34 MEMBER; CROSS,3RD
6WA1 TC-C(55L),10PE1N(61L) (A) 		1-53181-644-1 01 1 9906- ● ●
34 MEMBER; CROSS,3RD
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53181-437-1 01 1 9606-9706 ●
34 MEMBER; CROSS,3RD
6WA1 TC-S(56L),6WG1 TC-N(71L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53181-437-1 01 1 9707-9905 ●
34 MEMBER; CROSS,3RD
6WA1 TC-S(56L),6WG1 TC-C(72L) (B) 		1-53181-437-1 01 1 9906- ●
39 BRACKET; FRT SPR,RR
(B) 		1-53352-067-3 02 1 9606-9706 ● ●
39 BRACKET; FRT SPR,RR
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) 		1-53352-067-3 02 1 9707-9905 ● ●
39 BRACKET; FRT SPR,RR
6WA1 TC-S(56L) FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53352-067-3 02 1 9707-9905 ●
39 BRACKET; FRT SPR,RR
6WA1 TC-S(56L) (B) 		1-53352-067-3 02 1 9707-9905 ●
39 BRACKET; FRT SPR,RR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) 		1-53352-067-3 02 1 9906- ● ●
39 BRACKET; FRT SPR,RR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53352-067-3 02 1 9906- ● ●
39 BRACKET; FRT SPR,RR
6WA1 TC-S(56L) (B) 		1-53352-067-3 02 1 9906- ●
39 BRACKET; FRT SPR,RR
(A) 		1-53351-218-0 01 1 9606-9706 ● ●
39 BRACKET; FRT SPR,RR
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53351-218-0 01 1 9707-9905 ● ●
39 BRACKET; FRT SPR,RR
6WA1 TC-S(56L) FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53351-218-0 01 1 9707-9905 ●
39 BRACKET; FRT SPR,RR
6WA1 TC-S(56L) (A) 		1-53351-218-0 01 1 9707-9905 ●
39 BRACKET; FRT SPR,RR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53351-218-0 01 1 9906- ● ●
39 BRACKET; FRT SPR,RR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53351-218-0 01 1 9906- ● ●
39 BRACKET; FRT SPR,RR
6WA1 TC-S(56L) (A) 		1-53351-218-0 01 1 9906- ●
39 BRACKET; FRT SPR,RR
(A) 		1-53351-217-0 01 1 9606-9706 ● ●
39 BRACKET; FRT SPR,RR
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53351-217-0 01 1 9707-9905 ● ●
39 BRACKET; FRT SPR,RR
6WA1 TC-S(56L) FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53351-217-0 01 1 9707-9905 ●
39 BRACKET; FRT SPR,RR
6WA1 TC-S(56L) (A) 		1-53351-217-0 01 1 9707-9905 ●
39 BRACKET; FRT SPR,RR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53351-217-0 01 1 9906- ● ●
39 BRACKET; FRT SPR,RR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53351-217-0 01 1 9906- ● ●
39 BRACKET; FRT SPR,RR
6WA1 TC-S(56L) (A) 		1-53351-217-0 01 1 9906- ●
41 BRACKET; CENTER BRG,FRAME SIDE
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> L=295 		1-53271-304-1 02 1 9610-9905 ●
41 BRACKET; CENTER BRG,FRAME SIDE
6WA1 TC-C(55L) L=295 		1-53271-304-1 02 1 9906-9906 ●
41 BRACKET; CENTER BRG,FRAME SIDE
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> L=295 		1-53271-304-1 02 1 9906- ●
41 BRACKET; CENTER BRG,FRAME SIDE
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> L=310 		1-53271-305-1 02 1 9606-9706 ●
41 BRACKET; CENTER BRG,FRAME SIDE
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> L=310 		1-53271-305-1 02 1 9606-9706 ●
41 BRACKET; CENTER BRG,FRAME SIDE
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> L=310 		1-53271-305-1 02 1 9707-9905 ●
41 BRACKET; CENTER BRG,FRAME SIDE
6WA1 TC-S(56L),6WG1 TC-N(71L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> L=310 		1-53271-305-1 02 1 9707-9905 ●
41 BRACKET; CENTER BRG,FRAME SIDE
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> L=310 		1-53271-305-1 02 1 9906-9906 ●
41 BRACKET; CENTER BRG,FRAME SIDE
6WA1 TC-S(56L) L=310 		1-53271-305-1 02 1 9906-9906 ●
41 BRACKET; CENTER BRG,FRAME SIDE
10PE1N(61L) L=310 		1-53271-305-1 02 1 9906-0003 ●
41 BRACKET; CENTER BRG,FRAME SIDE
6WA1 TC-S(56L) L=310 		1-53271-305-1 02 1 9906-0003 ●
41 BRACKET; CENTER BRG,FRAME SIDE
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> L=310 		1-53271-305-1 02 1 0004- ●
41 BRACKET; CENTER BRG,FRAME SIDE
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> L=310 		1-53271-305-1 02 1 0004- ●
41 BRACKET; CENTER BRG,FRAME SIDE
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> L=305 		1-53271-262-2 02 1 9606-9905 ●
41 BRACKET; CENTER BRG,FRAME SIDE
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> L=305 		1-53271-262-2 02 1 9906-9906 ●
41 BRACKET; CENTER BRG,FRAME SIDE
6WG1 TC-C(72L) L=305 		1-53271-262-2 02 1 9906-9906 ●
41 BRACKET; CENTER BRG,FRAME SIDE
10PE1N(61L),6WG1 TC-C(72L) L=305 		1-53271-262-2 02 1 9906-0003 ●
41 BRACKET; CENTER BRG,FRAME SIDE
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> L=305 		1-53271-262-2 02 1 0004- ●
41 BRACKET; CENTER BRG,FRAME SIDE
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> L=305 		1-53271-262-2 02 1 0004- ●
41 BRACKET; CENTER BRG,FRAME SIDE
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> L=320 		1-53271-296-1 02 1 9606-9609 ●
41 BRACKET; CENTER BRG,FRAME SIDE
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> L=320 		1-53271-296-1 02 1 9610-9905 ●
41 BRACKET; CENTER BRG,FRAME SIDE
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> L=320 		1-53271-296-1 02 1 9610-9905 ●
41 BRACKET; CENTER BRG,FRAME SIDE
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> L=320 		1-53271-296-1 02 1 9906-9906 ●
41 BRACKET; CENTER BRG,FRAME SIDE
6WA1 TC-C(55L) L=320 		1-53271-296-1 02 1 9906-9906 ●
41 BRACKET; CENTER BRG,FRAME SIDE
6WA1 TC-C(55L) MIXER TRUCK<RA2> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> L=320 		1-53271-296-1 02 1 9906-0003 ●
41 BRACKET; CENTER BRG,FRAME SIDE
6WA1 TC-C(55L),10PE1N(61L) L=320 		1-53271-296-1 02 1 9906-0003 ●
41 BRACKET; CENTER BRG,FRAME SIDE
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> MIXER TRUCK<RA2> L=320 		1-53271-296-1 02 1 0004- ●
41 BRACKET; CENTER BRG,FRAME SIDE
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> L=320 		1-53271-296-1 02 1 0004- ●
41 BRACKET; CENTER BRG,FRAME SIDE
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> L=320 		1-53271-296-1 02 1 0004- ●
46 BOLT; BRKT FIX
M14X40 		9-92061-440-0 04 1 9606-9706 ● ●
46 BOLT; BRKT FIX
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X40 		9-92061-440-0 04 1 9707-9905 ● ●
46 BOLT; BRKT FIX
6WA1 TC-S(56L) FRAME EQUIPMENT HEAVY DUTY<F03> M14X40 		9-92061-440-0 04 1 9707-9905 ●
46 BOLT; BRKT FIX
6WA1 TC-S(56L) M14X40 		9-92061-440-0 04 1 9707-9905 ●
46 BOLT; BRKT FIX
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X40 		9-92061-440-0 04 1 9906-9906 ● ●
46 BOLT; BRKT FIX
6WA1 TC-C(55L) M14X40 		9-92061-440-0 04 1 9906-9906 ●
46 BOLT; BRKT FIX
6WA1 TC-C(55L),6WA1 TC-S(56L) M14X40 		9-92061-440-0 04 1 9906-9906 ●
46 BOLT; BRKT FIX
6WA1 TC-C(55L),10PE1N(61L) M14X40 		9-92061-440-0 04 1 9906- ●
46 BOLT; BRKT FIX
6WA1 TC-C(55L),6WA1 TC-S(56L),10PE1N(61L) M14X40 		9-92061-440-0 04 1 9906- ●
46 BOLT; BRKT FIX
M14X50 		9-92061-450-0 16 1 9606-9706 ● ●
46 BOLT; BRKT FIX
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X50 		9-92061-450-0 16 1 9707-9905 ● ●
46 BOLT; BRKT FIX
6WA1 TC-S(56L) FRAME EQUIPMENT HEAVY DUTY<F03> M14X50 		9-92061-450-0 16 1 9707-9905 ●
46 BOLT; BRKT FIX
6WA1 TC-S(56L) M14X50 		9-92061-450-0 16 1 9707-9905 ●
46 BOLT; BRKT FIX
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X50 		9-92061-450-0 16 1 9906- ● ●
46 BOLT; BRKT FIX
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> M14X50 		9-92061-450-0 16 1 9906- ● ●
46 BOLT; BRKT FIX
6WA1 TC-S(56L) M14X50 		9-92061-450-0 16 1 9906- ●
46 BOLT; BRKT FIX
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> M12X35,M14X45 L=100 		1-09029-075-0 08 1 9610-9905 ● ●
46 BOLT; BRKT FIX
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> M12X35,M14X45 L=100 		1-09029-075-0 08 1 9906-9912 ● ●
46 BOLT; BRKT FIX
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) M14X50 		9-92061-450-0 21 1 9906-9906 ● ●
46 BOLT; BRKT FIX
6WA1 TC-C(55L),10PE1N(61L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14X50 		9-92061-450-0 21 1 9906-0003 ● ●
46 BOLT; BRKT FIX
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X50 		9-92061-450-0 21 1 0004- ● ●
46 BOLT; BRKT FIX
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> MIXER TRUCK<RA2> M14X50 		9-92061-450-0 21 1 0004- ●
46 BOLT; BRKT FIX
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> M14X50 		9-92061-450-0 21 1 0004- ●
46 BOLT; BRKT FIX
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) M14X60 		9-92061-460-0 04 1 9906-9906 ● ●
46 BOLT; BRKT FIX
6WA1 TC-C(55L),10PE1N(61L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14X60 		9-92061-460-0 04 1 9906-0003 ● ●
46 BOLT; BRKT FIX
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X60 		9-92061-460-0 04 1 0004- ● ●
46 BOLT; BRKT FIX
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> MIXER TRUCK<RA2> M14X60 		9-92061-460-0 04 1 0004- ●
46 BOLT; BRKT FIX
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> M14X60 		9-92061-460-0 04 1 0004- ●
46 BOLT; BRKT FIX
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M16X50 		9-92061-650-0 08 1 9606-9706 ●
46 BOLT; BRKT FIX
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M16X50 		9-92061-650-0 08 1 9707-9905 ●
46 BOLT; BRKT FIX
6WA1 TC-S(56L) M16X50 		9-92061-650-0 08 1 9906-0003 ●
46 BOLT; BRKT FIX
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> M16X50 		9-92061-650-0 08 1 0004- ●
46 BOLT; BRKT FIX
6WG1 TC-N(71L) M14X50 		9-92061-450-0 08 1 9707-9905 ●
46 BOLT; BRKT FIX
6WG1 TC-C(72L) M14X50 		9-92061-450-0 08 1 9906-0003 ●
46 BOLT; BRKT FIX
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> M14X50 		9-92061-450-0 08 1 0004- ●
52 BRACKET; FWD FRT SPRING,RR 1-53352-153-0 01 1 9606-9706 ● ●
52 BRACKET; FWD FRT SPRING,RR
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> 		1-53352-153-0 01 1 9707-9905 ● ●
52 BRACKET; FWD FRT SPRING,RR
6WA1 TC-S(56L) FRAME EQUIPMENT HEAVY DUTY<F03> 		1-53352-153-0 01 1 9707-9905 ●
52 BRACKET; FWD FRT SPRING,RR
6WA1 TC-S(56L) 		1-53352-153-0 01 1 9707-9905 ●
52 BRACKET; FWD FRT SPRING,RR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> 		1-53352-153-0 01 1 9906- ● ●
52 BRACKET; FWD FRT SPRING,RR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> 		1-53352-153-0 01 1 9906- ● ●
52 BRACKET; FWD FRT SPRING,RR
6WA1 TC-S(56L) 		1-53352-153-0 01 1 9906- ●
52 BRACKET; FWD FRT SPRING,RR 1-53352-152-0 01 1 9606-9706 ● ●
52 BRACKET; FWD FRT SPRING,RR
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> 		1-53352-152-0 01 1 9707-9905 ● ●
52 BRACKET; FWD FRT SPRING,RR
6WA1 TC-S(56L) FRAME EQUIPMENT HEAVY DUTY<F03> 		1-53352-152-0 01 1 9707-9905 ●
52 BRACKET; FWD FRT SPRING,RR
6WA1 TC-S(56L) 		1-53352-152-0 01 1 9707-9905 ●
52 BRACKET; FWD FRT SPRING,RR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> 		1-53352-152-0 01 1 9906- ● ●
52 BRACKET; FWD FRT SPRING,RR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> 		1-53352-152-0 01 1 9906- ● ●
52 BRACKET; FWD FRT SPRING,RR
6WA1 TC-S(56L) 		1-53352-152-0 01 1 9906- ●
181 BOLT; S/ABS BRKT TO FRAME
6WG1 TC-N(71L) M14X50 		9-92061-450-0 08 1 9707-9905 ●
181 BOLT; S/ABS BRKT TO FRAME
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) M14X50 		9-92061-450-0 08 1 9906-9906 ● ●
181 BOLT; S/ABS BRKT TO FRAME
6WG1 TC-C(72L) M14X50 		9-92061-450-0 08 1 9906-9906 ●
181 BOLT; S/ABS BRKT TO FRAME
6WA1 TC-C(55L),10PE1N(61L),6WG1 TC-C(72L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14X50 		9-92061-450-0 08 1 9906- ● ●
182 NUT; S/ABS BRKT TO FRAME
6WG1 TC-N(71L) M14 		9-99110-514-0 08 1 9707-9905 ●
182 NUT; S/ABS BRKT TO FRAME
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) M14 		9-99110-514-0 08 1 9906-9906 ● ●
182 NUT; S/ABS BRKT TO FRAME
6WG1 TC-C(72L) M14 		9-99110-514-0 08 1 9906-9906 ●
182 NUT; S/ABS BRKT TO FRAME
6WA1 TC-C(55L),10PE1N(61L),6WG1 TC-C(72L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14 		9-99110-514-0 08 1 9906- ● ●
202 SPACER; 3RD C/MBR
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) 		1-53168-454-0 04 1 9906-9906 ●
202 SPACER; 3RD C/MBR
6WA1 TC-C(55L),10PE1N(61L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> 		1-53168-454-0 04 1 9906-0003 ●
202 SPACER; 3RD C/MBR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> 		1-53168-454-0 04 1 0004- ●
202 SPACER; 3RD C/MBR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> 		1-53168-454-0 04 1 0004- ●
344 MEMBER; CROSS,4TH
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> 		1-53181-644-1 01 1 9606-9905 ●
344 MEMBER; CROSS,4TH
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> 		1-53181-644-1 01 1 9906-9906 ●
344 MEMBER; CROSS,4TH
10PE1N(61L) 		1-53181-644-1 01 1 9906-0003 ●
344 MEMBER; CROSS,4TH
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> 		1-53181-644-1 01 1 0004- ●
439 STUD; BRKT,SPR
M12X35,M14X45 L=100 		1-09029-075-0 02 1 9606- ● ●
458 BRACKET; LEAF SPRING
6WG1 TC-N(71L) (B) 		1-53352-067-3 02 1 9707-9905 ●
458 BRACKET; LEAF SPRING
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) (B) 		1-53352-067-3 02 1 9906-9906 ● ●
458 BRACKET; LEAF SPRING
6WG1 TC-C(72L) (B) 		1-53352-067-3 02 1 9906-9906 ●
458 BRACKET; LEAF SPRING
6WA1 TC-C(55L),10PE1N(61L),6WG1 TC-C(72L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53352-067-3 02 1 9906- ● ●
458 BRACKET; LEAF SPRING
6WG1 TC-N(71L) (A) 		1-53351-218-0 01 1 9707-9905 ●
458 BRACKET; LEAF SPRING
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) (A) 		1-53351-218-0 01 1 9906-9906 ● ●
458 BRACKET; LEAF SPRING
6WG1 TC-C(72L) (A) 		1-53351-218-0 01 1 9906-9906 ●
458 BRACKET; LEAF SPRING
6WA1 TC-C(55L),10PE1N(61L),6WG1 TC-C(72L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53351-218-0 01 1 9906- ● ●
458 BRACKET; LEAF SPRING
6WG1 TC-N(71L) (C) 		1-53352-153-0 01 1 9707-9905 ●
458 BRACKET; LEAF SPRING
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) (C) 		1-53352-153-0 01 1 9906-9906 ● ●
458 BRACKET; LEAF SPRING
6WG1 TC-C(72L) (C) 		1-53352-153-0 01 1 9906-9906 ●
458 BRACKET; LEAF SPRING
6WA1 TC-C(55L),10PE1N(61L),6WG1 TC-C(72L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (C) 		1-53352-153-0 01 1 9906- ● ●
458 BRACKET; LEAF SPRING
6WG1 TC-N(71L) (A) 		1-53351-217-0 01 1 9707-9905 ●
458 BRACKET; LEAF SPRING
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) (A) 		1-53351-217-0 01 1 9906-9906 ● ●
458 BRACKET; LEAF SPRING
6WG1 TC-C(72L) (A) 		1-53351-217-0 01 1 9906-9906 ●
458 BRACKET; LEAF SPRING
6WA1 TC-C(55L),10PE1N(61L),6WG1 TC-C(72L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53351-217-0 01 1 9906- ● ●
458 BRACKET; LEAF SPRING
6WG1 TC-N(71L) (C) 		1-53352-152-0 01 1 9707-9905 ●
458 BRACKET; LEAF SPRING
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) (C) 		1-53352-152-0 01 1 9906-9906 ● ●
458 BRACKET; LEAF SPRING
6WG1 TC-C(72L) (C) 		1-53352-152-0 01 1 9906-9906 ●
458 BRACKET; LEAF SPRING
6WA1 TC-C(55L),10PE1N(61L),6WG1 TC-C(72L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (C) 		1-53352-152-0 01 1 9906- ● ●
466 BRACKET; BOOSTER
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) 		1-44515-073-0 01 1 9906-9906 ● ●
466 BRACKET; BOOSTER
6WA1 TC-C(55L),10PE1N(61L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> 		1-44515-073-0 01 1 9906-0003 ● ●
466 BRACKET; BOOSTER
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> 		1-44515-073-0 01 1 0004- ● ●
466 BRACKET; BOOSTER
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> MIXER TRUCK<RA2> 		1-44515-073-0 01 1 0004- ●
466 BRACKET; BOOSTER
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> 		1-44515-073-0 01 1 0004- ●
çizim 5810
26 25 46 25 46 34 34 458 39 25 41 202 24 19 19 202 46 11 11 41 11 21 182 21 46 12 13 25 23 11 11 25 26 11 466 25 2 25 23 26 458 39 46 25 181 6 16 24 25 26 439 39 458 52 458 39 458 458 52
BalonParca AdiParca NoAdetTipApplied Date A B
2 MEMBER; CROSS,1ST 1-53181-526-4 01 1 9606- ● ●
6 WASHER; LK,1ST C/MBR
EXC. REINFORCEMENT BUMPER<VG7> ID=16.2 		9-09150-616-0 02 1 9606-9905 ● ●
6 WASHER; LK,1ST C/MBR
EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> ID=16.2 		9-09150-616-0 02 1 9906- ● ●
11 BRACKET; ENG MTG
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> MIXER TRUCK<RA2> (E) 		1-53219-789-1 01 1 9703-9905 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) (E) 		1-53219-789-1 01 1 9906-9906 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) MIXER TRUCK<RA2> (E) 		1-53219-789-1 01 1 9906-0003 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> MIXER TRUCK<RA2> (E) 		1-53219-789-1 01 1 0004- ●
11 BRACKET; ENG MTG
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> MIXER TRUCK<RA2> (E) 		1-53219-788-1 01 1 9703-9905 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) (E) 		1-53219-788-1 01 1 9906-9906 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) MIXER TRUCK<RA2> (E) 		1-53219-788-1 01 1 9906-0003 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> MIXER TRUCK<RA2> (E) 		1-53219-788-1 01 1 0004- ●
11 BRACKET; ENG MTG
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> (E) 		1-53219-742-0 01 1 9610-9702 ● ●
11 BRACKET; ENG MTG
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> EXC. MIXER TRUCK<RA2> (E) 		1-53219-742-0 01 1 9703-9905 ●
11 BRACKET; ENG MTG
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> (E) 		1-53219-742-0 01 1 9703-9905 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> (E) 		1-53219-742-0 01 1 9906-9906 ● ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) (E) 		1-53219-742-0 01 1 9906-9906 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. MIXER TRUCK<RA2> (E) 		1-53219-742-0 01 1 9906-0003 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) (E) 		1-53219-742-0 01 1 9906-0003 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. MIXER TRUCK<RA2> (E) 		1-53219-742-0 01 1 0004- ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> (E) 		1-53219-742-0 01 1 0004- ●
11 BRACKET; ENG MTG
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> (E) 		1-53219-741-0 01 1 9610-9702 ● ●
11 BRACKET; ENG MTG
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> EXC. MIXER TRUCK<RA2> (E) 		1-53219-741-0 01 1 9703-9905 ●
11 BRACKET; ENG MTG
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> (E) 		1-53219-741-0 01 1 9703-9905 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> (E) 		1-53219-741-0 01 1 9906-9906 ● ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) (E) 		1-53219-741-0 01 1 9906-9906 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. MIXER TRUCK<RA2> (E) 		1-53219-741-0 01 1 9906-0003 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) (E) 		1-53219-741-0 01 1 9906-0003 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. MIXER TRUCK<RA2> (E) 		1-53219-741-0 01 1 0004- ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> (E) 		1-53219-741-0 01 1 0004- ●
11 BRACKET; ENG MTG
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53219-583-0 01 1 9606-9905 ● ●
11 BRACKET; ENG MTG
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53219-583-0 01 1 9906-9906 ● ●
11 BRACKET; ENG MTG
10PE1N(61L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53219-583-0 01 1 9906-0003 ● ●
11 BRACKET; ENG MTG
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53219-583-0 01 1 0004- ● ●
11 BRACKET; ENG MTG
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53219-582-0 01 1 9606-9905 ● ●
11 BRACKET; ENG MTG
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53219-582-0 01 1 9906-9906 ● ●
11 BRACKET; ENG MTG
10PE1N(61L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53219-582-0 01 1 9906-0003 ● ●
11 BRACKET; ENG MTG
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53219-582-0 01 1 0004- ● ●
11 BRACKET; ENG MTG
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (D) 		1-53219-728-1 01 1 9606-9905 ● ●
11 BRACKET; ENG MTG
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (D) 		1-53219-728-1 01 1 9906-9906 ● ●
11 BRACKET; ENG MTG
10PE1N(61L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (D) 		1-53219-728-1 01 1 9906-0003 ● ●
11 BRACKET; ENG MTG
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (D) 		1-53219-728-1 01 1 0004- ● ●
11 BRACKET; ENG MTG
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (D) 		1-53219-727-1 01 1 9606-9905 ● ●
11 BRACKET; ENG MTG
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (D) 		1-53219-727-1 01 1 9906-9906 ● ●
11 BRACKET; ENG MTG
10PE1N(61L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (D) 		1-53219-727-1 01 1 9906-0003 ● ●
11 BRACKET; ENG MTG
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (D) 		1-53219-727-1 01 1 0004- ● ●
11 BRACKET; ENG MTG
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> FRAME ENG MTG SEPARATE TYPE<SGM> (D) 		1-53219-730-1 01 1 9606-9905 ●
11 BRACKET; ENG MTG
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> FRAME ENG MTG SEPARATE TYPE<SGM> (D) 		1-53219-729-1 01 1 9606-9905 ●
11 BRACKET; ENG MTG
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53219-472-1 01 1 9606-9609 ●
11 BRACKET; ENG MTG
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53219-472-1 01 1 9610-9706 ● ●
11 BRACKET; ENG MTG
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53219-472-1 01 1 9610-9706 ●
11 BRACKET; ENG MTG
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53219-472-1 01 1 9707-9905 ●
11 BRACKET; ENG MTG
6WA1 TC-S(56L),6WG1 TC-N(71L) (B) 		1-53219-472-1 01 1 9707-9905 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) (B) 		1-53219-472-1 01 1 9906-9906 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (B) 		1-53219-472-1 01 1 9906-9906 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) (B) 		1-53219-472-1 01 1 9906- ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L),6WA1 TC-S(56L) (B) 		1-53219-472-1 01 1 9906- ●
11 BRACKET; ENG MTG
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (C) 		1-53219-577-2 01 1 9606-9706 ●
11 BRACKET; ENG MTG
6WA1 TC-S(56L),6WG1 TC-N(71L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (C) 		1-53219-577-2 01 1 9707-9905 ●
11 BRACKET; ENG MTG
6WA1 TC-S(56L),6WG1 TC-C(72L) (C) 		1-53219-577-2 01 1 9906-9906 ●
11 BRACKET; ENG MTG
6WA1 TC-S(56L) (C) 		1-53219-577-2 01 1 9906-0003 ●
11 BRACKET; ENG MTG
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> (C) 		1-53219-577-2 01 1 0004- ●
11 BRACKET; ENG MTG
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53219-471-0 01 1 9606-9609 ●
11 BRACKET; ENG MTG
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53219-471-0 01 1 9610-9706 ● ●
11 BRACKET; ENG MTG
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53219-471-0 01 1 9610-9706 ●
11 BRACKET; ENG MTG
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53219-471-0 01 1 9707-9905 ●
11 BRACKET; ENG MTG
6WA1 TC-S(56L),6WG1 TC-N(71L) (B) 		1-53219-471-0 01 1 9707-9905 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) (B) 		1-53219-471-0 01 1 9906-9906 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (B) 		1-53219-471-0 01 1 9906-9906 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) (B) 		1-53219-471-0 01 1 9906- ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L),6WA1 TC-S(56L) (B) 		1-53219-471-0 01 1 9906- ●
11 BRACKET; ENG MTG
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (C) 		1-53219-576-2 01 1 9606-9706 ●
11 BRACKET; ENG MTG
6WA1 TC-S(56L),6WG1 TC-N(71L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (C) 		1-53219-576-2 01 1 9707-9905 ●
11 BRACKET; ENG MTG
6WA1 TC-S(56L),6WG1 TC-C(72L) (C) 		1-53219-576-2 01 1 9906-9906 ●
11 BRACKET; ENG MTG
6WA1 TC-S(56L) (C) 		1-53219-576-2 01 1 9906-0003 ●
11 BRACKET; ENG MTG
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> (C) 		1-53219-576-2 01 1 0004- ●
11 BRACKET; ENG MTG
6WG1 TC-C(72L) (B) 		1-53219-778-0 01 1 9906-0003 ●
11 BRACKET; ENG MTG
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53219-778-1 01 1 0004- ●
11 BRACKET; ENG MTG
6WG1 TC-C(72L) (C) 		1-53219-780-1 01 1 9906-9907 ●
11 BRACKET; ENG MTG
6WG1 TC-C(72L) (C) 		1-53219-942-0 01 1 9908-0003 ●
11 BRACKET; ENG MTG
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> (C) 		1-53219-942-1 01 1 0004- ●
11 BRACKET; ENG MTG
6WG1 TC-C(72L) (B) 		1-53219-777-0 01 1 9906-0003 ●
11 BRACKET; ENG MTG
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53219-777-1 01 1 0004- ●
11 BRACKET; ENG MTG
6WG1 TC-C(72L) (C) 		1-53219-779-2 01 1 9906-9907 ●
11 BRACKET; ENG MTG
6WG1 TC-C(72L) (C) 		1-53219-941-0 01 1 9908-0003 ●
11 BRACKET; ENG MTG
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> (C) 		1-53219-941-0 01 1 0004- ●
12 WASHER; PL,BRKT,ENG MTG
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 01 1 9606-9609 ● ●
12 WASHER; PL,BRKT,ENG MTG
FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 01 1 9610-9905 ● ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) ID=15 		9-09651-069-0 02 1 9906-9906 ● ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-S(56L),6WG1 TC-C(72L) ID=15 		9-09651-069-0 02 1 9906-9906 ●
12 WASHER; PL,BRKT,ENG MTG
10PE1N(61L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,FRAME ENG MTGSEPARATE TYPE<SGM> ID=15 		9-09651-069-0 02 1 9906-9912 ● ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-C(55L) MIXER TRUCK<RA2> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 02 1 9906-9912 ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-S(56L),6WG1 TC-C(72L) ID=15 		9-09651-069-0 02 1 9906-9912 ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-C(55L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 02 1 9906-9912 ●
12 WASHER; PL,BRKT,ENG MTG
10PE1N(61L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=15 		9-09651-069-0 01 1 0001-0003 ● ●
12 WASHER; PL,BRKT,ENG MTG
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=15 		9-09651-069-0 01 1 0004- ● ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 02 1 9606-9706 ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-S(56L),6WG1 TC-N(71L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 02 1 9707-9905 ●
12 WASHER; PL,BRKT,ENG MTG
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=15 		9-09651-069-0 01 1 9906-9912 ● ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 01 1 9906-9912 ● ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-C(55L) ID=15 		9-09651-069-0 02 1 0001- ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-C(55L),6WA1 TC-S(56L) ID=15 		9-09651-069-0 02 1 0001- ●
12 WASHER; PL,BRKT,ENG MTG
6WG1 TC-C(72L) ID=15 		9-09651-069-0 04 1 0001-0003 ●
12 WASHER; PL,BRKT,ENG MTG
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 04 1 0004- ●
13 BOLT; BRKT,ENG MTG
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> M14X40 		9-92061-440-0 01 1 9606-9609 ● ●
13 BOLT; BRKT,ENG MTG
FRAME EQUIPMENT HEAVY DUTY<F03> M14X40 		9-92061-440-0 01 1 9610-9905 ● ●
13 BOLT; BRKT,ENG MTG
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) M14X40 		9-92061-440-0 02 1 9906-9906 ● ●
13 BOLT; BRKT,ENG MTG
6WA1 TC-S(56L),6WG1 TC-C(72L) M14X40 		9-92061-440-0 02 1 9906-9906 ●
13 BOLT; BRKT,ENG MTG
10PE1N(61L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,FRAME ENG MTGSEPARATE TYPE<SGM> M14X40 		9-92061-440-0 02 1 9906-9912 ● ●
13 BOLT; BRKT,ENG MTG
6WA1 TC-C(55L) MIXER TRUCK<RA2> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14X40 		9-92061-440-0 02 1 9906-9912 ●
13 BOLT; BRKT,ENG MTG
6WA1 TC-S(56L),6WG1 TC-C(72L) M14X40 		9-92061-440-0 02 1 9906-9912 ●
13 BOLT; BRKT,ENG MTG
6WA1 TC-C(55L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14X40 		9-92061-440-0 02 1 9906-9912 ●
13 BOLT; BRKT,ENG MTG
10PE1N(61L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X40 		9-92061-440-0 01 1 0001-0003 ● ●
13 BOLT; BRKT,ENG MTG
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X40 		9-92061-440-0 01 1 0004- ● ●
13 BOLT; BRKT,ENG MTG
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14X40 		9-92061-440-0 02 1 9606-9706 ●
13 BOLT; BRKT,ENG MTG
6WA1 TC-S(56L),6WG1 TC-N(71L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14X40 		9-92061-440-0 02 1 9707-9905 ●
13 BOLT; BRKT,ENG MTG
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X40 		9-92061-440-0 01 1 9906-9912 ● ●
13 BOLT; BRKT,ENG MTG
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> M14X40 		9-92061-440-0 01 1 9906-9912 ● ●
13 BOLT; BRKT,ENG MTG
6WA1 TC-C(55L) M14X40 		9-92061-440-0 02 1 0001- ●
13 BOLT; BRKT,ENG MTG
6WA1 TC-C(55L),6WA1 TC-S(56L) M14X40 		9-92061-440-0 02 1 0001- ●
13 BOLT; BRKT,ENG MTG
6WG1 TC-C(72L) M14X40 		9-92061-440-0 04 1 0001-0003 ●
13 BOLT; BRKT,ENG MTG
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> M14X40 		9-92061-440-0 04 1 0004- ●
16 BOLT; 1ST C/MBR TO S/MBR
EXC. REINFORCEMENT BUMPER<VG7> M16X40 		0-20801-640-0 02 1 9606-9905 ● ●
16 BOLT; 1ST C/MBR TO S/MBR
EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> M16X40 		0-20801-640-0 02 1 9906- ● ●
19 MEMBER; CROSS,2ND
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53174-221-0 01 1 9606-9609 ● ●
19 MEMBER; CROSS,2ND
FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53174-221-0 01 1 9610-9905 ● ●
19 MEMBER; CROSS,2ND
6WA1 TC-C(55L) (A) 		1-53174-221-0 01 1 9906-9906 ● ●
19 MEMBER; CROSS,2ND
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53174-221-0 01 1 9906-9906 ● ●
19 MEMBER; CROSS,2ND
6WA1 TC-C(55L),10PE1N(61L) (A) 		1-53174-221-0 01 1 9906- ● ●
19 MEMBER; CROSS,2ND
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53174-231-1 01 1 9606-9706 ●
19 MEMBER; CROSS,2ND
6WA1 TC-S(56L),6WG1 TC-N(71L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53174-231-1 01 1 9707-9905 ●
19 MEMBER; CROSS,2ND
6WA1 TC-S(56L),6WG1 TC-C(72L) (B) 		1-53174-231-1 01 1 9906- ●
21 GUSSET; 2ND CROSS
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53164-208-0 02 1 9606-9609 ● ●
21 GUSSET; 2ND CROSS
FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53164-208-0 02 1 9610-9905 ● ●
21 GUSSET; 2ND CROSS
6WA1 TC-C(55L) (A) 		1-53164-208-0 02 1 9906-9906 ● ●
21 GUSSET; 2ND CROSS
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53164-208-0 02 1 9906-9906 ● ●
21 GUSSET; 2ND CROSS
6WA1 TC-C(55L),10PE1N(61L) (A) 		1-53164-208-0 02 1 9906- ● ●
21 GUSSET; 2ND CROSS
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53167-287-1 02 1 9606-9609 ● ●
21 GUSSET; 2ND CROSS
FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53167-287-1 02 1 9610-9905 ● ●
21 GUSSET; 2ND CROSS
6WA1 TC-C(55L) (B) 		1-53167-287-1 02 1 9906-9906 ● ●
21 GUSSET; 2ND CROSS
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) 		1-53167-287-1 02 1 9906-9906 ● ●
21 GUSSET; 2ND CROSS
6WA1 TC-C(55L),10PE1N(61L) (B) 		1-53167-287-2 02 1 9906- ● ●
21 GUSSET; 2ND CROSS
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53164-185-0 02 1 9606-9706 ●
21 GUSSET; 2ND CROSS
6WA1 TC-S(56L),6WG1 TC-N(71L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53164-185-0 02 1 9707-9905 ●
21 GUSSET; 2ND CROSS
6WA1 TC-S(56L),6WG1 TC-C(72L) (A) 		1-53164-185-0 02 1 9906- ●
23 BOLT; BRKT,SPR
M14X40 		9-92061-440-0 06 1 9606-9706 ● ●
23 BOLT; BRKT,SPR
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X40 		9-92061-440-0 06 1 9707-9905 ● ●
23 BOLT; BRKT,SPR
6WA1 TC-S(56L) FRAME EQUIPMENT HEAVY DUTY<F03> M14X40 		9-92061-440-0 06 1 9707-9905 ●
23 BOLT; BRKT,SPR
6WA1 TC-S(56L) M14X40 		9-92061-440-0 06 1 9707-9905 ●
23 BOLT; BRKT,SPR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X40 		9-92061-440-0 06 1 9906-9906 ● ●
23 BOLT; BRKT,SPR
6WA1 TC-C(55L) M14X40 		9-92061-440-0 06 1 9906-9906 ●
23 BOLT; BRKT,SPR
6WA1 TC-C(55L),6WA1 TC-S(56L) M14X40 		9-92061-440-0 06 1 9906-9906 ●
23 BOLT; BRKT,SPR
6WA1 TC-C(55L),10PE1N(61L) M14X40 		9-92061-440-0 06 1 9906- ●
23 BOLT; BRKT,SPR
6WA1 TC-C(55L),6WA1 TC-S(56L),10PE1N(61L) M14X40 		9-92061-440-0 06 1 9906- ●
23 BOLT; BRKT,SPR
M16X50 		9-92061-650-0 04 1 9606-9706 ● ●
23 BOLT; BRKT,SPR
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M16X50 		9-92061-650-0 04 1 9707-9905 ● ●
23 BOLT; BRKT,SPR
6WA1 TC-S(56L) FRAME EQUIPMENT HEAVY DUTY<F03> M16X50 		9-92061-650-0 04 1 9707-9905 ●
23 BOLT; BRKT,SPR
6WA1 TC-S(56L) M16X50 		9-92061-650-0 04 1 9707-9905 ●
23 BOLT; BRKT,SPR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M16X50 		9-92061-650-0 04 1 9906- ● ●
23 BOLT; BRKT,SPR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> M16X50 		9-92061-650-0 04 1 9906- ● ●
23 BOLT; BRKT,SPR
6WA1 TC-S(56L) M16X50 		9-92061-650-0 04 1 9906- ●
23 BOLT; BRKT,SPR
6WG1 TC-N(71L) M14X40 		9-92061-440-0 10 1 9707-9905 ●
23 BOLT; BRKT,SPR
6WG1 TC-C(72L) M14X40 		9-92061-440-0 10 1 9906-0003 ●
23 BOLT; BRKT,SPR
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> M14X40 		9-92061-440-0 10 1 0004- ●
23 BOLT; BRKT,SPR
6WG1 TC-N(71L) M14X50 		9-92061-450-0 08 1 9707-9905 ●
23 BOLT; BRKT,SPR
6WG1 TC-C(72L) M14X50 		9-92061-450-0 08 1 9906-0003 ●
23 BOLT; BRKT,SPR
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> M14X50 		9-92061-450-0 08 1 0004- ●
23 BOLT; BRKT,SPR
6WG1 TC-N(71L) M16X50 		9-92061-650-0 12 1 9707-9905 ●
23 BOLT; BRKT,SPR
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) M16X50 		9-92061-650-0 12 1 9906-9906 ● ●
23 BOLT; BRKT,SPR
6WG1 TC-C(72L) M16X50 		9-92061-650-0 12 1 9906-9906 ●
23 BOLT; BRKT,SPR
6WA1 TC-C(55L),10PE1N(61L),6WG1 TC-C(72L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M16X50 		9-92061-650-0 12 1 9906- ● ●
24 BRACKET; FRT SPR,FRT 1-53351-220-0 01 1 9606-0003 ● ●
24 BRACKET; FRT SPR,FRT 1-53351-220-0 01 1 0004- ● ●
24 BRACKET; FRT SPR,FRT 1-53351-219-0 01 1 9606-0003 ● ●
24 BRACKET; FRT SPR,FRT 1-53351-219-0 01 1 0004- ● ●
25 WASHER; PL,BRKT
10PE1N(61L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=16.2 		1-09503-223-0 22 1 0001-0003 ● ●
25 WASHER; PL,BRKT
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=16.2 		1-09503-223-0 22 1 0004- ● ●
25 WASHER; PL,BRKT
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> ID=16.2 		1-09503-223-0 22 1 9606-9905 ● ●
25 WASHER; PL,BRKT
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=16.2 		1-09503-223-0 22 1 9906-9912 ● ●
25 WASHER; PL,BRKT
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=15 		9-09651-069-0 46 1 0001- ● ●
25 WASHER; PL,BRKT
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=15 		9-09651-069-0 46 1 9606-9609 ● ●
25 WASHER; PL,BRKT
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=15 		9-09651-069-0 46 1 9610-9905 ● ●
25 WASHER; PL,BRKT
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 46 1 9610-9905 ● ●
25 WASHER; PL,BRKT
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=15 		9-09651-069-0 46 1 9906-9912 ● ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 46 1 9906-9912 ● ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 48 1 0001-0003 ● ●
25 WASHER; PL,BRKT
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,LIGHT DUTY PACKAGE TRUCK(Y21) ID=15 		9-09651-069-0 48 1 0001-0003 ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 48 1 0004- ● ●
25 WASHER; PL,BRKT
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 48 1 0004- ●
25 WASHER; PL,BRKT
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> FRAME ENG MTG SEPARATE TYPE<SGM> ID=15 		9-09651-069-0 44 1 9606-9905 ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) ID=15 		9-09651-069-0 64 1 9906-9906 ● ●
25 WASHER; PL,BRKT
6WG1 TC-C(72L) ID=15 		9-09651-069-0 64 1 9906-9906 ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L),10PE1N(61L),6WG1 TC-C(72L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 64 1 9906-9912 ● ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L) MIXER TRUCK<RA2> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 64 1 0001-0003 ●
25 WASHER; PL,BRKT
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,LIGHT DUTY PACKAGE TRUCK(Y21) ID=15 		9-09651-069-0 64 1 0001-0003 ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 64 1 0001-0003 ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> MIXER TRUCK<RA2> ID=15 		9-09651-069-0 64 1 0004- ●
25 WASHER; PL,BRKT
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 64 1 0004- ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> ID=15 		9-09651-069-0 64 1 0004- ●
25 WASHER; PL,BRKT
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=16.2 		1-09503-223-0 24 1 9606-9609 ●
25 WASHER; PL,BRKT
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> ID=16.2 		1-09503-223-0 24 1 9610-9706 ● ●
25 WASHER; PL,BRKT
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=16.2 		1-09503-223-0 24 1 9610-9706 ●
25 WASHER; PL,BRKT
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> ID=16.2 		1-09503-223-0 24 1 9707-9905 ●
25 WASHER; PL,BRKT
6WA1 TC-S(56L),6WG1 TC-N(71L) ID=16.2 		1-09503-223-0 24 1 9707-9905 ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L) ID=16.2 		1-09503-223-0 24 1 9906-9906 ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) ID=16.2 		1-09503-223-0 24 1 9906-9906 ●
25 WASHER; PL,BRKT
10PE1N(61L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,FRAME ENG MTGSEPARATE TYPE<SGM> ID=16.2 		1-09503-223-0 24 1 9906-9912 ● ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L) ID=16.2 		1-09503-223-0 24 1 9906-9912 ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) ID=16.2 		1-09503-223-0 24 1 9906-9912 ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L) MIXER TRUCK<RA2> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=16.2 		1-09503-223-0 24 1 0001-0003 ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> ID=16.2 		1-09503-223-0 24 1 0001-0003 ●
25 WASHER; PL,BRKT
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,LIGHT DUTY PACKAGE TRUCK(Y21) ID=16.2 		1-09503-223-0 24 1 0001-0003 ●
25 WASHER; PL,BRKT
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,LIGHT DUTY PACKAGE TRUCK(Y21) ID=16.2 		1-09503-223-0 24 1 0001-0003 ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L) ID=16.2 		1-09503-223-0 24 1 0001-0003 ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> ID=16.2 		1-09503-223-0 24 1 0004- ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> MIXER TRUCK<RA2> ID=16.2 		1-09503-223-0 24 1 0004- ●
25 WASHER; PL,BRKT
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> ID=16.2 		1-09503-223-0 24 1 0004- ●
25 WASHER; PL,BRKT
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> ID=16.2 		1-09503-223-0 24 1 0004- ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> ID=16.2 		1-09503-223-0 24 1 0004- ●
25 WASHER; PL,BRKT
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 48 1 9606-9706 ●
25 WASHER; PL,BRKT
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 48 1 9707-9905 ●
25 WASHER; PL,BRKT
6WA1 TC-S(56L) ID=15 		9-09651-069-0 48 1 9906-9912 ●
25 WASHER; PL,BRKT
10PE1N(61L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,FRAME ENG MTGSEPARATE TYPE<SGM> ID=15 		9-09651-069-0 62 1 0001-0003 ● ●
25 WASHER; PL,BRKT
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=15 		9-09651-069-0 62 1 0004- ● ●
25 WASHER; PL,BRKT
6WG1 TC-N(71L) ID=15 		9-09651-069-0 64 1 9707-9905 ●
26 NUT; BRKT,SPR
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> M14 		9-99110-514-0 17 1 9610-9905 ● ●
26 NUT; BRKT,SPR
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> M16 		9-99110-516-0 10 1 9606-9905 ● ●
26 NUT; BRKT,SPR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M16 		9-99110-516-0 10 1 9906-9912 ● ●
26 NUT; BRKT,SPR
10PE1N(61L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M16 		9-99110-516-0 10 1 0001-0003 ● ●
26 NUT; BRKT,SPR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M16 		9-99110-516-0 10 1 0004- ● ●
26 NUT; BRKT,SPR
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14 		9-99110-514-0 18 1 9606-9905 ● ●
26 NUT; BRKT,SPR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14 		9-99110-514-0 18 1 9906-9912 ● ●
26 NUT; BRKT,SPR
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> FRAME ENG MTG SEPARATE TYPE<SGM> M14 		9-99110-514-0 16 1 9606-9905 ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) M14 		9-99110-514-0 20 1 9906-9906 ● ●
26 NUT; BRKT,SPR
6WA1 TC-S(56L),6WG1 TC-C(72L) M14 		9-99110-514-0 20 1 9906-9906 ●
26 NUT; BRKT,SPR
10PE1N(61L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,FRAME ENG MTGSEPARATE TYPE<SGM> M14 		9-99110-514-0 20 1 9906-9912 ● ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) MIXER TRUCK<RA2> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14 		9-99110-514-0 20 1 9906-9912 ●
26 NUT; BRKT,SPR
6WA1 TC-S(56L),6WG1 TC-C(72L) M14 		9-99110-514-0 20 1 9906-9912 ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14 		9-99110-514-0 20 1 9906-9912 ●
26 NUT; BRKT,SPR
10PE1N(61L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14 		9-99110-514-0 18 1 0001-0003 ● ●
26 NUT; BRKT,SPR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14 		9-99110-514-0 18 1 0004- ● ●
26 NUT; BRKT,SPR
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14 		9-99110-514-0 20 1 9606-9706 ●
26 NUT; BRKT,SPR
6WA1 TC-S(56L),6WG1 TC-N(71L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14 		9-99110-514-0 20 1 9707-9905 ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> M14 		9-99110-514-0 17 1 9906-9912 ● ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) MIXER TRUCK<RA2> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14 		9-99110-514-0 20 1 0001-0003 ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> M14 		9-99110-514-0 20 1 0001-0003 ●
26 NUT; BRKT,SPR
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,LIGHT DUTY PACKAGE TRUCK(Y21) M14 		9-99110-514-0 20 1 0001-0003 ●
26 NUT; BRKT,SPR
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,LIGHT DUTY PACKAGE TRUCK(Y21) M14 		9-99110-514-0 20 1 0001-0003 ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) M14 		9-99110-514-0 20 1 0001-0003 ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> M14 		9-99110-514-0 20 1 0004- ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> MIXER TRUCK<RA2> M14 		9-99110-514-0 20 1 0004- ●
26 NUT; BRKT,SPR
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> M14 		9-99110-514-0 20 1 0004- ●
26 NUT; BRKT,SPR
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> M14 		9-99110-514-0 20 1 0004- ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> M14 		9-99110-514-0 20 1 0004- ●
26 NUT; BRKT,SPR
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M16 		9-99110-516-0 12 1 9606-9609 ●
26 NUT; BRKT,SPR
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> M16 		9-99110-516-0 12 1 9610-9706 ● ●
26 NUT; BRKT,SPR
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M16 		9-99110-516-0 12 1 9610-9706 ●
26 NUT; BRKT,SPR
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> M16 		9-99110-516-0 12 1 9707-9905 ●
26 NUT; BRKT,SPR
6WA1 TC-S(56L),6WG1 TC-N(71L) M16 		9-99110-516-0 12 1 9707-9905 ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) M16 		9-99110-516-0 12 1 9906-9906 ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) M16 		9-99110-516-0 12 1 9906-9906 ●
26 NUT; BRKT,SPR
10PE1N(61L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,FRAME ENG MTGSEPARATE TYPE<SGM> M16 		9-99110-516-0 12 1 9906-9912 ● ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) M16 		9-99110-516-0 12 1 9906-9912 ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) M16 		9-99110-516-0 12 1 9906-9912 ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) MIXER TRUCK<RA2> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M16 		9-99110-516-0 12 1 0001-0003 ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> M16 		9-99110-516-0 12 1 0001-0003 ●
26 NUT; BRKT,SPR
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,LIGHT DUTY PACKAGE TRUCK(Y21) M16 		9-99110-516-0 12 1 0001-0003 ●
26 NUT; BRKT,SPR
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,LIGHT DUTY PACKAGE TRUCK(Y21) M16 		9-99110-516-0 12 1 0001-0003 ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) M16 		9-99110-516-0 12 1 0001-0003 ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> M16 		9-99110-516-0 12 1 0004- ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> MIXER TRUCK<RA2> M16 		9-99110-516-0 12 1 0004- ●
26 NUT; BRKT,SPR
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> M16 		9-99110-516-0 12 1 0004- ●
26 NUT; BRKT,SPR
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> M16 		9-99110-516-0 12 1 0004- ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> M16 		9-99110-516-0 12 1 0004- ●
34 MEMBER; CROSS,3RD
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53181-644-1 01 1 9606-9609 ● ●
34 MEMBER; CROSS,3RD
FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53181-644-1 01 1 9610-9905 ● ●
34 MEMBER; CROSS,3RD
6WA1 TC-C(55L) (A) 		1-53181-644-1 01 1 9906-9906 ● ●
34 MEMBER; CROSS,3RD
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53181-644-1 01 1 9906-9906 ● ●
34 MEMBER; CROSS,3RD
6WA1 TC-C(55L),10PE1N(61L) (A) 		1-53181-644-1 01 1 9906- ● ●
34 MEMBER; CROSS,3RD
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53181-437-1 01 1 9606-9706 ●
34 MEMBER; CROSS,3RD
6WA1 TC-S(56L),6WG1 TC-N(71L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53181-437-1 01 1 9707-9905 ●
34 MEMBER; CROSS,3RD
6WA1 TC-S(56L),6WG1 TC-C(72L) (B) 		1-53181-437-1 01 1 9906- ●
39 BRACKET; FRT SPR,RR
(B) 		1-53352-067-3 02 1 9606-9706 ● ●
39 BRACKET; FRT SPR,RR
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) 		1-53352-067-3 02 1 9707-9905 ● ●
39 BRACKET; FRT SPR,RR
6WA1 TC-S(56L) FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53352-067-3 02 1 9707-9905 ●
39 BRACKET; FRT SPR,RR
6WA1 TC-S(56L) (B) 		1-53352-067-3 02 1 9707-9905 ●
39 BRACKET; FRT SPR,RR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) 		1-53352-067-3 02 1 9906- ● ●
39 BRACKET; FRT SPR,RR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53352-067-3 02 1 9906- ● ●
39 BRACKET; FRT SPR,RR
6WA1 TC-S(56L) (B) 		1-53352-067-3 02 1 9906- ●
39 BRACKET; FRT SPR,RR
(A) 		1-53351-218-0 01 1 9606-9706 ● ●
39 BRACKET; FRT SPR,RR
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53351-218-0 01 1 9707-9905 ● ●
39 BRACKET; FRT SPR,RR
6WA1 TC-S(56L) FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53351-218-0 01 1 9707-9905 ●
39 BRACKET; FRT SPR,RR
6WA1 TC-S(56L) (A) 		1-53351-218-0 01 1 9707-9905 ●
39 BRACKET; FRT SPR,RR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53351-218-0 01 1 9906- ● ●
39 BRACKET; FRT SPR,RR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53351-218-0 01 1 9906- ● ●
39 BRACKET; FRT SPR,RR
6WA1 TC-S(56L) (A) 		1-53351-218-0 01 1 9906- ●
39 BRACKET; FRT SPR,RR
(A) 		1-53351-217-0 01 1 9606-9706 ● ●
39 BRACKET; FRT SPR,RR
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53351-217-0 01 1 9707-9905 ● ●
39 BRACKET; FRT SPR,RR
6WA1 TC-S(56L) FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53351-217-0 01 1 9707-9905 ●
39 BRACKET; FRT SPR,RR
6WA1 TC-S(56L) (A) 		1-53351-217-0 01 1 9707-9905 ●
39 BRACKET; FRT SPR,RR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53351-217-0 01 1 9906- ● ●
39 BRACKET; FRT SPR,RR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53351-217-0 01 1 9906- ● ●
39 BRACKET; FRT SPR,RR
6WA1 TC-S(56L) (A) 		1-53351-217-0 01 1 9906- ●
41 BRACKET; CENTER BRG,FRAME SIDE
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> L=295 		1-53271-304-1 02 1 9610-9905 ●
41 BRACKET; CENTER BRG,FRAME SIDE
6WA1 TC-C(55L) L=295 		1-53271-304-1 02 1 9906-9906 ●
41 BRACKET; CENTER BRG,FRAME SIDE
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> L=295 		1-53271-304-1 02 1 9906- ●
41 BRACKET; CENTER BRG,FRAME SIDE
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> L=310 		1-53271-305-1 02 1 9606-9706 ●
41 BRACKET; CENTER BRG,FRAME SIDE
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> L=310 		1-53271-305-1 02 1 9606-9706 ●
41 BRACKET; CENTER BRG,FRAME SIDE
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> L=310 		1-53271-305-1 02 1 9707-9905 ●
41 BRACKET; CENTER BRG,FRAME SIDE
6WA1 TC-S(56L),6WG1 TC-N(71L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> L=310 		1-53271-305-1 02 1 9707-9905 ●
41 BRACKET; CENTER BRG,FRAME SIDE
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> L=310 		1-53271-305-1 02 1 9906-9906 ●
41 BRACKET; CENTER BRG,FRAME SIDE
6WA1 TC-S(56L) L=310 		1-53271-305-1 02 1 9906-9906 ●
41 BRACKET; CENTER BRG,FRAME SIDE
10PE1N(61L) L=310 		1-53271-305-1 02 1 9906-0003 ●
41 BRACKET; CENTER BRG,FRAME SIDE
6WA1 TC-S(56L) L=310 		1-53271-305-1 02 1 9906-0003 ●
41 BRACKET; CENTER BRG,FRAME SIDE
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> L=310 		1-53271-305-1 02 1 0004- ●
41 BRACKET; CENTER BRG,FRAME SIDE
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> L=310 		1-53271-305-1 02 1 0004- ●
41 BRACKET; CENTER BRG,FRAME SIDE
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> L=305 		1-53271-262-2 02 1 9606-9905 ●
41 BRACKET; CENTER BRG,FRAME SIDE
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> L=305 		1-53271-262-2 02 1 9906-9906 ●
41 BRACKET; CENTER BRG,FRAME SIDE
6WG1 TC-C(72L) L=305 		1-53271-262-2 02 1 9906-9906 ●
41 BRACKET; CENTER BRG,FRAME SIDE
10PE1N(61L),6WG1 TC-C(72L) L=305 		1-53271-262-2 02 1 9906-0003 ●
41 BRACKET; CENTER BRG,FRAME SIDE
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> L=305 		1-53271-262-2 02 1 0004- ●
41 BRACKET; CENTER BRG,FRAME SIDE
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> L=305 		1-53271-262-2 02 1 0004- ●
41 BRACKET; CENTER BRG,FRAME SIDE
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> L=320 		1-53271-296-1 02 1 9606-9609 ●
41 BRACKET; CENTER BRG,FRAME SIDE
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> L=320 		1-53271-296-1 02 1 9610-9905 ●
41 BRACKET; CENTER BRG,FRAME SIDE
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> L=320 		1-53271-296-1 02 1 9610-9905 ●
41 BRACKET; CENTER BRG,FRAME SIDE
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> L=320 		1-53271-296-1 02 1 9906-9906 ●
41 BRACKET; CENTER BRG,FRAME SIDE
6WA1 TC-C(55L) L=320 		1-53271-296-1 02 1 9906-9906 ●
41 BRACKET; CENTER BRG,FRAME SIDE
6WA1 TC-C(55L) MIXER TRUCK<RA2> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> L=320 		1-53271-296-1 02 1 9906-0003 ●
41 BRACKET; CENTER BRG,FRAME SIDE
6WA1 TC-C(55L),10PE1N(61L) L=320 		1-53271-296-1 02 1 9906-0003 ●
41 BRACKET; CENTER BRG,FRAME SIDE
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> MIXER TRUCK<RA2> L=320 		1-53271-296-1 02 1 0004- ●
41 BRACKET; CENTER BRG,FRAME SIDE
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> L=320 		1-53271-296-1 02 1 0004- ●
41 BRACKET; CENTER BRG,FRAME SIDE
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> L=320 		1-53271-296-1 02 1 0004- ●
46 BOLT; BRKT FIX
M14X40 		9-92061-440-0 04 1 9606-9706 ● ●
46 BOLT; BRKT FIX
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X40 		9-92061-440-0 04 1 9707-9905 ● ●
46 BOLT; BRKT FIX
6WA1 TC-S(56L) FRAME EQUIPMENT HEAVY DUTY<F03> M14X40 		9-92061-440-0 04 1 9707-9905 ●
46 BOLT; BRKT FIX
6WA1 TC-S(56L) M14X40 		9-92061-440-0 04 1 9707-9905 ●
46 BOLT; BRKT FIX
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X40 		9-92061-440-0 04 1 9906-9906 ● ●
46 BOLT; BRKT FIX
6WA1 TC-C(55L) M14X40 		9-92061-440-0 04 1 9906-9906 ●
46 BOLT; BRKT FIX
6WA1 TC-C(55L),6WA1 TC-S(56L) M14X40 		9-92061-440-0 04 1 9906-9906 ●
46 BOLT; BRKT FIX
6WA1 TC-C(55L),10PE1N(61L) M14X40 		9-92061-440-0 04 1 9906- ●
46 BOLT; BRKT FIX
6WA1 TC-C(55L),6WA1 TC-S(56L),10PE1N(61L) M14X40 		9-92061-440-0 04 1 9906- ●
46 BOLT; BRKT FIX
M14X50 		9-92061-450-0 16 1 9606-9706 ● ●
46 BOLT; BRKT FIX
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X50 		9-92061-450-0 16 1 9707-9905 ● ●
46 BOLT; BRKT FIX
6WA1 TC-S(56L) FRAME EQUIPMENT HEAVY DUTY<F03> M14X50 		9-92061-450-0 16 1 9707-9905 ●
46 BOLT; BRKT FIX
6WA1 TC-S(56L) M14X50 		9-92061-450-0 16 1 9707-9905 ●
46 BOLT; BRKT FIX
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X50 		9-92061-450-0 16 1 9906- ● ●
46 BOLT; BRKT FIX
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> M14X50 		9-92061-450-0 16 1 9906- ● ●
46 BOLT; BRKT FIX
6WA1 TC-S(56L) M14X50 		9-92061-450-0 16 1 9906- ●
46 BOLT; BRKT FIX
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> M12X35,M14X45 L=100 		1-09029-075-0 08 1 9610-9905 ● ●
46 BOLT; BRKT FIX
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> M12X35,M14X45 L=100 		1-09029-075-0 08 1 9906-9912 ● ●
46 BOLT; BRKT FIX
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) M14X50 		9-92061-450-0 21 1 9906-9906 ● ●
46 BOLT; BRKT FIX
6WA1 TC-C(55L),10PE1N(61L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14X50 		9-92061-450-0 21 1 9906-0003 ● ●
46 BOLT; BRKT FIX
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X50 		9-92061-450-0 21 1 0004- ● ●
46 BOLT; BRKT FIX
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> MIXER TRUCK<RA2> M14X50 		9-92061-450-0 21 1 0004- ●
46 BOLT; BRKT FIX
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> M14X50 		9-92061-450-0 21 1 0004- ●
46 BOLT; BRKT FIX
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) M14X60 		9-92061-460-0 04 1 9906-9906 ● ●
46 BOLT; BRKT FIX
6WA1 TC-C(55L),10PE1N(61L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14X60 		9-92061-460-0 04 1 9906-0003 ● ●
46 BOLT; BRKT FIX
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X60 		9-92061-460-0 04 1 0004- ● ●
46 BOLT; BRKT FIX
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> MIXER TRUCK<RA2> M14X60 		9-92061-460-0 04 1 0004- ●
46 BOLT; BRKT FIX
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> M14X60 		9-92061-460-0 04 1 0004- ●
46 BOLT; BRKT FIX
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M16X50 		9-92061-650-0 08 1 9606-9706 ●
46 BOLT; BRKT FIX
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M16X50 		9-92061-650-0 08 1 9707-9905 ●
46 BOLT; BRKT FIX
6WA1 TC-S(56L) M16X50 		9-92061-650-0 08 1 9906-0003 ●
46 BOLT; BRKT FIX
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> M16X50 		9-92061-650-0 08 1 0004- ●
46 BOLT; BRKT FIX
6WG1 TC-N(71L) M14X50 		9-92061-450-0 08 1 9707-9905 ●
46 BOLT; BRKT FIX
6WG1 TC-C(72L) M14X50 		9-92061-450-0 08 1 9906-0003 ●
46 BOLT; BRKT FIX
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> M14X50 		9-92061-450-0 08 1 0004- ●
52 BRACKET; FWD FRT SPRING,RR 1-53352-153-0 01 1 9606-9706 ● ●
52 BRACKET; FWD FRT SPRING,RR
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> 		1-53352-153-0 01 1 9707-9905 ● ●
52 BRACKET; FWD FRT SPRING,RR
6WA1 TC-S(56L) FRAME EQUIPMENT HEAVY DUTY<F03> 		1-53352-153-0 01 1 9707-9905 ●
52 BRACKET; FWD FRT SPRING,RR
6WA1 TC-S(56L) 		1-53352-153-0 01 1 9707-9905 ●
52 BRACKET; FWD FRT SPRING,RR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> 		1-53352-153-0 01 1 9906- ● ●
52 BRACKET; FWD FRT SPRING,RR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> 		1-53352-153-0 01 1 9906- ● ●
52 BRACKET; FWD FRT SPRING,RR
6WA1 TC-S(56L) 		1-53352-153-0 01 1 9906- ●
52 BRACKET; FWD FRT SPRING,RR 1-53352-152-0 01 1 9606-9706 ● ●
52 BRACKET; FWD FRT SPRING,RR
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> 		1-53352-152-0 01 1 9707-9905 ● ●
52 BRACKET; FWD FRT SPRING,RR
6WA1 TC-S(56L) FRAME EQUIPMENT HEAVY DUTY<F03> 		1-53352-152-0 01 1 9707-9905 ●
52 BRACKET; FWD FRT SPRING,RR
6WA1 TC-S(56L) 		1-53352-152-0 01 1 9707-9905 ●
52 BRACKET; FWD FRT SPRING,RR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> 		1-53352-152-0 01 1 9906- ● ●
52 BRACKET; FWD FRT SPRING,RR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> 		1-53352-152-0 01 1 9906- ● ●
52 BRACKET; FWD FRT SPRING,RR
6WA1 TC-S(56L) 		1-53352-152-0 01 1 9906- ●
181 BOLT; S/ABS BRKT TO FRAME
6WG1 TC-N(71L) M14X50 		9-92061-450-0 08 1 9707-9905 ●
181 BOLT; S/ABS BRKT TO FRAME
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) M14X50 		9-92061-450-0 08 1 9906-9906 ● ●
181 BOLT; S/ABS BRKT TO FRAME
6WG1 TC-C(72L) M14X50 		9-92061-450-0 08 1 9906-9906 ●
181 BOLT; S/ABS BRKT TO FRAME
6WA1 TC-C(55L),10PE1N(61L),6WG1 TC-C(72L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14X50 		9-92061-450-0 08 1 9906- ● ●
182 NUT; S/ABS BRKT TO FRAME
6WG1 TC-N(71L) M14 		9-99110-514-0 08 1 9707-9905 ●
182 NUT; S/ABS BRKT TO FRAME
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) M14 		9-99110-514-0 08 1 9906-9906 ● ●
182 NUT; S/ABS BRKT TO FRAME
6WG1 TC-C(72L) M14 		9-99110-514-0 08 1 9906-9906 ●
182 NUT; S/ABS BRKT TO FRAME
6WA1 TC-C(55L),10PE1N(61L),6WG1 TC-C(72L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14 		9-99110-514-0 08 1 9906- ● ●
202 SPACER; 3RD C/MBR
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) 		1-53168-454-0 04 1 9906-9906 ●
202 SPACER; 3RD C/MBR
6WA1 TC-C(55L),10PE1N(61L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> 		1-53168-454-0 04 1 9906-0003 ●
202 SPACER; 3RD C/MBR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> 		1-53168-454-0 04 1 0004- ●
202 SPACER; 3RD C/MBR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> 		1-53168-454-0 04 1 0004- ●
439 STUD; BRKT,SPR
M12X35,M14X45 L=100 		1-09029-075-0 02 1 9606- ● ●
458 BRACKET; LEAF SPRING
6WG1 TC-N(71L) (B) 		1-53352-067-3 02 1 9707-9905 ●
458 BRACKET; LEAF SPRING
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) (B) 		1-53352-067-3 02 1 9906-9906 ● ●
458 BRACKET; LEAF SPRING
6WG1 TC-C(72L) (B) 		1-53352-067-3 02 1 9906-9906 ●
458 BRACKET; LEAF SPRING
6WA1 TC-C(55L),10PE1N(61L),6WG1 TC-C(72L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53352-067-3 02 1 9906- ● ●
458 BRACKET; LEAF SPRING
6WG1 TC-N(71L) (A) 		1-53351-218-0 01 1 9707-9905 ●
458 BRACKET; LEAF SPRING
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) (A) 		1-53351-218-0 01 1 9906-9906 ● ●
458 BRACKET; LEAF SPRING
6WG1 TC-C(72L) (A) 		1-53351-218-0 01 1 9906-9906 ●
458 BRACKET; LEAF SPRING
6WA1 TC-C(55L),10PE1N(61L),6WG1 TC-C(72L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53351-218-0 01 1 9906- ● ●
458 BRACKET; LEAF SPRING
6WG1 TC-N(71L) (C) 		1-53352-153-0 01 1 9707-9905 ●
458 BRACKET; LEAF SPRING
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) (C) 		1-53352-153-0 01 1 9906-9906 ● ●
458 BRACKET; LEAF SPRING
6WG1 TC-C(72L) (C) 		1-53352-153-0 01 1 9906-9906 ●
458 BRACKET; LEAF SPRING
6WA1 TC-C(55L),10PE1N(61L),6WG1 TC-C(72L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (C) 		1-53352-153-0 01 1 9906- ● ●
458 BRACKET; LEAF SPRING
6WG1 TC-N(71L) (A) 		1-53351-217-0 01 1 9707-9905 ●
458 BRACKET; LEAF SPRING
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) (A) 		1-53351-217-0 01 1 9906-9906 ● ●
458 BRACKET; LEAF SPRING
6WG1 TC-C(72L) (A) 		1-53351-217-0 01 1 9906-9906 ●
458 BRACKET; LEAF SPRING
6WA1 TC-C(55L),10PE1N(61L),6WG1 TC-C(72L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53351-217-0 01 1 9906- ● ●
458 BRACKET; LEAF SPRING
6WG1 TC-N(71L) (C) 		1-53352-152-0 01 1 9707-9905 ●
458 BRACKET; LEAF SPRING
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) (C) 		1-53352-152-0 01 1 9906-9906 ● ●
458 BRACKET; LEAF SPRING
6WG1 TC-C(72L) (C) 		1-53352-152-0 01 1 9906-9906 ●
458 BRACKET; LEAF SPRING
6WA1 TC-C(55L),10PE1N(61L),6WG1 TC-C(72L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (C) 		1-53352-152-0 01 1 9906- ● ●
466 BRACKET; BOOSTER
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) 		1-44515-073-0 01 1 9906-9906 ● ●
466 BRACKET; BOOSTER
6WA1 TC-C(55L),10PE1N(61L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> 		1-44515-073-0 01 1 9906-0003 ● ●
466 BRACKET; BOOSTER
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> 		1-44515-073-0 01 1 0004- ● ●
466 BRACKET; BOOSTER
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> MIXER TRUCK<RA2> 		1-44515-073-0 01 1 0004- ●
466 BRACKET; BOOSTER
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> 		1-44515-073-0 01 1 0004- ●
çizim 6798
26 25 46 25 26 39 458 25 46 34 466 41 19 24 11 41 46 11 21 182 21 25 25 12 46 12 13 13 26 11 25 11 26 458 2 23 25 39 25 25 46 26 181 24 6 16 439 39 458 52 458 39 458 52 458
BalonParca AdiParca NoAdetTipApplied Date A B
2 MEMBER; CROSS,1ST 1-53181-526-4 01 1 9606- ● ●
6 WASHER; LK,1ST C/MBR
EXC. REINFORCEMENT BUMPER<VG7> ID=16.2 		9-09150-616-0 02 1 9606-9905 ● ●
6 WASHER; LK,1ST C/MBR
EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> ID=16.2 		9-09150-616-0 02 1 9906- ● ●
11 BRACKET; ENG MTG
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> MIXER TRUCK<RA2> (E) 		1-53219-789-1 01 1 9703-9905 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) (E) 		1-53219-789-1 01 1 9906-9906 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) MIXER TRUCK<RA2> (E) 		1-53219-789-1 01 1 9906-0003 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> MIXER TRUCK<RA2> (E) 		1-53219-789-1 01 1 0004- ●
11 BRACKET; ENG MTG
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> MIXER TRUCK<RA2> (E) 		1-53219-788-1 01 1 9703-9905 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) (E) 		1-53219-788-1 01 1 9906-9906 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) MIXER TRUCK<RA2> (E) 		1-53219-788-1 01 1 9906-0003 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> MIXER TRUCK<RA2> (E) 		1-53219-788-1 01 1 0004- ●
11 BRACKET; ENG MTG
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> (E) 		1-53219-742-0 01 1 9610-9702 ● ●
11 BRACKET; ENG MTG
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> EXC. MIXER TRUCK<RA2> (E) 		1-53219-742-0 01 1 9703-9905 ●
11 BRACKET; ENG MTG
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> (E) 		1-53219-742-0 01 1 9703-9905 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> (E) 		1-53219-742-0 01 1 9906-9906 ● ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) (E) 		1-53219-742-0 01 1 9906-9906 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. MIXER TRUCK<RA2> (E) 		1-53219-742-0 01 1 9906-0003 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) (E) 		1-53219-742-0 01 1 9906-0003 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. MIXER TRUCK<RA2> (E) 		1-53219-742-0 01 1 0004- ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> (E) 		1-53219-742-0 01 1 0004- ●
11 BRACKET; ENG MTG
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> (E) 		1-53219-741-0 01 1 9610-9702 ● ●
11 BRACKET; ENG MTG
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> EXC. MIXER TRUCK<RA2> (E) 		1-53219-741-0 01 1 9703-9905 ●
11 BRACKET; ENG MTG
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> (E) 		1-53219-741-0 01 1 9703-9905 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> (E) 		1-53219-741-0 01 1 9906-9906 ● ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) (E) 		1-53219-741-0 01 1 9906-9906 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. MIXER TRUCK<RA2> (E) 		1-53219-741-0 01 1 9906-0003 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) (E) 		1-53219-741-0 01 1 9906-0003 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. MIXER TRUCK<RA2> (E) 		1-53219-741-0 01 1 0004- ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> (E) 		1-53219-741-0 01 1 0004- ●
11 BRACKET; ENG MTG
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53219-583-0 01 1 9606-9905 ● ●
11 BRACKET; ENG MTG
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53219-583-0 01 1 9906-9906 ● ●
11 BRACKET; ENG MTG
10PE1N(61L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53219-583-0 01 1 9906-0003 ● ●
11 BRACKET; ENG MTG
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53219-583-0 01 1 0004- ● ●
11 BRACKET; ENG MTG
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53219-582-0 01 1 9606-9905 ● ●
11 BRACKET; ENG MTG
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53219-582-0 01 1 9906-9906 ● ●
11 BRACKET; ENG MTG
10PE1N(61L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53219-582-0 01 1 9906-0003 ● ●
11 BRACKET; ENG MTG
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53219-582-0 01 1 0004- ● ●
11 BRACKET; ENG MTG
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (D) 		1-53219-728-1 01 1 9606-9905 ● ●
11 BRACKET; ENG MTG
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (D) 		1-53219-728-1 01 1 9906-9906 ● ●
11 BRACKET; ENG MTG
10PE1N(61L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (D) 		1-53219-728-1 01 1 9906-0003 ● ●
11 BRACKET; ENG MTG
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (D) 		1-53219-728-1 01 1 0004- ● ●
11 BRACKET; ENG MTG
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (D) 		1-53219-727-1 01 1 9606-9905 ● ●
11 BRACKET; ENG MTG
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (D) 		1-53219-727-1 01 1 9906-9906 ● ●
11 BRACKET; ENG MTG
10PE1N(61L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (D) 		1-53219-727-1 01 1 9906-0003 ● ●
11 BRACKET; ENG MTG
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (D) 		1-53219-727-1 01 1 0004- ● ●
11 BRACKET; ENG MTG
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> FRAME ENG MTG SEPARATE TYPE<SGM> (D) 		1-53219-730-1 01 1 9606-9905 ●
11 BRACKET; ENG MTG
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> FRAME ENG MTG SEPARATE TYPE<SGM> (D) 		1-53219-729-1 01 1 9606-9905 ●
11 BRACKET; ENG MTG
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53219-472-1 01 1 9606-9609 ●
11 BRACKET; ENG MTG
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53219-472-1 01 1 9610-9706 ● ●
11 BRACKET; ENG MTG
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53219-472-1 01 1 9610-9706 ●
11 BRACKET; ENG MTG
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53219-472-1 01 1 9707-9905 ●
11 BRACKET; ENG MTG
6WA1 TC-S(56L),6WG1 TC-N(71L) (B) 		1-53219-472-1 01 1 9707-9905 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) (B) 		1-53219-472-1 01 1 9906-9906 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (B) 		1-53219-472-1 01 1 9906-9906 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) (B) 		1-53219-472-1 01 1 9906- ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L),6WA1 TC-S(56L) (B) 		1-53219-472-1 01 1 9906- ●
11 BRACKET; ENG MTG
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (C) 		1-53219-577-2 01 1 9606-9706 ●
11 BRACKET; ENG MTG
6WA1 TC-S(56L),6WG1 TC-N(71L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (C) 		1-53219-577-2 01 1 9707-9905 ●
11 BRACKET; ENG MTG
6WA1 TC-S(56L),6WG1 TC-C(72L) (C) 		1-53219-577-2 01 1 9906-9906 ●
11 BRACKET; ENG MTG
6WA1 TC-S(56L) (C) 		1-53219-577-2 01 1 9906-0003 ●
11 BRACKET; ENG MTG
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> (C) 		1-53219-577-2 01 1 0004- ●
11 BRACKET; ENG MTG
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53219-471-0 01 1 9606-9609 ●
11 BRACKET; ENG MTG
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53219-471-0 01 1 9610-9706 ● ●
11 BRACKET; ENG MTG
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53219-471-0 01 1 9610-9706 ●
11 BRACKET; ENG MTG
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53219-471-0 01 1 9707-9905 ●
11 BRACKET; ENG MTG
6WA1 TC-S(56L),6WG1 TC-N(71L) (B) 		1-53219-471-0 01 1 9707-9905 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) (B) 		1-53219-471-0 01 1 9906-9906 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (B) 		1-53219-471-0 01 1 9906-9906 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) (B) 		1-53219-471-0 01 1 9906- ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L),6WA1 TC-S(56L) (B) 		1-53219-471-0 01 1 9906- ●
11 BRACKET; ENG MTG
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (C) 		1-53219-576-2 01 1 9606-9706 ●
11 BRACKET; ENG MTG
6WA1 TC-S(56L),6WG1 TC-N(71L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (C) 		1-53219-576-2 01 1 9707-9905 ●
11 BRACKET; ENG MTG
6WA1 TC-S(56L),6WG1 TC-C(72L) (C) 		1-53219-576-2 01 1 9906-9906 ●
11 BRACKET; ENG MTG
6WA1 TC-S(56L) (C) 		1-53219-576-2 01 1 9906-0003 ●
11 BRACKET; ENG MTG
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> (C) 		1-53219-576-2 01 1 0004- ●
11 BRACKET; ENG MTG
6WG1 TC-C(72L) (B) 		1-53219-778-0 01 1 9906-0003 ●
11 BRACKET; ENG MTG
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53219-778-1 01 1 0004- ●
11 BRACKET; ENG MTG
6WG1 TC-C(72L) (C) 		1-53219-780-1 01 1 9906-9907 ●
11 BRACKET; ENG MTG
6WG1 TC-C(72L) (C) 		1-53219-942-0 01 1 9908-0003 ●
11 BRACKET; ENG MTG
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> (C) 		1-53219-942-1 01 1 0004- ●
11 BRACKET; ENG MTG
6WG1 TC-C(72L) (B) 		1-53219-777-0 01 1 9906-0003 ●
11 BRACKET; ENG MTG
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53219-777-1 01 1 0004- ●
11 BRACKET; ENG MTG
6WG1 TC-C(72L) (C) 		1-53219-779-2 01 1 9906-9907 ●
11 BRACKET; ENG MTG
6WG1 TC-C(72L) (C) 		1-53219-941-0 01 1 9908-0003 ●
11 BRACKET; ENG MTG
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> (C) 		1-53219-941-0 01 1 0004- ●
12 WASHER; PL,BRKT,ENG MTG
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 01 1 9606-9609 ● ●
12 WASHER; PL,BRKT,ENG MTG
FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 01 1 9610-9905 ● ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) ID=15 		9-09651-069-0 02 1 9906-9906 ● ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-S(56L),6WG1 TC-C(72L) ID=15 		9-09651-069-0 02 1 9906-9906 ●
12 WASHER; PL,BRKT,ENG MTG
10PE1N(61L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,FRAME ENG MTGSEPARATE TYPE<SGM> ID=15 		9-09651-069-0 02 1 9906-9912 ● ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-C(55L) MIXER TRUCK<RA2> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 02 1 9906-9912 ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-S(56L),6WG1 TC-C(72L) ID=15 		9-09651-069-0 02 1 9906-9912 ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-C(55L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 02 1 9906-9912 ●
12 WASHER; PL,BRKT,ENG MTG
10PE1N(61L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=15 		9-09651-069-0 01 1 0001-0003 ● ●
12 WASHER; PL,BRKT,ENG MTG
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=15 		9-09651-069-0 01 1 0004- ● ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 02 1 9606-9706 ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-S(56L),6WG1 TC-N(71L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 02 1 9707-9905 ●
12 WASHER; PL,BRKT,ENG MTG
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=15 		9-09651-069-0 01 1 9906-9912 ● ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 01 1 9906-9912 ● ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-C(55L) ID=15 		9-09651-069-0 02 1 0001- ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-C(55L),6WA1 TC-S(56L) ID=15 		9-09651-069-0 02 1 0001- ●
12 WASHER; PL,BRKT,ENG MTG
6WG1 TC-C(72L) ID=15 		9-09651-069-0 04 1 0001-0003 ●
12 WASHER; PL,BRKT,ENG MTG
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 04 1 0004- ●
13 BOLT; BRKT,ENG MTG
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> M14X40 		9-92061-440-0 01 1 9606-9609 ● ●
13 BOLT; BRKT,ENG MTG
FRAME EQUIPMENT HEAVY DUTY<F03> M14X40 		9-92061-440-0 01 1 9610-9905 ● ●
13 BOLT; BRKT,ENG MTG
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) M14X40 		9-92061-440-0 02 1 9906-9906 ● ●
13 BOLT; BRKT,ENG MTG
6WA1 TC-S(56L),6WG1 TC-C(72L) M14X40 		9-92061-440-0 02 1 9906-9906 ●
13 BOLT; BRKT,ENG MTG
10PE1N(61L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,FRAME ENG MTGSEPARATE TYPE<SGM> M14X40 		9-92061-440-0 02 1 9906-9912 ● ●
13 BOLT; BRKT,ENG MTG
6WA1 TC-C(55L) MIXER TRUCK<RA2> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14X40 		9-92061-440-0 02 1 9906-9912 ●
13 BOLT; BRKT,ENG MTG
6WA1 TC-S(56L),6WG1 TC-C(72L) M14X40 		9-92061-440-0 02 1 9906-9912 ●
13 BOLT; BRKT,ENG MTG
6WA1 TC-C(55L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14X40 		9-92061-440-0 02 1 9906-9912 ●
13 BOLT; BRKT,ENG MTG
10PE1N(61L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X40 		9-92061-440-0 01 1 0001-0003 ● ●
13 BOLT; BRKT,ENG MTG
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X40 		9-92061-440-0 01 1 0004- ● ●
13 BOLT; BRKT,ENG MTG
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14X40 		9-92061-440-0 02 1 9606-9706 ●
13 BOLT; BRKT,ENG MTG
6WA1 TC-S(56L),6WG1 TC-N(71L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14X40 		9-92061-440-0 02 1 9707-9905 ●
13 BOLT; BRKT,ENG MTG
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X40 		9-92061-440-0 01 1 9906-9912 ● ●
13 BOLT; BRKT,ENG MTG
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> M14X40 		9-92061-440-0 01 1 9906-9912 ● ●
13 BOLT; BRKT,ENG MTG
6WA1 TC-C(55L) M14X40 		9-92061-440-0 02 1 0001- ●
13 BOLT; BRKT,ENG MTG
6WA1 TC-C(55L),6WA1 TC-S(56L) M14X40 		9-92061-440-0 02 1 0001- ●
13 BOLT; BRKT,ENG MTG
6WG1 TC-C(72L) M14X40 		9-92061-440-0 04 1 0001-0003 ●
13 BOLT; BRKT,ENG MTG
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> M14X40 		9-92061-440-0 04 1 0004- ●
16 BOLT; 1ST C/MBR TO S/MBR
EXC. REINFORCEMENT BUMPER<VG7> M16X40 		0-20801-640-0 02 1 9606-9905 ● ●
16 BOLT; 1ST C/MBR TO S/MBR
EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> M16X40 		0-20801-640-0 02 1 9906- ● ●
19 MEMBER; CROSS,2ND
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53174-221-0 01 1 9606-9609 ● ●
19 MEMBER; CROSS,2ND
FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53174-221-0 01 1 9610-9905 ● ●
19 MEMBER; CROSS,2ND
6WA1 TC-C(55L) (A) 		1-53174-221-0 01 1 9906-9906 ● ●
19 MEMBER; CROSS,2ND
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53174-221-0 01 1 9906-9906 ● ●
19 MEMBER; CROSS,2ND
6WA1 TC-C(55L),10PE1N(61L) (A) 		1-53174-221-0 01 1 9906- ● ●
19 MEMBER; CROSS,2ND
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53174-231-1 01 1 9606-9706 ●
19 MEMBER; CROSS,2ND
6WA1 TC-S(56L),6WG1 TC-N(71L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53174-231-1 01 1 9707-9905 ●
19 MEMBER; CROSS,2ND
6WA1 TC-S(56L),6WG1 TC-C(72L) (B) 		1-53174-231-1 01 1 9906- ●
21 GUSSET; 2ND CROSS
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53164-208-0 02 1 9606-9609 ● ●
21 GUSSET; 2ND CROSS
FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53164-208-0 02 1 9610-9905 ● ●
21 GUSSET; 2ND CROSS
6WA1 TC-C(55L) (A) 		1-53164-208-0 02 1 9906-9906 ● ●
21 GUSSET; 2ND CROSS
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53164-208-0 02 1 9906-9906 ● ●
21 GUSSET; 2ND CROSS
6WA1 TC-C(55L),10PE1N(61L) (A) 		1-53164-208-0 02 1 9906- ● ●
21 GUSSET; 2ND CROSS
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53167-287-1 02 1 9606-9609 ● ●
21 GUSSET; 2ND CROSS
FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53167-287-1 02 1 9610-9905 ● ●
21 GUSSET; 2ND CROSS
6WA1 TC-C(55L) (B) 		1-53167-287-1 02 1 9906-9906 ● ●
21 GUSSET; 2ND CROSS
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) 		1-53167-287-1 02 1 9906-9906 ● ●
21 GUSSET; 2ND CROSS
6WA1 TC-C(55L),10PE1N(61L) (B) 		1-53167-287-2 02 1 9906- ● ●
21 GUSSET; 2ND CROSS
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53164-185-0 02 1 9606-9706 ●
21 GUSSET; 2ND CROSS
6WA1 TC-S(56L),6WG1 TC-N(71L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53164-185-0 02 1 9707-9905 ●
21 GUSSET; 2ND CROSS
6WA1 TC-S(56L),6WG1 TC-C(72L) (A) 		1-53164-185-0 02 1 9906- ●
23 BOLT; BRKT,SPR
M14X40 		9-92061-440-0 06 1 9606-9706 ● ●
23 BOLT; BRKT,SPR
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X40 		9-92061-440-0 06 1 9707-9905 ● ●
23 BOLT; BRKT,SPR
6WA1 TC-S(56L) FRAME EQUIPMENT HEAVY DUTY<F03> M14X40 		9-92061-440-0 06 1 9707-9905 ●
23 BOLT; BRKT,SPR
6WA1 TC-S(56L) M14X40 		9-92061-440-0 06 1 9707-9905 ●
23 BOLT; BRKT,SPR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X40 		9-92061-440-0 06 1 9906-9906 ● ●
23 BOLT; BRKT,SPR
6WA1 TC-C(55L) M14X40 		9-92061-440-0 06 1 9906-9906 ●
23 BOLT; BRKT,SPR
6WA1 TC-C(55L),6WA1 TC-S(56L) M14X40 		9-92061-440-0 06 1 9906-9906 ●
23 BOLT; BRKT,SPR
6WA1 TC-C(55L),10PE1N(61L) M14X40 		9-92061-440-0 06 1 9906- ●
23 BOLT; BRKT,SPR
6WA1 TC-C(55L),6WA1 TC-S(56L),10PE1N(61L) M14X40 		9-92061-440-0 06 1 9906- ●
23 BOLT; BRKT,SPR
M16X50 		9-92061-650-0 04 1 9606-9706 ● ●
23 BOLT; BRKT,SPR
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M16X50 		9-92061-650-0 04 1 9707-9905 ● ●
23 BOLT; BRKT,SPR
6WA1 TC-S(56L) FRAME EQUIPMENT HEAVY DUTY<F03> M16X50 		9-92061-650-0 04 1 9707-9905 ●
23 BOLT; BRKT,SPR
6WA1 TC-S(56L) M16X50 		9-92061-650-0 04 1 9707-9905 ●
23 BOLT; BRKT,SPR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M16X50 		9-92061-650-0 04 1 9906- ● ●
23 BOLT; BRKT,SPR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> M16X50 		9-92061-650-0 04 1 9906- ● ●
23 BOLT; BRKT,SPR
6WA1 TC-S(56L) M16X50 		9-92061-650-0 04 1 9906- ●
23 BOLT; BRKT,SPR
6WG1 TC-N(71L) M14X40 		9-92061-440-0 10 1 9707-9905 ●
23 BOLT; BRKT,SPR
6WG1 TC-C(72L) M14X40 		9-92061-440-0 10 1 9906-0003 ●
23 BOLT; BRKT,SPR
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> M14X40 		9-92061-440-0 10 1 0004- ●
23 BOLT; BRKT,SPR
6WG1 TC-N(71L) M14X50 		9-92061-450-0 08 1 9707-9905 ●
23 BOLT; BRKT,SPR
6WG1 TC-C(72L) M14X50 		9-92061-450-0 08 1 9906-0003 ●
23 BOLT; BRKT,SPR
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> M14X50 		9-92061-450-0 08 1 0004- ●
23 BOLT; BRKT,SPR
6WG1 TC-N(71L) M16X50 		9-92061-650-0 12 1 9707-9905 ●
23 BOLT; BRKT,SPR
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) M16X50 		9-92061-650-0 12 1 9906-9906 ● ●
23 BOLT; BRKT,SPR
6WG1 TC-C(72L) M16X50 		9-92061-650-0 12 1 9906-9906 ●
23 BOLT; BRKT,SPR
6WA1 TC-C(55L),10PE1N(61L),6WG1 TC-C(72L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M16X50 		9-92061-650-0 12 1 9906- ● ●
24 BRACKET; FRT SPR,FRT 1-53351-220-0 01 1 9606-0003 ● ●
24 BRACKET; FRT SPR,FRT 1-53351-220-0 01 1 0004- ● ●
24 BRACKET; FRT SPR,FRT 1-53351-219-0 01 1 9606-0003 ● ●
24 BRACKET; FRT SPR,FRT 1-53351-219-0 01 1 0004- ● ●
25 WASHER; PL,BRKT
10PE1N(61L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=16.2 		1-09503-223-0 22 1 0001-0003 ● ●
25 WASHER; PL,BRKT
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=16.2 		1-09503-223-0 22 1 0004- ● ●
25 WASHER; PL,BRKT
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> ID=16.2 		1-09503-223-0 22 1 9606-9905 ● ●
25 WASHER; PL,BRKT
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=16.2 		1-09503-223-0 22 1 9906-9912 ● ●
25 WASHER; PL,BRKT
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=15 		9-09651-069-0 46 1 0001- ● ●
25 WASHER; PL,BRKT
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=15 		9-09651-069-0 46 1 9606-9609 ● ●
25 WASHER; PL,BRKT
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=15 		9-09651-069-0 46 1 9610-9905 ● ●
25 WASHER; PL,BRKT
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 46 1 9610-9905 ● ●
25 WASHER; PL,BRKT
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=15 		9-09651-069-0 46 1 9906-9912 ● ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 46 1 9906-9912 ● ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 48 1 0001-0003 ● ●
25 WASHER; PL,BRKT
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,LIGHT DUTY PACKAGE TRUCK(Y21) ID=15 		9-09651-069-0 48 1 0001-0003 ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 48 1 0004- ● ●
25 WASHER; PL,BRKT
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 48 1 0004- ●
25 WASHER; PL,BRKT
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> FRAME ENG MTG SEPARATE TYPE<SGM> ID=15 		9-09651-069-0 44 1 9606-9905 ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) ID=15 		9-09651-069-0 64 1 9906-9906 ● ●
25 WASHER; PL,BRKT
6WG1 TC-C(72L) ID=15 		9-09651-069-0 64 1 9906-9906 ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L),10PE1N(61L),6WG1 TC-C(72L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 64 1 9906-9912 ● ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L) MIXER TRUCK<RA2> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 64 1 0001-0003 ●
25 WASHER; PL,BRKT
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,LIGHT DUTY PACKAGE TRUCK(Y21) ID=15 		9-09651-069-0 64 1 0001-0003 ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 64 1 0001-0003 ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> MIXER TRUCK<RA2> ID=15 		9-09651-069-0 64 1 0004- ●
25 WASHER; PL,BRKT
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 64 1 0004- ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> ID=15 		9-09651-069-0 64 1 0004- ●
25 WASHER; PL,BRKT
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=16.2 		1-09503-223-0 24 1 9606-9609 ●
25 WASHER; PL,BRKT
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> ID=16.2 		1-09503-223-0 24 1 9610-9706 ● ●
25 WASHER; PL,BRKT
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=16.2 		1-09503-223-0 24 1 9610-9706 ●
25 WASHER; PL,BRKT
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> ID=16.2 		1-09503-223-0 24 1 9707-9905 ●
25 WASHER; PL,BRKT
6WA1 TC-S(56L),6WG1 TC-N(71L) ID=16.2 		1-09503-223-0 24 1 9707-9905 ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L) ID=16.2 		1-09503-223-0 24 1 9906-9906 ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) ID=16.2 		1-09503-223-0 24 1 9906-9906 ●
25 WASHER; PL,BRKT
10PE1N(61L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,FRAME ENG MTGSEPARATE TYPE<SGM> ID=16.2 		1-09503-223-0 24 1 9906-9912 ● ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L) ID=16.2 		1-09503-223-0 24 1 9906-9912 ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) ID=16.2 		1-09503-223-0 24 1 9906-9912 ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L) MIXER TRUCK<RA2> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=16.2 		1-09503-223-0 24 1 0001-0003 ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> ID=16.2 		1-09503-223-0 24 1 0001-0003 ●
25 WASHER; PL,BRKT
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,LIGHT DUTY PACKAGE TRUCK(Y21) ID=16.2 		1-09503-223-0 24 1 0001-0003 ●
25 WASHER; PL,BRKT
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,LIGHT DUTY PACKAGE TRUCK(Y21) ID=16.2 		1-09503-223-0 24 1 0001-0003 ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L) ID=16.2 		1-09503-223-0 24 1 0001-0003 ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> ID=16.2 		1-09503-223-0 24 1 0004- ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> MIXER TRUCK<RA2> ID=16.2 		1-09503-223-0 24 1 0004- ●
25 WASHER; PL,BRKT
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> ID=16.2 		1-09503-223-0 24 1 0004- ●
25 WASHER; PL,BRKT
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> ID=16.2 		1-09503-223-0 24 1 0004- ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> ID=16.2 		1-09503-223-0 24 1 0004- ●
25 WASHER; PL,BRKT
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 48 1 9606-9706 ●
25 WASHER; PL,BRKT
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 48 1 9707-9905 ●
25 WASHER; PL,BRKT
6WA1 TC-S(56L) ID=15 		9-09651-069-0 48 1 9906-9912 ●
25 WASHER; PL,BRKT
10PE1N(61L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,FRAME ENG MTGSEPARATE TYPE<SGM> ID=15 		9-09651-069-0 62 1 0001-0003 ● ●
25 WASHER; PL,BRKT
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=15 		9-09651-069-0 62 1 0004- ● ●
25 WASHER; PL,BRKT
6WG1 TC-N(71L) ID=15 		9-09651-069-0 64 1 9707-9905 ●
26 NUT; BRKT,SPR
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> M14 		9-99110-514-0 17 1 9610-9905 ● ●
26 NUT; BRKT,SPR
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> M16 		9-99110-516-0 10 1 9606-9905 ● ●
26 NUT; BRKT,SPR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M16 		9-99110-516-0 10 1 9906-9912 ● ●
26 NUT; BRKT,SPR
10PE1N(61L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M16 		9-99110-516-0 10 1 0001-0003 ● ●
26 NUT; BRKT,SPR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M16 		9-99110-516-0 10 1 0004- ● ●
26 NUT; BRKT,SPR
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14 		9-99110-514-0 18 1 9606-9905 ● ●
26 NUT; BRKT,SPR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14 		9-99110-514-0 18 1 9906-9912 ● ●
26 NUT; BRKT,SPR
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> FRAME ENG MTG SEPARATE TYPE<SGM> M14 		9-99110-514-0 16 1 9606-9905 ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) M14 		9-99110-514-0 20 1 9906-9906 ● ●
26 NUT; BRKT,SPR
6WA1 TC-S(56L),6WG1 TC-C(72L) M14 		9-99110-514-0 20 1 9906-9906 ●
26 NUT; BRKT,SPR
10PE1N(61L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,FRAME ENG MTGSEPARATE TYPE<SGM> M14 		9-99110-514-0 20 1 9906-9912 ● ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) MIXER TRUCK<RA2> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14 		9-99110-514-0 20 1 9906-9912 ●
26 NUT; BRKT,SPR
6WA1 TC-S(56L),6WG1 TC-C(72L) M14 		9-99110-514-0 20 1 9906-9912 ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14 		9-99110-514-0 20 1 9906-9912 ●
26 NUT; BRKT,SPR
10PE1N(61L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14 		9-99110-514-0 18 1 0001-0003 ● ●
26 NUT; BRKT,SPR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14 		9-99110-514-0 18 1 0004- ● ●
26 NUT; BRKT,SPR
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14 		9-99110-514-0 20 1 9606-9706 ●
26 NUT; BRKT,SPR
6WA1 TC-S(56L),6WG1 TC-N(71L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14 		9-99110-514-0 20 1 9707-9905 ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> M14 		9-99110-514-0 17 1 9906-9912 ● ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) MIXER TRUCK<RA2> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14 		9-99110-514-0 20 1 0001-0003 ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> M14 		9-99110-514-0 20 1 0001-0003 ●
26 NUT; BRKT,SPR
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,LIGHT DUTY PACKAGE TRUCK(Y21) M14 		9-99110-514-0 20 1 0001-0003 ●
26 NUT; BRKT,SPR
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,LIGHT DUTY PACKAGE TRUCK(Y21) M14 		9-99110-514-0 20 1 0001-0003 ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) M14 		9-99110-514-0 20 1 0001-0003 ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> M14 		9-99110-514-0 20 1 0004- ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> MIXER TRUCK<RA2> M14 		9-99110-514-0 20 1 0004- ●
26 NUT; BRKT,SPR
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> M14 		9-99110-514-0 20 1 0004- ●
26 NUT; BRKT,SPR
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> M14 		9-99110-514-0 20 1 0004- ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> M14 		9-99110-514-0 20 1 0004- ●
26 NUT; BRKT,SPR
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M16 		9-99110-516-0 12 1 9606-9609 ●
26 NUT; BRKT,SPR
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> M16 		9-99110-516-0 12 1 9610-9706 ● ●
26 NUT; BRKT,SPR
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M16 		9-99110-516-0 12 1 9610-9706 ●
26 NUT; BRKT,SPR
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> M16 		9-99110-516-0 12 1 9707-9905 ●
26 NUT; BRKT,SPR
6WA1 TC-S(56L),6WG1 TC-N(71L) M16 		9-99110-516-0 12 1 9707-9905 ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) M16 		9-99110-516-0 12 1 9906-9906 ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) M16 		9-99110-516-0 12 1 9906-9906 ●
26 NUT; BRKT,SPR
10PE1N(61L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,FRAME ENG MTGSEPARATE TYPE<SGM> M16 		9-99110-516-0 12 1 9906-9912 ● ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) M16 		9-99110-516-0 12 1 9906-9912 ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) M16 		9-99110-516-0 12 1 9906-9912 ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) MIXER TRUCK<RA2> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M16 		9-99110-516-0 12 1 0001-0003 ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> M16 		9-99110-516-0 12 1 0001-0003 ●
26 NUT; BRKT,SPR
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,LIGHT DUTY PACKAGE TRUCK(Y21) M16 		9-99110-516-0 12 1 0001-0003 ●
26 NUT; BRKT,SPR
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,LIGHT DUTY PACKAGE TRUCK(Y21) M16 		9-99110-516-0 12 1 0001-0003 ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) M16 		9-99110-516-0 12 1 0001-0003 ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> M16 		9-99110-516-0 12 1 0004- ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> MIXER TRUCK<RA2> M16 		9-99110-516-0 12 1 0004- ●
26 NUT; BRKT,SPR
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> M16 		9-99110-516-0 12 1 0004- ●
26 NUT; BRKT,SPR
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> M16 		9-99110-516-0 12 1 0004- ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> M16 		9-99110-516-0 12 1 0004- ●
34 MEMBER; CROSS,3RD
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53181-644-1 01 1 9606-9609 ● ●
34 MEMBER; CROSS,3RD
FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53181-644-1 01 1 9610-9905 ● ●
34 MEMBER; CROSS,3RD
6WA1 TC-C(55L) (A) 		1-53181-644-1 01 1 9906-9906 ● ●
34 MEMBER; CROSS,3RD
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53181-644-1 01 1 9906-9906 ● ●
34 MEMBER; CROSS,3RD
6WA1 TC-C(55L),10PE1N(61L) (A) 		1-53181-644-1 01 1 9906- ● ●
34 MEMBER; CROSS,3RD
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53181-437-1 01 1 9606-9706 ●
34 MEMBER; CROSS,3RD
6WA1 TC-S(56L),6WG1 TC-N(71L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53181-437-1 01 1 9707-9905 ●
34 MEMBER; CROSS,3RD
6WA1 TC-S(56L),6WG1 TC-C(72L) (B) 		1-53181-437-1 01 1 9906- ●
39 BRACKET; FRT SPR,RR
(B) 		1-53352-067-3 02 1 9606-9706 ● ●
39 BRACKET; FRT SPR,RR
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) 		1-53352-067-3 02 1 9707-9905 ● ●
39 BRACKET; FRT SPR,RR
6WA1 TC-S(56L) FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53352-067-3 02 1 9707-9905 ●
39 BRACKET; FRT SPR,RR
6WA1 TC-S(56L) (B) 		1-53352-067-3 02 1 9707-9905 ●
39 BRACKET; FRT SPR,RR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) 		1-53352-067-3 02 1 9906- ● ●
39 BRACKET; FRT SPR,RR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53352-067-3 02 1 9906- ● ●
39 BRACKET; FRT SPR,RR
6WA1 TC-S(56L) (B) 		1-53352-067-3 02 1 9906- ●
39 BRACKET; FRT SPR,RR
(A) 		1-53351-218-0 01 1 9606-9706 ● ●
39 BRACKET; FRT SPR,RR
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53351-218-0 01 1 9707-9905 ● ●
39 BRACKET; FRT SPR,RR
6WA1 TC-S(56L) FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53351-218-0 01 1 9707-9905 ●
39 BRACKET; FRT SPR,RR
6WA1 TC-S(56L) (A) 		1-53351-218-0 01 1 9707-9905 ●
39 BRACKET; FRT SPR,RR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53351-218-0 01 1 9906- ● ●
39 BRACKET; FRT SPR,RR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53351-218-0 01 1 9906- ● ●
39 BRACKET; FRT SPR,RR
6WA1 TC-S(56L) (A) 		1-53351-218-0 01 1 9906- ●
39 BRACKET; FRT SPR,RR
(A) 		1-53351-217-0 01 1 9606-9706 ● ●
39 BRACKET; FRT SPR,RR
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53351-217-0 01 1 9707-9905 ● ●
39 BRACKET; FRT SPR,RR
6WA1 TC-S(56L) FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53351-217-0 01 1 9707-9905 ●
39 BRACKET; FRT SPR,RR
6WA1 TC-S(56L) (A) 		1-53351-217-0 01 1 9707-9905 ●
39 BRACKET; FRT SPR,RR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53351-217-0 01 1 9906- ● ●
39 BRACKET; FRT SPR,RR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53351-217-0 01 1 9906- ● ●
39 BRACKET; FRT SPR,RR
6WA1 TC-S(56L) (A) 		1-53351-217-0 01 1 9906- ●
41 BRACKET; CENTER BRG,FRAME SIDE
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> L=295 		1-53271-304-1 02 1 9610-9905 ●
41 BRACKET; CENTER BRG,FRAME SIDE
6WA1 TC-C(55L) L=295 		1-53271-304-1 02 1 9906-9906 ●
41 BRACKET; CENTER BRG,FRAME SIDE
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> L=295 		1-53271-304-1 02 1 9906- ●
41 BRACKET; CENTER BRG,FRAME SIDE
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> L=310 		1-53271-305-1 02 1 9606-9706 ●
41 BRACKET; CENTER BRG,FRAME SIDE
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> L=310 		1-53271-305-1 02 1 9606-9706 ●
41 BRACKET; CENTER BRG,FRAME SIDE
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> L=310 		1-53271-305-1 02 1 9707-9905 ●
41 BRACKET; CENTER BRG,FRAME SIDE
6WA1 TC-S(56L),6WG1 TC-N(71L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> L=310 		1-53271-305-1 02 1 9707-9905 ●
41 BRACKET; CENTER BRG,FRAME SIDE
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> L=310 		1-53271-305-1 02 1 9906-9906 ●
41 BRACKET; CENTER BRG,FRAME SIDE
6WA1 TC-S(56L) L=310 		1-53271-305-1 02 1 9906-9906 ●
41 BRACKET; CENTER BRG,FRAME SIDE
10PE1N(61L) L=310 		1-53271-305-1 02 1 9906-0003 ●
41 BRACKET; CENTER BRG,FRAME SIDE
6WA1 TC-S(56L) L=310 		1-53271-305-1 02 1 9906-0003 ●
41 BRACKET; CENTER BRG,FRAME SIDE
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> L=310 		1-53271-305-1 02 1 0004- ●
41 BRACKET; CENTER BRG,FRAME SIDE
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> L=310 		1-53271-305-1 02 1 0004- ●
41 BRACKET; CENTER BRG,FRAME SIDE
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> L=305 		1-53271-262-2 02 1 9606-9905 ●
41 BRACKET; CENTER BRG,FRAME SIDE
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> L=305 		1-53271-262-2 02 1 9906-9906 ●
41 BRACKET; CENTER BRG,FRAME SIDE
6WG1 TC-C(72L) L=305 		1-53271-262-2 02 1 9906-9906 ●
41 BRACKET; CENTER BRG,FRAME SIDE
10PE1N(61L),6WG1 TC-C(72L) L=305 		1-53271-262-2 02 1 9906-0003 ●
41 BRACKET; CENTER BRG,FRAME SIDE
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> L=305 		1-53271-262-2 02 1 0004- ●
41 BRACKET; CENTER BRG,FRAME SIDE
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> L=305 		1-53271-262-2 02 1 0004- ●
41 BRACKET; CENTER BRG,FRAME SIDE
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> L=320 		1-53271-296-1 02 1 9606-9609 ●
41 BRACKET; CENTER BRG,FRAME SIDE
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> L=320 		1-53271-296-1 02 1 9610-9905 ●
41 BRACKET; CENTER BRG,FRAME SIDE
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> L=320 		1-53271-296-1 02 1 9610-9905 ●
41 BRACKET; CENTER BRG,FRAME SIDE
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> L=320 		1-53271-296-1 02 1 9906-9906 ●
41 BRACKET; CENTER BRG,FRAME SIDE
6WA1 TC-C(55L) L=320 		1-53271-296-1 02 1 9906-9906 ●
41 BRACKET; CENTER BRG,FRAME SIDE
6WA1 TC-C(55L) MIXER TRUCK<RA2> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> L=320 		1-53271-296-1 02 1 9906-0003 ●
41 BRACKET; CENTER BRG,FRAME SIDE
6WA1 TC-C(55L),10PE1N(61L) L=320 		1-53271-296-1 02 1 9906-0003 ●
41 BRACKET; CENTER BRG,FRAME SIDE
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> MIXER TRUCK<RA2> L=320 		1-53271-296-1 02 1 0004- ●
41 BRACKET; CENTER BRG,FRAME SIDE
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> L=320 		1-53271-296-1 02 1 0004- ●
41 BRACKET; CENTER BRG,FRAME SIDE
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> L=320 		1-53271-296-1 02 1 0004- ●
46 BOLT; BRKT FIX
M14X40 		9-92061-440-0 04 1 9606-9706 ● ●
46 BOLT; BRKT FIX
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X40 		9-92061-440-0 04 1 9707-9905 ● ●
46 BOLT; BRKT FIX
6WA1 TC-S(56L) FRAME EQUIPMENT HEAVY DUTY<F03> M14X40 		9-92061-440-0 04 1 9707-9905 ●
46 BOLT; BRKT FIX
6WA1 TC-S(56L) M14X40 		9-92061-440-0 04 1 9707-9905 ●
46 BOLT; BRKT FIX
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X40 		9-92061-440-0 04 1 9906-9906 ● ●
46 BOLT; BRKT FIX
6WA1 TC-C(55L) M14X40 		9-92061-440-0 04 1 9906-9906 ●
46 BOLT; BRKT FIX
6WA1 TC-C(55L),6WA1 TC-S(56L) M14X40 		9-92061-440-0 04 1 9906-9906 ●
46 BOLT; BRKT FIX
6WA1 TC-C(55L),10PE1N(61L) M14X40 		9-92061-440-0 04 1 9906- ●
46 BOLT; BRKT FIX
6WA1 TC-C(55L),6WA1 TC-S(56L),10PE1N(61L) M14X40 		9-92061-440-0 04 1 9906- ●
46 BOLT; BRKT FIX
M14X50 		9-92061-450-0 16 1 9606-9706 ● ●
46 BOLT; BRKT FIX
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X50 		9-92061-450-0 16 1 9707-9905 ● ●
46 BOLT; BRKT FIX
6WA1 TC-S(56L) FRAME EQUIPMENT HEAVY DUTY<F03> M14X50 		9-92061-450-0 16 1 9707-9905 ●
46 BOLT; BRKT FIX
6WA1 TC-S(56L) M14X50 		9-92061-450-0 16 1 9707-9905 ●
46 BOLT; BRKT FIX
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X50 		9-92061-450-0 16 1 9906- ● ●
46 BOLT; BRKT FIX
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> M14X50 		9-92061-450-0 16 1 9906- ● ●
46 BOLT; BRKT FIX
6WA1 TC-S(56L) M14X50 		9-92061-450-0 16 1 9906- ●
46 BOLT; BRKT FIX
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> M12X35,M14X45 L=100 		1-09029-075-0 08 1 9610-9905 ● ●
46 BOLT; BRKT FIX
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> M12X35,M14X45 L=100 		1-09029-075-0 08 1 9906-9912 ● ●
46 BOLT; BRKT FIX
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) M14X50 		9-92061-450-0 21 1 9906-9906 ● ●
46 BOLT; BRKT FIX
6WA1 TC-C(55L),10PE1N(61L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14X50 		9-92061-450-0 21 1 9906-0003 ● ●
46 BOLT; BRKT FIX
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X50 		9-92061-450-0 21 1 0004- ● ●
46 BOLT; BRKT FIX
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> MIXER TRUCK<RA2> M14X50 		9-92061-450-0 21 1 0004- ●
46 BOLT; BRKT FIX
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> M14X50 		9-92061-450-0 21 1 0004- ●
46 BOLT; BRKT FIX
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) M14X60 		9-92061-460-0 04 1 9906-9906 ● ●
46 BOLT; BRKT FIX
6WA1 TC-C(55L),10PE1N(61L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14X60 		9-92061-460-0 04 1 9906-0003 ● ●
46 BOLT; BRKT FIX
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X60 		9-92061-460-0 04 1 0004- ● ●
46 BOLT; BRKT FIX
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> MIXER TRUCK<RA2> M14X60 		9-92061-460-0 04 1 0004- ●
46 BOLT; BRKT FIX
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> M14X60 		9-92061-460-0 04 1 0004- ●
46 BOLT; BRKT FIX
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M16X50 		9-92061-650-0 08 1 9606-9706 ●
46 BOLT; BRKT FIX
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M16X50 		9-92061-650-0 08 1 9707-9905 ●
46 BOLT; BRKT FIX
6WA1 TC-S(56L) M16X50 		9-92061-650-0 08 1 9906-0003 ●
46 BOLT; BRKT FIX
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> M16X50 		9-92061-650-0 08 1 0004- ●
46 BOLT; BRKT FIX
6WG1 TC-N(71L) M14X50 		9-92061-450-0 08 1 9707-9905 ●
46 BOLT; BRKT FIX
6WG1 TC-C(72L) M14X50 		9-92061-450-0 08 1 9906-0003 ●
46 BOLT; BRKT FIX
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> M14X50 		9-92061-450-0 08 1 0004- ●
52 BRACKET; FWD FRT SPRING,RR 1-53352-153-0 01 1 9606-9706 ● ●
52 BRACKET; FWD FRT SPRING,RR
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> 		1-53352-153-0 01 1 9707-9905 ● ●
52 BRACKET; FWD FRT SPRING,RR
6WA1 TC-S(56L) FRAME EQUIPMENT HEAVY DUTY<F03> 		1-53352-153-0 01 1 9707-9905 ●
52 BRACKET; FWD FRT SPRING,RR
6WA1 TC-S(56L) 		1-53352-153-0 01 1 9707-9905 ●
52 BRACKET; FWD FRT SPRING,RR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> 		1-53352-153-0 01 1 9906- ● ●
52 BRACKET; FWD FRT SPRING,RR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> 		1-53352-153-0 01 1 9906- ● ●
52 BRACKET; FWD FRT SPRING,RR
6WA1 TC-S(56L) 		1-53352-153-0 01 1 9906- ●
52 BRACKET; FWD FRT SPRING,RR 1-53352-152-0 01 1 9606-9706 ● ●
52 BRACKET; FWD FRT SPRING,RR
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> 		1-53352-152-0 01 1 9707-9905 ● ●
52 BRACKET; FWD FRT SPRING,RR
6WA1 TC-S(56L) FRAME EQUIPMENT HEAVY DUTY<F03> 		1-53352-152-0 01 1 9707-9905 ●
52 BRACKET; FWD FRT SPRING,RR
6WA1 TC-S(56L) 		1-53352-152-0 01 1 9707-9905 ●
52 BRACKET; FWD FRT SPRING,RR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> 		1-53352-152-0 01 1 9906- ● ●
52 BRACKET; FWD FRT SPRING,RR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> 		1-53352-152-0 01 1 9906- ● ●
52 BRACKET; FWD FRT SPRING,RR
6WA1 TC-S(56L) 		1-53352-152-0 01 1 9906- ●
181 BOLT; S/ABS BRKT TO FRAME
6WG1 TC-N(71L) M14X50 		9-92061-450-0 08 1 9707-9905 ●
181 BOLT; S/ABS BRKT TO FRAME
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) M14X50 		9-92061-450-0 08 1 9906-9906 ● ●
181 BOLT; S/ABS BRKT TO FRAME
6WG1 TC-C(72L) M14X50 		9-92061-450-0 08 1 9906-9906 ●
181 BOLT; S/ABS BRKT TO FRAME
6WA1 TC-C(55L),10PE1N(61L),6WG1 TC-C(72L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14X50 		9-92061-450-0 08 1 9906- ● ●
182 NUT; S/ABS BRKT TO FRAME
6WG1 TC-N(71L) M14 		9-99110-514-0 08 1 9707-9905 ●
182 NUT; S/ABS BRKT TO FRAME
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) M14 		9-99110-514-0 08 1 9906-9906 ● ●
182 NUT; S/ABS BRKT TO FRAME
6WG1 TC-C(72L) M14 		9-99110-514-0 08 1 9906-9906 ●
182 NUT; S/ABS BRKT TO FRAME
6WA1 TC-C(55L),10PE1N(61L),6WG1 TC-C(72L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14 		9-99110-514-0 08 1 9906- ● ●
439 STUD; BRKT,SPR
M12X35,M14X45 L=100 		1-09029-075-0 02 1 9606- ● ●
458 BRACKET; LEAF SPRING
6WG1 TC-N(71L) (B) 		1-53352-067-3 02 1 9707-9905 ●
458 BRACKET; LEAF SPRING
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) (B) 		1-53352-067-3 02 1 9906-9906 ● ●
458 BRACKET; LEAF SPRING
6WG1 TC-C(72L) (B) 		1-53352-067-3 02 1 9906-9906 ●
458 BRACKET; LEAF SPRING
6WA1 TC-C(55L),10PE1N(61L),6WG1 TC-C(72L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53352-067-3 02 1 9906- ● ●
458 BRACKET; LEAF SPRING
6WG1 TC-N(71L) (A) 		1-53351-218-0 01 1 9707-9905 ●
458 BRACKET; LEAF SPRING
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) (A) 		1-53351-218-0 01 1 9906-9906 ● ●
458 BRACKET; LEAF SPRING
6WG1 TC-C(72L) (A) 		1-53351-218-0 01 1 9906-9906 ●
458 BRACKET; LEAF SPRING
6WA1 TC-C(55L),10PE1N(61L),6WG1 TC-C(72L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53351-218-0 01 1 9906- ● ●
458 BRACKET; LEAF SPRING
6WG1 TC-N(71L) (C) 		1-53352-153-0 01 1 9707-9905 ●
458 BRACKET; LEAF SPRING
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) (C) 		1-53352-153-0 01 1 9906-9906 ● ●
458 BRACKET; LEAF SPRING
6WG1 TC-C(72L) (C) 		1-53352-153-0 01 1 9906-9906 ●
458 BRACKET; LEAF SPRING
6WA1 TC-C(55L),10PE1N(61L),6WG1 TC-C(72L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (C) 		1-53352-153-0 01 1 9906- ● ●
458 BRACKET; LEAF SPRING
6WG1 TC-N(71L) (A) 		1-53351-217-0 01 1 9707-9905 ●
458 BRACKET; LEAF SPRING
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) (A) 		1-53351-217-0 01 1 9906-9906 ● ●
458 BRACKET; LEAF SPRING
6WG1 TC-C(72L) (A) 		1-53351-217-0 01 1 9906-9906 ●
458 BRACKET; LEAF SPRING
6WA1 TC-C(55L),10PE1N(61L),6WG1 TC-C(72L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53351-217-0 01 1 9906- ● ●
458 BRACKET; LEAF SPRING
6WG1 TC-N(71L) (C) 		1-53352-152-0 01 1 9707-9905 ●
458 BRACKET; LEAF SPRING
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) (C) 		1-53352-152-0 01 1 9906-9906 ● ●
458 BRACKET; LEAF SPRING
6WG1 TC-C(72L) (C) 		1-53352-152-0 01 1 9906-9906 ●
458 BRACKET; LEAF SPRING
6WA1 TC-C(55L),10PE1N(61L),6WG1 TC-C(72L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (C) 		1-53352-152-0 01 1 9906- ● ●
466 BRACKET; BOOSTER
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) 		1-44515-073-0 01 1 9906-9906 ● ●
466 BRACKET; BOOSTER
6WA1 TC-C(55L),10PE1N(61L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> 		1-44515-073-0 01 1 9906-0003 ● ●
466 BRACKET; BOOSTER
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> 		1-44515-073-0 01 1 0004- ● ●
466 BRACKET; BOOSTER
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> MIXER TRUCK<RA2> 		1-44515-073-0 01 1 0004- ●
466 BRACKET; BOOSTER
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> 		1-44515-073-0 01 1 0004- ●
çizim 6914
26 25 46 39 39 25 26 46 25 34 52 41 19 24 41 11 46 11 21 21 25 25 12 46 12 13 13 26 11 25 39 11 2 23 26 25 39 25 25 46 52 26 24 6 16 439
BalonParca AdiParca NoAdetTipApplied Date A B
2 MEMBER; CROSS,1ST 1-53181-526-4 01 1 9606- ● ●
6 WASHER; LK,1ST C/MBR
EXC. REINFORCEMENT BUMPER<VG7> ID=16.2 		9-09150-616-0 02 1 9606-9905 ● ●
6 WASHER; LK,1ST C/MBR
EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> ID=16.2 		9-09150-616-0 02 1 9906- ● ●
11 BRACKET; ENG MTG
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> MIXER TRUCK<RA2> (E) 		1-53219-789-1 01 1 9703-9905 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) (E) 		1-53219-789-1 01 1 9906-9906 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) MIXER TRUCK<RA2> (E) 		1-53219-789-1 01 1 9906-0003 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> MIXER TRUCK<RA2> (E) 		1-53219-789-1 01 1 0004- ●
11 BRACKET; ENG MTG
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> MIXER TRUCK<RA2> (E) 		1-53219-788-1 01 1 9703-9905 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) (E) 		1-53219-788-1 01 1 9906-9906 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) MIXER TRUCK<RA2> (E) 		1-53219-788-1 01 1 9906-0003 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> MIXER TRUCK<RA2> (E) 		1-53219-788-1 01 1 0004- ●
11 BRACKET; ENG MTG
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> (E) 		1-53219-742-0 01 1 9610-9702 ● ●
11 BRACKET; ENG MTG
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> EXC. MIXER TRUCK<RA2> (E) 		1-53219-742-0 01 1 9703-9905 ●
11 BRACKET; ENG MTG
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> (E) 		1-53219-742-0 01 1 9703-9905 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> (E) 		1-53219-742-0 01 1 9906-9906 ● ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) (E) 		1-53219-742-0 01 1 9906-9906 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. MIXER TRUCK<RA2> (E) 		1-53219-742-0 01 1 9906-0003 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) (E) 		1-53219-742-0 01 1 9906-0003 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. MIXER TRUCK<RA2> (E) 		1-53219-742-0 01 1 0004- ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> (E) 		1-53219-742-0 01 1 0004- ●
11 BRACKET; ENG MTG
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> (E) 		1-53219-741-0 01 1 9610-9702 ● ●
11 BRACKET; ENG MTG
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> EXC. MIXER TRUCK<RA2> (E) 		1-53219-741-0 01 1 9703-9905 ●
11 BRACKET; ENG MTG
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> (E) 		1-53219-741-0 01 1 9703-9905 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> (E) 		1-53219-741-0 01 1 9906-9906 ● ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) (E) 		1-53219-741-0 01 1 9906-9906 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. MIXER TRUCK<RA2> (E) 		1-53219-741-0 01 1 9906-0003 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) (E) 		1-53219-741-0 01 1 9906-0003 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. MIXER TRUCK<RA2> (E) 		1-53219-741-0 01 1 0004- ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> (E) 		1-53219-741-0 01 1 0004- ●
11 BRACKET; ENG MTG
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53219-583-0 01 1 9606-9905 ● ●
11 BRACKET; ENG MTG
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53219-583-0 01 1 9906-9906 ● ●
11 BRACKET; ENG MTG
10PE1N(61L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53219-583-0 01 1 9906-0003 ● ●
11 BRACKET; ENG MTG
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53219-583-0 01 1 0004- ● ●
11 BRACKET; ENG MTG
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53219-582-0 01 1 9606-9905 ● ●
11 BRACKET; ENG MTG
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53219-582-0 01 1 9906-9906 ● ●
11 BRACKET; ENG MTG
10PE1N(61L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53219-582-0 01 1 9906-0003 ● ●
11 BRACKET; ENG MTG
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53219-582-0 01 1 0004- ● ●
11 BRACKET; ENG MTG
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (D) 		1-53219-728-1 01 1 9606-9905 ● ●
11 BRACKET; ENG MTG
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (D) 		1-53219-728-1 01 1 9906-9906 ● ●
11 BRACKET; ENG MTG
10PE1N(61L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (D) 		1-53219-728-1 01 1 9906-0003 ● ●
11 BRACKET; ENG MTG
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (D) 		1-53219-728-1 01 1 0004- ● ●
11 BRACKET; ENG MTG
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (D) 		1-53219-727-1 01 1 9606-9905 ● ●
11 BRACKET; ENG MTG
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (D) 		1-53219-727-1 01 1 9906-9906 ● ●
11 BRACKET; ENG MTG
10PE1N(61L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (D) 		1-53219-727-1 01 1 9906-0003 ● ●
11 BRACKET; ENG MTG
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (D) 		1-53219-727-1 01 1 0004- ● ●
11 BRACKET; ENG MTG
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> FRAME ENG MTG SEPARATE TYPE<SGM> (D) 		1-53219-730-1 01 1 9606-9905 ●
11 BRACKET; ENG MTG
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> FRAME ENG MTG SEPARATE TYPE<SGM> (D) 		1-53219-729-1 01 1 9606-9905 ●
11 BRACKET; ENG MTG
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53219-472-1 01 1 9606-9609 ●
11 BRACKET; ENG MTG
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53219-472-1 01 1 9610-9706 ● ●
11 BRACKET; ENG MTG
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53219-472-1 01 1 9610-9706 ●
11 BRACKET; ENG MTG
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53219-472-1 01 1 9707-9905 ●
11 BRACKET; ENG MTG
6WA1 TC-S(56L),6WG1 TC-N(71L) (B) 		1-53219-472-1 01 1 9707-9905 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) (B) 		1-53219-472-1 01 1 9906-9906 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (B) 		1-53219-472-1 01 1 9906-9906 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) (B) 		1-53219-472-1 01 1 9906- ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L),6WA1 TC-S(56L) (B) 		1-53219-472-1 01 1 9906- ●
11 BRACKET; ENG MTG
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (C) 		1-53219-577-2 01 1 9606-9706 ●
11 BRACKET; ENG MTG
6WA1 TC-S(56L),6WG1 TC-N(71L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (C) 		1-53219-577-2 01 1 9707-9905 ●
11 BRACKET; ENG MTG
6WA1 TC-S(56L),6WG1 TC-C(72L) (C) 		1-53219-577-2 01 1 9906-9906 ●
11 BRACKET; ENG MTG
6WA1 TC-S(56L) (C) 		1-53219-577-2 01 1 9906-0003 ●
11 BRACKET; ENG MTG
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> (C) 		1-53219-577-2 01 1 0004- ●
11 BRACKET; ENG MTG
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53219-471-0 01 1 9606-9609 ●
11 BRACKET; ENG MTG
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53219-471-0 01 1 9610-9706 ● ●
11 BRACKET; ENG MTG
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53219-471-0 01 1 9610-9706 ●
11 BRACKET; ENG MTG
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53219-471-0 01 1 9707-9905 ●
11 BRACKET; ENG MTG
6WA1 TC-S(56L),6WG1 TC-N(71L) (B) 		1-53219-471-0 01 1 9707-9905 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) (B) 		1-53219-471-0 01 1 9906-9906 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (B) 		1-53219-471-0 01 1 9906-9906 ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L) (B) 		1-53219-471-0 01 1 9906- ●
11 BRACKET; ENG MTG
6WA1 TC-C(55L),6WA1 TC-S(56L) (B) 		1-53219-471-0 01 1 9906- ●
11 BRACKET; ENG MTG
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (C) 		1-53219-576-2 01 1 9606-9706 ●
11 BRACKET; ENG MTG
6WA1 TC-S(56L),6WG1 TC-N(71L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (C) 		1-53219-576-2 01 1 9707-9905 ●
11 BRACKET; ENG MTG
6WA1 TC-S(56L),6WG1 TC-C(72L) (C) 		1-53219-576-2 01 1 9906-9906 ●
11 BRACKET; ENG MTG
6WA1 TC-S(56L) (C) 		1-53219-576-2 01 1 9906-0003 ●
11 BRACKET; ENG MTG
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> (C) 		1-53219-576-2 01 1 0004- ●
11 BRACKET; ENG MTG
6WG1 TC-C(72L) (B) 		1-53219-778-0 01 1 9906-0003 ●
11 BRACKET; ENG MTG
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53219-778-1 01 1 0004- ●
11 BRACKET; ENG MTG
6WG1 TC-C(72L) (C) 		1-53219-780-1 01 1 9906-9907 ●
11 BRACKET; ENG MTG
6WG1 TC-C(72L) (C) 		1-53219-942-0 01 1 9908-0003 ●
11 BRACKET; ENG MTG
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> (C) 		1-53219-942-1 01 1 0004- ●
11 BRACKET; ENG MTG
6WG1 TC-C(72L) (B) 		1-53219-777-0 01 1 9906-0003 ●
11 BRACKET; ENG MTG
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53219-777-1 01 1 0004- ●
11 BRACKET; ENG MTG
6WG1 TC-C(72L) (C) 		1-53219-779-2 01 1 9906-9907 ●
11 BRACKET; ENG MTG
6WG1 TC-C(72L) (C) 		1-53219-941-0 01 1 9908-0003 ●
11 BRACKET; ENG MTG
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> (C) 		1-53219-941-0 01 1 0004- ●
12 WASHER; PL,BRKT,ENG MTG
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 01 1 9606-9609 ● ●
12 WASHER; PL,BRKT,ENG MTG
FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 01 1 9610-9905 ● ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) ID=15 		9-09651-069-0 02 1 9906-9906 ● ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-S(56L),6WG1 TC-C(72L) ID=15 		9-09651-069-0 02 1 9906-9906 ●
12 WASHER; PL,BRKT,ENG MTG
10PE1N(61L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,FRAME ENG MTGSEPARATE TYPE<SGM> ID=15 		9-09651-069-0 02 1 9906-9912 ● ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-C(55L) MIXER TRUCK<RA2> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 02 1 9906-9912 ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-S(56L),6WG1 TC-C(72L) ID=15 		9-09651-069-0 02 1 9906-9912 ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-C(55L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 02 1 9906-9912 ●
12 WASHER; PL,BRKT,ENG MTG
10PE1N(61L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=15 		9-09651-069-0 01 1 0001-0003 ● ●
12 WASHER; PL,BRKT,ENG MTG
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=15 		9-09651-069-0 01 1 0004- ● ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 02 1 9606-9706 ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-S(56L),6WG1 TC-N(71L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 02 1 9707-9905 ●
12 WASHER; PL,BRKT,ENG MTG
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=15 		9-09651-069-0 01 1 9906-9912 ● ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 01 1 9906-9912 ● ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-C(55L) ID=15 		9-09651-069-0 02 1 0001- ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-C(55L),6WA1 TC-S(56L) ID=15 		9-09651-069-0 02 1 0001- ●
12 WASHER; PL,BRKT,ENG MTG
6WG1 TC-C(72L) ID=15 		9-09651-069-0 04 1 0001-0003 ●
12 WASHER; PL,BRKT,ENG MTG
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 04 1 0004- ●
13 BOLT; BRKT,ENG MTG
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> M14X40 		9-92061-440-0 01 1 9606-9609 ● ●
13 BOLT; BRKT,ENG MTG
FRAME EQUIPMENT HEAVY DUTY<F03> M14X40 		9-92061-440-0 01 1 9610-9905 ● ●
13 BOLT; BRKT,ENG MTG
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) M14X40 		9-92061-440-0 02 1 9906-9906 ● ●
13 BOLT; BRKT,ENG MTG
6WA1 TC-S(56L),6WG1 TC-C(72L) M14X40 		9-92061-440-0 02 1 9906-9906 ●
13 BOLT; BRKT,ENG MTG
10PE1N(61L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,FRAME ENG MTGSEPARATE TYPE<SGM> M14X40 		9-92061-440-0 02 1 9906-9912 ● ●
13 BOLT; BRKT,ENG MTG
6WA1 TC-C(55L) MIXER TRUCK<RA2> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14X40 		9-92061-440-0 02 1 9906-9912 ●
13 BOLT; BRKT,ENG MTG
6WA1 TC-S(56L),6WG1 TC-C(72L) M14X40 		9-92061-440-0 02 1 9906-9912 ●
13 BOLT; BRKT,ENG MTG
6WA1 TC-C(55L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14X40 		9-92061-440-0 02 1 9906-9912 ●
13 BOLT; BRKT,ENG MTG
10PE1N(61L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X40 		9-92061-440-0 01 1 0001-0003 ● ●
13 BOLT; BRKT,ENG MTG
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X40 		9-92061-440-0 01 1 0004- ● ●
13 BOLT; BRKT,ENG MTG
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14X40 		9-92061-440-0 02 1 9606-9706 ●
13 BOLT; BRKT,ENG MTG
6WA1 TC-S(56L),6WG1 TC-N(71L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14X40 		9-92061-440-0 02 1 9707-9905 ●
13 BOLT; BRKT,ENG MTG
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X40 		9-92061-440-0 01 1 9906-9912 ● ●
13 BOLT; BRKT,ENG MTG
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> M14X40 		9-92061-440-0 01 1 9906-9912 ● ●
13 BOLT; BRKT,ENG MTG
6WA1 TC-C(55L) M14X40 		9-92061-440-0 02 1 0001- ●
13 BOLT; BRKT,ENG MTG
6WA1 TC-C(55L),6WA1 TC-S(56L) M14X40 		9-92061-440-0 02 1 0001- ●
13 BOLT; BRKT,ENG MTG
6WG1 TC-C(72L) M14X40 		9-92061-440-0 04 1 0001-0003 ●
13 BOLT; BRKT,ENG MTG
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> M14X40 		9-92061-440-0 04 1 0004- ●
16 BOLT; 1ST C/MBR TO S/MBR
EXC. REINFORCEMENT BUMPER<VG7> M16X40 		0-20801-640-0 02 1 9606-9905 ● ●
16 BOLT; 1ST C/MBR TO S/MBR
EXC. BUMPER W/HEADLAMPS<SLB>,CAB UP +110MM<TGG>, REINFORCEMENT BUMPER<VG7> M16X40 		0-20801-640-0 02 1 9906- ● ●
19 MEMBER; CROSS,2ND
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53174-221-0 01 1 9606-9609 ● ●
19 MEMBER; CROSS,2ND
FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53174-221-0 01 1 9610-9905 ● ●
19 MEMBER; CROSS,2ND
6WA1 TC-C(55L) (A) 		1-53174-221-0 01 1 9906-9906 ● ●
19 MEMBER; CROSS,2ND
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53174-221-0 01 1 9906-9906 ● ●
19 MEMBER; CROSS,2ND
6WA1 TC-C(55L),10PE1N(61L) (A) 		1-53174-221-0 01 1 9906- ● ●
19 MEMBER; CROSS,2ND
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53174-231-1 01 1 9606-9706 ●
19 MEMBER; CROSS,2ND
6WA1 TC-S(56L),6WG1 TC-N(71L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53174-231-1 01 1 9707-9905 ●
19 MEMBER; CROSS,2ND
6WA1 TC-S(56L),6WG1 TC-C(72L) (B) 		1-53174-231-1 01 1 9906- ●
21 GUSSET; 2ND CROSS
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53164-208-0 02 1 9606-9609 ● ●
21 GUSSET; 2ND CROSS
FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53164-208-0 02 1 9610-9905 ● ●
21 GUSSET; 2ND CROSS
6WA1 TC-C(55L) (A) 		1-53164-208-0 02 1 9906-9906 ● ●
21 GUSSET; 2ND CROSS
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53164-208-0 02 1 9906-9906 ● ●
21 GUSSET; 2ND CROSS
6WA1 TC-C(55L),10PE1N(61L) (A) 		1-53164-208-0 02 1 9906- ● ●
21 GUSSET; 2ND CROSS
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53167-287-1 02 1 9606-9609 ● ●
21 GUSSET; 2ND CROSS
FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53167-287-1 02 1 9610-9905 ● ●
21 GUSSET; 2ND CROSS
6WA1 TC-C(55L) (B) 		1-53167-287-1 02 1 9906-9906 ● ●
21 GUSSET; 2ND CROSS
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) 		1-53167-287-1 02 1 9906-9906 ● ●
21 GUSSET; 2ND CROSS
6WA1 TC-C(55L),10PE1N(61L) (B) 		1-53167-287-2 02 1 9906- ● ●
21 GUSSET; 2ND CROSS
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53164-185-0 02 1 9606-9706 ●
21 GUSSET; 2ND CROSS
6WA1 TC-S(56L),6WG1 TC-N(71L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53164-185-0 02 1 9707-9905 ●
21 GUSSET; 2ND CROSS
6WA1 TC-S(56L),6WG1 TC-C(72L) (A) 		1-53164-185-0 02 1 9906- ●
23 BOLT; BRKT,SPR
M14X40 		9-92061-440-0 06 1 9606-9706 ● ●
23 BOLT; BRKT,SPR
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X40 		9-92061-440-0 06 1 9707-9905 ● ●
23 BOLT; BRKT,SPR
6WA1 TC-S(56L) FRAME EQUIPMENT HEAVY DUTY<F03> M14X40 		9-92061-440-0 06 1 9707-9905 ●
23 BOLT; BRKT,SPR
6WA1 TC-S(56L) M14X40 		9-92061-440-0 06 1 9707-9905 ●
23 BOLT; BRKT,SPR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X40 		9-92061-440-0 06 1 9906-9906 ● ●
23 BOLT; BRKT,SPR
6WA1 TC-C(55L) M14X40 		9-92061-440-0 06 1 9906-9906 ●
23 BOLT; BRKT,SPR
6WA1 TC-C(55L),6WA1 TC-S(56L) M14X40 		9-92061-440-0 06 1 9906-9906 ●
23 BOLT; BRKT,SPR
6WA1 TC-C(55L),10PE1N(61L) M14X40 		9-92061-440-0 06 1 9906- ●
23 BOLT; BRKT,SPR
6WA1 TC-C(55L),6WA1 TC-S(56L),10PE1N(61L) M14X40 		9-92061-440-0 06 1 9906- ●
23 BOLT; BRKT,SPR
M16X50 		9-92061-650-0 04 1 9606-9706 ● ●
23 BOLT; BRKT,SPR
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M16X50 		9-92061-650-0 04 1 9707-9905 ● ●
23 BOLT; BRKT,SPR
6WA1 TC-S(56L) FRAME EQUIPMENT HEAVY DUTY<F03> M16X50 		9-92061-650-0 04 1 9707-9905 ●
23 BOLT; BRKT,SPR
6WA1 TC-S(56L) M16X50 		9-92061-650-0 04 1 9707-9905 ●
23 BOLT; BRKT,SPR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M16X50 		9-92061-650-0 04 1 9906- ● ●
23 BOLT; BRKT,SPR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> M16X50 		9-92061-650-0 04 1 9906- ● ●
23 BOLT; BRKT,SPR
6WA1 TC-S(56L) M16X50 		9-92061-650-0 04 1 9906- ●
23 BOLT; BRKT,SPR
6WG1 TC-N(71L) M14X40 		9-92061-440-0 10 1 9707-9905 ●
23 BOLT; BRKT,SPR
6WG1 TC-C(72L) M14X40 		9-92061-440-0 10 1 9906-0003 ●
23 BOLT; BRKT,SPR
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> M14X40 		9-92061-440-0 10 1 0004- ●
23 BOLT; BRKT,SPR
6WG1 TC-N(71L) M14X50 		9-92061-450-0 08 1 9707-9905 ●
23 BOLT; BRKT,SPR
6WG1 TC-C(72L) M14X50 		9-92061-450-0 08 1 9906-0003 ●
23 BOLT; BRKT,SPR
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> M14X50 		9-92061-450-0 08 1 0004- ●
23 BOLT; BRKT,SPR
6WG1 TC-N(71L) M16X50 		9-92061-650-0 12 1 9707-9905 ●
23 BOLT; BRKT,SPR
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) M16X50 		9-92061-650-0 12 1 9906-9906 ● ●
23 BOLT; BRKT,SPR
6WG1 TC-C(72L) M16X50 		9-92061-650-0 12 1 9906-9906 ●
23 BOLT; BRKT,SPR
6WA1 TC-C(55L),10PE1N(61L),6WG1 TC-C(72L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M16X50 		9-92061-650-0 12 1 9906- ● ●
24 BRACKET; FRT SPR,FRT 1-53351-220-0 01 1 9606-0003 ● ●
24 BRACKET; FRT SPR,FRT 1-53351-220-0 01 1 0004- ● ●
24 BRACKET; FRT SPR,FRT 1-53351-219-0 01 1 9606-0003 ● ●
24 BRACKET; FRT SPR,FRT 1-53351-219-0 01 1 0004- ● ●
25 WASHER; PL,BRKT
10PE1N(61L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=16.2 		1-09503-223-0 22 1 0001-0003 ● ●
25 WASHER; PL,BRKT
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=16.2 		1-09503-223-0 22 1 0004- ● ●
25 WASHER; PL,BRKT
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> ID=16.2 		1-09503-223-0 22 1 9606-9905 ● ●
25 WASHER; PL,BRKT
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=16.2 		1-09503-223-0 22 1 9906-9912 ● ●
25 WASHER; PL,BRKT
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=15 		9-09651-069-0 46 1 0001- ● ●
25 WASHER; PL,BRKT
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=15 		9-09651-069-0 46 1 9606-9609 ● ●
25 WASHER; PL,BRKT
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=15 		9-09651-069-0 46 1 9610-9905 ● ●
25 WASHER; PL,BRKT
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 46 1 9610-9905 ● ●
25 WASHER; PL,BRKT
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=15 		9-09651-069-0 46 1 9906-9912 ● ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 46 1 9906-9912 ● ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 48 1 0001-0003 ● ●
25 WASHER; PL,BRKT
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,LIGHT DUTY PACKAGE TRUCK(Y21) ID=15 		9-09651-069-0 48 1 0001-0003 ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 48 1 0004- ● ●
25 WASHER; PL,BRKT
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 48 1 0004- ●
25 WASHER; PL,BRKT
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> FRAME ENG MTG SEPARATE TYPE<SGM> ID=15 		9-09651-069-0 44 1 9606-9905 ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) ID=15 		9-09651-069-0 64 1 9906-9906 ● ●
25 WASHER; PL,BRKT
6WG1 TC-C(72L) ID=15 		9-09651-069-0 64 1 9906-9906 ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L),10PE1N(61L),6WG1 TC-C(72L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 64 1 9906-9912 ● ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L) MIXER TRUCK<RA2> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 64 1 0001-0003 ●
25 WASHER; PL,BRKT
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,LIGHT DUTY PACKAGE TRUCK(Y21) ID=15 		9-09651-069-0 64 1 0001-0003 ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 64 1 0001-0003 ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> MIXER TRUCK<RA2> ID=15 		9-09651-069-0 64 1 0004- ●
25 WASHER; PL,BRKT
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 64 1 0004- ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> ID=15 		9-09651-069-0 64 1 0004- ●
25 WASHER; PL,BRKT
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=16.2 		1-09503-223-0 24 1 9606-9609 ●
25 WASHER; PL,BRKT
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> ID=16.2 		1-09503-223-0 24 1 9610-9706 ● ●
25 WASHER; PL,BRKT
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=16.2 		1-09503-223-0 24 1 9610-9706 ●
25 WASHER; PL,BRKT
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> ID=16.2 		1-09503-223-0 24 1 9707-9905 ●
25 WASHER; PL,BRKT
6WA1 TC-S(56L),6WG1 TC-N(71L) ID=16.2 		1-09503-223-0 24 1 9707-9905 ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L) ID=16.2 		1-09503-223-0 24 1 9906-9906 ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) ID=16.2 		1-09503-223-0 24 1 9906-9906 ●
25 WASHER; PL,BRKT
10PE1N(61L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,FRAME ENG MTGSEPARATE TYPE<SGM> ID=16.2 		1-09503-223-0 24 1 9906-9912 ● ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L) ID=16.2 		1-09503-223-0 24 1 9906-9912 ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) ID=16.2 		1-09503-223-0 24 1 9906-9912 ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L) MIXER TRUCK<RA2> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=16.2 		1-09503-223-0 24 1 0001-0003 ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> ID=16.2 		1-09503-223-0 24 1 0001-0003 ●
25 WASHER; PL,BRKT
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,LIGHT DUTY PACKAGE TRUCK(Y21) ID=16.2 		1-09503-223-0 24 1 0001-0003 ●
25 WASHER; PL,BRKT
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,LIGHT DUTY PACKAGE TRUCK(Y21) ID=16.2 		1-09503-223-0 24 1 0001-0003 ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L) ID=16.2 		1-09503-223-0 24 1 0001-0003 ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> ID=16.2 		1-09503-223-0 24 1 0004- ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> MIXER TRUCK<RA2> ID=16.2 		1-09503-223-0 24 1 0004- ●
25 WASHER; PL,BRKT
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> ID=16.2 		1-09503-223-0 24 1 0004- ●
25 WASHER; PL,BRKT
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> ID=16.2 		1-09503-223-0 24 1 0004- ●
25 WASHER; PL,BRKT
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> ID=16.2 		1-09503-223-0 24 1 0004- ●
25 WASHER; PL,BRKT
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 48 1 9606-9706 ●
25 WASHER; PL,BRKT
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 48 1 9707-9905 ●
25 WASHER; PL,BRKT
6WA1 TC-S(56L) ID=15 		9-09651-069-0 48 1 9906-9912 ●
25 WASHER; PL,BRKT
10PE1N(61L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,FRAME ENG MTGSEPARATE TYPE<SGM> ID=15 		9-09651-069-0 62 1 0001-0003 ● ●
25 WASHER; PL,BRKT
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=15 		9-09651-069-0 62 1 0004- ● ●
25 WASHER; PL,BRKT
6WG1 TC-N(71L) ID=15 		9-09651-069-0 64 1 9707-9905 ●
26 NUT; BRKT,SPR
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> M14 		9-99110-514-0 17 1 9610-9905 ● ●
26 NUT; BRKT,SPR
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> M16 		9-99110-516-0 10 1 9606-9905 ● ●
26 NUT; BRKT,SPR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M16 		9-99110-516-0 10 1 9906-9912 ● ●
26 NUT; BRKT,SPR
10PE1N(61L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M16 		9-99110-516-0 10 1 0001-0003 ● ●
26 NUT; BRKT,SPR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M16 		9-99110-516-0 10 1 0004- ● ●
26 NUT; BRKT,SPR
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14 		9-99110-514-0 18 1 9606-9905 ● ●
26 NUT; BRKT,SPR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14 		9-99110-514-0 18 1 9906-9912 ● ●
26 NUT; BRKT,SPR
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> FRAME ENG MTG SEPARATE TYPE<SGM> M14 		9-99110-514-0 16 1 9606-9905 ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) M14 		9-99110-514-0 20 1 9906-9906 ● ●
26 NUT; BRKT,SPR
6WA1 TC-S(56L),6WG1 TC-C(72L) M14 		9-99110-514-0 20 1 9906-9906 ●
26 NUT; BRKT,SPR
10PE1N(61L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,FRAME ENG MTGSEPARATE TYPE<SGM> M14 		9-99110-514-0 20 1 9906-9912 ● ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) MIXER TRUCK<RA2> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14 		9-99110-514-0 20 1 9906-9912 ●
26 NUT; BRKT,SPR
6WA1 TC-S(56L),6WG1 TC-C(72L) M14 		9-99110-514-0 20 1 9906-9912 ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14 		9-99110-514-0 20 1 9906-9912 ●
26 NUT; BRKT,SPR
10PE1N(61L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14 		9-99110-514-0 18 1 0001-0003 ● ●
26 NUT; BRKT,SPR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14 		9-99110-514-0 18 1 0004- ● ●
26 NUT; BRKT,SPR
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14 		9-99110-514-0 20 1 9606-9706 ●
26 NUT; BRKT,SPR
6WA1 TC-S(56L),6WG1 TC-N(71L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14 		9-99110-514-0 20 1 9707-9905 ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> M14 		9-99110-514-0 17 1 9906-9912 ● ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) MIXER TRUCK<RA2> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14 		9-99110-514-0 20 1 0001-0003 ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> M14 		9-99110-514-0 20 1 0001-0003 ●
26 NUT; BRKT,SPR
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,LIGHT DUTY PACKAGE TRUCK(Y21) M14 		9-99110-514-0 20 1 0001-0003 ●
26 NUT; BRKT,SPR
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,LIGHT DUTY PACKAGE TRUCK(Y21) M14 		9-99110-514-0 20 1 0001-0003 ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) M14 		9-99110-514-0 20 1 0001-0003 ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> M14 		9-99110-514-0 20 1 0004- ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> MIXER TRUCK<RA2> M14 		9-99110-514-0 20 1 0004- ●
26 NUT; BRKT,SPR
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> M14 		9-99110-514-0 20 1 0004- ●
26 NUT; BRKT,SPR
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> M14 		9-99110-514-0 20 1 0004- ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> M14 		9-99110-514-0 20 1 0004- ●
26 NUT; BRKT,SPR
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M16 		9-99110-516-0 12 1 9606-9609 ●
26 NUT; BRKT,SPR
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> M16 		9-99110-516-0 12 1 9610-9706 ● ●
26 NUT; BRKT,SPR
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M16 		9-99110-516-0 12 1 9610-9706 ●
26 NUT; BRKT,SPR
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> M16 		9-99110-516-0 12 1 9707-9905 ●
26 NUT; BRKT,SPR
6WA1 TC-S(56L),6WG1 TC-N(71L) M16 		9-99110-516-0 12 1 9707-9905 ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) M16 		9-99110-516-0 12 1 9906-9906 ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) M16 		9-99110-516-0 12 1 9906-9906 ●
26 NUT; BRKT,SPR
10PE1N(61L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,FRAME ENG MTGSEPARATE TYPE<SGM> M16 		9-99110-516-0 12 1 9906-9912 ● ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) M16 		9-99110-516-0 12 1 9906-9912 ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) M16 		9-99110-516-0 12 1 9906-9912 ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) MIXER TRUCK<RA2> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M16 		9-99110-516-0 12 1 0001-0003 ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> M16 		9-99110-516-0 12 1 0001-0003 ●
26 NUT; BRKT,SPR
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,LIGHT DUTY PACKAGE TRUCK(Y21) M16 		9-99110-516-0 12 1 0001-0003 ●
26 NUT; BRKT,SPR
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,LIGHT DUTY PACKAGE TRUCK(Y21) M16 		9-99110-516-0 12 1 0001-0003 ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) M16 		9-99110-516-0 12 1 0001-0003 ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> M16 		9-99110-516-0 12 1 0004- ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> MIXER TRUCK<RA2> M16 		9-99110-516-0 12 1 0004- ●
26 NUT; BRKT,SPR
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> M16 		9-99110-516-0 12 1 0004- ●
26 NUT; BRKT,SPR
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> M16 		9-99110-516-0 12 1 0004- ●
26 NUT; BRKT,SPR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> M16 		9-99110-516-0 12 1 0004- ●
34 MEMBER; CROSS,3RD
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53181-644-1 01 1 9606-9609 ● ●
34 MEMBER; CROSS,3RD
FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53181-644-1 01 1 9610-9905 ● ●
34 MEMBER; CROSS,3RD
6WA1 TC-C(55L) (A) 		1-53181-644-1 01 1 9906-9906 ● ●
34 MEMBER; CROSS,3RD
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53181-644-1 01 1 9906-9906 ● ●
34 MEMBER; CROSS,3RD
6WA1 TC-C(55L),10PE1N(61L) (A) 		1-53181-644-1 01 1 9906- ● ●
34 MEMBER; CROSS,3RD
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53181-437-1 01 1 9606-9706 ●
34 MEMBER; CROSS,3RD
6WA1 TC-S(56L),6WG1 TC-N(71L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53181-437-1 01 1 9707-9905 ●
34 MEMBER; CROSS,3RD
6WA1 TC-S(56L),6WG1 TC-C(72L) (B) 		1-53181-437-1 01 1 9906- ●
39 BRACKET; FRT SPR,RR
(B) 		1-53352-067-3 02 1 9606-9706 ● ●
39 BRACKET; FRT SPR,RR
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) 		1-53352-067-3 02 1 9707-9905 ● ●
39 BRACKET; FRT SPR,RR
6WA1 TC-S(56L) FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53352-067-3 02 1 9707-9905 ●
39 BRACKET; FRT SPR,RR
6WA1 TC-S(56L) (B) 		1-53352-067-3 02 1 9707-9905 ●
39 BRACKET; FRT SPR,RR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) 		1-53352-067-3 02 1 9906- ● ●
39 BRACKET; FRT SPR,RR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53352-067-3 02 1 9906- ● ●
39 BRACKET; FRT SPR,RR
6WA1 TC-S(56L) (B) 		1-53352-067-3 02 1 9906- ●
39 BRACKET; FRT SPR,RR
(A) 		1-53351-218-0 01 1 9606-9706 ● ●
39 BRACKET; FRT SPR,RR
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53351-218-0 01 1 9707-9905 ● ●
39 BRACKET; FRT SPR,RR
6WA1 TC-S(56L) FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53351-218-0 01 1 9707-9905 ●
39 BRACKET; FRT SPR,RR
6WA1 TC-S(56L) (A) 		1-53351-218-0 01 1 9707-9905 ●
39 BRACKET; FRT SPR,RR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53351-218-0 01 1 9906- ● ●
39 BRACKET; FRT SPR,RR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53351-218-0 01 1 9906- ● ●
39 BRACKET; FRT SPR,RR
6WA1 TC-S(56L) (A) 		1-53351-218-0 01 1 9906- ●
39 BRACKET; FRT SPR,RR
(A) 		1-53351-217-0 01 1 9606-9706 ● ●
39 BRACKET; FRT SPR,RR
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53351-217-0 01 1 9707-9905 ● ●
39 BRACKET; FRT SPR,RR
6WA1 TC-S(56L) FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53351-217-0 01 1 9707-9905 ●
39 BRACKET; FRT SPR,RR
6WA1 TC-S(56L) (A) 		1-53351-217-0 01 1 9707-9905 ●
39 BRACKET; FRT SPR,RR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53351-217-0 01 1 9906- ● ●
39 BRACKET; FRT SPR,RR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53351-217-0 01 1 9906- ● ●
39 BRACKET; FRT SPR,RR
6WA1 TC-S(56L) (A) 		1-53351-217-0 01 1 9906- ●
41 BRACKET; CENTER BRG,FRAME SIDE
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> L=295 		1-53271-304-1 02 1 9610-9905 ●
41 BRACKET; CENTER BRG,FRAME SIDE
6WA1 TC-C(55L) L=295 		1-53271-304-1 02 1 9906-9906 ●
41 BRACKET; CENTER BRG,FRAME SIDE
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> L=295 		1-53271-304-1 02 1 9906- ●
41 BRACKET; CENTER BRG,FRAME SIDE
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> L=310 		1-53271-305-1 02 1 9606-9706 ●
41 BRACKET; CENTER BRG,FRAME SIDE
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> L=310 		1-53271-305-1 02 1 9606-9706 ●
41 BRACKET; CENTER BRG,FRAME SIDE
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> L=310 		1-53271-305-1 02 1 9707-9905 ●
41 BRACKET; CENTER BRG,FRAME SIDE
6WA1 TC-S(56L),6WG1 TC-N(71L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> L=310 		1-53271-305-1 02 1 9707-9905 ●
41 BRACKET; CENTER BRG,FRAME SIDE
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> L=310 		1-53271-305-1 02 1 9906-9906 ●
41 BRACKET; CENTER BRG,FRAME SIDE
6WA1 TC-S(56L) L=310 		1-53271-305-1 02 1 9906-9906 ●
41 BRACKET; CENTER BRG,FRAME SIDE
10PE1N(61L) L=310 		1-53271-305-1 02 1 9906-0003 ●
41 BRACKET; CENTER BRG,FRAME SIDE
6WA1 TC-S(56L) L=310 		1-53271-305-1 02 1 9906-0003 ●
41 BRACKET; CENTER BRG,FRAME SIDE
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> L=310 		1-53271-305-1 02 1 0004- ●
41 BRACKET; CENTER BRG,FRAME SIDE
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> L=310 		1-53271-305-1 02 1 0004- ●
41 BRACKET; CENTER BRG,FRAME SIDE
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> L=305 		1-53271-262-2 02 1 9606-9905 ●
41 BRACKET; CENTER BRG,FRAME SIDE
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> L=305 		1-53271-262-2 02 1 9906-9906 ●
41 BRACKET; CENTER BRG,FRAME SIDE
6WG1 TC-C(72L) L=305 		1-53271-262-2 02 1 9906-9906 ●
41 BRACKET; CENTER BRG,FRAME SIDE
10PE1N(61L),6WG1 TC-C(72L) L=305 		1-53271-262-2 02 1 9906-0003 ●
41 BRACKET; CENTER BRG,FRAME SIDE
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> L=305 		1-53271-262-2 02 1 0004- ●
41 BRACKET; CENTER BRG,FRAME SIDE
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> L=305 		1-53271-262-2 02 1 0004- ●
41 BRACKET; CENTER BRG,FRAME SIDE
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> L=320 		1-53271-296-1 02 1 9606-9609 ●
41 BRACKET; CENTER BRG,FRAME SIDE
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> L=320 		1-53271-296-1 02 1 9610-9905 ●
41 BRACKET; CENTER BRG,FRAME SIDE
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> L=320 		1-53271-296-1 02 1 9610-9905 ●
41 BRACKET; CENTER BRG,FRAME SIDE
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> L=320 		1-53271-296-1 02 1 9906-9906 ●
41 BRACKET; CENTER BRG,FRAME SIDE
6WA1 TC-C(55L) L=320 		1-53271-296-1 02 1 9906-9906 ●
41 BRACKET; CENTER BRG,FRAME SIDE
6WA1 TC-C(55L) MIXER TRUCK<RA2> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> L=320 		1-53271-296-1 02 1 9906-0003 ●
41 BRACKET; CENTER BRG,FRAME SIDE
6WA1 TC-C(55L),10PE1N(61L) L=320 		1-53271-296-1 02 1 9906-0003 ●
41 BRACKET; CENTER BRG,FRAME SIDE
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> MIXER TRUCK<RA2> L=320 		1-53271-296-1 02 1 0004- ●
41 BRACKET; CENTER BRG,FRAME SIDE
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> L=320 		1-53271-296-1 02 1 0004- ●
41 BRACKET; CENTER BRG,FRAME SIDE
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> L=320 		1-53271-296-1 02 1 0004- ●
46 BOLT; BRKT FIX
M14X40 		9-92061-440-0 04 1 9606-9706 ● ●
46 BOLT; BRKT FIX
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X40 		9-92061-440-0 04 1 9707-9905 ● ●
46 BOLT; BRKT FIX
6WA1 TC-S(56L) FRAME EQUIPMENT HEAVY DUTY<F03> M14X40 		9-92061-440-0 04 1 9707-9905 ●
46 BOLT; BRKT FIX
6WA1 TC-S(56L) M14X40 		9-92061-440-0 04 1 9707-9905 ●
46 BOLT; BRKT FIX
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X40 		9-92061-440-0 04 1 9906-9906 ● ●
46 BOLT; BRKT FIX
6WA1 TC-C(55L) M14X40 		9-92061-440-0 04 1 9906-9906 ●
46 BOLT; BRKT FIX
6WA1 TC-C(55L),6WA1 TC-S(56L) M14X40 		9-92061-440-0 04 1 9906-9906 ●
46 BOLT; BRKT FIX
6WA1 TC-C(55L),10PE1N(61L) M14X40 		9-92061-440-0 04 1 9906- ●
46 BOLT; BRKT FIX
6WA1 TC-C(55L),6WA1 TC-S(56L),10PE1N(61L) M14X40 		9-92061-440-0 04 1 9906- ●
46 BOLT; BRKT FIX
M14X50 		9-92061-450-0 16 1 9606-9706 ● ●
46 BOLT; BRKT FIX
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X50 		9-92061-450-0 16 1 9707-9905 ● ●
46 BOLT; BRKT FIX
6WA1 TC-S(56L) FRAME EQUIPMENT HEAVY DUTY<F03> M14X50 		9-92061-450-0 16 1 9707-9905 ●
46 BOLT; BRKT FIX
6WA1 TC-S(56L) M14X50 		9-92061-450-0 16 1 9707-9905 ●
46 BOLT; BRKT FIX
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X50 		9-92061-450-0 16 1 9906- ● ●
46 BOLT; BRKT FIX
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> M14X50 		9-92061-450-0 16 1 9906- ● ●
46 BOLT; BRKT FIX
6WA1 TC-S(56L) M14X50 		9-92061-450-0 16 1 9906- ●
46 BOLT; BRKT FIX
L TYPE ENG<90L> FRAME EQUIPMENT HEAVY DUTY<F03> M12X35,M14X45 L=100 		1-09029-075-0 08 1 9610-9905 ● ●
46 BOLT; BRKT FIX
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> M12X35,M14X45 L=100 		1-09029-075-0 08 1 9906-9912 ● ●
46 BOLT; BRKT FIX
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) M14X50 		9-92061-450-0 21 1 9906-9906 ● ●
46 BOLT; BRKT FIX
6WA1 TC-C(55L),10PE1N(61L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14X50 		9-92061-450-0 21 1 9906-0003 ● ●
46 BOLT; BRKT FIX
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X50 		9-92061-450-0 21 1 0004- ● ●
46 BOLT; BRKT FIX
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> MIXER TRUCK<RA2> M14X50 		9-92061-450-0 21 1 0004- ●
46 BOLT; BRKT FIX
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> M14X50 		9-92061-450-0 21 1 0004- ●
46 BOLT; BRKT FIX
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) M14X60 		9-92061-460-0 04 1 9906-9906 ● ●
46 BOLT; BRKT FIX
6WA1 TC-C(55L),10PE1N(61L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14X60 		9-92061-460-0 04 1 9906-0003 ● ●
46 BOLT; BRKT FIX
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X60 		9-92061-460-0 04 1 0004- ● ●
46 BOLT; BRKT FIX
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> MIXER TRUCK<RA2> M14X60 		9-92061-460-0 04 1 0004- ●
46 BOLT; BRKT FIX
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> M14X60 		9-92061-460-0 04 1 0004- ●
46 BOLT; BRKT FIX
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M16X50 		9-92061-650-0 08 1 9606-9706 ●
46 BOLT; BRKT FIX
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M16X50 		9-92061-650-0 08 1 9707-9905 ●
46 BOLT; BRKT FIX
6WA1 TC-S(56L) M16X50 		9-92061-650-0 08 1 9906-0003 ●
46 BOLT; BRKT FIX
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> M16X50 		9-92061-650-0 08 1 0004- ●
46 BOLT; BRKT FIX
6WG1 TC-N(71L) M14X50 		9-92061-450-0 08 1 9707-9905 ●
46 BOLT; BRKT FIX
6WG1 TC-C(72L) M14X50 		9-92061-450-0 08 1 9906-0003 ●
46 BOLT; BRKT FIX
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> M14X50 		9-92061-450-0 08 1 0004- ●
52 BRACKET; FWD FRT SPRING,RR 1-53352-153-0 01 1 9606-9706 ● ●
52 BRACKET; FWD FRT SPRING,RR
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> 		1-53352-153-0 01 1 9707-9905 ● ●
52 BRACKET; FWD FRT SPRING,RR
6WA1 TC-S(56L) FRAME EQUIPMENT HEAVY DUTY<F03> 		1-53352-153-0 01 1 9707-9905 ●
52 BRACKET; FWD FRT SPRING,RR
6WA1 TC-S(56L) 		1-53352-153-0 01 1 9707-9905 ●
52 BRACKET; FWD FRT SPRING,RR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> 		1-53352-153-0 01 1 9906- ● ●
52 BRACKET; FWD FRT SPRING,RR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> 		1-53352-153-0 01 1 9906- ● ●
52 BRACKET; FWD FRT SPRING,RR
6WA1 TC-S(56L) 		1-53352-153-0 01 1 9906- ●
52 BRACKET; FWD FRT SPRING,RR 1-53352-152-0 01 1 9606-9706 ● ●
52 BRACKET; FWD FRT SPRING,RR
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> 		1-53352-152-0 01 1 9707-9905 ● ●
52 BRACKET; FWD FRT SPRING,RR
6WA1 TC-S(56L) FRAME EQUIPMENT HEAVY DUTY<F03> 		1-53352-152-0 01 1 9707-9905 ●
52 BRACKET; FWD FRT SPRING,RR
6WA1 TC-S(56L) 		1-53352-152-0 01 1 9707-9905 ●
52 BRACKET; FWD FRT SPRING,RR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> 		1-53352-152-0 01 1 9906- ● ●
52 BRACKET; FWD FRT SPRING,RR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> 		1-53352-152-0 01 1 9906- ● ●
52 BRACKET; FWD FRT SPRING,RR
6WA1 TC-S(56L) 		1-53352-152-0 01 1 9906- ●
439 STUD; BRKT,SPR
M12X35,M14X45 L=100 		1-09029-075-0 02 1 9606- ● ●
çizim 39385
130 131 86 12 21 21 132 77 79 131 57 12 254
BalonParca AdiParca NoAdetTipApplied Date A B
12 WASHER; PL,BRKT,ENG MTG
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 01 1 9606-9609 ● ●
12 WASHER; PL,BRKT,ENG MTG
FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 01 1 9610-9905 ● ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) ID=15 		9-09651-069-0 02 1 9906-9906 ● ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-S(56L),6WG1 TC-C(72L) ID=15 		9-09651-069-0 02 1 9906-9906 ●
12 WASHER; PL,BRKT,ENG MTG
10PE1N(61L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,FRAME ENG MTGSEPARATE TYPE<SGM> ID=15 		9-09651-069-0 02 1 9906-9912 ● ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-C(55L) MIXER TRUCK<RA2> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 02 1 9906-9912 ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-S(56L),6WG1 TC-C(72L) ID=15 		9-09651-069-0 02 1 9906-9912 ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-C(55L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 02 1 9906-9912 ●
12 WASHER; PL,BRKT,ENG MTG
10PE1N(61L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=15 		9-09651-069-0 01 1 0001-0003 ● ●
12 WASHER; PL,BRKT,ENG MTG
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=15 		9-09651-069-0 01 1 0004- ● ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 02 1 9606-9706 ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-S(56L),6WG1 TC-N(71L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 02 1 9707-9905 ●
12 WASHER; PL,BRKT,ENG MTG
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=15 		9-09651-069-0 01 1 9906-9912 ● ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 01 1 9906-9912 ● ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-C(55L) ID=15 		9-09651-069-0 02 1 0001- ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-C(55L),6WA1 TC-S(56L) ID=15 		9-09651-069-0 02 1 0001- ●
12 WASHER; PL,BRKT,ENG MTG
6WG1 TC-C(72L) ID=15 		9-09651-069-0 04 1 0001-0003 ●
12 WASHER; PL,BRKT,ENG MTG
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 04 1 0004- ●
21 GUSSET; 2ND CROSS
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53164-208-0 02 1 9606-9609 ● ●
21 GUSSET; 2ND CROSS
FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53164-208-0 02 1 9610-9905 ● ●
21 GUSSET; 2ND CROSS
6WA1 TC-C(55L) (A) 		1-53164-208-0 02 1 9906-9906 ● ●
21 GUSSET; 2ND CROSS
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53164-208-0 02 1 9906-9906 ● ●
21 GUSSET; 2ND CROSS
6WA1 TC-C(55L),10PE1N(61L) (A) 		1-53164-208-0 02 1 9906- ● ●
21 GUSSET; 2ND CROSS
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53167-287-1 02 1 9606-9609 ● ●
21 GUSSET; 2ND CROSS
FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53167-287-1 02 1 9610-9905 ● ●
21 GUSSET; 2ND CROSS
6WA1 TC-C(55L) (B) 		1-53167-287-1 02 1 9906-9906 ● ●
21 GUSSET; 2ND CROSS
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) 		1-53167-287-1 02 1 9906-9906 ● ●
21 GUSSET; 2ND CROSS
6WA1 TC-C(55L),10PE1N(61L) (B) 		1-53167-287-2 02 1 9906- ● ●
21 GUSSET; 2ND CROSS
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53164-185-0 02 1 9606-9706 ●
21 GUSSET; 2ND CROSS
6WA1 TC-S(56L),6WG1 TC-N(71L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53164-185-0 02 1 9707-9905 ●
21 GUSSET; 2ND CROSS
6WA1 TC-S(56L),6WG1 TC-C(72L) (A) 		1-53164-185-0 02 1 9906- ●
57 MEMBER; CROSS,RR SUSP FRT
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53171-685-2 01 1 9606-9609 ● ●
57 MEMBER; CROSS,RR SUSP FRT
FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53171-685-2 01 1 9610-9905 ● ●
57 MEMBER; CROSS,RR SUSP FRT
6WA1 TC-C(55L) (A) 		1-53171-685-2 01 1 9906-9906 ● ●
57 MEMBER; CROSS,RR SUSP FRT
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53171-685-2 01 1 9906-9906 ● ●
57 MEMBER; CROSS,RR SUSP FRT
6WA1 TC-C(55L),10PE1N(61L) (A) 		1-53171-685-2 01 1 9906- ● ●
57 MEMBER; CROSS,RR SUSP FRT
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53171-651-5 01 1 9606-9706 ●
57 MEMBER; CROSS,RR SUSP FRT
6WA1 TC-S(56L),6WG1 TC-N(71L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53171-651-5 01 1 9707-9905 ●
57 MEMBER; CROSS,RR SUSP FRT
6WA1 TC-S(56L),6WG1 TC-C(72L) (B) 		1-53171-651-5 01 1 9906- ●
77 MEMBER; CROSS,TRUNNION RR
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> 		1-53181-146-4 01 1 9606-9609 ● ●
77 MEMBER; CROSS,TRUNNION RR
FRAME EQUIPMENT HEAVY DUTY<F03> 		1-53181-146-4 01 1 9610-9905 ● ●
79 MEMBER; CROSS,TRUNNION ASM
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53181-374-0 01 1 9606-9609 ● ●
79 MEMBER; CROSS,TRUNNION ASM
FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53181-374-0 01 1 9610-9905 ● ●
79 MEMBER; CROSS,TRUNNION ASM
6WA1 TC-C(55L) (A) 		1-53181-374-0 01 1 9906-9906 ● ●
79 MEMBER; CROSS,TRUNNION ASM
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53181-374-0 01 1 9906-9906 ● ●
79 MEMBER; CROSS,TRUNNION ASM
6WA1 TC-C(55L),10PE1N(61L) (A) 		1-53181-374-0 01 1 9906- ● ●
79 MEMBER; CROSS,TRUNNION ASM
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53181-686-0 01 1 9606-9706 ●
79 MEMBER; CROSS,TRUNNION ASM
6WA1 TC-S(56L),6WG1 TC-N(71L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53181-686-0 01 1 9707-9905 ●
79 MEMBER; CROSS,TRUNNION ASM
6WA1 TC-S(56L),6WG1 TC-C(72L) (B) 		1-53181-686-0 01 1 9906- ●
86 MEMBER; CROSS,RR SUSP RR
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53181-134-1 01 1 9606-9609 ● ●
86 MEMBER; CROSS,RR SUSP RR
FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53181-134-1 01 1 9610-9905 ● ●
86 MEMBER; CROSS,RR SUSP RR
6WA1 TC-C(55L) (A) 		1-53181-134-1 01 1 9906-9906 ● ●
86 MEMBER; CROSS,RR SUSP RR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53181-134-1 01 1 9906-9906 ● ●
86 MEMBER; CROSS,RR SUSP RR
6WA1 TC-C(55L),10PE1N(61L) (A) 		1-53181-134-1 01 1 9906- ● ●
86 MEMBER; CROSS,RR SUSP RR
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53181-646-2 01 1 9606-9706 ●
86 MEMBER; CROSS,RR SUSP RR
6WA1 TC-S(56L),6WG1 TC-N(71L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53181-646-3 01 1 9707-9905 ●
86 MEMBER; CROSS,RR SUSP RR
6WA1 TC-S(56L),6WG1 TC-C(72L) (B) 		1-53181-646-3 01 1 9906- ●
130 MEMBER; CROSS,END
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53171-876-2 01 1 9606-9609 ● ●
130 MEMBER; CROSS,END
FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53171-876-2 01 1 9610-9905 ● ●
130 MEMBER; CROSS,END
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53171-876-3 01 1 9906- ● ●
130 MEMBER; CROSS,END
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53171-876-3 01 1 9906- ● ●
130 MEMBER; CROSS,END
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) (A) 		1-53181-537-0 01 1 9906-9906 ● ●
130 MEMBER; CROSS,END
6WA1 TC-C(55L),10PE1N(61L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53181-537-0 01 1 9906-0003 ● ●
130 MEMBER; CROSS,END
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53181-537-1 01 1 0004- ● ●
130 MEMBER; CROSS,END
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> MIXER TRUCK<RA2> (A) 		1-53181-537-1 01 1 0004- ●
130 MEMBER; CROSS,END
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> (A) 		1-53181-537-1 01 1 0004- ●
130 MEMBER; CROSS,END
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53181-613-0 01 1 9606-9706 ●
130 MEMBER; CROSS,END
6WA1 TC-S(56L),6WG1 TC-N(71L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53181-613-0 01 1 9707-9905 ●
130 MEMBER; CROSS,END
6WA1 TC-S(56L),6WG1 TC-C(72L) (B) 		1-53181-613-1 01 1 9906- ●
131 BOLT; END C/MBR
6WA1 TC-C(55L) MIXER TRUCK<RA2> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14X50 		9-92061-450-0 04 1 0001-0003 ●
131 BOLT; END C/MBR
10PE1N(61L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X50 		9-92061-450-0 04 1 0001-0003 ●
131 BOLT; END C/MBR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> M14X50 		9-92061-450-0 04 1 0001-0003 ●
131 BOLT; END C/MBR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X50 		9-92061-450-0 04 1 0004- ●
131 BOLT; END C/MBR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> M14X50 		9-92061-450-0 04 1 0004- ●
131 BOLT; END C/MBR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> MIXER TRUCK<RA2> M14X50 		9-92061-450-0 04 1 0004- ●
131 BOLT; END C/MBR
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> M14X40 		9-92061-440-0 04 1 9606-9609 ● ●
131 BOLT; END C/MBR
FRAME EQUIPMENT HEAVY DUTY<F03> M14X40 		9-92061-440-0 04 1 9610-9905 ● ●
131 BOLT; END C/MBR
6WA1 TC-C(55L) M14X40 		9-92061-440-0 04 1 9906-9906 ● ●
131 BOLT; END C/MBR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X40 		9-92061-440-0 04 1 9906-9906 ● ●
131 BOLT; END C/MBR
6WA1 TC-C(55L),10PE1N(61L) M14X40 		9-92061-440-0 04 1 9906-9912 ● ●
131 BOLT; END C/MBR
10PE1N(61L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X40 		9-92061-440-0 04 1 0001-0003 ●
131 BOLT; END C/MBR
6WA1 TC-C(55L) M14X40 		9-92061-440-0 04 1 0001-0003 ●
131 BOLT; END C/MBR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X40 		9-92061-440-0 04 1 0004- ●
131 BOLT; END C/MBR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> M14X40 		9-92061-440-0 04 1 0004- ●
132 NUT; END C/MBR
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> M14 		9-99110-514-0 04 1 9606-9609 ● ●
132 NUT; END C/MBR
FRAME EQUIPMENT HEAVY DUTY<F03> M14 		9-99110-514-0 04 1 9610-9905 ● ●
132 NUT; END C/MBR
6WA1 TC-C(55L) M14 		9-99110-514-0 04 1 9906-9906 ● ●
132 NUT; END C/MBR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14 		9-99110-514-0 04 1 9906-9906 ● ●
132 NUT; END C/MBR
6WA1 TC-C(55L),10PE1N(61L) M14 		9-99110-514-0 04 1 9906- ● ●
254 WASHER; PL,C/MBR
6WA1 TC-C(55L) ID=15 		9-09651-069-0 04 1 9906-9906 ● ●
254 WASHER; PL,C/MBR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=15 		9-09651-069-0 04 1 9906-9906 ● ●
254 WASHER; PL,C/MBR
6WA1 TC-C(55L),10PE1N(61L) ID=15 		9-09651-069-0 04 1 9906- ● ●
çizim 40453
86 21 130 131 21 77 148 12 148 148 132 131 148 148 148 79 57 12 254
BalonParca AdiParca NoAdetTipApplied Date A B
12 WASHER; PL,BRKT,ENG MTG
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 01 1 9606-9609 ● ●
12 WASHER; PL,BRKT,ENG MTG
FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 01 1 9610-9905 ● ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) ID=15 		9-09651-069-0 02 1 9906-9906 ● ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-S(56L),6WG1 TC-C(72L) ID=15 		9-09651-069-0 02 1 9906-9906 ●
12 WASHER; PL,BRKT,ENG MTG
10PE1N(61L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,FRAME ENG MTGSEPARATE TYPE<SGM> ID=15 		9-09651-069-0 02 1 9906-9912 ● ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-C(55L) MIXER TRUCK<RA2> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 02 1 9906-9912 ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-S(56L),6WG1 TC-C(72L) ID=15 		9-09651-069-0 02 1 9906-9912 ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-C(55L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 02 1 9906-9912 ●
12 WASHER; PL,BRKT,ENG MTG
10PE1N(61L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=15 		9-09651-069-0 01 1 0001-0003 ● ●
12 WASHER; PL,BRKT,ENG MTG
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=15 		9-09651-069-0 01 1 0004- ● ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 02 1 9606-9706 ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-S(56L),6WG1 TC-N(71L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 02 1 9707-9905 ●
12 WASHER; PL,BRKT,ENG MTG
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=15 		9-09651-069-0 01 1 9906-9912 ● ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 01 1 9906-9912 ● ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-C(55L) ID=15 		9-09651-069-0 02 1 0001- ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-C(55L),6WA1 TC-S(56L) ID=15 		9-09651-069-0 02 1 0001- ●
12 WASHER; PL,BRKT,ENG MTG
6WG1 TC-C(72L) ID=15 		9-09651-069-0 04 1 0001-0003 ●
12 WASHER; PL,BRKT,ENG MTG
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 04 1 0004- ●
21 GUSSET; 2ND CROSS
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53164-208-0 02 1 9606-9609 ● ●
21 GUSSET; 2ND CROSS
FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53164-208-0 02 1 9610-9905 ● ●
21 GUSSET; 2ND CROSS
6WA1 TC-C(55L) (A) 		1-53164-208-0 02 1 9906-9906 ● ●
21 GUSSET; 2ND CROSS
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53164-208-0 02 1 9906-9906 ● ●
21 GUSSET; 2ND CROSS
6WA1 TC-C(55L),10PE1N(61L) (A) 		1-53164-208-0 02 1 9906- ● ●
21 GUSSET; 2ND CROSS
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53167-287-1 02 1 9606-9609 ● ●
21 GUSSET; 2ND CROSS
FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53167-287-1 02 1 9610-9905 ● ●
21 GUSSET; 2ND CROSS
6WA1 TC-C(55L) (B) 		1-53167-287-1 02 1 9906-9906 ● ●
21 GUSSET; 2ND CROSS
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) 		1-53167-287-1 02 1 9906-9906 ● ●
21 GUSSET; 2ND CROSS
6WA1 TC-C(55L),10PE1N(61L) (B) 		1-53167-287-2 02 1 9906- ● ●
21 GUSSET; 2ND CROSS
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53164-185-0 02 1 9606-9706 ●
21 GUSSET; 2ND CROSS
6WA1 TC-S(56L),6WG1 TC-N(71L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53164-185-0 02 1 9707-9905 ●
21 GUSSET; 2ND CROSS
6WA1 TC-S(56L),6WG1 TC-C(72L) (A) 		1-53164-185-0 02 1 9906- ●
57 MEMBER; CROSS,RR SUSP FRT
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53171-685-2 01 1 9606-9609 ● ●
57 MEMBER; CROSS,RR SUSP FRT
FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53171-685-2 01 1 9610-9905 ● ●
57 MEMBER; CROSS,RR SUSP FRT
6WA1 TC-C(55L) (A) 		1-53171-685-2 01 1 9906-9906 ● ●
57 MEMBER; CROSS,RR SUSP FRT
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53171-685-2 01 1 9906-9906 ● ●
57 MEMBER; CROSS,RR SUSP FRT
6WA1 TC-C(55L),10PE1N(61L) (A) 		1-53171-685-2 01 1 9906- ● ●
57 MEMBER; CROSS,RR SUSP FRT
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53171-651-5 01 1 9606-9706 ●
57 MEMBER; CROSS,RR SUSP FRT
6WA1 TC-S(56L),6WG1 TC-N(71L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53171-651-5 01 1 9707-9905 ●
57 MEMBER; CROSS,RR SUSP FRT
6WA1 TC-S(56L),6WG1 TC-C(72L) (B) 		1-53171-651-5 01 1 9906- ●
77 MEMBER; CROSS,TRUNNION RR
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> 		1-53181-146-4 01 1 9606-9609 ● ●
77 MEMBER; CROSS,TRUNNION RR
FRAME EQUIPMENT HEAVY DUTY<F03> 		1-53181-146-4 01 1 9610-9905 ● ●
79 MEMBER; CROSS,TRUNNION ASM
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53181-374-0 01 1 9606-9609 ● ●
79 MEMBER; CROSS,TRUNNION ASM
FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53181-374-0 01 1 9610-9905 ● ●
79 MEMBER; CROSS,TRUNNION ASM
6WA1 TC-C(55L) (A) 		1-53181-374-0 01 1 9906-9906 ● ●
79 MEMBER; CROSS,TRUNNION ASM
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53181-374-0 01 1 9906-9906 ● ●
79 MEMBER; CROSS,TRUNNION ASM
6WA1 TC-C(55L),10PE1N(61L) (A) 		1-53181-374-0 01 1 9906- ● ●
79 MEMBER; CROSS,TRUNNION ASM
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53181-686-0 01 1 9606-9706 ●
79 MEMBER; CROSS,TRUNNION ASM
6WA1 TC-S(56L),6WG1 TC-N(71L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53181-686-0 01 1 9707-9905 ●
79 MEMBER; CROSS,TRUNNION ASM
6WA1 TC-S(56L),6WG1 TC-C(72L) (B) 		1-53181-686-0 01 1 9906- ●
86 MEMBER; CROSS,RR SUSP RR
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53181-134-1 01 1 9606-9609 ● ●
86 MEMBER; CROSS,RR SUSP RR
FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53181-134-1 01 1 9610-9905 ● ●
86 MEMBER; CROSS,RR SUSP RR
6WA1 TC-C(55L) (A) 		1-53181-134-1 01 1 9906-9906 ● ●
86 MEMBER; CROSS,RR SUSP RR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53181-134-1 01 1 9906-9906 ● ●
86 MEMBER; CROSS,RR SUSP RR
6WA1 TC-C(55L),10PE1N(61L) (A) 		1-53181-134-1 01 1 9906- ● ●
86 MEMBER; CROSS,RR SUSP RR
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53181-646-2 01 1 9606-9706 ●
86 MEMBER; CROSS,RR SUSP RR
6WA1 TC-S(56L),6WG1 TC-N(71L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53181-646-3 01 1 9707-9905 ●
86 MEMBER; CROSS,RR SUSP RR
6WA1 TC-S(56L),6WG1 TC-C(72L) (B) 		1-53181-646-3 01 1 9906- ●
130 MEMBER; CROSS,END
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53171-876-2 01 1 9606-9609 ● ●
130 MEMBER; CROSS,END
FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53171-876-2 01 1 9610-9905 ● ●
130 MEMBER; CROSS,END
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53171-876-3 01 1 9906- ● ●
130 MEMBER; CROSS,END
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53171-876-3 01 1 9906- ● ●
130 MEMBER; CROSS,END
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) (A) 		1-53181-537-0 01 1 9906-9906 ● ●
130 MEMBER; CROSS,END
6WA1 TC-C(55L),10PE1N(61L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53181-537-0 01 1 9906-0003 ● ●
130 MEMBER; CROSS,END
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53181-537-1 01 1 0004- ● ●
130 MEMBER; CROSS,END
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> MIXER TRUCK<RA2> (A) 		1-53181-537-1 01 1 0004- ●
130 MEMBER; CROSS,END
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> (A) 		1-53181-537-1 01 1 0004- ●
130 MEMBER; CROSS,END
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53181-613-0 01 1 9606-9706 ●
130 MEMBER; CROSS,END
6WA1 TC-S(56L),6WG1 TC-N(71L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53181-613-0 01 1 9707-9905 ●
130 MEMBER; CROSS,END
6WA1 TC-S(56L),6WG1 TC-C(72L) (B) 		1-53181-613-1 01 1 9906- ●
131 BOLT; END C/MBR
6WA1 TC-C(55L) MIXER TRUCK<RA2> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14X50 		9-92061-450-0 04 1 0001-0003 ●
131 BOLT; END C/MBR
10PE1N(61L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X50 		9-92061-450-0 04 1 0001-0003 ●
131 BOLT; END C/MBR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> M14X50 		9-92061-450-0 04 1 0001-0003 ●
131 BOLT; END C/MBR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X50 		9-92061-450-0 04 1 0004- ●
131 BOLT; END C/MBR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> M14X50 		9-92061-450-0 04 1 0004- ●
131 BOLT; END C/MBR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> MIXER TRUCK<RA2> M14X50 		9-92061-450-0 04 1 0004- ●
131 BOLT; END C/MBR
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> M14X40 		9-92061-440-0 04 1 9606-9609 ● ●
131 BOLT; END C/MBR
FRAME EQUIPMENT HEAVY DUTY<F03> M14X40 		9-92061-440-0 04 1 9610-9905 ● ●
131 BOLT; END C/MBR
6WA1 TC-C(55L) M14X40 		9-92061-440-0 04 1 9906-9906 ● ●
131 BOLT; END C/MBR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X40 		9-92061-440-0 04 1 9906-9906 ● ●
131 BOLT; END C/MBR
6WA1 TC-C(55L),10PE1N(61L) M14X40 		9-92061-440-0 04 1 9906-9912 ● ●
131 BOLT; END C/MBR
10PE1N(61L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X40 		9-92061-440-0 04 1 0001-0003 ●
131 BOLT; END C/MBR
6WA1 TC-C(55L) M14X40 		9-92061-440-0 04 1 0001-0003 ●
131 BOLT; END C/MBR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X40 		9-92061-440-0 04 1 0004- ●
131 BOLT; END C/MBR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> M14X40 		9-92061-440-0 04 1 0004- ●
132 NUT; END C/MBR
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> M14 		9-99110-514-0 04 1 9606-9609 ● ●
132 NUT; END C/MBR
FRAME EQUIPMENT HEAVY DUTY<F03> M14 		9-99110-514-0 04 1 9610-9905 ● ●
132 NUT; END C/MBR
6WA1 TC-C(55L) M14 		9-99110-514-0 04 1 9906-9906 ● ●
132 NUT; END C/MBR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14 		9-99110-514-0 04 1 9906-9906 ● ●
132 NUT; END C/MBR
6WA1 TC-C(55L),10PE1N(61L) M14 		9-99110-514-0 04 1 9906- ● ●
148 SPACER; C/MBR
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) (B) 		1-53168-452-0 02 1 9906-9906 ● ●
148 SPACER; C/MBR
6WA1 TC-C(55L),10PE1N(61L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53168-452-0 02 1 9906-0003 ● ●
148 SPACER; C/MBR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) 		1-53168-452-0 02 1 0004- ● ●
148 SPACER; C/MBR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> MIXER TRUCK<RA2> (B) 		1-53168-452-0 02 1 0004- ●
148 SPACER; C/MBR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> (B) 		1-53168-452-0 02 1 0004- ●
148 SPACER; C/MBR
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) (A) 		1-53168-453-0 04 1 9906-9906 ● ●
148 SPACER; C/MBR
6WA1 TC-C(55L),10PE1N(61L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53168-453-0 04 1 9906-0003 ● ●
148 SPACER; C/MBR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53168-453-0 04 1 0004- ● ●
148 SPACER; C/MBR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> MIXER TRUCK<RA2> (A) 		1-53168-453-0 04 1 0004- ●
148 SPACER; C/MBR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> (A) 		1-53168-453-0 04 1 0004- ●
254 WASHER; PL,C/MBR
6WA1 TC-C(55L) ID=15 		9-09651-069-0 04 1 9906-9906 ● ●
254 WASHER; PL,C/MBR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=15 		9-09651-069-0 04 1 9906-9906 ● ●
254 WASHER; PL,C/MBR
6WA1 TC-C(55L),10PE1N(61L) ID=15 		9-09651-069-0 04 1 9906- ● ●
çizim 40645
86 130 21 131 21 77 12 148 148 132 131 148 148 148 148 79 57 12 254
BalonParca AdiParca NoAdetTipApplied Date A B
12 WASHER; PL,BRKT,ENG MTG
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 01 1 9606-9609 ● ●
12 WASHER; PL,BRKT,ENG MTG
FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 01 1 9610-9905 ● ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) ID=15 		9-09651-069-0 02 1 9906-9906 ● ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-S(56L),6WG1 TC-C(72L) ID=15 		9-09651-069-0 02 1 9906-9906 ●
12 WASHER; PL,BRKT,ENG MTG
10PE1N(61L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,FRAME ENG MTGSEPARATE TYPE<SGM> ID=15 		9-09651-069-0 02 1 9906-9912 ● ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-C(55L) MIXER TRUCK<RA2> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 02 1 9906-9912 ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-S(56L),6WG1 TC-C(72L) ID=15 		9-09651-069-0 02 1 9906-9912 ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-C(55L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 02 1 9906-9912 ●
12 WASHER; PL,BRKT,ENG MTG
10PE1N(61L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=15 		9-09651-069-0 01 1 0001-0003 ● ●
12 WASHER; PL,BRKT,ENG MTG
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=15 		9-09651-069-0 01 1 0004- ● ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 02 1 9606-9706 ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-S(56L),6WG1 TC-N(71L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 02 1 9707-9905 ●
12 WASHER; PL,BRKT,ENG MTG
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=15 		9-09651-069-0 01 1 9906-9912 ● ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 01 1 9906-9912 ● ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-C(55L) ID=15 		9-09651-069-0 02 1 0001- ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-C(55L),6WA1 TC-S(56L) ID=15 		9-09651-069-0 02 1 0001- ●
12 WASHER; PL,BRKT,ENG MTG
6WG1 TC-C(72L) ID=15 		9-09651-069-0 04 1 0001-0003 ●
12 WASHER; PL,BRKT,ENG MTG
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 04 1 0004- ●
21 GUSSET; 2ND CROSS
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53164-208-0 02 1 9606-9609 ● ●
21 GUSSET; 2ND CROSS
FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53164-208-0 02 1 9610-9905 ● ●
21 GUSSET; 2ND CROSS
6WA1 TC-C(55L) (A) 		1-53164-208-0 02 1 9906-9906 ● ●
21 GUSSET; 2ND CROSS
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53164-208-0 02 1 9906-9906 ● ●
21 GUSSET; 2ND CROSS
6WA1 TC-C(55L),10PE1N(61L) (A) 		1-53164-208-0 02 1 9906- ● ●
21 GUSSET; 2ND CROSS
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53167-287-1 02 1 9606-9609 ● ●
21 GUSSET; 2ND CROSS
FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53167-287-1 02 1 9610-9905 ● ●
21 GUSSET; 2ND CROSS
6WA1 TC-C(55L) (B) 		1-53167-287-1 02 1 9906-9906 ● ●
21 GUSSET; 2ND CROSS
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) 		1-53167-287-1 02 1 9906-9906 ● ●
21 GUSSET; 2ND CROSS
6WA1 TC-C(55L),10PE1N(61L) (B) 		1-53167-287-2 02 1 9906- ● ●
21 GUSSET; 2ND CROSS
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53164-185-0 02 1 9606-9706 ●
21 GUSSET; 2ND CROSS
6WA1 TC-S(56L),6WG1 TC-N(71L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53164-185-0 02 1 9707-9905 ●
21 GUSSET; 2ND CROSS
6WA1 TC-S(56L),6WG1 TC-C(72L) (A) 		1-53164-185-0 02 1 9906- ●
57 MEMBER; CROSS,RR SUSP FRT
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53171-685-2 01 1 9606-9609 ● ●
57 MEMBER; CROSS,RR SUSP FRT
FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53171-685-2 01 1 9610-9905 ● ●
57 MEMBER; CROSS,RR SUSP FRT
6WA1 TC-C(55L) (A) 		1-53171-685-2 01 1 9906-9906 ● ●
57 MEMBER; CROSS,RR SUSP FRT
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53171-685-2 01 1 9906-9906 ● ●
57 MEMBER; CROSS,RR SUSP FRT
6WA1 TC-C(55L),10PE1N(61L) (A) 		1-53171-685-2 01 1 9906- ● ●
57 MEMBER; CROSS,RR SUSP FRT
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53171-651-5 01 1 9606-9706 ●
57 MEMBER; CROSS,RR SUSP FRT
6WA1 TC-S(56L),6WG1 TC-N(71L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53171-651-5 01 1 9707-9905 ●
57 MEMBER; CROSS,RR SUSP FRT
6WA1 TC-S(56L),6WG1 TC-C(72L) (B) 		1-53171-651-5 01 1 9906- ●
77 MEMBER; CROSS,TRUNNION RR
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> 		1-53181-146-4 01 1 9606-9609 ● ●
77 MEMBER; CROSS,TRUNNION RR
FRAME EQUIPMENT HEAVY DUTY<F03> 		1-53181-146-4 01 1 9610-9905 ● ●
79 MEMBER; CROSS,TRUNNION ASM
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53181-374-0 01 1 9606-9609 ● ●
79 MEMBER; CROSS,TRUNNION ASM
FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53181-374-0 01 1 9610-9905 ● ●
79 MEMBER; CROSS,TRUNNION ASM
6WA1 TC-C(55L) (A) 		1-53181-374-0 01 1 9906-9906 ● ●
79 MEMBER; CROSS,TRUNNION ASM
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53181-374-0 01 1 9906-9906 ● ●
79 MEMBER; CROSS,TRUNNION ASM
6WA1 TC-C(55L),10PE1N(61L) (A) 		1-53181-374-0 01 1 9906- ● ●
79 MEMBER; CROSS,TRUNNION ASM
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53181-686-0 01 1 9606-9706 ●
79 MEMBER; CROSS,TRUNNION ASM
6WA1 TC-S(56L),6WG1 TC-N(71L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53181-686-0 01 1 9707-9905 ●
79 MEMBER; CROSS,TRUNNION ASM
6WA1 TC-S(56L),6WG1 TC-C(72L) (B) 		1-53181-686-0 01 1 9906- ●
86 MEMBER; CROSS,RR SUSP RR
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53181-134-1 01 1 9606-9609 ● ●
86 MEMBER; CROSS,RR SUSP RR
FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53181-134-1 01 1 9610-9905 ● ●
86 MEMBER; CROSS,RR SUSP RR
6WA1 TC-C(55L) (A) 		1-53181-134-1 01 1 9906-9906 ● ●
86 MEMBER; CROSS,RR SUSP RR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53181-134-1 01 1 9906-9906 ● ●
86 MEMBER; CROSS,RR SUSP RR
6WA1 TC-C(55L),10PE1N(61L) (A) 		1-53181-134-1 01 1 9906- ● ●
86 MEMBER; CROSS,RR SUSP RR
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53181-646-2 01 1 9606-9706 ●
86 MEMBER; CROSS,RR SUSP RR
6WA1 TC-S(56L),6WG1 TC-N(71L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53181-646-3 01 1 9707-9905 ●
86 MEMBER; CROSS,RR SUSP RR
6WA1 TC-S(56L),6WG1 TC-C(72L) (B) 		1-53181-646-3 01 1 9906- ●
130 MEMBER; CROSS,END
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53171-876-2 01 1 9606-9609 ● ●
130 MEMBER; CROSS,END
FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53171-876-2 01 1 9610-9905 ● ●
130 MEMBER; CROSS,END
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53171-876-3 01 1 9906- ● ●
130 MEMBER; CROSS,END
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53171-876-3 01 1 9906- ● ●
130 MEMBER; CROSS,END
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) (A) 		1-53181-537-0 01 1 9906-9906 ● ●
130 MEMBER; CROSS,END
6WA1 TC-C(55L),10PE1N(61L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53181-537-0 01 1 9906-0003 ● ●
130 MEMBER; CROSS,END
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53181-537-1 01 1 0004- ● ●
130 MEMBER; CROSS,END
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> MIXER TRUCK<RA2> (A) 		1-53181-537-1 01 1 0004- ●
130 MEMBER; CROSS,END
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> (A) 		1-53181-537-1 01 1 0004- ●
130 MEMBER; CROSS,END
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53181-613-0 01 1 9606-9706 ●
130 MEMBER; CROSS,END
6WA1 TC-S(56L),6WG1 TC-N(71L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53181-613-0 01 1 9707-9905 ●
130 MEMBER; CROSS,END
6WA1 TC-S(56L),6WG1 TC-C(72L) (B) 		1-53181-613-1 01 1 9906- ●
131 BOLT; END C/MBR
6WA1 TC-C(55L) MIXER TRUCK<RA2> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14X50 		9-92061-450-0 04 1 0001-0003 ●
131 BOLT; END C/MBR
10PE1N(61L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X50 		9-92061-450-0 04 1 0001-0003 ●
131 BOLT; END C/MBR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> M14X50 		9-92061-450-0 04 1 0001-0003 ●
131 BOLT; END C/MBR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X50 		9-92061-450-0 04 1 0004- ●
131 BOLT; END C/MBR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> M14X50 		9-92061-450-0 04 1 0004- ●
131 BOLT; END C/MBR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> MIXER TRUCK<RA2> M14X50 		9-92061-450-0 04 1 0004- ●
131 BOLT; END C/MBR
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> M14X40 		9-92061-440-0 04 1 9606-9609 ● ●
131 BOLT; END C/MBR
FRAME EQUIPMENT HEAVY DUTY<F03> M14X40 		9-92061-440-0 04 1 9610-9905 ● ●
131 BOLT; END C/MBR
6WA1 TC-C(55L) M14X40 		9-92061-440-0 04 1 9906-9906 ● ●
131 BOLT; END C/MBR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X40 		9-92061-440-0 04 1 9906-9906 ● ●
131 BOLT; END C/MBR
6WA1 TC-C(55L),10PE1N(61L) M14X40 		9-92061-440-0 04 1 9906-9912 ● ●
131 BOLT; END C/MBR
10PE1N(61L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X40 		9-92061-440-0 04 1 0001-0003 ●
131 BOLT; END C/MBR
6WA1 TC-C(55L) M14X40 		9-92061-440-0 04 1 0001-0003 ●
131 BOLT; END C/MBR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X40 		9-92061-440-0 04 1 0004- ●
131 BOLT; END C/MBR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> M14X40 		9-92061-440-0 04 1 0004- ●
132 NUT; END C/MBR
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> M14 		9-99110-514-0 04 1 9606-9609 ● ●
132 NUT; END C/MBR
FRAME EQUIPMENT HEAVY DUTY<F03> M14 		9-99110-514-0 04 1 9610-9905 ● ●
132 NUT; END C/MBR
6WA1 TC-C(55L) M14 		9-99110-514-0 04 1 9906-9906 ● ●
132 NUT; END C/MBR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14 		9-99110-514-0 04 1 9906-9906 ● ●
132 NUT; END C/MBR
6WA1 TC-C(55L),10PE1N(61L) M14 		9-99110-514-0 04 1 9906- ● ●
148 SPACER; C/MBR
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) (B) 		1-53168-452-0 02 1 9906-9906 ● ●
148 SPACER; C/MBR
6WA1 TC-C(55L),10PE1N(61L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53168-452-0 02 1 9906-0003 ● ●
148 SPACER; C/MBR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) 		1-53168-452-0 02 1 0004- ● ●
148 SPACER; C/MBR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> MIXER TRUCK<RA2> (B) 		1-53168-452-0 02 1 0004- ●
148 SPACER; C/MBR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> (B) 		1-53168-452-0 02 1 0004- ●
148 SPACER; C/MBR
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) (A) 		1-53168-453-0 04 1 9906-9906 ● ●
148 SPACER; C/MBR
6WA1 TC-C(55L),10PE1N(61L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53168-453-0 04 1 9906-0003 ● ●
148 SPACER; C/MBR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53168-453-0 04 1 0004- ● ●
148 SPACER; C/MBR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> MIXER TRUCK<RA2> (A) 		1-53168-453-0 04 1 0004- ●
148 SPACER; C/MBR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> (A) 		1-53168-453-0 04 1 0004- ●
254 WASHER; PL,C/MBR
6WA1 TC-C(55L) ID=15 		9-09651-069-0 04 1 9906-9906 ● ●
254 WASHER; PL,C/MBR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=15 		9-09651-069-0 04 1 9906-9906 ● ●
254 WASHER; PL,C/MBR
6WA1 TC-C(55L),10PE1N(61L) ID=15 		9-09651-069-0 04 1 9906- ● ●
çizim 41048
70 201 130 131 86 12 132 21 130 21 77 148 148 148 131 70 148 148 148 86 79 79 201 57 57 12 254
BalonParca AdiParca NoAdetTipApplied Date A B
12 WASHER; PL,BRKT,ENG MTG
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 01 1 9606-9609 ● ●
12 WASHER; PL,BRKT,ENG MTG
FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 01 1 9610-9905 ● ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) ID=15 		9-09651-069-0 02 1 9906-9906 ● ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-S(56L),6WG1 TC-C(72L) ID=15 		9-09651-069-0 02 1 9906-9906 ●
12 WASHER; PL,BRKT,ENG MTG
10PE1N(61L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,FRAME ENG MTGSEPARATE TYPE<SGM> ID=15 		9-09651-069-0 02 1 9906-9912 ● ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-C(55L) MIXER TRUCK<RA2> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 02 1 9906-9912 ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-S(56L),6WG1 TC-C(72L) ID=15 		9-09651-069-0 02 1 9906-9912 ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-C(55L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 02 1 9906-9912 ●
12 WASHER; PL,BRKT,ENG MTG
10PE1N(61L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=15 		9-09651-069-0 01 1 0001-0003 ● ●
12 WASHER; PL,BRKT,ENG MTG
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=15 		9-09651-069-0 01 1 0004- ● ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 02 1 9606-9706 ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-S(56L),6WG1 TC-N(71L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 02 1 9707-9905 ●
12 WASHER; PL,BRKT,ENG MTG
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=15 		9-09651-069-0 01 1 9906-9912 ● ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 01 1 9906-9912 ● ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-C(55L) ID=15 		9-09651-069-0 02 1 0001- ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-C(55L),6WA1 TC-S(56L) ID=15 		9-09651-069-0 02 1 0001- ●
12 WASHER; PL,BRKT,ENG MTG
6WG1 TC-C(72L) ID=15 		9-09651-069-0 04 1 0001-0003 ●
12 WASHER; PL,BRKT,ENG MTG
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 04 1 0004- ●
21 GUSSET; 2ND CROSS
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53164-208-0 02 1 9606-9609 ● ●
21 GUSSET; 2ND CROSS
FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53164-208-0 02 1 9610-9905 ● ●
21 GUSSET; 2ND CROSS
6WA1 TC-C(55L) (A) 		1-53164-208-0 02 1 9906-9906 ● ●
21 GUSSET; 2ND CROSS
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53164-208-0 02 1 9906-9906 ● ●
21 GUSSET; 2ND CROSS
6WA1 TC-C(55L),10PE1N(61L) (A) 		1-53164-208-0 02 1 9906- ● ●
21 GUSSET; 2ND CROSS
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53167-287-1 02 1 9606-9609 ● ●
21 GUSSET; 2ND CROSS
FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53167-287-1 02 1 9610-9905 ● ●
21 GUSSET; 2ND CROSS
6WA1 TC-C(55L) (B) 		1-53167-287-1 02 1 9906-9906 ● ●
21 GUSSET; 2ND CROSS
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) 		1-53167-287-1 02 1 9906-9906 ● ●
21 GUSSET; 2ND CROSS
6WA1 TC-C(55L),10PE1N(61L) (B) 		1-53167-287-2 02 1 9906- ● ●
21 GUSSET; 2ND CROSS
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53164-185-0 02 1 9606-9706 ●
21 GUSSET; 2ND CROSS
6WA1 TC-S(56L),6WG1 TC-N(71L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53164-185-0 02 1 9707-9905 ●
21 GUSSET; 2ND CROSS
6WA1 TC-S(56L),6WG1 TC-C(72L) (A) 		1-53164-185-0 02 1 9906- ●
57 MEMBER; CROSS,RR SUSP FRT
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53171-685-2 01 1 9606-9609 ● ●
57 MEMBER; CROSS,RR SUSP FRT
FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53171-685-2 01 1 9610-9905 ● ●
57 MEMBER; CROSS,RR SUSP FRT
6WA1 TC-C(55L) (A) 		1-53171-685-2 01 1 9906-9906 ● ●
57 MEMBER; CROSS,RR SUSP FRT
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53171-685-2 01 1 9906-9906 ● ●
57 MEMBER; CROSS,RR SUSP FRT
6WA1 TC-C(55L),10PE1N(61L) (A) 		1-53171-685-2 01 1 9906- ● ●
57 MEMBER; CROSS,RR SUSP FRT
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53171-651-5 01 1 9606-9706 ●
57 MEMBER; CROSS,RR SUSP FRT
6WA1 TC-S(56L),6WG1 TC-N(71L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53171-651-5 01 1 9707-9905 ●
57 MEMBER; CROSS,RR SUSP FRT
6WA1 TC-S(56L),6WG1 TC-C(72L) (B) 		1-53171-651-5 01 1 9906- ●
70 GUSSET; TRUNNION,UPR
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> 		1-53161-532-0 02 1 9606-9706 ●
70 GUSSET; TRUNNION,UPR
6WA1 TC-S(56L),6WG1 TC-N(71L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> 		1-53161-532-0 02 1 9707-9905 ●
70 GUSSET; TRUNNION,UPR
6WA1 TC-S(56L),6WG1 TC-C(72L) 		1-53161-532-0 02 1 9906- ●
77 MEMBER; CROSS,TRUNNION RR
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> 		1-53181-146-4 01 1 9606-9609 ● ●
77 MEMBER; CROSS,TRUNNION RR
FRAME EQUIPMENT HEAVY DUTY<F03> 		1-53181-146-4 01 1 9610-9905 ● ●
79 MEMBER; CROSS,TRUNNION ASM
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53181-374-0 01 1 9606-9609 ● ●
79 MEMBER; CROSS,TRUNNION ASM
FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53181-374-0 01 1 9610-9905 ● ●
79 MEMBER; CROSS,TRUNNION ASM
6WA1 TC-C(55L) (A) 		1-53181-374-0 01 1 9906-9906 ● ●
79 MEMBER; CROSS,TRUNNION ASM
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53181-374-0 01 1 9906-9906 ● ●
79 MEMBER; CROSS,TRUNNION ASM
6WA1 TC-C(55L),10PE1N(61L) (A) 		1-53181-374-0 01 1 9906- ● ●
79 MEMBER; CROSS,TRUNNION ASM
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53181-686-0 01 1 9606-9706 ●
79 MEMBER; CROSS,TRUNNION ASM
6WA1 TC-S(56L),6WG1 TC-N(71L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53181-686-0 01 1 9707-9905 ●
79 MEMBER; CROSS,TRUNNION ASM
6WA1 TC-S(56L),6WG1 TC-C(72L) (B) 		1-53181-686-0 01 1 9906- ●
86 MEMBER; CROSS,RR SUSP RR
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53181-134-1 01 1 9606-9609 ● ●
86 MEMBER; CROSS,RR SUSP RR
FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53181-134-1 01 1 9610-9905 ● ●
86 MEMBER; CROSS,RR SUSP RR
6WA1 TC-C(55L) (A) 		1-53181-134-1 01 1 9906-9906 ● ●
86 MEMBER; CROSS,RR SUSP RR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53181-134-1 01 1 9906-9906 ● ●
86 MEMBER; CROSS,RR SUSP RR
6WA1 TC-C(55L),10PE1N(61L) (A) 		1-53181-134-1 01 1 9906- ● ●
86 MEMBER; CROSS,RR SUSP RR
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53181-646-2 01 1 9606-9706 ●
86 MEMBER; CROSS,RR SUSP RR
6WA1 TC-S(56L),6WG1 TC-N(71L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53181-646-3 01 1 9707-9905 ●
86 MEMBER; CROSS,RR SUSP RR
6WA1 TC-S(56L),6WG1 TC-C(72L) (B) 		1-53181-646-3 01 1 9906- ●
130 MEMBER; CROSS,END
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53171-876-2 01 1 9606-9609 ● ●
130 MEMBER; CROSS,END
FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53171-876-2 01 1 9610-9905 ● ●
130 MEMBER; CROSS,END
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53171-876-3 01 1 9906- ● ●
130 MEMBER; CROSS,END
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53171-876-3 01 1 9906- ● ●
130 MEMBER; CROSS,END
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) (A) 		1-53181-537-0 01 1 9906-9906 ● ●
130 MEMBER; CROSS,END
6WA1 TC-C(55L),10PE1N(61L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53181-537-0 01 1 9906-0003 ● ●
130 MEMBER; CROSS,END
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53181-537-1 01 1 0004- ● ●
130 MEMBER; CROSS,END
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> MIXER TRUCK<RA2> (A) 		1-53181-537-1 01 1 0004- ●
130 MEMBER; CROSS,END
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> (A) 		1-53181-537-1 01 1 0004- ●
130 MEMBER; CROSS,END
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53181-613-0 01 1 9606-9706 ●
130 MEMBER; CROSS,END
6WA1 TC-S(56L),6WG1 TC-N(71L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53181-613-0 01 1 9707-9905 ●
130 MEMBER; CROSS,END
6WA1 TC-S(56L),6WG1 TC-C(72L) (B) 		1-53181-613-1 01 1 9906- ●
131 BOLT; END C/MBR
6WA1 TC-C(55L) MIXER TRUCK<RA2> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14X50 		9-92061-450-0 04 1 0001-0003 ●
131 BOLT; END C/MBR
10PE1N(61L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X50 		9-92061-450-0 04 1 0001-0003 ●
131 BOLT; END C/MBR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> M14X50 		9-92061-450-0 04 1 0001-0003 ●
131 BOLT; END C/MBR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X50 		9-92061-450-0 04 1 0004- ●
131 BOLT; END C/MBR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> M14X50 		9-92061-450-0 04 1 0004- ●
131 BOLT; END C/MBR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> MIXER TRUCK<RA2> M14X50 		9-92061-450-0 04 1 0004- ●
131 BOLT; END C/MBR
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> M14X40 		9-92061-440-0 04 1 9606-9609 ● ●
131 BOLT; END C/MBR
FRAME EQUIPMENT HEAVY DUTY<F03> M14X40 		9-92061-440-0 04 1 9610-9905 ● ●
131 BOLT; END C/MBR
6WA1 TC-C(55L) M14X40 		9-92061-440-0 04 1 9906-9906 ● ●
131 BOLT; END C/MBR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X40 		9-92061-440-0 04 1 9906-9906 ● ●
131 BOLT; END C/MBR
6WA1 TC-C(55L),10PE1N(61L) M14X40 		9-92061-440-0 04 1 9906-9912 ● ●
131 BOLT; END C/MBR
10PE1N(61L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X40 		9-92061-440-0 04 1 0001-0003 ●
131 BOLT; END C/MBR
6WA1 TC-C(55L) M14X40 		9-92061-440-0 04 1 0001-0003 ●
131 BOLT; END C/MBR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X40 		9-92061-440-0 04 1 0004- ●
131 BOLT; END C/MBR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> M14X40 		9-92061-440-0 04 1 0004- ●
132 NUT; END C/MBR
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> M14 		9-99110-514-0 04 1 9606-9609 ● ●
132 NUT; END C/MBR
FRAME EQUIPMENT HEAVY DUTY<F03> M14 		9-99110-514-0 04 1 9610-9905 ● ●
132 NUT; END C/MBR
6WA1 TC-C(55L) M14 		9-99110-514-0 04 1 9906-9906 ● ●
132 NUT; END C/MBR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14 		9-99110-514-0 04 1 9906-9906 ● ●
132 NUT; END C/MBR
6WA1 TC-C(55L),10PE1N(61L) M14 		9-99110-514-0 04 1 9906- ● ●
148 SPACER; C/MBR
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) (B) 		1-53168-452-0 02 1 9906-9906 ● ●
148 SPACER; C/MBR
6WA1 TC-C(55L),10PE1N(61L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53168-452-0 02 1 9906-0003 ● ●
148 SPACER; C/MBR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) 		1-53168-452-0 02 1 0004- ● ●
148 SPACER; C/MBR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> MIXER TRUCK<RA2> (B) 		1-53168-452-0 02 1 0004- ●
148 SPACER; C/MBR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> (B) 		1-53168-452-0 02 1 0004- ●
148 SPACER; C/MBR
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) (A) 		1-53168-453-0 04 1 9906-9906 ● ●
148 SPACER; C/MBR
6WA1 TC-C(55L),10PE1N(61L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53168-453-0 04 1 9906-0003 ● ●
148 SPACER; C/MBR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53168-453-0 04 1 0004- ● ●
148 SPACER; C/MBR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> MIXER TRUCK<RA2> (A) 		1-53168-453-0 04 1 0004- ●
148 SPACER; C/MBR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> (A) 		1-53168-453-0 04 1 0004- ●
201 GUSSET; C/MBR
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> 		1-53161-533-1 02 1 9606-9706 ●
201 GUSSET; C/MBR
6WA1 TC-S(56L),6WG1 TC-N(71L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> 		1-53161-533-1 02 1 9707-9905 ●
201 GUSSET; C/MBR
6WA1 TC-S(56L),6WG1 TC-C(72L) 		1-53161-533-1 02 1 9906- ●
254 WASHER; PL,C/MBR
6WA1 TC-C(55L) ID=15 		9-09651-069-0 04 1 9906-9906 ● ●
254 WASHER; PL,C/MBR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=15 		9-09651-069-0 04 1 9906-9906 ● ●
254 WASHER; PL,C/MBR
6WA1 TC-C(55L),10PE1N(61L) ID=15 		9-09651-069-0 04 1 9906- ● ●
çizim 41498
255 255 255 255 80 82 83 84 82 83 84 82 83 84 79 79 81 84 81 80 257 35 36 37 44 36 37 44
BalonParca AdiParca NoAdetTipApplied Date A B
35 MEMBER; UNDER 1-53174-214-2 01 1 9606- ● ●
36 WASHER; PL,UNDER MBR
ID=17 		9-09164-516-0 04 1 9606- ● ●
37 WASHER; LK,UNDER MBR
ID=16.2 		9-09150-816-0 04 1 9606- ● ●
44 BOLT; UNDER MBR
(A) M10X20,M16X50 L=81 		1-09029-069-0 01 1 9606-9907 ● ●
44 BOLT; UNDER MBR
6WA1 TC-C(55L),6WA1 TC-S(56L),10PE1N(61L) (A) M10X20,M16X50 L=81 		1-09029-069-0 01 1 9908- ● ●
44 BOLT; UNDER MBR
(B) M16X50 		9-92061-650-0 03 1 9606-9606 ● ●
44 BOLT; UNDER MBR
(B) M16X45 		9-92061-645-0 03 1 9607-9907 ● ●
44 BOLT; UNDER MBR
6WA1 TC-C(55L),6WA1 TC-S(56L),10PE1N(61L) (B) M16X45 		9-92061-645-0 03 1 9908- ● ●
44 BOLT; UNDER MBR
6WG1 TC-C(72L) (A) M10X20,M16X70 L=101 		1-09029-093-0 01 1 9908- ● ●
44 BOLT; UNDER MBR
6WG1 TC-C(72L) (B) M16X65 		9-91061-665-0 03 1 9908- ● ●
79 MEMBER; CROSS,TRUNNION ASM
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53181-374-0 01 1 9606-9609 ● ●
79 MEMBER; CROSS,TRUNNION ASM
FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53181-374-0 01 1 9610-9905 ● ●
79 MEMBER; CROSS,TRUNNION ASM
6WA1 TC-C(55L) (A) 		1-53181-374-0 01 1 9906-9906 ● ●
79 MEMBER; CROSS,TRUNNION ASM
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53181-374-0 01 1 9906-9906 ● ●
79 MEMBER; CROSS,TRUNNION ASM
6WA1 TC-C(55L),10PE1N(61L) (A) 		1-53181-374-0 01 1 9906- ● ●
79 MEMBER; CROSS,TRUNNION ASM
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53181-686-0 01 1 9606-9706 ●
79 MEMBER; CROSS,TRUNNION ASM
6WA1 TC-S(56L),6WG1 TC-N(71L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53181-686-0 01 1 9707-9905 ●
79 MEMBER; CROSS,TRUNNION ASM
6WA1 TC-S(56L),6WG1 TC-C(72L) (B) 		1-53181-686-0 01 1 9906- ●
80 BRACKET; C/MBR
FRAME EQUIPMENT HEAVY DUTY<F03> 		1-53167-288-0 04 1 9606- ● ●
80 BRACKET; C/MBR
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> 		1-53167-081-5 04 1 9606-9912 ● ●
80 BRACKET; C/MBR
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> 		1-53167-610-0 04 1 0001- ● ●
80 BRACKET; C/MBR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> 		1-53363-031-2 02 1 0004- ● ●
80 BRACKET; C/MBR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> MIXER TRUCK<RA2> 		1-53363-031-2 02 1 0004- ●
80 BRACKET; C/MBR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> 		1-53363-031-2 02 1 0004- ●
81 BOLT; BRKT
(B) M14X55 		9-91066-455-0 04 1 9606- ● ●
81 BOLT; BRKT
FRAME EQUIPMENT HEAVY DUTY<F03> (A) M14X45 		9-92061-445-0 08 1 9606- ● ●
81 BOLT; BRKT
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) M14X38 		9-92061-438-0 08 1 9606- ● ●
82 NUT; BRKT
M14 		9-99110-514-0 12 1 9606- ● ●
82 NUT; BRKT
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> M14 		9-99110-514-0 04 1 0004- ●
82 NUT; BRKT
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14 		9-99110-514-0 13 1 0004- ● ●
82 NUT; BRKT
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> MIXER TRUCK<RA2> M14 		9-99110-514-0 13 1 0004- ●
82 NUT; BRKT
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> M14 		9-99110-514-0 13 1 0004- ●
83 WASHER; LK,BRKT
ID=14.2 		9-09150-614-0 12 1 9606- ● ●
84 WASHER; PL,BRKT
ID=15 OD=26 		9-09164-514-0 16 1 9606- ● ●
84 WASHER; PL,BRKT
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) ID=15 		9-09651-069-0 18 1 9906-9906 ● ●
84 WASHER; PL,BRKT
6WA1 TC-C(55L),10PE1N(61L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 18 1 9906-0003 ● ●
84 WASHER; PL,BRKT
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=15 		9-09651-069-0 18 1 0004- ● ●
84 WASHER; PL,BRKT
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> MIXER TRUCK<RA2> ID=15 		9-09651-069-0 18 1 0004- ●
84 WASHER; PL,BRKT
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> ID=15 		9-09651-069-0 18 1 0004- ●
84 WASHER; PL,BRKT
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 08 1 0004- ●
255 WASHER; PL,BRKT
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 08 1 9606-9609 ● ●
255 WASHER; PL,BRKT
FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 08 1 9610-9905 ● ●
255 WASHER; PL,BRKT
6WA1 TC-C(55L) ID=15 		9-09651-069-0 08 1 9906-9906 ● ●
255 WASHER; PL,BRKT
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=15 		9-09651-069-0 08 1 9906-9906 ● ●
255 WASHER; PL,BRKT
6WA1 TC-C(55L),10PE1N(61L) ID=15 		9-09651-069-0 08 1 9906- ● ●
257 SPACER; UNDER MBR
6WG1 TC-C(72L) 		1-53168-319-0 02 1 9908- ● ●
çizim 41609
130 86 131 12 21 21 77 132 79 131 57 12 254
BalonParca AdiParca NoAdetTipApplied Date A B
12 WASHER; PL,BRKT,ENG MTG
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 01 1 9606-9609 ● ●
12 WASHER; PL,BRKT,ENG MTG
FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 01 1 9610-9905 ● ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) ID=15 		9-09651-069-0 02 1 9906-9906 ● ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-S(56L),6WG1 TC-C(72L) ID=15 		9-09651-069-0 02 1 9906-9906 ●
12 WASHER; PL,BRKT,ENG MTG
10PE1N(61L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,FRAME ENG MTGSEPARATE TYPE<SGM> ID=15 		9-09651-069-0 02 1 9906-9912 ● ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-C(55L) MIXER TRUCK<RA2> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 02 1 9906-9912 ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-S(56L),6WG1 TC-C(72L) ID=15 		9-09651-069-0 02 1 9906-9912 ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-C(55L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 02 1 9906-9912 ●
12 WASHER; PL,BRKT,ENG MTG
10PE1N(61L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=15 		9-09651-069-0 01 1 0001-0003 ● ●
12 WASHER; PL,BRKT,ENG MTG
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=15 		9-09651-069-0 01 1 0004- ● ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 02 1 9606-9706 ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-S(56L),6WG1 TC-N(71L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 02 1 9707-9905 ●
12 WASHER; PL,BRKT,ENG MTG
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=15 		9-09651-069-0 01 1 9906-9912 ● ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 01 1 9906-9912 ● ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-C(55L) ID=15 		9-09651-069-0 02 1 0001- ●
12 WASHER; PL,BRKT,ENG MTG
6WA1 TC-C(55L),6WA1 TC-S(56L) ID=15 		9-09651-069-0 02 1 0001- ●
12 WASHER; PL,BRKT,ENG MTG
6WG1 TC-C(72L) ID=15 		9-09651-069-0 04 1 0001-0003 ●
12 WASHER; PL,BRKT,ENG MTG
6WG1 TC-C(72L) CAB UP +110MM<TGG> EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> ID=15 		9-09651-069-0 04 1 0004- ●
21 GUSSET; 2ND CROSS
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53164-208-0 02 1 9606-9609 ● ●
21 GUSSET; 2ND CROSS
FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53164-208-0 02 1 9610-9905 ● ●
21 GUSSET; 2ND CROSS
6WA1 TC-C(55L) (A) 		1-53164-208-0 02 1 9906-9906 ● ●
21 GUSSET; 2ND CROSS
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53164-208-0 02 1 9906-9906 ● ●
21 GUSSET; 2ND CROSS
6WA1 TC-C(55L),10PE1N(61L) (A) 		1-53164-208-0 02 1 9906- ● ●
21 GUSSET; 2ND CROSS
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53167-287-1 02 1 9606-9609 ● ●
21 GUSSET; 2ND CROSS
FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53167-287-1 02 1 9610-9905 ● ●
21 GUSSET; 2ND CROSS
6WA1 TC-C(55L) (B) 		1-53167-287-1 02 1 9906-9906 ● ●
21 GUSSET; 2ND CROSS
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) 		1-53167-287-1 02 1 9906-9906 ● ●
21 GUSSET; 2ND CROSS
6WA1 TC-C(55L),10PE1N(61L) (B) 		1-53167-287-2 02 1 9906- ● ●
21 GUSSET; 2ND CROSS
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53164-185-0 02 1 9606-9706 ●
21 GUSSET; 2ND CROSS
6WA1 TC-S(56L),6WG1 TC-N(71L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53164-185-0 02 1 9707-9905 ●
21 GUSSET; 2ND CROSS
6WA1 TC-S(56L),6WG1 TC-C(72L) (A) 		1-53164-185-0 02 1 9906- ●
57 MEMBER; CROSS,RR SUSP FRT
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53171-685-2 01 1 9606-9609 ● ●
57 MEMBER; CROSS,RR SUSP FRT
FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53171-685-2 01 1 9610-9905 ● ●
57 MEMBER; CROSS,RR SUSP FRT
6WA1 TC-C(55L) (A) 		1-53171-685-2 01 1 9906-9906 ● ●
57 MEMBER; CROSS,RR SUSP FRT
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53171-685-2 01 1 9906-9906 ● ●
57 MEMBER; CROSS,RR SUSP FRT
6WA1 TC-C(55L),10PE1N(61L) (A) 		1-53171-685-2 01 1 9906- ● ●
57 MEMBER; CROSS,RR SUSP FRT
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53171-651-5 01 1 9606-9706 ●
57 MEMBER; CROSS,RR SUSP FRT
6WA1 TC-S(56L),6WG1 TC-N(71L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53171-651-5 01 1 9707-9905 ●
57 MEMBER; CROSS,RR SUSP FRT
6WA1 TC-S(56L),6WG1 TC-C(72L) (B) 		1-53171-651-5 01 1 9906- ●
77 MEMBER; CROSS,TRUNNION RR
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> 		1-53181-146-4 01 1 9606-9609 ● ●
77 MEMBER; CROSS,TRUNNION RR
FRAME EQUIPMENT HEAVY DUTY<F03> 		1-53181-146-4 01 1 9610-9905 ● ●
79 MEMBER; CROSS,TRUNNION ASM
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53181-374-0 01 1 9606-9609 ● ●
79 MEMBER; CROSS,TRUNNION ASM
FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53181-374-0 01 1 9610-9905 ● ●
79 MEMBER; CROSS,TRUNNION ASM
6WA1 TC-C(55L) (A) 		1-53181-374-0 01 1 9906-9906 ● ●
79 MEMBER; CROSS,TRUNNION ASM
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53181-374-0 01 1 9906-9906 ● ●
79 MEMBER; CROSS,TRUNNION ASM
6WA1 TC-C(55L),10PE1N(61L) (A) 		1-53181-374-0 01 1 9906- ● ●
79 MEMBER; CROSS,TRUNNION ASM
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53181-686-0 01 1 9606-9706 ●
79 MEMBER; CROSS,TRUNNION ASM
6WA1 TC-S(56L),6WG1 TC-N(71L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53181-686-0 01 1 9707-9905 ●
79 MEMBER; CROSS,TRUNNION ASM
6WA1 TC-S(56L),6WG1 TC-C(72L) (B) 		1-53181-686-0 01 1 9906- ●
86 MEMBER; CROSS,RR SUSP RR
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53181-134-1 01 1 9606-9609 ● ●
86 MEMBER; CROSS,RR SUSP RR
FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53181-134-1 01 1 9610-9905 ● ●
86 MEMBER; CROSS,RR SUSP RR
6WA1 TC-C(55L) (A) 		1-53181-134-1 01 1 9906-9906 ● ●
86 MEMBER; CROSS,RR SUSP RR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53181-134-1 01 1 9906-9906 ● ●
86 MEMBER; CROSS,RR SUSP RR
6WA1 TC-C(55L),10PE1N(61L) (A) 		1-53181-134-1 01 1 9906- ● ●
86 MEMBER; CROSS,RR SUSP RR
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53181-646-2 01 1 9606-9706 ●
86 MEMBER; CROSS,RR SUSP RR
6WA1 TC-S(56L),6WG1 TC-N(71L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53181-646-3 01 1 9707-9905 ●
86 MEMBER; CROSS,RR SUSP RR
6WA1 TC-S(56L),6WG1 TC-C(72L) (B) 		1-53181-646-3 01 1 9906- ●
130 MEMBER; CROSS,END
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53171-876-2 01 1 9606-9609 ● ●
130 MEMBER; CROSS,END
FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53171-876-2 01 1 9610-9905 ● ●
130 MEMBER; CROSS,END
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53171-876-3 01 1 9906- ● ●
130 MEMBER; CROSS,END
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53171-876-3 01 1 9906- ● ●
130 MEMBER; CROSS,END
6WA1 TC-C(55L) LIGHT DUTY PACKAGE TRUCK(Y21) (A) 		1-53181-537-0 01 1 9906-9906 ● ●
130 MEMBER; CROSS,END
6WA1 TC-C(55L),10PE1N(61L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (A) 		1-53181-537-0 01 1 9906-0003 ● ●
130 MEMBER; CROSS,END
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (A) 		1-53181-537-1 01 1 0004- ● ●
130 MEMBER; CROSS,END
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> MIXER TRUCK<RA2> (A) 		1-53181-537-1 01 1 0004- ●
130 MEMBER; CROSS,END
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> (A) 		1-53181-537-1 01 1 0004- ●
130 MEMBER; CROSS,END
6WA1 TC-S(56L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53181-613-0 01 1 9606-9706 ●
130 MEMBER; CROSS,END
6WA1 TC-S(56L),6WG1 TC-N(71L) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> (B) 		1-53181-613-0 01 1 9707-9905 ●
130 MEMBER; CROSS,END
6WA1 TC-S(56L),6WG1 TC-C(72L) (B) 		1-53181-613-1 01 1 9906- ●
131 BOLT; END C/MBR
6WA1 TC-C(55L) MIXER TRUCK<RA2> EXC. FRAME EQUIPMENT HEAVY DUTY<F03> M14X50 		9-92061-450-0 04 1 0001-0003 ●
131 BOLT; END C/MBR
10PE1N(61L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X50 		9-92061-450-0 04 1 0001-0003 ●
131 BOLT; END C/MBR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> M14X50 		9-92061-450-0 04 1 0001-0003 ●
131 BOLT; END C/MBR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X50 		9-92061-450-0 04 1 0004- ●
131 BOLT; END C/MBR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> M14X50 		9-92061-450-0 04 1 0004- ●
131 BOLT; END C/MBR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01> MIXER TRUCK<RA2> M14X50 		9-92061-450-0 04 1 0004- ●
131 BOLT; END C/MBR
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> M14X40 		9-92061-440-0 04 1 9606-9609 ● ●
131 BOLT; END C/MBR
FRAME EQUIPMENT HEAVY DUTY<F03> M14X40 		9-92061-440-0 04 1 9610-9905 ● ●
131 BOLT; END C/MBR
6WA1 TC-C(55L) M14X40 		9-92061-440-0 04 1 9906-9906 ● ●
131 BOLT; END C/MBR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X40 		9-92061-440-0 04 1 9906-9906 ● ●
131 BOLT; END C/MBR
6WA1 TC-C(55L),10PE1N(61L) M14X40 		9-92061-440-0 04 1 9906-9912 ● ●
131 BOLT; END C/MBR
10PE1N(61L) EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X40 		9-92061-440-0 04 1 0001-0003 ●
131 BOLT; END C/MBR
6WA1 TC-C(55L) M14X40 		9-92061-440-0 04 1 0001-0003 ●
131 BOLT; END C/MBR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14X40 		9-92061-440-0 04 1 0004- ●
131 BOLT; END C/MBR
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> M14X40 		9-92061-440-0 04 1 0004- ●
132 NUT; END C/MBR
10PE1S(60L) FRAME EQUIPMENT HEAVY DUTY<F03> M14 		9-99110-514-0 04 1 9606-9609 ● ●
132 NUT; END C/MBR
FRAME EQUIPMENT HEAVY DUTY<F03> M14 		9-99110-514-0 04 1 9610-9905 ● ●
132 NUT; END C/MBR
6WA1 TC-C(55L) M14 		9-99110-514-0 04 1 9906-9906 ● ●
132 NUT; END C/MBR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> M14 		9-99110-514-0 04 1 9906-9906 ● ●
132 NUT; END C/MBR
6WA1 TC-C(55L),10PE1N(61L) M14 		9-99110-514-0 04 1 9906- ● ●
254 WASHER; PL,C/MBR
6WA1 TC-C(55L) ID=15 		9-09651-069-0 04 1 9906-9906 ● ●
254 WASHER; PL,C/MBR
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> ID=15 		9-09651-069-0 04 1 9906-9906 ● ●
254 WASHER; PL,C/MBR
6WA1 TC-C(55L),10PE1N(61L) ID=15 		9-09651-069-0 04 1 9906- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
