4-01 — PROPELLER SHAFT (#51300) — 47 parça

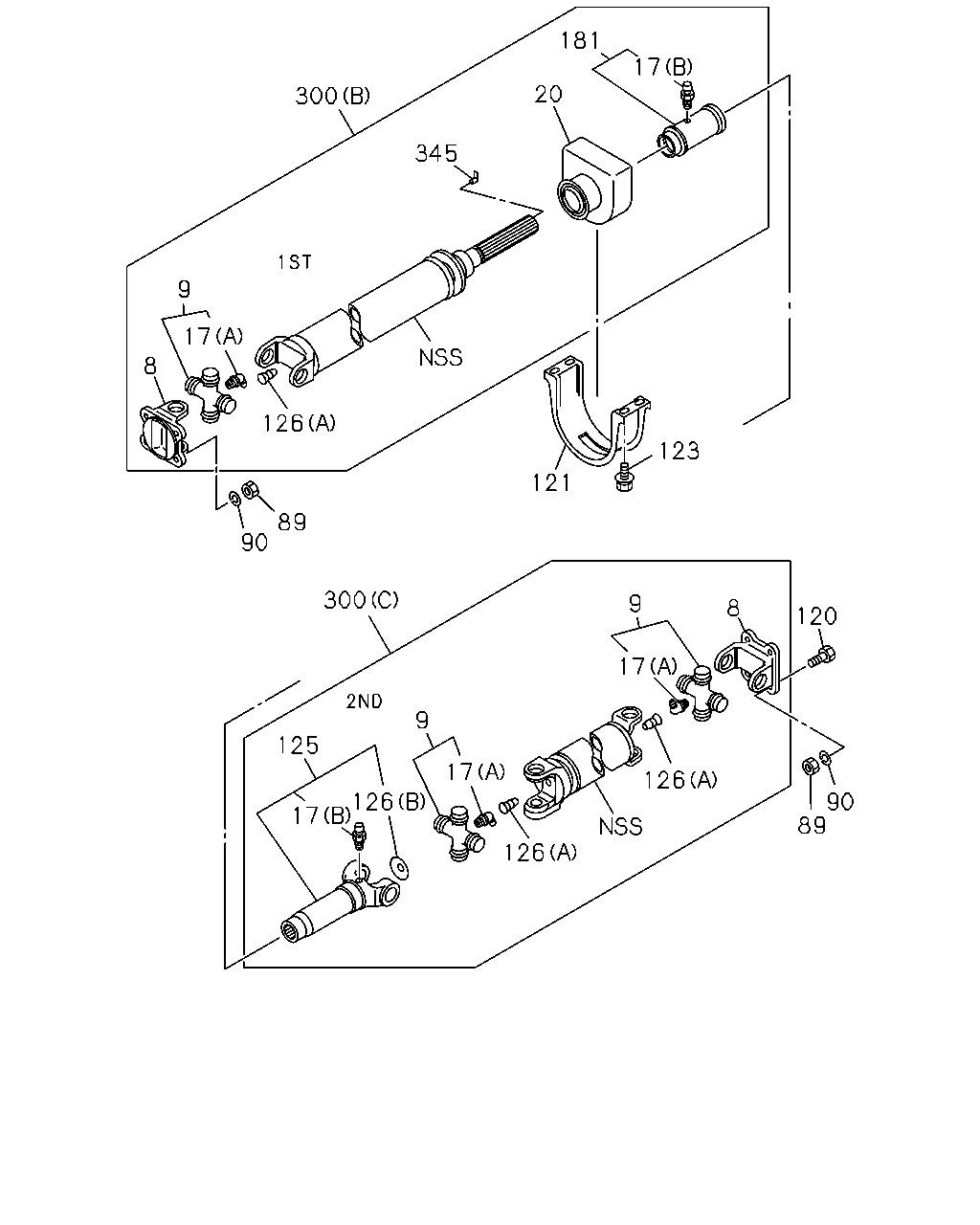

300 181 17 20 345 9 8 17 126 90 89 121 123 300 125 17 9 126 17 126 126 17 9 8 120 90 89

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	05.544 YOKE; FLANGE,PROP SHAFT WHEEL BASE 2400MM(24W) D=80	8-97322-663-0	02	1	0810-
8	05.544 YOKE; FLANGE,PROP SHAFT WHEEL BASE 3300MM(33W) D=80	8-97322-663-0	01	1	0810-
8	05.544 YOKE; FLANGE,PROP SHAFT WHEEL BASE 3300MM(33W) D=80	8-97322-663-0	01	1	0810-
9	05.548 JOURNAL ASM; PROP SHAFT WHEEL BASE 3300MM(33W)	8-98033-605-1	01	1	0810-
9	05.548 JOURNAL ASM; PROP SHAFT	8-98033-605-1	02	1	0810-
17	05.601 NIPPLE; GREASE,PROP SHAFT WHEEL BASE 3300MM(33W) (B) M6 STRAIGHT	0-90301-406-0	02	1	0810-
17	05.601 NIPPLE; GREASE,PROP SHAFT WHEEL BASE 3300MM(33W) 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	0810-
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	0810-
20	05.600 BEARING ASM; CTR,PROP SHAFT WHEEL BASE 3300MM(33W)	8-98033-936-0	01	1	0810-
89	05.586 NUT; YOKE TO RR AXLE M12	8-97365-450-1	08	1	0810-
90	05.586 WASHER; LK,YOKE TO RR AXLE 07.347 ID=12.2	0-91510-812-0	08	1	0810-
120	05.586 BOLT; YOKE TO RR AXLE M12X35	8-97365-451-1	04	1	0810-
121	05.598 RETAINER; CUSHION RUBBER WHEEL BASE 3300MM(33W)	8-97035-623-1	01	1	0810-
123	05.601 BOLT; RET WHEEL BASE 3300MM(33W) M10X25 W/LK&PL WASHER	0-50641-025-0	04	1	0810-
125	05.545 YOKE ASM; SPLINED,PROP SHAFT WHEEL BASE 3300MM(33W) L=183	8-98033-647-2	01	1	0810-
125	05.545 YOKE ASM; SPLINED,PROP SHAFT WHEEL BASE 2400MM(24W) L=246	8-98034-338-1	01	1	0810-
126	05.556 PLUG; SPLINED YOKE WHEEL BASE 3300MM(33W) (A)	1-09600-023-0	02	1	0810-
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	0810-
126	05.556 PLUG; SPLINED YOKE (B)	8-94366-900-0	01	1	0810-
181	05.586 COVER; BRG,PROP SHAFT WHEEL BASE 3300MM(33W)	8-98046-526-0	01	1	0810-
300	05.544 SHAFT ASM; PROP,RR WHEEL BASE 3300MM(33W) (C) L=1076	8-97383-854-4	01	1	0810-
300	05.544 SHAFT ASM; PROP,RR WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (A) L=979	8-97383-847-2	01	1	0810-
300	05.544 SHAFT ASM; PROP,RR WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (A) L=989	8-98105-689-1	01	1	0810-
300	05.544 SHAFT ASM; PROP,RR WHEEL BASE 3300MM(33W) (B) L=845	8-98039-649-1	01	1	0810-
345	05.600 PLUG; PROP SHAFT WHEEL BASE 3300MM(33W)	8-98042-692-0	01	1	0810-

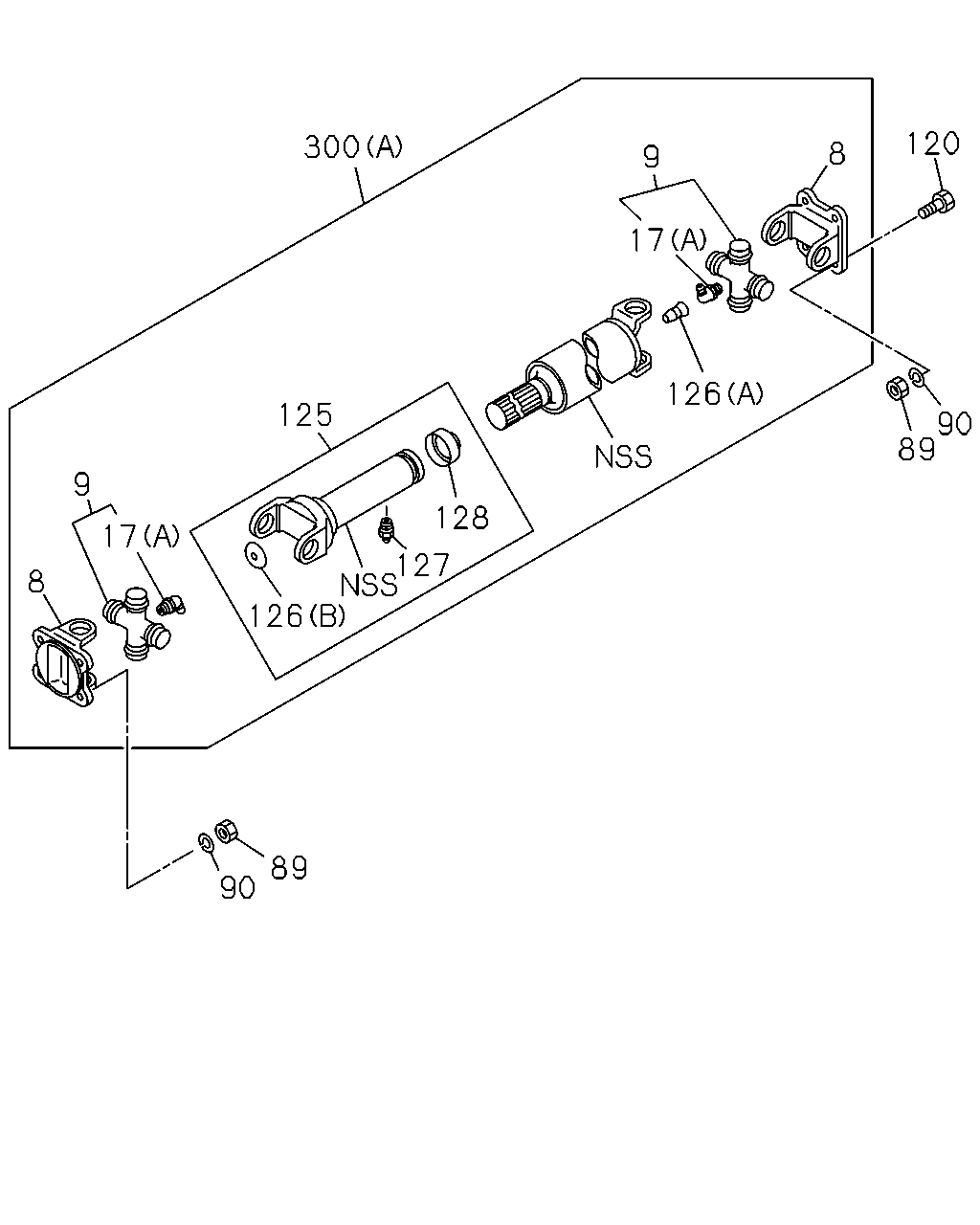

120 300 8 9 17 126 125 90 89 9 128 17 127 126 8 89 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	05.544 YOKE; FLANGE,PROP SHAFT WHEEL BASE 2400MM(24W) D=80	8-97322-663-0	02	1	0810-
8	05.544 YOKE; FLANGE,PROP SHAFT WHEEL BASE 3300MM(33W) D=80	8-97322-663-0	01	1	0810-
8	05.544 YOKE; FLANGE,PROP SHAFT WHEEL BASE 3300MM(33W) D=80	8-97322-663-0	01	1	0810-
9	05.548 JOURNAL ASM; PROP SHAFT WHEEL BASE 3300MM(33W)	8-98033-605-1	01	1	0810-
9	05.548 JOURNAL ASM; PROP SHAFT	8-98033-605-1	02	1	0810-
17	05.601 NIPPLE; GREASE,PROP SHAFT WHEEL BASE 3300MM(33W) (B) M6 STRAIGHT	0-90301-406-0	02	1	0810-
17	05.601 NIPPLE; GREASE,PROP SHAFT WHEEL BASE 3300MM(33W) 08.984 (A) PT1/8 ELBOW	0-90301-610-0	01	1	0810-
17	05.601 NIPPLE; GREASE,PROP SHAFT 08.984 (A) PT1/8 ELBOW	0-90301-610-0	02	1	0810-
89	05.586 NUT; YOKE TO RR AXLE M12	8-97365-450-1	08	1	0810-
90	05.586 WASHER; LK,YOKE TO RR AXLE 07.347 ID=12.2	0-91510-812-0	08	1	0810-
120	05.586 BOLT; YOKE TO RR AXLE M12X35	8-97365-451-1	04	1	0810-
125	05.545 YOKE ASM; SPLINED,PROP SHAFT WHEEL BASE 3300MM(33W) L=183	8-98033-647-2	01	1	0810-
125	05.545 YOKE ASM; SPLINED,PROP SHAFT WHEEL BASE 2400MM(24W) L=246	8-98034-338-1	01	1	0810-
126	05.556 PLUG; SPLINED YOKE WHEEL BASE 3300MM(33W) (A)	1-09600-023-0	02	1	0810-
126	05.556 PLUG; SPLINED YOKE (A)	1-09600-023-0	01	1	0810-
126	05.556 PLUG; SPLINED YOKE (B)	8-94366-900-0	01	1	0810-
127	05.586 NIPPLE; GREASE,SPLINED YOKE WHEEL BASE 2400MM(24W) 05.601 M6 STRAIGHT	0-90301-406-0	01	1	0810-
128	05.586 SEAL; SLEEVE WHEEL BASE 2400MM(24W)	8-97145-746-0	01	1	0810-
300	05.544 SHAFT ASM; PROP,RR WHEEL BASE 3300MM(33W) (C) L=1076	8-97383-854-4	01	1	0810-
300	05.544 SHAFT ASM; PROP,RR WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> (A) L=979	8-97383-847-2	01	1	0810-
300	05.544 SHAFT ASM; PROP,RR WHEEL BASE 2400MM(24W) EXC. FRAME-KICK UP<7EW> (A) L=989	8-98105-689-1	01	1	0810-
300	05.544 SHAFT ASM; PROP,RR WHEEL BASE 3300MM(33W) (B) L=845	8-98039-649-1	01	1	0810-
