3-41 — REAR BRAKE POWER CHAMBER (#513) — 93 parça

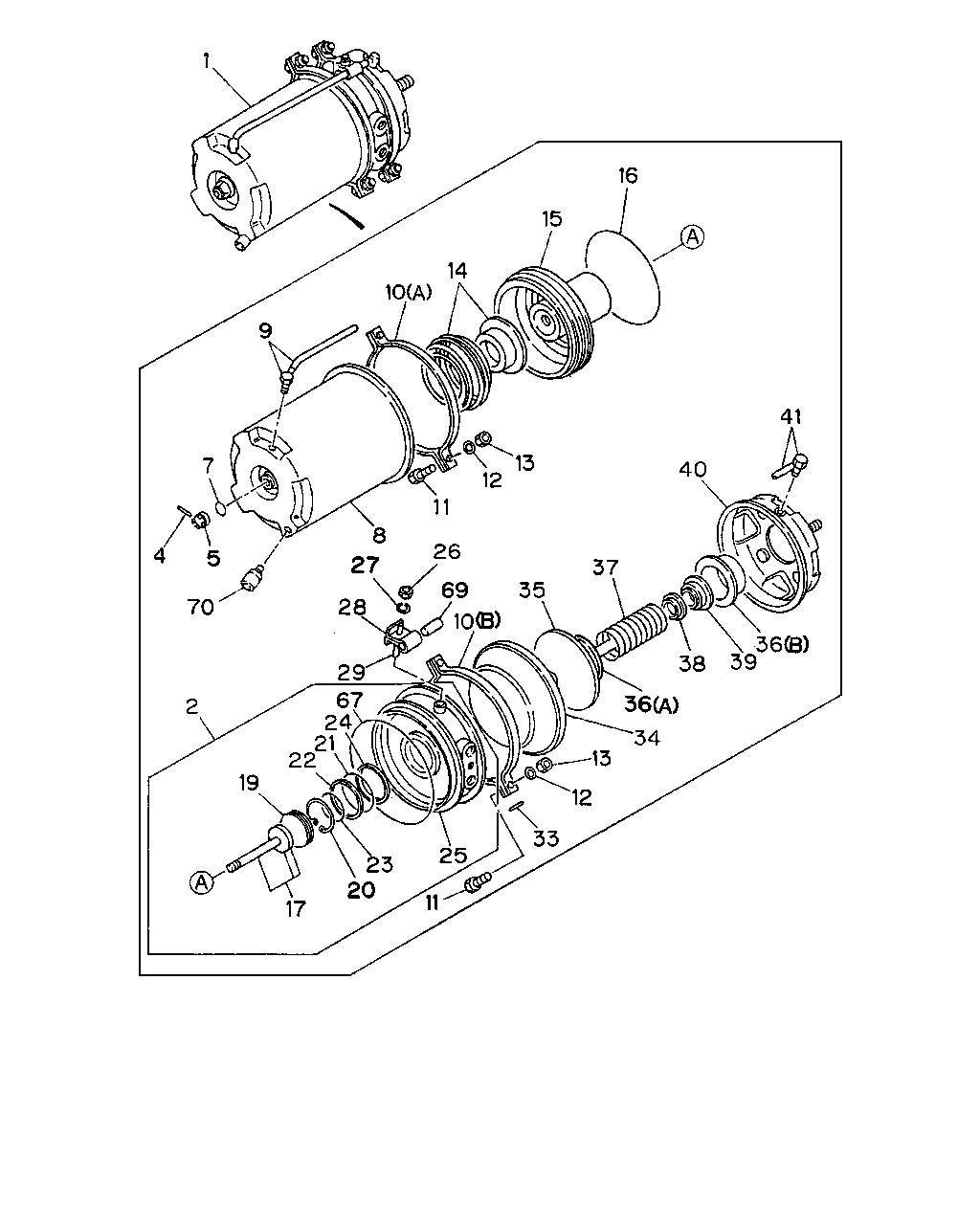

1 15 16 14 10 9 7 4 5 70 13 12 11 8 26 69 27 28 29 67 24 21 22 19 2 17 20 23 25 11 33 12 13 34 36 38 39 36 41 40 37 35 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CHAMBER ASM; SPRING FORWARD	1-48250-177-1	01	1	8712-
1	CHAMBER ASM; SPRING REARWARD	1-48250-249-1	01	1	8712-
1	CHAMBER ASM; SPRING FORWARD	1-48250-176-1	01	1	8712-
1	CHAMBER ASM; SPRING REARWARD	1-48250-248-1	01	1	8712-
2	CHAMBER; EMERGENCY FORWARD	1-48252-021-0	01	1	8712-
2	CHAMBER; EMERGENCY REARWARD	1-48252-040-0	01	1	8712-
2	CHAMBER; EMERGENCY FORWARD	1-48252-020-0	01	1	8712-
2	CHAMBER; EMERGENCY REARWARD	1-48252-039-0	01	1	8712-
4	PIN; STRAIGHT,SPR CHAMBER	1-48259-056-0	08	1	8712-
5	NUT; SHELL	1-48259-054-0	04	1	8712-
7	GASKET	1-48259-055-0	04	1	8712-
8	SHELL; CYL,SPR CHAMBER REARWARD	1-48251-043-0	02	1	8712-
8	SHELL; CYL,SPR CHAMBER FORWARD	1-48259-070-0	01	1	8712-
8	SHELL; CYL,SPR CHAMBER FORWARD	1-48259-069-0	01	1	8712-
9	PIPE ASM; SHELL	1-48259-076-0	04	1	8712-
10	RING; CLAMP,SPR CHAMBER (B)	1-48259-016-0	04	1	8712-
10	RING; CLAMP,SPR CHAMBER (A)	1-48259-031-0	04	1	8712-
11	BOLT; CLAMP RING	1-48259-035-0	16	1	8712-
12	WASHER; LK,CLAMP RING FORWARD	1-48259-046-0	08	1	8712-
12	WASHER; LK,CLAMP RING REARWARD ID=10.2	9-09150-510-0	08	1	8712-
13	NUT; CLAMP RING M10	9-09110-510-0	16	1	8712-
14	SPRING & SEAT SET FORWARD RH REARWARD LH	1-48259-037-0	04	1	8712-
14	SPRING & SEAT SET FORWARD LH REARWARD RH	8-83315-080-0	04	1	8712-
15	PISTON	1-48262-005-0	04	1	8712-
16	GASKET	1-48259-048-0	04	1	8712-
17	BOLT ASM; EMERGENCY	1-48259-073-0	04	1	8712-
19	COVER; PISTON	1-48269-011-0	04	1	8712-
20	RING; RET	1-48259-060-0	04	1	8712-
21	GASKET; SPR CHAMBER	1-48259-049-0	04	1	8712-
22	RING; BACKUP,SPR CHAMBER	1-48259-019-0	04	1	8712-
23	GASKET; SPR CHAMBER	1-48259-047-0	04	1	8712-
24	BEARING; SPR CHAMBER	1-48259-020-0	04	1	8712-
25	PLATE; PRESSURE,SPR CHAMBER FORWARD	1-48259-088-0	01	1	8712-
25	PLATE; PRESSURE,SPR CHAMBER REARWARD	1-48259-140-0	01	1	8712-
25	PLATE; PRESSURE,SPR CHAMBER FORWARD	1-48259-087-0	01	1	8712-
25	PLATE; PRESSURE,SPR CHAMBER REARWARD	1-48259-138-0	01	1	8712-
26	NUT; PRESSURE PLATE	1-48259-058-0	08	1	8712-
27	WASHER; PRESSURE PLATE FORWARD	1-48259-057-0	02	1	8712-
27	WASHER; PRESSURE PLATE REARWARD ID=8.2	9-09150-508-0	02	1	8712-
28	BRACKET; PRESSURE PLATE,HOSE	1-48259-059-0	04	1	8712-
29	STUD; PRESSURE PLATE	1-48259-050-0	04	1	8712-
33	RETAINER; DIAPH REARWARD	1-48250-044-0	02	1	8712-
33	RETAINER; DIAPH FORWARD	1-48259-044-0	04	1	8712-
34	DIAPHRAGM	1-48252-011-0	04	1	8712-9412
34	DIAPHRAGM FORWARD	1-48252-011-0	02	1	9501-
34	DIAPHRAGM REARWARD	1-48258-011-0	02	1	9501-
35	PLATE; ROD END,SPR CHAMBER FORWARD	1-48253-011-0	02	1	8712-
35	PLATE; ROD END,SPR CHAMBER REARWARD	1-48253-035-0	01	1	8712-
35	PLATE; ROD END,SPR CHAMBER REARWARD	1-48253-029-0	01	1	8712-
36	RETAINER; SPR CHAMBER (A)	1-48259-033-0	04	1	8712-
36	RETAINER; SPR CHAMBER (B)	1-48259-043-0	04	1	8712-
37	SPRING; LWR,SPR CHAMBER	1-48255-003-0	04	1	8712-
38	COVER; ROD & PLATE	1-48259-066-0	04	1	8712-
39	COVER; ROD & PLATE	1-48259-065-0	04	1	8712-
40	COVER ASM; LWR,SPR CHAMBER FORWARD	1-48259-082-1	01	1	8712-
40	COVER ASM; LWR,SPR CHAMBER REARWARD	1-48259-139-0	01	1	8712-
40	COVER ASM; LWR,SPR CHAMBER FORWARD	1-48259-081-1	01	1	8712-
40	COVER ASM; LWR,SPR CHAMBER REARWARD	1-48259-137-0	01	1	8712-
41	PIPE ASM; LWR COVER	1-48259-080-0	04	1	8712-
67	GASKET; SPR CHAMBER	1-48259-053-0	04	1	8712-
69	HOSE; PRESSURE PLATE	1-48259-051-0	04	1	8712-
70	COVER; EXH,SPR CHAMBER FORWARD	1-48259-052-0	02	1	8712-
70	COVER; EXH,SPR CHAMBER REARWARD LH	1-48259-052-0	01	1	8712-

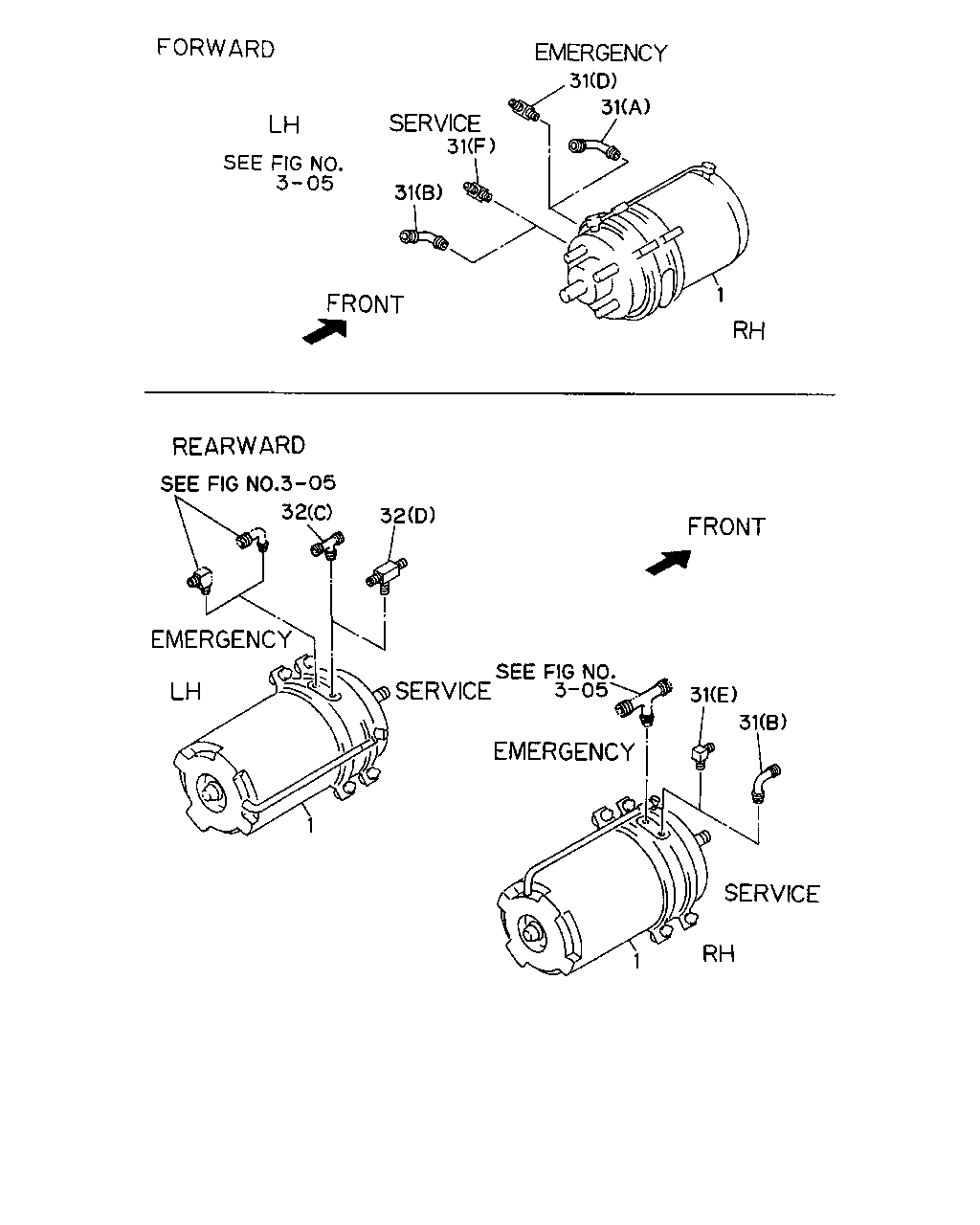

31 31 31 31 1 32 32 1 1 31 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CHAMBER ASM; SPRING FORWARD	1-48250-177-1	01	1	8712-
1	CHAMBER ASM; SPRING REARWARD	1-48250-249-1	01	1	8712-
1	CHAMBER ASM; SPRING FORWARD	1-48250-176-1	01	1	8712-
1	CHAMBER ASM; SPRING REARWARD	1-48250-248-1	01	1	8712-
31	CONNECTOR (D)	1-09660-570-0	01	1	9307-
31	CONNECTOR (F)	1-09660-574-0	01	1	9307-
31	CONNECTOR EXC. NYLON TUBE AIR PIPING<Z29> (F)	1-09660-574-0	01	1	9307-
31	CONNECTOR NYLON TUBE AIR PIPING<Z29> (B) M18 & PT3/8 ELBOW	1-09660-235-0	02	1	8712-9306
31	CONNECTOR NYLON TUBE AIR PIPING<Z29> (A) M14 & PT3/8 ELBOW	1-09660-234-0	01	1	8712-9306
31	CONNECTOR NYLON TUBE AIR PIPING<Z29> (E)	1-09660-687-0	01	1	9307-
31	CONNECTOR EXC. NYLON TUBE AIR PIPING<Z29> (C)	1-47815-006-1	03	1	8712-9306
32	CONNECTOR; SPR CHAMBER NYLON TUBE AIR PIPING<Z29> (C) REARWARD	1-09660-247-0	01	1	8712-9306
32	CONNECTOR; SPR CHAMBER NYLON TUBE AIR PIPING<Z29> (D) REARWARD	1-09660-318-0	01	1	9307-
32	CONNECTOR; SPR CHAMBER EXC. NYLON TUBE AIR PIPING<Z29> (B) REARWARD	1-09656-420-1	01	1	8712-9306
32	CONNECTOR; SPR CHAMBER EXC. NYLON TUBE AIR PIPING<Z29> (A) REARWARD	1-09660-697-1	01	1	9307-

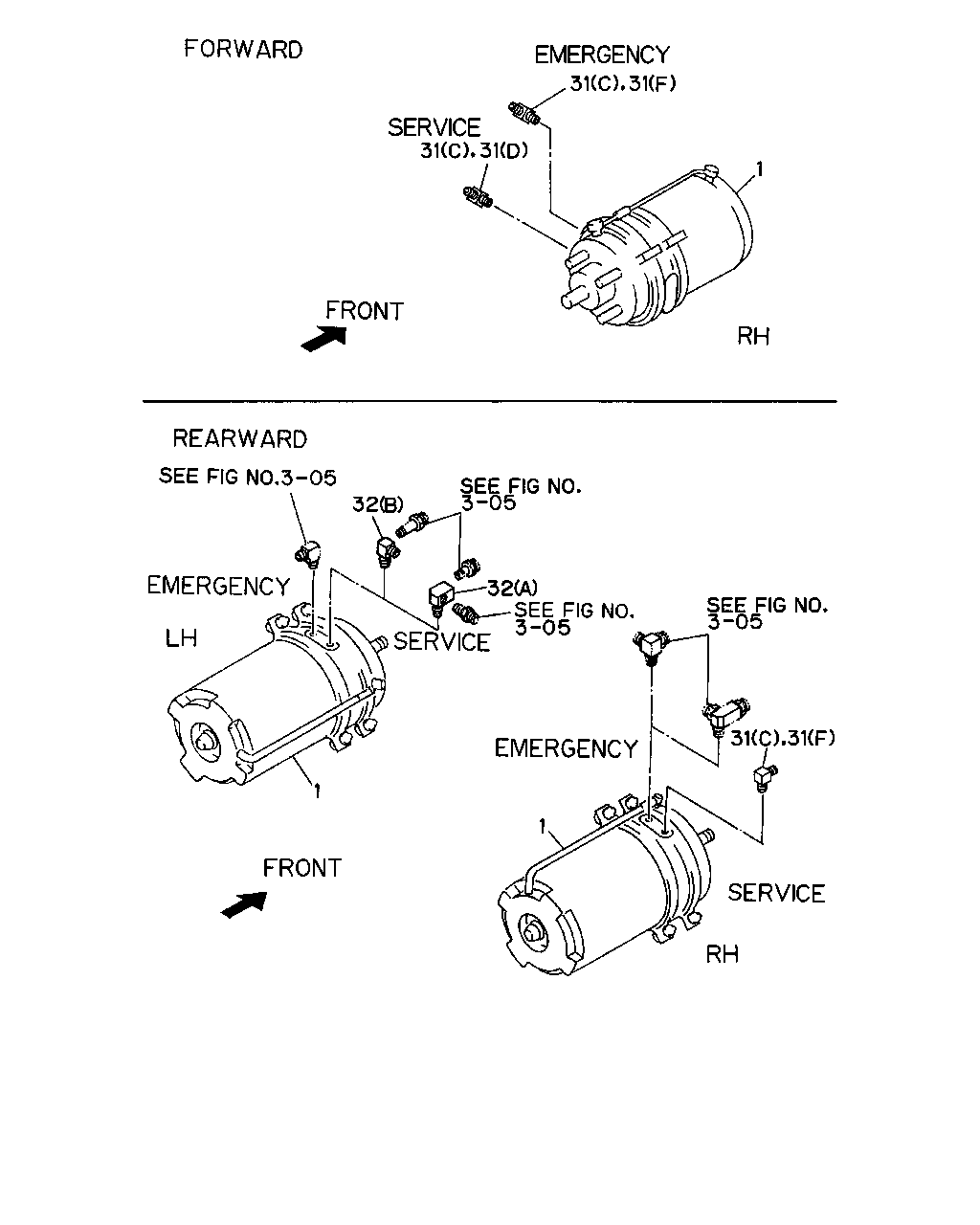

1 31 31 32 32 31 31 1 1 31 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CHAMBER ASM; SPRING FORWARD	1-48250-177-1	01	1	8712-
1	CHAMBER ASM; SPRING REARWARD	1-48250-249-1	01	1	8712-
1	CHAMBER ASM; SPRING FORWARD	1-48250-176-1	01	1	8712-
1	CHAMBER ASM; SPRING REARWARD	1-48250-248-1	01	1	8712-
31	CONNECTOR (D)	1-09660-570-0	01	1	9307-
31	CONNECTOR (F)	1-09660-574-0	01	1	9307-
31	CONNECTOR EXC. NYLON TUBE AIR PIPING<Z29> (F)	1-09660-574-0	01	1	9307-
31	CONNECTOR NYLON TUBE AIR PIPING<Z29> (B) M18 & PT3/8 ELBOW	1-09660-235-0	02	1	8712-9306
31	CONNECTOR NYLON TUBE AIR PIPING<Z29> (A) M14 & PT3/8 ELBOW	1-09660-234-0	01	1	8712-9306
31	CONNECTOR NYLON TUBE AIR PIPING<Z29> (E)	1-09660-687-0	01	1	9307-
31	CONNECTOR EXC. NYLON TUBE AIR PIPING<Z29> (C)	1-47815-006-1	03	1	8712-9306
32	CONNECTOR; SPR CHAMBER NYLON TUBE AIR PIPING<Z29> (C) REARWARD	1-09660-247-0	01	1	8712-9306
32	CONNECTOR; SPR CHAMBER NYLON TUBE AIR PIPING<Z29> (D) REARWARD	1-09660-318-0	01	1	9307-
32	CONNECTOR; SPR CHAMBER EXC. NYLON TUBE AIR PIPING<Z29> (B) REARWARD	1-09656-420-1	01	1	8712-9306
32	CONNECTOR; SPR CHAMBER EXC. NYLON TUBE AIR PIPING<Z29> (A) REARWARD	1-09660-697-1	01	1	9307-
