Sayfa 3-60 - Isuzu EPC

3-60 — BRAKE PIPING; VACUUM (#51299) — 319 parça

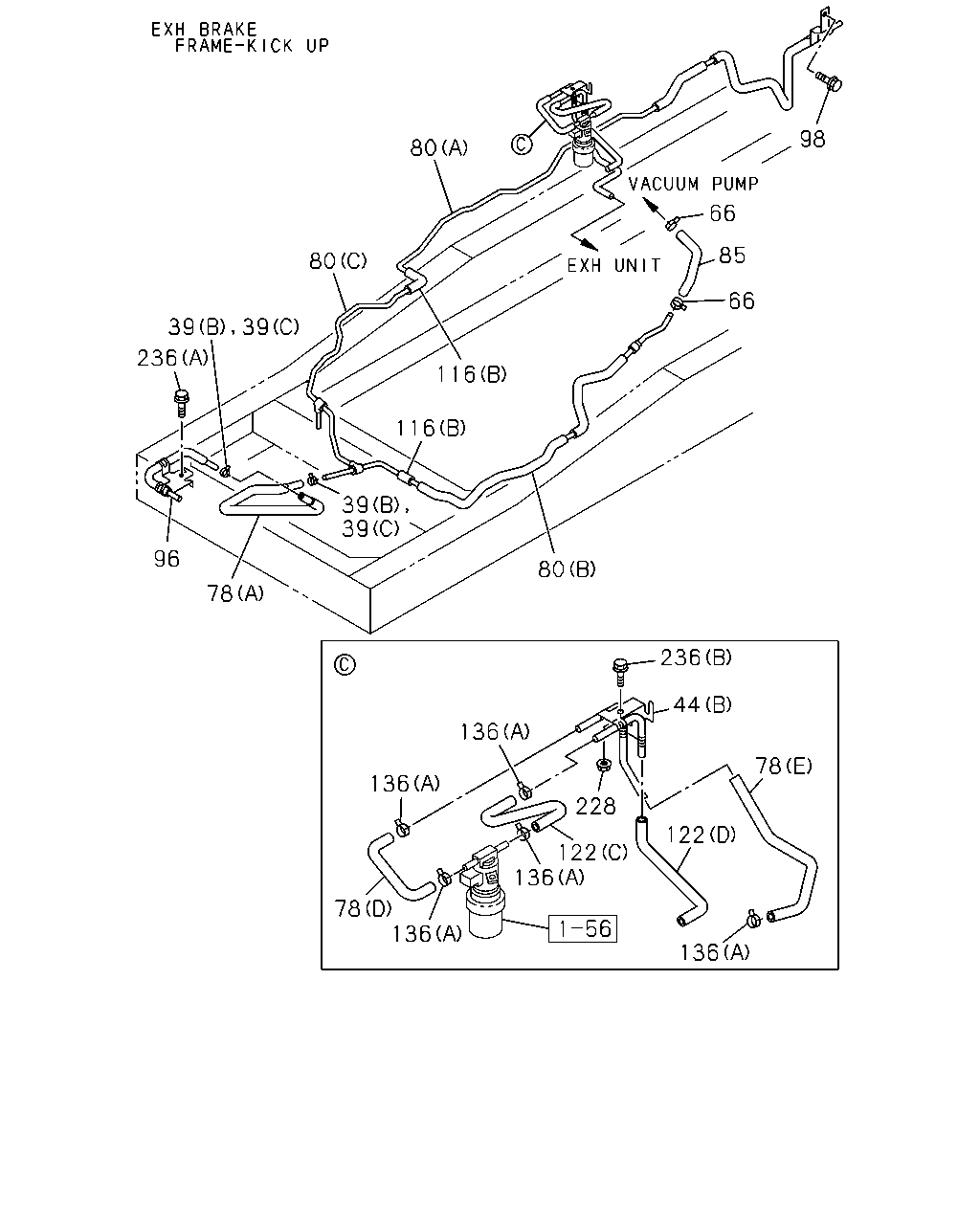

98 80 66 85 80 66 236 116 116 39 39 96 80 78 236 44 136 78 136 228 122 122 136 78 136 136 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	0912-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	0810-
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0810-
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0810-0911
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0810-0911
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0912-
44	04.930 PIPE; VAC,MAG VLV EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> (B)	8-98113-192-1	01	1	0810-
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> (A)	8-98042-654-0	01	1	0810-
66	04.930 CLIP; VAC HOSE,M/VAC ID=16	8-94238-568-0	02	1	0810-0911
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	0912-
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> (F)	8-98124-714-1	01	1	0810-
78	04.931 HOSE; VAC,PIPE TO PIPE EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> (D)	8-98113-154-0	01	1	0810-
78	04.931 HOSE; VAC,PIPE TO PIPE EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> (E)	8-98120-716-0	01	1	0810-
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> (B)	8-98042-690-1	01	1	0810-1104
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> (B)	8-98189-224-0	01	1	1105-
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> (C)	8-98108-035-0	01	1	0810-
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98122-505-1	01	1	0810-0909
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98138-841-0	01	1	0910-
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8> HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> (A)	8-98220-896-0	01	1	1302-
80	04.930 PIPE; VAC,ENG SIDE EXC. AIR CONDITIONER MANUAL CONT(C60), EXHAUST BRAKE<NF8> (E)	8-98126-940-0	01	1	0810-0901
80	04.930 PIPE; VAC,ENG SIDE EXC. AIR CONDITIONER MANUAL CONT(C60), EXHAUST BRAKE<NF8> (E)	8-98138-630-0	01	1	0902-
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8> (C)	8-98100-027-4	01	1	0810-0901
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8> (C)	8-98138-628-0	01	1	0902-
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> (A)	8-98100-025-2	01	1	0810-
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> (A)	8-98099-980-2	01	1	0810-0901
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> (A)	8-98138-631-0	01	1	0902-1301
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8> EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (A)	8-98138-631-0	01	1	1302-
80	04.930 PIPE; VAC,ENG SIDE AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> (B)	8-98123-943-0	01	1	0810-
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8> (B)	8-98123-943-0	01	1	0810-
80	04.930 PIPE; VAC,ENG SIDE AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> (D)	8-98118-235-1	01	1	0810-0901
80	04.930 PIPE; VAC,ENG SIDE AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> (D)	8-98138-629-0	01	1	0902-
85	04.931 HOSE; VAC,ENG SIDE	8-98126-108-0	01	1	0810-
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98124-528-0	01	1	0810-0909
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP L=291	8-98138-797-0	01	1	0910-
98	04.931 BOLT; VAC PIPE FIX EXHAUST BRAKE<NF8> 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0810-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98124-533-1	01	1	0810-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98124-527-1	01	1	0810-
116	04.931 HOSE; VAC,M/VAC EXHAUST BRAKE<NF8> (B) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	0810-
116	04.931 HOSE; VAC,M/VAC AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> (B) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	0810-
116	04.931 HOSE; VAC,M/VAC EXHAUST BRAKE<NF8> (B) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	0810-
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> (E)	8-98076-068-1	01	1	0810-
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> (C)	8-98113-153-1	01	1	0810-
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> (D)	8-98113-155-1	01	1	0810-
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> (B)	8-98042-689-2	01	1	0810-1104
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> (A)	8-98189-222-0	01	1	1105-
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> (A)	8-98089-657-0	01	1	0810-1104
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> (B)	8-98189-226-0	01	1	1105-
136	04.681 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 04.930 (A) ID=16	8-94238-568-0	04	1	0810-0911
136	04.681 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 03.162 (A) ID=16	8-98008-098-0	04	1	0912-
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	02	1	0810-0911
136	04.681 CLIP; VAC HOSE EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	02	1	0810-0911
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> 03.162 (A) ID=16	8-98008-098-0	02	1	0912-
136	04.681 CLIP; VAC HOSE EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> 03.162 (A) ID=16	8-98008-098-0	02	1	0912-
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> 03.162 (B) L=140	5-09707-031-1	01	1	0810-
136	04.681 CLIP; VAC HOSE EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> 03.162 (B) L=140	5-09707-031-1	01	1	0810-
228	04.930 NUT; PIPE EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> 01.062 M8 FLANGE	0-91180-108-0	01	1	0810-
228	04.930 NUT; PIPE WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> 01.062 M6 FLANGE	0-91180-106-0	01	1	0810-
236	04.930 BOLT; PIPE EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0810-
236	04.930 BOLT; PIPE 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0810-

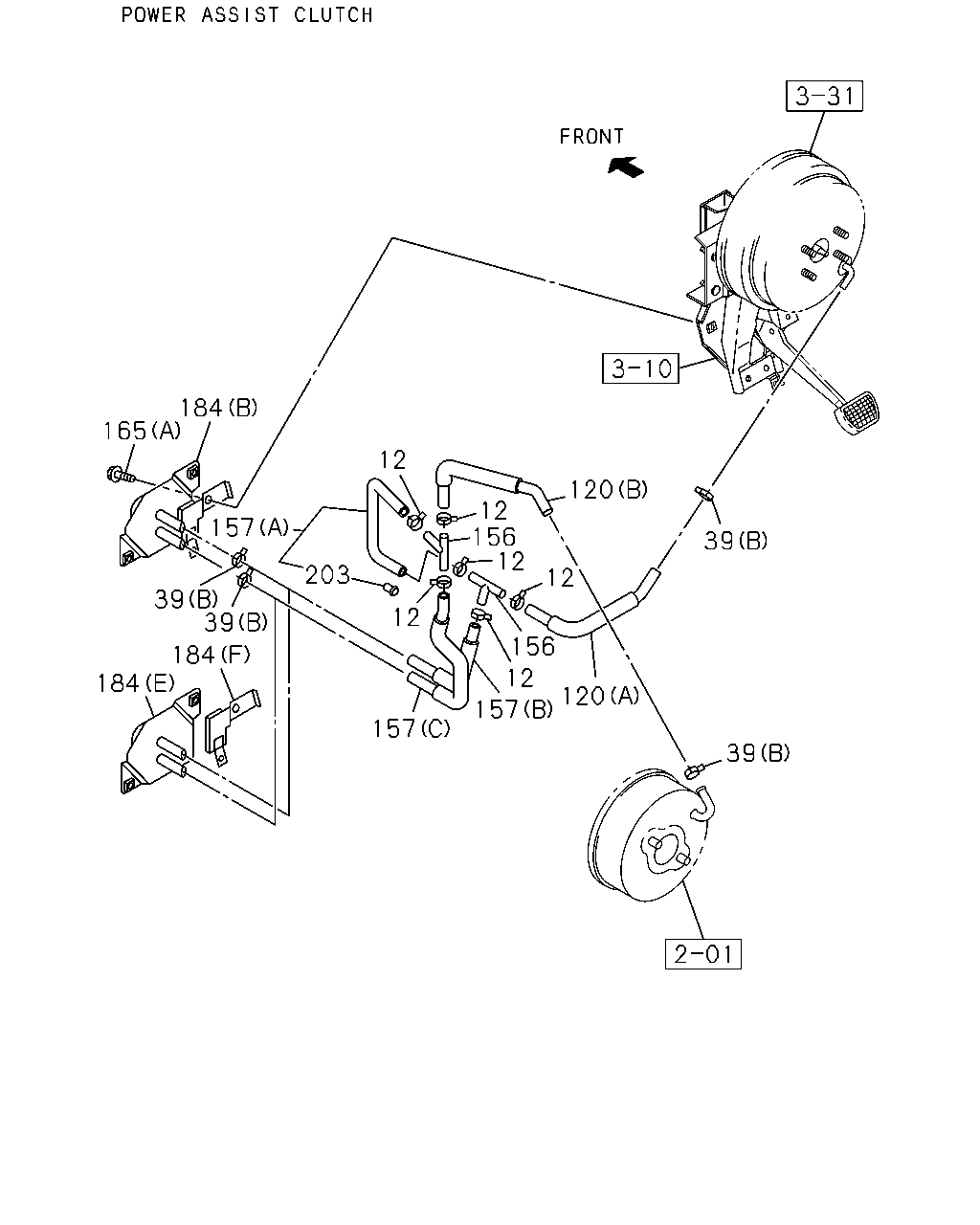

184 165 12 120 12 156 12 157 39 203 12 39 39 12 156 12 184 184 120 157 157 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	06	1	0810-
12	04.681 CLIP; HOSE 04.930 ID=15.5	8-98008-097-0	02	1	0810-
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	0912-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	0810-
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0810-
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0810-0911
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0810-0911
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0912-
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (A)	8-98060-856-2	01	1	0810-
120	04.931 HOSE; VAC,M/VAC,W/CHECK VALVE POWER ASSIST CLUTCH(S2T) (B)	8-98060-857-3	01	1	0810-
156	04.931 JOINT; 3 WAY POWER ASSIST CLUTCH(S2T) 04.681	8-98035-106-0	02	1	0810-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (A)	8-98060-858-1	01	1	0810-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (B)	8-98060-859-2	01	1	0810-
157	04.931 HOSE; JOINT POWER ASSIST CLUTCH(S2T) (C)	8-98060-860-2	01	1	0810-
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	0810-1001
165	04.686 BOLT; BRKT EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1002-1002
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1003-
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	0810-
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (F)	8-98255-541-0	01	1	1312-
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (E)	8-98156-346-0	01	1	1002-1101
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (E)	8-98183-468-1	01	1	1102-
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (F)	8-98156-526-0	01	1	1002-
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (D)	8-98156-347-0	01	1	1002-1101
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (D)	8-98183-469-1	01	1	1102-
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98150-760-0	01	1	0909-1001
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (C)	8-98150-760-0	01	1	1002-1101
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-466-1	01	1	1102-1311
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-537-0	01	1	1312-
184	04.685 BRACKET; UNION FIX (B)	8-98089-763-0	01	1	0810-0908
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (B)	8-98089-763-0	01	1	0909-1001
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B)	8-98089-763-0	01	1	1002-1101
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B)	8-98183-465-1	01	1	1102-1311
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-536-0	01	1	1312-
184	04.685 BRACKET; UNION FIX EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (A)	8-98039-684-3	01	1	0810-1204
184	04.685 BRACKET; UNION FIX EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (A)	8-98211-373-0	01	1	1205-
203	04.690 VALVE; CHECK POWER ASSIST CLUTCH(S2T)	8-94386-540-0	01	1	0907-

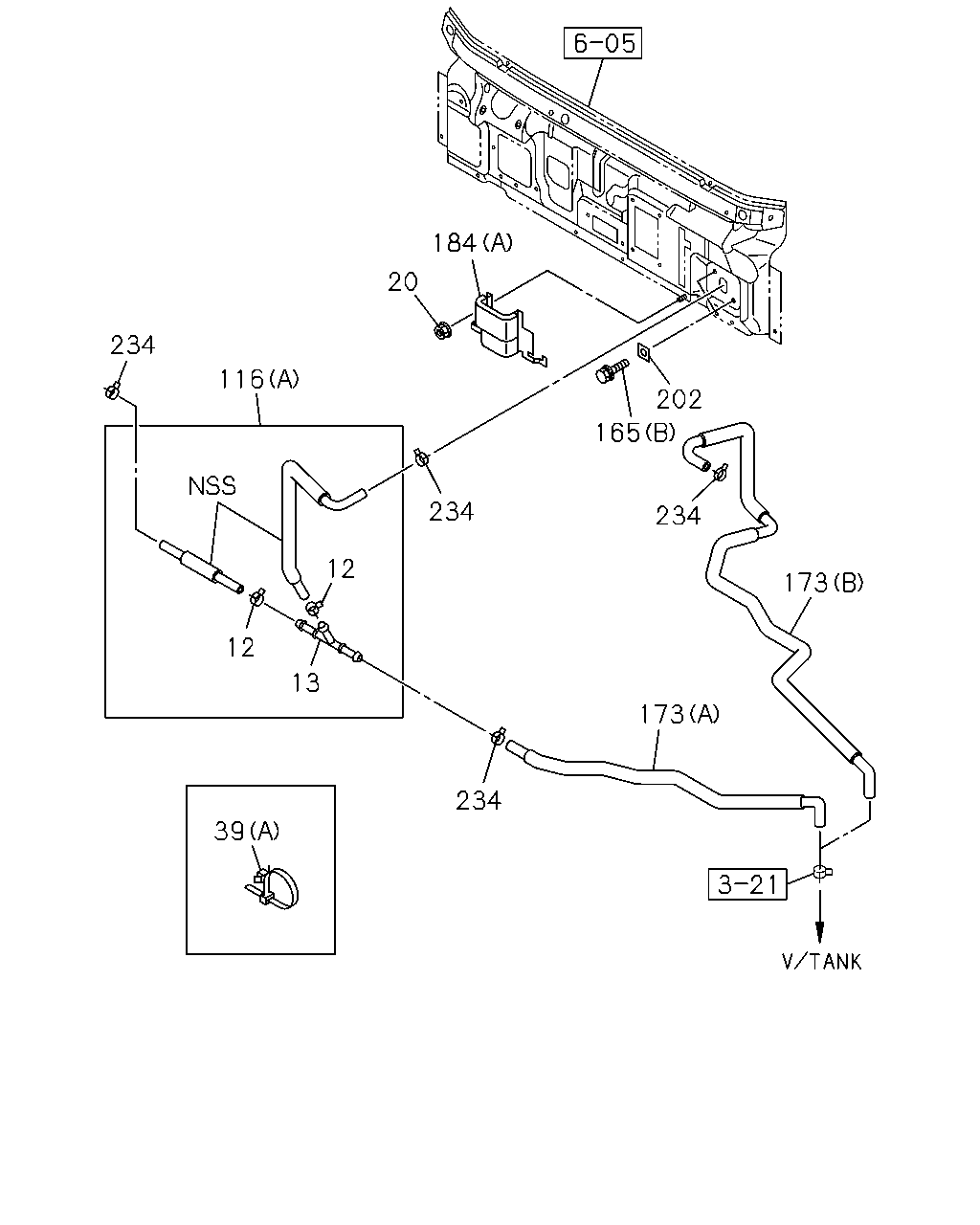

184 20 234 116 202 165 234 234 12 173 12 13 173 234 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	04.681 CLIP; HOSE POWER ASSIST CLUTCH(S2T) 04.930 ID=15.5	8-98008-097-0	06	1	0810-
12	04.681 CLIP; HOSE 04.930 ID=15.5	8-98008-097-0	02	1	0810-
13	04.681 JOINT; HOSE,VAC	8-98035-106-0	01	1	0810-
20	04.686 NUT; BRKT EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) 01.062 M6 FLANGE	0-91180-106-0	01	1	0810-
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	0912-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	0810-
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0810-
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0810-0911
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0810-0911
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0912-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98124-533-1	01	1	0810-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98124-527-1	01	1	0810-
116	04.931 HOSE; VAC,M/VAC EXHAUST BRAKE<NF8> (B) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	0810-
116	04.931 HOSE; VAC,M/VAC AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> (B) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	0810-
116	04.931 HOSE; VAC,M/VAC EXHAUST BRAKE<NF8> (B) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	0810-
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	0810-1001
165	04.686 BOLT; BRKT EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1002-1002
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1003-
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	0810-
173	04.931 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T) (B)	8-98047-184-2	01	1	0810-
173	04.931 HOSE; VAC,VAC TANK SIDE EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98031-774-1	01	1	0810-
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (F)	8-98255-541-0	01	1	1312-
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (E)	8-98156-346-0	01	1	1002-1101
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (E)	8-98183-468-1	01	1	1102-
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (F)	8-98156-526-0	01	1	1002-
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (D)	8-98156-347-0	01	1	1002-1101
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (D)	8-98183-469-1	01	1	1102-
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98150-760-0	01	1	0909-1001
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (C)	8-98150-760-0	01	1	1002-1101
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-466-1	01	1	1102-1311
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-537-0	01	1	1312-
184	04.685 BRACKET; UNION FIX (B)	8-98089-763-0	01	1	0810-0908
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (B)	8-98089-763-0	01	1	0909-1001
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B)	8-98089-763-0	01	1	1002-1101
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B)	8-98183-465-1	01	1	1102-1311
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-536-0	01	1	1312-
184	04.685 BRACKET; UNION FIX EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (A)	8-98039-684-3	01	1	0810-1204
184	04.685 BRACKET; UNION FIX EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (A)	8-98211-373-0	01	1	1205-
202	04.686 SEAL 08.845	8-97856-616-0	02	1	0810-
234	04.685 CLAMP; PIPE POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	04	1	0810-
234	04.685 CLAMP; PIPE EXC. POWER ASSIST CLUTCH(S2T) 04.930 ID=16	8-94238-568-0	03	1	0810-

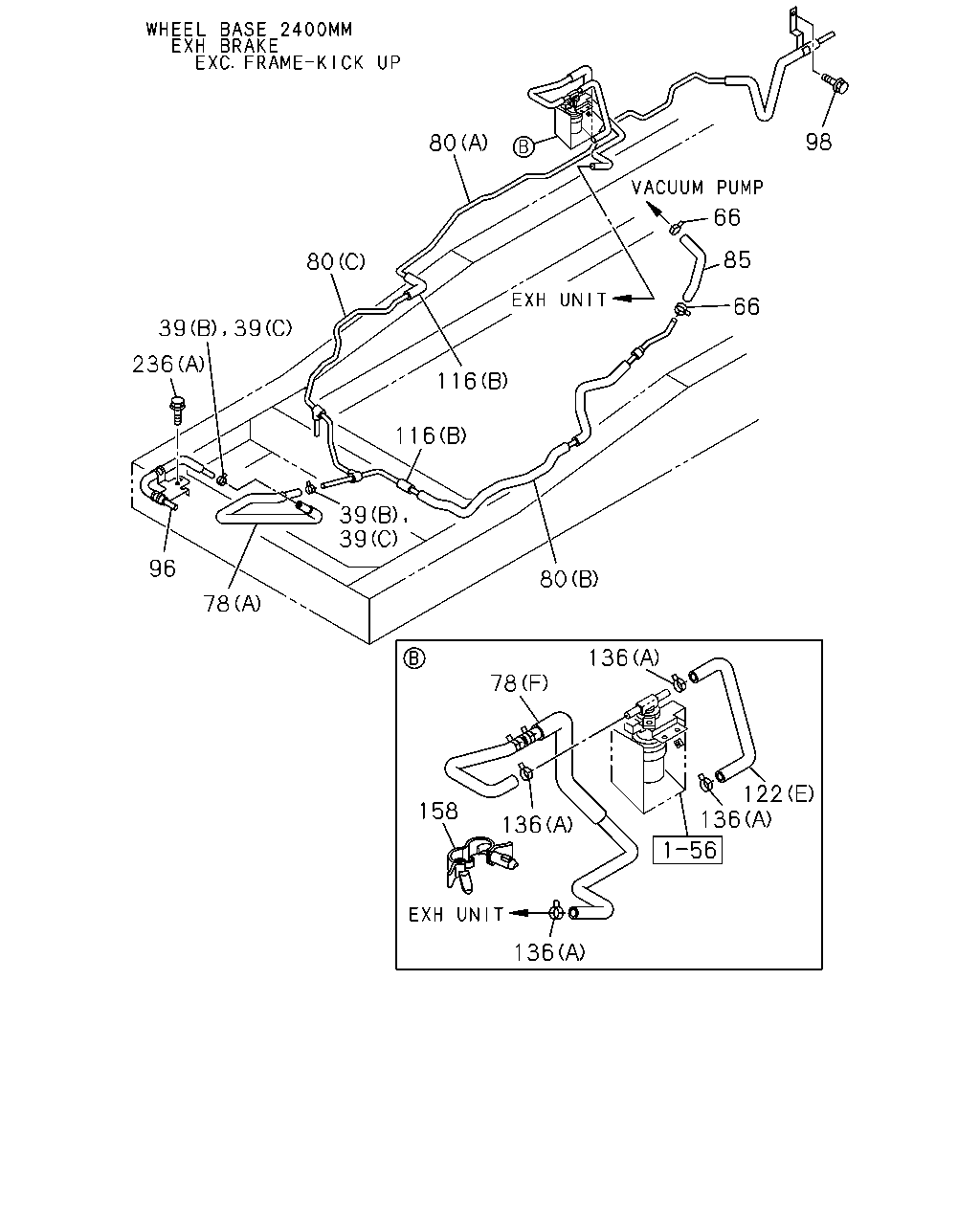

98 80 66 85 80 66 236 116 116 39 39 96 80 78 136 78 122 136 158 136 136 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	0912-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	0810-
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0810-
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0810-0911
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0810-0911
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0912-
66	04.930 CLIP; VAC HOSE,M/VAC ID=16	8-94238-568-0	02	1	0810-0911
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	0912-
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> (F)	8-98124-714-1	01	1	0810-
78	04.931 HOSE; VAC,PIPE TO PIPE EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> (D)	8-98113-154-0	01	1	0810-
78	04.931 HOSE; VAC,PIPE TO PIPE EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> (E)	8-98120-716-0	01	1	0810-
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> (B)	8-98042-690-1	01	1	0810-1104
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> (B)	8-98189-224-0	01	1	1105-
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> (C)	8-98108-035-0	01	1	0810-
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98122-505-1	01	1	0810-0909
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98138-841-0	01	1	0910-
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8> HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> (A)	8-98220-896-0	01	1	1302-
80	04.930 PIPE; VAC,ENG SIDE EXC. AIR CONDITIONER MANUAL CONT(C60), EXHAUST BRAKE<NF8> (E)	8-98126-940-0	01	1	0810-0901
80	04.930 PIPE; VAC,ENG SIDE EXC. AIR CONDITIONER MANUAL CONT(C60), EXHAUST BRAKE<NF8> (E)	8-98138-630-0	01	1	0902-
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8> (C)	8-98100-027-4	01	1	0810-0901
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8> (C)	8-98138-628-0	01	1	0902-
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> (A)	8-98100-025-2	01	1	0810-
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> (A)	8-98099-980-2	01	1	0810-0901
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> (A)	8-98138-631-0	01	1	0902-1301
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8> EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (A)	8-98138-631-0	01	1	1302-
80	04.930 PIPE; VAC,ENG SIDE AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> (B)	8-98123-943-0	01	1	0810-
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8> (B)	8-98123-943-0	01	1	0810-
80	04.930 PIPE; VAC,ENG SIDE AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> (D)	8-98118-235-1	01	1	0810-0901
80	04.930 PIPE; VAC,ENG SIDE AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> (D)	8-98138-629-0	01	1	0902-
85	04.931 HOSE; VAC,ENG SIDE	8-98126-108-0	01	1	0810-
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98124-528-0	01	1	0810-0909
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP L=291	8-98138-797-0	01	1	0910-
98	04.931 BOLT; VAC PIPE FIX EXHAUST BRAKE<NF8> 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0810-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98124-533-1	01	1	0810-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98124-527-1	01	1	0810-
116	04.931 HOSE; VAC,M/VAC EXHAUST BRAKE<NF8> (B) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	0810-
116	04.931 HOSE; VAC,M/VAC AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> (B) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	0810-
116	04.931 HOSE; VAC,M/VAC EXHAUST BRAKE<NF8> (B) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	0810-
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> (E)	8-98076-068-1	01	1	0810-
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> (C)	8-98113-153-1	01	1	0810-
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> (D)	8-98113-155-1	01	1	0810-
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> (B)	8-98042-689-2	01	1	0810-1104
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> (A)	8-98189-222-0	01	1	1105-
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> (A)	8-98089-657-0	01	1	0810-1104
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> (B)	8-98189-226-0	01	1	1105-
136	04.681 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 04.930 (A) ID=16	8-94238-568-0	04	1	0810-0911
136	04.681 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 03.162 (A) ID=16	8-98008-098-0	04	1	0912-
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	02	1	0810-0911
136	04.681 CLIP; VAC HOSE EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	02	1	0810-0911
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> 03.162 (A) ID=16	8-98008-098-0	02	1	0912-
136	04.681 CLIP; VAC HOSE EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> 03.162 (A) ID=16	8-98008-098-0	02	1	0912-
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> 03.162 (B) L=140	5-09707-031-1	01	1	0810-
136	04.681 CLIP; VAC HOSE EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> 03.162 (B) L=140	5-09707-031-1	01	1	0810-
158	04.681 CLIP; HOSE WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> ID=18-24 L=14.5	1-09709-298-0	01	1	0810-
236	04.930 BOLT; PIPE EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0810-
236	04.930 BOLT; PIPE 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0810-

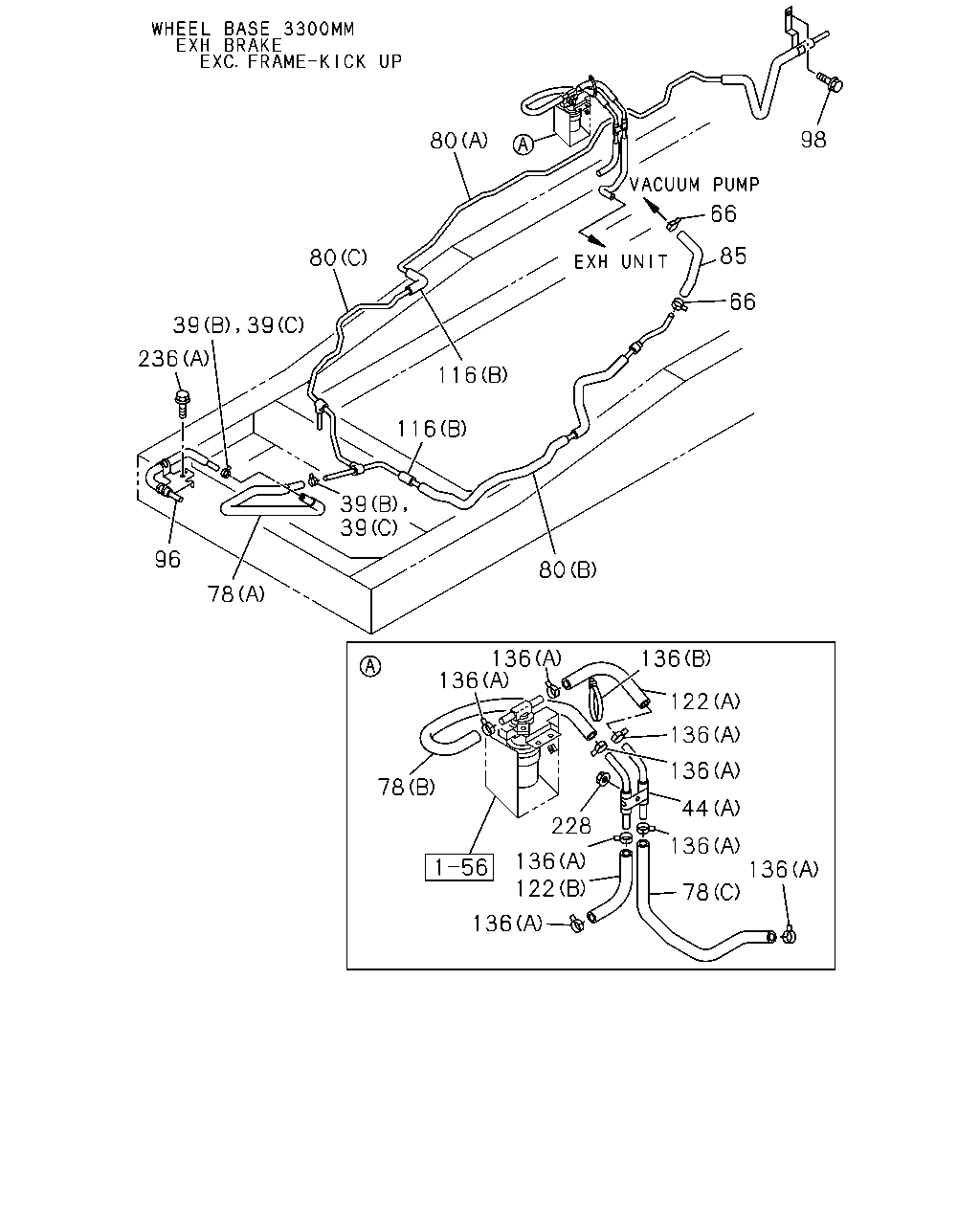

98 80 66 85 80 66 236 116 116 39 39 96 80 78 136 136 136 122 136 136 78 44 228 136 136 122 136 78 136 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	0912-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	0810-
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0810-
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0810-0911
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0810-0911
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0912-
44	04.930 PIPE; VAC,MAG VLV EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> (B)	8-98113-192-1	01	1	0810-
44	04.930 PIPE; VAC,MAG VLV WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> (A)	8-98042-654-0	01	1	0810-
66	04.930 CLIP; VAC HOSE,M/VAC ID=16	8-94238-568-0	02	1	0810-0911
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	0912-
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> (F)	8-98124-714-1	01	1	0810-
78	04.931 HOSE; VAC,PIPE TO PIPE EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> (D)	8-98113-154-0	01	1	0810-
78	04.931 HOSE; VAC,PIPE TO PIPE EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> (E)	8-98120-716-0	01	1	0810-
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> (B)	8-98042-690-1	01	1	0810-1104
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> (B)	8-98189-224-0	01	1	1105-
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> (C)	8-98108-035-0	01	1	0810-
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98122-505-1	01	1	0810-0909
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98138-841-0	01	1	0910-
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8> HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> (A)	8-98220-896-0	01	1	1302-
80	04.930 PIPE; VAC,ENG SIDE EXC. AIR CONDITIONER MANUAL CONT(C60), EXHAUST BRAKE<NF8> (E)	8-98126-940-0	01	1	0810-0901
80	04.930 PIPE; VAC,ENG SIDE EXC. AIR CONDITIONER MANUAL CONT(C60), EXHAUST BRAKE<NF8> (E)	8-98138-630-0	01	1	0902-
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8> (C)	8-98100-027-4	01	1	0810-0901
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8> (C)	8-98138-628-0	01	1	0902-
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> (A)	8-98100-025-2	01	1	0810-
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> (A)	8-98099-980-2	01	1	0810-0901
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> (A)	8-98138-631-0	01	1	0902-1301
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8> EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (A)	8-98138-631-0	01	1	1302-
80	04.930 PIPE; VAC,ENG SIDE AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> (B)	8-98123-943-0	01	1	0810-
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8> (B)	8-98123-943-0	01	1	0810-
80	04.930 PIPE; VAC,ENG SIDE AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> (D)	8-98118-235-1	01	1	0810-0901
80	04.930 PIPE; VAC,ENG SIDE AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> (D)	8-98138-629-0	01	1	0902-
85	04.931 HOSE; VAC,ENG SIDE	8-98126-108-0	01	1	0810-
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98124-528-0	01	1	0810-0909
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP L=291	8-98138-797-0	01	1	0910-
98	04.931 BOLT; VAC PIPE FIX EXHAUST BRAKE<NF8> 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0810-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98124-533-1	01	1	0810-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98124-527-1	01	1	0810-
116	04.931 HOSE; VAC,M/VAC EXHAUST BRAKE<NF8> (B) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	0810-
116	04.931 HOSE; VAC,M/VAC AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> (B) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	0810-
116	04.931 HOSE; VAC,M/VAC EXHAUST BRAKE<NF8> (B) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	0810-
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> (E)	8-98076-068-1	01	1	0810-
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> (C)	8-98113-153-1	01	1	0810-
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> (D)	8-98113-155-1	01	1	0810-
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> (B)	8-98042-689-2	01	1	0810-1104
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> (A)	8-98189-222-0	01	1	1105-
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> (A)	8-98089-657-0	01	1	0810-1104
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> (B)	8-98189-226-0	01	1	1105-
136	04.681 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 04.930 (A) ID=16	8-94238-568-0	04	1	0810-0911
136	04.681 CLIP; VAC HOSE EXHAUST BRAKE<NF8> 03.162 (A) ID=16	8-98008-098-0	04	1	0912-
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	02	1	0810-0911
136	04.681 CLIP; VAC HOSE EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> 04.930 (A) ID=16	8-94238-568-0	02	1	0810-0911
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> 03.162 (A) ID=16	8-98008-098-0	02	1	0912-
136	04.681 CLIP; VAC HOSE EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> 03.162 (A) ID=16	8-98008-098-0	02	1	0912-
136	04.681 CLIP; VAC HOSE WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> 03.162 (B) L=140	5-09707-031-1	01	1	0810-
136	04.681 CLIP; VAC HOSE EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> 03.162 (B) L=140	5-09707-031-1	01	1	0810-
228	04.930 NUT; PIPE EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> 01.062 M8 FLANGE	0-91180-108-0	01	1	0810-
228	04.930 NUT; PIPE WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> 01.062 M6 FLANGE	0-91180-106-0	01	1	0810-
236	04.930 BOLT; PIPE EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0810-
236	04.930 BOLT; PIPE 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0810-

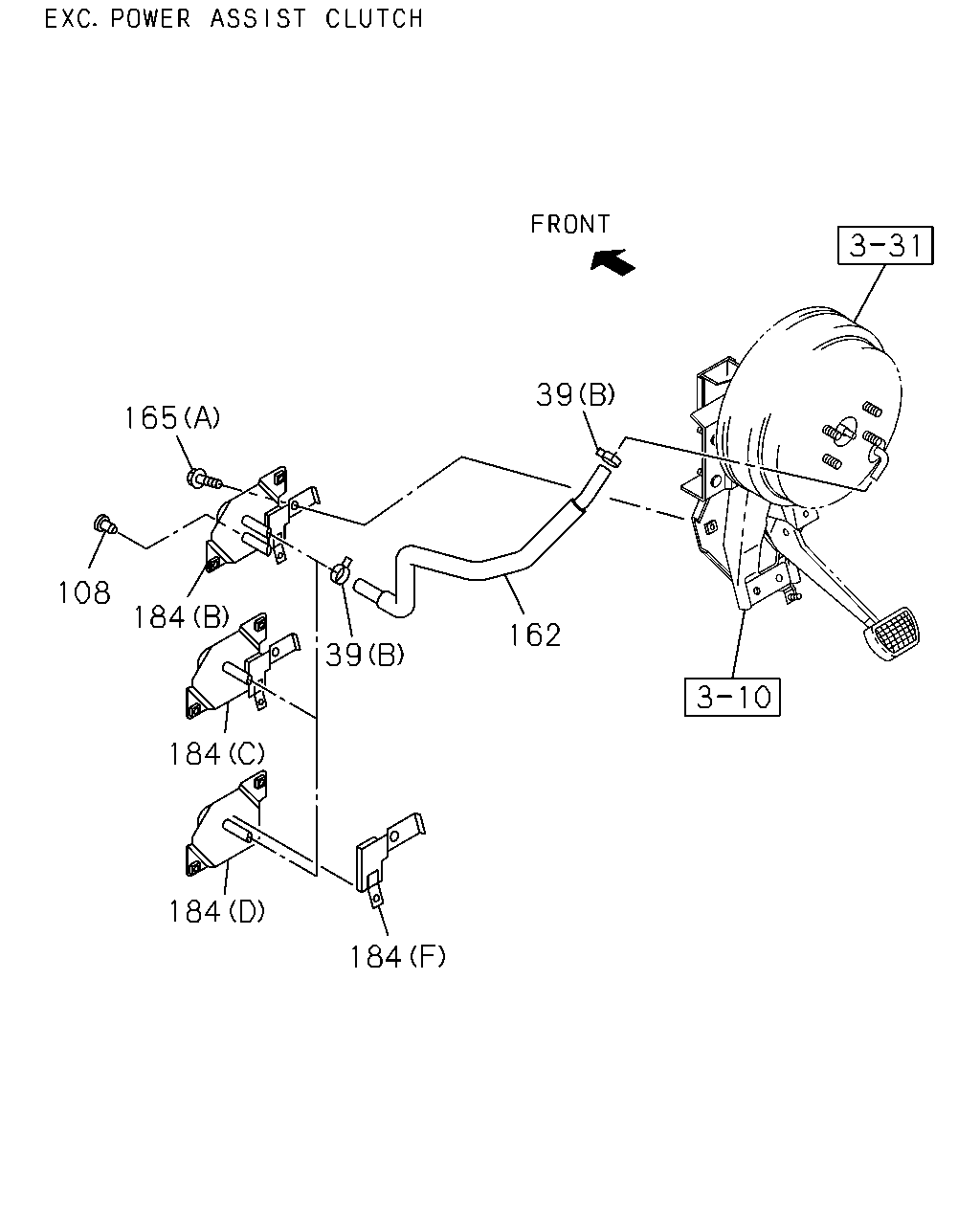

162 39 39 165 184 108 184 184 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	0912-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	0810-
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0810-
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0810-0911
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0810-0911
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0912-
108	04.931 GROMMET; PIPE EXC. POWER ASSIST CLUTCH(S2T)	9-09956-353-0	01	1	0810-0908
162	04.931 HOSE; VAC EXC. POWER ASSIST CLUTCH(S2T)	8-98034-154-2	01	1	0810-
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	0810-1001
165	04.686 BOLT; BRKT EXC. KD PREPARATORY PACK VAR.4<7TV> 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1002-1002
165	04.686 BOLT; BRKT 02.343 (A) M6X16 FLANGE	0-28650-616-0	01	1	1003-
165	04.686 BOLT; BRKT 02.762 (B) M6X20 W/LK&PL WASHER	8-98031-842-0	02	1	0810-
184	04.685 BRACKET; UNION FIX EXC. KD PREPARATORY PACK VAR.4<7TV> (F)	8-98255-541-0	01	1	1312-
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (E)	8-98156-346-0	01	1	1002-1101
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) KD PREPARATORY PACK VAR.4<7TV> (E)	8-98183-468-1	01	1	1102-
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> (F)	8-98156-526-0	01	1	1002-
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (D)	8-98156-347-0	01	1	1002-1101
184	04.685 BRACKET; UNION FIX KD PREPARATORY PACK VAR.4<7TV> EXC. POWER ASSIST CLUTCH(S2T) (D)	8-98183-469-1	01	1	1102-
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (C)	8-98150-760-0	01	1	0909-1001
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (C)	8-98150-760-0	01	1	1002-1101
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (C)	8-98183-466-1	01	1	1102-1311
184	04.685 BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T),KD PREPARATORY PACK VAR.4<7TV> (D)	8-98255-537-0	01	1	1312-
184	04.685 BRACKET; UNION FIX (B)	8-98089-763-0	01	1	0810-0908
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (B)	8-98089-763-0	01	1	0909-1001
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B)	8-98089-763-0	01	1	1002-1101
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (B)	8-98183-465-1	01	1	1102-1311
184	04.685 BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) EXC. KD PREPARATORY PACK VAR.4<7TV> (E)	8-98255-536-0	01	1	1312-
184	04.685 BRACKET; UNION FIX EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (A)	8-98039-684-3	01	1	0810-1204
184	04.685 BRACKET; UNION FIX EXC. DUMP CHASSIS(V4D),PTO MANUAL CONTROL(6WC) (A)	8-98211-373-0	01	1	1205-

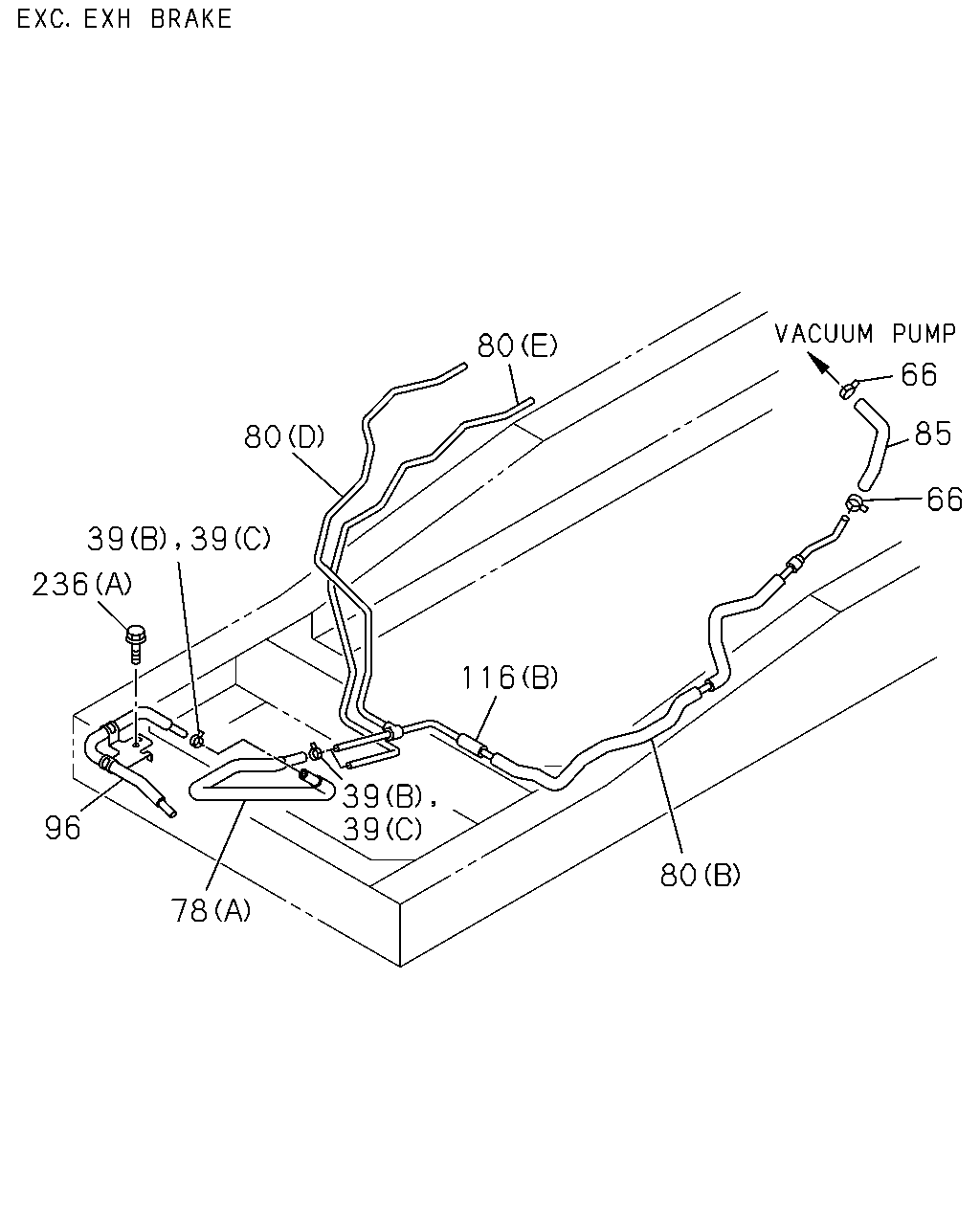

80 66 85 80 66 236 116 39 39 96 80 78 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	04.681 CLIP; HOSE,VAC 03.162 (C) ID=16	8-98008-098-0	02	1	0912-
39	04.681 CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	04	1	0810-
39	04.681 CLIP; HOSE,VAC 02.559 (A) L=170.3	1-09987-182-0	01	1	0810-
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0810-0911
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	02	1	0810-0911
39	04.681 CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) 04.930 (B) ID=16	8-94238-568-0	02	1	0912-
66	04.930 CLIP; VAC HOSE,M/VAC ID=16	8-94238-568-0	02	1	0810-0911
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	02	1	0912-
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 2400MM(24W) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> (F)	8-98124-714-1	01	1	0810-
78	04.931 HOSE; VAC,PIPE TO PIPE EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> (D)	8-98113-154-0	01	1	0810-
78	04.931 HOSE; VAC,PIPE TO PIPE EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> (E)	8-98120-716-0	01	1	0810-
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> (B)	8-98042-690-1	01	1	0810-1104
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> (B)	8-98189-224-0	01	1	1105-
78	04.931 HOSE; VAC,PIPE TO PIPE WHEEL BASE 3300MM(33W) EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> (C)	8-98108-035-0	01	1	0810-
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98122-505-1	01	1	0810-0909
78	04.931 HOSE; VAC,PIPE TO PIPE (A)	8-98138-841-0	01	1	0910-
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8> HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> (A)	8-98220-896-0	01	1	1302-
80	04.930 PIPE; VAC,ENG SIDE EXC. AIR CONDITIONER MANUAL CONT(C60), EXHAUST BRAKE<NF8> (E)	8-98126-940-0	01	1	0810-0901
80	04.930 PIPE; VAC,ENG SIDE EXC. AIR CONDITIONER MANUAL CONT(C60), EXHAUST BRAKE<NF8> (E)	8-98138-630-0	01	1	0902-
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8> (C)	8-98100-027-4	01	1	0810-0901
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8> (C)	8-98138-628-0	01	1	0902-
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> (A)	8-98100-025-2	01	1	0810-
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> (A)	8-98099-980-2	01	1	0810-0901
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8> EXC. FRAME-KICK UP<7EW> (A)	8-98138-631-0	01	1	0902-1301
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8> EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (A)	8-98138-631-0	01	1	1302-
80	04.930 PIPE; VAC,ENG SIDE AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> (B)	8-98123-943-0	01	1	0810-
80	04.930 PIPE; VAC,ENG SIDE EXHAUST BRAKE<NF8> (B)	8-98123-943-0	01	1	0810-
80	04.930 PIPE; VAC,ENG SIDE AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> (D)	8-98118-235-1	01	1	0810-0901
80	04.930 PIPE; VAC,ENG SIDE AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> (D)	8-98138-629-0	01	1	0902-
85	04.931 HOSE; VAC,ENG SIDE	8-98126-108-0	01	1	0810-
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP	8-98124-528-0	01	1	0810-0909
96	04.930 PIPE; VAC,M/VAC TO VAC PUMP L=291	8-98138-797-0	01	1	0910-
116	04.931 HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (A)	8-98124-533-1	01	1	0810-
116	04.931 HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-98124-527-1	01	1	0810-
116	04.931 HOSE; VAC,M/VAC EXHAUST BRAKE<NF8> (B) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	0810-
116	04.931 HOSE; VAC,M/VAC AIR CONDITIONER MANUAL CONT(C60) EXC. EXHAUST BRAKE<NF8> (B) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	0810-
116	04.931 HOSE; VAC,M/VAC EXHAUST BRAKE<NF8> (B) L=130 SERVICED BY L=3000	0-08158-300-0	01	1	0810-
236	04.930 BOLT; PIPE EXHAUST BRAKE<NF8> FRAME-KICK UP<7EW> 01.531 (B) M8X20 FLANGE	0-28650-820-0	01	1	0810-
236	04.930 BOLT; PIPE 03.162 (A) M6X12 FLANGE	0-28050-612-0	01	1	0810-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
