3-55 — BRAKE PIPING; OIL,REAR (#51297) — 9 parça

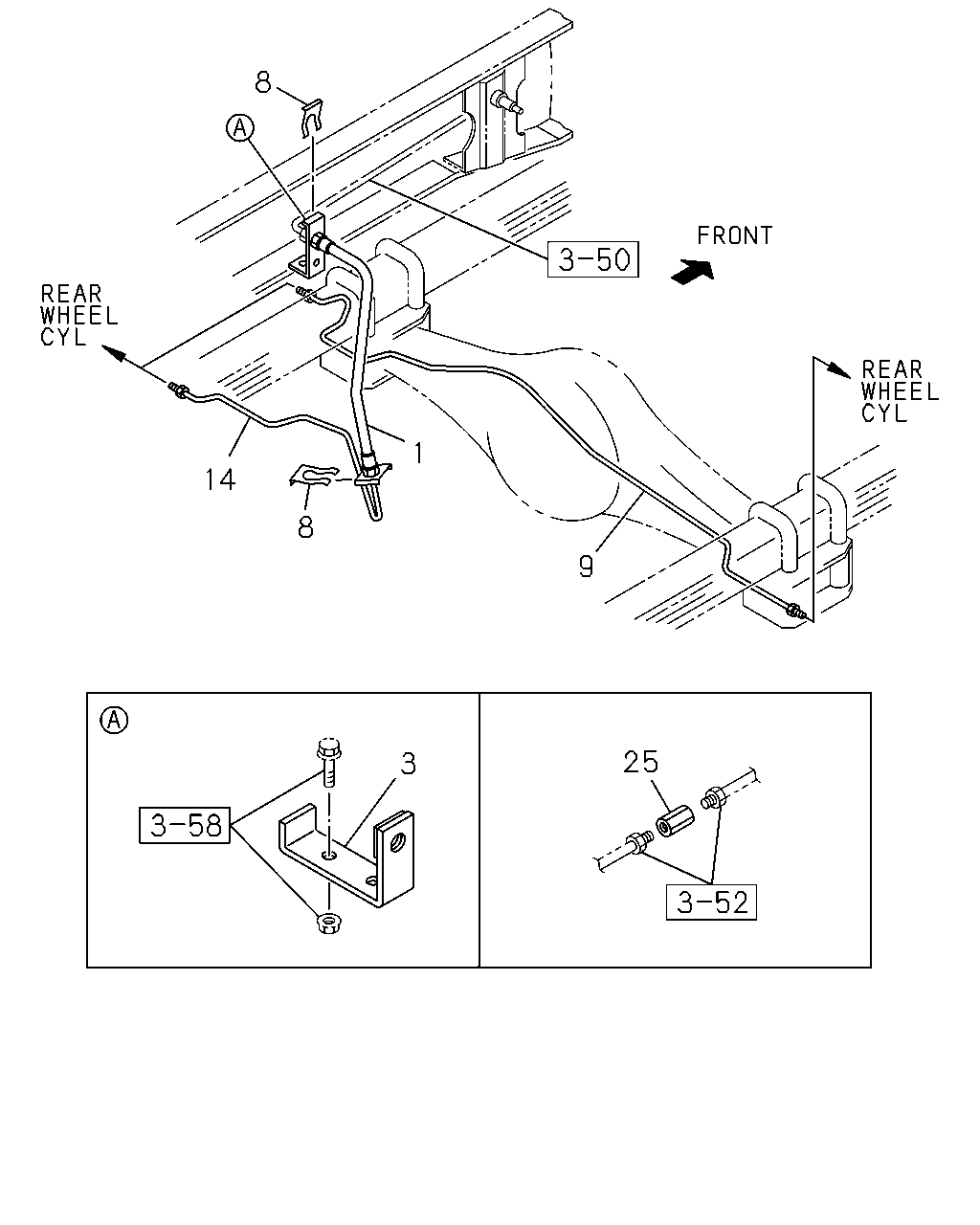

çizim 59164
8 1 14 8 9 25 3
BalonParca AdiParca NoAdetTipApplied Date
1 04.680 HOSE; FLEX,RR BRK
L=370 		8-97035-574-0 01 1 0810-
3 04.681 BRACKET; FLEX HOSE,RR BRK
EXC. FRAME-KICK UP<7EW> 		8-97205-198-0 01 1 0810-
8 04.686 CLIP; RR BRK 8-97360-054-0 02 1 0810-
9 04.685 PIPE; BRK,RR AXLE
DUMP CHASSIS(V4D) EXC. REAR WIDE TREAD(V4T),BRK WHL LK CONT LSPV<6PH> 		8-98021-868-0 01 1 0810-
9 04.685 PIPE; BRK,RR AXLE
REAR WIDE TREAD(V4T) EXC. DUMP CHASSIS(V4D) 		8-98067-256-0 01 1 0810-
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
DUMP CHASSIS(V4D) EXC. REAR WIDE TREAD(V4T),BRK WHL LK CONT LSPV<6PH> 		8-98021-867-0 01 1 0810-
14 04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL
REAR WIDE TREAD(V4T) EXC. DUMP CHASSIS(V4D) 		8-98021-869-0 01 1 0810-
25 04.686 CONNECTOR
M10 STRAIGHT 		0-92107-005-0 01 1 0810-
25 04.686 CONNECTOR
BRK WHL LK CONT LSPV<6PH> M10 STRAIGHT 		0-92107-005-0 01 1 0810-
