◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51183 - NMR71-LHD ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶
3-52 — BRAKE PIPING; OIL,FRONT (#51296) — 29 parça

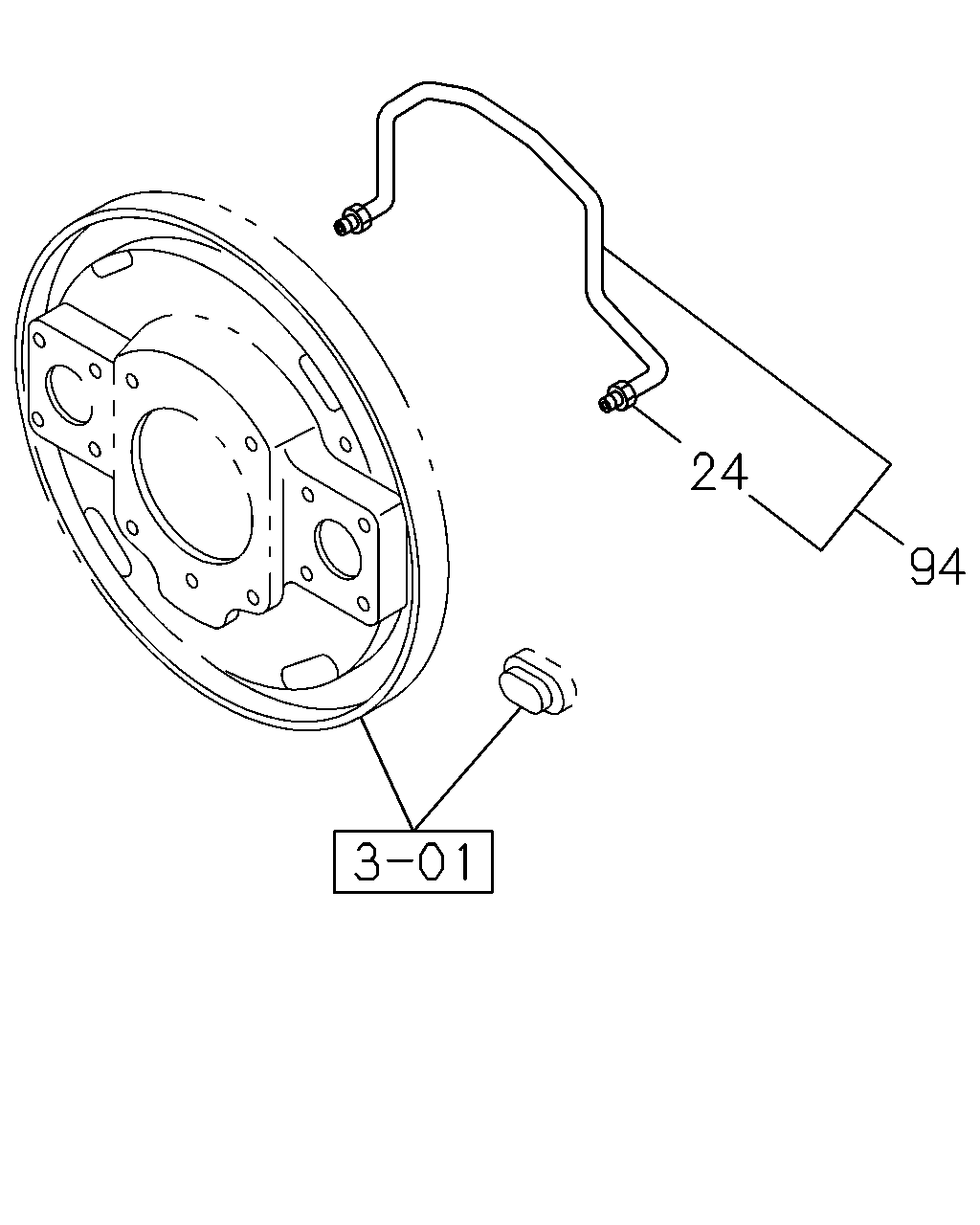

çizim 59130
24 94
BalonParca AdiParca NoAdetTipApplied Date
24 04.686 NUT; UNION,OIL PIPE
FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) ,FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 195/85R16 RIB 16X5.5J-116.5 SILVER(CUC),FRT&RR 7R-16-10 16X5.5F-115(07H) ,FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX 15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) 		0-92107-605-0 02 1 0810-0810
24 04.686 NUT; UNION,OIL PIPE
FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) ,FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 195/85R16 RIB 16X5.5J-116.5 SILVER(CUC),FRT&RR 7.00R-16-10 R/L DISC 5.50 FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&R R 7R-15-10 5.5FX15-115(58H) 		0-92107-605-0 02 1 0810-
94 04.685 PIPE; BRK,W/C TO W/C
FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) ,FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 195/85R16 RIB 16X5.5J-116.5 SILVER(CUC),FRT&RR 7R-16-10 16X5.5F-115(07H) ,FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX 15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) 		8-97019-222-0 01 1 0810-0810
94 04.685 PIPE; BRK,W/C TO W/C
FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) ,FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 195/85R16 RIB 16X5.5J-116.5 SILVER(CUC),FRT&RR 7.00R-16-10 R/L DISC 5.50 FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&R R 7R-15-10 5.5FX15-115(58H) 		8-97019-222-0 01 1 0810-
94 04.685 PIPE; BRK,W/C TO W/C
FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) ,FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 195/85R16 RIB 16X5.5J-116.5 SILVER(CUC),FRT&RR 7R-16-10 16X5.5F-115(07H) ,FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX 15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) 		8-97019-223-0 01 1 0810-0810
94 04.685 PIPE; BRK,W/C TO W/C
FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) ,FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 195/85R16 RIB 16X5.5J-116.5 SILVER(CUC),FRT&RR 7.00R-16-10 R/L DISC 5.50 FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&R R 7R-15-10 5.5FX15-115(58H) 		8-97019-223-0 01 1 0810-

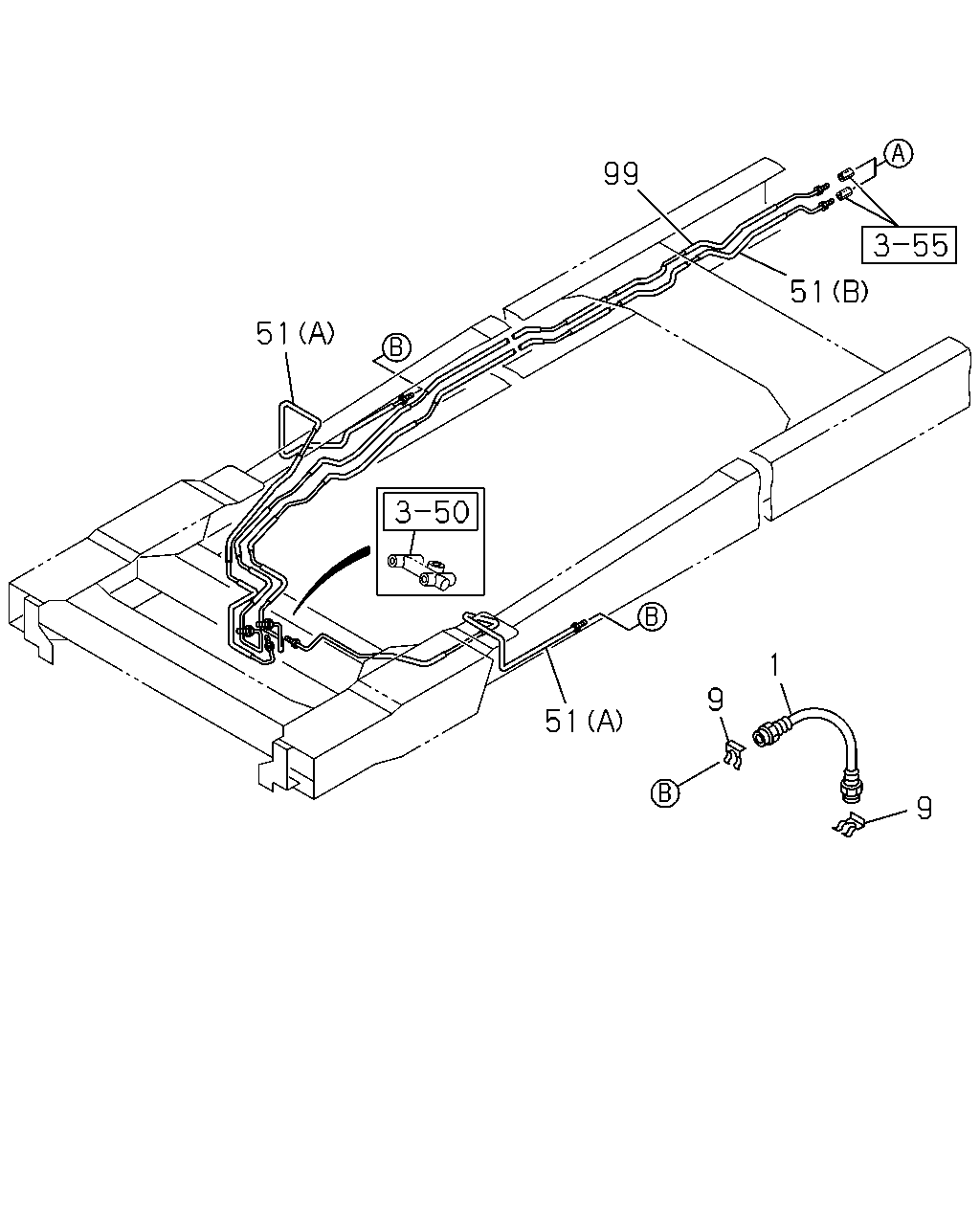

çizim 59134
99 51 51 1 9 51 9
BalonParca AdiParca NoAdetTipApplied Date
1 04.680 HOSE; FLEX,FRT BRK
FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) ,FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 195/85R16 RIB 16X5.5J-116.5 SILVER(CUC),FRT&RR 7R-16-10 16X5.5F-115(07H) ,FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX 15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) 		8-97042-976-0 02 1 0810-0810
1 04.680 HOSE; FLEX,FRT BRK
FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) ,FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 195/85R16 RIB 16X5.5J-116.5 SILVER(CUC),FRT&RR 7.00R-16-10 R/L DISC 5.50 FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&R R 7R-15-10 5.5FX15-115(58H) 		8-97042-976-0 02 1 0810-
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0810-0810
9 04.686 CLIP; FLEX HOSE,FRT BRK
FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) ,FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 195/85R16 RIB 16X5.5J-116.5 SILVER(CUC),FRT&RR 7R-16-10 16X5.5F-115(07H) ,FRT&RR 7-15-8 5.5FX15-115(46H),FRT&RR 7-15-8L 5.5FX15-115(47H),FRT&RR 7-15-10 5.5FX 15-115(49H),FRT&RR 7-15-10L 5.5FX15-115(50H),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&RR 7R-15-10 5.5FX15-115(58H),FRT&RR 7-16-8 16X5.5F-115(94H),FRT&RR 7-16-10 16X5.5F-115 T/VLV TR177A(95H),FRT&RR 7-16-10L 5.5FX16-115 T/VLV TR177A(98H) 		8-97360-054-0 02 1 0810-0810
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0810-
9 04.686 CLIP; FLEX HOSE,FRT BRK
FRT&RR 7R-16-10 16X5.5F-115 GULF SPEC(BQN) ,FRT&RR TIRE 195/85R16 DISC 16-5.5J-116.5(CSA),FRT&RR 195/85R16 RIB 16X5.5J-116.5 SILVER(CUC),FRT&RR 7.00R-16-10 R/L DISC 5.50 FX16-115(CUW),FRT&RR 7R-16-10 16X5.5F-115(07H),FRT&RR 7R-15-8 5.5FX15-115(57H),FRT&R R 7R-15-10 5.5FX15-115(58H) 		8-97360-054-0 02 1 0810-
51 04.685 PIPE; BRK
BRK WHL LK CONT LSPV<6PH> HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> (B) 5/6WAY TO 2WAY,FRONT 		8-98139-683-0 01 1 1302-
51 04.685 PIPE; BRK
BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> (B) 5/6WAY TO 2WAY,FRONT 		8-98131-077-0 01 1 0810-0901
51 04.685 PIPE; BRK
BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> (B) 5/6WAY TO 2WAY,FRONT 		8-98139-680-0 01 1 0902-1301
51 04.685 PIPE; BRK
BRK WHL LK CONT LSPV<6PH> EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> (B) 5/6WAY TO 2WAY,FRONT 		8-98139-680-0 01 1 1302-
51 04.685 PIPE; BRK
(A) BRAKE SYSTEM,FRT RH 6WAY TO FRONT 		8-98054-530-0 01 1 0810-
51 04.685 PIPE; BRK
(A) BRAKE SYSTEM,FRT LH 6WAY TO FRONT 		8-98054-531-1 01 1 0810-
99 04.686 PIPE ASM; 4/5/6 WAY
HEAVY DUTY FRAME<6WB> EXC. FRAME-KICK UP<7EW> 		8-98051-512-1 01 1 1302-
99 04.686 PIPE ASM; 4/5/6 WAY
EXC. FRAME-KICK UP<7EW> 		8-98131-078-0 01 1 0810-1301
99 04.686 PIPE ASM; 4/5/6 WAY
EXC. HEAVY DUTY FRAME<6WB>,FRAME-KICK UP<7EW> 		8-98131-078-0 01 1 1302-
99 04.686 PIPE ASM; 4/5/6 WAY
FRAME-KICK UP<7EW> 		8-98063-431-0 01 1 0810-

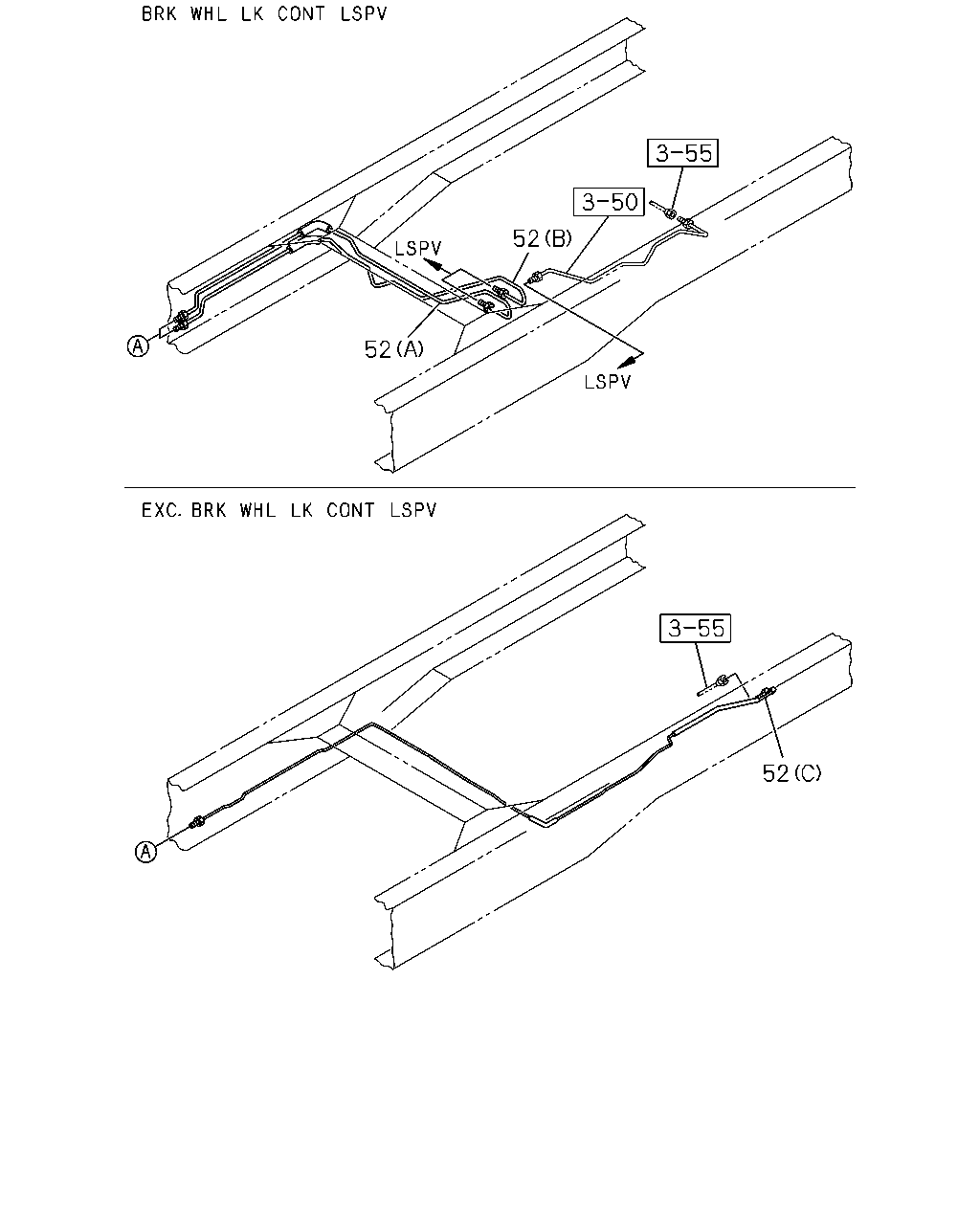

çizim 101140
52 52 52
BalonParca AdiParca NoAdetTipApplied Date
52 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> (B) 2WAY TO LSPV,FRONT 		8-97389-446-1 01 1 0810-
52 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> (A) 2WAY TO LSPV,REAR 		8-98113-418-0 01 1 0810-
52 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) FRAME-KICK UP<7EW> EXC. BRK WHL LK CONT LSPV<6PH> (C) 2WAY TO REAR 		8-98063-432-0 01 1 0810-
52 04.685 PIPE; BRK
WHEEL BASE 2400MM(24W) EXC. BRK WHL LK CONT LSPV<6PH>,FRAME-KICK UP<7EW> (C) 2WAY TO REAR 		8-98054-694-0 01 1 0810-
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> (B) 2WAY TO LSPV,FRONT 		8-97389-449-1 01 1 0810-
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> (A) 2WAY TO LSPV,REAR 		8-98113-419-0 01 1 0810-
52 04.685 PIPE; BRK
WHEEL BASE 3300MM(33W) EXC. BRK WHL LK CONT LSPV<6PH>,FRAME-KICK UP<7EW> (C) 2WAY TO REAR 		8-98054-696-0 01 1 0810-
