◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NMR ▶ 51183 - NMR71-LHD ▶ 3 - Brakes, Brake System ▶ 3-50 - BRAKE PIPING; OIL,MASTER CYLINDER ▶
3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#51295) — 38 parça

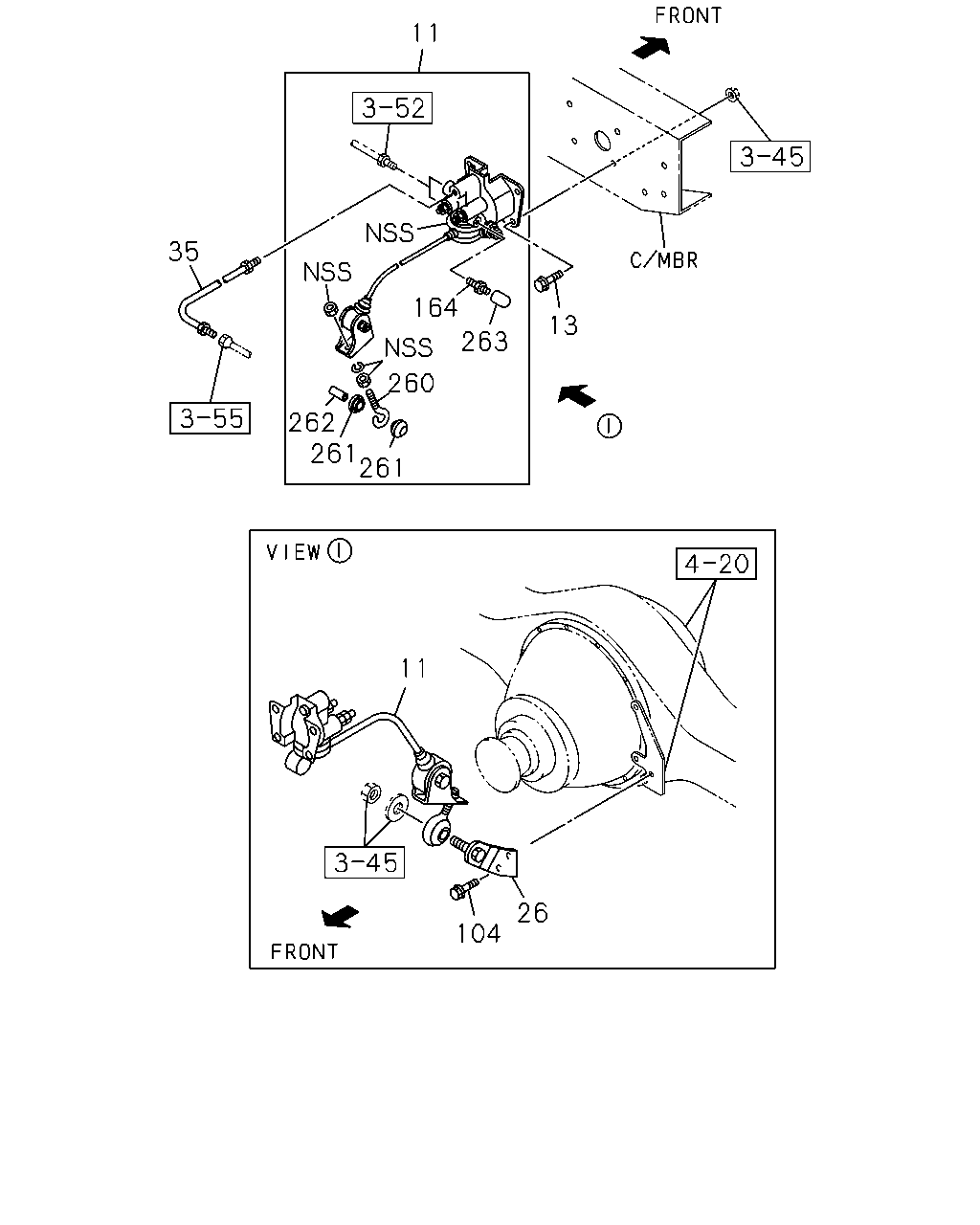

çizim 58988
11 35 164 13 263 260 262 261 261 11 26 104
BalonParca AdiParca NoAdetTipApplied Date
11 04.686 VALVE; BRK CONT
BRK WHL LK CONT LSPV<6PH> 04.730 		8-97070-721-0 01 1 0810-
13 04.686 BOLT; VLV TO BRKT
BRK WHL LK CONT LSPV<6PH> 02.343 M8X16 FLANGE 		0-28050-816-0 04 1 0810-
26 04.730 BRACKET; PROPORTIONING VLV
BRK WHL LK CONT LSPV<6PH> 		8-98029-821-0 01 1 0810-
35 04.685 PIPE; BRK,VLV TO RR AXLE
BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> 		8-97389-540-0 01 1 0810-
104 04.730 BOLT; BRKT TO BODY
BRK WHL LK CONT LSPV<6PH> 02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0810-
164 04.730 SCREW; BLEEDER
BRK WHL LK CONT LSPV<6PH> 04.685 		8-97093-663-0 01 1 0810-
260 04.685 SHACKLE; LSPV
BRK WHL LK CONT LSPV<6PH> 04.710 		8-97173-366-0 01 1 0810-
261 04.685 BUSHING; LSPV
BRK WHL LK CONT LSPV<6PH> 04.710 		8-97145-631-0 02 1 0810-
262 04.685 COLLAR; LSPV
BRK WHL LK CONT LSPV<6PH> 04.710 		8-97139-186-0 01 1 0810-
263 04.685 CAP; BLEEDER
BRK WHL LK CONT LSPV<6PH> 		8-97093-662-0 01 1 0810-

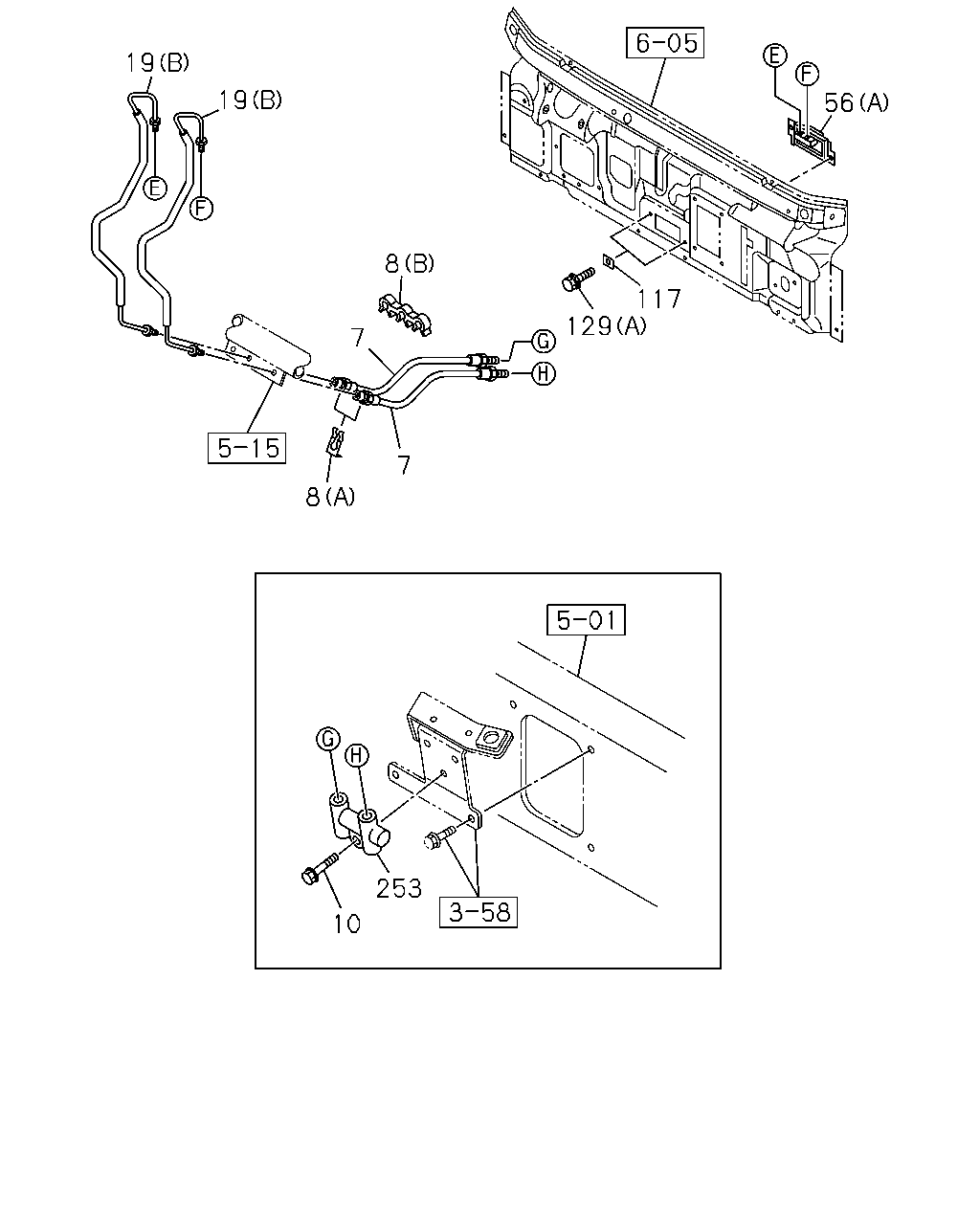

çizim 59006
19 19 56 8 117 129 7 7 8 253 10
BalonParca AdiParca NoAdetTipApplied Date
7 04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT 8-98033-732-0 02 1 0810-
8 04.681 CLIP; FLEX HOSE,CABLE SIDE
(A) 		8-97365-304-0 02 1 0810-
8 04.681 CLIP; FLEX HOSE,CABLE SIDE
(B) 		8-98056-614-0 01 1 0810-
10 04.686 BOLT; JOINT
00.685 M6X40 FLANGE 		0-28650-640-0 01 1 0810-
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) 		8-98047-210-2 02 1 0810-
19 04.685 PIPE; BRK,M/CYL TO UNION
(A) 		8-98097-183-1 01 1 0810-
56 04.686 BRACKET; UNION,BRK
(A) 		8-98056-774-1 01 1 0810-1005
56 04.686 BRACKET; UNION,BRK
(A) 		8-98154-268-1 01 1 1006-
56 04.686 BRACKET; UNION,BRK
(B) 		8-98097-178-1 01 1 0810-
117 04.686 SEAL; UNION,BRK PIPE JOINT
08.845 		8-97856-616-0 02 1 0810-
129 04.710 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 0810-
129 04.710 BOLT; BRKT
08.857 (A) M6X20 W/LK&PL WASHER 		8-98081-030-0 02 1 0810-
253 04.840 JOINT
BRK WHL LK CONT LSPV<6PH> 04.686 		8-97120-033-2 01 1 0810-
253 04.840 JOINT
EXC. BRK WHL LK CONT LSPV<6PH> 04.686 		5-47456-009-1 01 1 0810-
çizim 101172
35
BalonParca AdiParca NoAdetTipApplied Date
35 04.685 PIPE; BRK,VLV TO RR AXLE
BRK WHL LK CONT LSPV<6PH> EXC. FRAME-KICK UP<7EW> 		8-97389-540-0 01 1 0810-

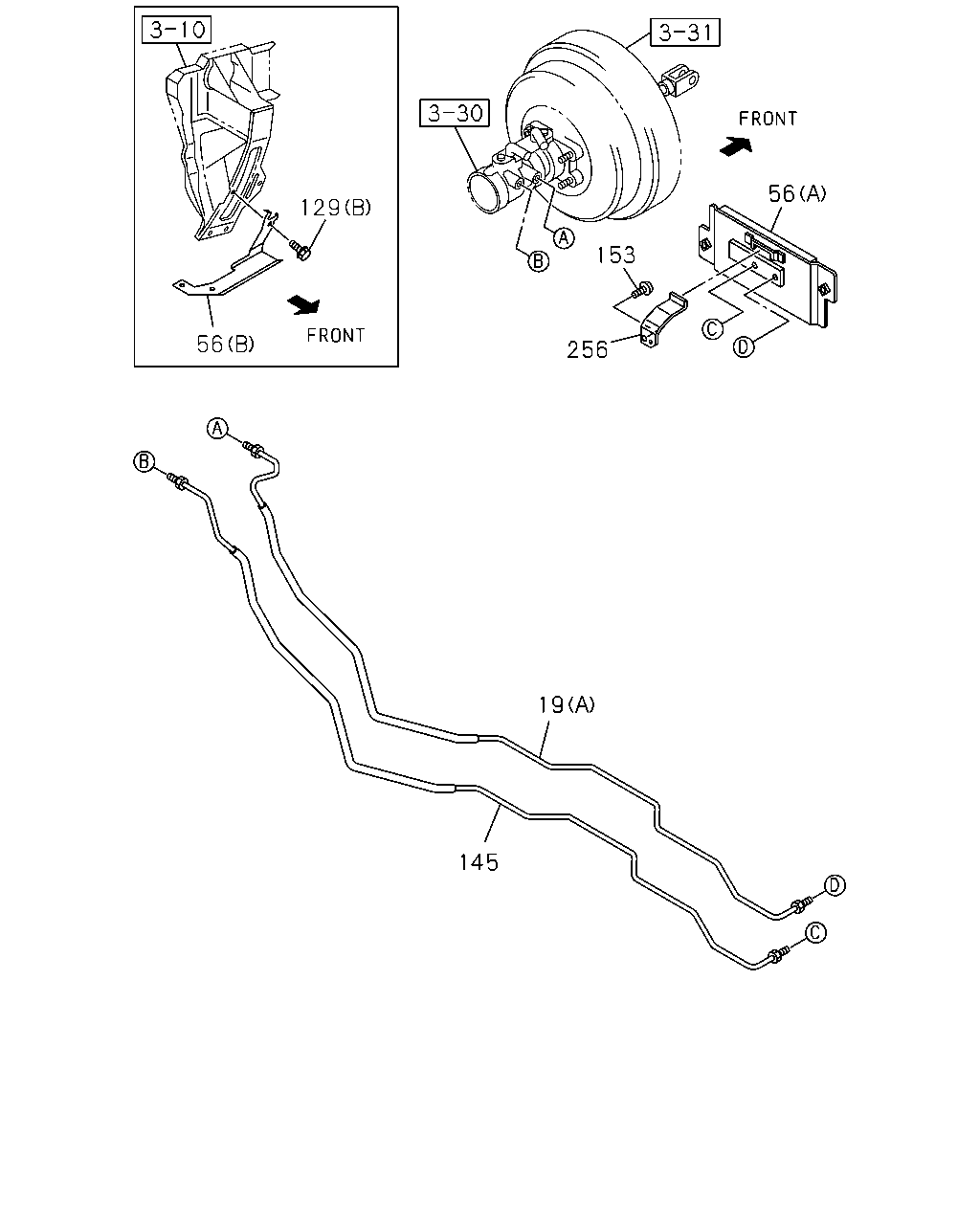

çizim 101173
56 129 153 56 256 19 145
BalonParca AdiParca NoAdetTipApplied Date
19 04.685 PIPE; BRK,M/CYL TO UNION
(B) 		8-98047-210-2 02 1 0810-
19 04.685 PIPE; BRK,M/CYL TO UNION
(A) 		8-98097-183-1 01 1 0810-
56 04.686 BRACKET; UNION,BRK
(A) 		8-98056-774-1 01 1 0810-1005
56 04.686 BRACKET; UNION,BRK
(A) 		8-98154-268-1 01 1 1006-
56 04.686 BRACKET; UNION,BRK
(B) 		8-98097-178-1 01 1 0810-
129 04.710 BOLT; BRKT
02.343 (B) M6X16 FLANGE 		0-28650-616-0 01 1 0810-
129 04.710 BOLT; BRKT
08.857 (A) M6X20 W/LK&PL WASHER 		8-98081-030-0 02 1 0810-
145 04.685 PIPE; BRK,METERING VLV TO UNION 8-98097-179-1 01 1 0810-
153 04.730 SCREW; BRKT FIX
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 04.681 T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 01 1 0810-1001
153 04.730 SCREW; BRKT FIX
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> 04.681 T25 M5X12 TAPPING HEXALOBULAR 		0-72180-512-0 01 1 1002-
256 04.840 BRACKET; BRK PIPE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98039-683-4 01 1 0810-1001
256 04.840 BRACKET; BRK PIPE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> 		8-98039-683-4 01 1 1002-1005
256 04.840 BRACKET; BRK PIPE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. KD PREPARATORY PACK VAR.4<7TV> 		8-98163-521-0 01 1 1006-
