Isuzu WW
▶
TRUCKS
▶
NMR
▶
51183 - NMR71-LHD
▶
3 - Brakes, Brake System
▶
3-05 - REAR WHEEL BRAKE
▶

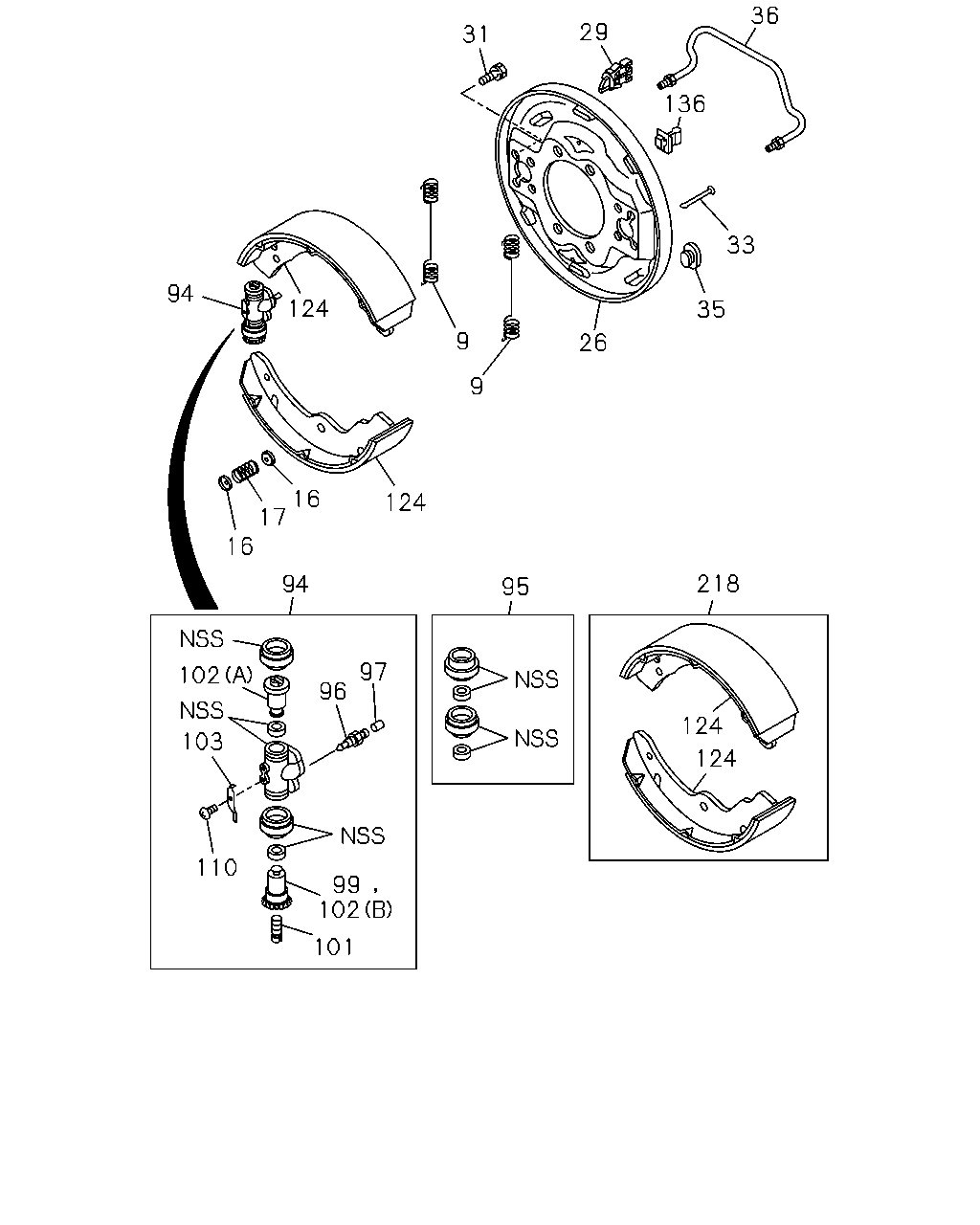

3-05 — REAR WHEEL BRAKE
(#51287) — 25 parça
36
29
31
136
33
94
124
35
9
26
9
16
17
16
124
218
94
95
97
102
96
124
103
124
110
99
102
101
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
9
05.026 SPRING; RETURN,BRK SHOE
8-97078-739-0
04
1
0810-
16
05.043 CUP; SHOE HOLDING
9-47162-033-0
08
1
0810-
17
04.043 SPRING; SHOE HOLD DOWN
05.043
9-09940-989-1
04
1
0810-
26
05.001 PLATE; BACK,RR BRK
8-97078-679-0
01
1
0810-
26
05.001 PLATE; BACK,RR BRK
8-97078-680-0
01
1
0810-
29
04.685 CLIP; PIPE,BRK
8-94128-307-0
02
1
0810-
31
04.665 BOLT; RR WHEEL CYL
5-09030-036-1
16
1
0810-
33
05.043 PIN; SHOE HOLD DOWN
9-47162-607-0
04
1
0810-
35
05.002 GROMMET; CHECK HOLE
8-94344-919-0
02
1
0810-
36
04.685 PIPE; OIL,RR BRK
8-94128-192-0
02
1
0810-
94
04.665 CYLINDER; WHEEL,RR BRK
FRONT
8-97139-840-0
01
1
0810-
94
04.665 CYLINDER; WHEEL,RR BRK
REAR
8-97139-841-0
01
1
0810-
94
04.665 CYLINDER; WHEEL,RR BRK
8-97139-842-0
02
1
0810-
95
04.665 CUP SET; RR WHEEL CYL
5-87831-621-0
01
1
0810-
96
04.666 SCREW; BLEEDER,RR BRK
8-98050-476-0
01
1
0810-
97
04.666 CAP; BLEEDER,RR WHEEL CYL
8-98050-479-0
01
1
0810-
99
04.668 PISTON; RR WHEEL CYL
8-97078-698-0
03
1
0810-
101
04.666 SCREW; ADJ,RR WHEEL CYL
05.110
8-97078-623-0
04
1
0810-
102
04.668 PISTON; REAR WHEEL CYL
(A) D=25.4
8-94128-531-1
04
1
0810-
102
04.668 PISTON; REAR WHEEL CYL
(B)
8-97078-698-0
01
1
0810-
103
05.107 SPRING; LK,RR WHEEL CYL,ADJ
8-94128-486-0
04
1
0810-
110
05.107 SCREW; LOCK SPRING,RR WHEEL CYL
8-94128-727-0
04
1
0810-
124
05.017 SHOE ASM; BRK,RR
8-97035-085-1
04
1
0810-
136
05.002 GROMMET
9-09956-640-0
04
1
0810-
218
05.017 SHOE KIT; BRK,RR
5-87832-045-0
01
1
0810-
