2-81 — POWER TAKE OFF; TRANSMISSION SIDE (#51284) — 113 parça

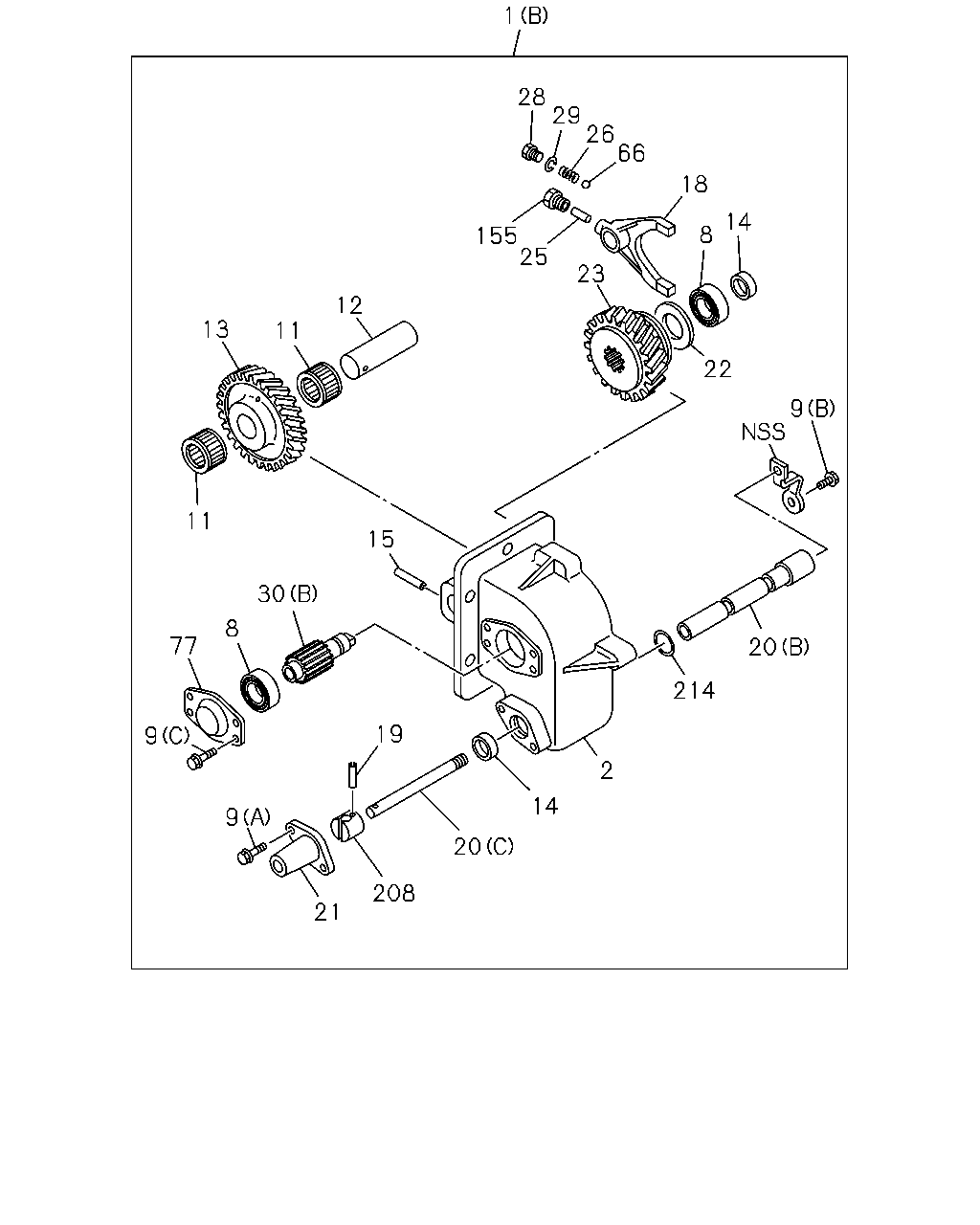

1 28 29 26 66 18 8 14 25 155 23 22 9 20 214 2 14 20 208 21 19 15 12 11 13 11 8 30 77 9 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) (A) IDENTIFICATION=YG	8-97286-908-7	01	1	0810-1210
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) (A) IDENTIFICATION=YG	8-98223-523-0	01	1	1211-1305
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) (A) IDENTIFICATION=YG	8-98233-783-1	01	1	1306-
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO T/M SIDE DIRECT PUMP(8KZ) (B) IDENTIFICATION=F	8-97379-829-1	01	1	0810-
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97308-689-2	01	1	0810-1409
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98282-381-0	01	1	1410-
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO T/M SIDE DIRECT PUMP(8KZ)	8-97352-776-1	01	1	0810-
8	04.439 BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE(V66) ID=25 OD=62	8-94343-031-1	02	1	0810-
8	04.439 BEARING; OUTPUT SHAFT,TRANS SIDE PTO T/M SIDE DIRECT PUMP(8KZ) ID=25 OD=52	9-00090-657-0	02	1	0810-
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S PTO TRANSMISSION SIDE(V66) 04.338 (A) M8X20 FLANGE	0-28050-820-0	08	1	0810-
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S PTO T/M SIDE DIRECT PUMP(8KZ) 04.338 (A) M8X20 FLANGE	0-28050-820-0	02	1	0810-
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S PTO T/M SIDE DIRECT PUMP(8KZ) 02.343 (C) M8X16 FLANGE	0-28050-816-0	04	1	0810-
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S PTO T/M SIDE DIRECT PUMP(8KZ) 00.029 (B) M10X16 FLANGE	0-28151-016-0	01	1	0810-
11	04.439 BEARING; IDLE GEAR,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) NSK	8-97106-734-0	02	1	0810-
11	04.439 BEARING; IDLE GEAR,TRANS SIDE PT PTO T/M SIDE DIRECT PUMP(8KZ) NSK	9-00096-646-0	02	1	0810-
12	04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ)	9-38211-606-0	01	1	0810-
13	04.439 GEAR; IDLE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=31	8-97308-700-0	01	1	0810-
13	04.439 GEAR; IDLE,TRANS SIDE PTO PTO T/M SIDE DIRECT PUMP(8KZ) Z=31	8-97352-777-0	01	1	0810-
14	04.439 SEAL; OIL,GEAR CASE,TRANS SIDE P PTO TRANSMISSION SIDE(V66)	8-98028-789-0	01	1	0810-
14	04.439 SEAL; OIL,GEAR CASE,TRANS SIDE P PTO T/M SIDE DIRECT PUMP(8KZ)	8-97308-735-0	02	1	0810-
15	04.439 PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) L=16	9-09878-613-0	01	1	0810-
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97224-702-0	01	1	0810-
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO PTO T/M SIDE DIRECT PUMP(8KZ)	8-97308-694-0	01	1	0810-
19	04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) 04.303 L=25 OD=5	8-94135-771-0	01	1	0810-
19	04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT PTO T/M SIDE DIRECT PUMP(8KZ) L=20 OD=4	9-09678-514-0	01	1	0810-
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (A)	8-98046-623-0	01	1	0810-
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO PTO T/M SIDE DIRECT PUMP(8KZ) (B)	8-97186-946-1	01	1	0810-
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO PTO T/M SIDE DIRECT PUMP(8KZ) (C)	8-98080-011-0	01	1	0810-
21	04.439 COVER; SHIFTER ROD,TRANS SIDE PT PTO T/M SIDE DIRECT PUMP(8KZ)	8-97139-693-0	01	1	0810-
22	04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ)	9-38245-603-1	01	1	0810-
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=27	8-98120-609-0	01	1	0810-
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO PTO T/M SIDE DIRECT PUMP(8KZ) Z=27	8-97352-778-0	01	1	0810-
25	04.439 PIN; LK,SIDE PTO PTO TRANSMISSION SIDE(V66)	8-94169-071-0	01	1	0810-
25	04.439 PIN; LK,SIDE PTO PTO T/M SIDE DIRECT PUMP(8KZ)	8-97139-695-0	01	1	0810-
26	04.439 SPRING; SHIFTER ROD,TRANS SIDE P PTO TRANSMISSION SIDE(V66)	9-09940-380-0	01	1	0810-
26	04.439 SPRING; SHIFTER ROD,TRANS SIDE P PTO T/M SIDE DIRECT PUMP(8KZ)	8-97139-700-0	01	1	0810-
28	04.439 BOLT; SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) M8	8-98038-424-0	01	1	0810-
29	04.439 WASHER; LK,SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) 02.559 ID=8.2	0-91510-808-0	01	1	0810-
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (A)	8-97118-183-1	01	1	0810-1210
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (C)	8-98223-518-0	01	1	1211-1305
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (C)	8-98233-777-0	01	1	1306-
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO T/M SIDE DIRECT PUMP(8KZ) (B)	8-97186-945-0	01	1	0810-
66	04.439 BALL; SHIFTER ROD,TRANS SIDE PTO PTO T/M SIDE DIRECT PUMP(8KZ)	8-97139-699-0	01	1	0810-
77	04.439 COVER; OUTPUT,RR,TRANS SIDE PTO PTO T/M SIDE DIRECT PUMP(8KZ)	8-98046-625-0	01	1	0810-
155	04.439 PLUG; SHIFTER ROD PTO TRANSMISSION SIDE(V66)	8-98037-770-0	01	1	0810-
155	04.439 PLUG; SHIFTER ROD PTO T/M SIDE DIRECT PUMP(8KZ)	8-98046-860-0	01	1	0810-
208	04.439 CONNECTOR; CABLE PTO T/M SIDE DIRECT PUMP(8KZ)	8-98046-859-0	01	1	0810-
214	04.439 GASKET; SHIFT ROD PTO T/M SIDE DIRECT PUMP(8KZ)	9-09561-125-0	01	1	0810-

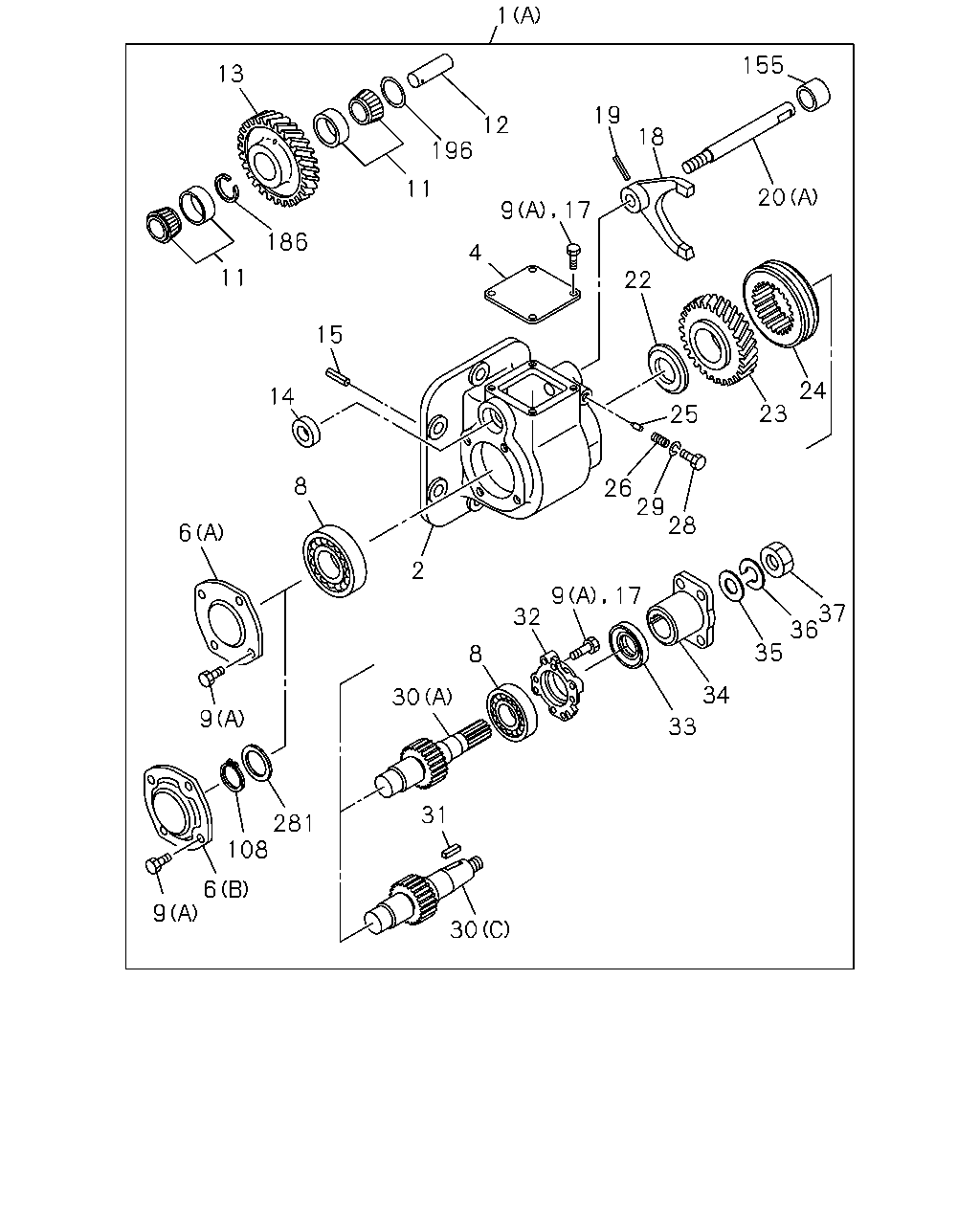

13 186 11 15 14 8 6 9 281 108 6 9 31 30 30 32 8 33 9 34 17 35 36 37 28 29 26 25 22 20 24 23 155 19 18 17 9 4 11 196 12 1 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) (A) IDENTIFICATION=YG	8-97286-908-7	01	1	0810-1210
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) (A) IDENTIFICATION=YG	8-98223-523-0	01	1	1211-1305
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO TRANSMISSION SIDE(V66) (A) IDENTIFICATION=YG	8-98233-783-1	01	1	1306-
1	04.439 POWER TAKE OFF ASM; TRANS SIDE PTO T/M SIDE DIRECT PUMP(8KZ) (B) IDENTIFICATION=F	8-97379-829-1	01	1	0810-
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97308-689-2	01	1	0810-1409
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98282-381-0	01	1	1410-
2	04.439 CASE; GEAR,TRANS SIDE PTO PTO T/M SIDE DIRECT PUMP(8KZ)	8-97352-776-1	01	1	0810-
4	04.439 COVER; UPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-98046-613-0	01	1	0810-
6	04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI PTO TRANSMISSION SIDE(V66) (A)	8-98046-612-0	01	1	0810-1305
6	04.439 COVER; FRT,OUTPUT SHAFT,TRANS SI PTO TRANSMISSION SIDE(V66) (B)	8-98233-778-0	01	1	1306-
8	04.439 BEARING; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE(V66) ID=25 OD=62	8-94343-031-1	02	1	0810-
8	04.439 BEARING; OUTPUT SHAFT,TRANS SIDE PTO T/M SIDE DIRECT PUMP(8KZ) ID=25 OD=52	9-00090-657-0	02	1	0810-
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S PTO TRANSMISSION SIDE(V66) 04.338 (A) M8X20 FLANGE	0-28050-820-0	08	1	0810-
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S PTO T/M SIDE DIRECT PUMP(8KZ) 04.338 (A) M8X20 FLANGE	0-28050-820-0	02	1	0810-
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S PTO T/M SIDE DIRECT PUMP(8KZ) 02.343 (C) M8X16 FLANGE	0-28050-816-0	04	1	0810-
9	04.439 BOLT; OUTPUT SHAFT COVER,TRANS S PTO T/M SIDE DIRECT PUMP(8KZ) 00.029 (B) M10X16 FLANGE	0-28151-016-0	01	1	0810-
11	04.439 BEARING; IDLE GEAR,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) NSK	8-97106-734-0	02	1	0810-
11	04.439 BEARING; IDLE GEAR,TRANS SIDE PT PTO T/M SIDE DIRECT PUMP(8KZ) NSK	9-00096-646-0	02	1	0810-
12	04.439 SHAFT; IDLE GEAR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ)	9-38211-606-0	01	1	0810-
13	04.439 GEAR; IDLE,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=31	8-97308-700-0	01	1	0810-
13	04.439 GEAR; IDLE,TRANS SIDE PTO PTO T/M SIDE DIRECT PUMP(8KZ) Z=31	8-97352-777-0	01	1	0810-
14	04.439 SEAL; OIL,GEAR CASE,TRANS SIDE P PTO TRANSMISSION SIDE(V66)	8-98028-789-0	01	1	0810-
14	04.439 SEAL; OIL,GEAR CASE,TRANS SIDE P PTO T/M SIDE DIRECT PUMP(8KZ)	8-97308-735-0	02	1	0810-
15	04.439 PIN; SPR,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) L=16	9-09878-613-0	01	1	0810-
17	04.439 BOLT; UPR COVER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) 04.338 M8X20 FLANGE	0-28050-820-0	04	1	0810-
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97224-702-0	01	1	0810-
18	04.439 ARM; GEAR SHIFT,TRANS SIDE PTO PTO T/M SIDE DIRECT PUMP(8KZ)	8-97308-694-0	01	1	0810-
19	04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT PTO TRANSMISSION SIDE(V66) 04.303 L=25 OD=5	8-94135-771-0	01	1	0810-
19	04.439 PIN; SPR,SHIFT ARM,TRANS SIDE PT PTO T/M SIDE DIRECT PUMP(8KZ) L=20 OD=4	9-09678-514-0	01	1	0810-
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (A)	8-98046-623-0	01	1	0810-
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO PTO T/M SIDE DIRECT PUMP(8KZ) (B)	8-97186-946-1	01	1	0810-
20	04.439 ROD; GEAR SHIFTER,TRANS SIDE PTO PTO T/M SIDE DIRECT PUMP(8KZ) (C)	8-98080-011-0	01	1	0810-
22	04.439 COLLAR; DIST,OUTPUT SHAFT,TRANS PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ)	9-38245-603-1	01	1	0810-
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) Z=27	8-98120-609-0	01	1	0810-
23	04.439 GEAR; OUTPUT,TRANS SIDE PTO PTO T/M SIDE DIRECT PUMP(8KZ) Z=27	8-97352-778-0	01	1	0810-
24	04.439 SLEEVE; DOG CLU,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66)	8-97231-316-1	01	1	0810-
25	04.439 PIN; LK,SIDE PTO PTO TRANSMISSION SIDE(V66)	8-94169-071-0	01	1	0810-
25	04.439 PIN; LK,SIDE PTO PTO T/M SIDE DIRECT PUMP(8KZ)	8-97139-695-0	01	1	0810-
26	04.439 SPRING; SHIFTER ROD,TRANS SIDE P PTO TRANSMISSION SIDE(V66)	9-09940-380-0	01	1	0810-
26	04.439 SPRING; SHIFTER ROD,TRANS SIDE P PTO T/M SIDE DIRECT PUMP(8KZ)	8-97139-700-0	01	1	0810-
28	04.439 BOLT; SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) M8	8-98038-424-0	01	1	0810-
29	04.439 WASHER; LK,SPRING,SIDE PTO PTO TRANSMISSION SIDE(V66),PTO T/M SIDE DIRECT PUMP(8KZ) 02.559 ID=8.2	0-91510-808-0	01	1	0810-
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (A)	8-97118-183-1	01	1	0810-1210
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (C)	8-98223-518-0	01	1	1211-1305
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) (C)	8-98233-777-0	01	1	1306-
30	04.439 SHAFT; OUTPUT,TRANS SIDE PTO PTO T/M SIDE DIRECT PUMP(8KZ) (B)	8-97186-945-0	01	1	0810-
31	04.439 KEY; OUTPUT SHAFT,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) L=25	8-98068-088-0	01	1	1211-
32	04.439 COVER; RR,OUTPUT SHAFT,TRANS SID PTO TRANSMISSION SIDE(V66)	8-97305-794-0	01	1	0810-
33	04.439 SEAL; OIL,OUTPUT SHAFT,TRANS SID PTO TRANSMISSION SIDE(V66)	1-38159-007-0	01	1	0810-
34	04.439 FLANGE; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE(V66)	8-98046-624-0	01	1	0810-1210
34	04.439 FLANGE; OUTPUT SHAFT,TRANS SIDE PTO TRANSMISSION SIDE(V66)	8-98223-519-0	01	1	1211-
35	04.439 WASHER; PL,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) 04.634 ID=15	0-91610-514-0	01	1	0810-
36	04.439 WASHER; LK,FLANGE FIX,TRANS SIDE PTO TRANSMISSION SIDE(V66) 06.174 ID=14.2	0-91510-814-0	01	1	0810-
37	04.439 NUT; FLANGE FIX,TRANS SIDE PTO PTO TRANSMISSION SIDE(V66) 06.515 M14	0-91111-514-0	01	1	0810-
108	04.439 RING; SNAP,OUTPUT SHAFT,TRANS SI PTO TRANSMISSION SIDE(V66) 08.934 ID=23.2	9-09180-025-0	01	1	1306-
155	04.439 PLUG; SHIFTER ROD PTO TRANSMISSION SIDE(V66)	8-98037-770-0	01	1	0810-
155	04.439 PLUG; SHIFTER ROD PTO T/M SIDE DIRECT PUMP(8KZ)	8-98046-860-0	01	1	0810-
186	04.439 RING; SNAP,IDLE GEAR,TRANS SIDE PTO TRANSMISSION SIDE(V66)	8-97106-730-0	01	1	0810-
196	04.439 PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.50	8-97106-724-0	02	1	0810-
196	04.439 PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.60	8-97106-725-0	02	1	0810-
196	04.439 PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.65	8-97106-726-0	02	1	0810-
196	04.439 PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.70	8-97106-727-0	02	1	0810-
196	04.439 PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.80	8-97106-728-0	02	1	0810-
196	04.439 PIECE; THRUST PTO TRANSMISSION SIDE(V66) T=1.85	8-97106-729-0	02	1	0810-
281	04.439 SHIM; OUTPUT SHAFT PTO TRANSMISSION SIDE(V66) T=1.85	8-97106-729-0	01	1	1306-
