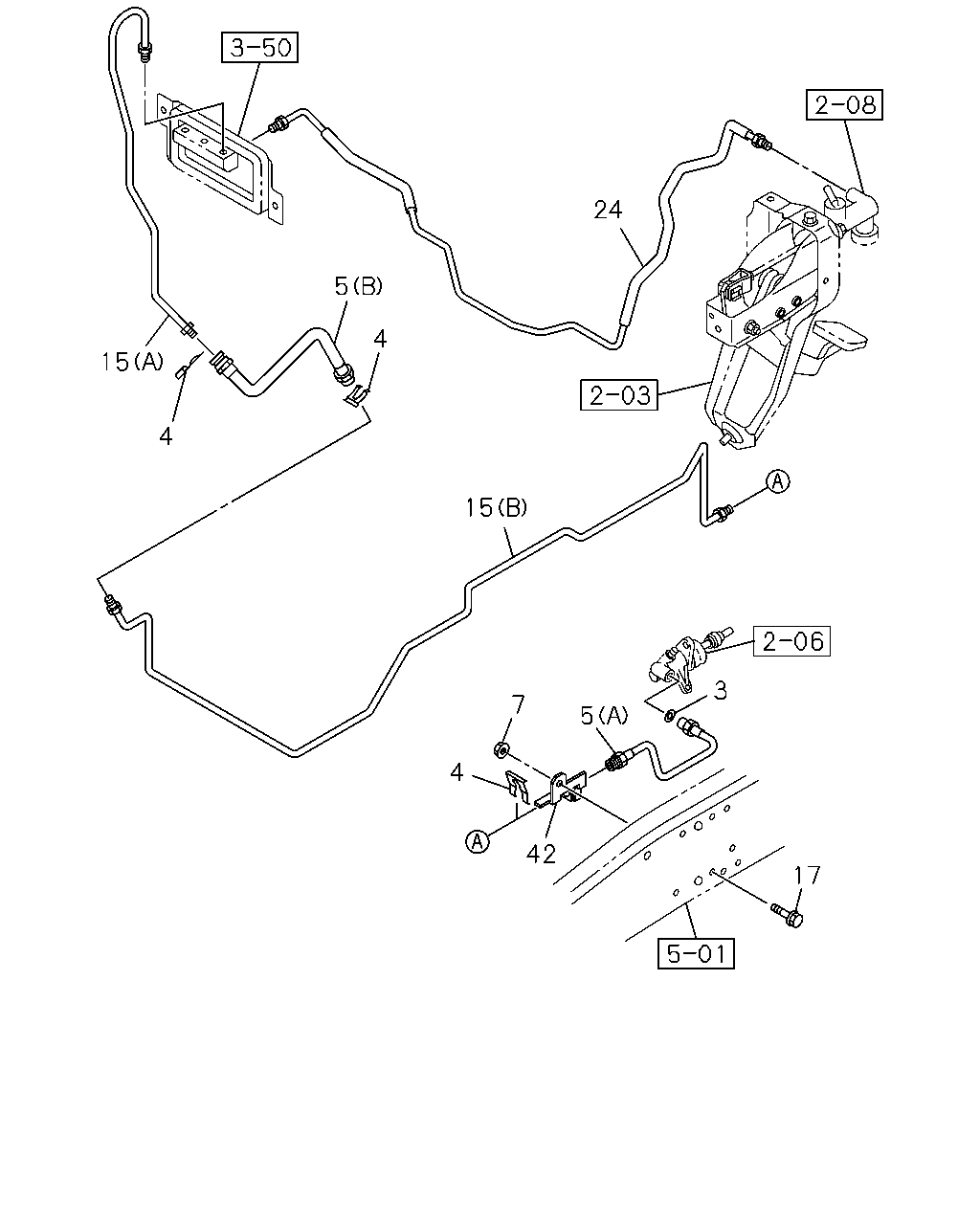

2-05 — CLUTCH PIPING (#51273) — 15 parça

24 5 4 15 4 15 3 7 5 4 42 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	00.785 GASKET; FLEX HOSE,CLU	9-09920-873-1	01	1	0810-
4	00.785 CLIP; FLEX HOSE,CLU CONT 04.681	8-97365-304-0	01	1	0810-
4	00.785 CLIP; FLEX HOSE,CLU CONT 04.681	8-97365-304-0	02	1	0810-
5	00.785 HOSE; FLEX,CLU PIPE (A)	8-97168-853-0	01	1	0810-
5	00.785 HOSE; FLEX,CLU PIPE (B)	8-98083-907-0	01	1	0810-
7	00.785 NUT; FLEX HOSE,CLU CONT 03.162 M10 FLANGE	0-91180-110-0	01	1	0810-
15	00.785 PIPE; CLU,FLEX HOSE (A)	8-98047-211-1	01	1	0810-
15	00.785 PIPE; CLU,FLEX HOSE (B)	8-98100-031-2	01	1	0810-
17	00.785 BOLT; BRKT 00.029 M10X30 FLANGE	0-28651-030-0	01	1	0810-
24	00.785 PIPE ASM; CLU,M/CYL TO UNION POWER ASSIST CLUTCH(S2T)	8-98099-806-2	01	1	0810-1504
24	00.785 PIPE ASM; CLU,M/CYL TO UNION POWER ASSIST CLUTCH(S2T)	8-98250-075-0	01	1	1505-
24	00.785 PIPE ASM; CLU,M/CYL TO UNION EXC. POWER ASSIST CLUTCH(S2T)	8-98097-187-1	01	1	0810-1504
24	00.785 PIPE ASM; CLU,M/CYL TO UNION EXC. POWER ASSIST CLUTCH(S2T)	8-98250-071-0	01	1	1505-
42	00.785 BRACKET; FLEX HOSE,CLU CONT	8-98094-498-0	01	1	0810-

183

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	183	00.785 HOSE; VAC,VAC TANK SIDE POWER ASSIST CLUTCH(S2T)	8-98047-185-0	01	1	0810-
