Isuzu WW
▶
TRUCKS
▶
NMR
▶
51183 - NMR71-LHD
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-30 - AIR CLEANER
▶

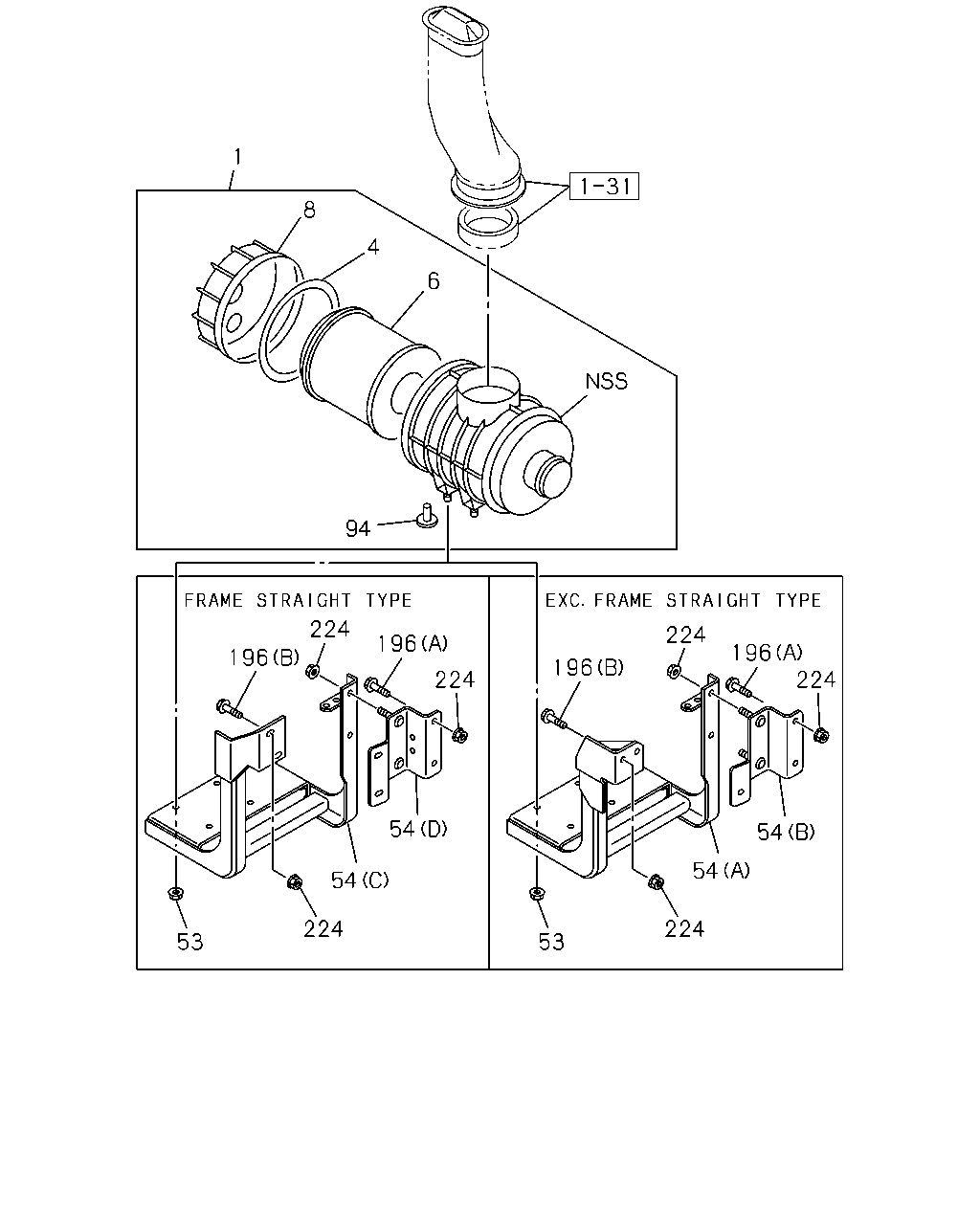

1-30 — AIR CLEANER
(#51263) — 17 parça
1
8
4
6
94
224
224
196
196
224
196
196
224
54
54
54
54
224
224
53
53
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
03.402 CLEANER ASM; AIR
8-98122-915-0
01
1
0810-1210
1
03.402 CLEANER ASM; AIR
8-98050-415-2
01
1
1211-
4
03.403 GASKET; COVER TO BODY
8-97352-113-0
01
1
0810-
6
03.410 FILTER; ACL
8-97062-294-0
01
1
0810-
6
03.410 FILTER; ACL
BEST VALUE PARTS
5-87610-020-0
01
1
0810-
8
03.410 COVER ASM; ACL
8-98050-434-1
01
1
0810-
53
03.403 NUT; ACL
01.062 M8 FLANGE
0-91180-108-0
04
1
0810-
54
03.405 BRACKET; ACL
FRAME-KICK UP<7EW> (C)
8-98067-736-1
01
1
0810-
54
03.405 BRACKET; ACL
FRAME-KICK UP<7EW> (D)
8-98067-738-1
01
1
0810-
54
03.405 BRACKET; ACL
EXC. FRAME-KICK UP<7EW> (A)
8-98067-768-2
01
1
0810-
54
03.405 BRACKET; ACL
EXC. FRAME-KICK UP<7EW> (B)
8-98071-306-1
01
1
0810-
94
03.415 VALVE; VACUATOR
8-97093-694-0
01
1
0810-
196
03.417 BOLT; BRKT,ACL
FRAME-KICK UP<7EW> 00.029 (A) M10X30 FLANGE
0-28651-030-0
04
1
0810-
196
03.417 BOLT; BRKT,ACL
02.277 (B) M10X35 FLANGE
0-28651-035-0
02
1
0810-
196
03.417 BOLT; BRKT,ACL
EXC. FRAME-KICK UP<7EW> 00.029 (A) M10X30 FLANGE
0-28651-030-0
03
1
0810-
224
03.407 NUT; BRKT
FRAME-KICK UP<7EW> 03.162 M10 FLANGE
0-91180-110-0
02
1
0810-
224
03.407 NUT; BRKT
EXC. FRAME-KICK UP<7EW> 03.162 M10 FLANGE
0-91180-110-0
05
1
0810-
