◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10722 - CXH RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-50 - FRONT SUSPENSION ▶
4-50 — FRONT SUSPENSION (#5126) — 161 parça

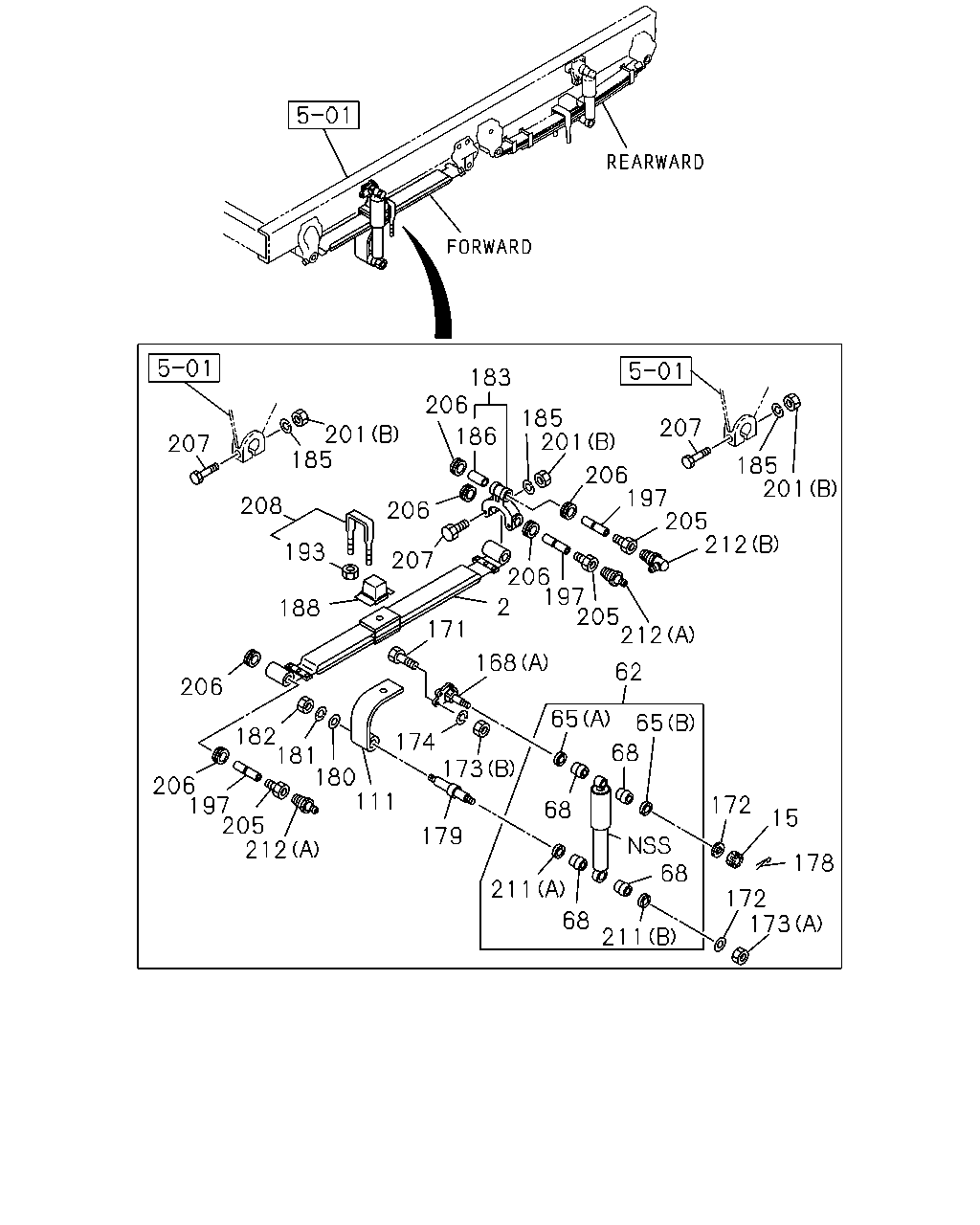

çizim 5807
183 206 185 201 207 201 185 186 207 185 201 206 197 205 212 208 206 193 207 206 197 205 212 2 188 171 168 62 206 65 182 181 180 111 65 174 173 68 206 197 205 212 172 68 15 68 179 178 211 172 173 68 211
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. REARWARD 10-LEAF 		1-51130-230-0 02 1 9606-0011
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. NEW ZEALAND EQUIPMENT(PK5) REARWARD 10-LEAF 		1-51130-230-0 02 1 0012-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FORWARD 10-LEAF 		1-51130-417-0 02 1 9606-0011
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. NEW ZEALAND EQUIPMENT(PK5) FORWARD 10-LEAF 		1-51130-417-0 02 1 0012-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. NEW ZEALAND EQUIPMENT(PK5) FORWARD 3-LEAF 		1-51130-778-0 02 1 0012-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. NEW ZEALAND EQUIPMENT(PK5) REARWARD 3-LEAF 		1-51130-779-0 02 1 0012-
15 NUT; S/ABS,UPR
M20 SLOTTED 		9-99116-420-0 02 1 9606-
62 ABSORBER ASM; SHOCK,FRT
FORWARD 		1-51630-429-0 02 1 9606-
65 WASHER; S/ABS
(A) ID=27 		9-51631-027-0 02 1 9606-
65 WASHER; S/ABS
(B) ID=21 		9-51631-028-0 02 1 9606-
68 BUSHING; S/ABS 9-51631-026-0 16 1 9606-
111 SUPPORTER; S/ABS,FRT SUSP
FORWARD 		1-51681-627-0 02 1 9606-
168 BRACKET; S/ABS,FRT SUSP
(A) FORWARD 		1-51681-321-2 02 1 9606-9612
168 BRACKET; S/ABS,FRT SUSP
(A) FORWARD 		1-51681-745-0 02 1 9701-
168 BRACKET; S/ABS,FRT SUSP
(B) REARWARD 		1-51681-634-0 02 1 9606-9612
168 BRACKET; S/ABS,FRT SUSP
(B) REARWARD 		1-51681-746-0 02 1 9701-
171 BOLT; S/ABS BRKT
REARWARD M14X50 		9-92061-450-0 08 1 9606-9706
171 BOLT; S/ABS BRKT
FRAME EQUIPMENT HEAVY DUTY<F03> REARWARD M14X50 		9-92061-450-0 08 1 9707-9905
171 BOLT; S/ABS BRKT
6WA1 TC-S(56L) WHEEL BASE 6600MM(66W) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> REARWARD M14X50 		9-92061-450-0 08 1 9707-9905
171 BOLT; S/ABS BRKT
6WA1 TC-S(56L) WHEEL BASE 6600MM(66W) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,LIGHT DUTY PACKAGE TRUCK(Y21) REARWARD M14X50 		9-92061-450-0 08 1 9906-0003
171 BOLT; S/ABS BRKT
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> REARWARD M14X50 		9-92061-450-0 08 1 9906-0003
171 BOLT; S/ABS BRKT
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> REARWARD M14X50 		9-92061-450-0 08 1 9906-0003
171 BOLT; S/ABS BRKT
6WA1 TC-S(56L) WHEEL BASE 6600MM(66W) EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> REARWARD M14X50 		9-92061-450-0 08 1 0004-
171 BOLT; S/ABS BRKT
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> REARWARD M14X50 		9-92061-450-0 08 1 0004-
171 BOLT; S/ABS BRKT
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> REARWARD M14X50 		9-92061-450-0 08 1 0004-
171 BOLT; S/ABS BRKT
FRAME EQUIPMENT HEAVY DUTY<F03> FORWARD M14X45 		9-92061-445-0 08 1 9606-9905
171 BOLT; S/ABS BRKT
FRAME EQUIPMENT HEAVY DUTY<F03> FORWARD M14X45 		9-92061-445-0 08 1 9906-0003
171 BOLT; S/ABS BRKT
LIGHT DUTY PACKAGE TRUCK(Y21) FORWARD M14X45 		9-92061-445-0 08 1 9906-0003
171 BOLT; S/ABS BRKT
FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> FORWARD M14X45 		9-92061-445-0 08 1 0004-
171 BOLT; S/ABS BRKT
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> FORWARD M14X40 		9-92061-440-0 08 1 9606-9905
171 BOLT; S/ABS BRKT
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,LIGHT DUTY PACKAGE TRUCK(Y21) FORWARD M14X40 		9-92061-440-0 08 1 9906-0003
171 BOLT; S/ABS BRKT
EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> FORWARD M14X40 		9-92061-440-0 08 1 0004-
172 WASHER; PL,S/ABS BRKT
FORWARD ID=21 		9-09160-520-0 04 1 9606-
172 WASHER; PL,S/ABS BRKT
REARWARD ID=15 		9-09651-069-0 16 1 9606-9706
172 WASHER; PL,S/ABS BRKT
FRAME EQUIPMENT HEAVY DUTY<F03> REARWARD ID=15 		9-09651-069-0 16 1 9707-9905
172 WASHER; PL,S/ABS BRKT
6WA1 TC-S(56L) WHEEL BASE 6600MM(66W) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> REARWARD ID=15 		9-09651-069-0 16 1 9707-9905
172 WASHER; PL,S/ABS BRKT
6WA1 TC-S(56L) WHEEL BASE 6600MM(66W) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,LIGHT DUTY PACKAGE TRUCK(Y21) REARWARD ID=15 		9-09651-069-0 16 1 9906-0003
172 WASHER; PL,S/ABS BRKT
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> REARWARD ID=15 		9-09651-069-0 16 1 9906-0003
172 WASHER; PL,S/ABS BRKT
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> REARWARD ID=15 		9-09651-069-0 16 1 9906-0003
172 WASHER; PL,S/ABS BRKT
6WA1 TC-S(56L) WHEEL BASE 6600MM(66W) EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> REARWARD ID=15 		9-09651-069-0 16 1 0004-
172 WASHER; PL,S/ABS BRKT
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> REARWARD ID=15 		9-09651-069-0 16 1 0004-
172 WASHER; PL,S/ABS BRKT
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> REARWARD ID=15 		9-09651-069-0 16 1 0004-
173 NUT; S/ABS
(A) LOWER M20 		9-99110-420-0 04 1 9606-
173 NUT; S/ABS
(B) UPPER M14 		9-99110-514-0 16 1 9606-9706
173 NUT; S/ABS
(B) UPPER M14 		9-99110-514-0 08 1 9707-0003
173 NUT; S/ABS
(B) UPPER M14 		9-99110-514-0 08 1 9707-0003
173 NUT; S/ABS
(B) UPPER M14 		9-99110-514-0 08 1 0004-
173 NUT; S/ABS
6WA1 TC-S(56L) WHEEL BASE 6600MM(66W) EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> (B) UPPER M14 		9-99110-514-0 08 1 0004-
173 NUT; S/ABS
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) UPPER M14 		9-99110-514-0 08 1 0004-
173 NUT; S/ABS
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> (B) UPPER M14 		9-99110-514-0 08 1 0004-
174 WASHER; LK,S/ABS
UPPER ID=14.2 		9-09150-614-0 08 1 9606-
178 PIN; SPLIT,S/ABS
OD=3.7 L=35 		9-08114-035-0 04 1 9606-
179 PIN 1-51682-094-1 04 1 9606-
180 WASHER; PL,PIN 1-09503-169-0 04 1 9606-
181 WASHER; LK,PIN
ID=24.5 		9-09150-524-0 04 1 9606-
182 NUT; S/ABS LWR
FORWARD M24 		9-99110-424-0 02 1 9606-
183 SHACKLE; FRT SUSP 1-51162-029-4 04 1 9606-
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 24 1 9609-
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 04 1 9606-
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-088-0 04 1 9606-
193 NUT; U BOLT
M22 		9-09112-822-0 16 1 9606-
197 PIN; FRT SPR,FRT 1-51161-031-0 12 1 9606-
201 NUT; PIN LK
(A) REARWARD M24 		9-99110-424-0 02 1 9606-
201 NUT; PIN LK
(B) M12 FLANGE 		0-91150-212-0 24 1 9607-9608
201 NUT; PIN LK
(B) M12 		9-99110-512-0 24 1 9609-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 12 1 9606-
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 24 1 9606-
207 BOLT; SPR TO SHACKLE
M12X80 		0-28081-280-0 24 1 9607-9608
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 24 1 9609-
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-269-1 08 1 9606-
211 WASHER; BRKT,SHOCK
(A) ID=27 		9-51631-027-0 02 1 9606-
211 WASHER; BRKT,SHOCK
(B) ID=21 		9-51631-028-0 02 1 9606-
212 NIPPLE; GREASE,ELBOW
10PE1S(60L) (A) PT1/8 STRAIGHT 		9-09031-010-0 05 1 9606-9905
212 NIPPLE; GREASE,ELBOW
10PE1N(61L) (A) PT1/8 STRAIGHT 		9-09031-010-0 05 1 9906-
212 NIPPLE; GREASE,ELBOW
10PE1S(60L) (B) PT1/8 ELBOW 		9-09031-210-0 07 1 9606-9905
212 NIPPLE; GREASE,ELBOW
10PE1N(61L) (B) PT1/8 ELBOW 		9-09031-210-0 07 1 9906-
212 NIPPLE; GREASE,ELBOW
6WA1 TC-S(56L),6WG1 TC-N(71L) (A) PT1/8 STRAIGHT 		9-09031-010-0 09 1 9606-9905
212 NIPPLE; GREASE,ELBOW
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (A) PT1/8 STRAIGHT 		9-09031-010-0 09 1 9906-
212 NIPPLE; GREASE,ELBOW
6WA1 TC-S(56L),6WG1 TC-N(71L) (B) PT1/8 ELBOW 		9-09031-210-0 03 1 9606-9905
212 NIPPLE; GREASE,ELBOW
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (B) PT1/8 ELBOW 		9-09031-210-0 03 1 9906-

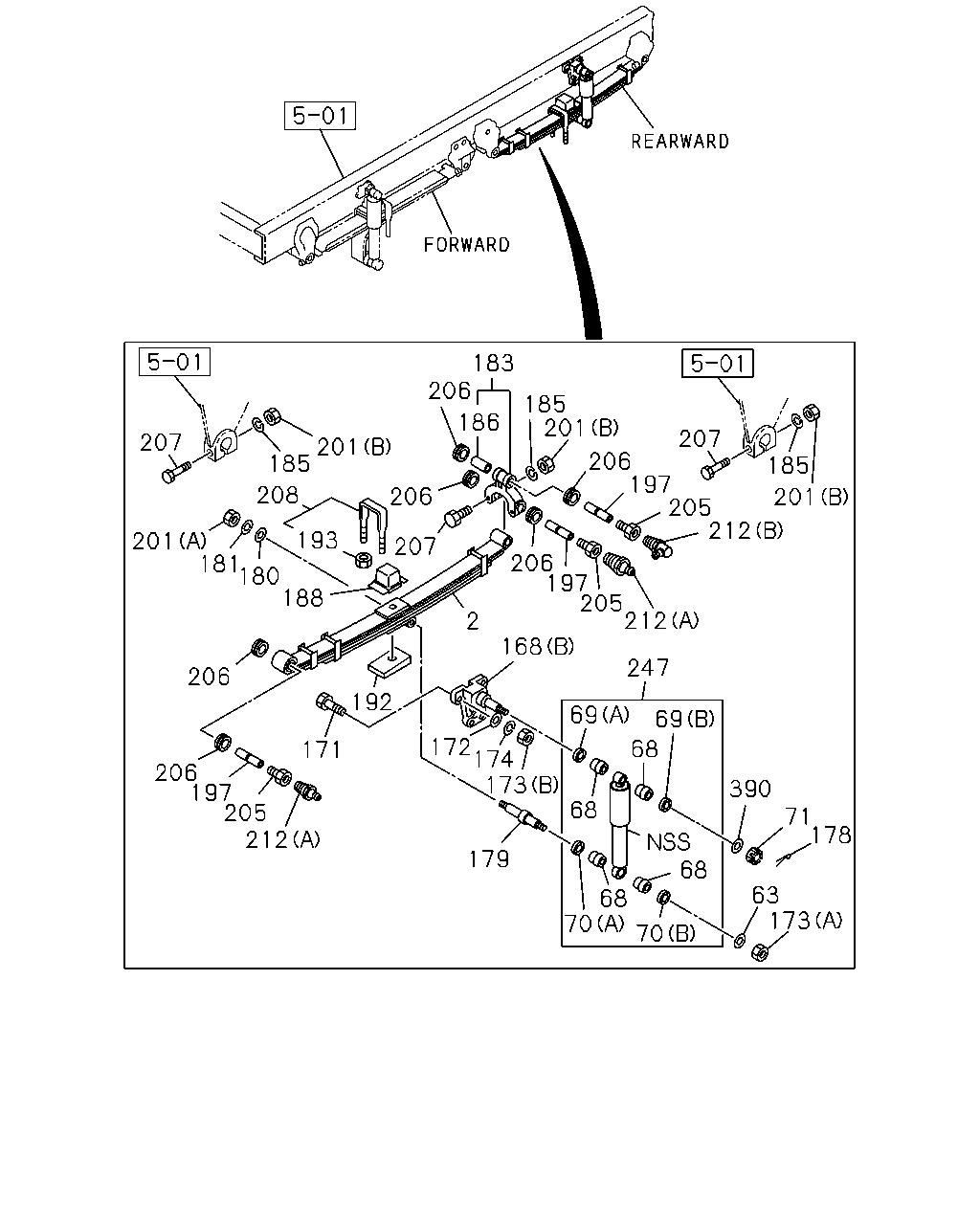

çizim 6920
183 206 185 201 186 207 207 201 185 206 197 205 212 185 208 206 201 193 201 181 180 188 207 206 197 205 212 2 168 247 206 192 172 174 173 69 69 68 171 206 197 205 212 390 68 71 178 68 179 63 173 68 70 70
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. REARWARD 10-LEAF 		1-51130-230-0 02 1 9606-0011
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. NEW ZEALAND EQUIPMENT(PK5) REARWARD 10-LEAF 		1-51130-230-0 02 1 0012-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. FORWARD 10-LEAF 		1-51130-417-0 02 1 9606-0011
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. EXC. NEW ZEALAND EQUIPMENT(PK5) FORWARD 10-LEAF 		1-51130-417-0 02 1 0012-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. NEW ZEALAND EQUIPMENT(PK5) FORWARD 3-LEAF 		1-51130-778-0 02 1 0012-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. NEW ZEALAND EQUIPMENT(PK5) REARWARD 3-LEAF 		1-51130-779-0 02 1 0012-
63 WASHER; PL,S/ABS,LWR
REARWARD ID=21 		9-09160-520-0 02 1 9606-
68 BUSHING; S/ABS 9-51631-026-0 16 1 9606-
69 WASHER; UPR,S/ABS
(A) ID=27 		9-51631-027-0 02 1 9606-
69 WASHER; UPR,S/ABS
(B) ID=21 		9-51631-028-0 02 1 9606-
70 WASHER; LWR,S/ABS
(A) ID=27 		9-51631-027-0 02 1 9606-
70 WASHER; LWR,S/ABS
(B) ID=21 		9-51631-028-0 02 1 9606-
71 NUT; LK,S/ABS,UPR
M20 SLOTTED 		9-99116-420-0 02 1 9606-
168 BRACKET; S/ABS,FRT SUSP
(A) FORWARD 		1-51681-321-2 02 1 9606-9612
168 BRACKET; S/ABS,FRT SUSP
(A) FORWARD 		1-51681-745-0 02 1 9701-
168 BRACKET; S/ABS,FRT SUSP
(B) REARWARD 		1-51681-634-0 02 1 9606-9612
168 BRACKET; S/ABS,FRT SUSP
(B) REARWARD 		1-51681-746-0 02 1 9701-
171 BOLT; S/ABS BRKT
REARWARD M14X50 		9-92061-450-0 08 1 9606-9706
171 BOLT; S/ABS BRKT
FRAME EQUIPMENT HEAVY DUTY<F03> REARWARD M14X50 		9-92061-450-0 08 1 9707-9905
171 BOLT; S/ABS BRKT
6WA1 TC-S(56L) WHEEL BASE 6600MM(66W) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> REARWARD M14X50 		9-92061-450-0 08 1 9707-9905
171 BOLT; S/ABS BRKT
6WA1 TC-S(56L) WHEEL BASE 6600MM(66W) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,LIGHT DUTY PACKAGE TRUCK(Y21) REARWARD M14X50 		9-92061-450-0 08 1 9906-0003
171 BOLT; S/ABS BRKT
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> REARWARD M14X50 		9-92061-450-0 08 1 9906-0003
171 BOLT; S/ABS BRKT
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> REARWARD M14X50 		9-92061-450-0 08 1 9906-0003
171 BOLT; S/ABS BRKT
6WA1 TC-S(56L) WHEEL BASE 6600MM(66W) EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> REARWARD M14X50 		9-92061-450-0 08 1 0004-
171 BOLT; S/ABS BRKT
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> REARWARD M14X50 		9-92061-450-0 08 1 0004-
171 BOLT; S/ABS BRKT
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> REARWARD M14X50 		9-92061-450-0 08 1 0004-
171 BOLT; S/ABS BRKT
FRAME EQUIPMENT HEAVY DUTY<F03> FORWARD M14X45 		9-92061-445-0 08 1 9606-9905
171 BOLT; S/ABS BRKT
FRAME EQUIPMENT HEAVY DUTY<F03> FORWARD M14X45 		9-92061-445-0 08 1 9906-0003
171 BOLT; S/ABS BRKT
LIGHT DUTY PACKAGE TRUCK(Y21) FORWARD M14X45 		9-92061-445-0 08 1 9906-0003
171 BOLT; S/ABS BRKT
FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> FORWARD M14X45 		9-92061-445-0 08 1 0004-
171 BOLT; S/ABS BRKT
EXC. FRAME EQUIPMENT HEAVY DUTY<F03> FORWARD M14X40 		9-92061-440-0 08 1 9606-9905
171 BOLT; S/ABS BRKT
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,LIGHT DUTY PACKAGE TRUCK(Y21) FORWARD M14X40 		9-92061-440-0 08 1 9906-0003
171 BOLT; S/ABS BRKT
EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> FORWARD M14X40 		9-92061-440-0 08 1 0004-
172 WASHER; PL,S/ABS BRKT
FORWARD ID=21 		9-09160-520-0 04 1 9606-
172 WASHER; PL,S/ABS BRKT
REARWARD ID=15 		9-09651-069-0 16 1 9606-9706
172 WASHER; PL,S/ABS BRKT
FRAME EQUIPMENT HEAVY DUTY<F03> REARWARD ID=15 		9-09651-069-0 16 1 9707-9905
172 WASHER; PL,S/ABS BRKT
6WA1 TC-S(56L) WHEEL BASE 6600MM(66W) EXC. FRAME EQUIPMENT HEAVY DUTY<F03> REARWARD ID=15 		9-09651-069-0 16 1 9707-9905
172 WASHER; PL,S/ABS BRKT
6WA1 TC-S(56L) WHEEL BASE 6600MM(66W) EXC. FRAME EQUIPMENT HEAVY DUTY<F03>,LIGHT DUTY PACKAGE TRUCK(Y21) REARWARD ID=15 		9-09651-069-0 16 1 9906-0003
172 WASHER; PL,S/ABS BRKT
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> REARWARD ID=15 		9-09651-069-0 16 1 9906-0003
172 WASHER; PL,S/ABS BRKT
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> REARWARD ID=15 		9-09651-069-0 16 1 9906-0003
172 WASHER; PL,S/ABS BRKT
6WA1 TC-S(56L) WHEEL BASE 6600MM(66W) EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> REARWARD ID=15 		9-09651-069-0 16 1 0004-
172 WASHER; PL,S/ABS BRKT
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> REARWARD ID=15 		9-09651-069-0 16 1 0004-
172 WASHER; PL,S/ABS BRKT
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> REARWARD ID=15 		9-09651-069-0 16 1 0004-
173 NUT; S/ABS
(A) LOWER M20 		9-99110-420-0 04 1 9606-
173 NUT; S/ABS
(B) UPPER M14 		9-99110-514-0 16 1 9606-9706
173 NUT; S/ABS
(B) UPPER M14 		9-99110-514-0 08 1 9707-0003
173 NUT; S/ABS
(B) UPPER M14 		9-99110-514-0 08 1 9707-0003
173 NUT; S/ABS
(B) UPPER M14 		9-99110-514-0 08 1 0004-
173 NUT; S/ABS
6WA1 TC-S(56L) WHEEL BASE 6600MM(66W) EXC. FRAME EQUIPMENT HEAVY DUTY<F01>,FRAME EQUIPMENT HEAVY DUTY<F03> (B) UPPER M14 		9-99110-514-0 08 1 0004-
173 NUT; S/ABS
10PE1N(61L) FRAME EQUIPMENT HEAVY DUTY<F03> EXC. FRAME ENG MTG SEPARATE TYPE<SGM> (B) UPPER M14 		9-99110-514-0 08 1 0004-
173 NUT; S/ABS
6WA1 TC-C(55L) FRAME EQUIPMENT HEAVY DUTY<F03> (B) UPPER M14 		9-99110-514-0 08 1 0004-
174 WASHER; LK,S/ABS
UPPER ID=14.2 		9-09150-614-0 08 1 9606-
178 PIN; SPLIT,S/ABS
OD=3.7 L=35 		9-08114-035-0 04 1 9606-
179 PIN 1-51682-094-1 04 1 9606-
180 WASHER; PL,PIN 1-09503-169-0 04 1 9606-
181 WASHER; LK,PIN
ID=24.5 		9-09150-524-0 04 1 9606-
183 SHACKLE; FRT SUSP 1-51162-029-4 04 1 9606-
185 WASHER; LK,PIN
ID=12.2 		9-09150-612-0 24 1 9609-
186 BUSHING; SHACKLE
OD=38 		1-51351-009-0 04 1 9606-
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-088-0 04 1 9606-
192 PIECE; DIST
REARWARD 		1-51177-281-0 02 1 9606-
193 NUT; U BOLT
M22 		9-09112-822-0 16 1 9606-
197 PIN; FRT SPR,FRT 1-51161-031-0 12 1 9606-
201 NUT; PIN LK
(A) REARWARD M24 		9-99110-424-0 02 1 9606-
201 NUT; PIN LK
(B) M12 FLANGE 		0-91150-212-0 24 1 9607-9608
201 NUT; PIN LK
(B) M12 		9-99110-512-0 24 1 9609-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 12 1 9606-
206 WASHER; LK,SPRING PIN
ID=32.4 		1-51169-018-0 24 1 9606-
207 BOLT; SPR TO SHACKLE
M12X80 		0-28081-280-0 24 1 9607-9608
207 BOLT; SPR TO SHACKLE
M12X80 		0-10806-280-0 24 1 9609-
208 U-BOLT SET; FRT SPRING
L=230 		1-87870-269-1 08 1 9606-
212 NIPPLE; GREASE,ELBOW
10PE1S(60L) (A) PT1/8 STRAIGHT 		9-09031-010-0 05 1 9606-9905
212 NIPPLE; GREASE,ELBOW
10PE1N(61L) (A) PT1/8 STRAIGHT 		9-09031-010-0 05 1 9906-
212 NIPPLE; GREASE,ELBOW
10PE1S(60L) (B) PT1/8 ELBOW 		9-09031-210-0 07 1 9606-9905
212 NIPPLE; GREASE,ELBOW
10PE1N(61L) (B) PT1/8 ELBOW 		9-09031-210-0 07 1 9906-
212 NIPPLE; GREASE,ELBOW
6WA1 TC-S(56L),6WG1 TC-N(71L) (A) PT1/8 STRAIGHT 		9-09031-010-0 09 1 9606-9905
212 NIPPLE; GREASE,ELBOW
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (A) PT1/8 STRAIGHT 		9-09031-010-0 09 1 9906-
212 NIPPLE; GREASE,ELBOW
6WA1 TC-S(56L),6WG1 TC-N(71L) (B) PT1/8 ELBOW 		9-09031-210-0 03 1 9606-9905
212 NIPPLE; GREASE,ELBOW
6WA1 TC-C(55L),6WA1 TC-S(56L),6WG1 TC-C(72L) (B) PT1/8 ELBOW 		9-09031-210-0 03 1 9906-
247 ABSORBER ASM; SHOCK,RWD FRT
REARWARD 		1-51630-443-0 02 1 9606-
390 WASHER; PL,S/ABS,UPR
ID=21 		9-09160-520-0 02 1 9606-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
