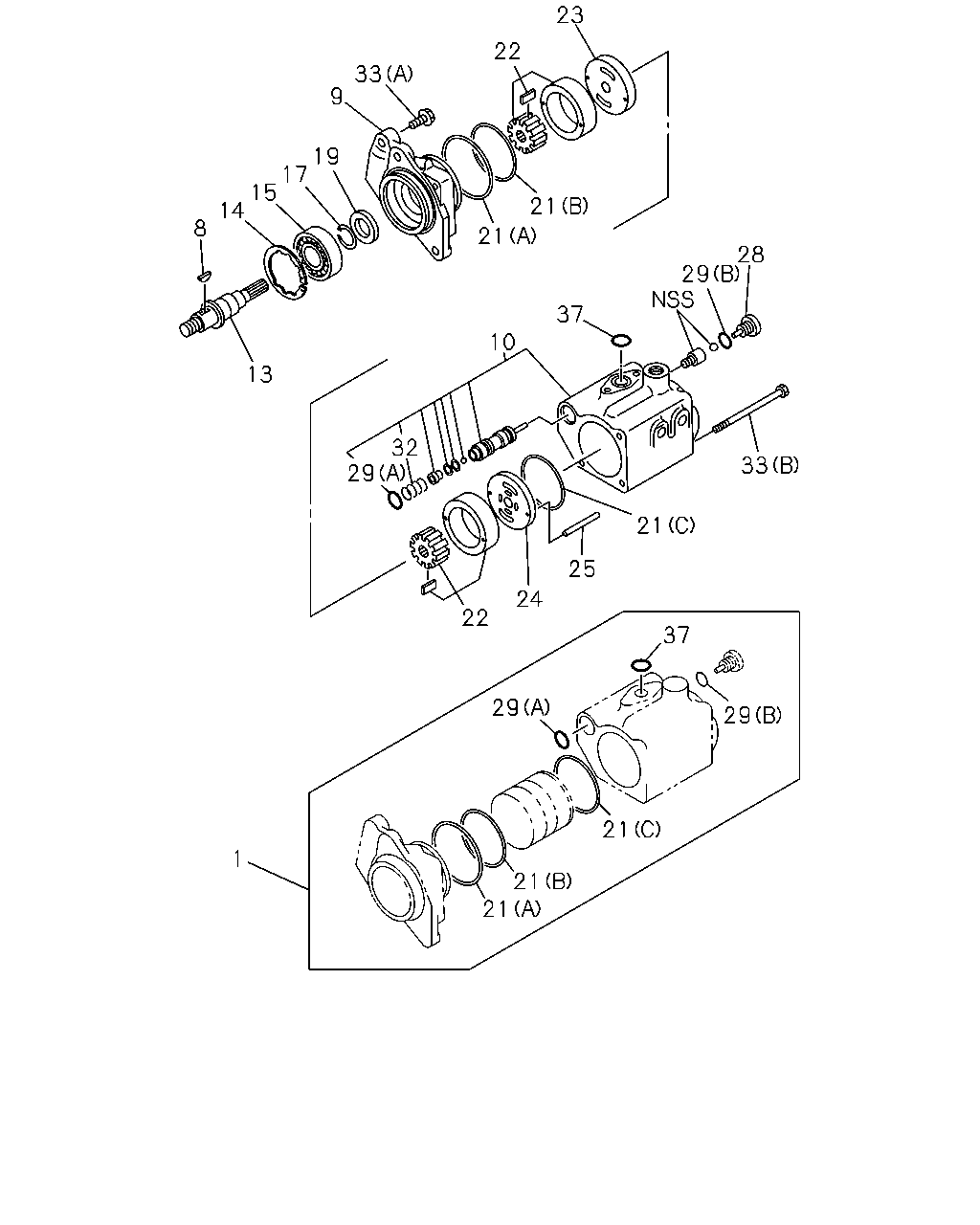

4-42 — POWER STEERING OIL PUMP (#5124) — 24 parça

23 22 33 9 19 17 15 14 21 8 21 28 29 37 10 13 32 29 33 21 25 24 22 37 29 29 21 1 21 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; OIL PUMP ASM PART: A = 1-19500-505-2	1-85574-032-0	01	1	-
8	KEY; SHAFT,OIL PUMP ASM PART: A = 1-19500-505-2	9-19519-036-0	01	1	-
9	BODY ASM; FRT,OIL PUMP ASM PART: A = 1-19500-505-2	1-19511-111-2	01	1	-0003
9	BODY ASM; FRT,OIL PUMP ASM PART: A = 1-19500-505-2	1-19511-175-0	01	1	0004-
10	BODY ASM; RR,OIL PUMP ASM PART: A = 1-19500-505-2	1-19511-140-1	01	1	-
13	SHAFT KIT; RET ASM PART: A = 1-19500-505-2	1-19521-032-0	01	1	-
14	RING; RET,OIL PUMP ASM PART: A = 1-19500-505-2	1-19519-172-0	01	1	-
15	BEARING; BALL,OIL PUMP ASM PART: A = 1-19500-505-2	1-19515-004-0	01	1	-
17	RING; RET ASM PART: A = 1-19500-505-2	1-19519-094-0	01	1	-
19	SEAL; OIL,OIL PUMP ASM PART: A = 1-19500-505-2	1-19519-252-0	01	1	-
21	GASKET; FRT COVER TO BODY (A) ASM PART: A = 1-19500-505-2	1-19519-290-0	01	1	-
21	GASKET; FRT COVER TO BODY (B) ASM PART: A = 1-19500-505-2	1-19519-295-0	01	1	-
21	GASKET; FRT COVER TO BODY (C) ASM PART: A = 1-19500-505-2	1-19519-296-0	01	1	-
22	CARTRIDGE ASM; OIL PUMP ASM PART: A = 1-19500-505-2	1-19519-322-0	02	1	-
23	PLATE; SIDE,OIL PUMP ASM PART: A = 1-19500-505-2	1-19519-282-1	01	1	-
24	PLATE ASM; THRUST ASM PART: A = 1-19500-505-2	1-19515-015-0	01	1	-
25	PIN; HSG,P/S ASM PART: A = 1-19500-505-2	1-33739-594-0	02	1	-
28	PLUG; DRAIN,OIL PUMP ASM PART: A = 1-19500-505-2	1-19519-297-0	01	1	-
29	GASKET; PLUG TO VLV (A) ASM PART: A = 1-19500-505-2	1-19519-289-0	01	1	-
29	GASKET; PLUG TO VLV (B) ASM PART: A = 1-19500-505-2	1-19519-298-0	01	1	-
32	SPRING; OIL PUMP ASM PART: A = 1-19500-505-2	1-19519-288-0	01	1	-
33	BOLT; COVER (A) ASM PART: A = 1-19500-505-2	1-19519-243-0	01	1	-
33	BOLT; COVER (B) ASM PART: A = 1-19500-505-2	1-19519-291-0	03	1	-
37	GASKET; PIPE CONN,OIL PUMP ASM PART: A = 1-19500-505-2	1-19519-292-0	01	1	-
